Isuzu giga series dump truck in Manila Philippines
The Isuzu GIGA 6x4 dump truck in Manila Philippines is a powerful workhorse truck that comes in a 6x4 configuration, equipped with a 420HP engine and has a load capacity of up to 25 tons. Its rugged design and powerful performance make it an indispensable asset for construction and logistics operations in the bustling city.
Work capacity:
25 cbmTruck model:
PT5340GYWEngine power:
420HPEngine type:
6WG1-TCG52Axle drive:
6x4,LHDGear box:
Fast 12-shift gearboxRemarks:
Large capacity dump box.
Isuzu giga series dump truck in Manila Philippines also called Isuzu GIGA 6x4 dump truck,Isuzu 6x4 25tons dumper truck,Isuzu GIGA tipper truck for Philippines,Isuzu GIGA tipper lorry truck,Isuzu 6x4 heavy-duty dump truck.
The Isuzu Giga Series dump truck in Manila Philippines, specifically the 6x4 variant with a 420HP engine and a 25-ton capacity, is a formidable presence in the construction and logistics industries in Manila, Philippines. This heavy-duty vehicle is renowned for its exceptional performance, reliability, and versatility, making it a popular choice among businesses and professionals alike.
The Isuzu Giga Series dump truck is a powerful workhorse truck that comes in a 6x4 configuration, equipped with a 420HP engine and has a load capacity of up to 25 tons. Its rugged design and powerful performance make it an indispensable asset for construction and logistics operations in the bustling city. Designed with reliability and efficiency in mind, this truck is able to traverse Manila's diverse terrain with ease, thanks to its 6x4 configuration that provides stability and traction in challenging environments.
The 420HP engine provides the truck with extraordinary strength and flexibility, allowing it to easily tackle steep slopes and tight corners. From transporting construction materials to hauling cargo around the city, the Isuzu Giga Series dump truck excels in meeting the demanding needs of Manila's industrial landscape. Its durable structure, advanced technology, and superior load-carrying capacity make it a trusted partner for companies seeking reliable and powerful heavy-duty transport solutions.
|
Manufacturer |
POWERSTAR Trucks |
|
|
Item |
Isuzu GIGA 6x4 Dump Truck |
|
|
Brand |
Isuzu |
|
|
Model |
PT5340GYW |
|
|
Production Time |
35 days |
|
|
Truck Chassis |
||
|
Specification |
Overall dimensions |
9650*2600*3700 mm |
|
Gross weight |
34,000 kg |
|
|
Kerb weight |
15,500 kg |
|
|
Wheelbase |
4565+1370 mm |
|
|
Driving type |
6*4 |
|
|
Chassis model |
Isuzu GIGA heavy-duty |
|
|
Tire size |
315/80R22.5 |
|
|
Passengers in cab |
3 |
|
|
Max speed |
105km/h |
|
|
Engine |
Engine model |
6WG1-TCG52 |
|
42Type of fuel |
Diesel |
|
|
Power |
420 HP |
|
|
Emission |
Euro 6 |
|
|
Type |
6 cylinders,in-line,4-stroke,water-cooled,turbo inter-cooling,4-valve,diesel engine |
|
|
Displacement |
15681ml |
|
|
Gearbox |
Fast 12-shift gearbox |
|
|
Upper Structure |
||
|
Boom Crane performance |
Dump box size |
6000x2400x1500 |
|
Loading capcity |
25 cbm |
|
|
Body material |
High performance carbon steel |
|
|
Plate thickness |
Side 5mm, bottom 6mm |
|
|
Discharge time |
40S-50S |
|
|
Control |
Hydraulic |
|
|
Lifting system |
Hydraulic cylinder,middle lifting device |
|
|
Tipping angle |
45 degree |
|
|
Hydraulic system pressure |
20Mpa |
|
|
Painting |
Two primers, and one final paint coating |
|
|
Color & LOGO |
According to wish |
|
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards, and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank 5, U-shape dump box 6, Working camera can be equipped |
|
The Isuzu Giga Series dump truck produced by POWERSTAR, stationed in the bustling city of Manila, Philippines, stands as a symbol of reliability and strength in the realm of heavy-duty vehicles. With its robust 6x4 configuration, this truck embodies a steadfast design tailored to navigate the varied terrains and demanding environments prevalent within the urban landscape of Manila. Supported by a formidable 420HP engine, this truck strikes a harmonious balance between power and precision, making it a formidable force in the realm of construction and cargo transportation.
Designed to handle heavy loads, the Isuzu Giga6x4 dump trucks boast an impressive 25-ton capacity, demonstrating their ability to handle large payloads with ease. This capability fits seamlessly with the needs of construction projects, material transport, and industrial operations in Manila, where efficiency and reliability are of utmost importance. Its spacious cargo hold and hydraulic tipping system make loading and unloading materials easy, fast, and efficient, saving time and labor costs.

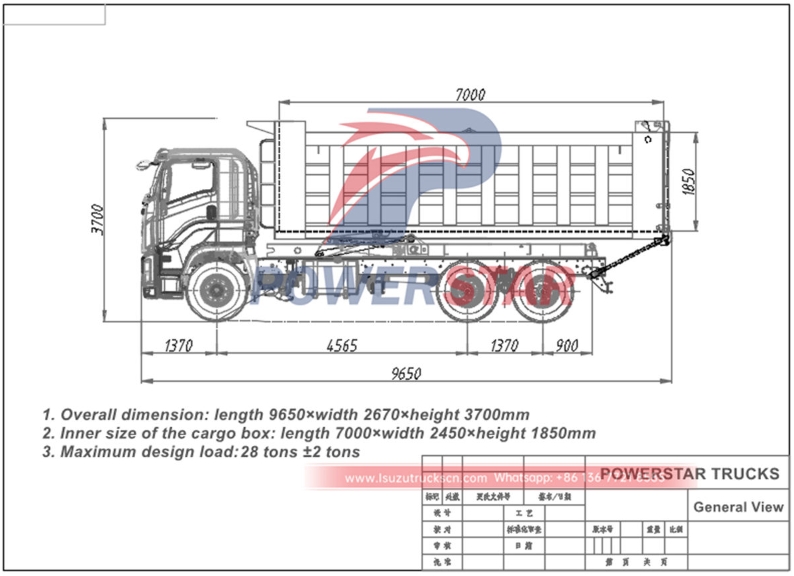

Technical drawing of Isuzu giga series dump truck in Manila Philippines
The sleek yet imposing exterior of the Isuzu Giga 25cbm dumper truck exudes a sense of confidence and functionality. Its robust frame and sturdy build convey a message of durability and ruggedness, attributes necessary for enduring the challenges of Manila's bustling streets and construction sites. The truck's design strikes a perfect harmony between aesthetics and utility, emphasizing both form and function in equal measure.

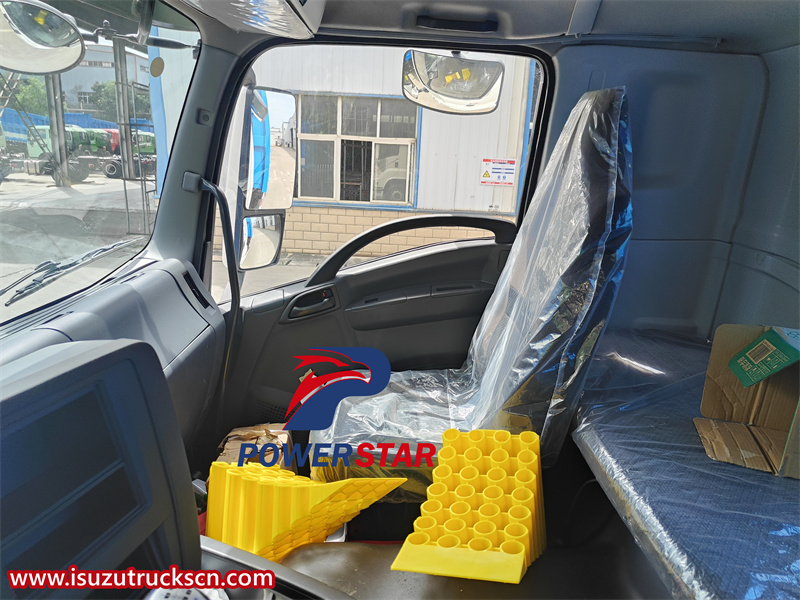

Stepping inside the cabin of the Isuzu Giga 6x4 tipper truck reveals an interior space meticulously crafted to cater to the needs of the driver and occupants. The ergonomic layout of the controls, coupled with the plush seating and advanced technological features, ensures a comfortable and efficient driving experience. With its intuitive dashboard layout and driver-centric design, the cabin serves as a command center from which the driver can effortlessly navigate through Manila's congested roads and unpredictable terrain.

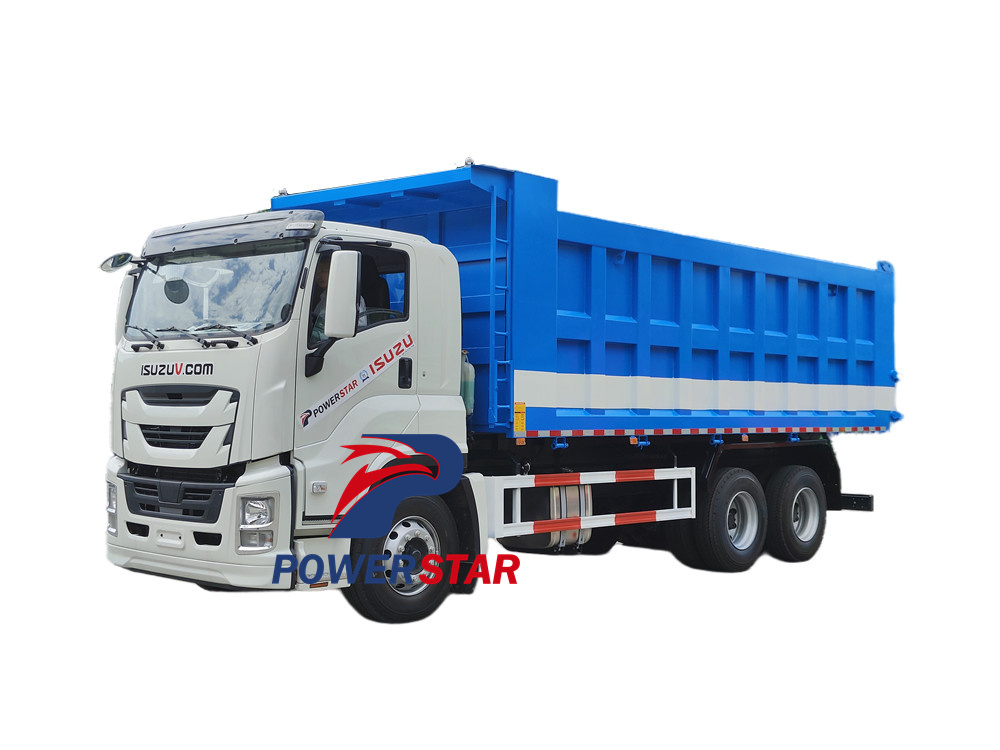

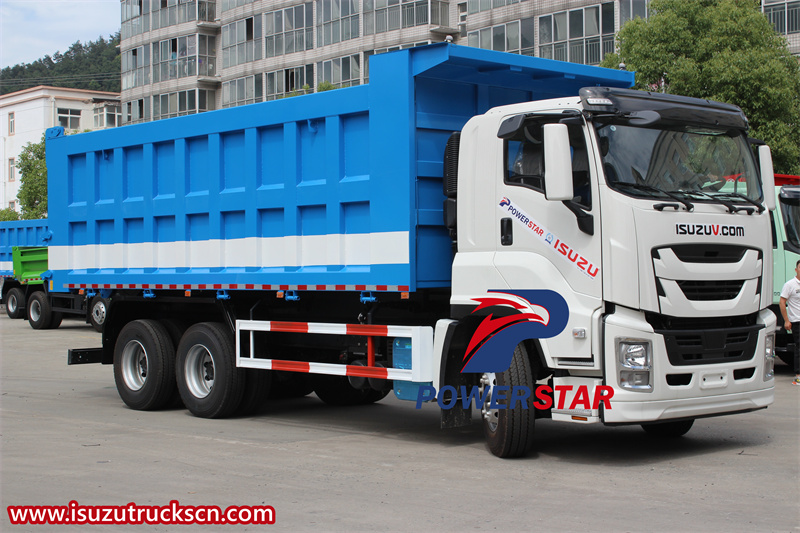

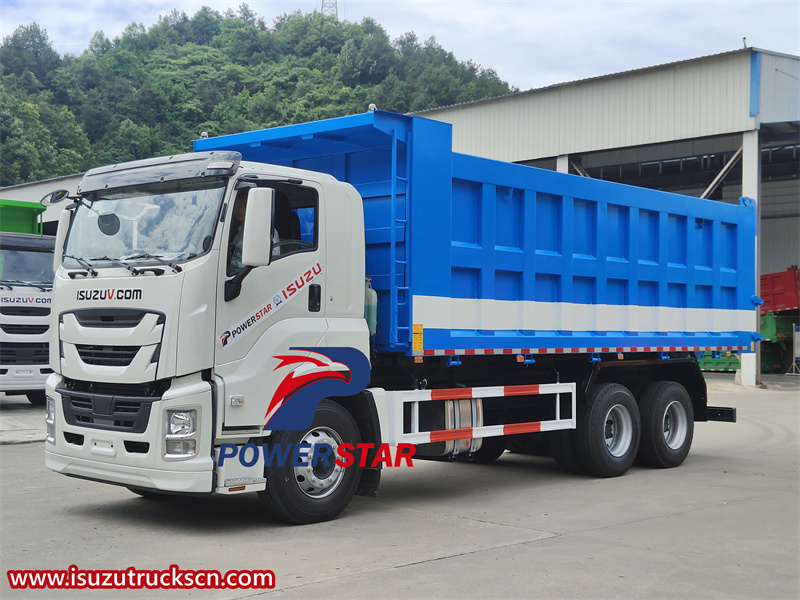

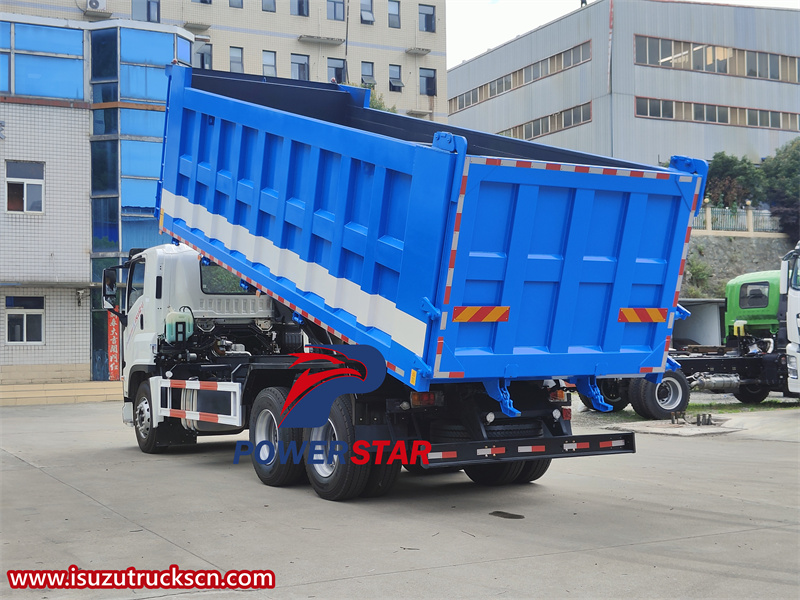

Isuzu GIGA 6x4 dump truck
As the engine roars to life, the 420HP powerhouse of the Isuzu Giga 420HP garbage dump truck springs into action, propelling the vehicle forward with formidable strength and agility. The engine's raw power, combined with precise engineering, enables the truck to accelerate swiftly, ascend steep inclines effortlessly, and maneuver through tight corners with finesse. This potent combination of power and performance allows the truck to tackle diverse challenges encountered on Manila's roads and construction sites with unparalleled efficiency.
The 6x4 configuration of the Isuzu 6x4 tipper lorry truck plays a pivotal role in enhancing its traction, stability, and overall performance on Manila's varied terrain. With six wheels driving the vehicle and four wheels steering it, this configuration offers optimal balance and control, ensuring superior handling and maneuverability in both urban and off-road settings. Whether navigating through Manila's densely populated streets or traversing rugged construction sites, the 6x4 setup empowers the truck to maintain stability and traction, even under challenging conditions.

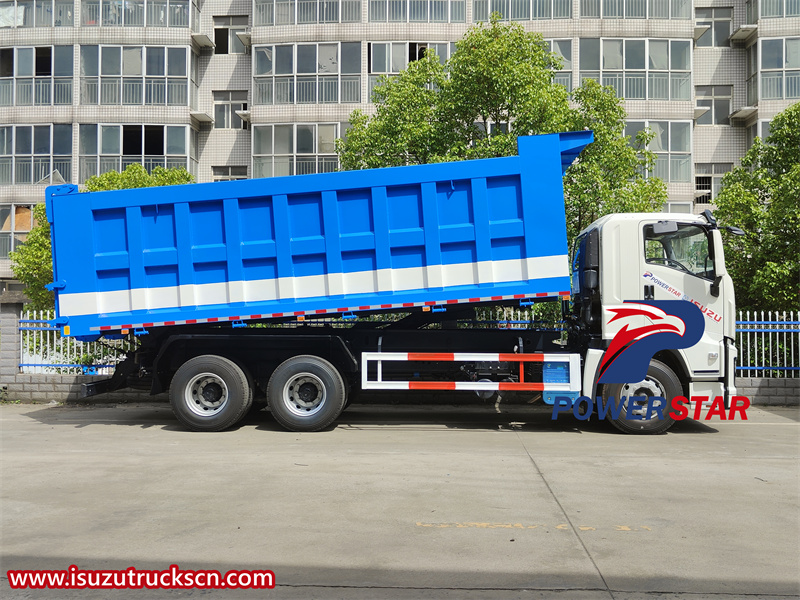

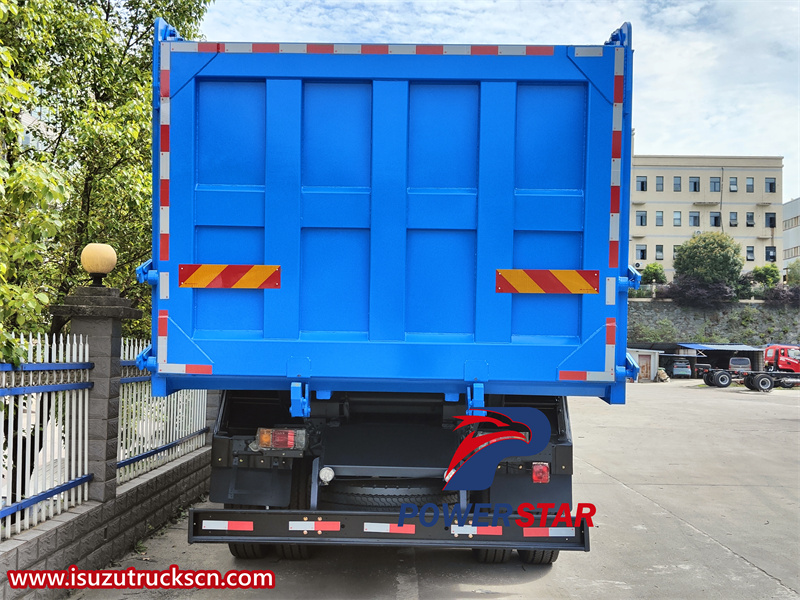

Isuzu 6x4 25tons dumper truck
The Isuzu Giga dumper truck's 25-ton capacity is a testament to its exceptional load-bearing capabilities, making it a reliable workhorse for transporting heavy cargo across Manila. Whether hauling construction materials, aggregate, or waste, this truck can accommodate substantial loads without compromising on performance or efficiency. Its robust chassis and suspension system are engineered to withstand the rigors of heavy-duty operations, ensuring reliable transportation of goods throughout Manila's bustling metropolis.
In Manila, where efficiency and productivity are essential for keeping pace with the city's rapid development, the Isuzu 6x4 heavy-duty dump truck emerges as a preferred choice for construction companies, logistics providers, and industrial enterprises. Its unmatched combination of power, capacity, and reliability makes it a valuable asset in fulfilling the demanding transportation needs of Manila's dynamic economic landscape.
Isuzu GIGA tipper truck for Philippines

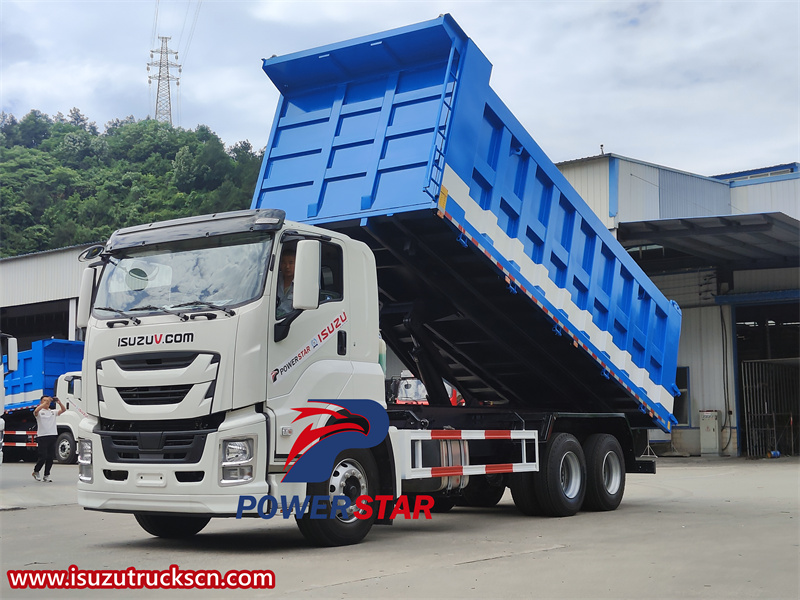

Isuzu 6x4 420HP tipper truck
As the Isuzu GIGA Series dump truck traverses the streets of Manila, its commanding presence and formidable performance capture the attention of onlookers and industry professionals alike. The truck's striking appearance, coupled with its superior capabilities, solidify its reputation as a premier choice for heavy-duty applications in the city's construction, infrastructure, and logistics sectors.
The Isuzu GIGA tipper truck for Philippines, with its 6x4 configuration, 420HP engine, and 25-ton capacity, embodies the perfect blend of strength, efficiency, and reliability tailored to thrive in the bustling urban environment of Manila, Philippines. Its robust design, powerful performance, and unmatched versatility position it as a dominant force in the realm of heavy-duty transportation, setting a new standard for excellence in the industry.

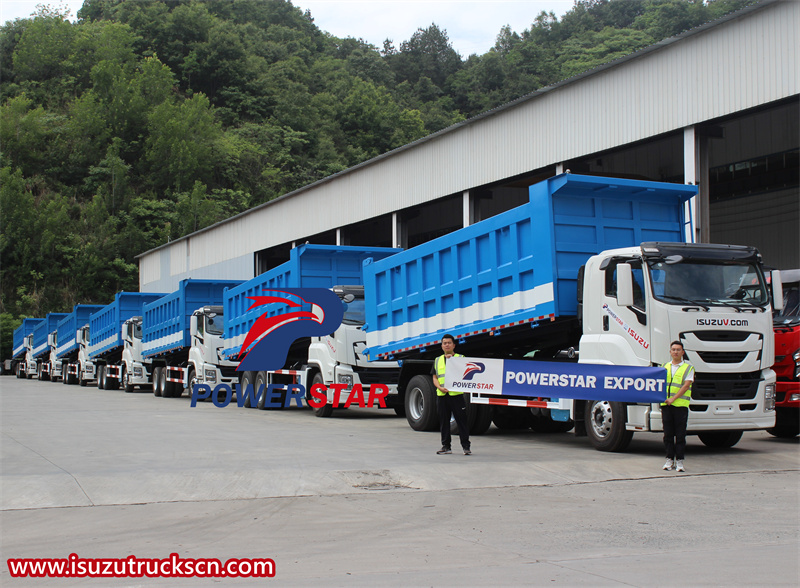

Batch Isuzu GIGA 6x4 dump truck for Pilippines

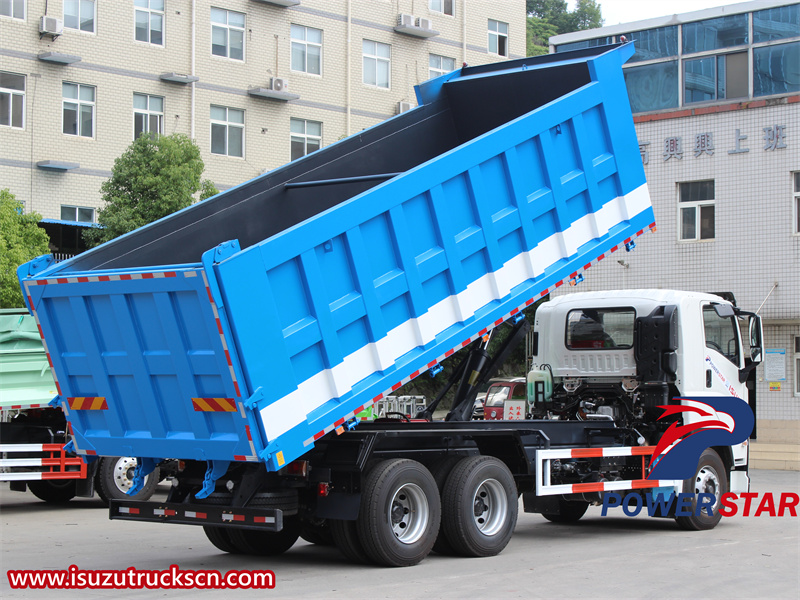

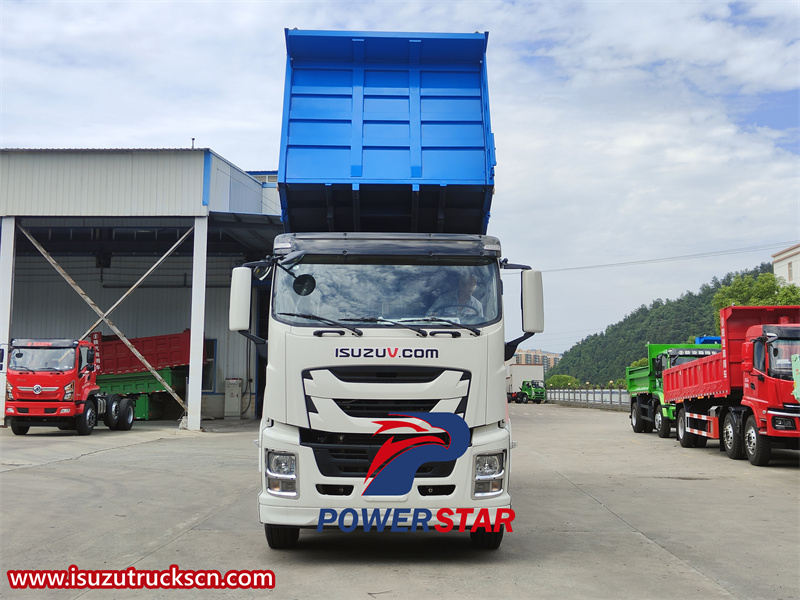

Isuzu GIGA dump lorry truck

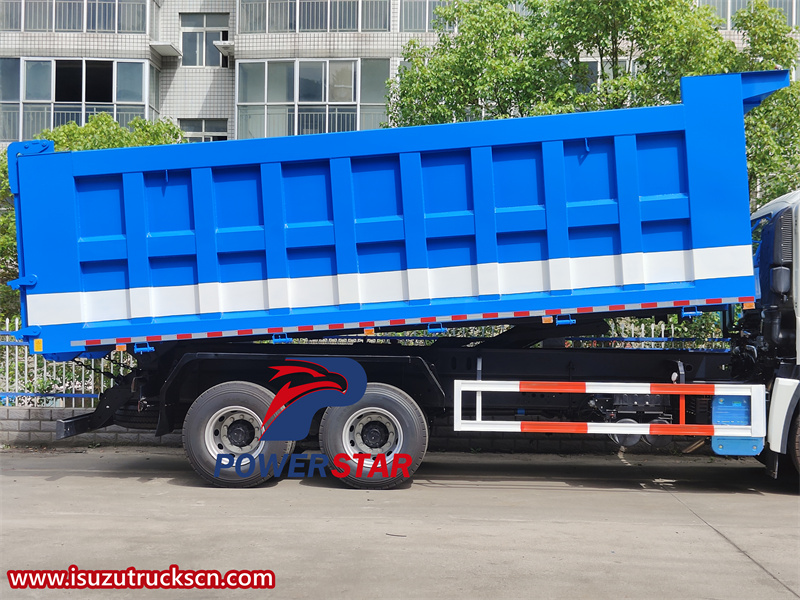

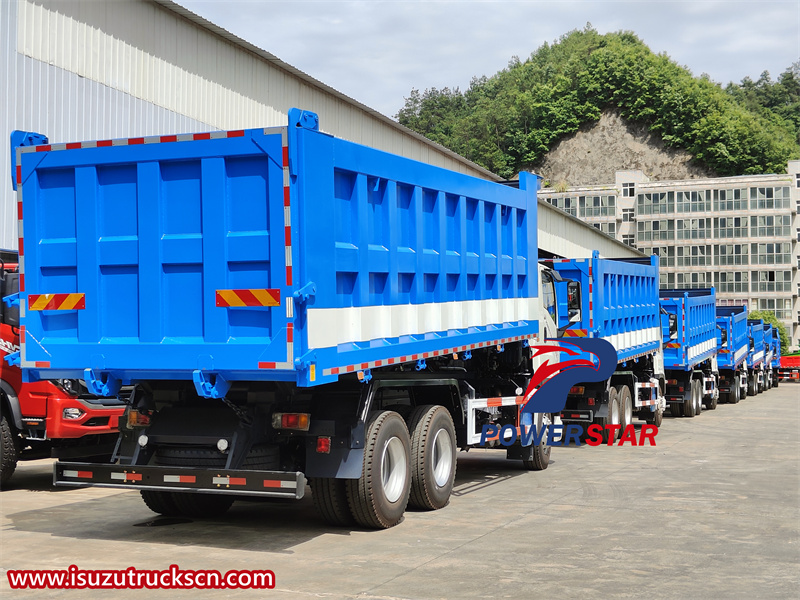

Reinforced dump box

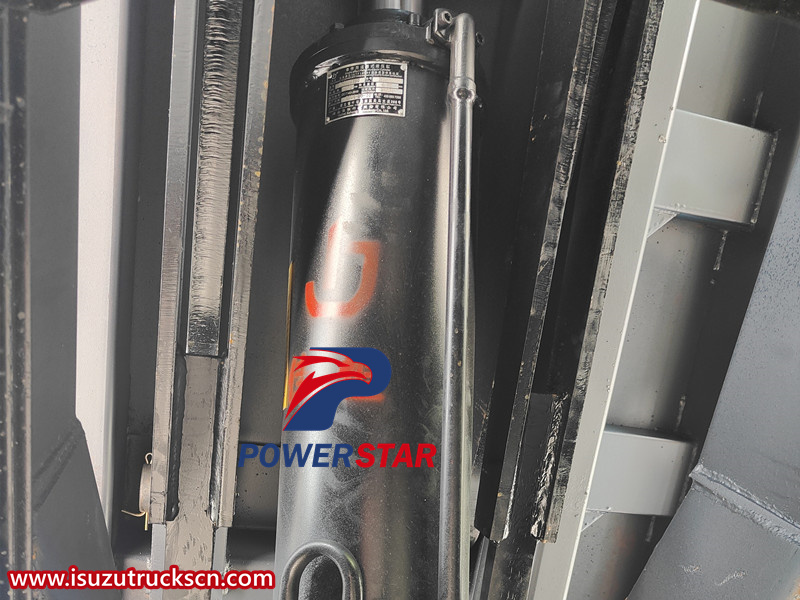

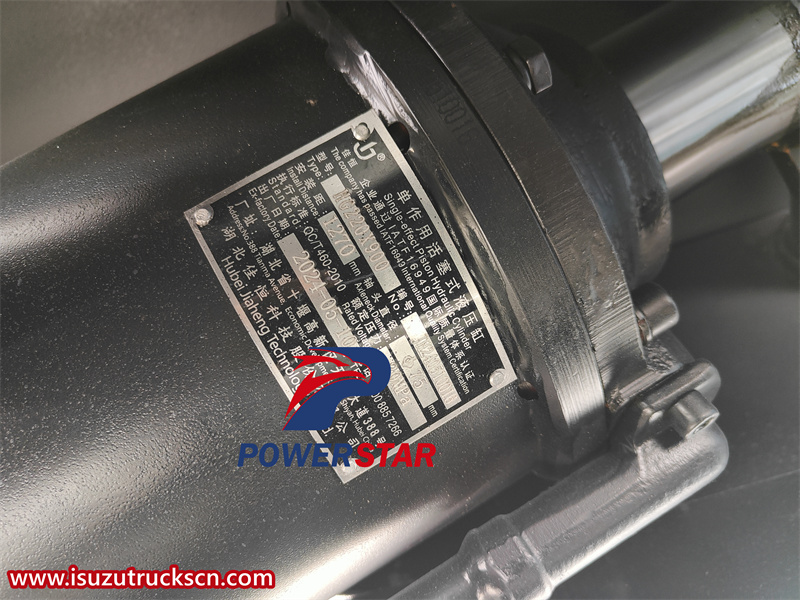

Hydraulic cylinder

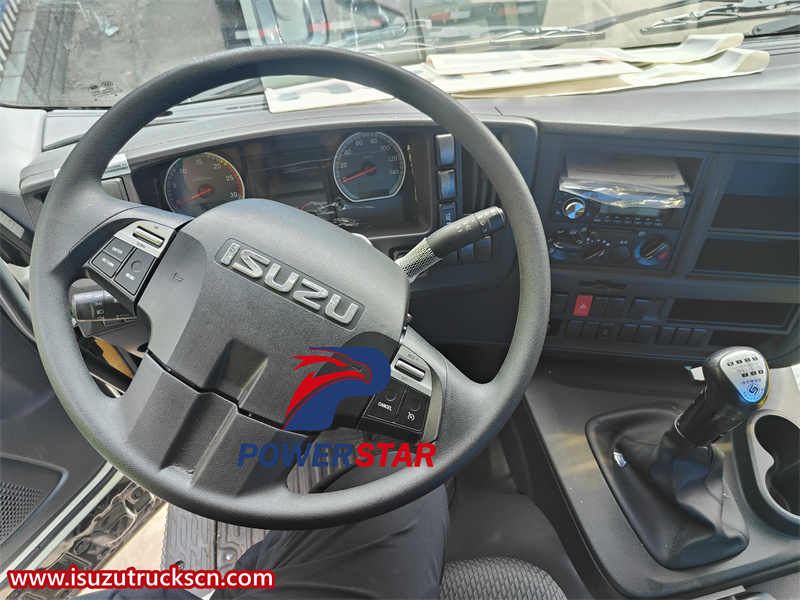

Steering wheel

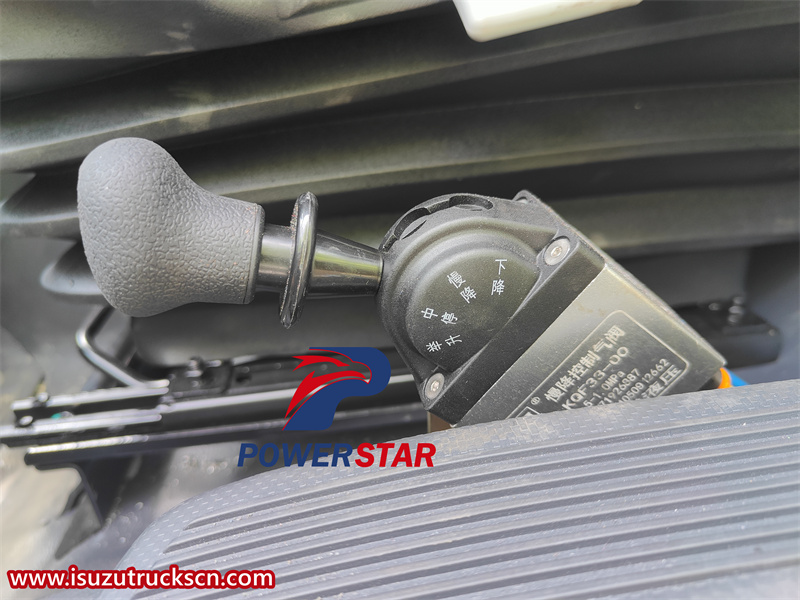

Slow drop control valve
