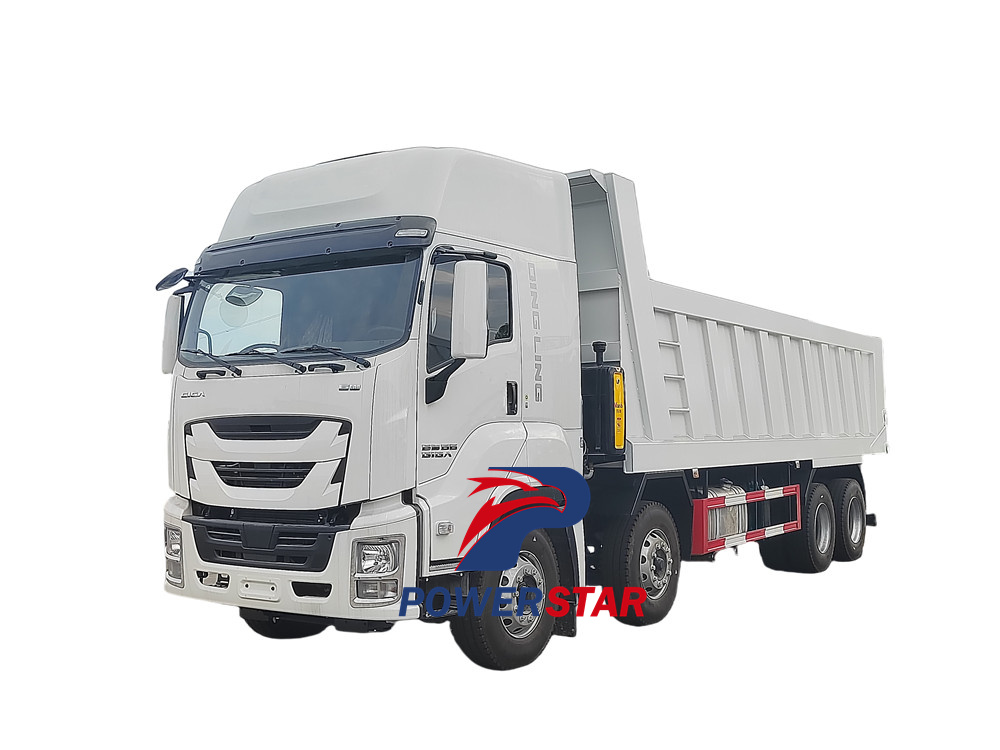

The Isuzu 40T mining dump truck is a heavy-duty vehicle designed to meet the demanding needs of mining and construction sites. Its sturdy chassis, powerful engine and wide bed make it an essential tool for transporting large quantities of minerals and rocks. The truck's excellent stability and maneuverability make it an ideal choice for mining operations. With its durable structure and reliable performance, the dump truck is an excellent investment for any mining company looking to improve operational efficiency and productivity.
Work capacity:
40TTruck model:
PT5400GWTEngine power:
460HPEngine type:
6WG1-TCG61Axle drive:
8x4,LHDGear box:
FAST 12 speed,manualRemarks:
Isuzu GIGA VC66 cabin chassis,large capacity dump boxIsuzu 40T mining dump truck also called Isuzu GIGA 8x4 mining dump truck,Isuzu GIGA vc66 mining dumper truck,Isuzu GIGA 40 tons 8x4 mining transport truck,Isuzu vc66 heavy duty mining tipper truck,Isuzu GIGA 12 wheels mining tipper lorry truck.
The Isuzu 40T Mining Dump Truck features an Isuzu 8x4 Giga VC66 chassis, showcasing a rugged design that can withstand the rigors of mining operations. With a dump body capacity of 40 tonnes, the truck is designed for efficient transport of large volumes of mining material such as coal, ore or gravel. The ergonomic design ensures that loads are dumped quickly and accurately, increasing productivity on the mining site.
Key Features:
★ ISUZU GlGA chassis, perfect performance
★ ISUZU engine & gearbox, super powerful, no overhaul within 100.000 km
★ Easy operation and easy maintenance
★ Various capacity of dump box are available
|
Isuzu 40T mining dump truck |
||
|
Truck Model |
PT5400GWT |
|
|
Dimensions |
Length (mm) |
10300 |
|
Width (mm) |
2540 |
|
|
Height (mm) |
3950 |
|
|
Wheel Base (mm) |
1850+4575+1370 |
|
|
Weight |
Vehicle Curb Weight (kg) |
17500 |
|
GVW (kg) |
41000 |
|
|
Rated loading capacity (kg) |
22500 |
|
|
Performance |
Max. Speed (km/h) |
90 |
|
Max. Grade Ability (%) |
30 |
|
|
Min. Ground Clearance (mm) |
314 |
|
|
Core Equipments Specifications |
||
|
Engine
|
Model |
ISUZU 6WG1-TCG61 |
|
Rated Power (HP/KW) |
460HP/338KW |
|
|
Type |
6-cylinder in line, 4-stroke, water cooling, with turbo charging and inter-cooling |
|
|
Displacement |
15681ml |
|
|
Maximum Torque |
2250 N.m |
|
|
Emission Standard |
EURO VI |
|
|
Fuel Type |
Diesel |
|
|

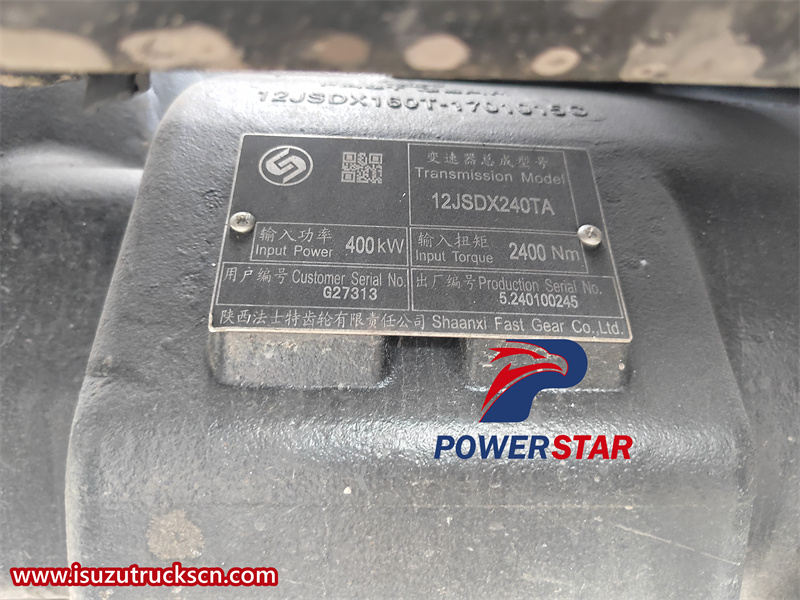

Transmission |
Model |
12JSDX240TA |
|
Type |
Manual |
|
|
Speed |
FAST 12 speed |
|
|
Front Axle |
Load(kg) |
7500*2 |
|
Rear Axle |
Load(kg) |
26000 |
|
Suspension |
Type |
Leaf spring |
|
Brake System |
Type |
Drum |
|
Service |
Dual-circuit air |
|
|
Parking |
Spring |
|
|
Standard Equipments Specifications |
||
|
Driver's Cab. |
Type |
ISUZU GIGA High roof cab, 2 seats+1 bed, |
|
Equipment |
central lock,electric glass,air seats |
|
|
Air conditioner |
Air condition |
|
|
Fuel Tank |
Capacity (L) |
600, Aluminium Alloy |
|
Wheel&Tire |
Type & Size |
315/80R22.5,13 PCS |
|
Dump box |
Dimension in MM |
Wanb Front lift cylinder,7500*2500*1800MM,bottom 8mm,side 6mm |
|
Loading Capacity |
40 tons |
|
|
Color |
According to client's request |
|
The Isuzu 40T Mining Dump Truck is a heavy-duty vehicle designed for mining and construction sites. It features a rugged Isuzu 8x4 Giga VC66 chassis that provides excellent stability and durability even in the most challenging conditions. Designed to handle large quantities of minerals, rocks, and other materials, this dump truck is an essential tool for mining operations.

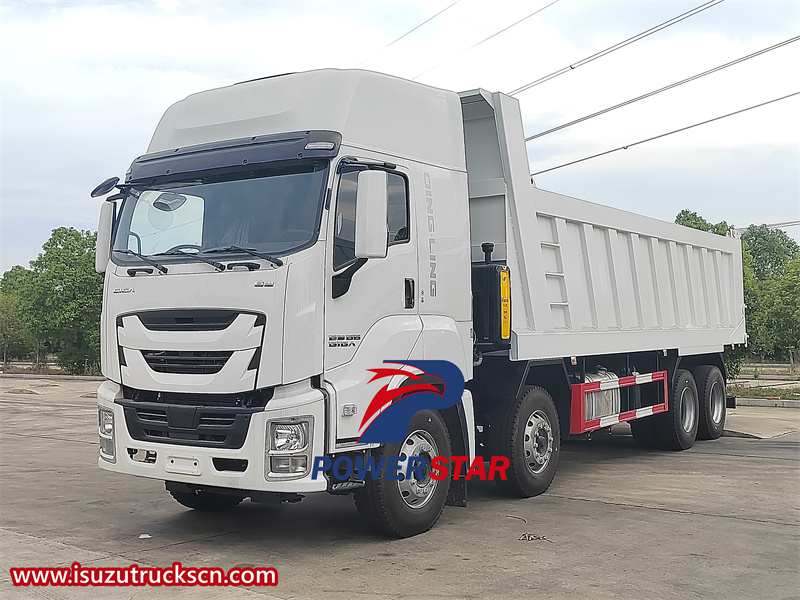

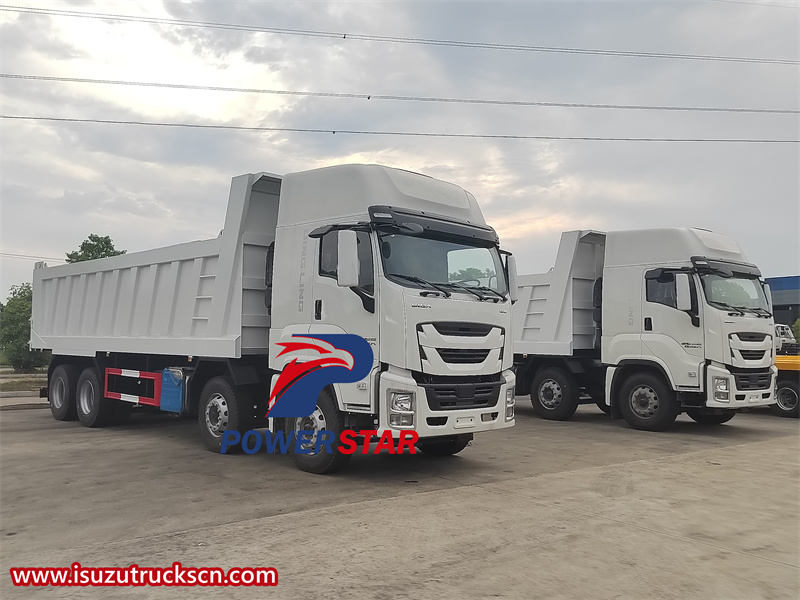

Isuzu 40T mining dump truck
The Isuzu GIGA 40T mining dumper truck is powered by a powerful engine that delivers high torque and horsepower, allowing it to easily transport heavy loads. The engine is designed to be fuel-efficient, helping to reduce operating costs and minimize the environmental impact of mining operations. The truck's drivetrain is also optimized for heavy-duty use, providing smooth and reliable shifting even when transporting heavy loads.

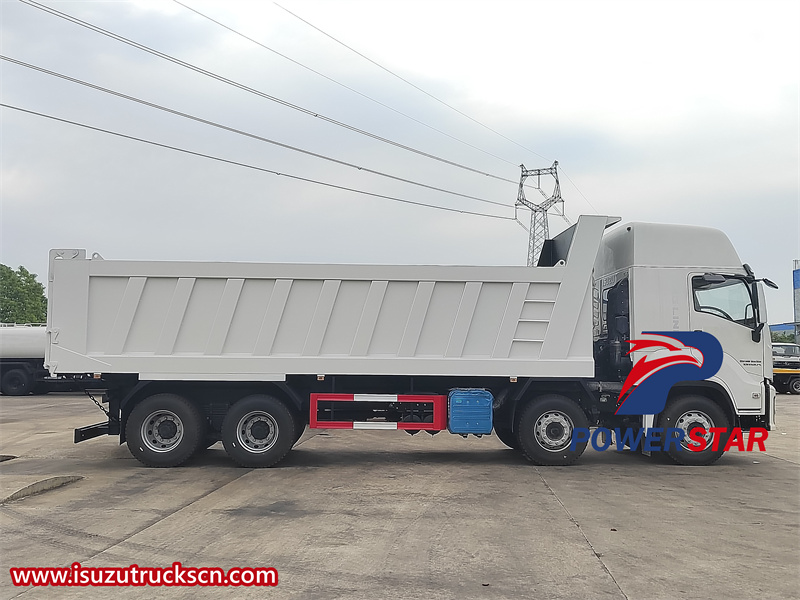

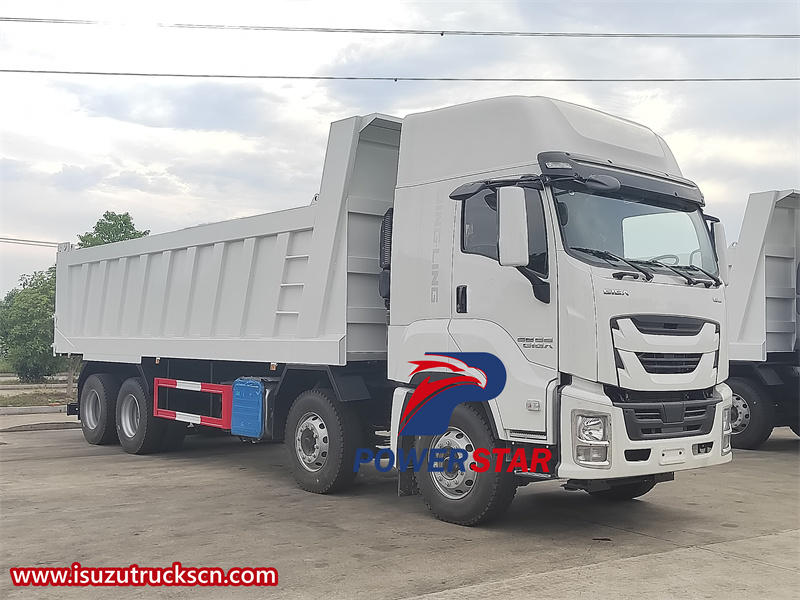

Isuzu GIGA 8x4 mining dump truck
The Isuzu GIGA 8x4 mining dump truck has a large, durable body designed to withstand the harsh conditions of mining sites. The body is made of high-quality materials that resist wear and tear, ensuring that the truck can withstand the rigors of daily use. The truck's cabin is designed to hold large amounts of material, making it ideal for transporting large quantities of minerals and rocks.

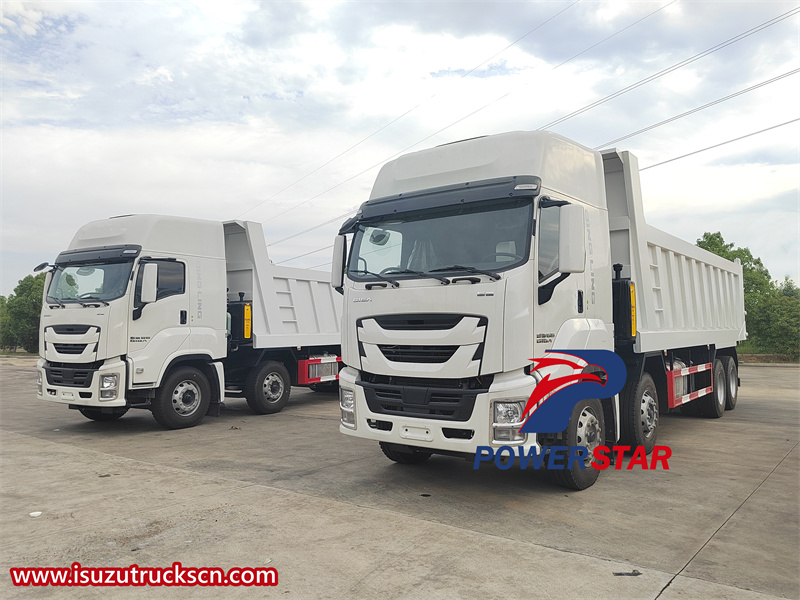

Isuzu GIGA vc66 mining dumper truck
One of the key features of the Isuzu GIGA vc66 mining dumper truck is its excellent stability and maneuverability. The truck’s 8x4 chassis provides excellent traction and stability even on rough terrain. This allows the truck to easily traverse tight spaces and steep slopes, enabling the truck to access the most remote mining sites. The truck’s suspension system is also designed to provide excellent stability, even when transporting heavy loads.

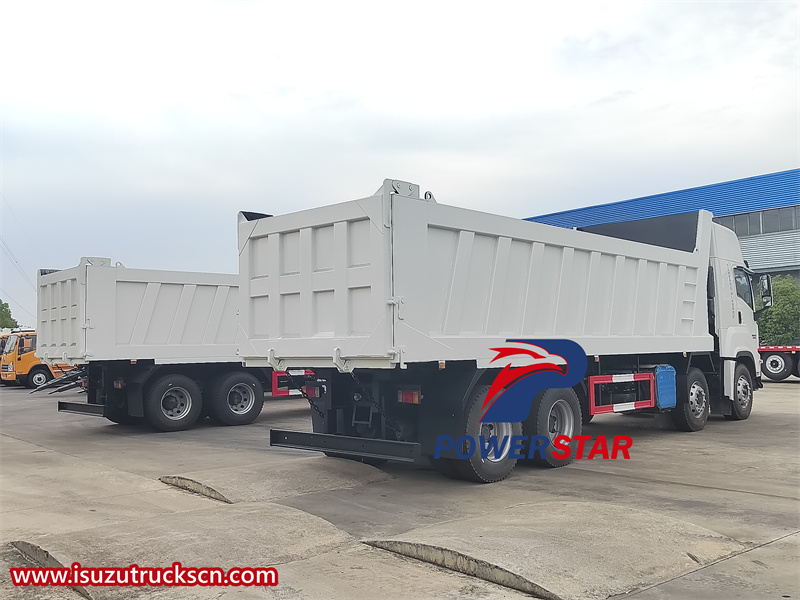

Isuzu GIGA 40 tons 8x4 mining transport truck
The truck’s spacious and ergonomically designed cab provides the operator with a comfortable and practical workspace, equipped with intuitive controls and advanced technology to increase efficiency. The climate control system maintains an optimal working environment regardless of external weather conditions, ensuring the operator is comfortable during long shifts.

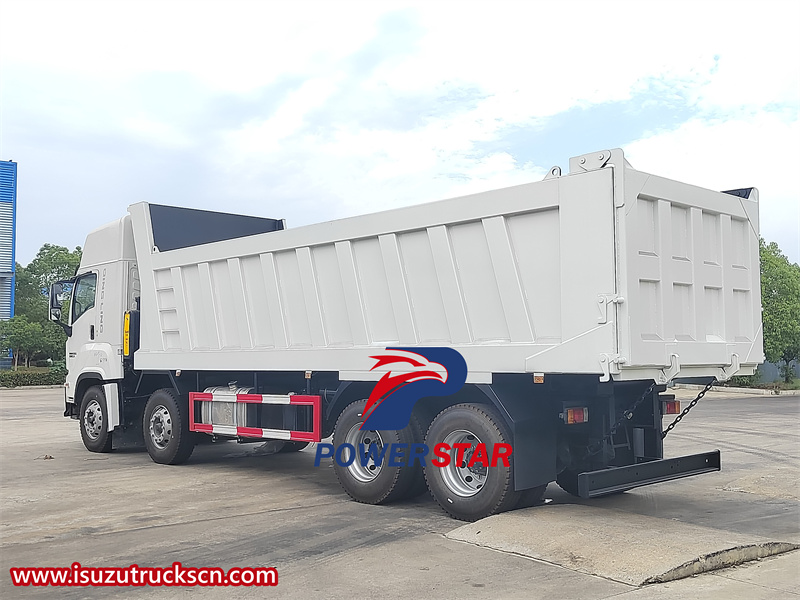

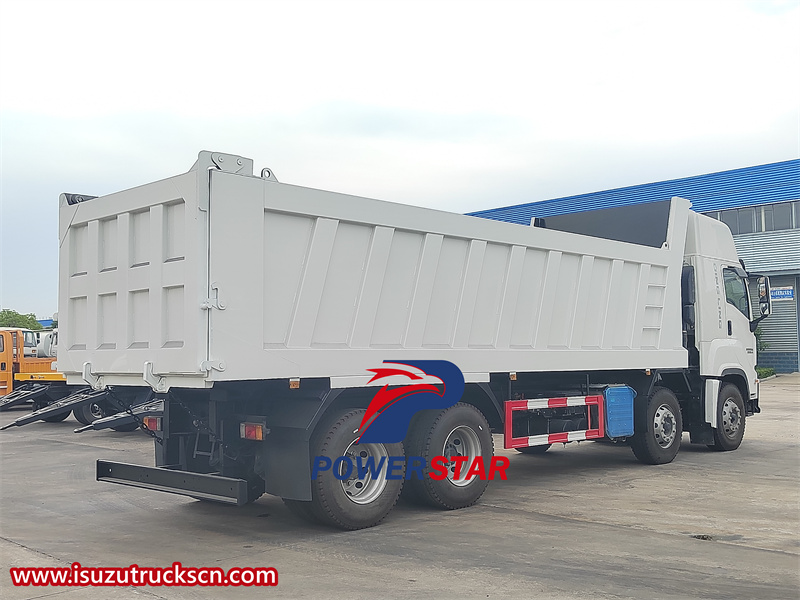

Isuzu vc66 heavy duty mining tipper truck
It has the following advantages:
Efficient transportation: The large-capacity cargo box and powerful power system enable the Isuzu 40T mining dumper truck to complete a large number of transportation tasks in a short time, improving the efficiency of mining operations.
Strong adaptability: The sturdy chassis and excellent stability enable this vehicle to adapt to various complex mining environments, including rugged terrain and adverse weather conditions.
Safe and reliable: The advanced safety system provides additional protection for the driver and reduces the risk of accidents.

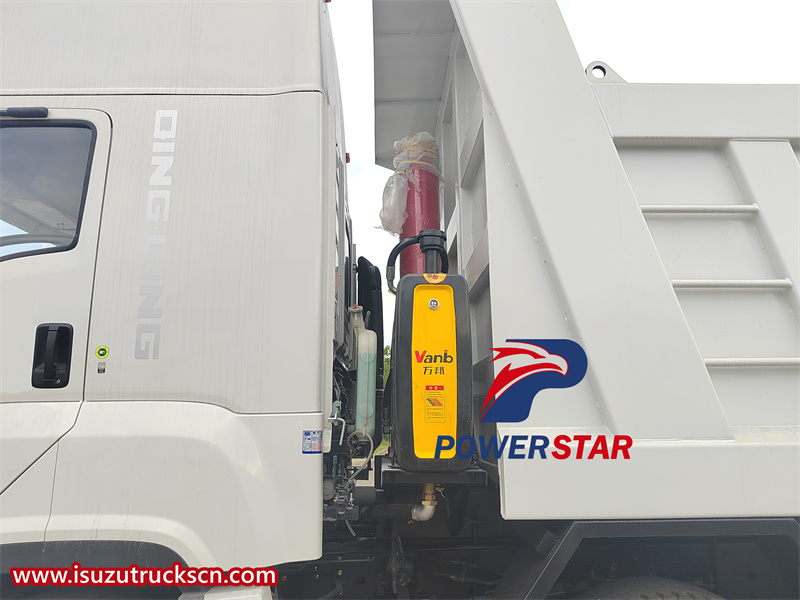

Front lift cylinder
Convenient maintenance: The vehicle design takes into account the convenience of maintenance, and the components are easy to access, which helps to reduce maintenance time and costs.
Environmental protection and energy saving: The optimized engine and exhaust system not only reduces fuel consumption, but also reduces the emission of harmful substances, which meets the environmental protection requirements of modern mining operations.
Long-term investment value: Due to its durability and reliability, the Isuzu GIGA 8X4 mining dump truck has low operating costs and high residual value in long-term use, providing mining companies with a good return on investment.

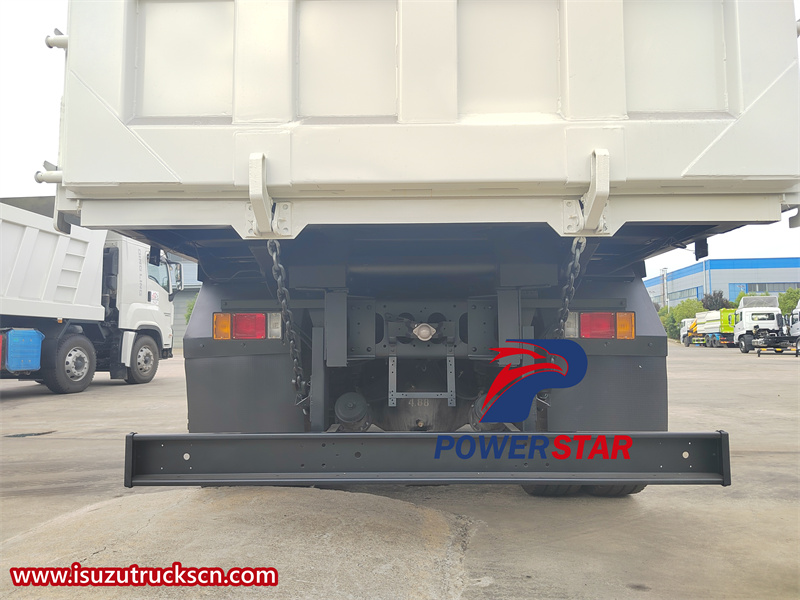

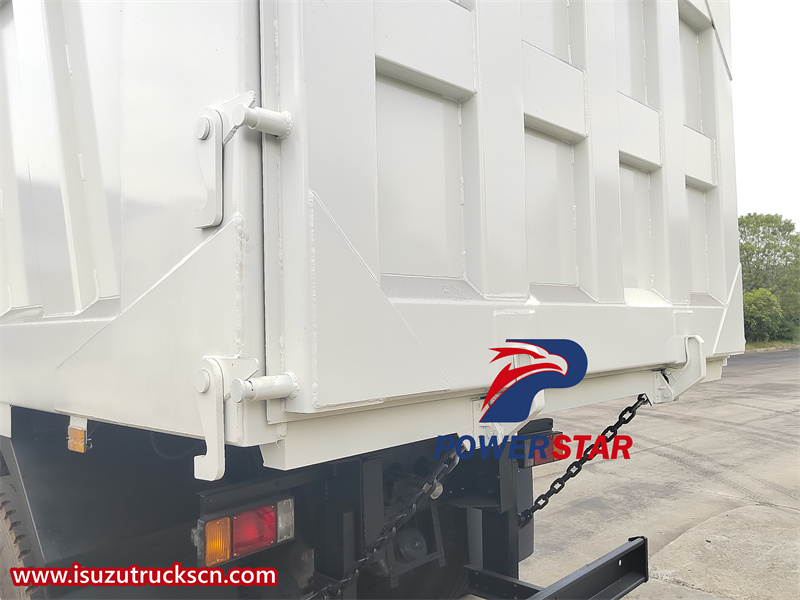

Mechanical self-locking device
