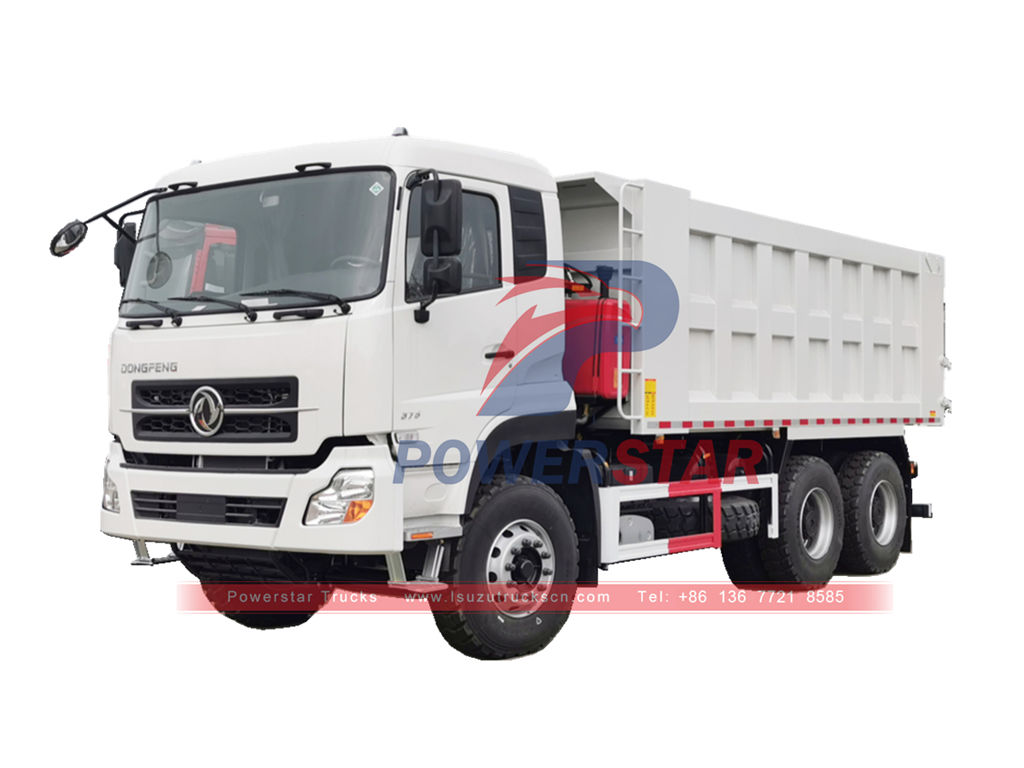

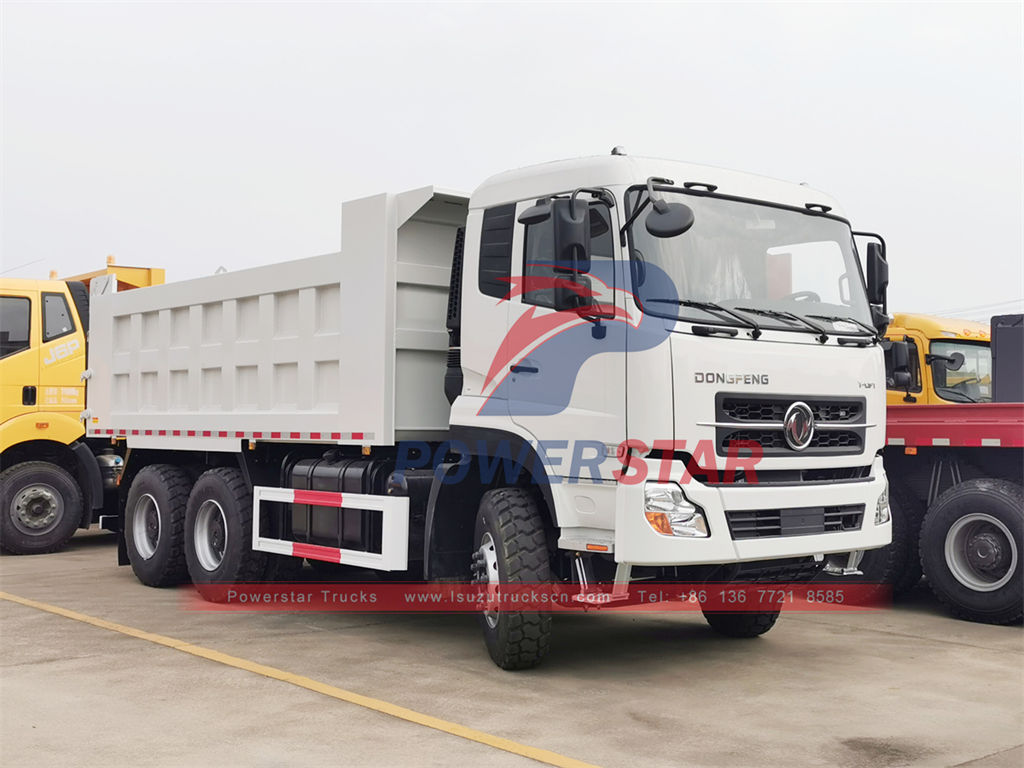

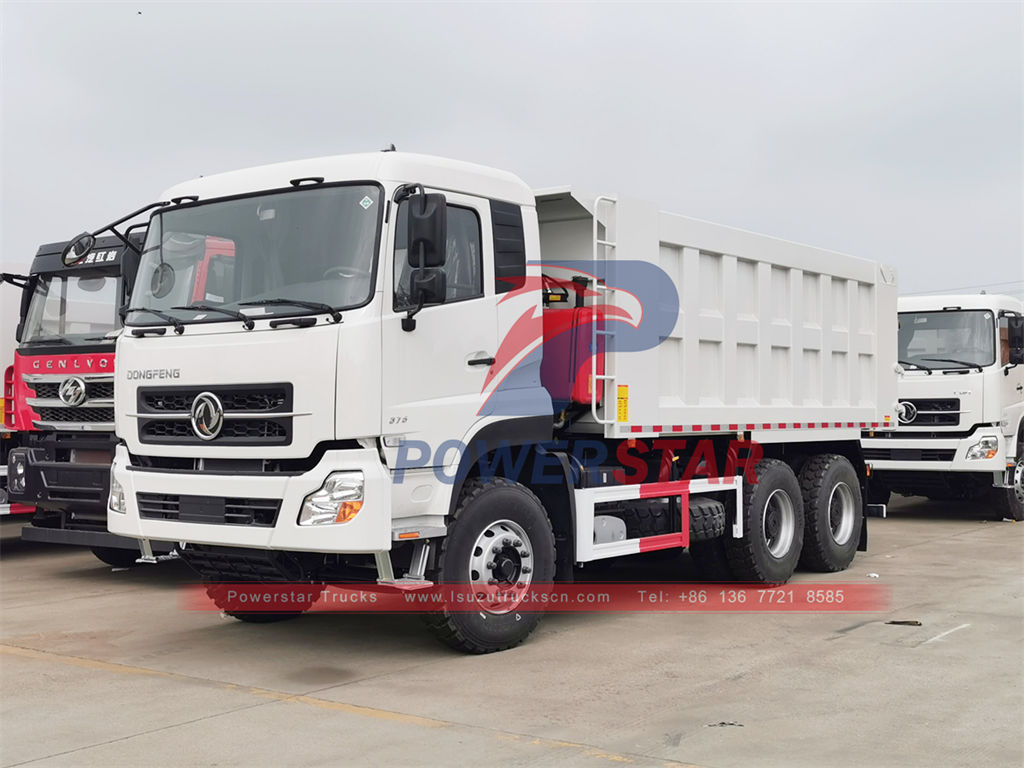

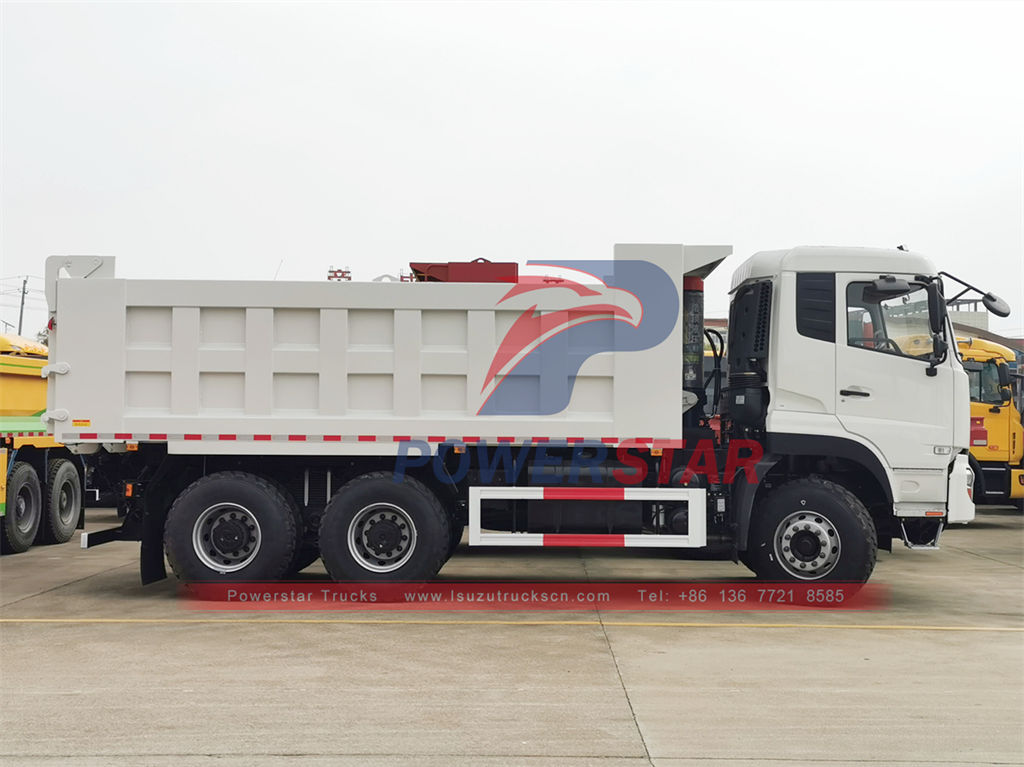

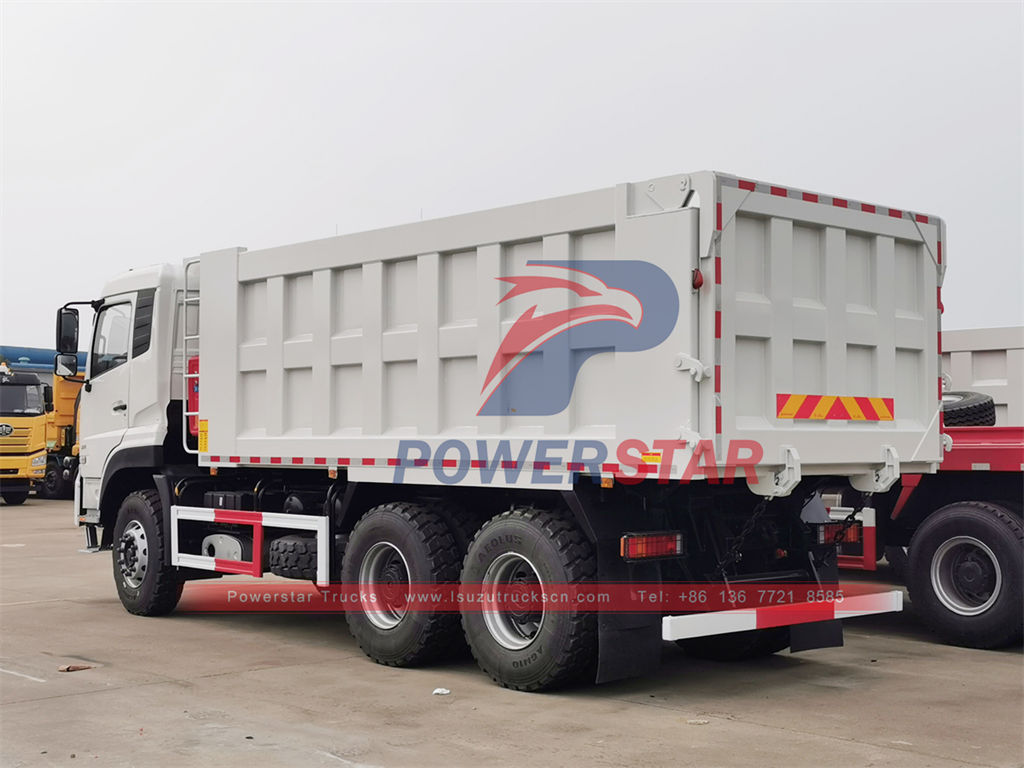

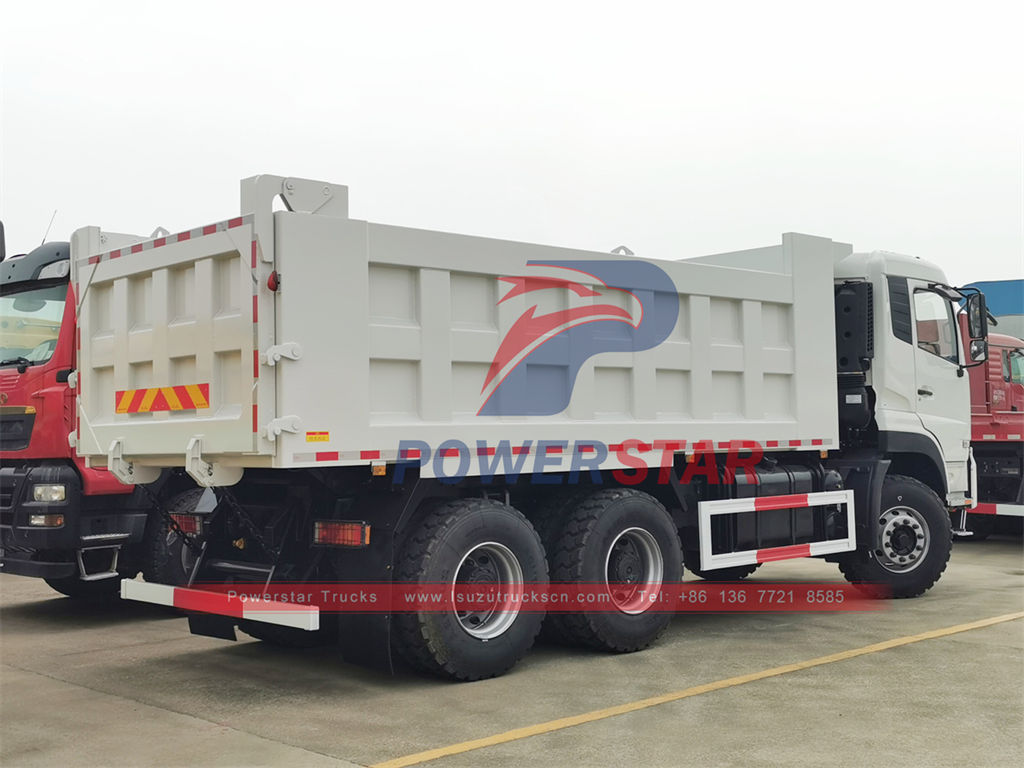

1Dongfeng 10 wheeler 380HP dump truck For Sale
 |
100% custom-made
|
|
3 cbm to 22 cbm available
|
|
Short delivery time 7~30 days
|
|
Easy operation & Easy maintenance
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
Dongfeng Dump Truck |
||
|
Vehicle Brand Series |
Dongfeng |
||
|
Vehicle Model |
PST5250ZX |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
8560*2480*3200 |
|
Gross weight |
kg |
25,000 |
|
|
Kerb weight |
11,500 |
||
|
Wheelbase |
mm |
3800+1350 |
|
|
Driving type |
6*4 |
||
|
Chassis model |
Dongfeng TL |
||
|
Tire size |
12.00R20 |
||
|
Number of Tires |
10+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
YUCHAI YC6K |
|
|
Type of fuel |
Diesel |
||
|
Power |
380HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 3 |
||
|
Compactor performance |
Dump body size |
5200x2500x1500 |
|
|
Loading capacity |
15~20 Tons |
||
|
Body materila |
High performance carbon s |
||
|
Plate thickness |
Front/Side are 6mm |
||
|
Rear/Floor are 8mm |
|||
|
Control system |
Hydraulic |
||
|

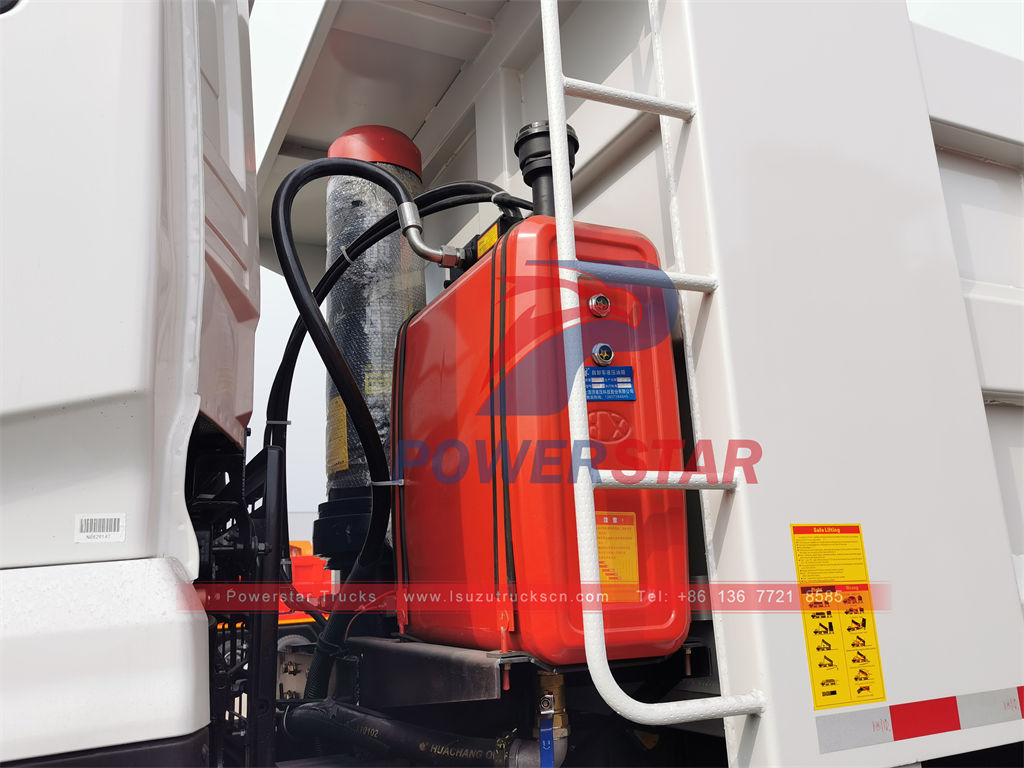

Hydraulic Lifting |
Middle lifting device |
||
|
Discharging system |
Tipping 45 degree |
||
|
Lifting time |
20 sec |
||
|
Lowering time |
15 sec |
||
|
Tailgate |
Auto release |
||
|
Drop side |
Detachable |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
||
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
 |
 |
 |
||

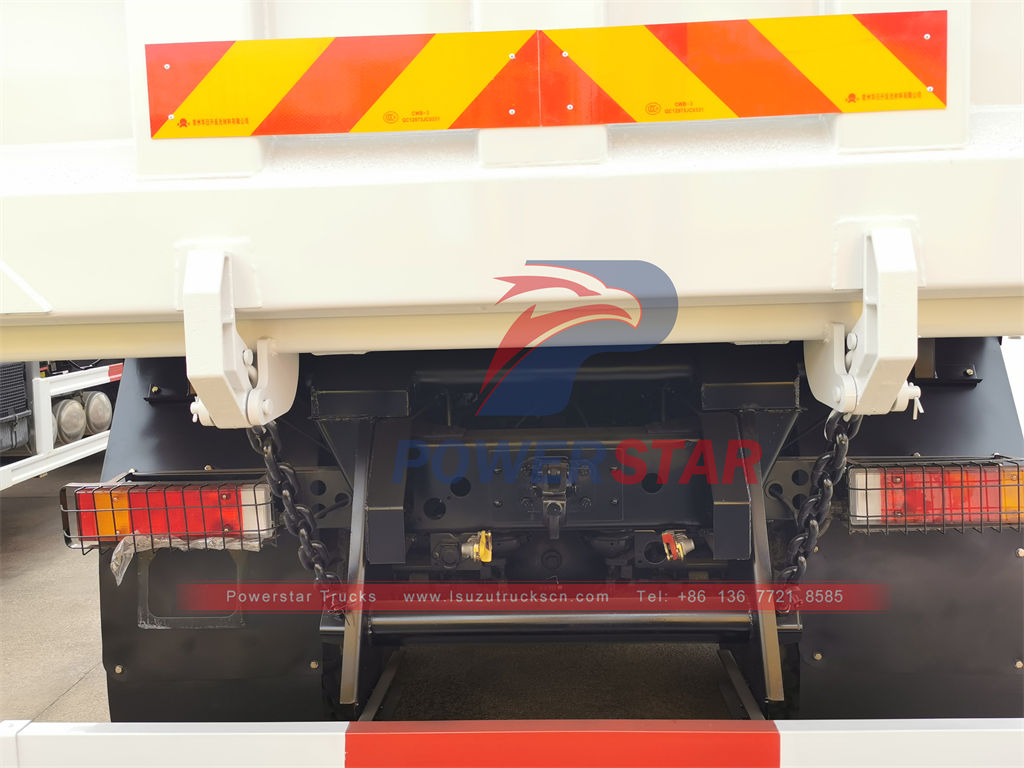

| Special U-shape body | Rear door safety hook | Rear door top lug hooks | ||
 |
 |
 |
||

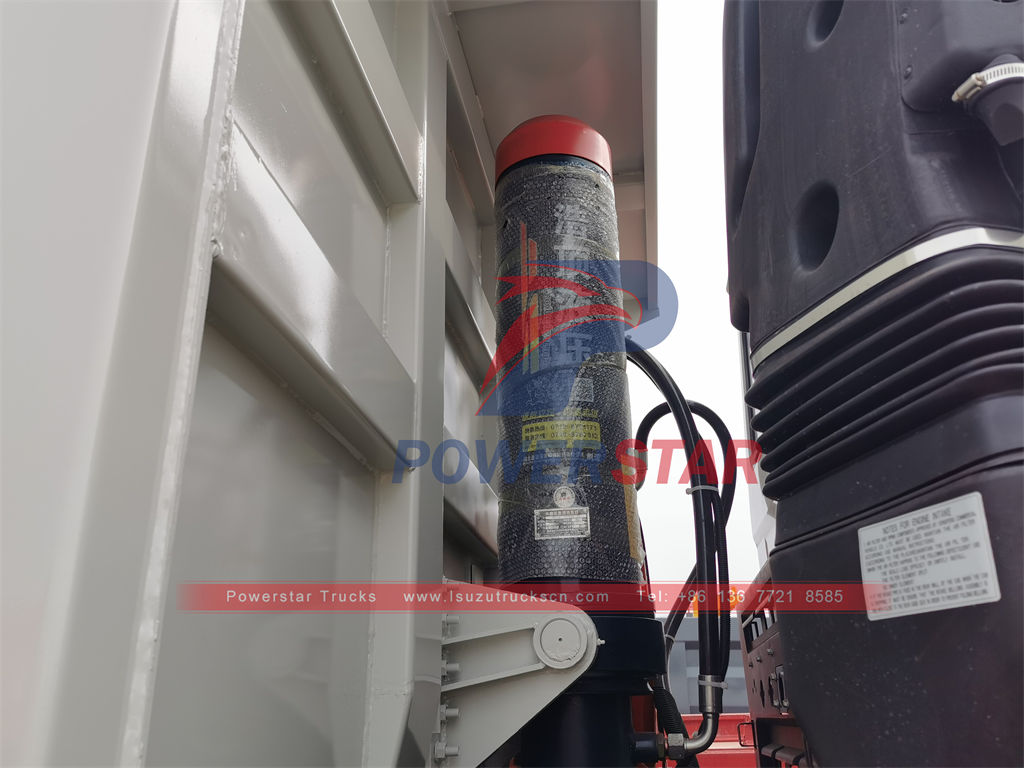

| Reinforced dumper body | T-type hydraulic cylinder | Mining body | ||
| |
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual | Chassis parts | Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
