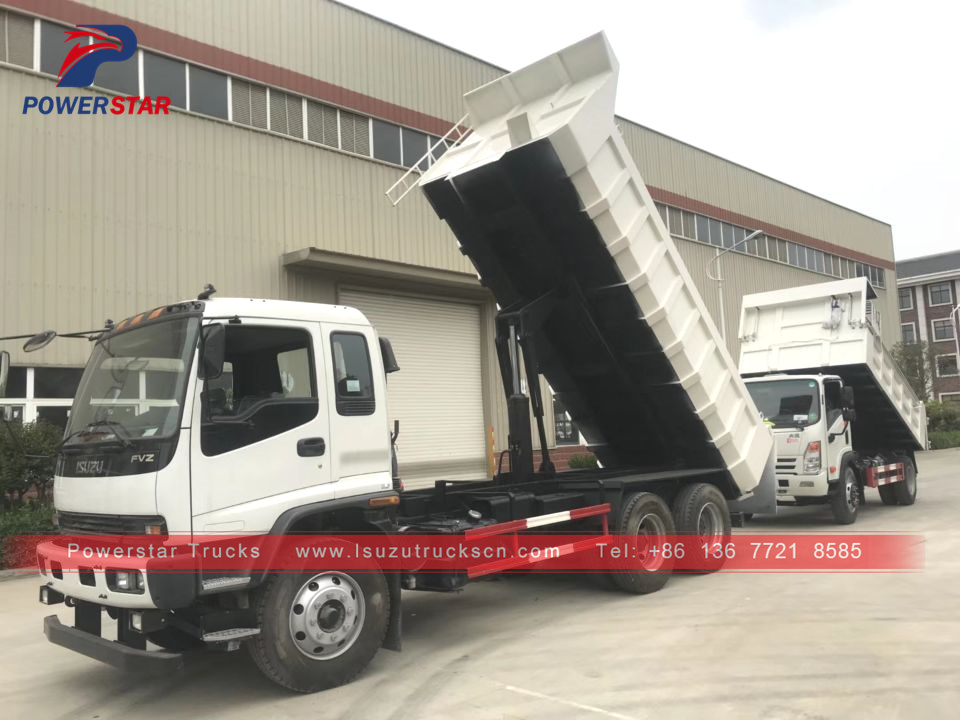

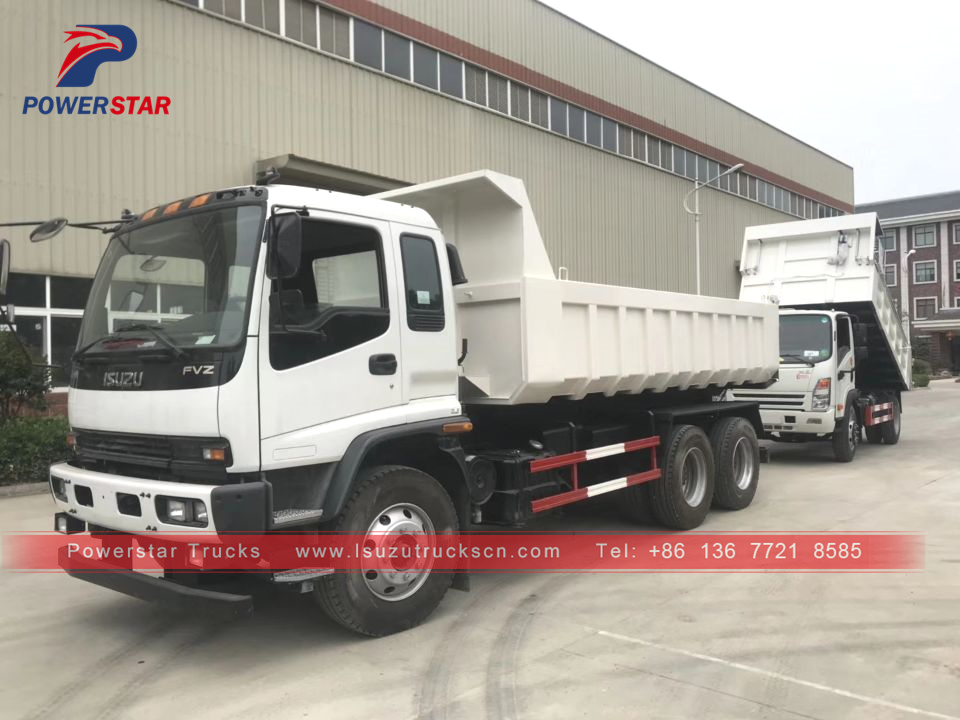

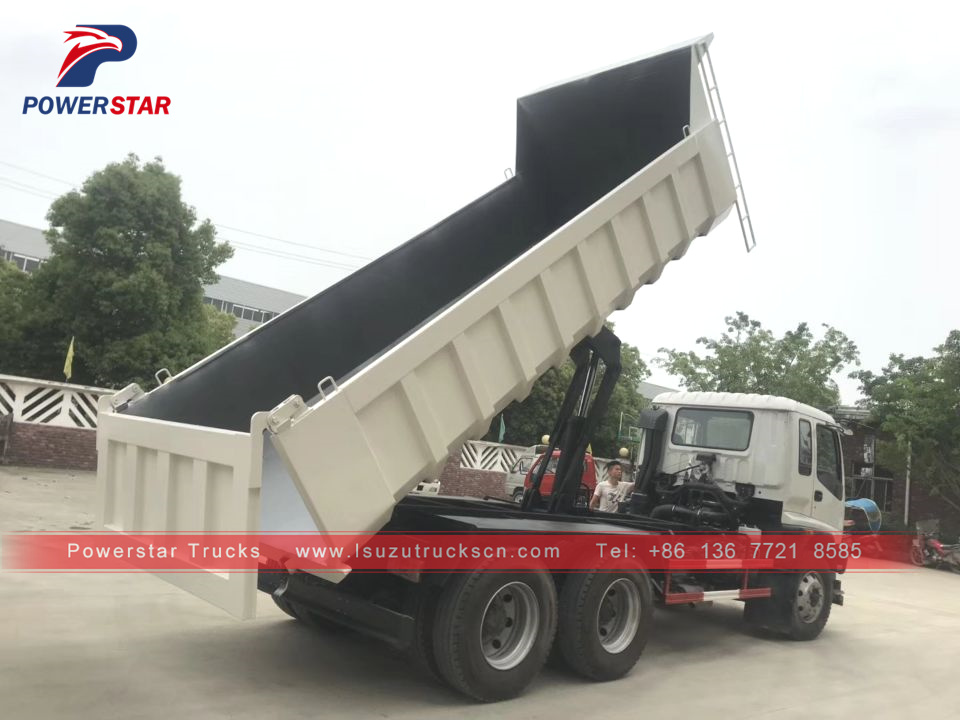

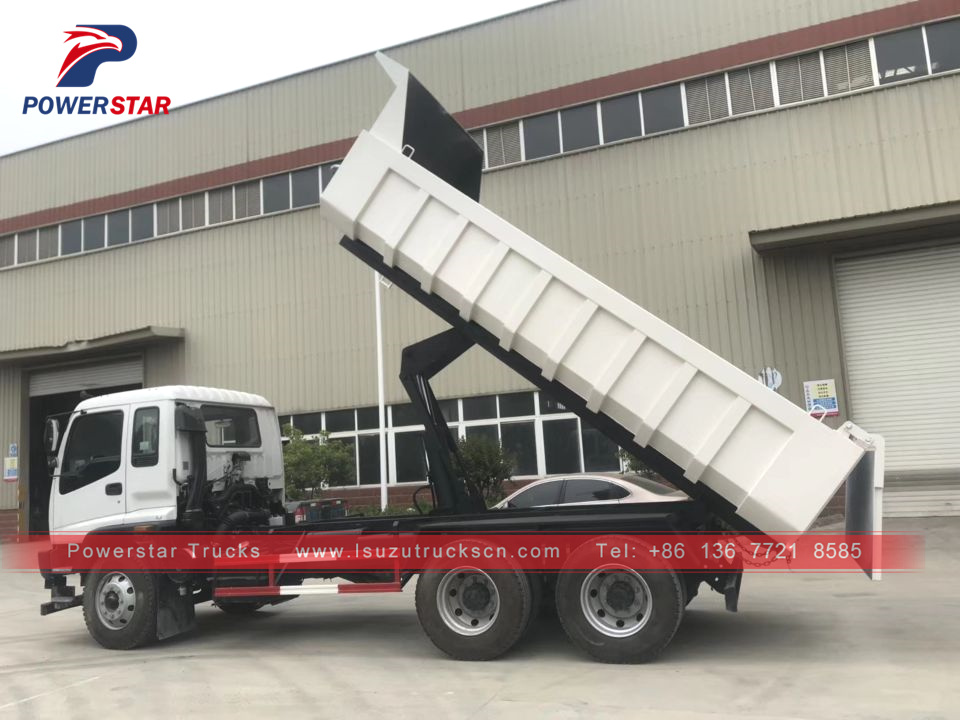

Philippines ISUZU FVZ 20tons heavy duty Dump Tipper Trucks for sale
Order(MOQ):
1
ISUZU Brand new FVZ Heavy construction dump tipping trucks for sale
Applications:
ISUZU 10 wheel heavy tipper truck (also called Isuzu 20tons dumper lorry, 6x4 heavy dump truck, Isuzu engineering dumper, Dump tipping trucks) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.
Powerstar ISUZU mini dump truck is manufactured using the cutting-edge technology and components in the world such as WABCO double-cylinder air compressor, brake valve, HYVA front hydraulic system, etc.
Key Features:
---- ISUZU heavy duty chassis, perfect performance
---- ISUZU 4HK1-TCG40 engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Payloading from 2ton to 80 tons.
---- Easy operation and easy maintenance.
---- Virious types of tipper body are available.
Specifications:
|
Japan ISUZU 6X4 heavy dump tipper truck (20-30 tons) |
||
|
General |
Vehicle Brand |
POWERSTAR |
|
Chassis Brand |
ISUZU |
|
|
Overall Dimension |
8900 * 2500 * 8600 mm |
|
|
GVW / Kerb Weight |
25,000kg / 11,500kg |
|
|
Cab |
Cab Capacity |
3 persons allowed |
|
Air Conditioner |
Heating/cooling air conditioner |
|
|
Engine |
Fuel Type |
Diesel |
|
Engine Brand |
ISUZU 6HK1-TCG40 |
|
|
Power |
280 HP (220 KW) |
|
|
Displacement |
7199 ml |
|
|
Emission Standard |
Euro 3 or 4 |
|
|
Chassis |
Drive Type |
6X4, (left hand drive) |
|
Transmission |
9- speed levers with 1
reverse |
|
|
Wheelbase/No. of axle |
4650+1350 mm / 3 |
|
|
Tire Specification |
11.00-20 |
|
|
Tire Number |
10 tires and 1 spare tire |
|
|
Max Speed |
95 km/h |
|
|
Paint |
Metallic paint |
|
|
Superstructure |
Pay loading capacity |
20Tons~30Tons |
|
Cargo body |
5600*2300*650 |
|
|
Thickness of cargo body |
Bottom 6mm Side 5mm |
|
|
Cylinder type |
T Type or Domestic 180 or HYVA 150 |
|
|
Lifting system |
Middle or Front |
|
|
Control |
in the cabin |
|
|
Color & LOGO |
Accroding to wish |
|
|
All standard accessories: All steel body with drop sides. Auto release removable trilgate. Ladder, warning lights, PTO fire extinguisher, basic tool kit, English manual…… |
||
|
Optional |
** Back alarm and Camera can be equipped.
** Other tipper body can be choose.
** Other material and plate thickness can be choose.
|
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
Special U-shape body
Rear door safety hook
Rear door top lug hooks
Reinforced dumper body
T-type hydraulic cylinder
Mining body
|
|
|
|
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual | Chassis parts | Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
