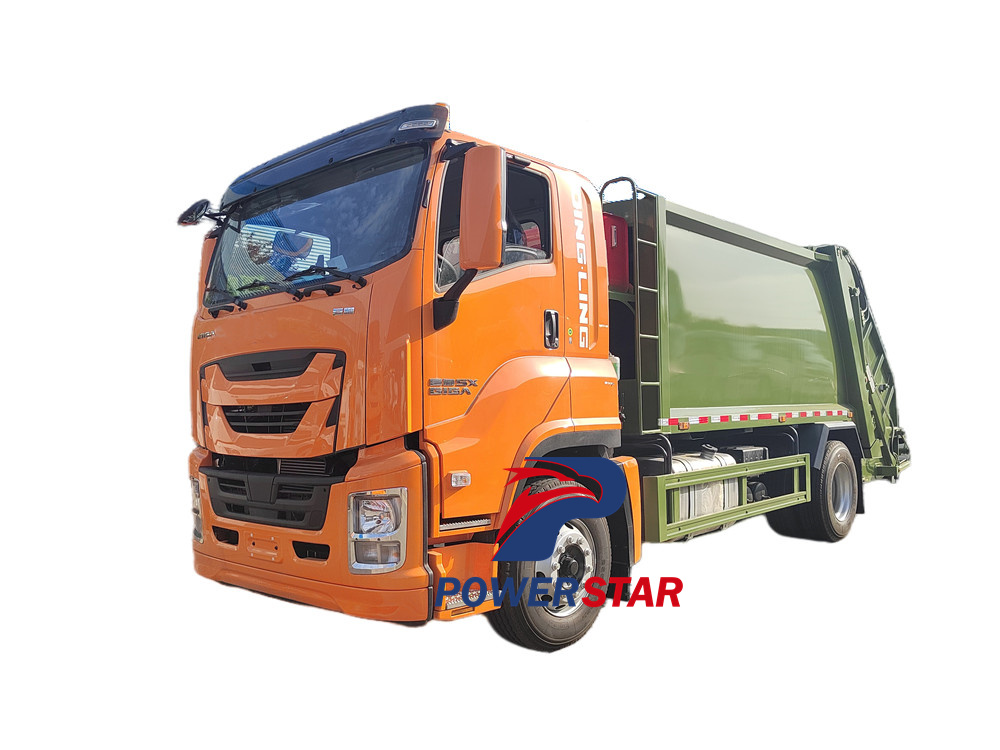

Isuzu 15 cbm waste management trash truck
The Isuzu 15m3 waste management truck is an excellent choice for waste management companies and municipalities seeking a reliable, efficient and environmentally friendly waste disposal solution. With its powerful hydraulic system, intuitive controls and advanced safety features, this truck is sure to exceed your expectations and help you streamline your waste disposal process.
Work capacity:
15cbmTruck model:
PT5200GYXEngine power:
240HPEngine type:
6HK1-TCG61Axle drive:
4X2,LHDGear box:
FAST 12-speed,manualRemarks:
Efficient compression, large capacity, customizableIsuzu 15 cbm waste management trash truck also called Isuzu GIGA 4X2 waste compactor truck,Isuzu GIGA 5X chassis cabin rear loader compactor,Isuzu GIGA 15cbm garbage disposal truck, Isuzu GIGA 4x2 waste collection truck,Isuzu GIGA 15cbm waste compressor truck.
The Isuzu 15 cbm waste management trash truck is a professional vehicle designed for efficient waste disposal. It has an ultra-large capacity of 15 cubic meters and adopts advanced rear-loading compression technology, which can quickly compress and load large amounts of garbage, reduce the number of transportation times, and improve work efficiency.
Key Features:
★ Various size body from 3cbm to 20cbm,
★ ISUZU engine,super powerful;reliable performance. no overhaul,within 1000000km
★lmported SlEMENS PLC integrated control high-efficient working
★Diffient rear lifting systerm are optional.
★Can be put into 20",40"container and ship to worldwide
|
Isuzu 15 cbm waste management trash truck |
||
|
Truck model |
PT5180GYX |
|
|
Cabin |
Isuzu FVR GIGA 5X cabin,driving type 4*2 LHD,one and half row,2 passengers,a sleeper, air conditioner,USB,AC |
|
|
Overall Size(mm) |
8700*2550*3200 mm |
|
|
Bin capacity(mm) |
15CBM |
|
|
Wheel base(mm) |
5550 |
|
|
GVW(kg) |
18000 |
|
|
Curb weight |
11200 |
|
|
Front axle(kg) |
6500kg |
|
|
Rear axle(kg) |
11500kg |
|
|
Engine |
Model |
6HK1-TCG61 |
|
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Hose Power(HP) |
240HP/177KW |
|
|
Displacement |
7790ml |
|
|
Emission standard |
Euro 6 |
|
|
Max speed |
95km/h |
|
|
Tire |
295/80R22.5(6+1 tire) |
|
|
Transmission |
Fast 8-speed,manual |
|
|
Superstructure |
Body capacity |
15cbm |
|
Design |
Whole unit with Leakage Proof Design |
|
|
Sewage tank |
200 liters |
|
|
Filling work cycling time |
20~25 s |
|
|
Garbage Compact Ratio |
1/3 - 1/4 |
|
|
Discharge model |
Horizontal Ejection |
|
|
Control system |
The system is controlled from the PLC control box, which enables, start, stop, 1-cycle, continuous cycles, and rescue activities. Tailgate and ejector controls are in front of the body. All devices for loading control are mounted on the tailgate right side, and all are manual control for safety purposes. Compaction is controlled electrically via push-buttons, and manually in case |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,handrail, fire extinguisher, basic tool kit, English manual... |
||
|
Brake system |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
|
Electrics |
Operating voltage:24V,negative grounded Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
|
|
Optional |
** Back alarm and Camera can be equipped. |
|
In the world of waste management, the Isuzu 15 CBM waste compactor truck stands out as a strong champion. Built on the rugged Isuzu GIGA 5x cab chassis, this revolutionary vehicle combines efficiency, durability and innovation to redefine waste management solutions. Equipped with industry-leading features such as the Isuzu GIGA rear loader compactor and trash compactor technology, this truck sets a new standard for waste management efficiency.

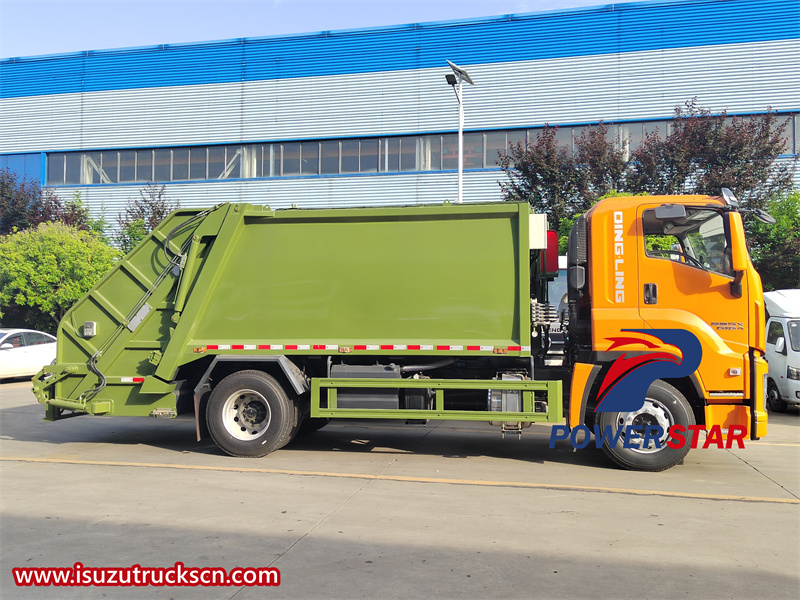

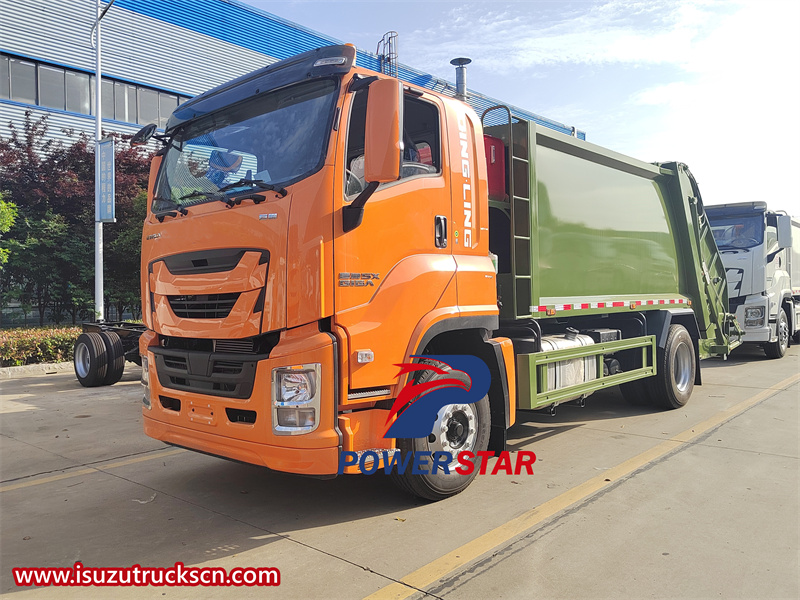

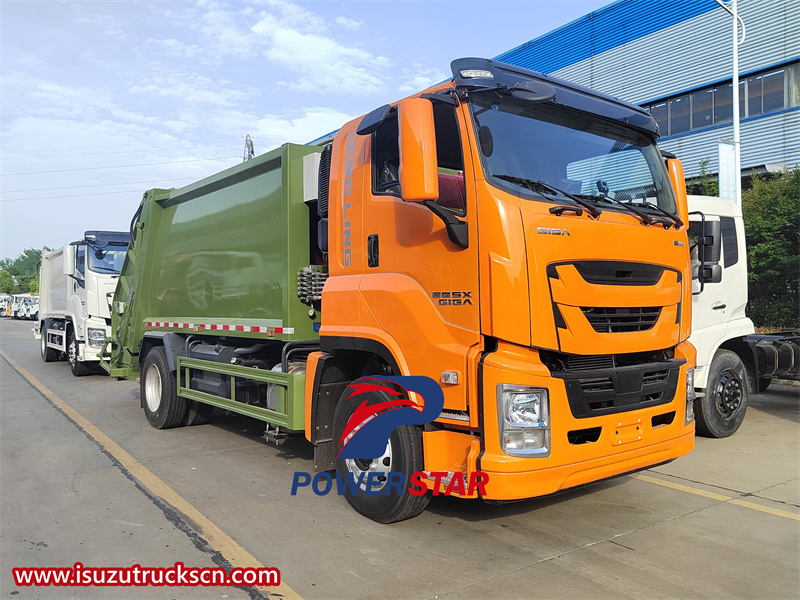

Isuzu 15 cbm waste management trash truck

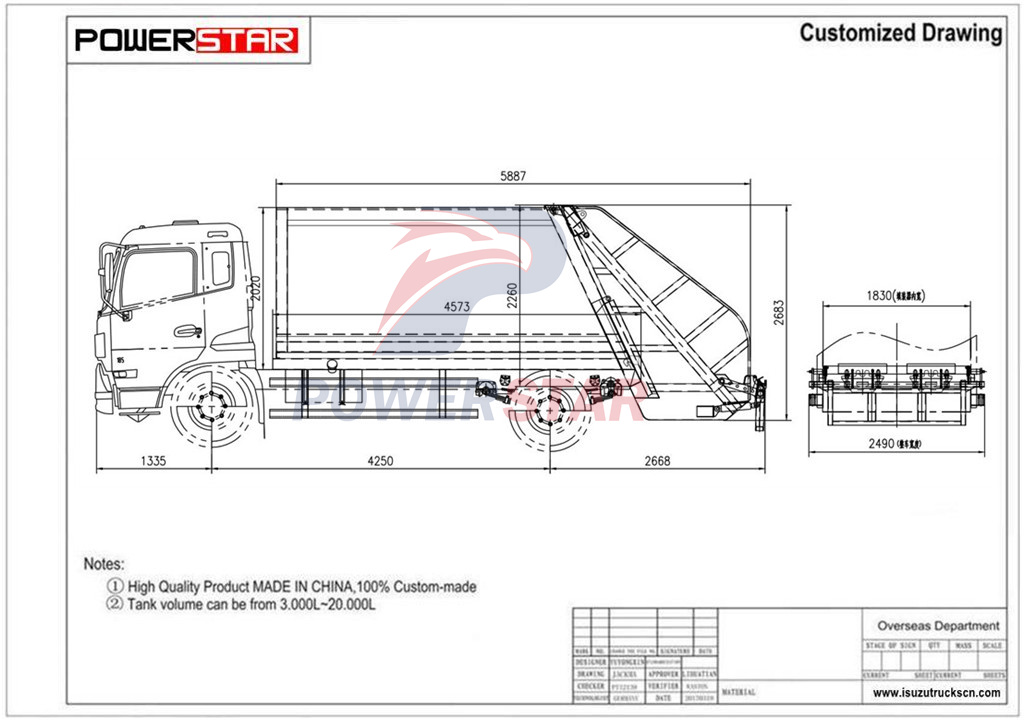

Technical drawing of Isuzu GIGA 15cbm garbage compactor truck
★ 15 CBM High Capacity: With a 15 CBM waste capacity, this garbage truck can easily handle large amounts of waste. Whether dealing with urban areas, industrial or residential areas, the Isuzu 15 CBM waste management garbage truck effectively meets the needs, ensuring timely and efficient waste disposal.
★ Innovative Waste Compaction Technology: The Isuzu waste compactor features state-of-the-art compaction technology that not only reduces the amount of waste, but also optimizes collection routes. By compacting waste efficiently, this truck helps minimize the number of trips required for waste disposal, resulting in significant cost savings and environmental benefits. Designed to be easy to operate, the Isuzu GIGA 4x2 garbage compactor features intuitive controls that allow the driver to easily load and unload waste quickly and efficiently.
★ Eco-Friendly Solution: As sustainability becomes increasingly important in waste management practices, the Isuzu 15 CBM garbage disposal truck stands out as an eco-friendly solution. By optimizing the waste collection process and reducing carbon emissions through efficient operations, this truck meets the growing global focus on environmental protection.
★ Durable Design: Built on the reliable Isuzu GIGA 5x cab chassis, this garbage truck is rugged enough to withstand the rigors of everyday use. Whether navigating city streets or traversing rough terrain, the Isuzu 15 CBM trash collection truck is built to perform reliably and continuously in demanding conditions.
★ Versatile Applications: From municipal waste collection to commercial waste disposal, the Isuzu GIGA 5X cabin refuse compactor truck offers a variety of applications across a variety of industries. Its flexibility and efficiency make it ideal for businesses and organizations seeking a comprehensive waste management solution.

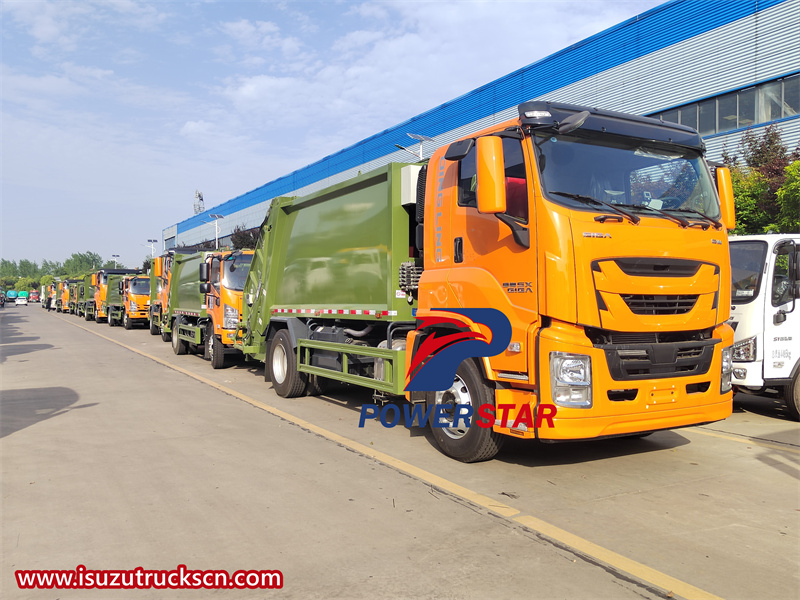

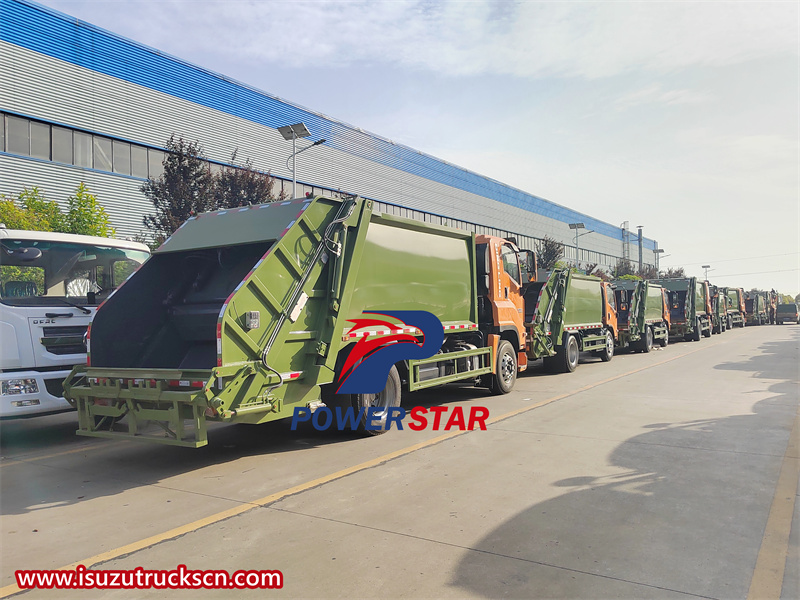

Bulk ISUZU compact garbage trucks for export
Isuzu 15 cbm Waste Management Trash Truck has a wide range of application scenarios, mainly suitable for various environments and occasions that require efficient and large-scale garbage disposal. The following are its main application scenarios:
1. Urban garbage collection and treatment
Residential and commercial areas: In densely populated urban residential and commercial areas, garbage is generated in large quantities and frequently. With its efficient garbage compression capacity and large-capacity loading space, Isuzu 15 cbm Waste Management Trash Truck can quickly collect and transport garbage to keep the urban environment clean.
Public places: Public places such as parks, squares, and stadiums often generate a lot of garbage after activities. This garbage truck can quickly clean up the garbage in these places to ensure the smooth progress of activities and the cleanliness of the environment.

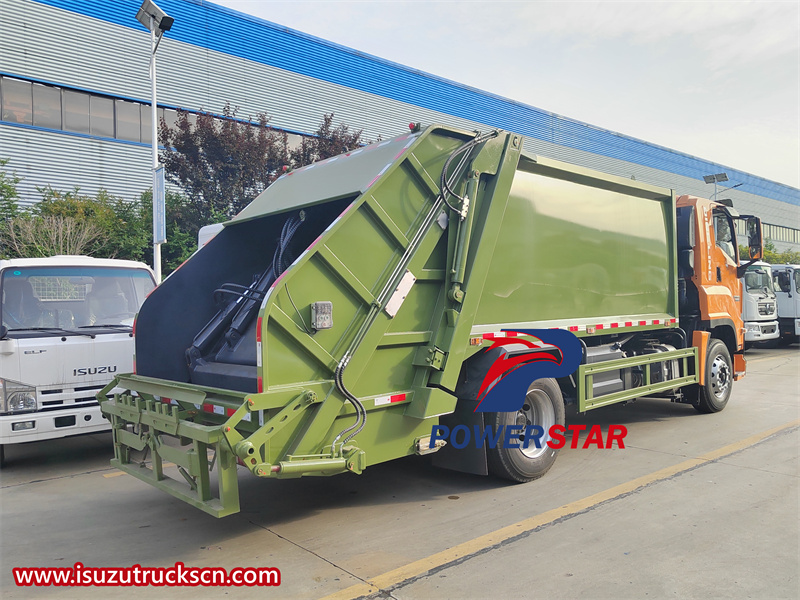

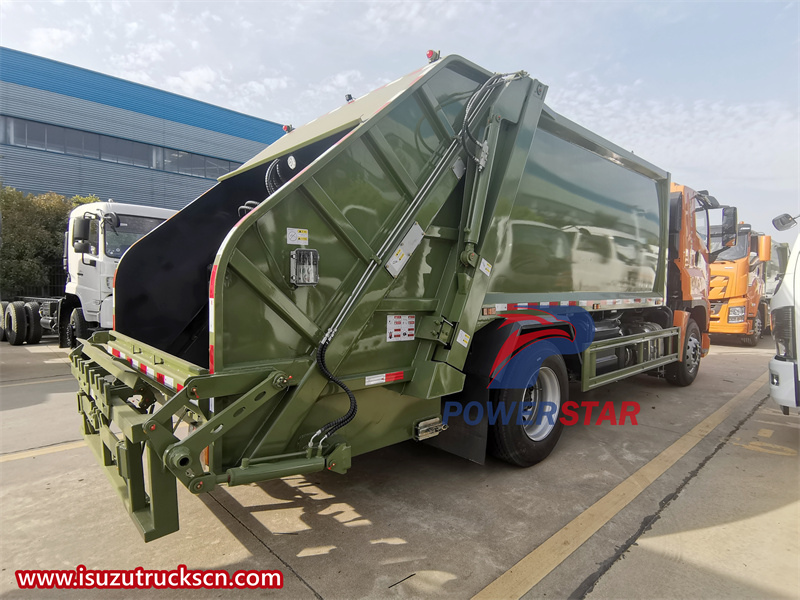

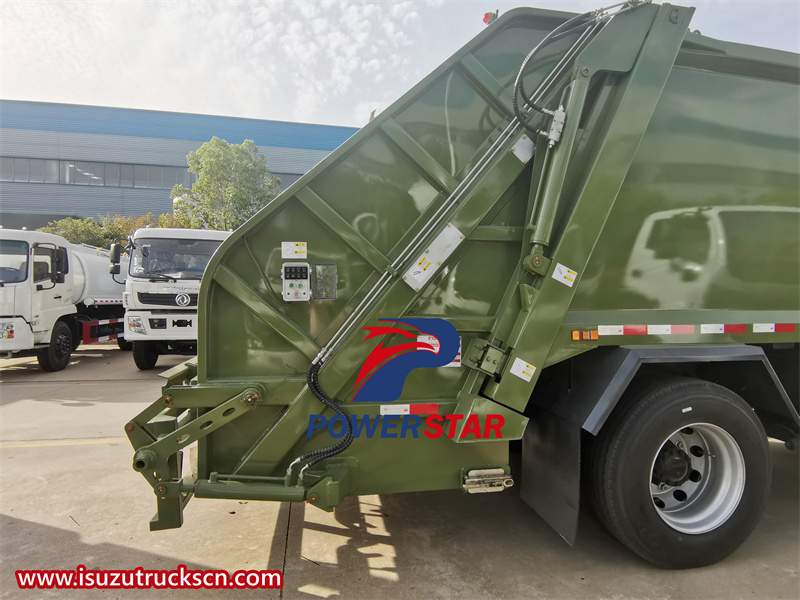

Tailgate side view
2. Industrial waste treatment
Factories and industrial parks: Various waste and garbage are generated during industrial production. Isuzu GIGA 4x2 rubbish compactor truck is suitable for collecting and treating these industrial wastes to ensure the cleanliness of the production environment and the smoothness of the production process.
Construction sites: The amount of construction waste generated at construction sites is large and varied. This garbage truck can effectively compress construction waste, reduce the number of transportation times and costs, while keeping the construction site clean and safe.

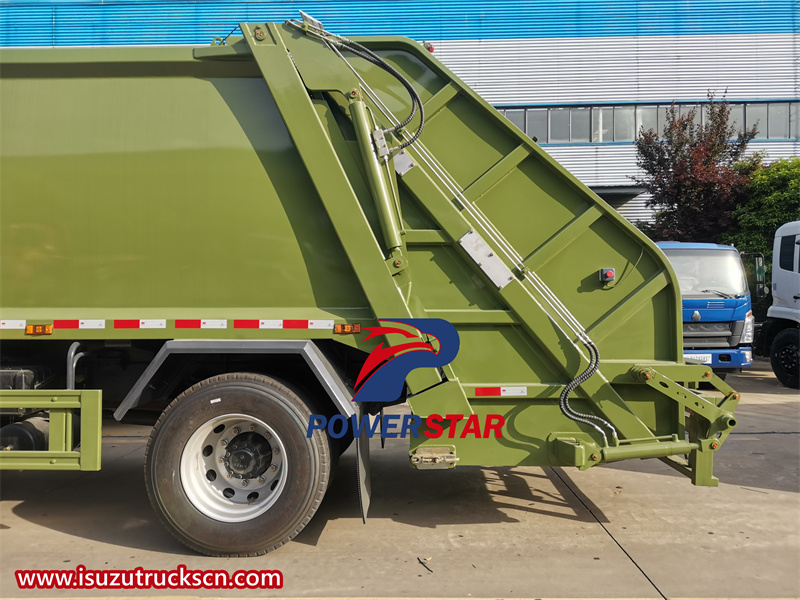

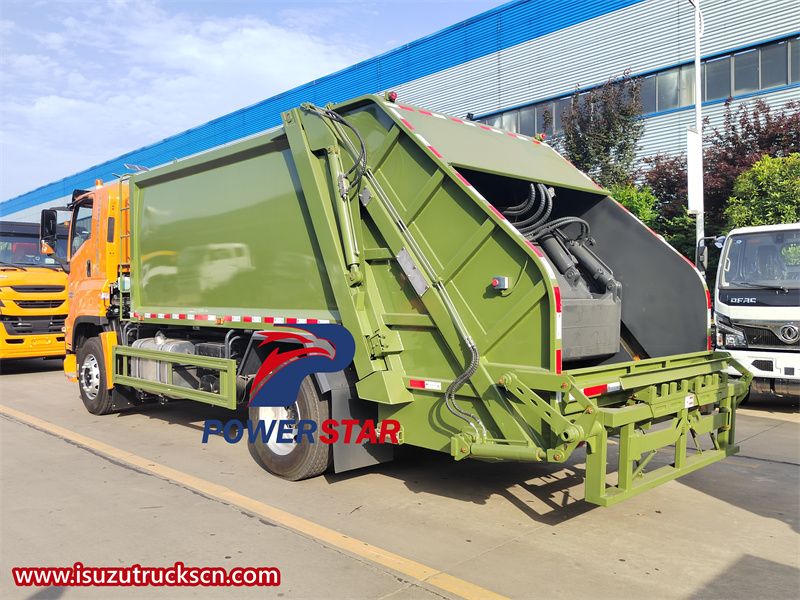

Tailgate side view
3. Sanitation Department and Waste Treatment Center
Sanitation Department: As an important tool for urban sanitation departments, Isuzu GIGA 15 cbm garbage truck can assist sanitation workers to efficiently complete garbage collection and treatment tasks and improve the level of urban environmental sanitation.
Waste Treatment Center: In the waste treatment center, this garbage truck can be used in conjunction with other waste treatment equipment to achieve waste sorting, compression and transportation and other processing processes, improving the efficiency and effectiveness of waste treatment.

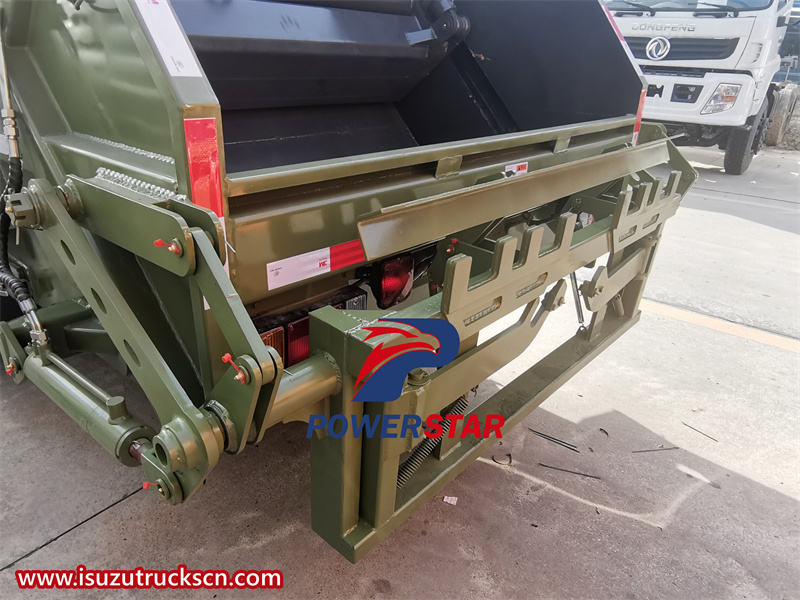

Flip mechanism
4. Special Occasions and Emergency Response
Natural Disaster Site: After a natural disaster (such as an earthquake, flood, etc.), a large amount of garbage and waste is often generated in the disaster area. Isuzu 15 cbm Waste compactor truck can respond quickly to help clean up the garbage in the disaster area and restore the environment in the disaster area.

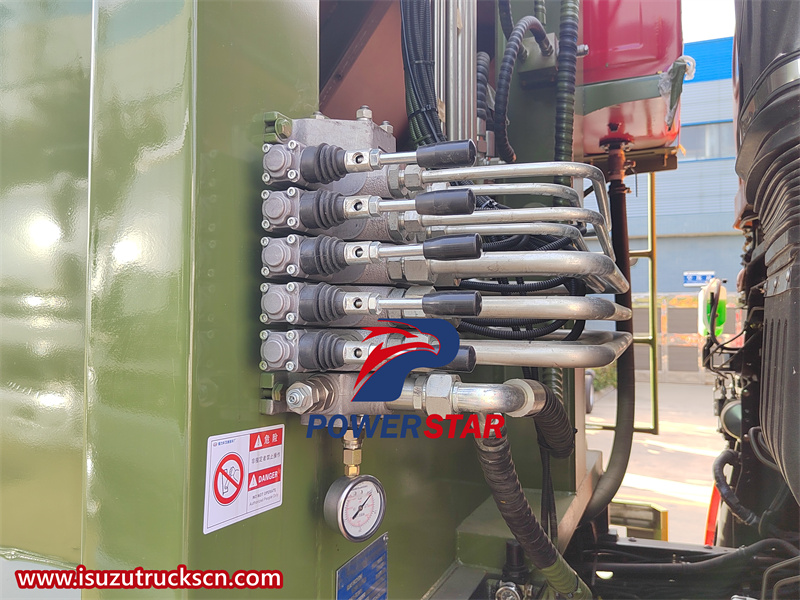

Front hydraulically operated valve

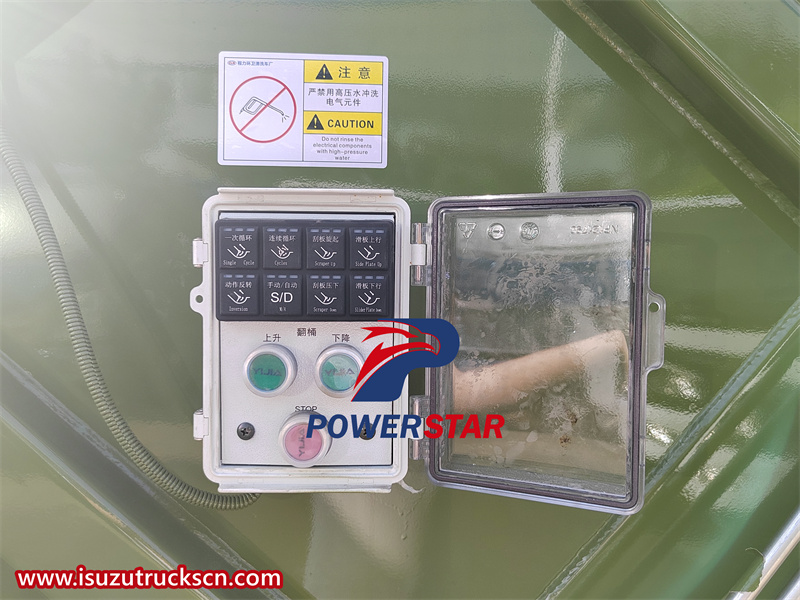

Rear operation box

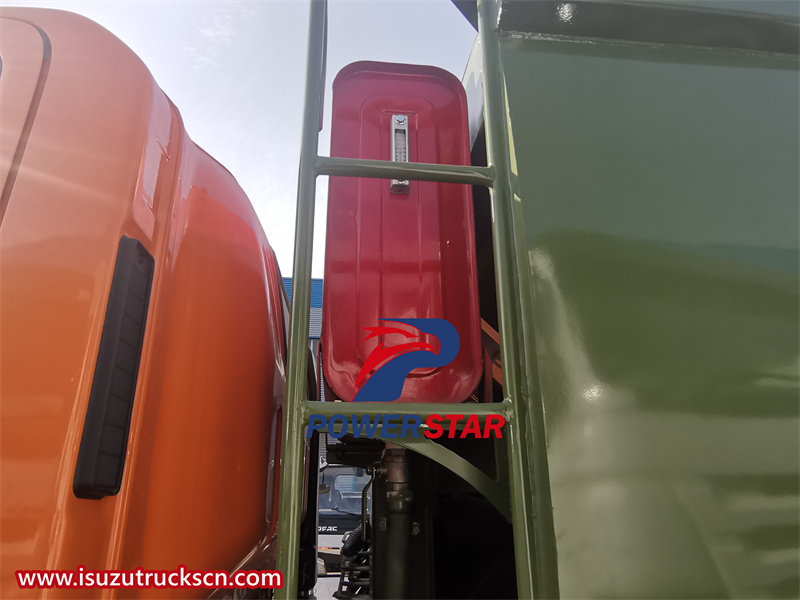

Hydraulic oil tank
