PM80A Pump ISUZU Vacuum Sewage Suction Truck
The Isuzu 8m3 PM80A Vacuum Pump Sewage Suction Truck is a powerful, specialized vehicle equipped with a high-performance vacuum pump system. It is designed to effectively clean sewage and other wastes, suitable for urban environments and industrial uses. This vehicle has a reliable sewage suction capacity, which can efficiently clean sewer pipes, sewage pools and other contaminated sites. It provides reliable and strong power, making it an important tool in cleaning work.
Work capacity:
8000 litersTruck model:
PT5180GZYEngine power:
240HPEngine type:
ISUZU 6HK1-TCG61Axle drive:
4X2,LHDGear box:
Manual type;FAST 8-speedRemarks:
Italy MORO PM80A Vacuum PumpPM80A Pump ISUZU Vacuum Sewage Suction Truck also called Isuzu new FVR 4x2 vacuum tank truck,Isuzu FVR 8000L sewer vacuum truck,Isuzu FVR PM80A vacuum pump tank truck,Isuzu F-series sewer disposal tanker truck,Isuzu FVR GIGA septic tank truck with MORO PM80A pump.
The PM80A Pump ISUZU Vacuum Sewage Suction Truck is a versatile and reliable machine that combines the power of an Isuzu FVR chassis with a high-performance PM80A vacuum pump. This combination ensures that the truck can handle a wide range of sewage suction tasks with ease. The truck is specifically engineered for use in municipal, industrial, and agricultural settings where efficient sewage removal is crucial.
Key Features:
----ISUZU new FVR chassis, perfect performance
----ISUZU 6HK1 engine, super powerful, reliable performance, no overhaul within 100,000 km
----Nice shape, rational structure
----ltaly imported Moro PM80A vacuum pump super powerful, efficient pump in and out
----Strong, durable, perfect performance
Specifications
|
PM80A Pump ISUZU Vacuum Sewage Suction Truck |
||
|
General |
Manufacturer |
POWERSTAR |
|
Truck Model |
PT5180GZY |
|
|
Overall Dimension(mm) |
8300 x 2550 x 3515 mm |
|
|
GVW/Curb weight(kg) |
18000kg/ 9850kg |
|
|
Loading Volume |
8 CBM,8000liters |
|
|
Chassis |
Brand |
ISUZU |
|
Drive Type |
4X2, LHD |
|
|
Wheelbase(mm) |
4500mm |
|
|
Front /rear overhang(mm) |
1360/2610 mm |
|
|
Wheel truck(front /rear)(mm) |
1960/1860 mm |
|
|
Axle loads |
6500/11500kg |
|
|
Max driving speed(km/h) |
95 km/h |
|
|
Steering gear |
Power steering |
|
|
Tire |
7pcs with one spare tire |
|
|
295/80R22.5 |
||
|
Transmission |
Manual type;FAST 8-speed |
|
|
Cab |
A/C installed ,one and half row,two door,3 persons allowed |
|
|
Engine |
Model |
ISUZU 6HK1-TCG61 |
|
Fuel type |
Diesel |
|
|
Fuel tank capacity |
200L |
|
|
Power(kw) |
240HP/177Kw |
|
|
Displacement(ml) |
7790 |
|
|
Rated speed |
2400rpm |
|
|
Maximum torque |
760N.M |
|
|
Max torque speed |
1450rpm |
|
|
Intake form |
Six cylinder in line, water cooling, six stroke, pressurized medium - cooling, direct injection |
|
|
Emission standard |
Euro 6 |
|
|
Sewage Suction System |
||
|
Sewage Tanker |
Capacity |
8000liters |
|
Material |
Carbon steel |
|
|

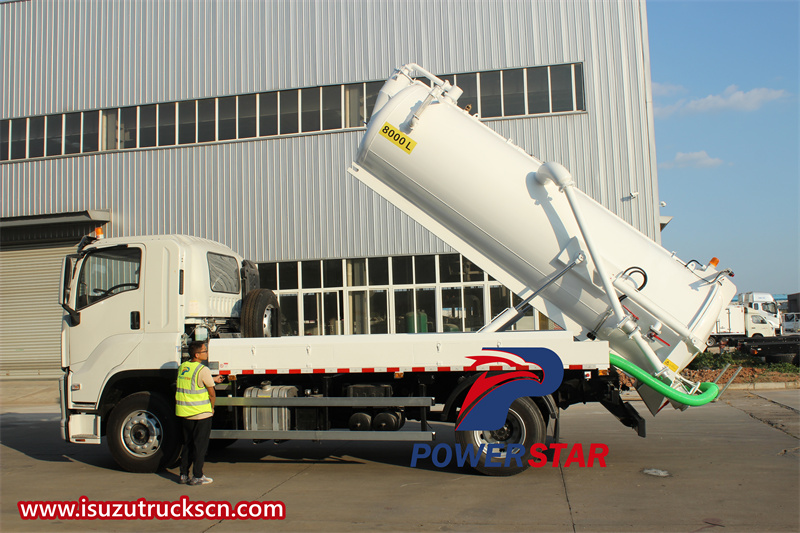

Dumping System |
Middle Tipper |
Hydraulic Controlled Rear Door and Middle lifting. |
|
Rear Door |
Hydraulic controlled with sewage drain pipe |
|
|
Vacuum Pump
|
ITALY PM80A VACUUM PUMP |
|
|
Free air flow |
12000Lt/min(424cfm) |
|
|
Max.Vacuum |
28 In.Hg/95% |
|
|
Continuous Duty Vacuum |
23.6 In.Hg/80% |
|
|
Max. Pressure |
29psig |
|
|
Rotation speed |
1100rpm |
|
|
Sound pressure at 7 meters (23 ft) 60% vacuum |
79dB |
|
|
108mmΦ suction pipe, suction time ≤5min, dump angle ≥45 |
||
|
Sewage Pipe |
8 meters Rubber Pipe (one unit pipe) |
|
|
Other Parts |
Water-gas separator, Oil-gas separator, Four way valve, Safety valve, Anti overflow valve, Anti overflow warning device...... |
|
Applications
The PM80A Pump ISUZU Vacuum Sewage Suction Truck is a specialized vehicle designed for efficient and effective sewage suction and transportation. It leverages cutting-edge technology and robust engineering to provide unparalleled performance in various sewage handling applications.

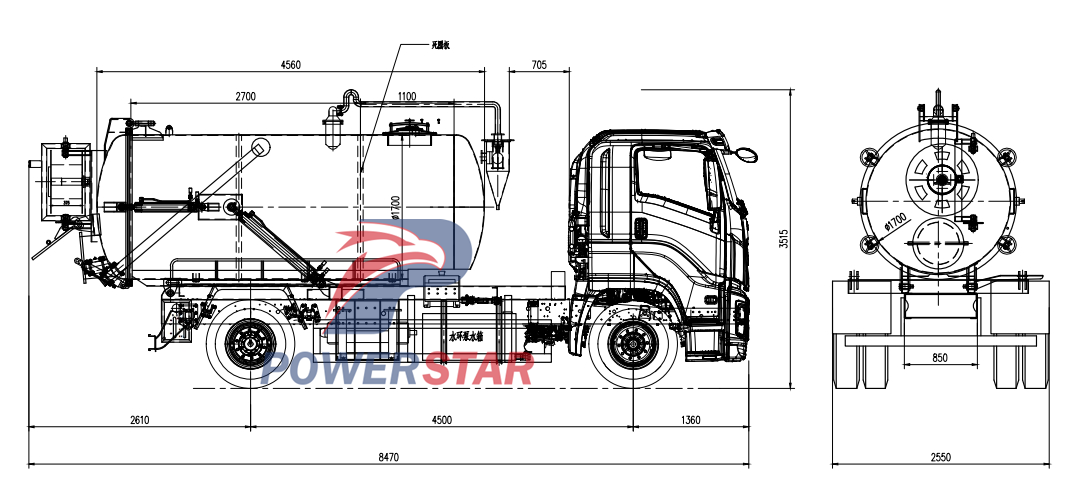

Technical drawing of Isuzu FVR 8cbm PM80A pump vacuum sewage suction truck

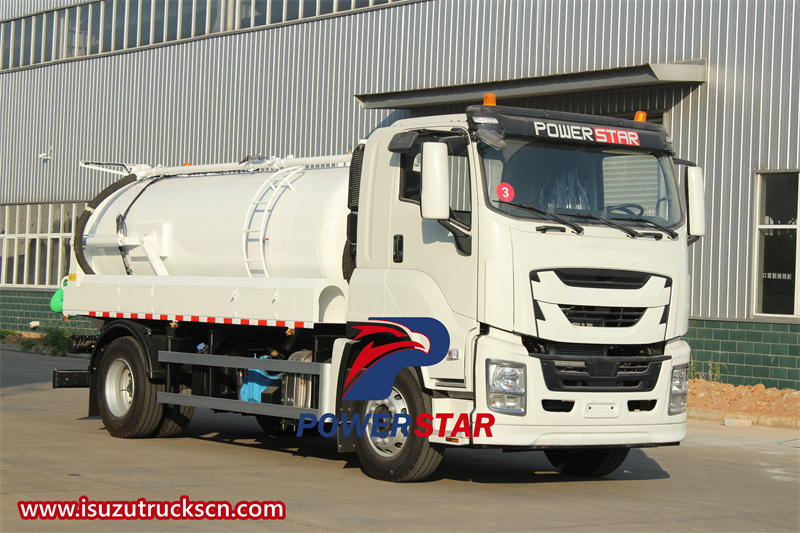

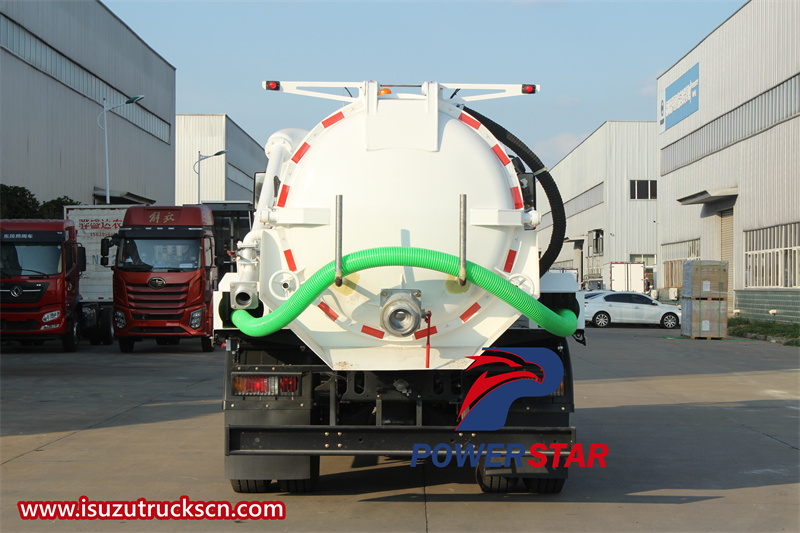

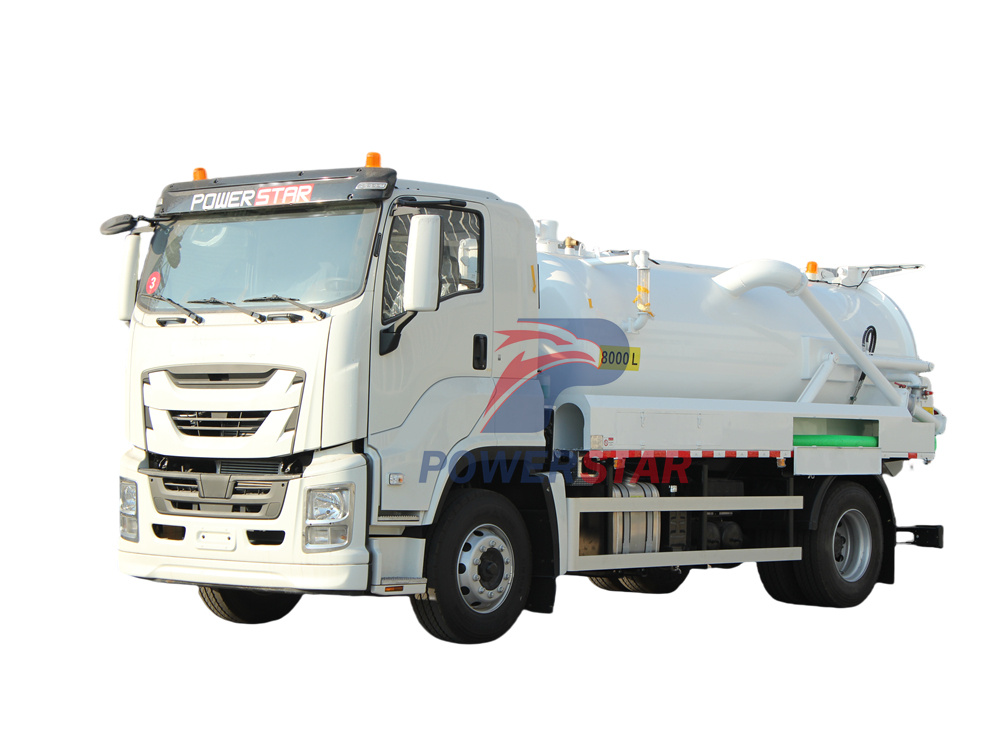

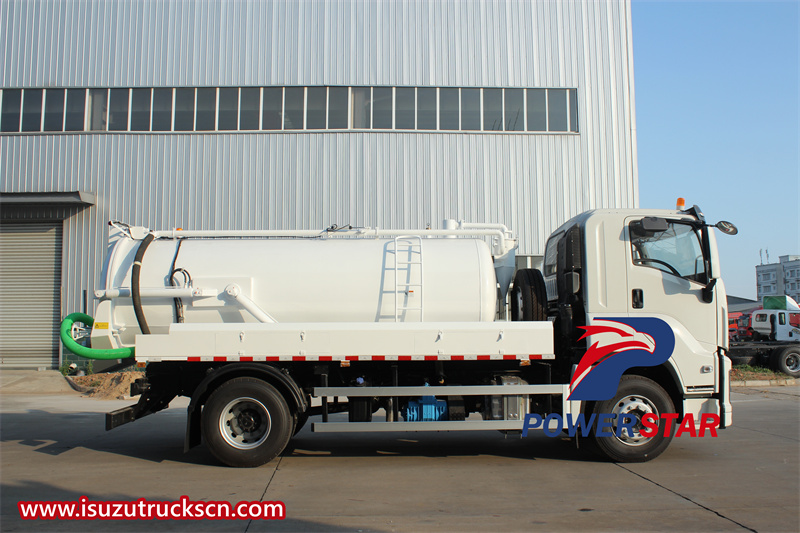

PM80A Pump ISUZU Vacuum Sewage Suction Truck

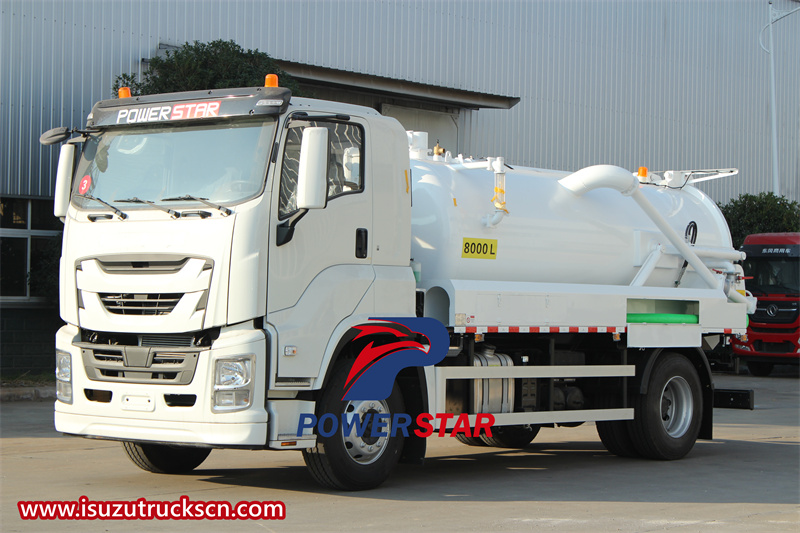

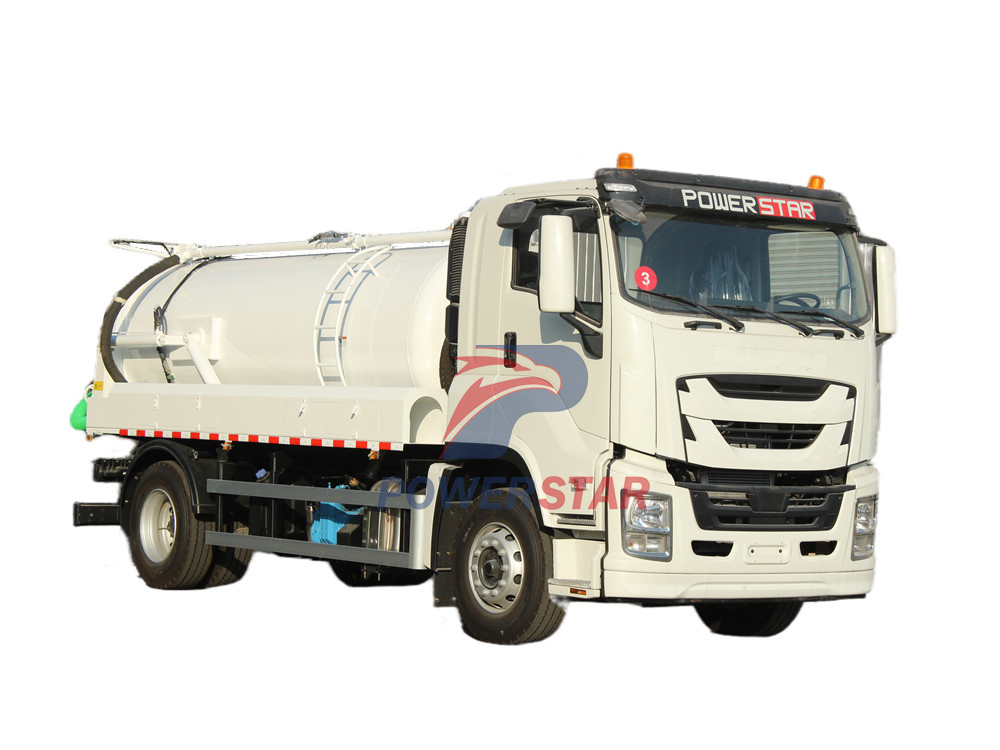

Isuzu new FVR 4x2 vacuum tank truck

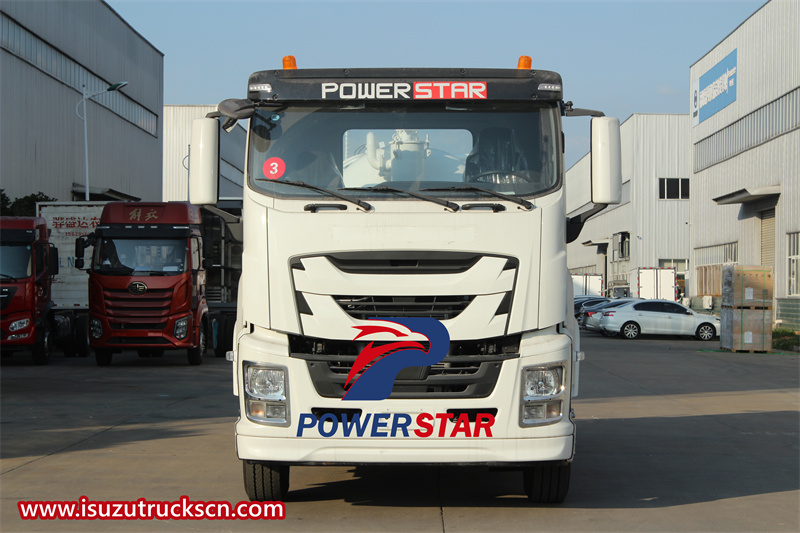

Chassis and Engine
The heart of the PM80A Pump Isuzu Vacuum Sewage Suction Truck is the new Isuzu FVR chassis. This chassis is renowned for its durability, reliability and versatility. It provides a stable and sturdy platform for the vacuum pump and other important components.
The chassis is powered by a powerful 6HK1-TCG61 240HP engine. The engine delivers impressive torque and power, allowing the truck to handle heavy loads and challenging terrain with ease. The engine is also designed to save fuel, ensuring the truck can run for long periods without frequent refueling. At the same time, it is equipped with a FAST 8-speed transmission, which shifts smoothly, bringing the driver a more efficient and convenient driving experience.
The Isuzu FVR 8cbm vacuum sewage suction truck has a wheelbase of 4500mm. This wheelbase provides excellent stability and maneuverability, allowing the truck to easily pass through tight spaces and narrow streets. The suspension system is also designed to provide a smooth and comfortable driving experience, even when driving on uneven roads.
Vacuum Pump
The Moro PM80A vacuum pump is the powerhouse behind the Isuzu Vacuum Sewage Suction Truck's sewage suction capabilities. The pump is designed for efficient sewage suction. It has a strong suction capacity and can handle large amounts of sewage quickly and efficiently. The pump is also equipped with advanced controls that allow the operator to adjust the suction and flow rate according to the specific needs of the task.
The PM80A vacuum pump is made of high-quality materials to ensure durability and service life. It is also easy to maintain and repair, which reduces the overall cost of ownership.
The Italy Moro PM80A vacuum pump is an efficient and reliable vacuum suction equipment, mainly used to suck liquid and solid waste, and is one of the important components in the PM80A pump Isuzu vacuum suction truck. This vacuum pump adopts an advanced working principle, which can generate strong suction and ensure efficient waste suction and discharge process.

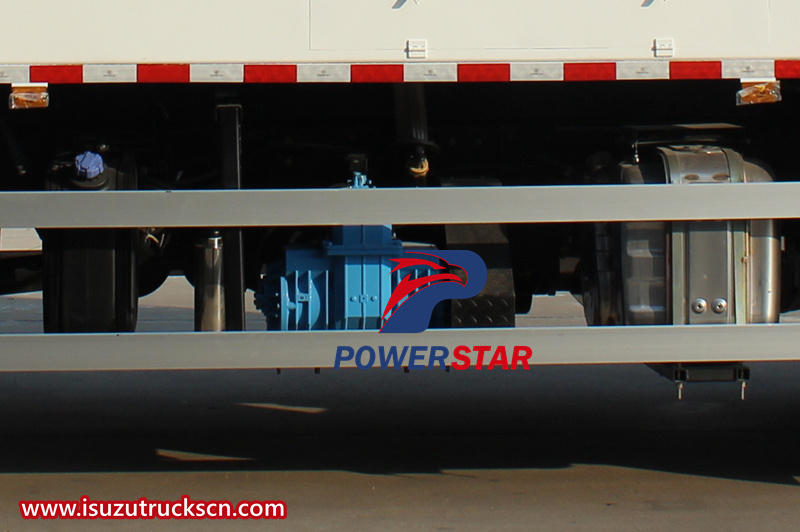

Moro PM80A vacuum pump

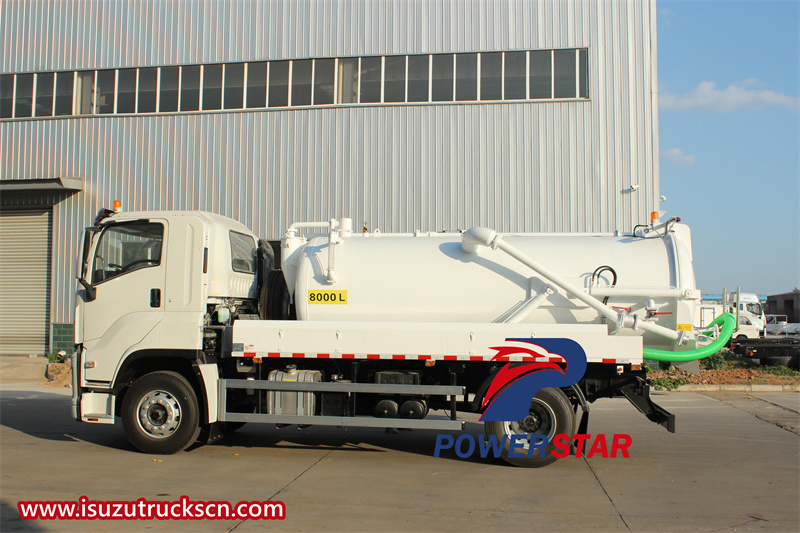

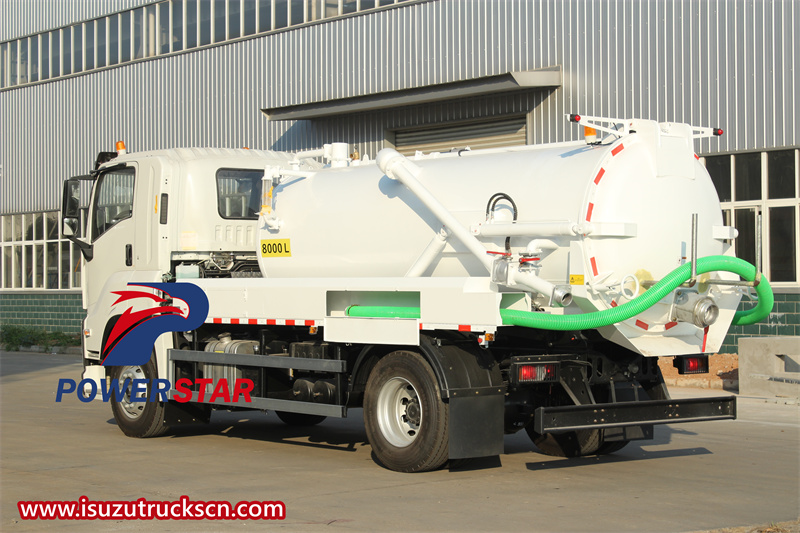

Isuzu FVR 8000L sewer vacuum truck

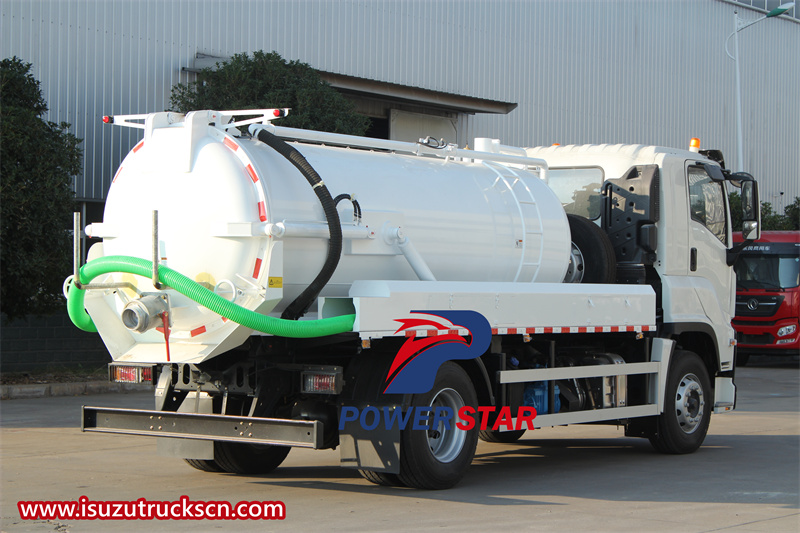

Isuzu FVR PM80A vacuum pump tank truck

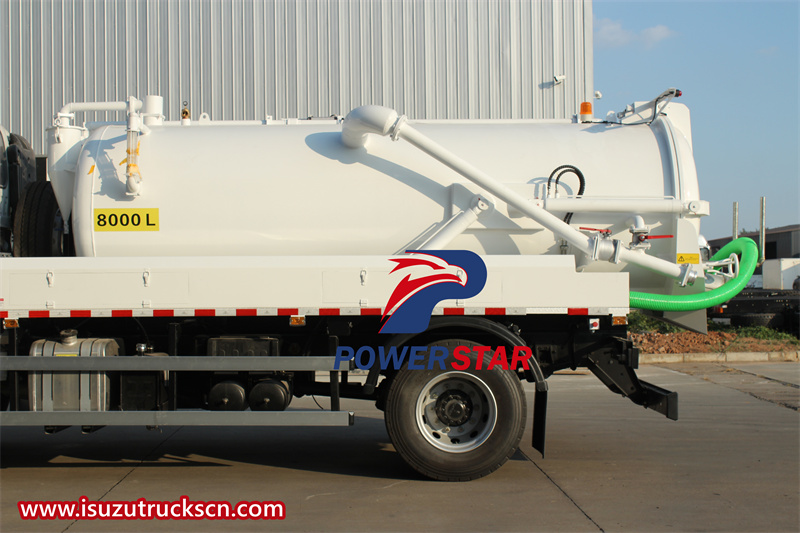

8000L Sewage Tank
This 8000-liter sewage tank is one of the core components of the ISUZU vacuum suction truck, designed to provide a large-capacity storage space to accommodate wastewater and solid waste, thereby promoting efficient wastewater treatment operations. Constructed of corrosion-resistant materials, the tank has superior sealing and strength, ensuring that it will not leak during transportation, thereby reducing the risk of environmental pollution. The large capacity of 8000 liters makes it an ideal choice for handling large amounts of sewage, suitable for a variety of environments and usage scenarios.
The 8000-liter sewage tank is designed with convenient inlets and outlets to simplify the filling, discharging and cleaning processes, making it easy for operators to quickly fill and discharge wastewater during work and improve production efficiency. At the same time, the tank is also equipped with outlets and valves to ensure that wastewater can be effectively discharged and treated while preventing leakage and pollution.

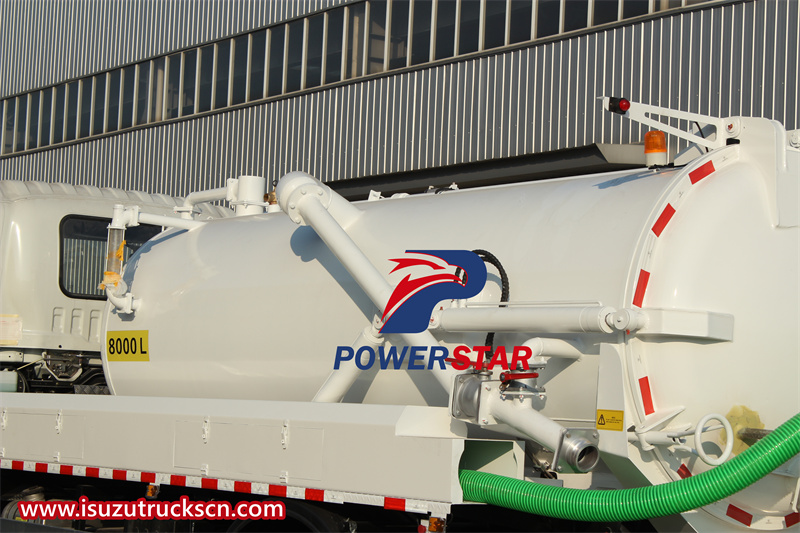

8000L sewage tank

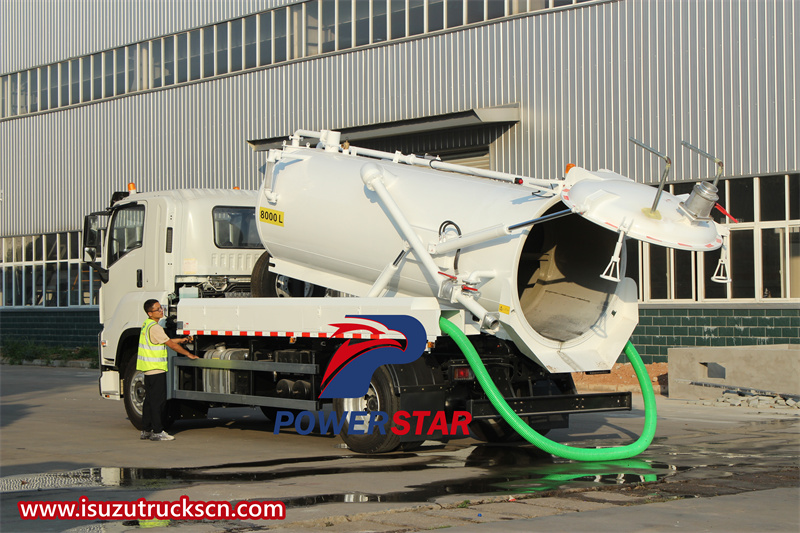

Hydraulic cylinder
The efficient performance of the PM80A pump allows sewage to be quickly and stably pumped out of the sewage tank and transported to the designated treatment equipment or discharge point.
The 8000-liter sewage tank is designed to be simple and easy to use, easy to operate and maintain. Cleaning and maintenance of the tank is very important because it affects the efficiency and safety of wastewater treatment. The inner surface of the tank is smooth and easy to clean, which can reduce bacterial growth and odor release. In addition, the reliable design of the tank structure and connectors makes maintenance more convenient, and operators can easily carry out necessary inspections and repairs to ensure the long-term reliability and performance of the tank.

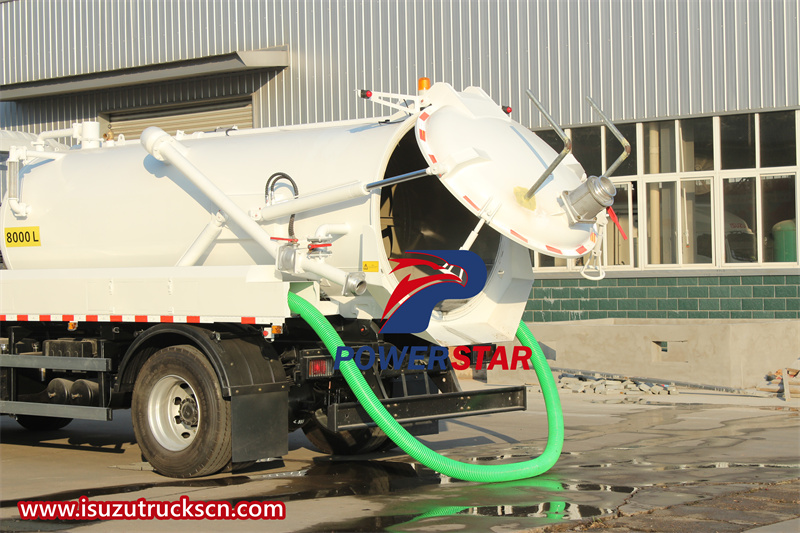

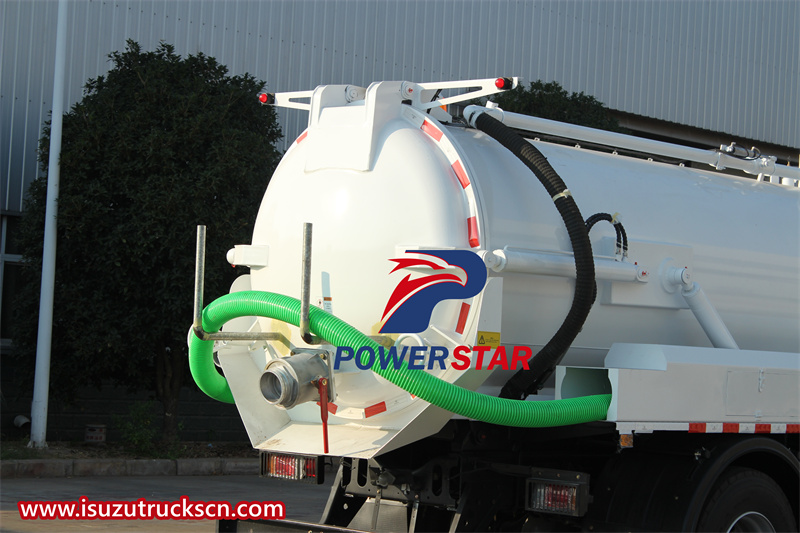

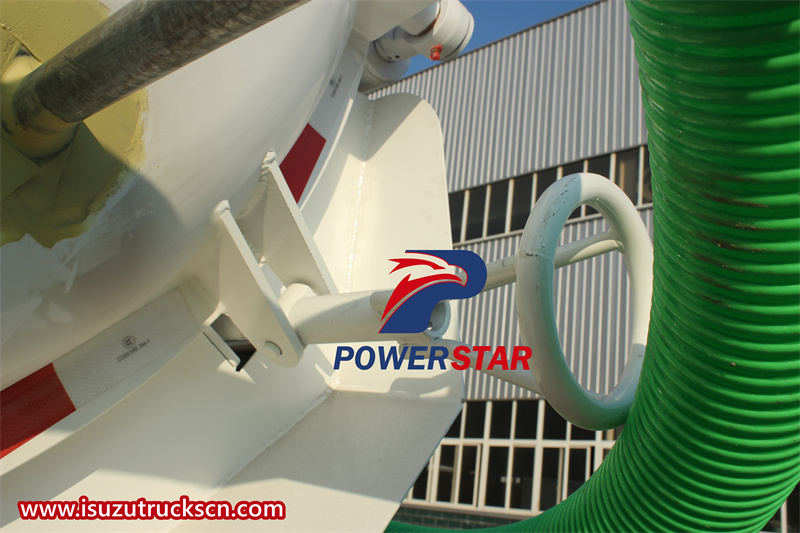

Tailgate, discharge valve, locking device, sewage suction pipe

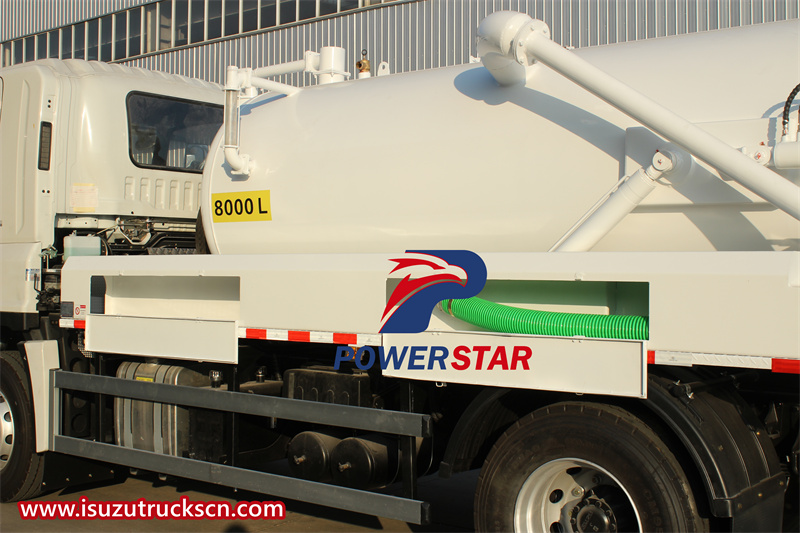

Tank and hose system
The Isuzu new FVR 4x2 sewer suction truck is equipped with a large sewage tank that can accommodate a large amount of sewage. The tank is made of durable materials to withstand the corrosive effects of sewage. It also features a convenient drain valve that allows the operator to quickly and easily empty the tank.
The hose system is another key component of the truck. It includes a long, flexible hose that can reach deep into sewers and other tight spaces. The hose also comes with a powerful suction nozzle that can handle the most stubborn sewage clogs.

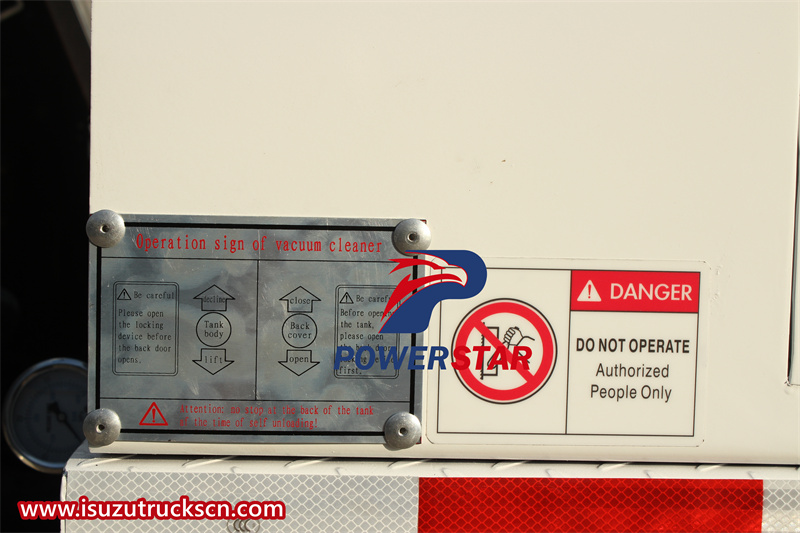

Operation sign of vacuum cleaner

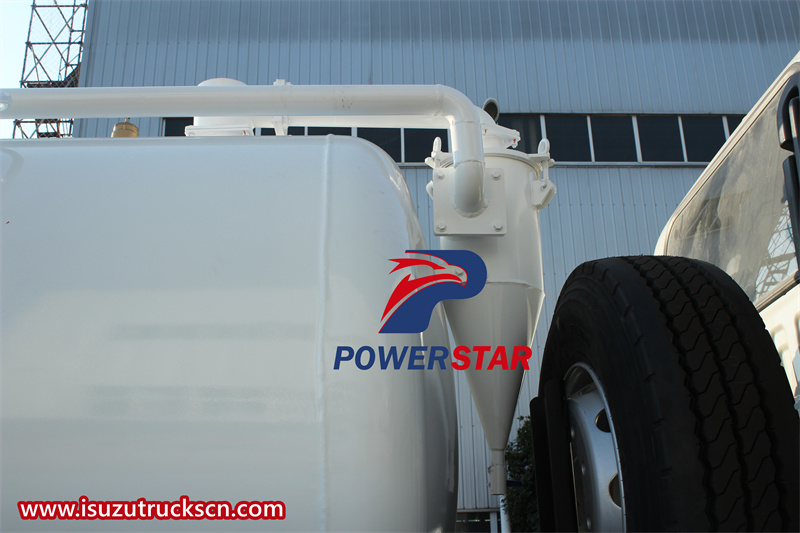

Secondary filter, spare tire

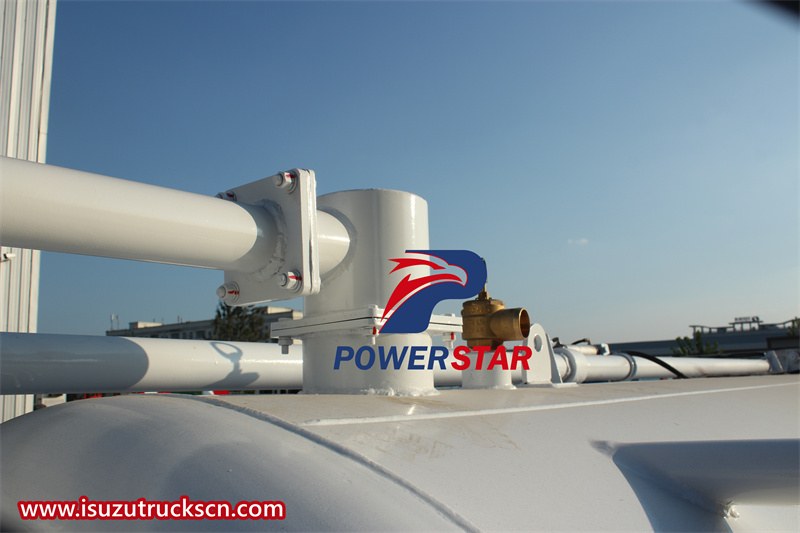

Overflow Valve
