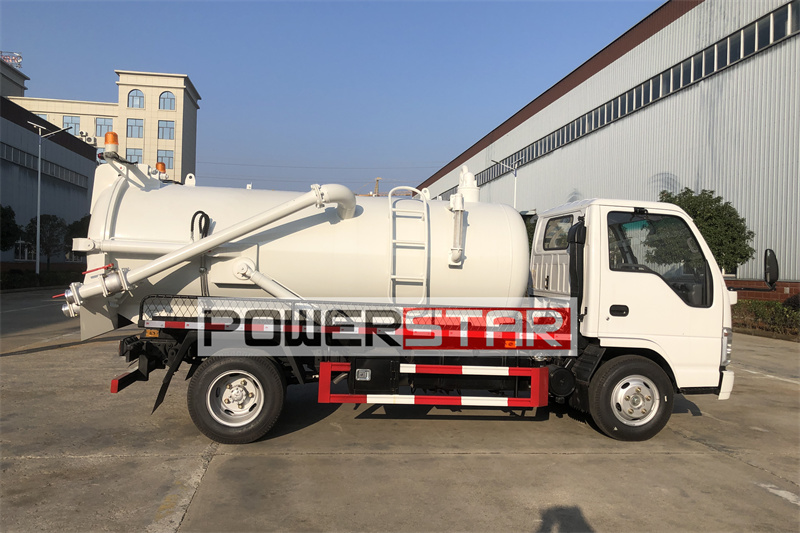

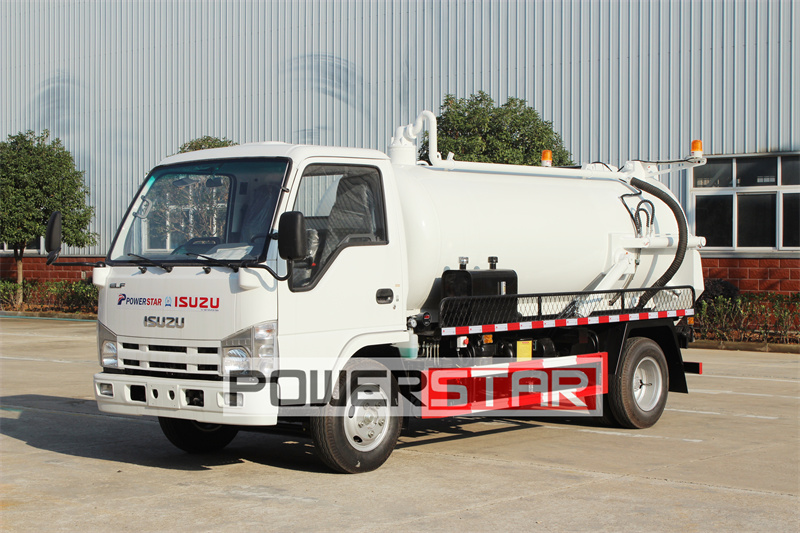

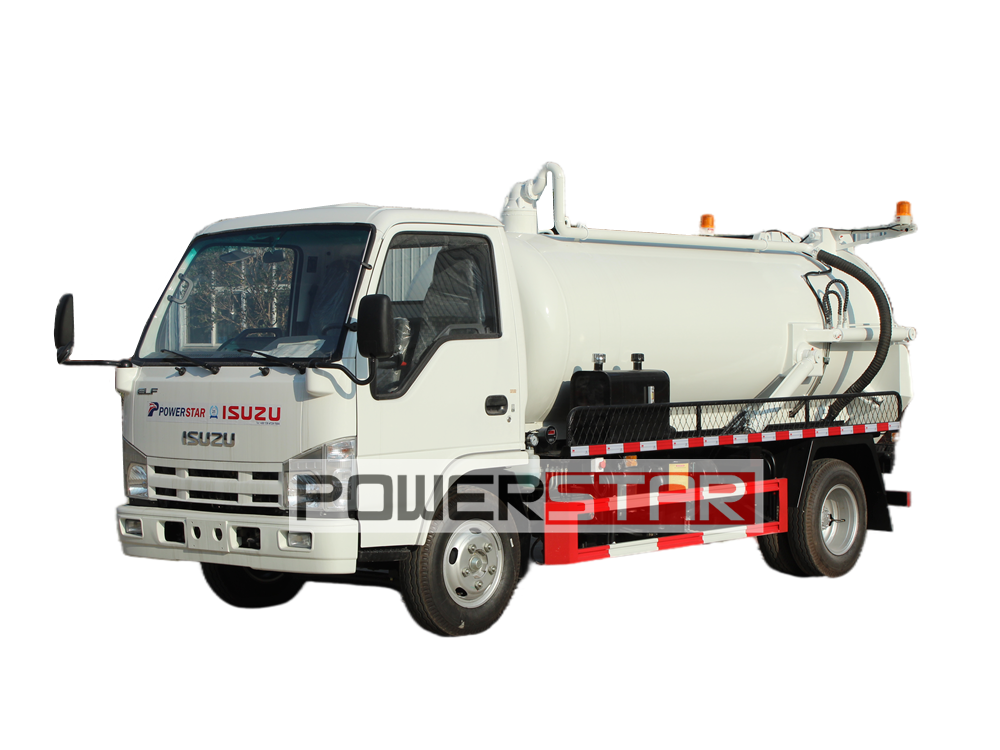

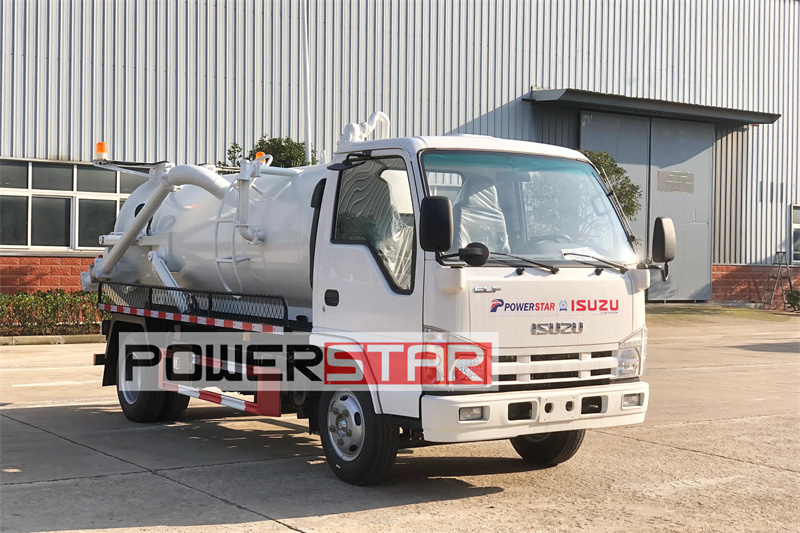

Isuzu 3 cbm commercial wet dry vacuum truck
Isuzu ELF 100P 3 cbm sewage suction truck is a special sanitation vehicle built on the Isuzu ELF 100P light truck 3360mm wheelbase chassis, equipped with Isuzu 4KH1CN6LB 120HP 88Kw diesel engine, matched with Isuzu MSB 5-speed gearbox, with A/C, USB, direction assistance. The vehicle is equipped with a 3 cubic meter 6mm thick carbon steel sewage suction tank.
Work capacity:
3000litersTruck model:
PT5070GHXEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4X2,LHDGear box:
Isuzu MSB 5 forwards & 1 reverse,manualRemarks:
Isuzu 4KH1 engine,3cbm vacuum tankIsuzu 3,000 liters commercial wet dry vacuum truck is widely used in urban sanitation, municipal administration, chemical industry, factories and mines, property communities and other fields. It is used to suck sewage, sludge and dirt mixed with suspended debris, small bricks, gravel and other dirt, and has a wide range of uses and market demand.
Key Features:
----ISUZU ELF 100P light chassis, perfect performance
----ISUZU 4KH1 engine, super powerful, reliable performance, no overhaul within 100,000 km
----Nice shape, rational structure
----China famous vacuum pump super powerful, efficient pump in and out
----Strong, durable, perfect performance
|
Description |
Isuzu ELF 100P 3cbm Sewage Suction Truck |
|
|
Drive Model |
4x2,LHD |
|
|
Vehicle Main Dimensions |
Dimensions (L x W x H)(mm) |
5900×2150×2550 |
|
Wheel base (mm) |
3360 |
|
|
Overhang (front/rear) (mm) |
1015/1525 |
|
|
Wheel track (front/rear) (mm) |
1504/1425 |
|
|
Approach/Departure angle(°) |
24/22 |
|
|
Weight in KGS |
GVW. |
7300kg |
|
Curb Weight |
4200kg |
|
|
Axle loading |
2580/4720kg |
|
|
Engine |
Model |
4KH1CN6LB |
|
Type |
4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Power |
120HP/88Kw |
|
|
Displacement |
2999ml |
|
|
Emission standard |
Euro 6 |
|
|
Chassis |
Gearbox |
Isuzu MSB 5 forwards & 1 reverse，manual |
|
Clutch |
Reinforced diaphragm clutch |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Fuel tank (L) |
100 |
|
|
Tire |
7.00R16 tire, 6 + 1(spare) |
|
|
Max. driving speed(km/h) |
95 |
|
|
Characteristic |
1. Sewage tank volume 3000 liters. |
|
|
2. Q235A Carbon steel |
||
|
3. Sewage tank material is carbon steel,thickness 6mm. |
||
|
4. Sewage suction pipe 1pcs, length 7m. |
||
|
5. Hydraulic lifting sewage tank,rear cover can open. |
||
|
6. Equipped with PTO. |
||
|
7. Equipped with vacuum pump. |
||
|
8. Equipped with oil water separator, overflow valve,looking sewage window, self flow exit,hand washing device. |
||
|
Performance |
(1) Vertical suction ≥ 7m. |
|
|
(2) Pumping speed: 45L/s. |
||
|
(3) Intake and exhaust diameter: 50mm. |
||
|
(4) Full tank pumping time ≤ 5min. |
||
|
(5) Sewage tank emptying time ≤ 4min. |
||

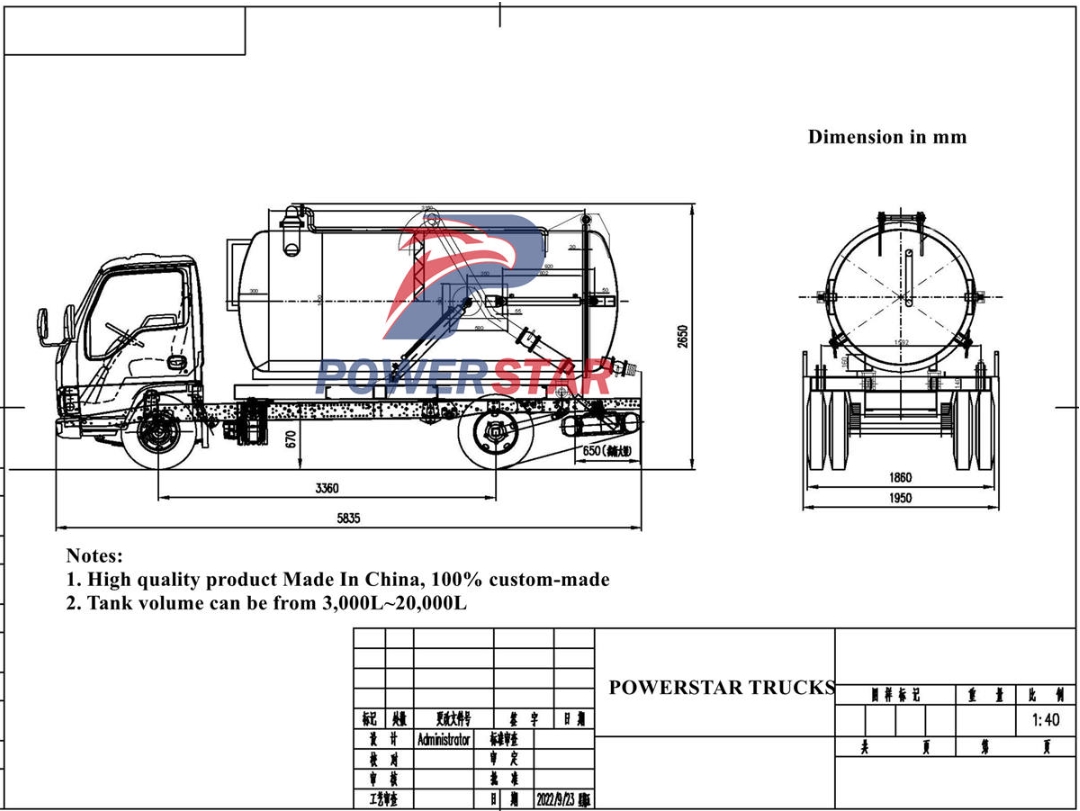

Technical drawing of Isuzu ELF 100P 3cbm sewage suction truck
• Engine: The truck uses Isuzu 4KH1CN6LB engine with a displacement of 2.999L, which meets the National VI emission standards. Its maximum output power is 120 horsepower and the maximum torque reaches 290 Nm, which provides strong power for the vehicle. It can meet the use needs of various complex working conditions.

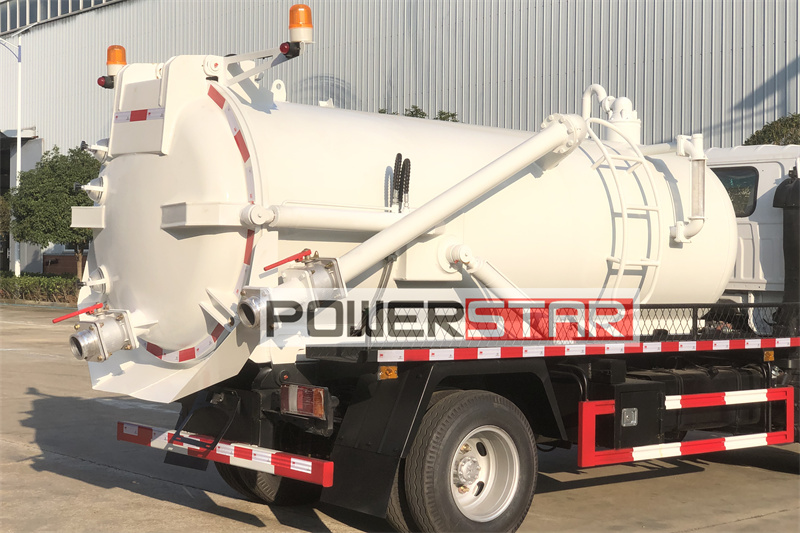

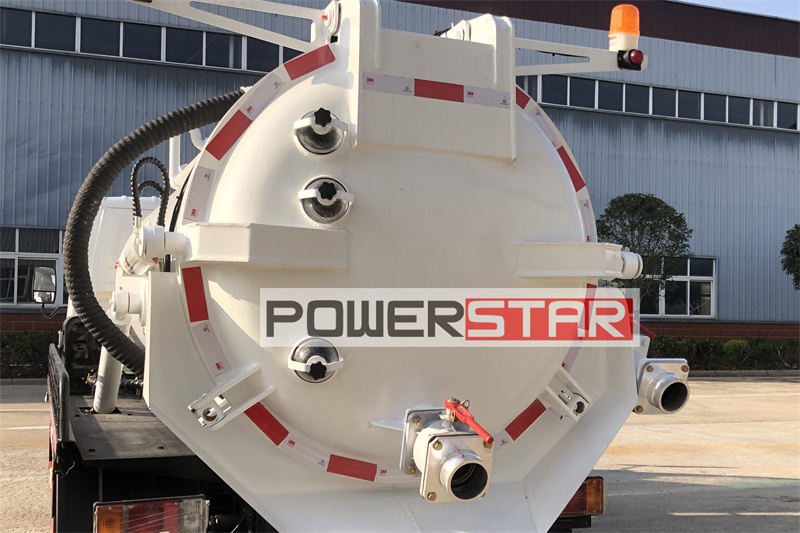

Tailgate
• Transmission: It is matched with Isuzu MSB 5-speed transmission, and the smooth shifting makes it easy for the driver to operate flexibly under different road conditions.

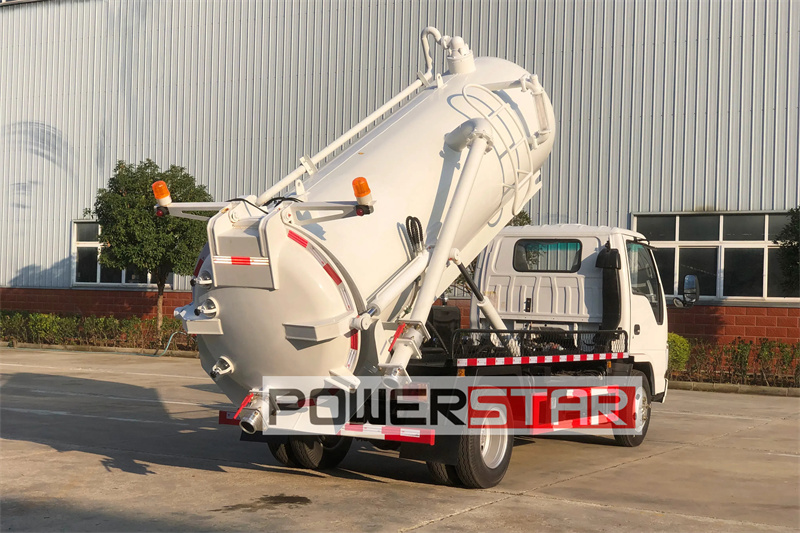

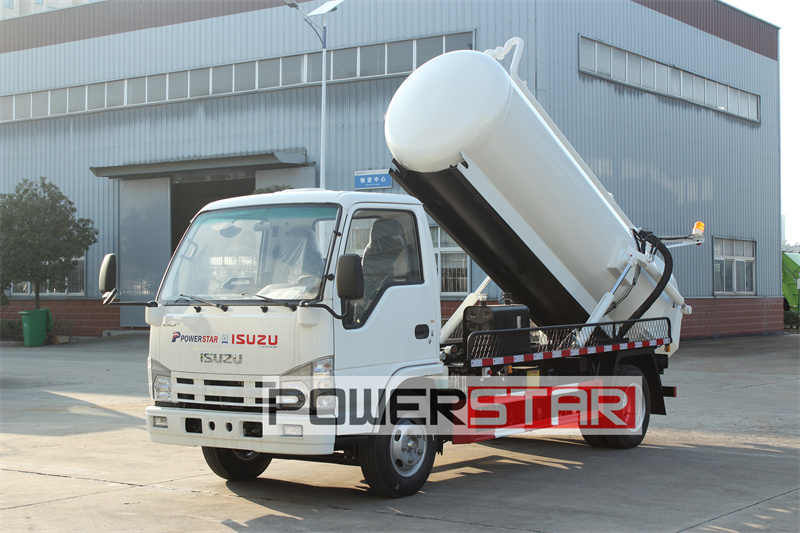

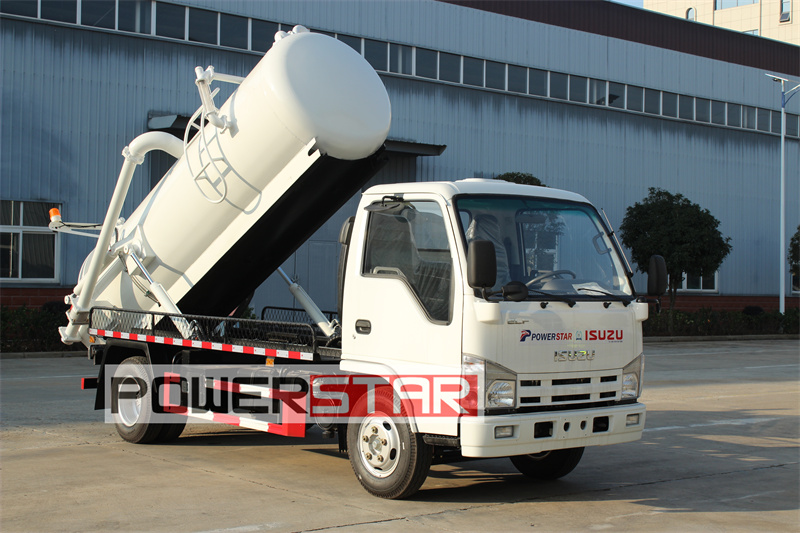

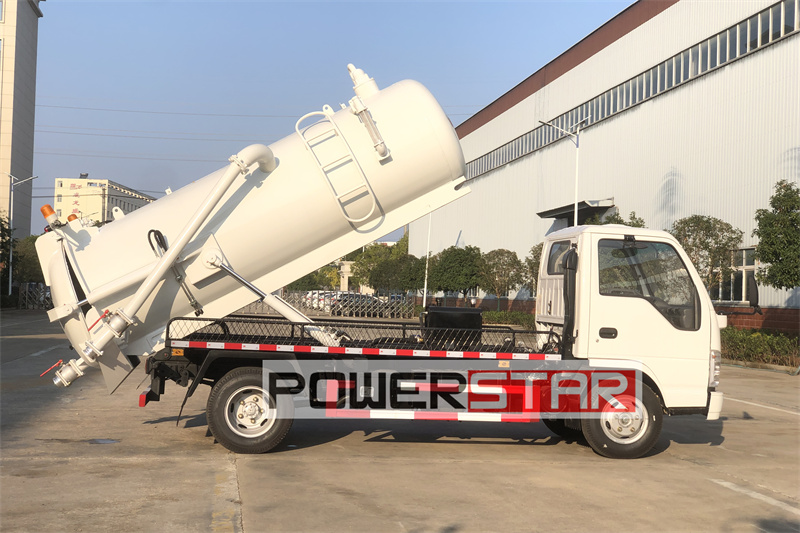

Hydraulic cylinder lifting
• Tank body: It is made of high-quality carbon steel plate with a thickness of 6mm to ensure the strength and durability of the tank body. The tank body is cylindrical in shape, which is convenient for the storage and discharge of dirt.

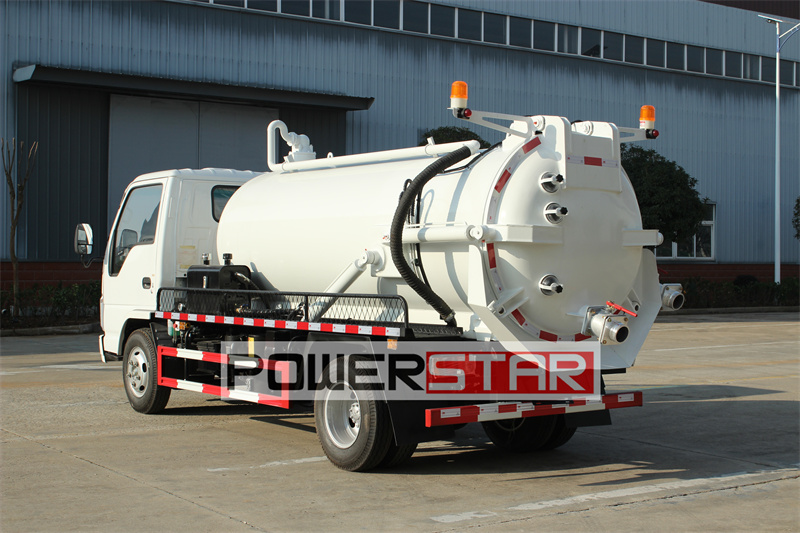

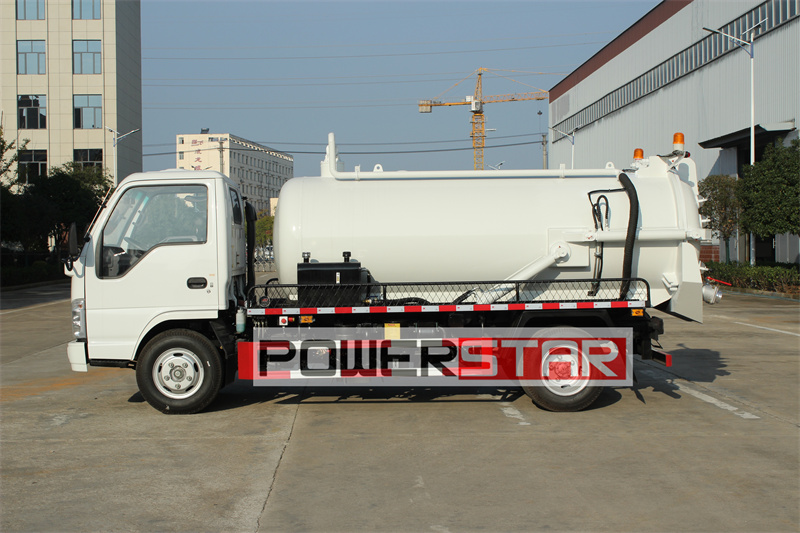

Tank
• Sewage suction system: It is equipped with a high-power vacuum suction pump and a high-quality hydraulic system, which can efficiently suck sewage, sludge and other dirt into the tank. At the same time, the tank head is die-cast in one time, and the tank body can be opened at the back and double-top self-unloading, which is convenient for dumping and handling of dirt.

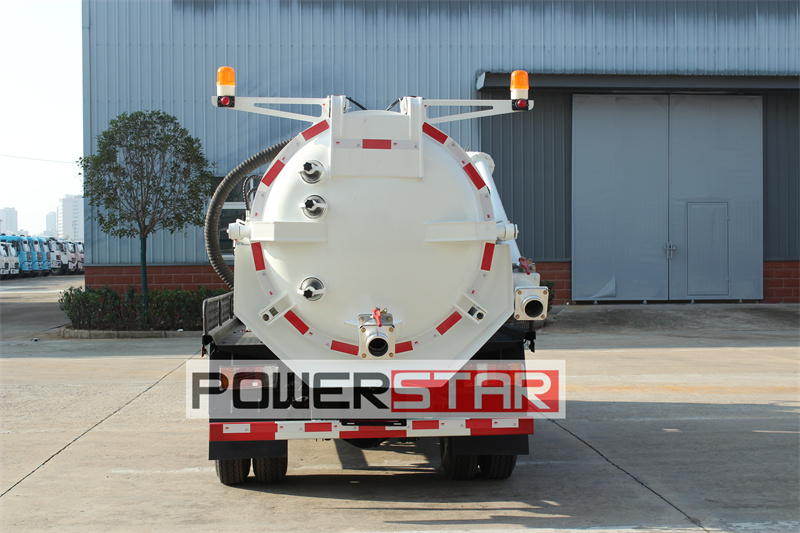

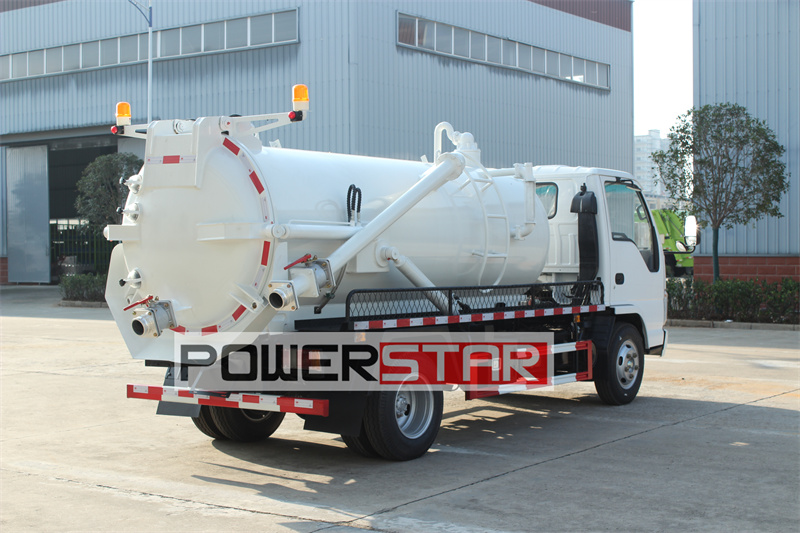

Rear view
Performance characteristics
Efficient sewage suction: It adopts a high-power vacuum pump with the characteristics of high vacuum, large tonnage and high efficiency. It can quickly suck sewage, sludge and other dirt into the tank to improve work efficiency.
Easy to operate: The control method adopts electronic control + manual operation. The position is located in the cab and the front of the tank, which is convenient for the driver to observe and operate at any time.

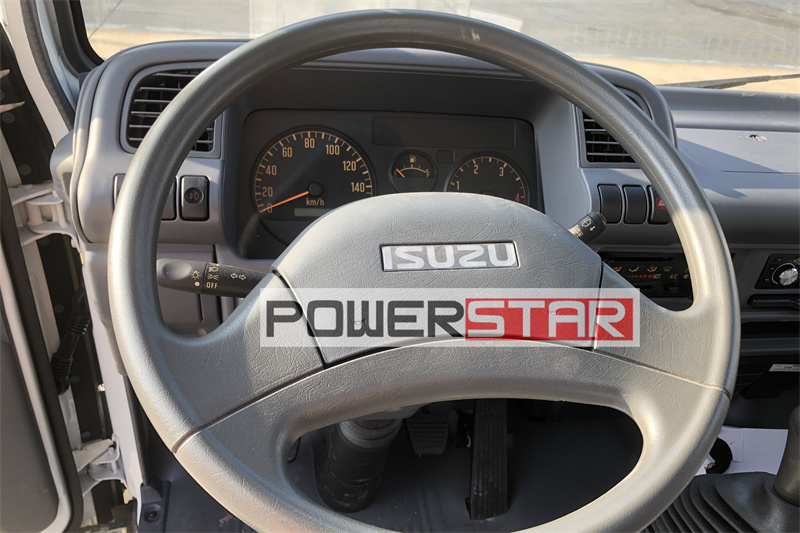

Comfortable driving: The cab design is spacious and comfortable, and it is equipped with power steering, clutch assist and other configurations as standard, making driving easier and more pleasant. At the same time, the vehicle is also equipped with comfortable configurations such as sunroof, adjustable steering wheel, front and rear adjustable seats, etc., to further enhance the driving experience.
