The Isuzu heavy truck FVR rear loader compactor truck is a heavy-duty vehicle specially designed for garbage treatment and management. Its chassis adopts the latest 6H1 series common rail engine, which has achieved significant improvements in fuel efficiency, power, durability and emissions. It is also equipped with a new cab, 8-speed gearbox, air conditioning, power steering, air brakes, ABS, standard 11.00R-20 tires, electric doors and windows, and central locking. The garbage compartment has a volume of 10 cubic meters. The hydraulic operating system is electrically controlled and manually controlled. It has a rear flip mechanism and can hang two 240L plastic barrels. It has a pneumatic sealing cover and two sewage tanks at the front and rear.
Work capacity:
10CBMTruck model:
PT5100ZYSQEngine power:
240HPEngine type:
6HK1-TCG61Axle drive:
4x2, left hand driveGear box:
Fast 8-speed, 1 reverse speedRemarks:
Best price Isuzu rear loader comapctor, 4x4 driver optional| Products Description |
Nigeria Isuzu recycling rear loader also called Isuzu garbage compactor truck, Isuzu rear loader compactor,Isuzu waste compactor truck, Isuzu trash compactor, Isuzu trash crusher truck,Isuzu refuse compactor truck, Isuzu compactor garbage truck, Isuzu rubbish truck, Isuzu waste collection vehicle. The Nigeria Isuzu recycling rear loader is an efficient and reliable garbage disposal equipment, specially designed for urban garbage collection and treatment work. The Isuzu garbage compactor trucks use devices such as fillers and push shovels to pour, crush or flatten garbage, and load the garbage. The garbage is squeezed into the compartment and compacted and pushed away, and all sewage enters the sewage compartment. The vehicle has automatic repeated compression and peristaltic compression functions. It has the advantages of high compression ratio, good sealing, large loading capacity, easy operation, good environmental protection, and high vehicle utilization.
I. Description of Nigeria Isuzu Recycling Rear Loader
Key Features:
---- ISUZU chassis, perfect performance
---- ISUZU FVR engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Compression body capacity from 3 to 30 Cublic Meter.
---- Easy operation and easy maintenance.
---- Steady construction,Optional 400L Sewage tank avoid second pollution.
| Technical Parameter |
II. Specification of Nigeria Isuzu FVR 4x2 10cbm Recycling Rear Loader
|
Truck Specification |
||||
|
Vehicle Model |
PT5100ZYSQ |
|||
|
Cab |
ISUZU FVR cab, one and a half row seats, with USB connector radio |
|||
|
Driving Type |
4*2 Left hand driving |
|||
|
Max Speed (km/h) |
95 |
|||
|
Overall Dimension (mm) |
Appro. 8600mm * 2500mm * 3300mm |
|||
|
GVW (kg) |
15600 |
|||
|
Truck Tare Weight (kg) |
9500 |
|||
|
Wheelbase (mm) |
3900 |
|||
|
F/R Track Base (mm) |
1504/1425 |
|||
|
F/R Overhang (mm) |
1335/2450 |
|||
|
Approach/Departure Angel (°) |
24/14 |
|||
|
Tire |
11.00-20 |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Hydraulic steering with power assistance |
|||
|
Gear Box |
Fast 8-speed, 1 reverse speed |
|||
|
Bridge |
Front Axle (kg) |
6300 |
||
|
Rear Axle (kg) |
1300 |
|||
|
Engine |
Model |
6HK1-TCG61 |
||
|
Fuel Type |
Diesel fuel |
|||
|
Emission Standard |
Europe Vi |
|||
|
Type |
Water-cooled four-stroke, direct injection, turbocharged |
|||
|
Output Power (kw) |
179 |
|||
|
Exhaust(ml) |
7780 |
|||
|
Max output power/rotate speed (hp /rpm ) |
240/2800 |
|||
|
Max torque/max torque speed (N.m/rpm) |
760/1450 |
|||
|
Braking System |
Service Brake |
Compressed air brake |
||
|
Park Brake |
Spring energy |
|||
|
Auxiliary Brake |
Engine exhaust brake |
|||
|
Electrical System |
24v |
|||
|
Upper-Body Specification |
||||
|
Tank |
Volume |
10CBM |
||
|
Material |
Q345 |
|||
|
Thickness (side/bottom) |
4mm/5mm |
|||
|
Hydraulic Pump |
532 model |
1 set |
||
|
Multi-way Valve |
DL-15B-6 |
1 set |
||
|
Flap Cylinder |
80/45-410*180 |
2 set |
||
|
Lifting Cylinder |
80/45-900*580 |
2 set |
||
|
Scraper Cylinder |
80/45-700*415 |
2 set |
||
|
Skateboard Cylinder |
90/50-980*670 |
2 set |
||
|
Push plate Cylinder |
YSTB-1180*2420 |
1 set |
||
|
The Electromagnetic Valve |
UZCT-115/24V |
2 set |
||
|
Dirty Tank Volume |
200L |
|||
|
Filler Volume |
500L |
|||
|
Filing Time |
8-10s |
|||
|
Filling Cycle Time |
50-60s each time |
|||
|
Discharge Type |
Flat-pushing and Dumping |
|||
|
Dumping Time |
30-40s |
|||
|
Hydraulic Pressure |
16Mpa |
|||
|
Controlling Way |
Manually and electrical control |
|||
1. We supply various series of Isuzu special vehicles, such as: 100P, 600P, 700P, KV100/600/800, M100/600, FTR, FVR, FVZ, NPR, ELF, VC66 levels, etc. all available.
2. The drive type could be 4x2 , 4x4 , 6x2 , 6x4 , 6x6 , 8x4 ,8x6
3. We can provide LHD (left hand drive) or RHD (right hand drive) vehicles.
4. Be designed according to your requirement .
5. Small order can be accepted.
6. We accept 100% inspection, welcome to our factory at any time.
7. 12 month quality guarantee term,
III. Details of Nigeria Isuzu FVR Recycling Rear Loader

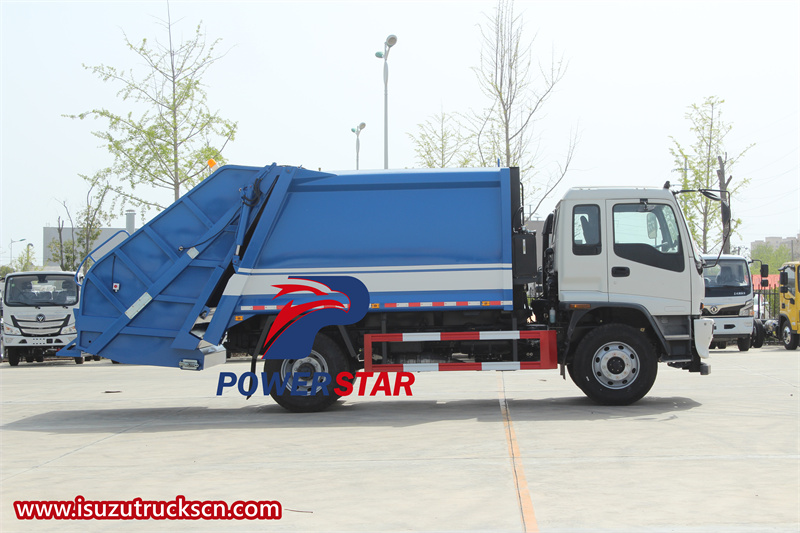

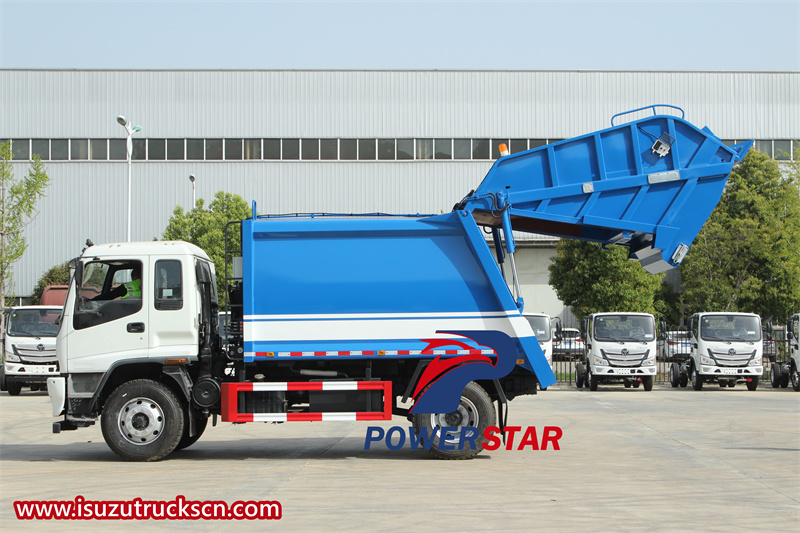

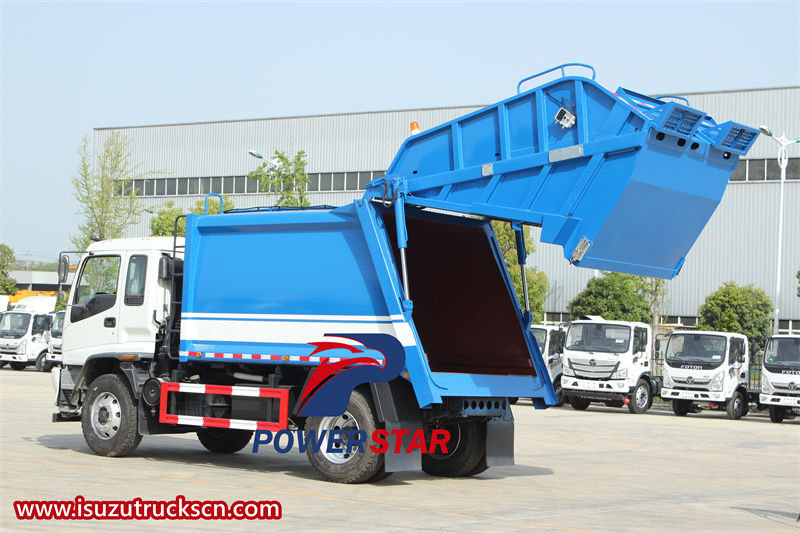

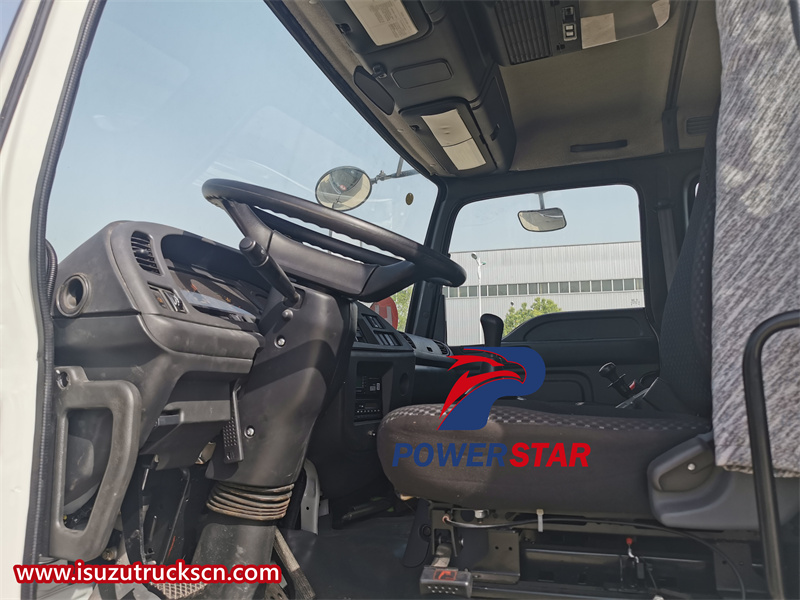

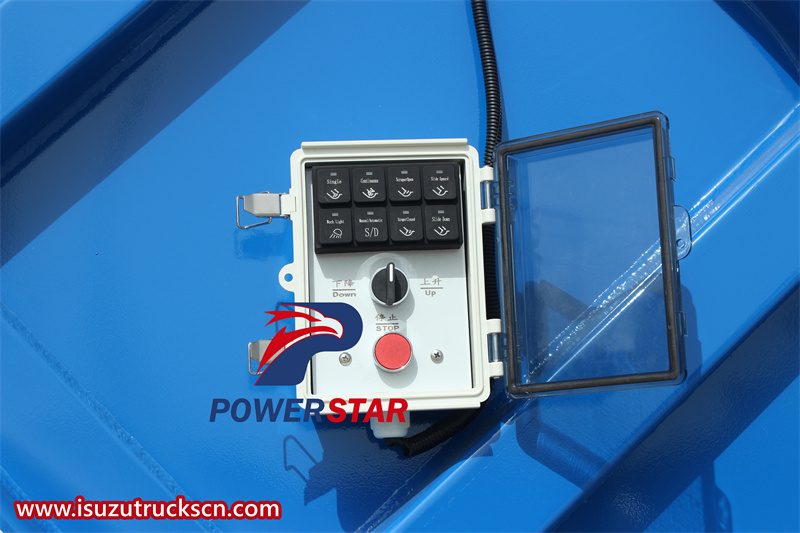

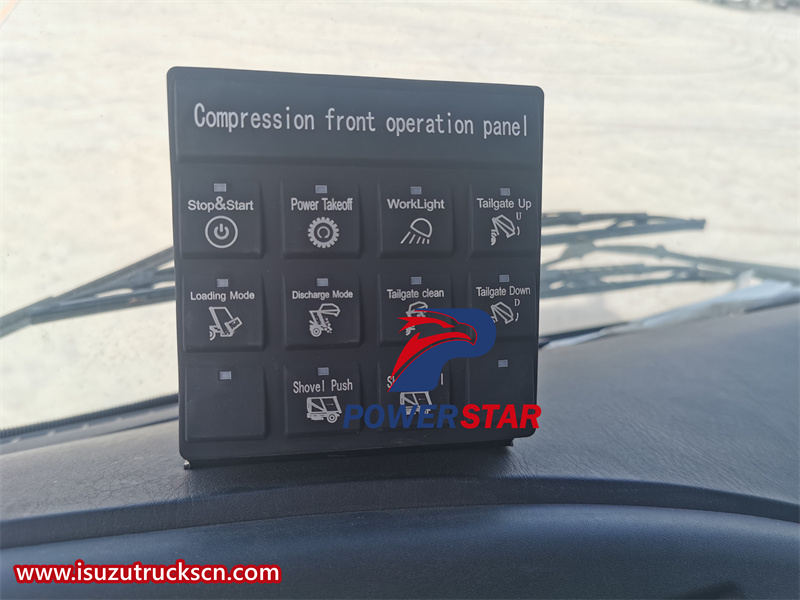

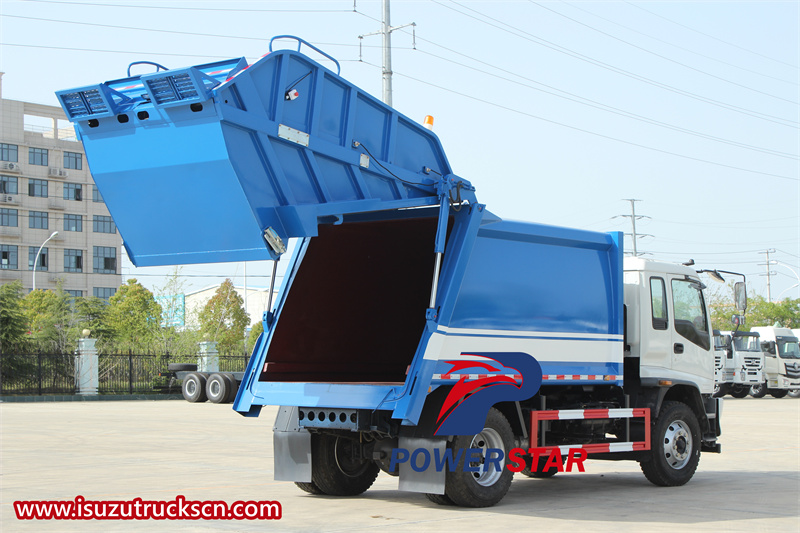

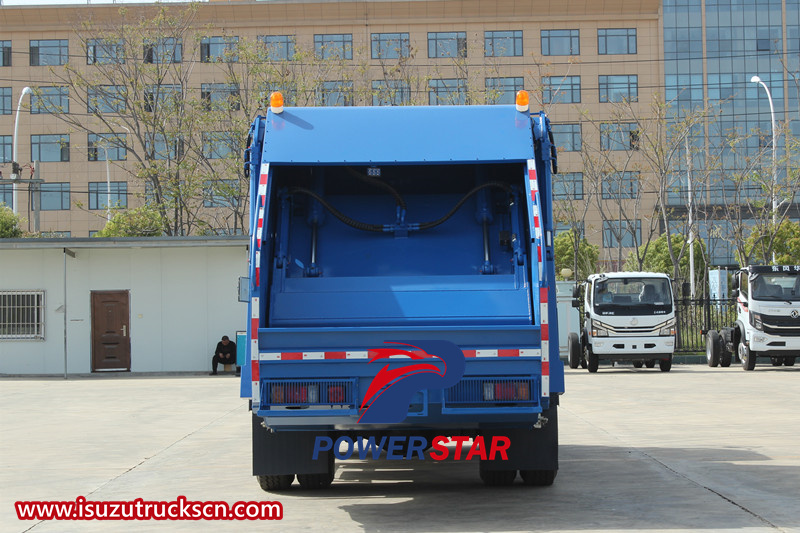

● Nigeria Isuzu recycling rear loader photos for reference
The Isuzu FVR 10cbm compactor garbage truck produced by powerstar company is an efficient and environmentally friendly garbage disposal equipment, which is widely used in the field of urban garbage collection and transportation. This waste compactor truck has a loading capacity of 10 cubic meters and can collect a large amount of garbage at one time, effectively improving garbage collection efficiency.

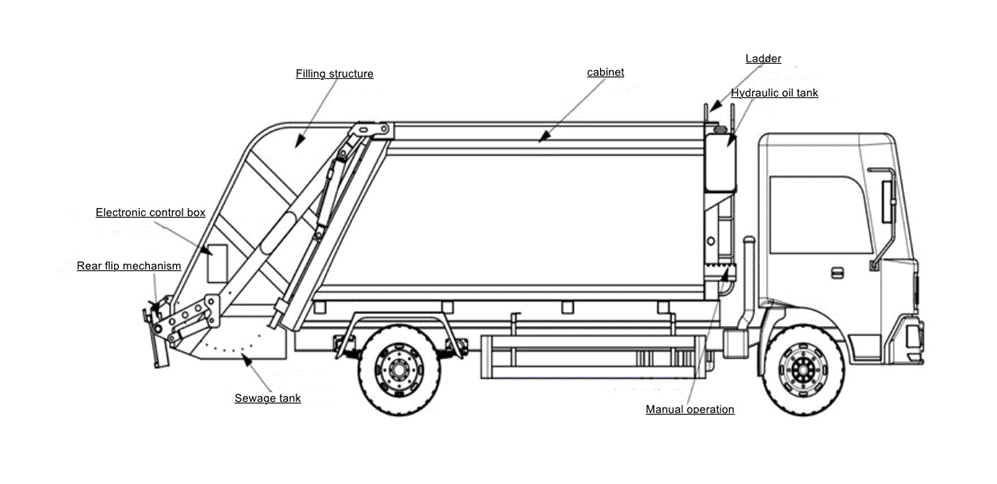

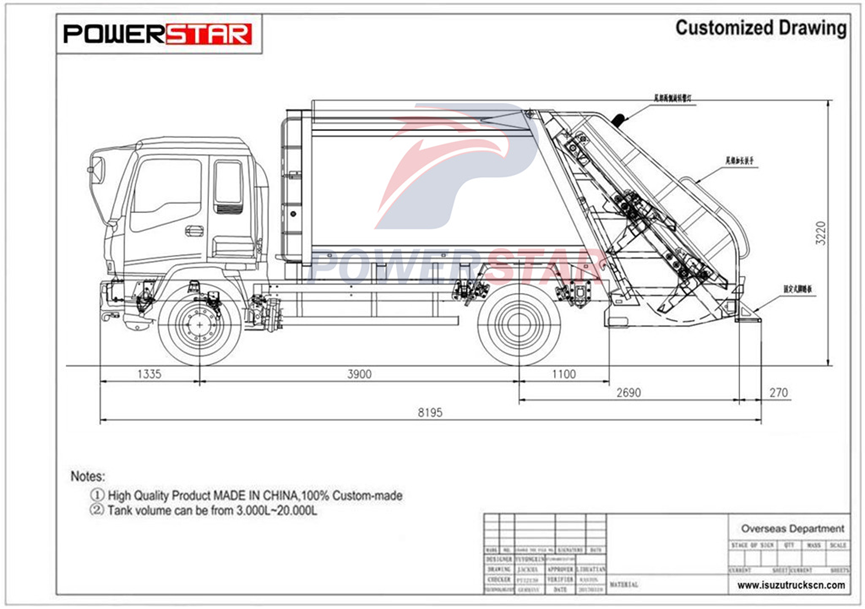

Technical drawing:
What are the features of this compactor garbage truck?
◆ First of all, this compressed garbage truck has a loading capacity of 10 cubic meters. Its unique compression technology allows the garbage to be efficiently compressed and reduced in volume, thereby increasing the amount of garbage transported in a single time. This not only reduces the number of transportation times and transportation costs, but also effectively relieves the pressure on urban garbage disposal.
◆ In terms of detailed design, the FVR10 cubic compactor garbage truck shows a high degree of ingenuity. The body is made of high-strength steel, with a solid structure and high durability, and can easily cope with various harsh environments and complex road conditions. At the same time, the interior of the carriage adopts an all-metal sealed structure, which effectively prevents the scattering of garbage and the spread of odors, ensuring environmental hygiene during garbage disposal.
◆ In addition, the garbage truck is equipped with an intelligent control system, making operation easy and intuitive. The driver can complete the process of garbage loading, compression and transportation through one-click operation, which greatly improves work efficiency. At the same time, the system also has a fault self-diagnosis function, which can detect and deal with potential problems in time to ensure the stable operation of the garbage truck.
◆ In terms of environmental performance, the FVR10 cubic compression garbage truck also performs well. It adopts a closed garbage collection method, which effectively avoids the scattering and contamination of garbage during transportation. At the same time, the vehicle is also equipped with an exhaust gas treatment device, which reduces the impact of exhaust emissions on the environment and achieves green and environmentally friendly garbage disposal.
◆ Safety performance is also a highlight of this garbage truck. It is equipped with a number of safety devices, such as reversing radar, anti-lock braking system, etc., which effectively improves driving safety. In addition, the vehicle also adopts an anti-skid design to ensure the driver's driving safety in adverse weather conditions.

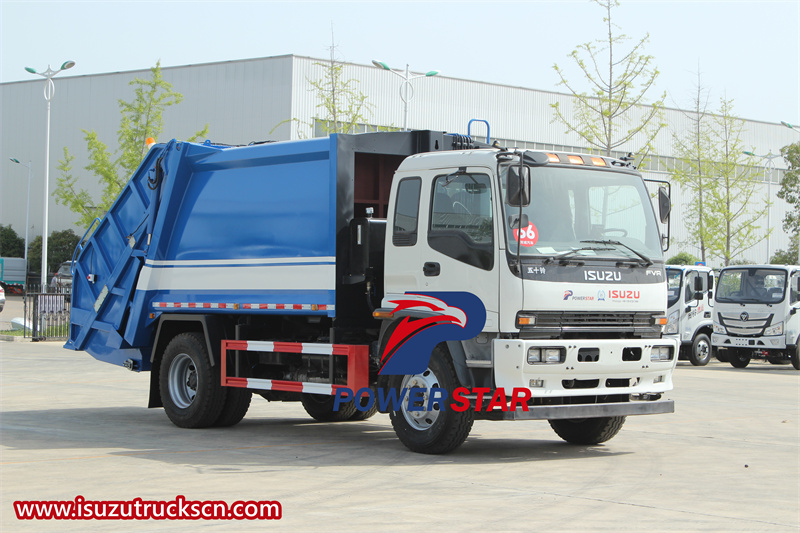

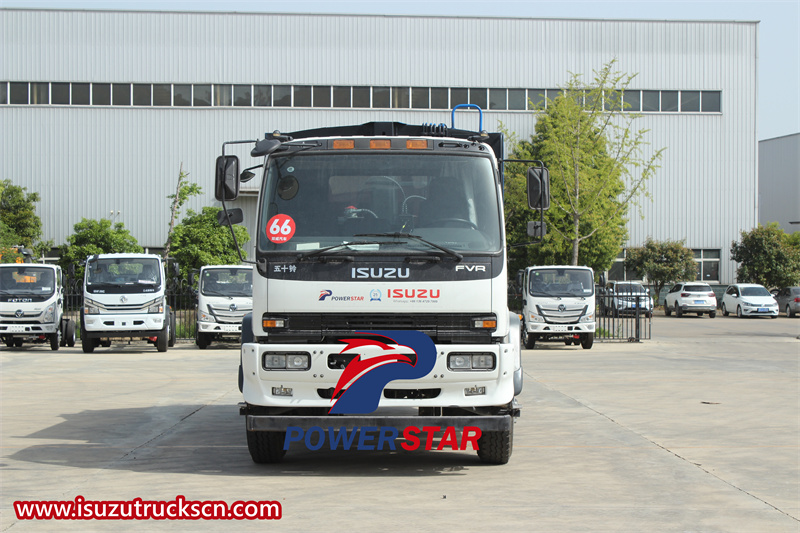

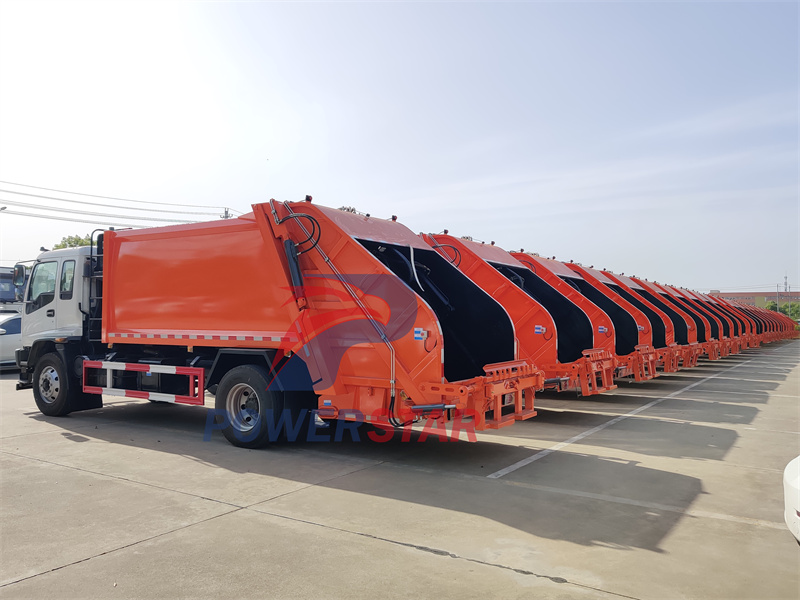

Isuzu FVR rear loader compactor in our plant

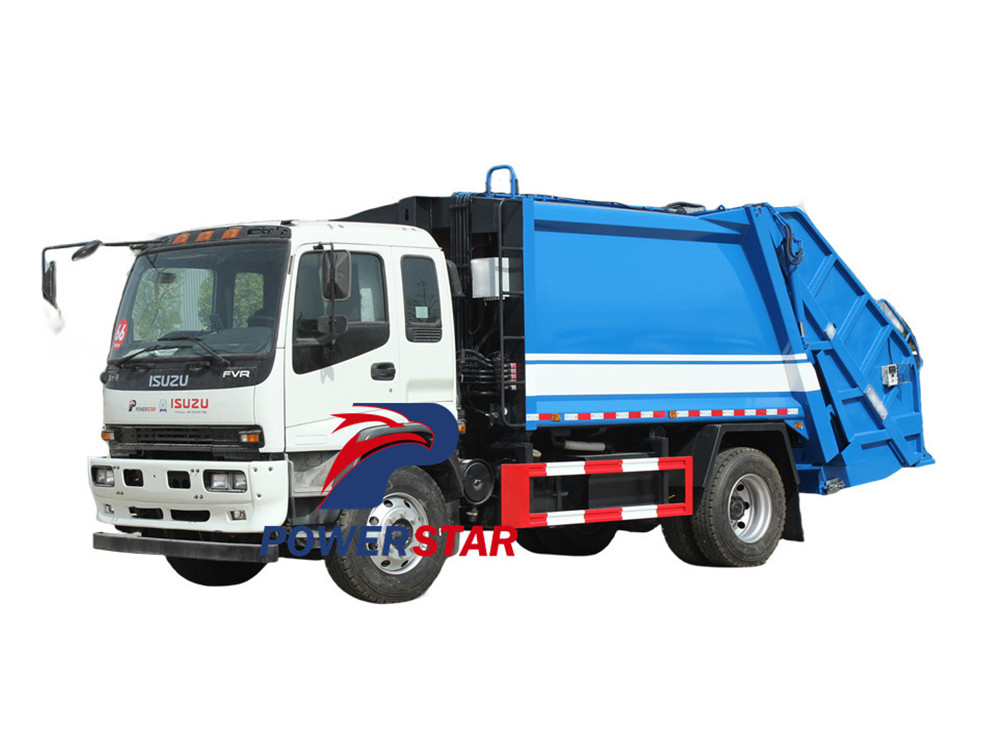

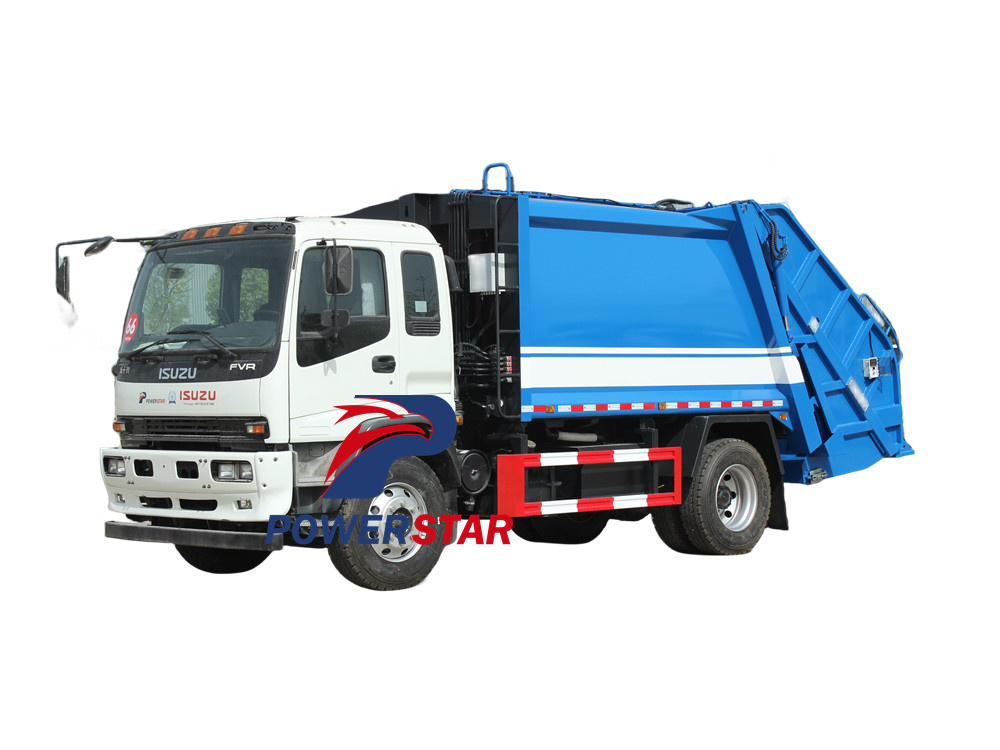

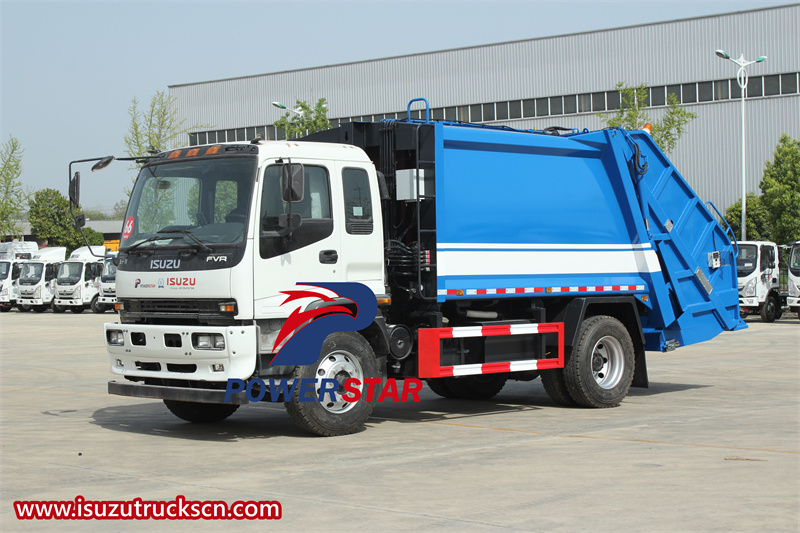

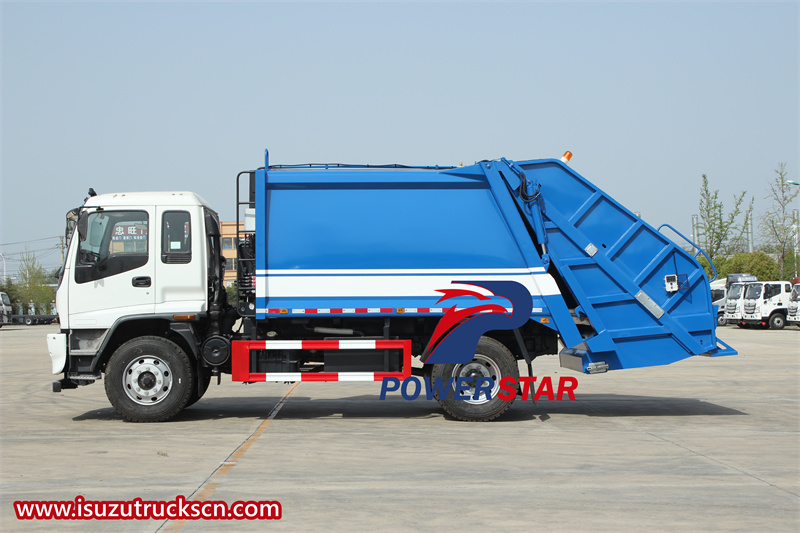

Isuzu FVR 4x2 10cbm garbage compactor truck for sale
This FVR10 cubic compression garbage truck is designed to be flexible and comprehensive, and can collect many types of garbage. Here are some of the main types of garbage it can collect:
1. Domestic garbage: This is the most common collection object of the FVR10 cubic compression garbage truck. Domestic waste includes various wastes generated daily by households, such as food residues, paper, plastic packaging, glass, metal, etc.
2. Construction waste: This garbage truck can also efficiently collect waste generated during construction projects, such as waste bricks, concrete fragments, waste wood, plastic pipes, etc.
3. Garden waste: including tree branches, leaves, lawn trimmings and other garden waste, which can be effectively processed through the compression function of the garbage truck.
4. Industrial waste: Some non-hazardous industrial waste, such as waste paper, waste plastic, scrap metal, etc., can also be collected by the FVR 10 cubic meter compressed garbage truck.
5. Commercial waste: This garbage truck is also suitable for waste generated in commercial places such as shops and restaurants, such as food packaging, paper products, plastic products, etc.
6. Special garbage: According to specific needs, the FVR 10 cubic meter compressed garbage truck can also be customized to adapt to the collection of specific types of garbage, such as medical waste (non-infectious), recyclables, etc.
It should be noted that although the FVR10 cubic compression garbage truck can collect many types of garbage, for hazardous waste and toxic substances, due to their special processing requirements and possible environmental risks, specialized hazardous waste treatment equipment should be used. Collected and processed to ensure safety and environmental protection.
In addition, in order to ensure that the garbage truck can fully exert its performance, different types of garbage may require different operating methods and techniques during the collection and processing process. Therefore, operators need to understand and abide by relevant operating regulations and precautions when using this garbage truck to ensure the efficiency and safety of garbage disposal.
Isuzu FVR compactor garbage truck export to Nigeria
| Our Advantage |

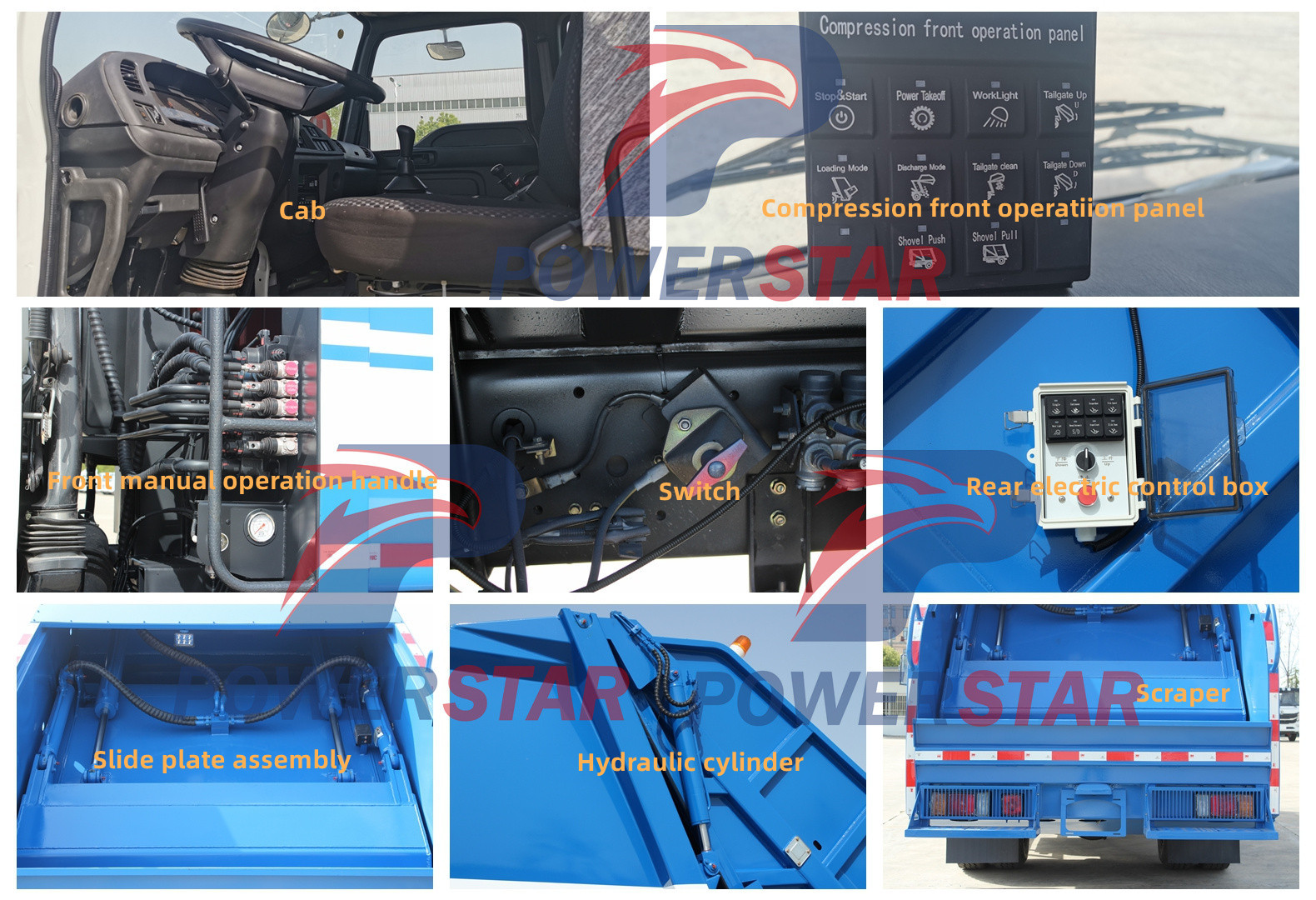

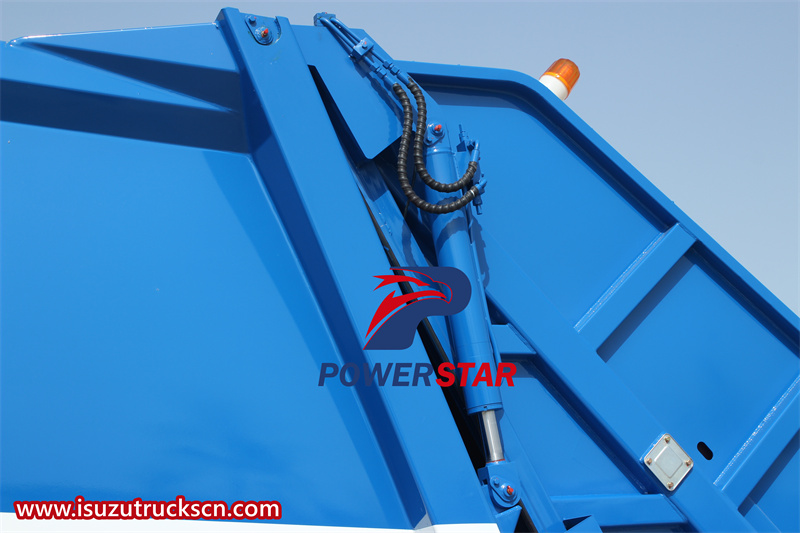

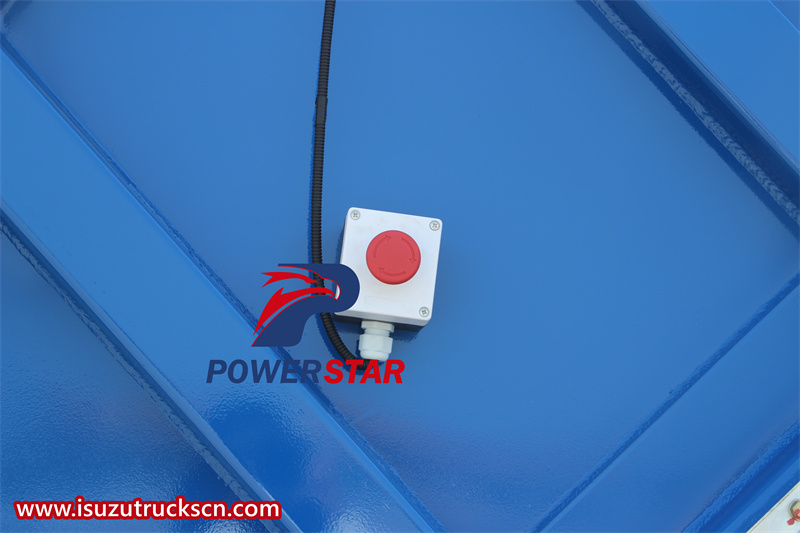

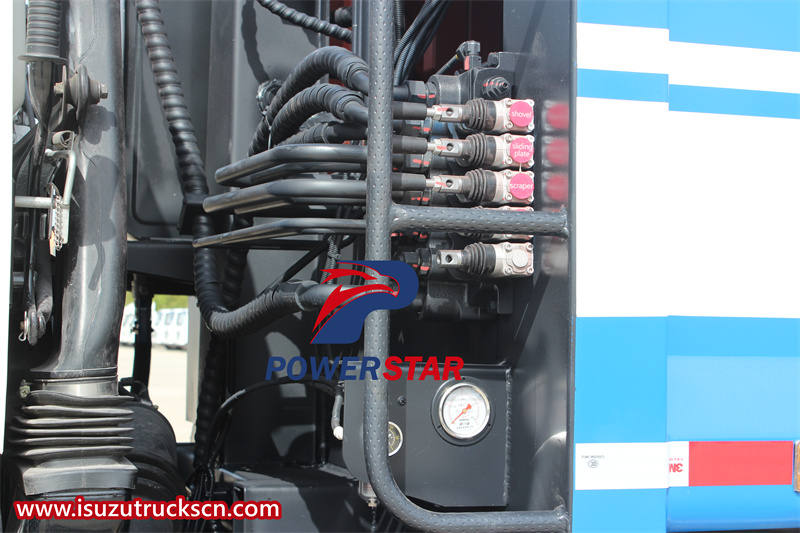

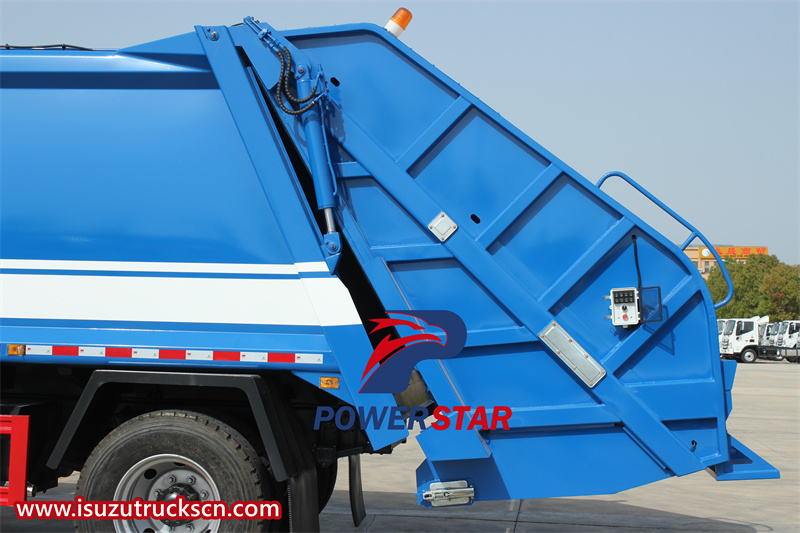

● Nigeria isuzu recycling rear loader details

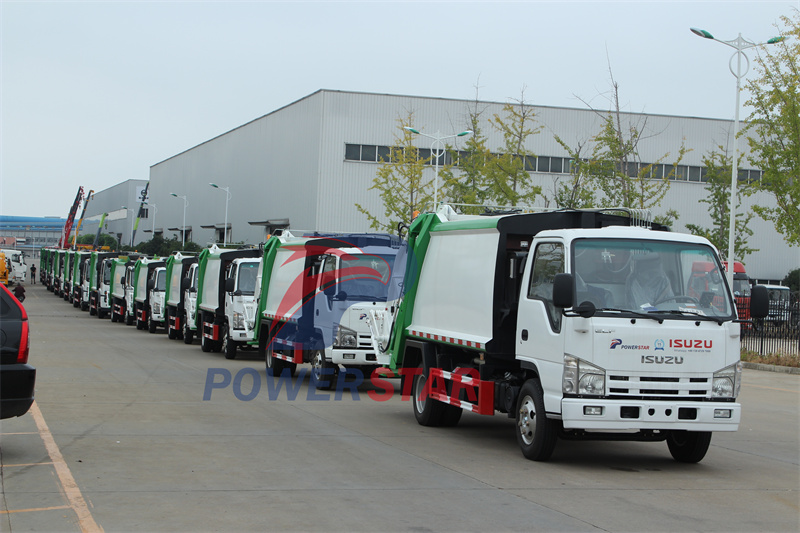

● Nigeria isuzu recycling rear loader departure in batches
New designed ISUZU 12cbm garbage compactor truck for export, best quality ISUZU FVR 4x2 LHD 12 cubic meter rear loading refuse collection garbage waste compactor trucks, 240HP diesel engine garbage compactor truck
Learn More
Official ISUZU FVR refuse collection vehicle by the Dominican Republic government showcases their dedication to improving the urban environmental hygiene of the country. With its advanced features and efficient waste collection capabilities, this exclusive initiative is projected to significantly contribute to a cleaner and healthier living environment for residents in Dominican cities.
Learn More
the brand new Isuzu FVR 240hp garbage compactors by the Philippines government demonstrates their commitment to improving environmental hygiene in Metro Manila. Through a meticulous selection process, Isuzu was chosen as the most suitable manufacturer, delivering customized solutions to address the specific challenges faced by the city. This exclusive initiative is set to revolutionize waste management practices, leading to a cleaner and healthier Metro Manila for all its residents.
Learn More
the ISUZU FVR 10cbm compactor garbage truck by the Yemeni government signifies its commitment to enhance the quality of life in Sana'a. With its efficient waste collection and compaction capabilities, this exclusive initiative will significantly contribute to a cleaner and healthier environment for the residents. The comprehensive maintenance plan and the promotion of responsible waste management practices further ensure the long-term success of this endeavor.
Learn More
Customized Isuzu FVR waste disposal truck for hot sale, Isuzu FVR 4*2 drive 6 wheeler truck chassis, 6HK1-TCG61 engine with 240HP, fast 8-shift gear box, arc-shape compactor body with top Chinese brand hydraulic cylinders, rear tilting device can be lifting 240L, 360L, 660L, 770L, 1100L international garbage bins, high strength Q345 steel body with customized 14 CBM capacity.
Learn More
The Isuzu FVR GIGA 4X2 14cbm waste collection truck emerges as a pinnacle in the domain of efficient refuse management. With a robust design and cutting-edge features, this vehicle revolutionizes waste collection operations, exemplifying a fusion of power, sustainability, and precision.
Learn More
POWERSTAR's Isuzu GIGA 16 cbm compression garbage truck is modified on the basis of Isuzu new FVR GIGA 5X cabin 4x2 chassis. It is equipped with an Isuzu 6HK1 240HP diesel engine, which has strong power and is matched with a FAST 9-speed gearbox. The gear shifting is smooth, and it is equipped with A/C, USB, and power steering. The vehicle is equipped with a 16-cubic-meter compression box and is equipped with 3 operating methods to maximize the compression efficiency.
Learn More

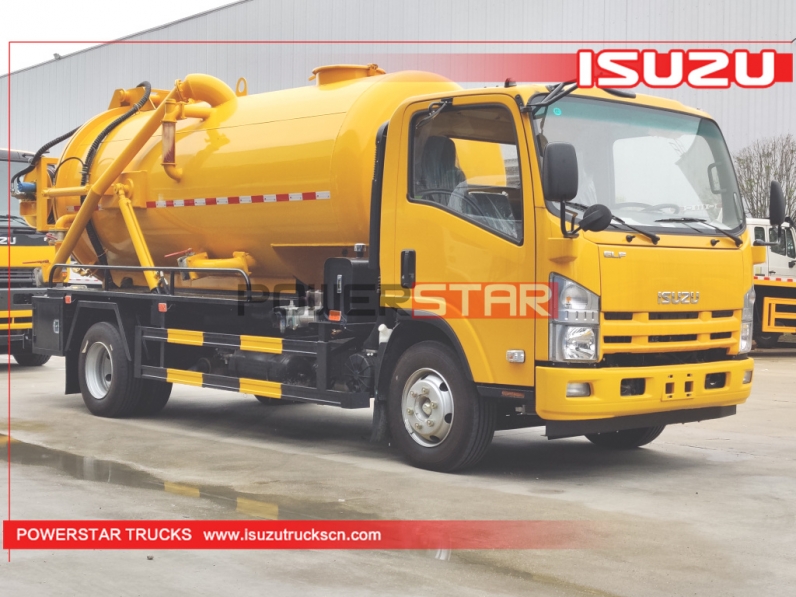

New Design Vacuum sewage suction truck Isuzu is equipped with a high-power vacuum sewage suction pump and a high-quality hydraulic system. The tank head is die-cast in one go, and the tank can be opened backwards and double-top self-unloading. The dirt in the tank can be dumped directly through the back cover. It has the characteristics of high vacuum (greater suction power than fecal suction trucks), large tonnage, high efficiency, and wider uses.
