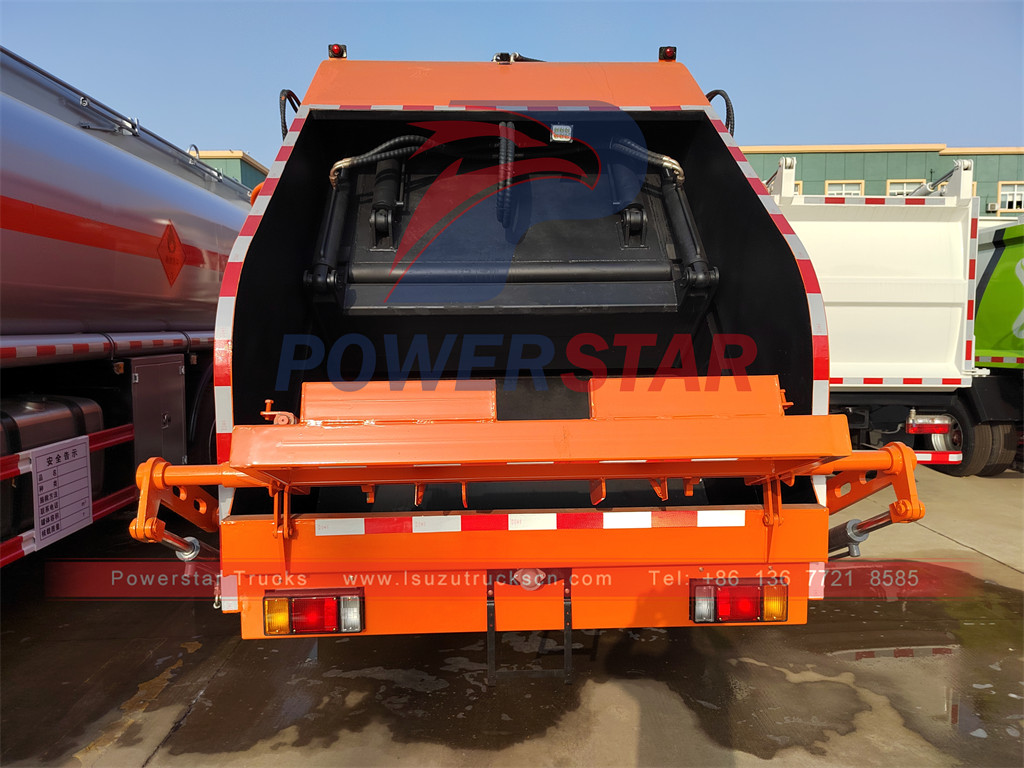

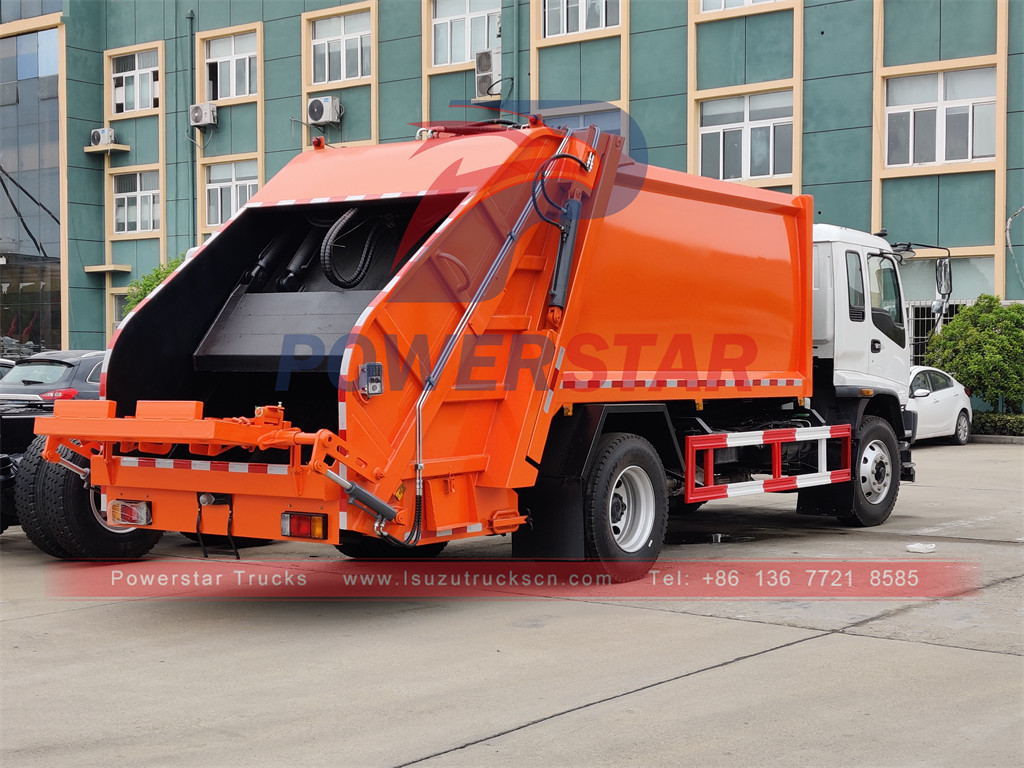

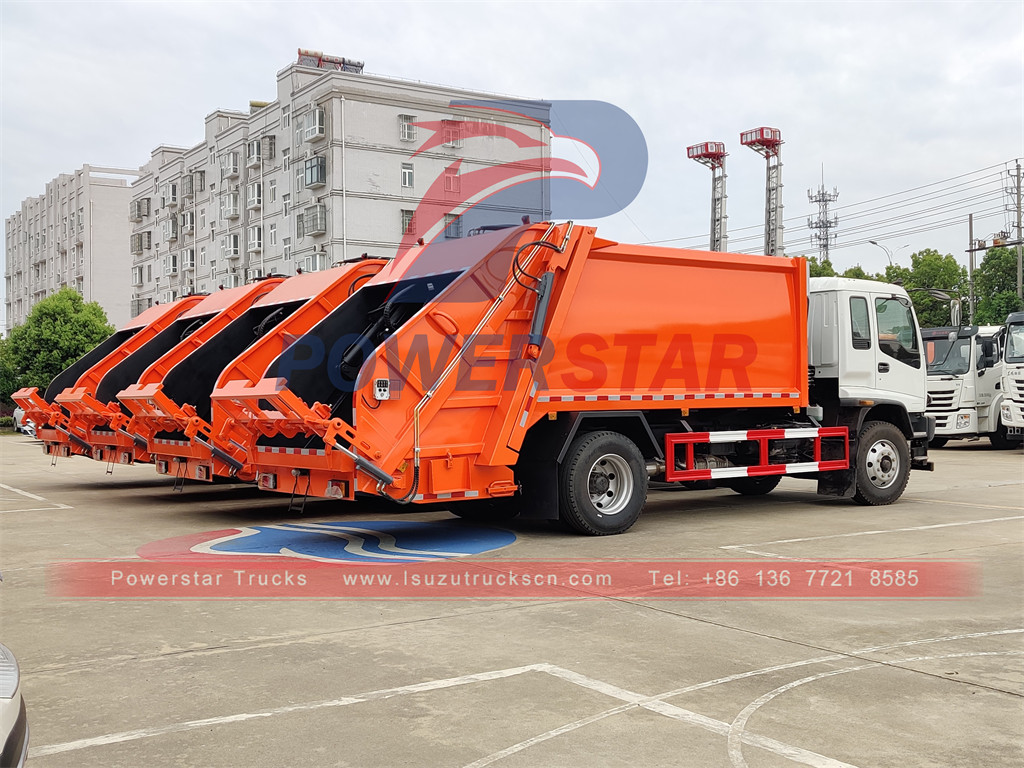

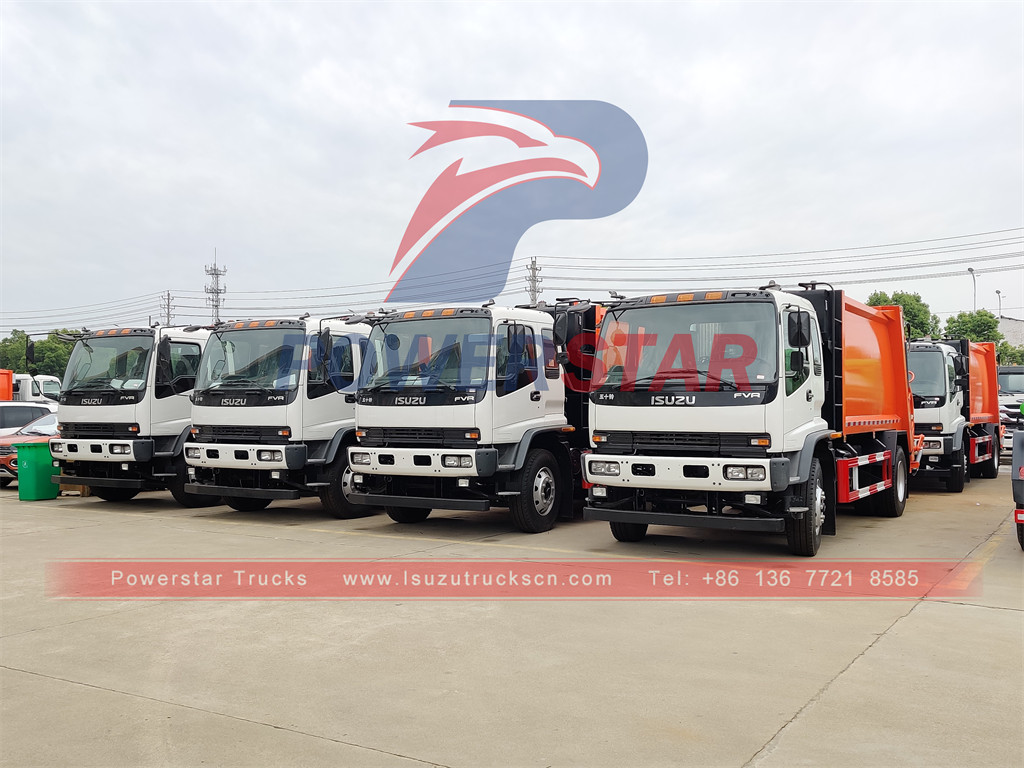

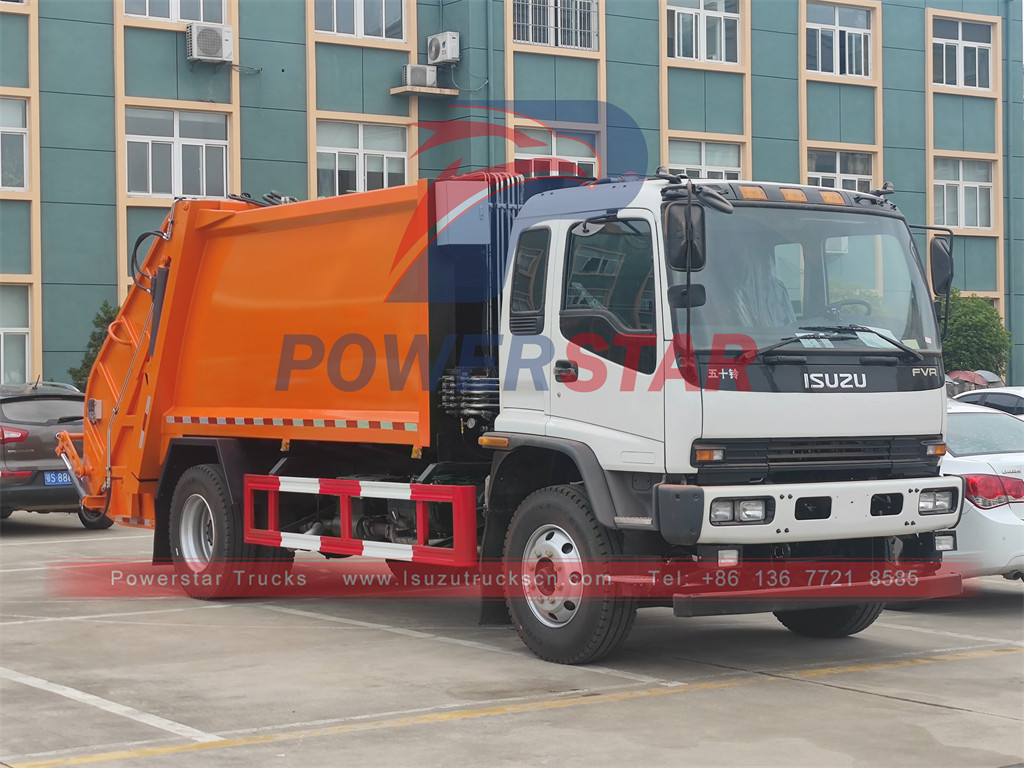

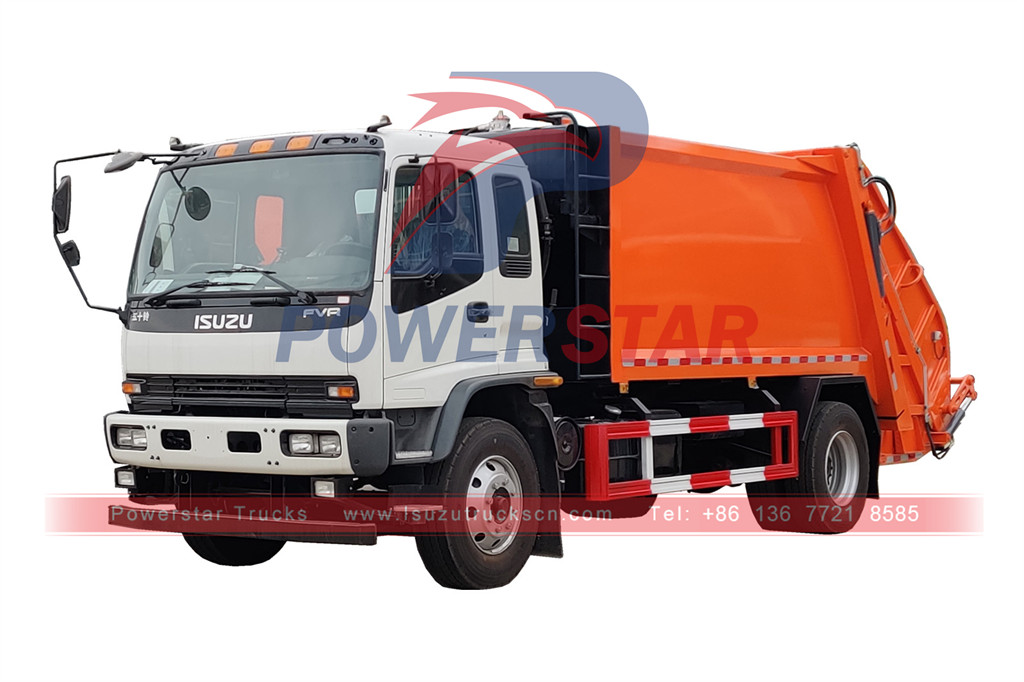

ISUZU 12CBM Garbage Compactor Truck 4x2 Rear Loader Garbage Lorry
Order(MOQ):
1
ISUZU 4x2 Rear Loader Vehicle 12CBM Garbage Compactor Truck for sale
ISUZU 12CBM compressed refuse vehicle (also called Isuzu waste compactor truck, Isuzu brand garbage bin lifters,ISUZU FVR garbage compactor truck, ISUZU rear loader truck ) suitable for the garbage collection and transportation in good conditions places, such as urban and rural streets, large factories, residential areas and school.
|
100% custom-made
|
|
|
3 cbm to 22 cbm available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU FVR / FSR / FRR Garbage compactor truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5160ZYS |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
8900*2500*3150 |
|
Gross weight |
kg |
16,000 |
|
|
Kerb weight |
8,250 |
||
|
Wheelbase |
mm |
4,500 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
ISUZU FVR / FSR / FRR |
||
|
Tire size |
295/80R22.5 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
6HK1-TCL |
|
|
Type of fuel |
Diesel |
||
|
Power |
240HP |
||
|
Max speed |
Km/h |
110 |
|
|
Emission standard |
EURO 5,6 |
||
|
Compactor performance |
Compactor Body |
12 Cbm / 8 Tons |
|
|
Body Material |
Weather Resisting Steel |
||
|
Compressing Ration |
≥ 1:3.4 |
||
|

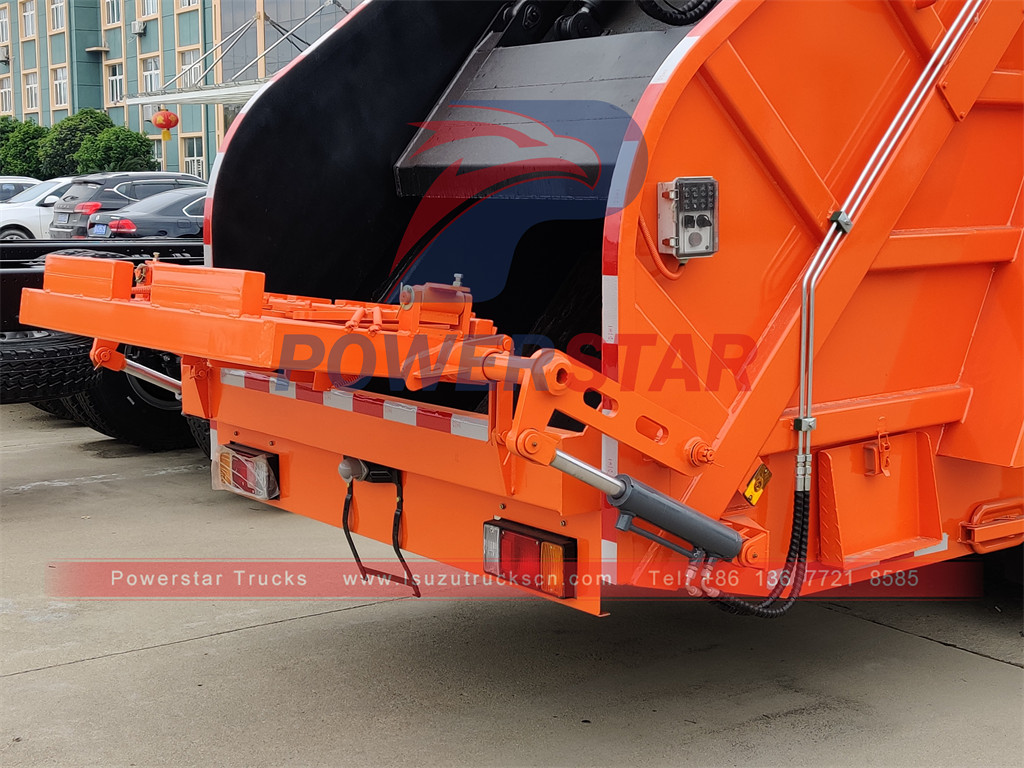

Dust Bin Lifter |
120 lt. - 240 lt- Two bins |
||
|
Optional 1100 lt, 660 lt |
|||
|
Loading Cycle Time |
15 ～ 20 sec |
||
|
Discharging Time |
10 ～18 sec |
||
|
Discharging system |
Horizontal ejection |
||
|
Waste Water Tank |
200L |
||
|
Operation |
Siemens Automatic-PLC system |
||
|
Control Panel |
English |
||
|
Foot Stands |
2 sets with hander |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |

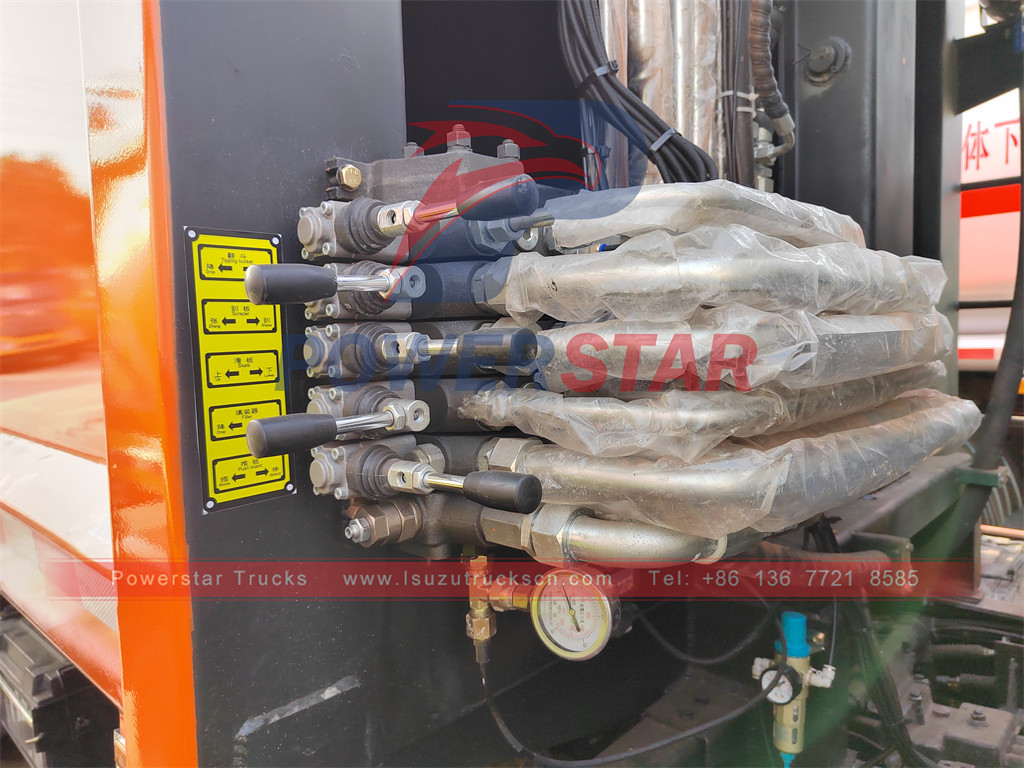

1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
||
