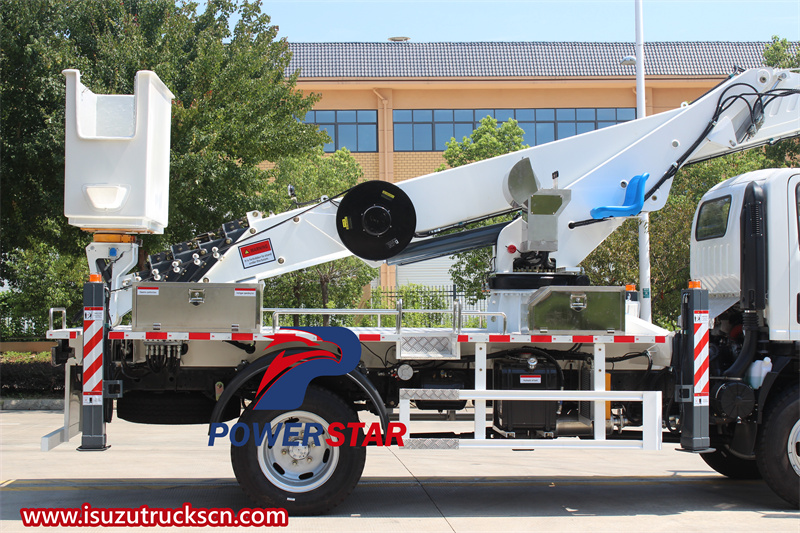

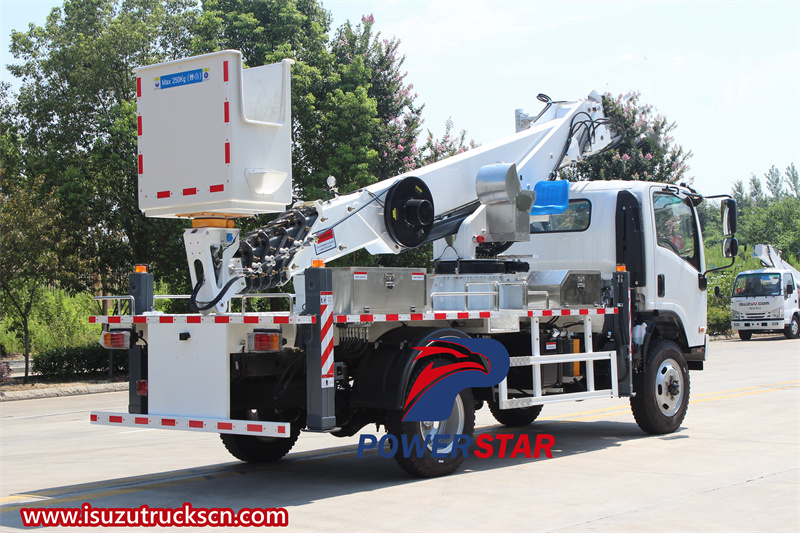

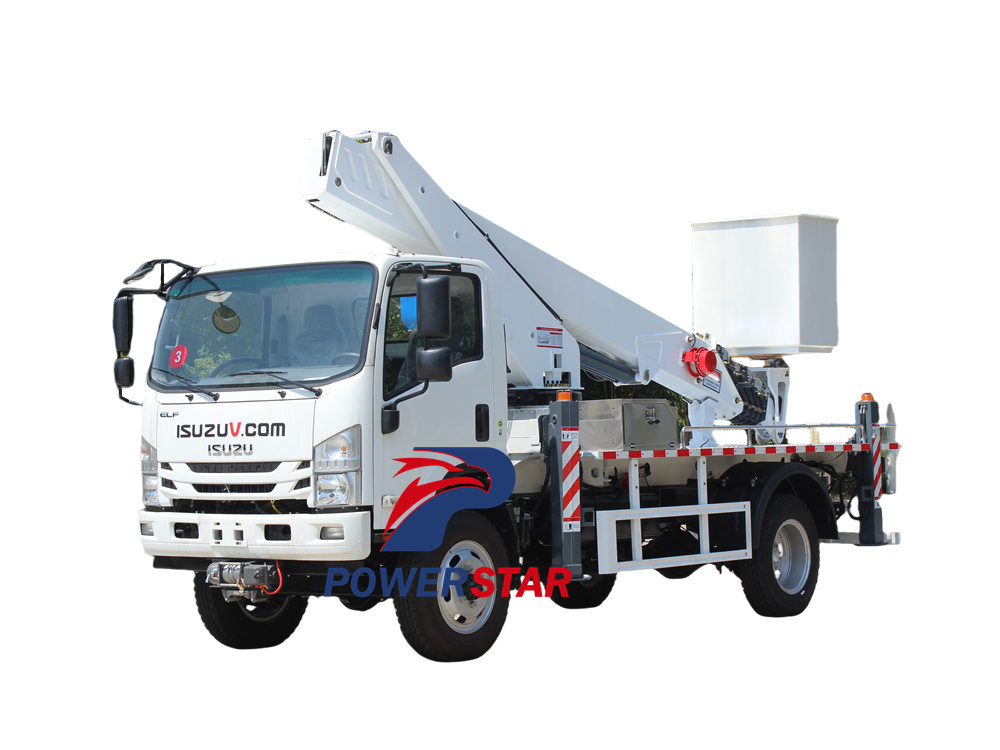

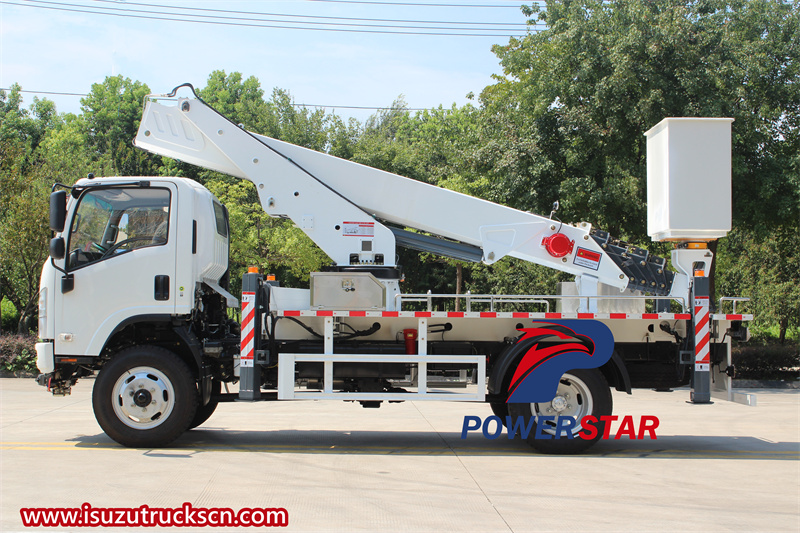

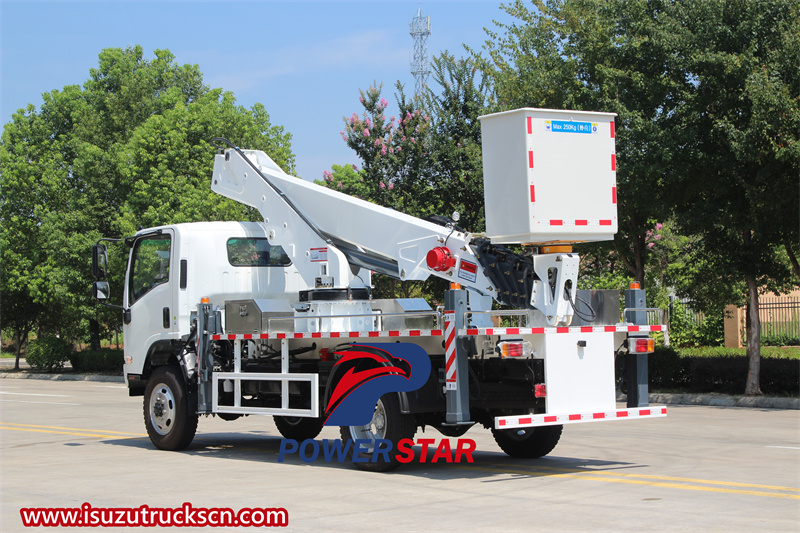

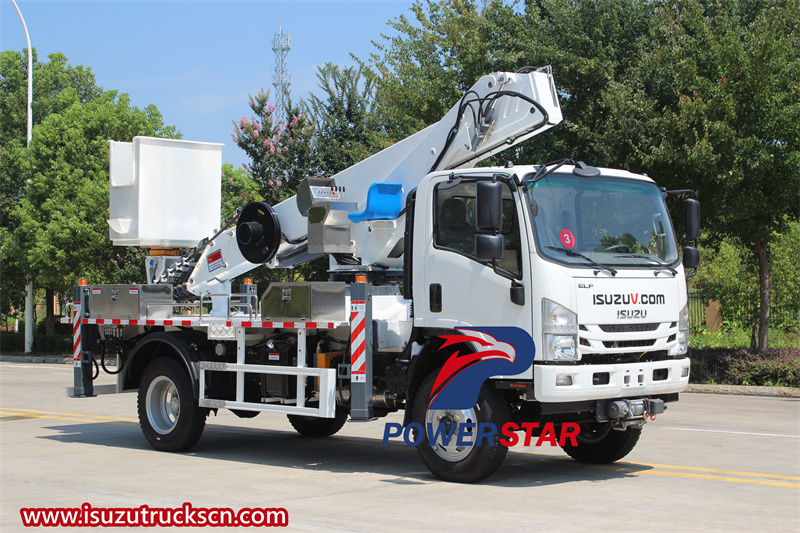

Off Road 4 Wheel Isuzu NPR Aerial Platform Truck
The Isuzu NPR aerial work platform truck is an exceptional off-road vehicle designed to deliver outstanding performance and reliability in the most challenging environments. Built to handle the toughest tasks, this truck is ideal for construction sites, mining operations and other industrial applications. Whether you need to reach high points on a job site or perform maintenance on an elevated structure, the Isuzu NPR aerial work platform truck will meet your needs and exceed your expectations.
Work capacity:
30 mTruck model:
PT5100GXREngine power:
190HPEngine type:
4HK1-TCG61Axle drive:
4x4，LHDGear box:
MLD 6 speed,manualRemarks:
Isuzu 30 m working heightOff Road 4 Wheel Isuzu NPR Aerial Platform Truck also called Isuzu NPR 4x4 aerial platform truck, Isuzu 700P 4x4 aerial working truck,Isuzu 700P NPR 4WD basket man lift truck,Isuzu 700P 4x4 off road bucket truck,Isuzu NPR 30m aerial bucket truck.
The Off road 4 wheel Isuzu NPR aerial platform truck is a high-performance aerial platform truck with a 30-meter working height and a five-section telescopic boom, suitable for various aerial operations. Its sturdy chassis and advanced hydraulic system ensure stable operation and efficient operation. The truck is durable and easy to operate, and is equipped with multiple safety protections to ensure the safety of workers. Whether it is a construction site, mine or other industrial occasions, it can demonstrate excellent adaptability and reliability.
Features:
★ Adopt world-class lSUZU 700P Chassis, High power and Fuel efficiency, Reliability, Uptime;
★ All Structural made of High Strength Steel;
★ Easy to mount and Minimum space required for Mounting;
★ Optional Chassis 4x2, 6x4,8x4 and engine power;
★ Wireless remote control system is avallable;
★ Safety Devices are avalable, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.
|
Isuzu 4x4 NPR aerial platform truck |
|||
|
Main specification |
Chassis brand |
ISUZU 700P |
|
|
Truck model |
PT5100GXR |
||
|
Overall dimension(L*W*H) |
7995x2200x3250mm |
||
|
Gross / Curb weight |
10550kg / 5050kg |
||
|
Chassis |
Cab |
Isuzu 700P single row,3 seats,with A/C |
|
|
Drive model |
4x4 left hand drive |
||
|
Wheel Base |
4175 mm |
||
|
Tyre size & number |
235/75R17.5, 4 wheels |
||
|
Fuel/Engine type: |
Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail |
||
|
Engine model |
4HK1-TCG61 |
||
|
Engine horse power |
190HP (139KW) |
||
|
Displacement |
5193ml |
||
|
Emission |
Euro VI |
||
|
Transmission |
MLD 6 speed,manual |
||
|
Max speed |
110km/h |
||
|
Working condition |
Maximum working height |
30m |
|
|
Maximum working radius |
14.8 m |
||
|
Rotation |
360° |
||
|
Boom Type |
6 sections telescopic boom |
||
|
Outrigger type |
Outrigger type |
Front V Rear H type. Controlled independently |
|
|
Outrigger span |
Vertical |
4350mm |
|
|
horizontal |
4180mm |
||
|
Basket |
Rated loading weight |
250kg |
|
|
L*W*H |
1400x700x1150mm |
||
|
Operation system |
Operation |
4 operation mode: Electrical operation of working platform ,ground remote control ,controller in the bucket,and emergency lever. |
|
|
Control system |
Electro hydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation |
||
|
Leveling system |
Hydraulic automatic leveling |
||
|
Security configuration |
Automatic interlocking device for up and down |
For locking up and down the truck to prevent the risk of misoperation. |
|
|
Basket |
360 degree rotation |
||
|
Horizontal function |
Real time display |
||
|
Real time communication |
There is wireless intercom between the platform and the vehicle |
||
|
Emergency electric emergency pump |
When the engine and main pump failure, the operator can be sent back to the ground. |
||
Mounted on a rugged 700P chassis, the off-road Isuzu NPR aerial work platform truck is a groundbreaking vehicle designed to conquer challenging terrain while offering an extraordinary working height of 30 meters. This rugged behemoth is equipped with a cutting-edge 6-section telescopic boom, taking its capabilities to new heights and ushering in a new era of efficiency and versatility in aerial work applications.

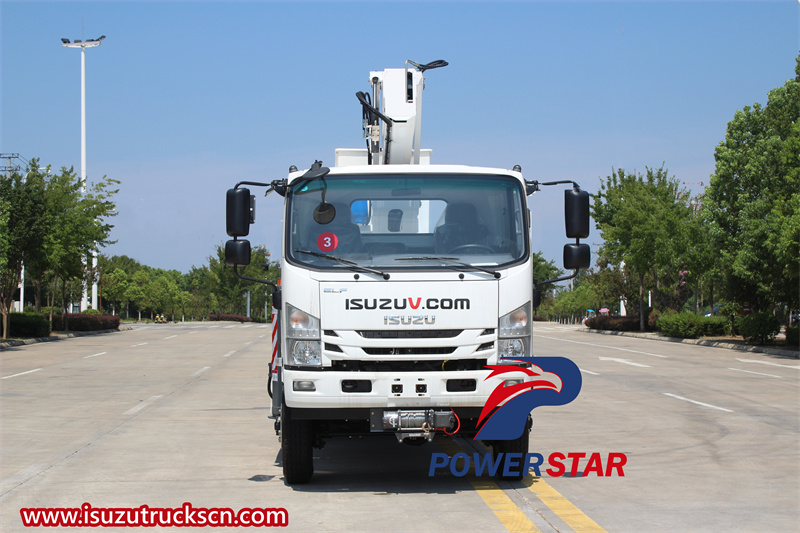

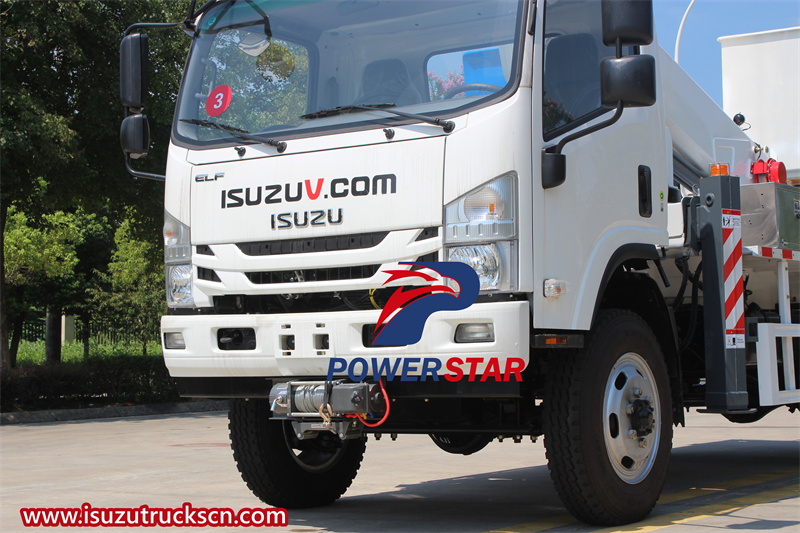

Isuzu off road 700P chassis
Built for rugged terrain, the Isuzu NPR aerial work platform truck is a 700P chassis and is an engineering marvel. Its 4WD configuration ensures excellent traction and control over varying terrains, allowing for seamless navigation in rough terrain.
Powerfull 4HK1 engine
At the heart of this powerplant is the powerful Isuzu engine, which delivers unmatched performance to conquer steep slopes and rugged terrain with ease. The responsiveness of the drivetrain ensures smooth gear shifts, allowing the operator to easily navigate a variety of terrains. With ample horsepower and torque, the Isuzu NPR aerial work platform truck redefines performance in the off-road machinery segment.
6-section telescopic boom
The 30m working height is propelled by a 6-section telescopic boom, enabling it to reach the highest points on a jobsite, making it ideal for tasks such as installing or repairing lighting, painting or cleaning high walls, and maintaining elevated structures. The telescopic boom consists of five sections that can be extended or retracted to achieve the required height and reach. This flexibility allows the platform to be easily adjusted to suit the specific needs of each job, ensuring workers can access the hardest-to-reach areas.
Advanced hydraulic system
The truck is equipped with an advanced hydraulic system, which can easily control the movement of the platform even when working at height. This ensures that workers can move safely and efficiently.
Here are some of the main uses of this remarkable vehicle:
★ Utility maintenance
In the field of utility maintenance, including power lines, telecommunication infrastructure and street lighting, the Isuzu NPR aerial work platform truck proves to be indispensable. Its high working height and telescopic arm facilitate efficient access to overhead lines and equipment, allowing maintenance personnel to easily inspect, repair and install.

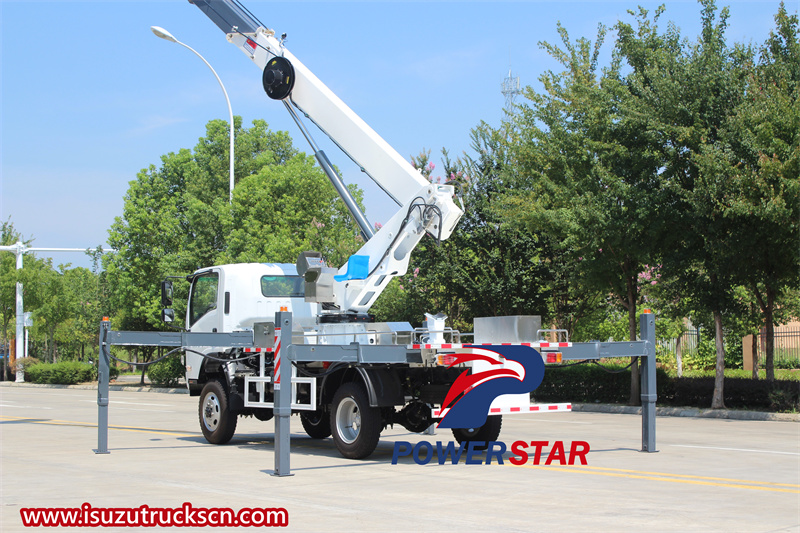

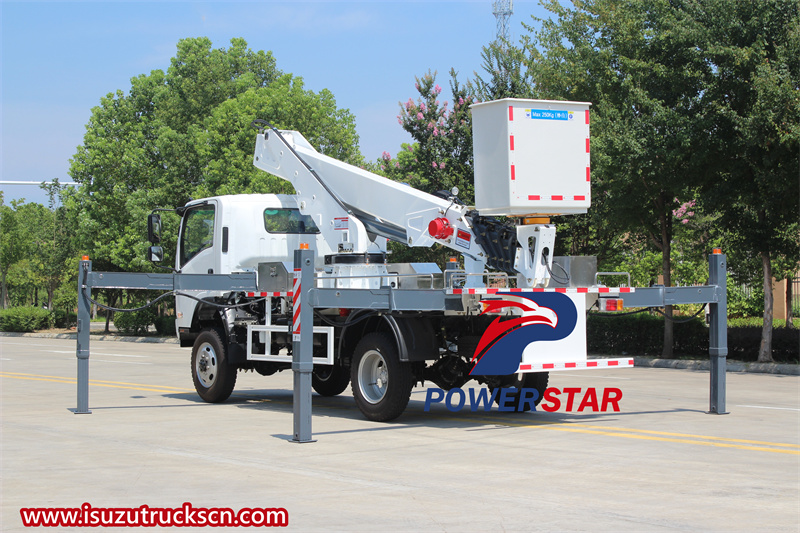

Outriggers
★ Municipal Services
Municipalities utilize this truck to provide a variety of services, including streetlight maintenance, tree pruning, and city infrastructure inspections. Its off-road capabilities and height-adjustable boom make it an ideal choice for municipal crews tasked with maintaining public facilities and ensuring the smooth operation of city infrastructure.

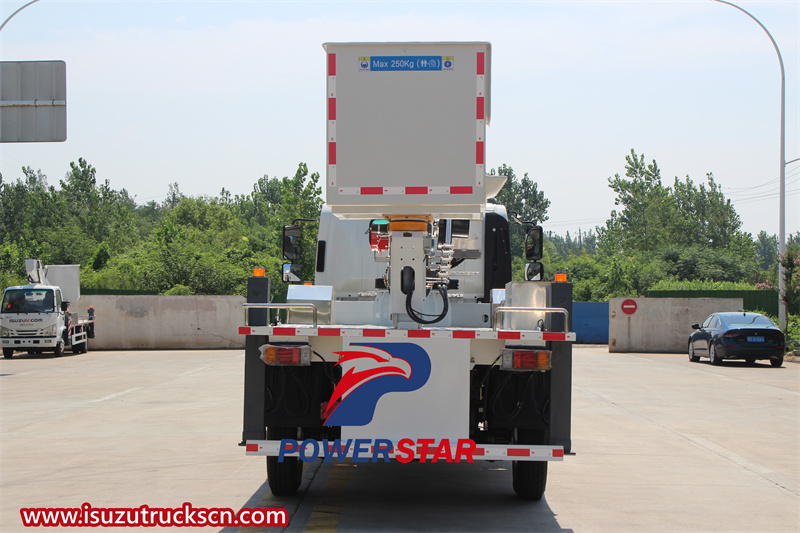

Aerial work platform
★ Construction Projects
In the construction industry, this truck shines in tasks that require aerial access to buildings, structures, and infrastructure elements. Its off-road capabilities allow construction teams to navigate challenging sites, while the telescopic boom provides the necessary reach for tasks such as painting, welding, installing signage, and aerial maintenance.

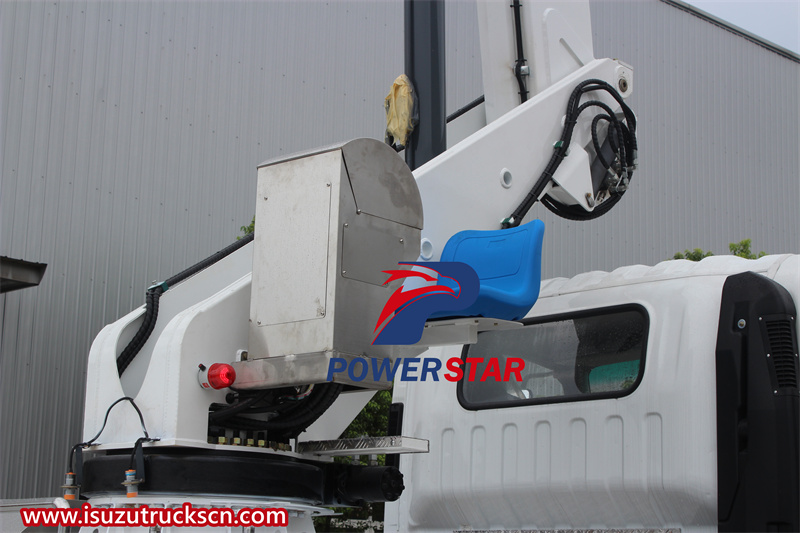

Rotating mechanism
★ Agriculture and Forestry
In agricultural and forestry settings, the Isuzu NPR aerial work vehicle is a valuable asset for tasks such as orchard maintenance, tree pruning, and aerial crop management. Its ability to traverse rough terrain allows access to remote areas, while the telescopic boom facilitates tasks that require aerial precision.

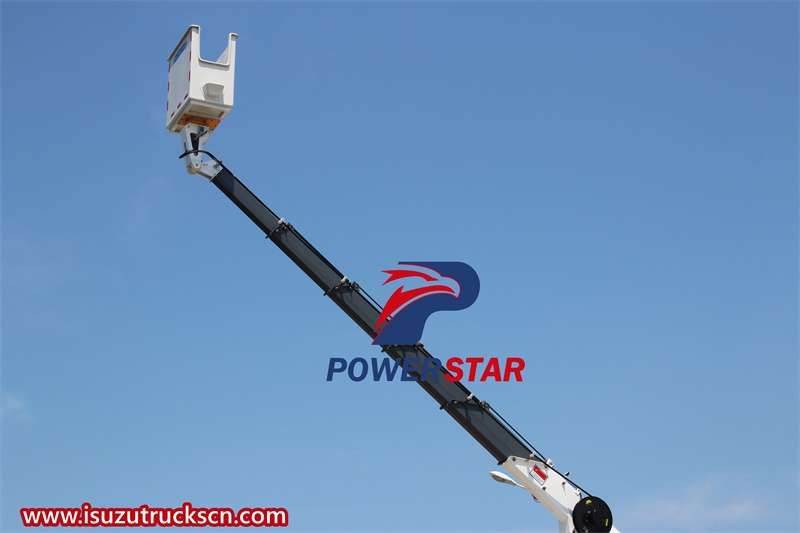

Telescopic arm
★ Emergency Response
In emergency situations such as natural disasters or rescue operations, this truck plays a vital role in providing aerial access to hard-to-reach locations. Emergency responders can use the vehicle for rescue missions, aerial surveys and rapid intervention, taking advantage of its working height and stability features to handle challenging environments.

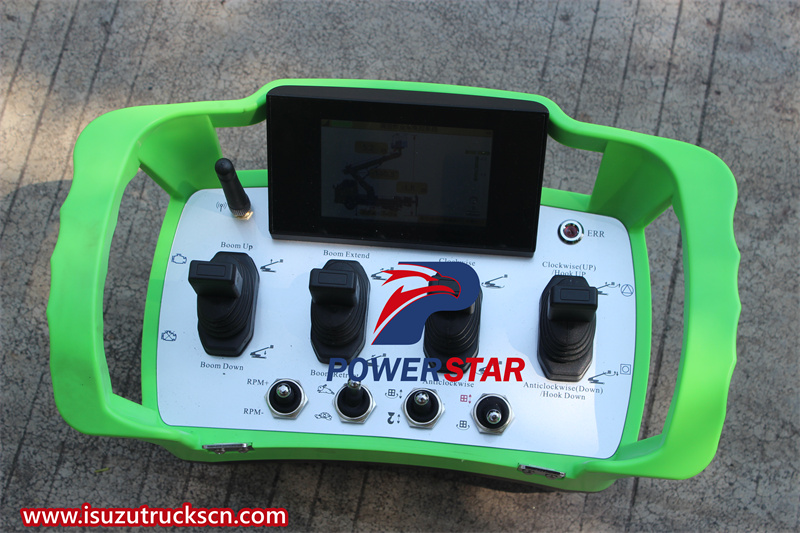

Remote control box
★ Telecommunications and Broadcasting
In the telecommunications and broadcasting sectors, this truck can be used as an elevated platform for antenna installation, equipment maintenance and signal testing. Its working height and telescopic arm help to precisely position antennas and broadcast equipment to optimize signal coverage and operational efficiency.

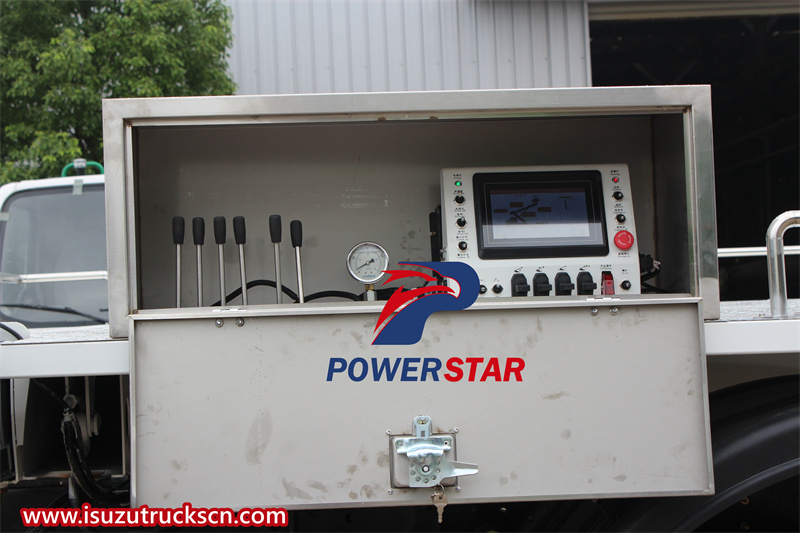

Operation box
