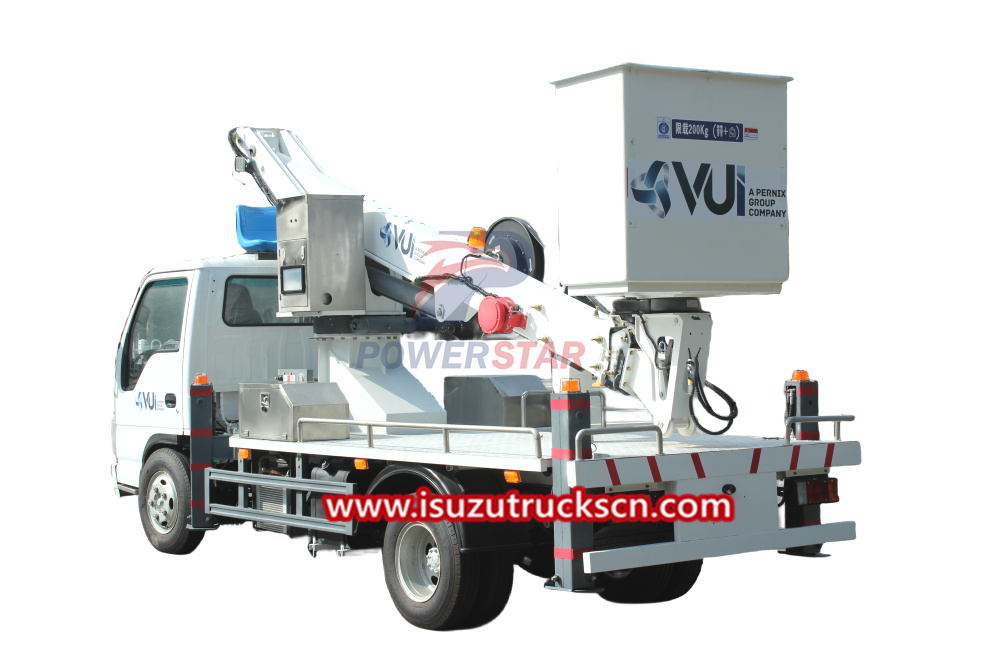

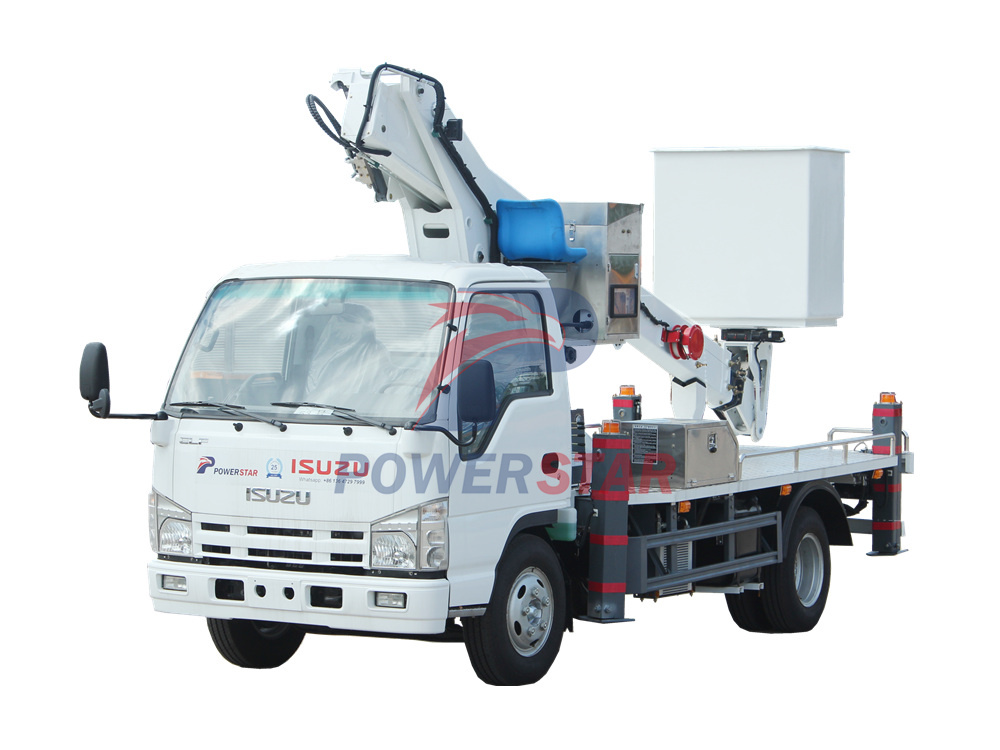

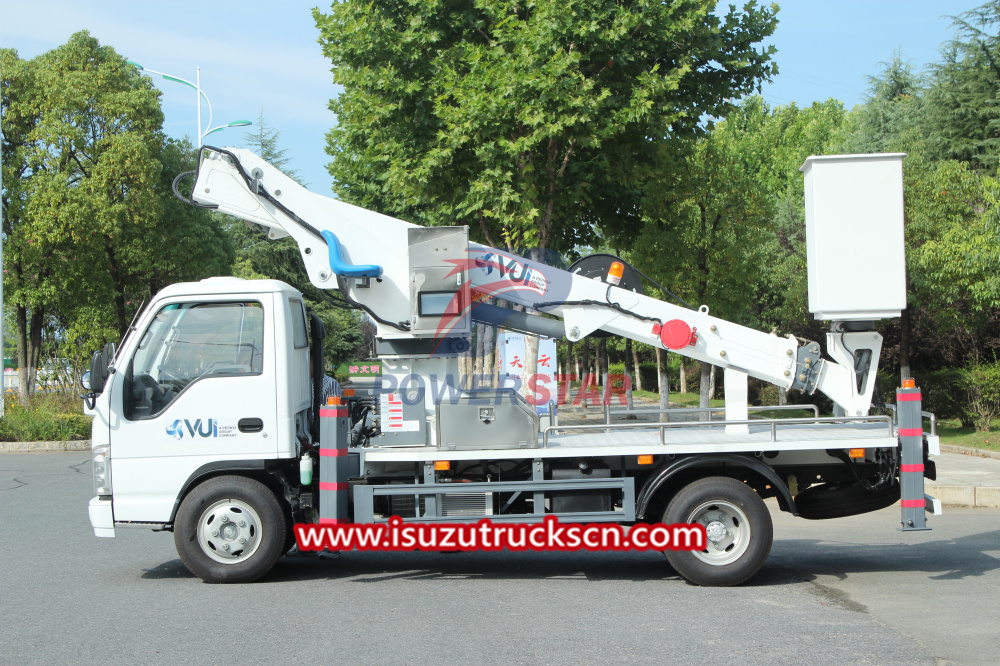

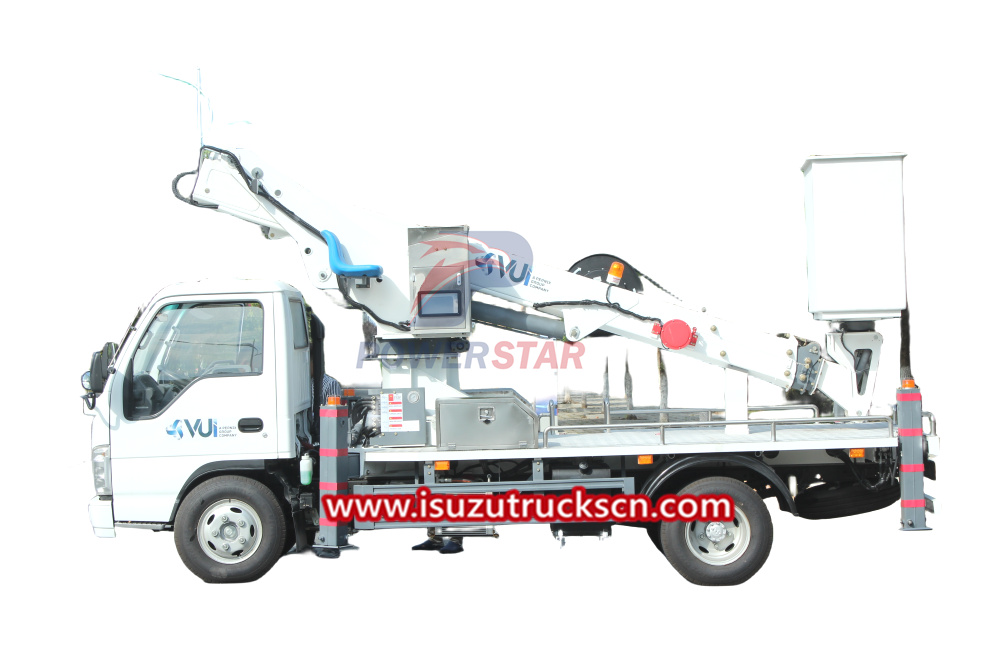

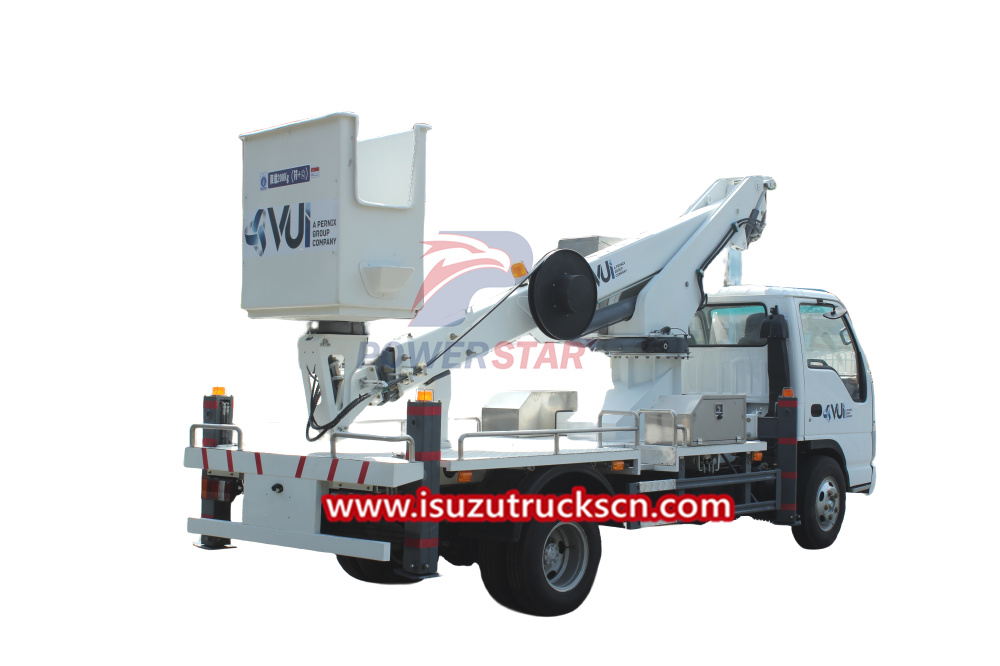

Offical 16M Isuzu chassis brand Telescopic bucket trucks designed smarter for telecommunications, municipal and signage work. Original Isuzu truck mounted telescopic aerial lifts deliver a lower true cost of ownership, delivering the most payload for their working height.
Work capacity:
12,14,16 MetersTruck model:
PT5080GGKEngine power:
120 HPEngine type:
Isuzu 4KH1Axle drive:
4x2Gear box:
Isuzu MSB5SRemarks:

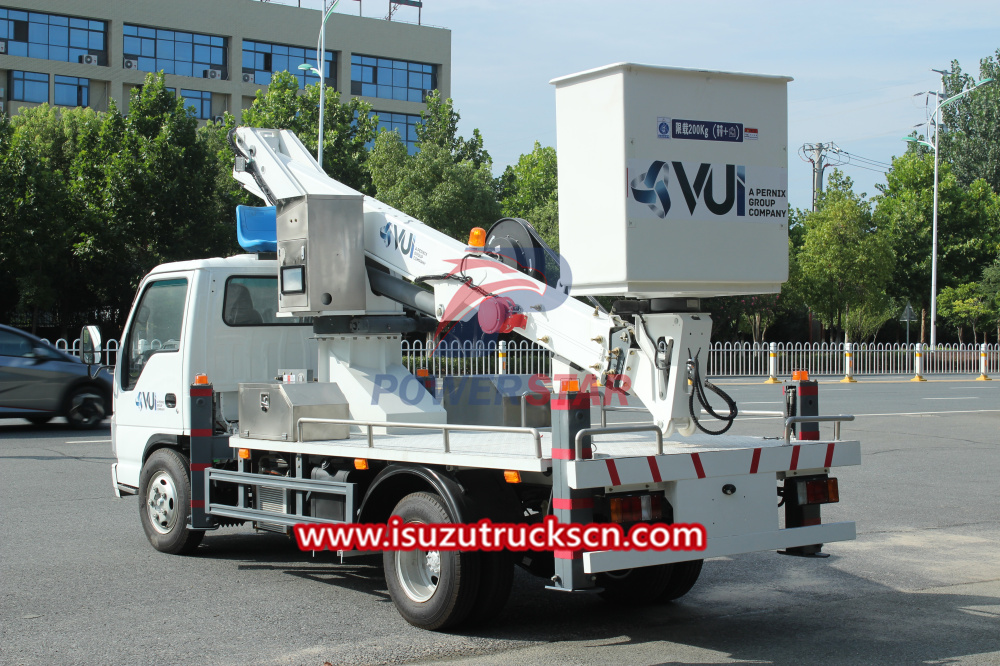

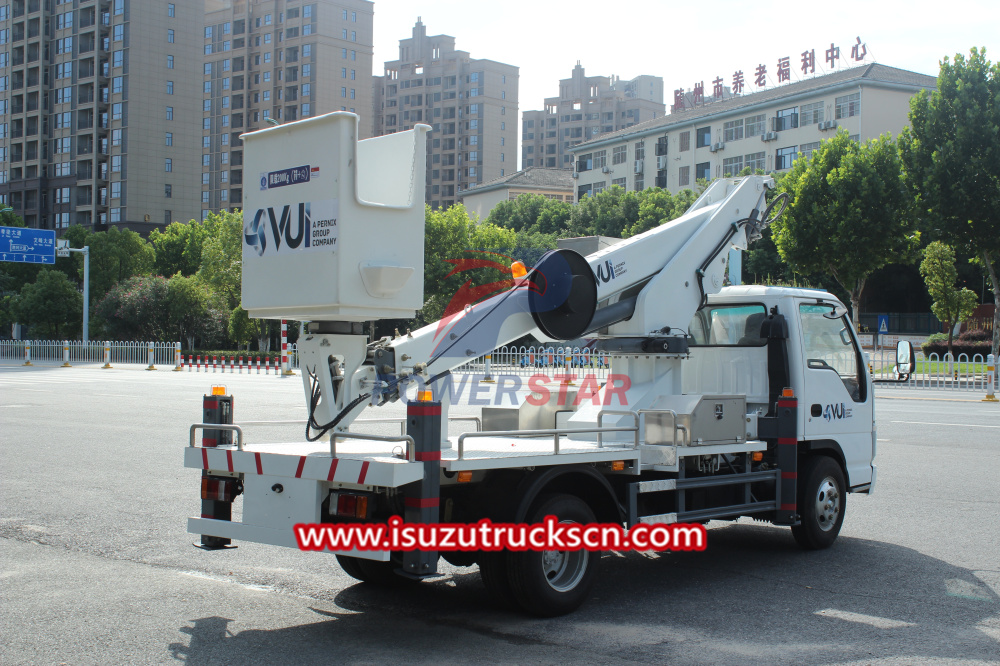

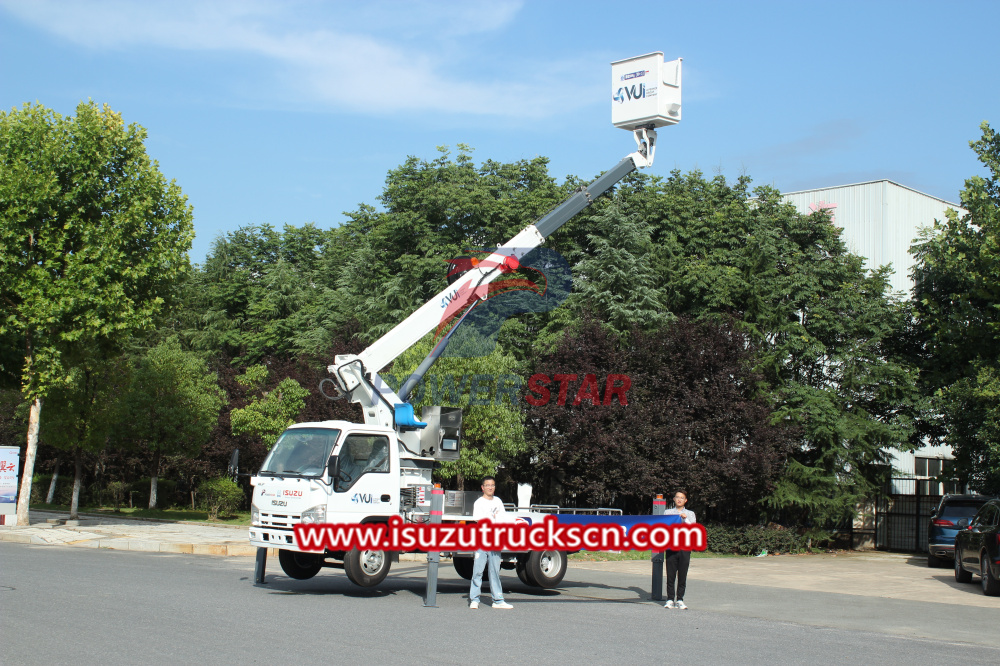

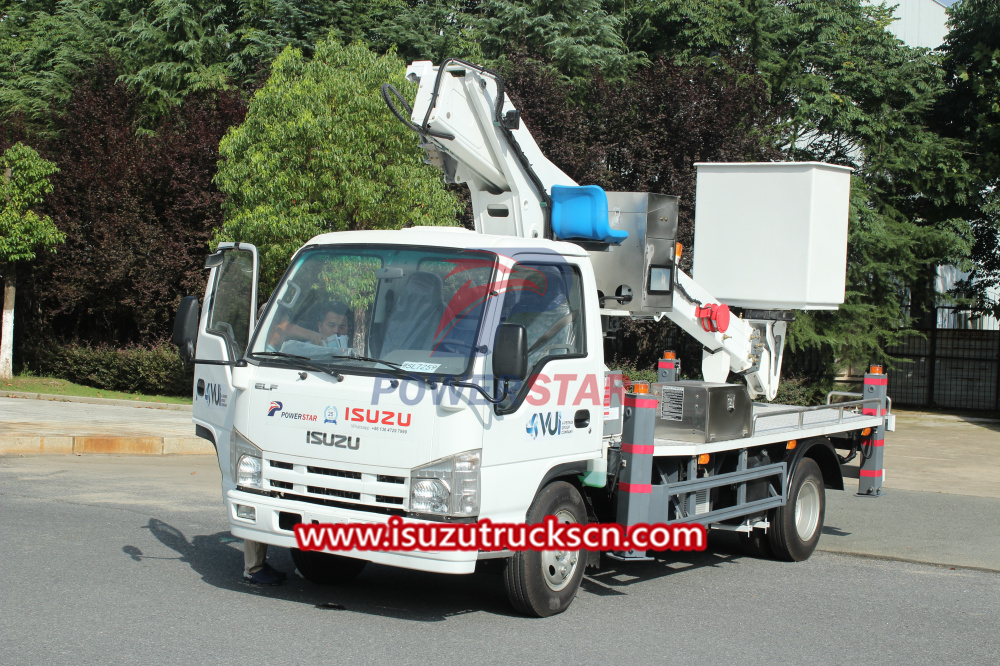

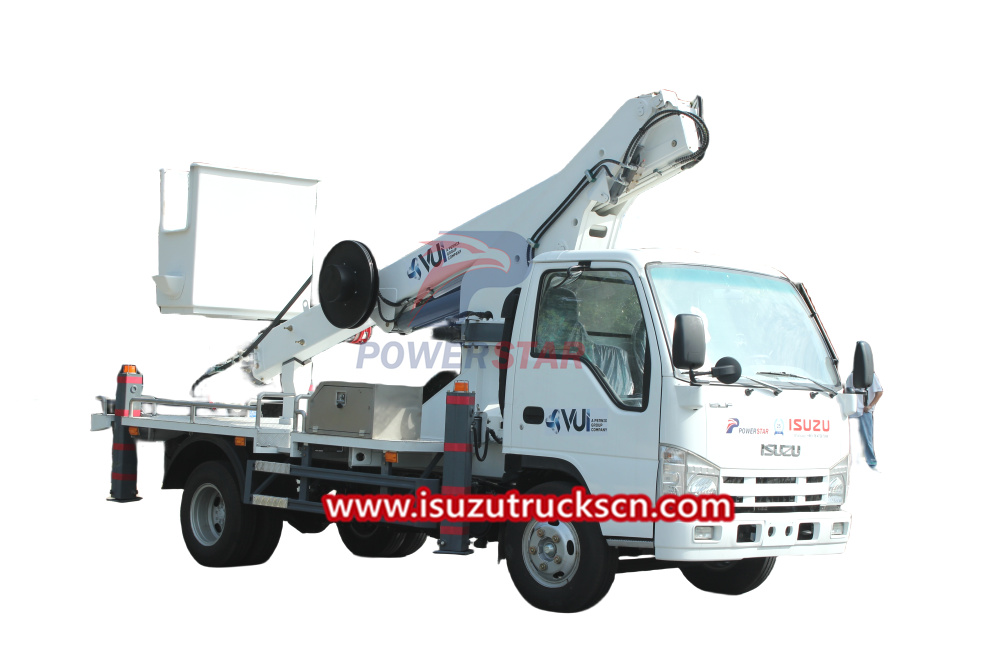

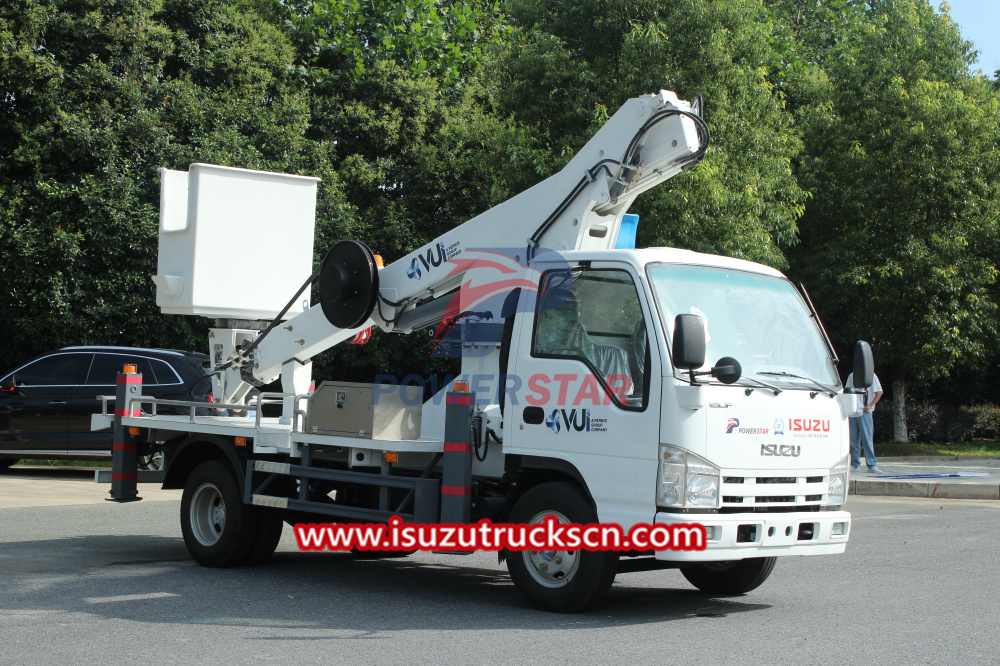

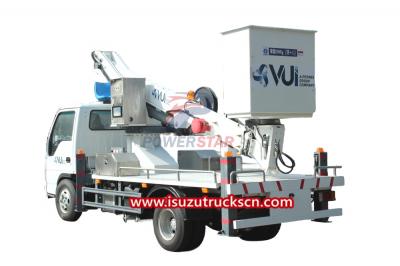

Fiberglass working bucketThe Vanuatu Telescopic Bucket Trucks Isuzu, also called as Isuzu stiff boom bucket truck, is a Isuzu aerial working plaftform vehicle specially designed for various aerial work applications. This Isuzu bucket working truck features a telescopic boom with a bucket platform, providing access for maintenance, repairs, and other overhead tasks. Its robust design and advanced features make it an ideal choice for industries such as construction, telecommunications, and utilities in Vanuatu.
2. Features:
- Telescopic Boom: The Isuzu telescopcic bucket truck is equipped with a telescopic boom that offers precise height and reach capabilities, allowing workers to access elevated areas safely and efficiently.
- Bucket Platform: The truck's boom is fitted with a spacious and secure bucket platform, providing a stable working platform for aerial maintenance and repairs.
- Hydraulic Controls: The bucket platform and boom are operated through hydraulic controls, ensuring smooth and precise movements for enhanced safety and productivity.

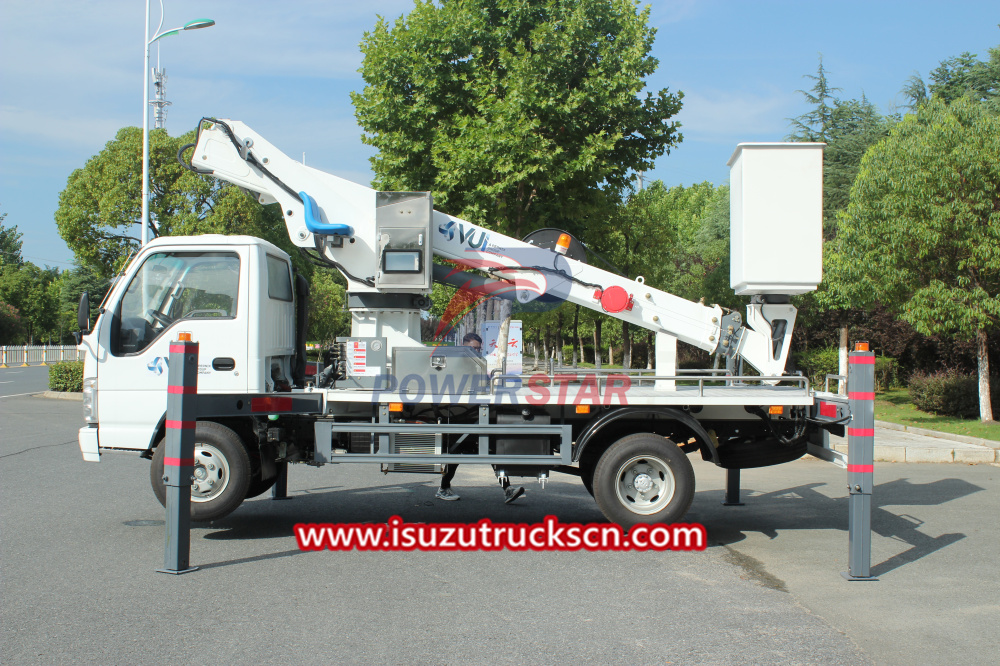

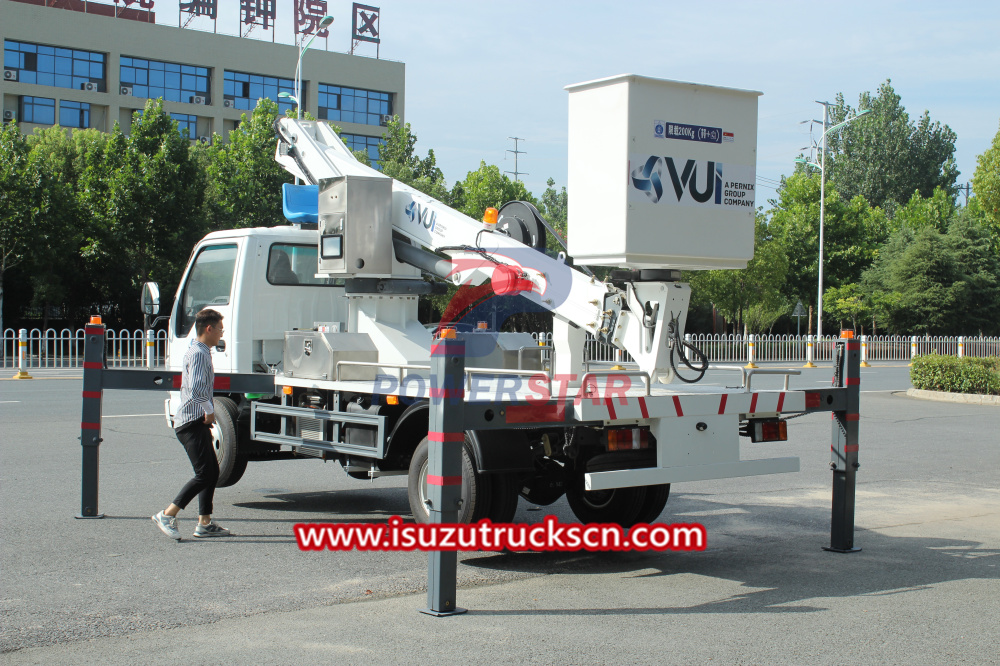

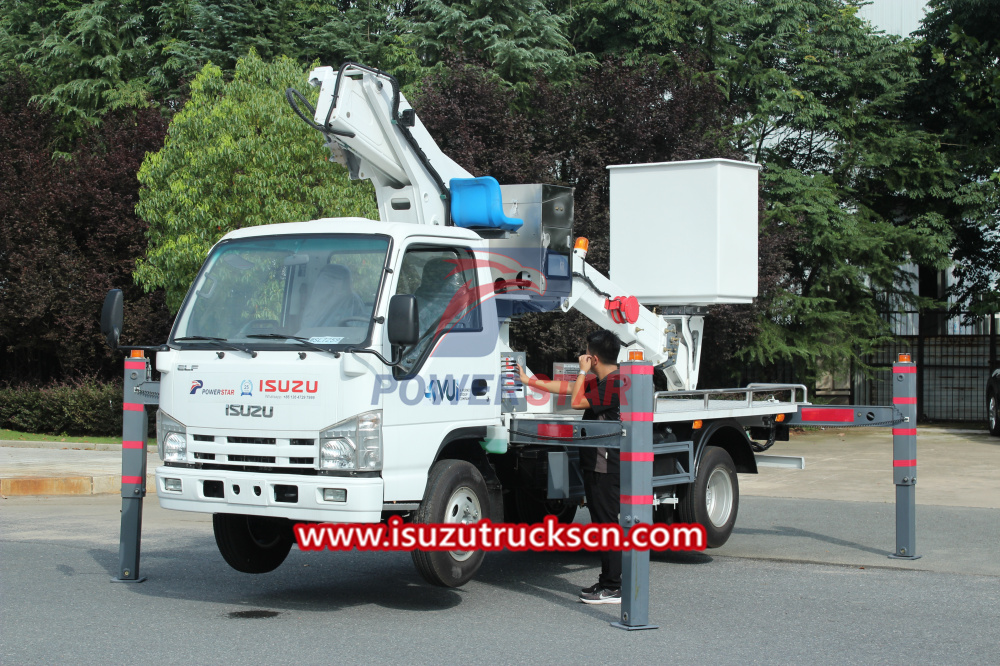

- Stabilizing Outriggers: The vehicle is equipped with stabilizing outriggers, providing stability and balance during operation, even on uneven terrain.
- Generous Payload Capacity: The Isuzu bucket truck boasts a significant payload capacity, allowing transportation of necessary equipment and tools to job sites efficiently.
![]() |
![]() |
![]() |
![]() |
3. Advantages:
- Height and Reach: The telescopic boom offers impressive height and reach capabilities, allowing workers to access overhead areas that are otherwise difficult to reach using traditional methods.
- Versatility: The Vanuatu Telescopic Bucket Trucks Isuzu is suitable for a wide range of applications, including maintenance of power lines, tree trimming, signage installation, and building maintenance.
- Efficiency: With the ability to reach elevated areas quickly and safely, this truck enhances productivity and reduces downtime by minimizing the need for traditional scaffolding or manual access methods.
- Safety: The truck's hydraulic controls and stabilizing outriggers ensure safe and precise working conditions, minimizing the risk of accidents or injuries.
4. Application:
The Vanuatu Telescopic Bucket Trucks Isuzu finds application in various industries and sectors. It is extensively used in telecommunications, utilities, construction, signage installation, and maintenance services. Whether it's repairing power lines, trimming trees, or installing signage, this truck provides a reliable solution for aerial work requirements.
Main specification | Chassis brand | ISUZU | |||
Chassis model | ELF | ||||
Overall dimension(L*W*H) | 7640x2000x3150mm | ||||
Gross / Curb weight | 6,800kg / 5,275kg | ||||
Chassis | Drive modle | 4*2 left hand drive | |||
Wheel Base | 3360 mm | ||||
Tyre size & number | 7.00-16, with one spare tyre | ||||
Fuel/Engine type: | Diesel,Vertical in-line, water-cooled, four stroke, electronically controlled high pressure common rail | ||||
Engine model | 4HK1-TCG40 | ||||
Engine horse power | 120HP (88KW) | ||||
Emission | Euro IV | ||||
Transmission | 6 speed forward, 1 reverse | ||||
Working condition | Maximum operating height | 16m | |||
Max. bucket bottom height | 14 m | ||||
Rotation | 360° | ||||
Boom Type | 3Sections telescopic boom | ||||
Outrigger type | Outrigger type | Front V Rear H type. Controlled independently | |||
Outrigger span | Vertical | 4000mm | |||
horizontal | 4350mm | ||||

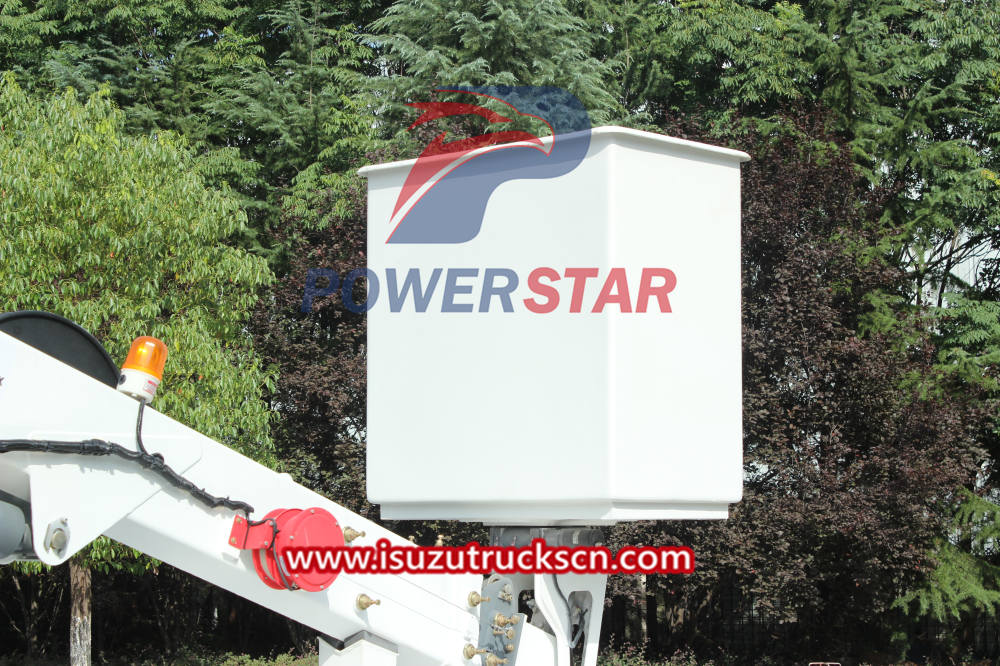

Basket | Rated loading weight | 200kgs | |||
L*W*H | 1500x700x1150mm | ||||

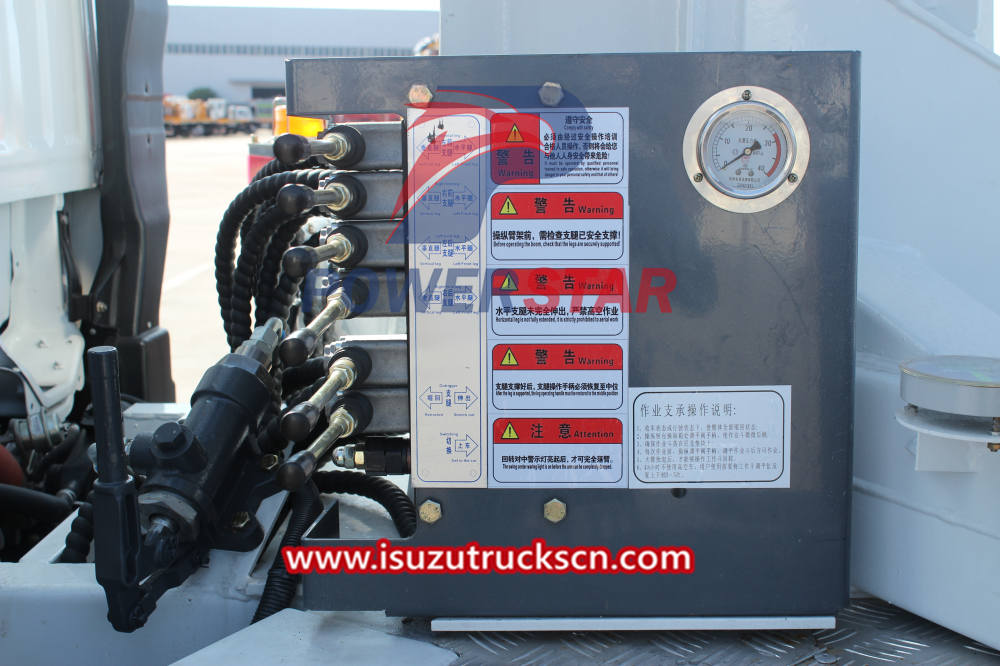

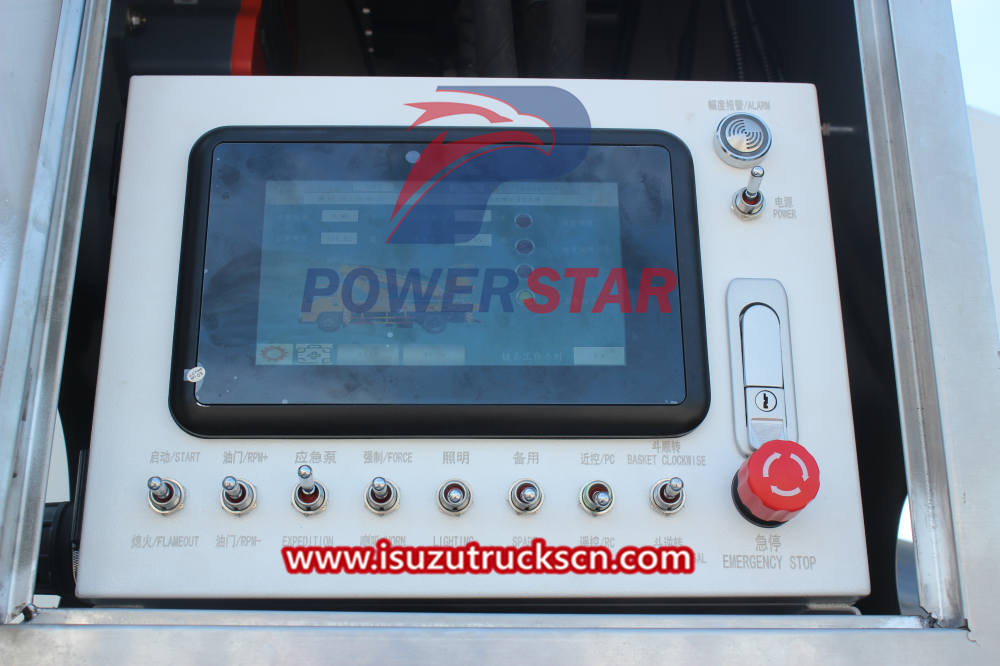

Operation system | Operation | 4 operation mode: Electrical operation of working platform ,ground remote control ,controller in the bucket,and emergency lever. | |||
Control system | Electro hydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation | ||||
Leveling system | Hydraulic automatic leveling | ||||
Security configuration | Automatic interlocking device for up and down | For locking up and down the truck to prevent the risk of misoperation. | |||
Basket | 360 degree rotation | ||||
Horizontal function | Real time display | ||||
Real time communication | There is wireless intercom between the platform and the vehicle | ||||
Emergency electric emergency pump | When the engine and main pump failure, the operator can be sent back to the ground. |
5. After-sales Service:
We offer comprehensive after-sales service and support for the Vanuatu Telescopic Bucket Trucks Isuzu. Our team of trained technicians is dedicated to providing regular maintenance, repairs, and technical assistance whenever required. We prioritize customer satisfaction and ensure that the truck operates at optimal performance, meeting the demands of aerial work applications in Vanuatu.
6. FAQ:
- Can the telescopic boom reach significant heights?
Yes, the Vanuatu Telescopic Bucket Trucks Isuzu is designed to reach significant heights, allowing workers to access elevated areas safely and efficiently.
- Is the bucket platform spacious enough to accommodate multiple workers?
Yes, the bucket platform is designed to provide ample space for one or multiple workers, along with necessary equipment and tools.
- Can the truck be operated on uneven terrain?
Yes, the truck's stabilizing outriggers ensure stability and balance, allowing operation on various terrains, even uneven surfaces.
- Can the truck be customized with additional features or equipment?
Yes, the truck can be customized based on specific requirements, including the addition of specialized equipment or compartments.
7. Upper Body Customization:
We offer upper body customization options for the Vanuatu Telescopic Bucket Trucks Isuzu. Customers can tailor the truck's body structure, storage compartments, and safety features according to their specific needs, enhancing functionality and efficiency.
8. Truck Chassis Choice:
The Isuzu truck chassis used for the telescopic bucket trucks offers various options to cater to the payload capacity and performance required for specific applications. Our range of chassis choices ensures customers can select the most suitable base for their aerial work requirements in Vanuatu.
