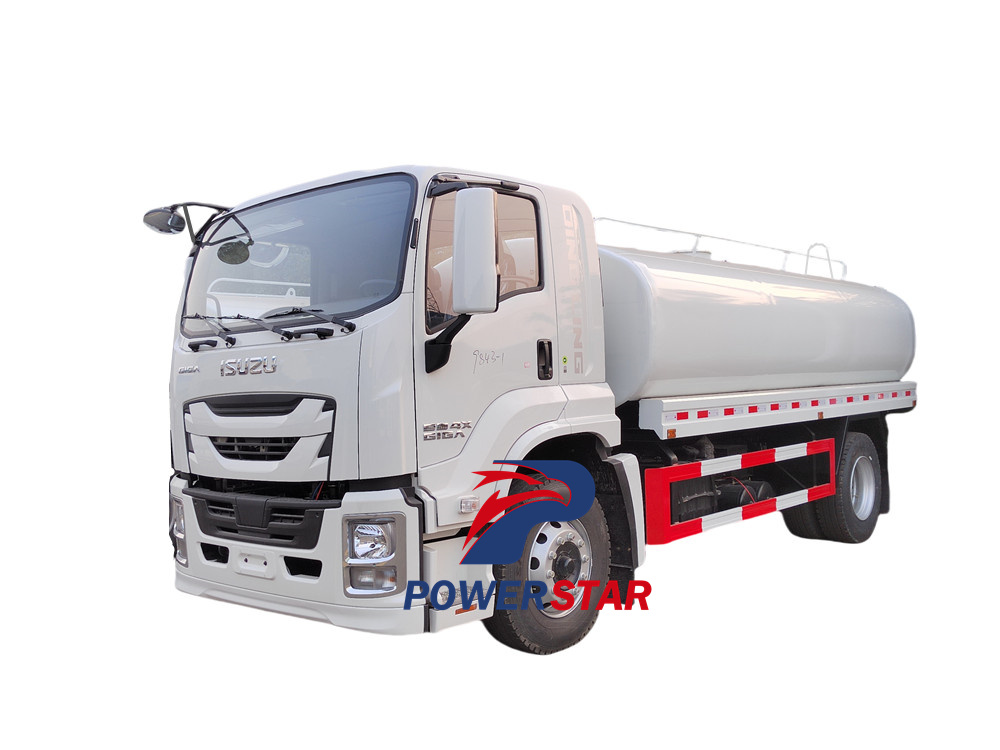

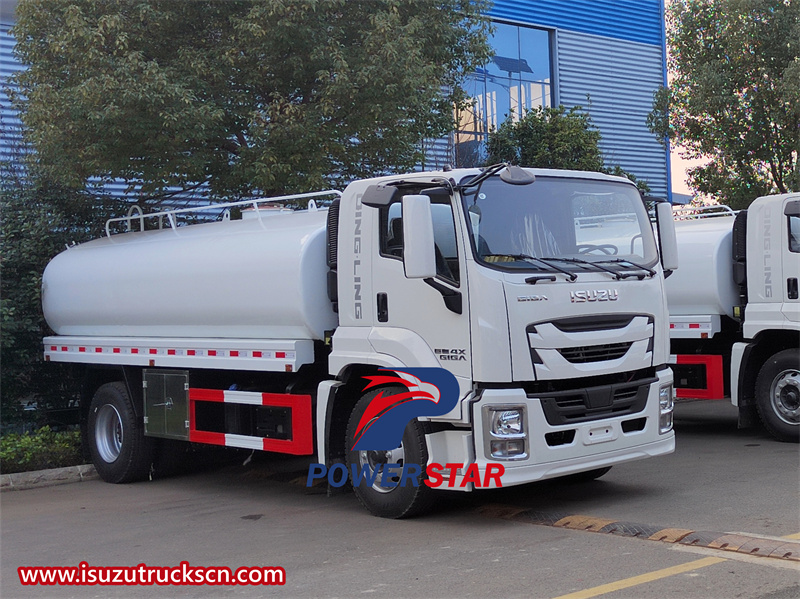

The Isuzu FTR GIGA 4x2 12000L drinking water truck is a versatile and reliable solution for a wide range of applications that require the efficient transportation and distribution of potable water. Designed with a focus on durability, performance, and safety, this truck is an ideal choice for rental companies, disaster relief organizations, construction sites, events management, and other sectors where a large capacity water delivery system is crucial.
Work capacity:
12000LTruck model:
PT5180GXZEngine power:
205HPEngine type:
4HK1-TC60Axle drive:
4X2,LHDGear box:
MLD 6-speed,manualRemarks:
12000L drinking water tank capacityIsuzu drinking water truck for rental also called Isuzu FTR GIGA 4x2 12000L drinking water transport truck,Isuzu FTR GIGA 4x2 potable water tank truck,Isuzu GIGA 4x2 12000L drinking water delivery truck,Isuzu GIGA potable water service truck,Isuzu GIGA fresh water truck,Isuzu GIGA drinking water bowser.
Isuzu drinking water truck for rental is known for its excellent carrying capacity and equipped with a large-capacity water tank to meet large-scale water supply needs. Equipped with Isuzu's efficient engine, the truck is powerful and fuel-efficient. The professional body design and stable structure ensure safe driving. Constructed with high-quality materials, it is corrosion-resistant and anti-aging to ensure water quality safety. Flexible and versatile, it can be customized according to needs and is widely used in urban water supply, agricultural irrigation and emergency response. It is a powerful assistant in the water supply industry.
Features：
★ ISUZU chassis, perfect performance
★ ISUZU engine, super powerful, reliable performance, no overhaul within 100,000 km.
★ Nice shape, rational structure.
★ Water pump super powerful, efficient pump in and out
★ Strong, durable, perfect performance.
|
Product name |
Isuzu FTR GIGA 4X2 drinking water truck |
|
|
Vehicle Dimensions, Weights & Capacities |
Chassis brand |
ISUZU FTR GIGA |
|
Overall dimension (L*W*H) |
8200*2500*3200mm |
|
|
Wheelbase |
4500mm |
|
|
Curb weight |
6,800 Kgs |
|
|
Gross weight |
18,000 Kgs |
|
|
Chassis
|
Drive mode |
4x2 |
|
Cabin type |
Standard roof one bed |
|
|
Seats |
3 seats |
|
|
Steering |
LHD |
|
|
Tires |
6+1 spare tire |
|
|
Tires specification |
295/80R22.5 |
|
|
A/C |
Air conditioning |
|
|
Gear box |
MLD 6-speed,manual |
|
|
Engine |
Engine model |
4HK1-TC60 |
|
Fuel and engine Type |
Diesel, 4 cylinders in-line |
|
|
Horse power |
205HP |
|
|
Displacement |
5193ml |
|
|
Other Standard Configurations |
1 |
Power Steering System |
|
2 |
Air Conditioning |
|
|
3 |
ABS, Automatically Air-cut Brake |
|
|
4 |
Retro-Reflective Marking |
|
|
5 |
Central Lock |
|
|
6 |
Power Window |
|
|
7 |
USB, Radio |
|
|
8 |
Widened Bumper |
|
|
9 |
For new Giga face Front Chrome Kit for option |
|
|
Tops Parameters |
Volume of Water Tank ( Capacity ) |
12,000 Liters |
|
Loading System |
Top loading |
|
|
Body material |
High performance wear-resisting carbon steel with anti-corrosion treatment paint, SS304 stainless steel for option |
|
|
Thickness of the tank body |
5mm |
|
|
Compartment |
One, with internal anti-wave baffles |
|
|
Manhole |
One or two as required |
|
|
Rear working platform has green high-pressure water spray gun ( water cannon ) |
The spray gun shape can be adjustable: heavy rain, moderate rain, drizzling rain or haze |
|
|
Sprinkling width of front/rear/side Sprinkler |
≥14m |
|
|
Rear working platform range of Water Cannon |
≥28m |
|
|
Others |
As per factory standard |
|
|
Logo painting |
As required |
|
|
Water pump |
Reliable and high quality water pump |
Yes |
|
Front and rear spraying water |
Yes |
|
|
Left and right side spraying water |
Yes |
|
|
Flow rate |
60 m3/h |
|
|
Head |
90 m |
|
|
Input speed |
1480 r/min |
|
|
Self-priming performance |
1.5 min/4m |
|
|
Equipped power |
22.2 kw |
|
Design
The aesthetics of the Isuzu GIGA potable water truck are as striking as they are functional. The vehicle features the iconic Isuzu livery, and the 12,000L water tank is cleverly integrated into the chassis, showcasing the truck’s impressive capacity while emphasizing storage and transportation efficiency. Enhanced safety features such as LED lighting, reflective markings, and ergonomic access points further highlight Isuzu’s commitment to operational excellence and risk reduction.
Engine
The Isuzu FTR GIGA 4x2 12000L drinking water transport truck is equipped with a 205HP high-performance diesel engine that is carefully tuned for optimal performance, providing the necessary thrust to easily carry 12,000 liters of precious drinking water, delivering this important resource to communities, events, disaster areas and construction sites with unparalleled reliability.
Water Tank
The 12,000-liter water tank is constructed from high-quality materials that are corrosion-resistant and food-grade safe, ensuring that the water remains pure and free from contaminants. The tank is also designed to minimize sloshing and turbulence during transportation, ensuring a smooth ride and reduced wear and tear on the vehicle.
Water Pump System
The truck is equipped with a high-performance water pump system that allows for rapid and efficient water discharge. The pump is capable of delivering large volumes of water at high pressures, making it ideal for filling water tanks, hydrating crops, or supporting firefighting operations. The system is also designed for easy maintenance and repair, ensuring that downtime is kept to a minimum.
The advantages of Isuzu FTR GIGA 4x2 12000L drinking water transporter are mainly reflected in the following aspects:
1. Powerful carrying capacity
● Large-capacity water tank: This model is equipped with a 12,000L water tank, which can store a large amount of drinking water to meet long-term and large-scale water supply needs.
● Efficient transportation: With its large water carrying capacity, Isuzu FTR GIGA 4x2 can complete more water supply tasks in one transportation and improve transportation efficiency.

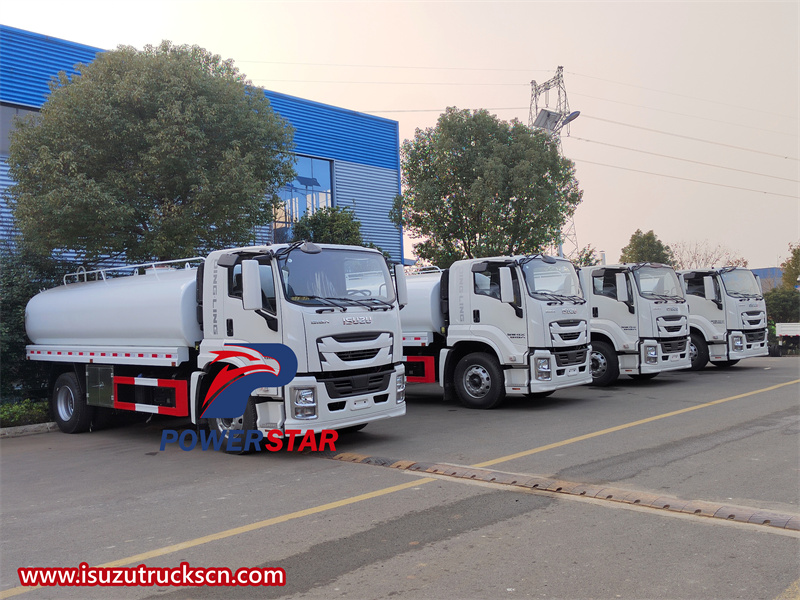

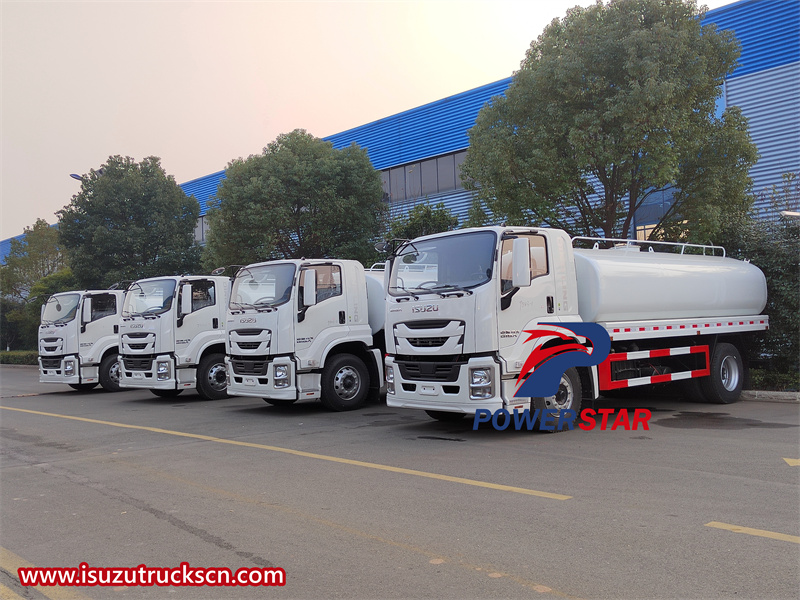

4 units Isuzu GIGA drinking water bowser
2. Excellent vehicle performance
● Powerful power: Isuzu brand engines are known for their reliability, durability and high performance, providing sufficient power support for the vehicle to ensure stable driving under various road conditions.
● Flexible control: The 4x2 drive mode makes the vehicle more flexible in control and can adapt to different road environments and driving needs.
● Efficient fuel economy: The combination of excellent engine technology and body design makes this model perform well in fuel economy and reduces operating costs.

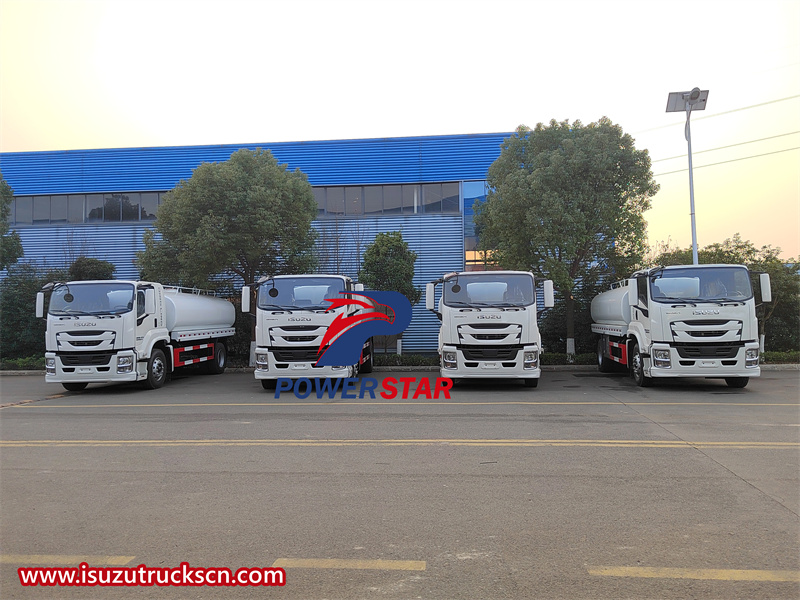

4 units Isuzu GIGA fresh water truck
3. Reliable safety performance
● High-quality materials: The water tank and key components are made of high-quality stainless steel or other corrosion-resistant materials, ensuring the safety of drinking water and the durability of the vehicle.
● Stable body structure: The reasonably designed body structure and sturdy chassis improve the stability and safety of the vehicle, and ensure safe driving even in complex road conditions.

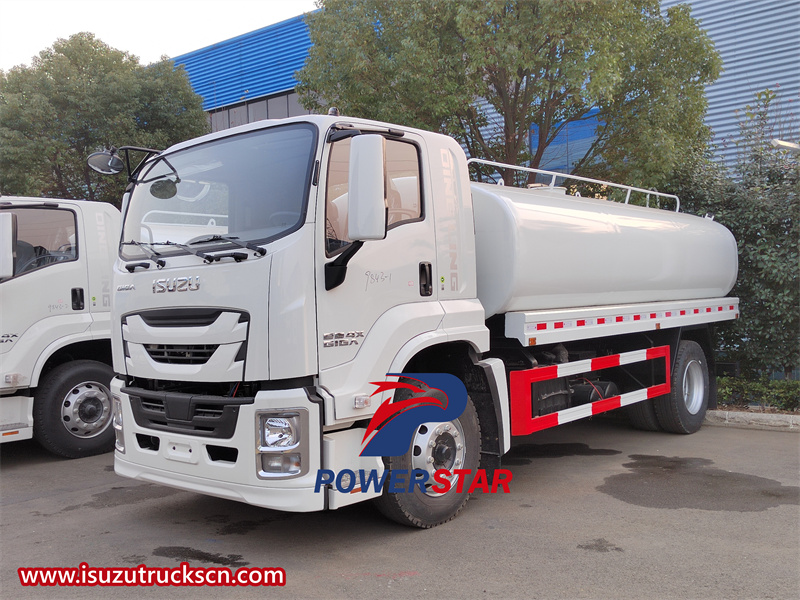

4 units Isuzu GIGA potable water service truck
4. Diversified functional configuration
● Multi-function nozzles: Vehicles are usually equipped with various types of nozzles, such as sprinkler nozzles, irrigation nozzles, etc., which can meet the water supply needs in different scenarios.
● Intelligent control system: Some models may also be equipped with intelligent control systems, which can realize remote monitoring and intelligent scheduling, and improve the accuracy and efficiency of water supply operations.

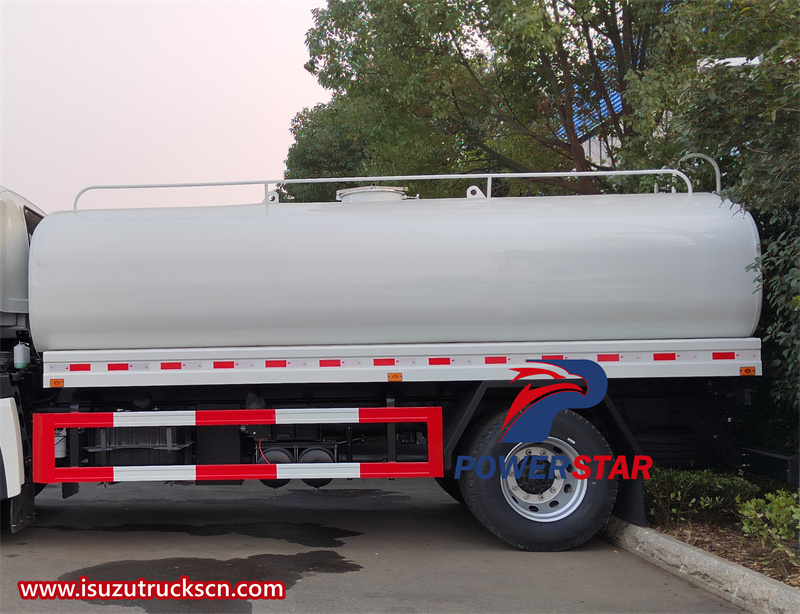

Water tank
5. Wide range of application areas
● Urban water supply: Applicable to daily drinking water supply and emergency water supply in or around the city.
● Agricultural irrigation: Can be used for irrigation operations in agricultural areas such as farmland, orchards, and tea gardens.
● Public facility maintenance: Plays an important role in road cleaning, green belt maintenance, etc.
● Industrial water: Provides drinking water or process water required for production for factories, mines, etc.
