Isuzu Drinking water stainless steel tank truck
Work capacity:
9000LTruck model:
PT5110GSSEngine power:
190 HPEngine type:
Isuzu 4HK1Axle drive:
4x2Gear box:
Isuzu MLD 6SRemarks:
Food grade tanker material and pump system
Detailed specifications For 9000liters ISUZU NPR Potable water Transport Truck
Chassis parameters
Vehicle Model No.
PT5110GSS
Whole vehicle main dimensions
Overall dimensions (LxWxH)mm
7310×2500×3200
Drive Type
4×2
Wheel Base(mm)
4500
Wheel Track(Front/Rear)mm
2010/1865
Weight data
Tare Weight(kg)
7004
Capacity(kg)
10866
Persons in cab
3
Total weight(kg)
15000
Whole vehicle main performance
Max.driving speed(km/h)
89
Max.climbing degree(%)
38
Engine
Model
ISUZU 4HK1-TC
Displacement(L)
5.2
Rated Power(kw/rpm)
139/270(2200)
Max torque(N.m/rpm)
1100(1200-1600)
Gearbox
Model No.
ISUZU MLD 6S
Clutch
Type
Reinforced diaphragm clutch, diameter 430mm
Rear Axle
Type/Mainreducetion ratio
13T/4.8
Suspension
Front suspension/Leaf spring number
9
Rear suspension/Leaf spring number
9+6
Steering Gear
AM75L
Brake system
Service brake
dual circuit compressed air brake
Parking brake
spring energy, compressed air operating on rear wheels
Auxiliary brake
engine exhaust valve brake
Wheels and tyre size
6+1/18.25R20
Fuel Tank(L)
100
Cabin
Manual, cab lift, airbag seat, manual rearview mirror glass lifter, air conditioner
Upload parameters
A.TANK BARREL
1. Tank Profile
Round shape
2. Test pressure
Hydrostatic test to5 psi (35 Kpa) on each compartment.
3. Working pressure
Atmospheric.
4. Capacity
10000L plus 3~5% ullage.
5. Compartments
Single compartment.
6. Interior weld finish
Not polished or grinded (W-0).
7. Exterior weld finish
Not polished or grinded (W-0).
8. Shell material
Stainless steel 304 2B.
a) Top
3.7mm nominal.
b) Sides
3.7mm nominal.
c) Bottom
3.7mm nominal.
9. End Plate
Stainless steel 304 2B, 3.7mm nominal.
All single heads dished and flanged.
10. Bulkhead
Nil.
11. Baffle / Surge Heads
Stainless steel 304 2B, 3.7mm nominal.
Dished with flap.
2 pcs
12. Spill molding and rollover protection
Stainless steel around the dome with drain hose.
13. Spill molding lids
Nil.
14. Outer rings
304-2B stainless steel, 60mm height, 3mm nominal, continuously welded.
15. Frame
Carbon steel independent.
16. Loaders and brackets
Carbon steel.
15. Isolation
Nil.
16. Exterior lining
Nil.
B. TANK FITTINGS AND PIPING
1. Manholes
20" diameter with 6 stainless steel wing nuts, located at the top center
2. Pressure Vacuum Vent
Two per compartment. 6~12 kPa pressure, 2~4 kPa vacuum.
Chinese Brand
3.Foot valve
Nil.
4 Discharge system

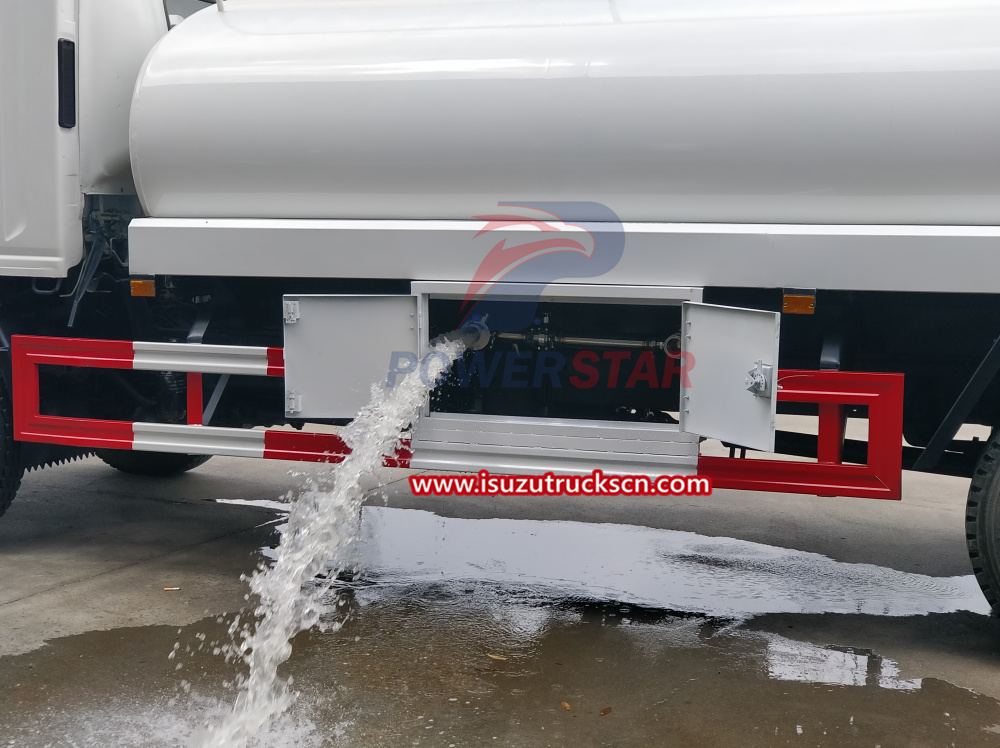

3” diameter discharge with 3" diameter butterfly valve, 3" stainless steel male camlock coupling and quick cap, located at the back of the tank.
5. Piping
Nil.
6. Thermometer
Nil.
7. Steam trace
Nil.
8. Overfill Prevention
Nil.
9. Tow Hook
Nil.
10. Product Indicators
Nil.
C. ACCESSORIES
1. Ladder
Stainless steel, 400mm wide, with non skid rungs and lateral handles, mounted at right middle of tanker.
2. Walkway
Extruded aluminium around dome.
3. Hose Carries
1 no, hose carrier (round tubes) to fit Ø159 x 6meter (236") hose close type complete with brackets to be installed at the right side.
4. Hose
Firemen type flexible discharge hoses, 30m 2.5" for discharge. and flexible plastics suction hoses, 5.9m 3"for suction, 3" female camlock coupling at both ends.
5. Motor Pump
BRIGGS & STRATTON Gasoline motor , 4 stroke motor, fuel tank capacity 4.0 liters of gasoline, WB30 pump with a 3" input and outlet diameter, 7m suction head, discharge capacity 900L/min (238Gal/min) pump head pressure 33 m, weight 30kg.
6. Toolbox
Nil.
7. Rear Bumper
Aluminium member to accommodate light assembly and number plate to cover full width of the tank.
Steel bumper with ground clearance 500mm approx.
8. Hazchem Plate
Nil.
9. Mudguard
Aluminum over suspension and the upper coupler.
Mud flaps rigid plastic at the rear.
10. Lights & Wiring
24V. ISO 1185 7 pin socket.
Harness: oil and vapour proof cable.
Front: nil.
Side:
Mark lamp 3Pcs/side, LED.
Reflector 3Pcs/side
Turning lamp 1Pcs/side, LED.
Rear Bump:
Reverse lamp R-L 2Pcs, LED.
Turning lamp R-L 2Pcs, LED.
Brake lamp R-L 2Pcs, LED.
Register plate light
Rear top: nil.
Brand of Wiring:
11. Reverse alarm
Nil.
12. Connector Box
At the center in the front dishend
13. Sticker
50mm wide red-white reflective sticker, mounted at both sides and rear bump.
14. Hand rail
Nil.
15. Fire Extinguisher
8kg , 2Pcs.
Carbon steel extinguisher holder located on the landing gear on the curb side.
16. Drains hose
water drains hose 2", installed at the back of spill molding
17. Wheel chocks
Nil.
18. Traffic cone
Nil.
19. Spare wheel bracket
1set
Carbon steel, basket type, located behind the landing gear.
20. Painting
Polyurethane medium Aluminium gray, applied over epoxy primer on carbon steel elements

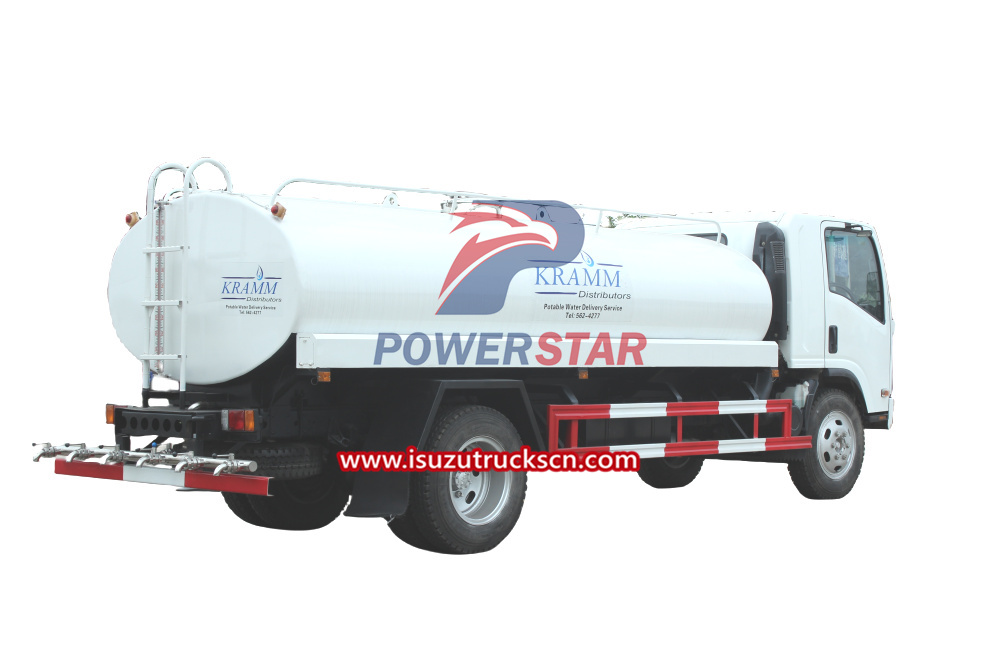

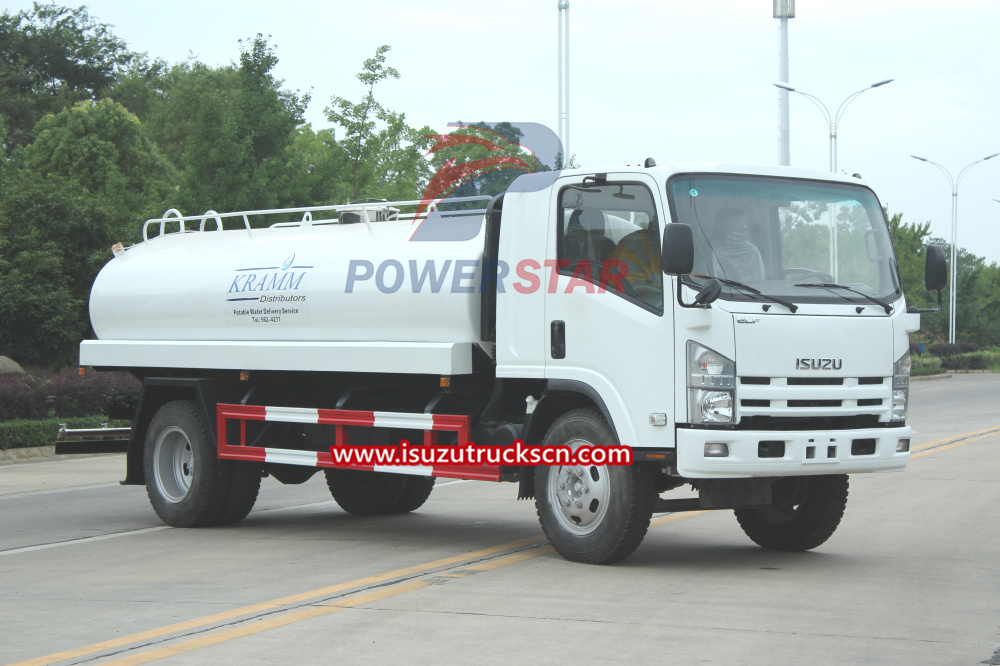

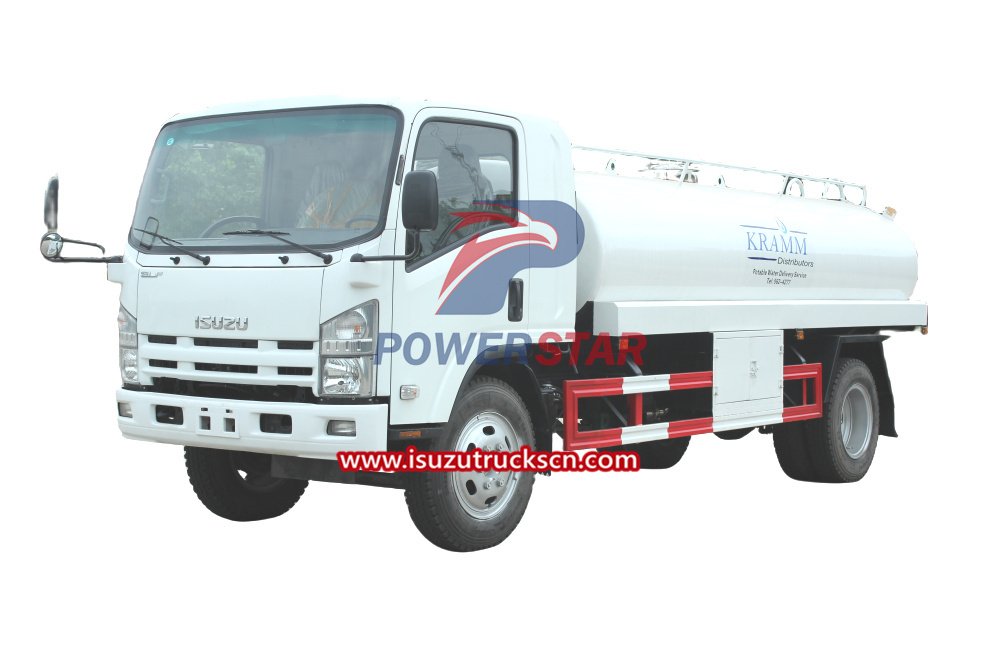

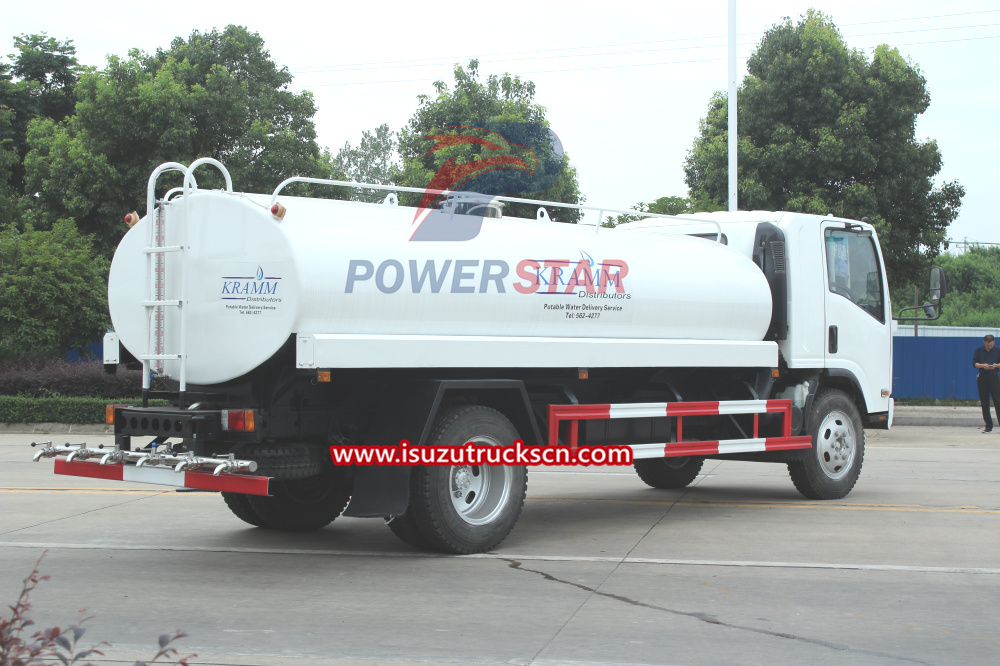

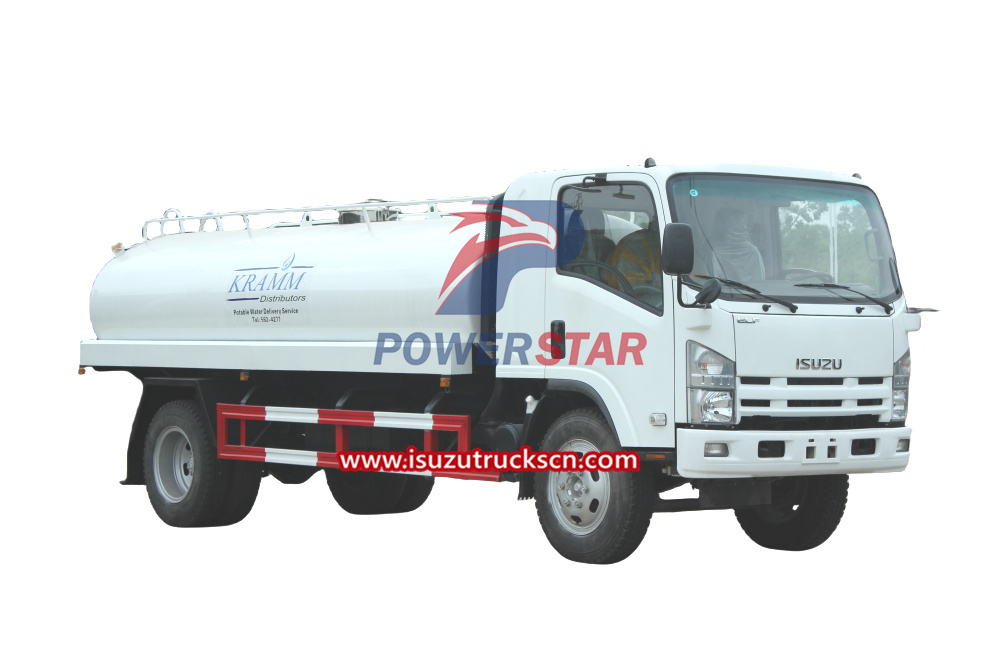

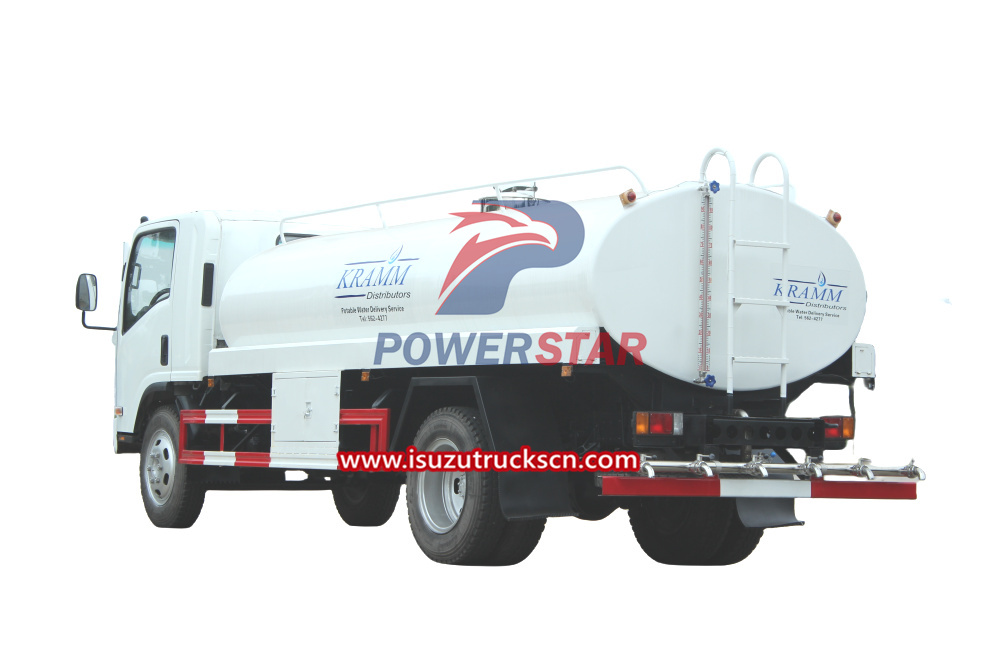

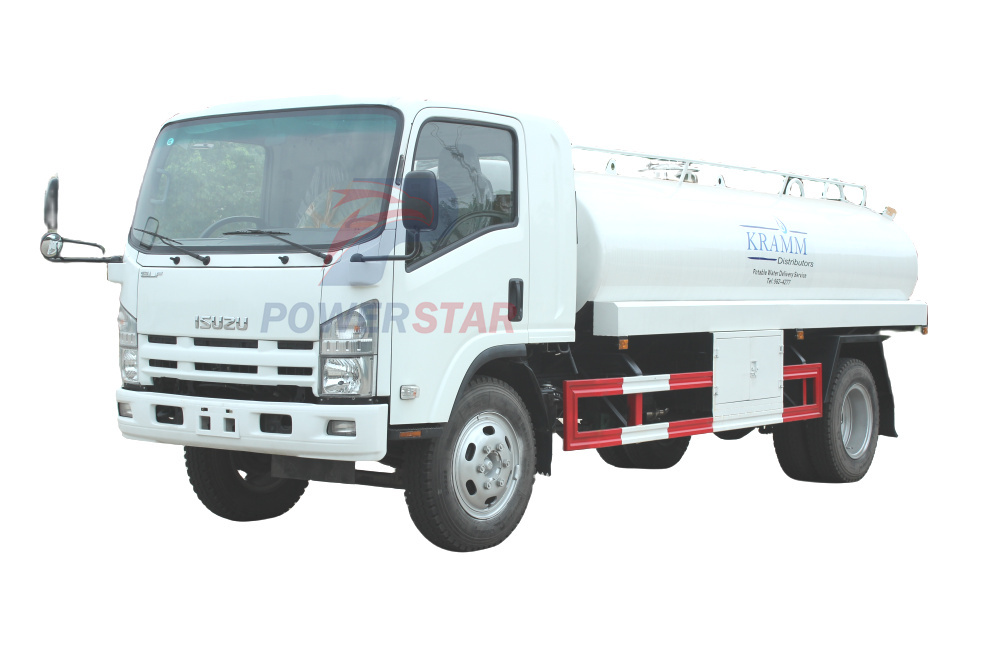

Official Stainless steel drinking water truck with Isuzu NPR truck chassis
Official Stainless steel drinking water truck with Isuzu NPR truck chassis customer LOGO

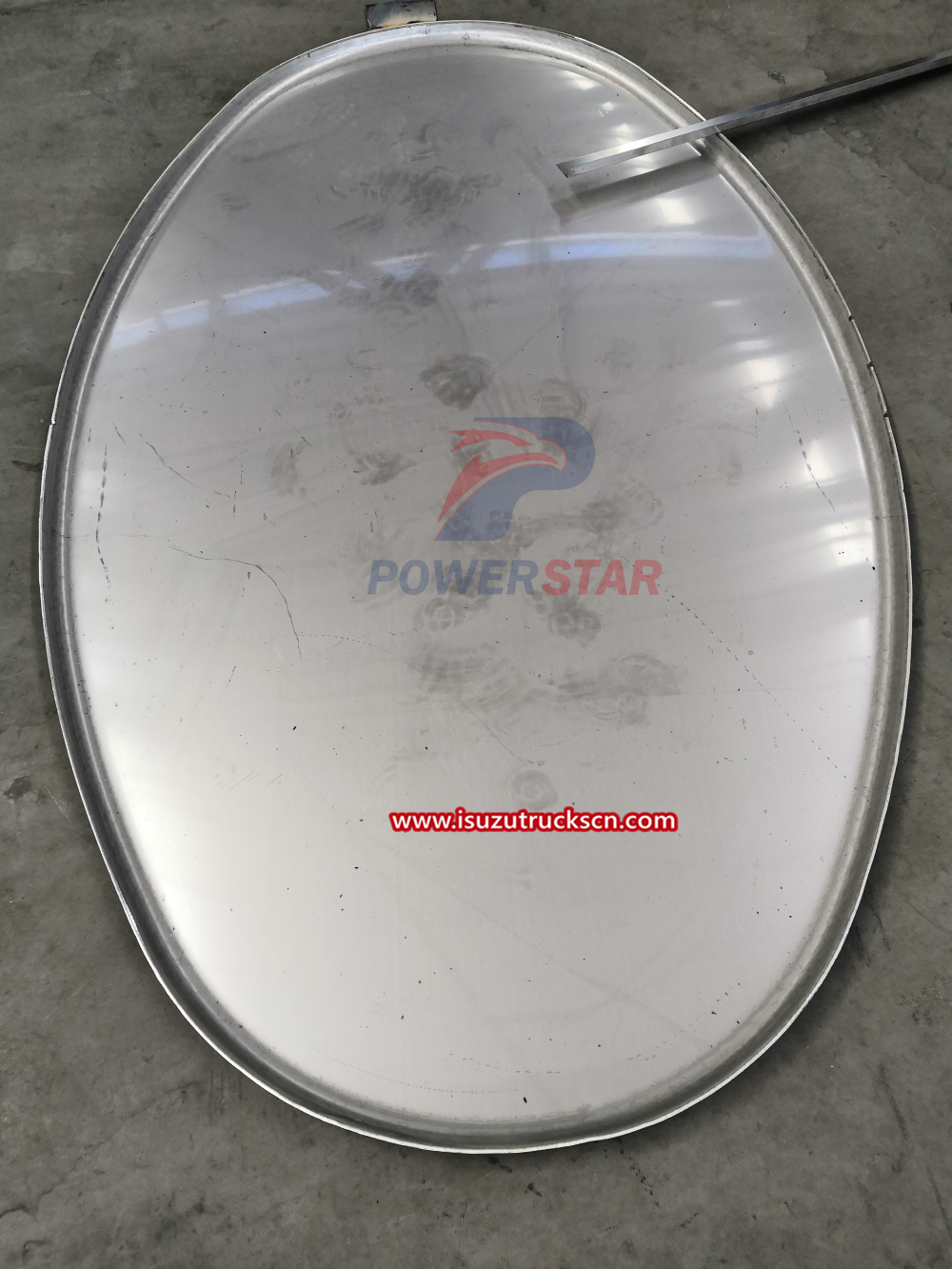

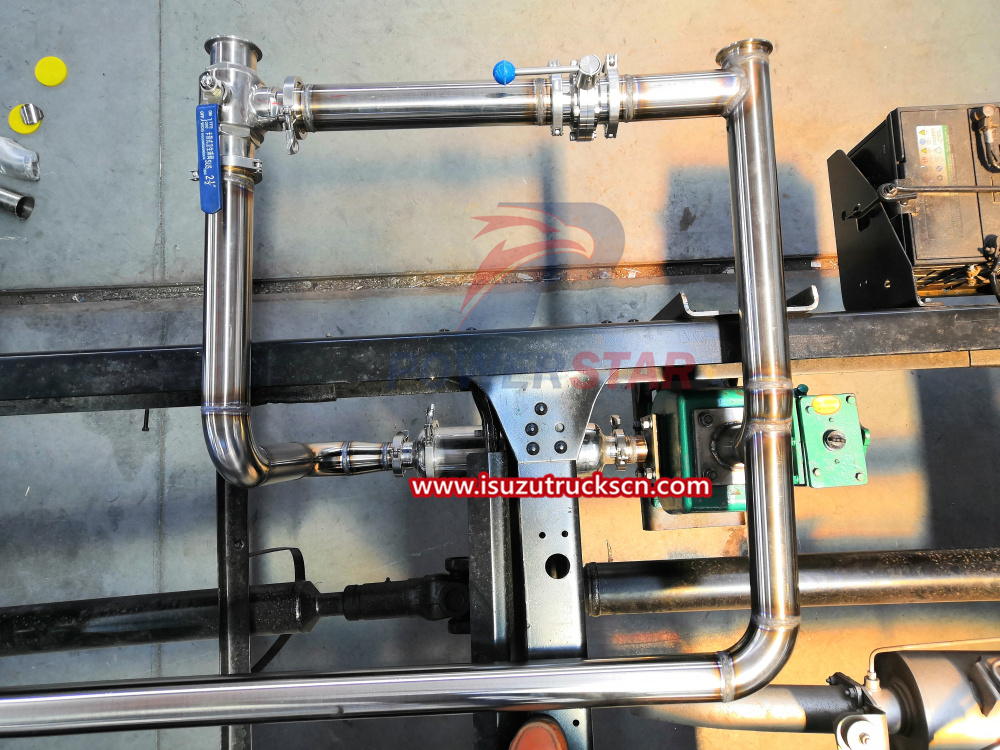

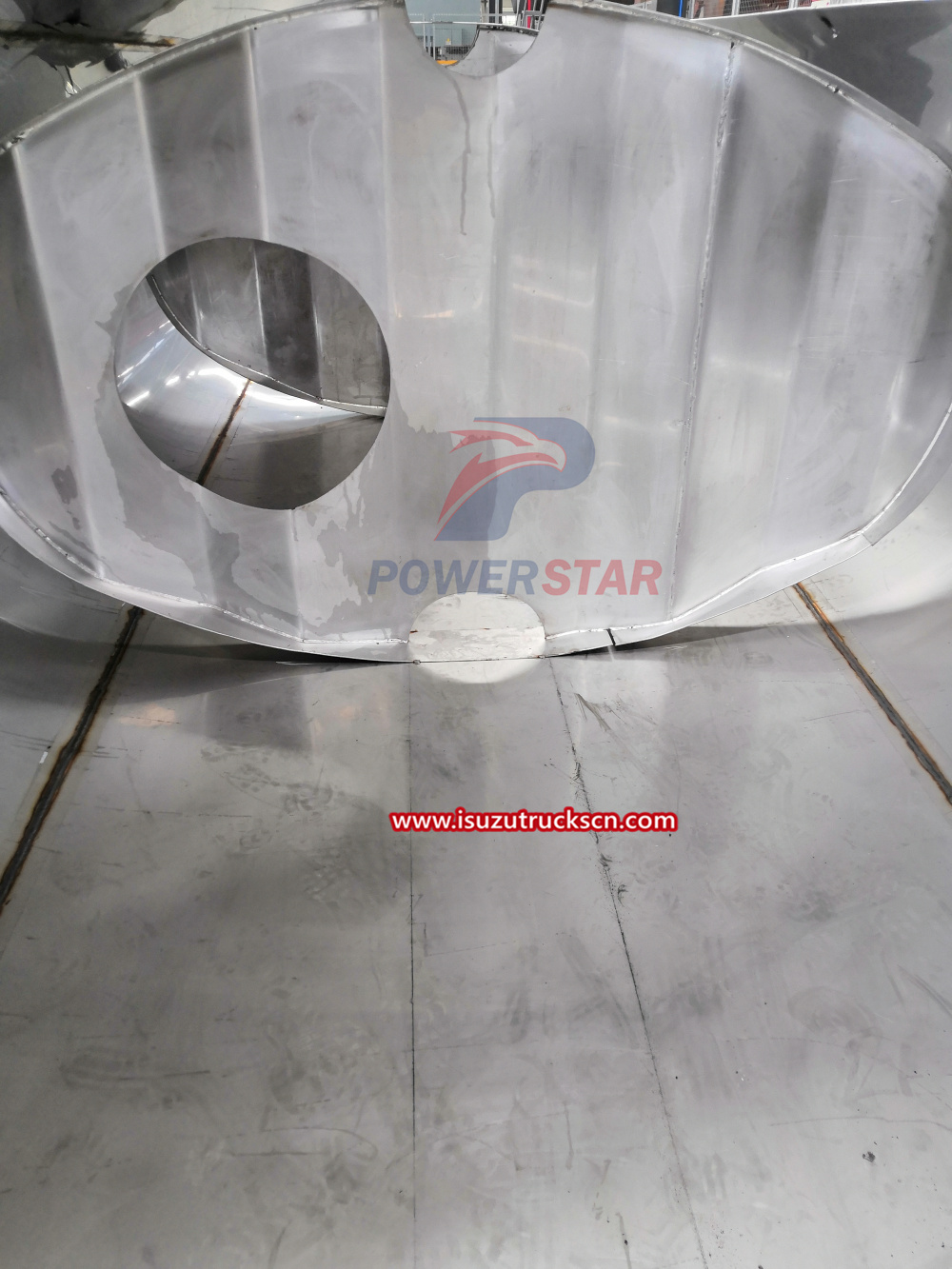

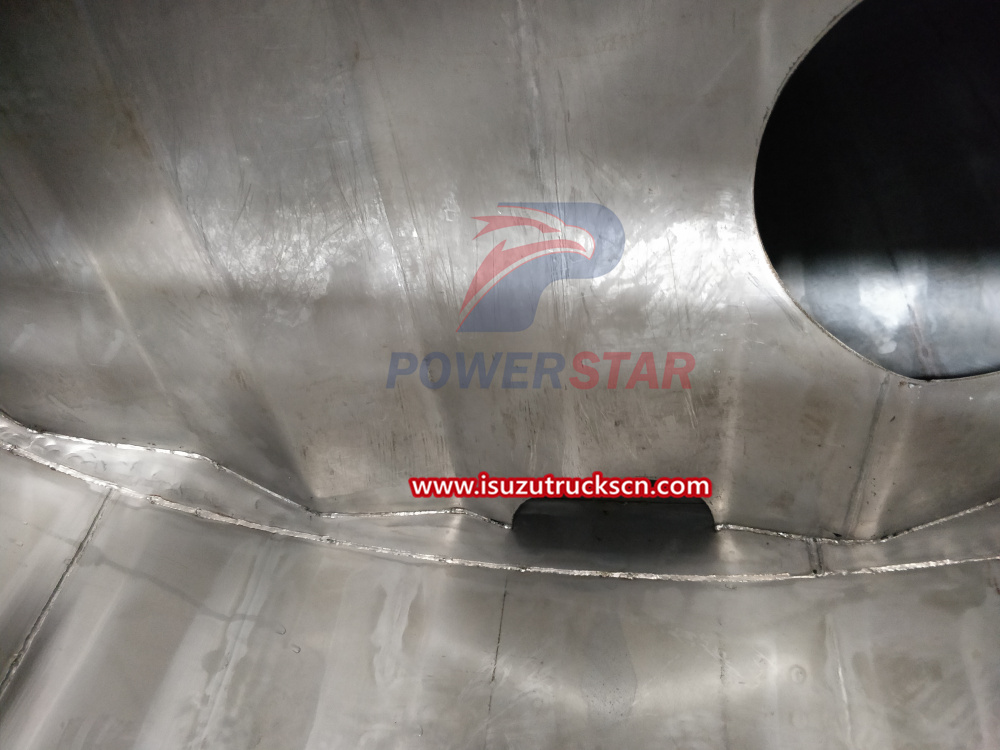

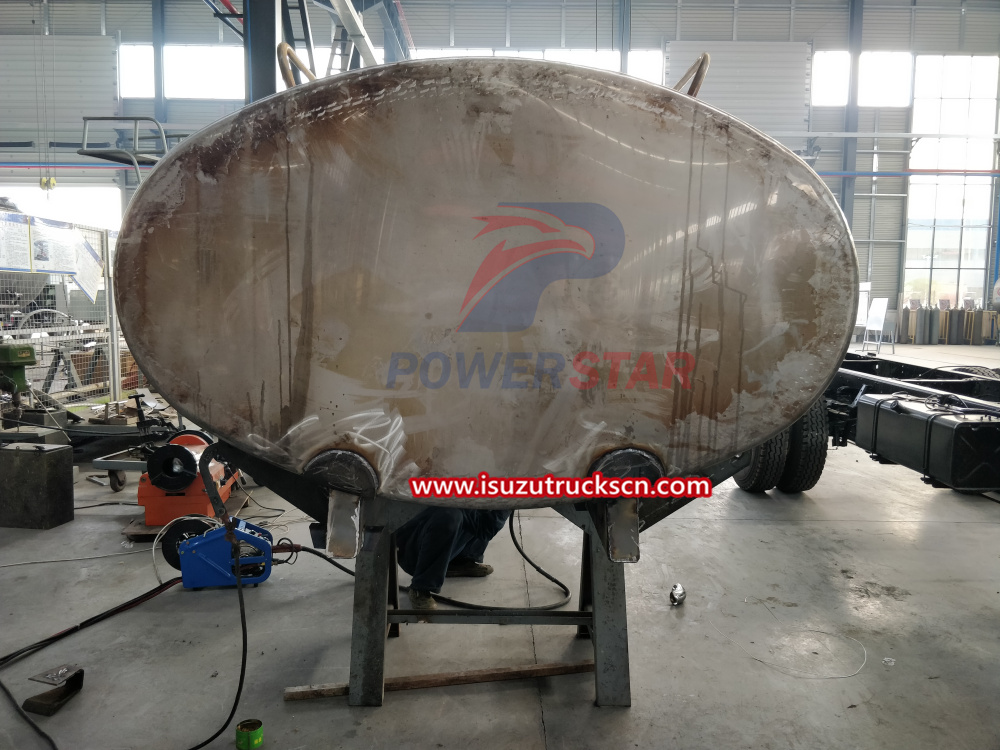

Food grade Stainless steel for Isuzu ELF potable water trucks
Food grade Stainless steel for Isuzu ELF potable water trucks
Food grade Stainless steel for Isuzu ELF potable water trucks
Food grade Stainless steel for Isuzu ELF potable water trucks
Food grade Stainless steel for Isuzu ELF potable water trucks

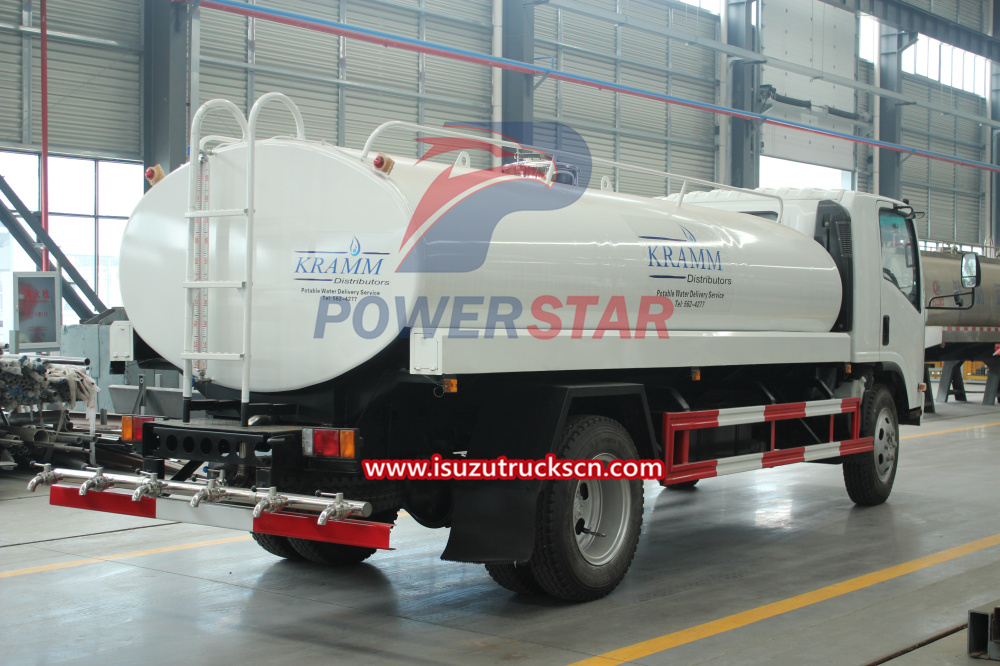

Isuzu NPR drinking water service truck stainless steel tanker body finished

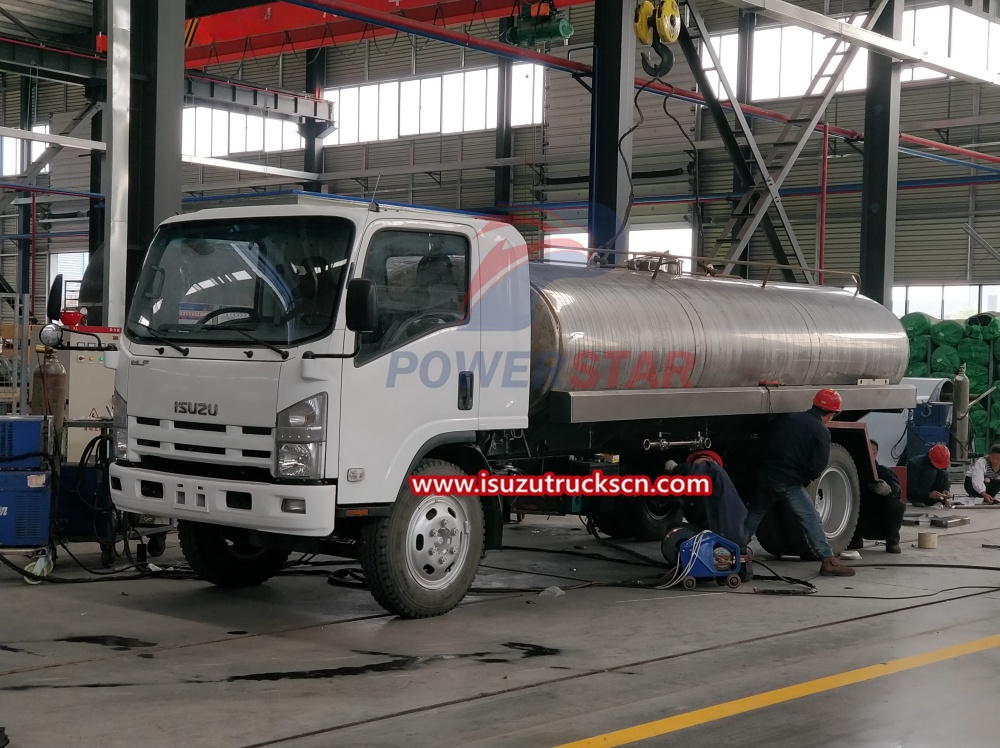

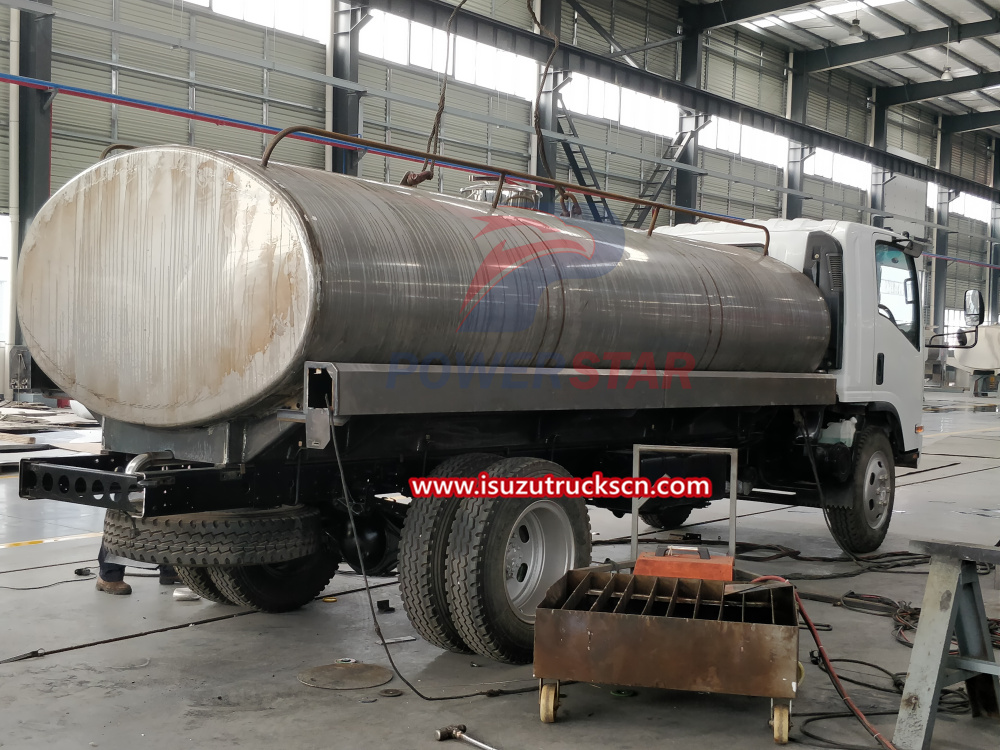

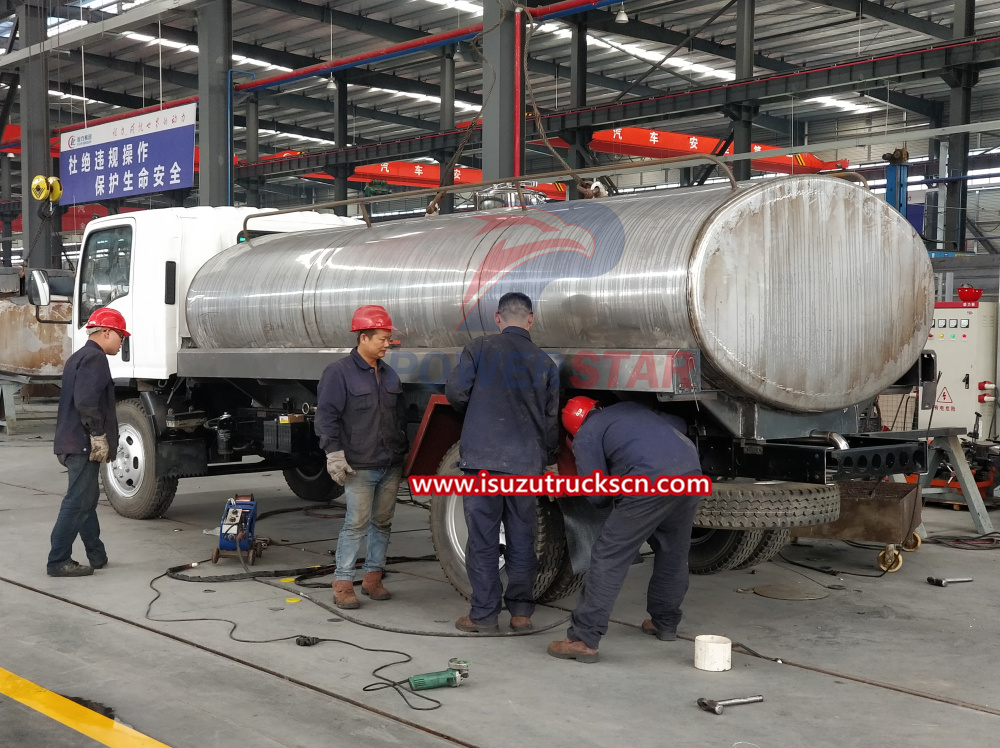

Isuzu NPR drinking water service truck final assembly in factory
Isuzu NPR drinking water service truck final assembly in factory
5. After-sales service:
Isuzu provides comprehensive after-sales service support for the Rwanda Isuzu Drinking Water Stainless Steel Tank Truck, ensuring the continued optimum performance and longevity of the vehicle. This includes regular maintenance, spare parts availability, and technical assistance through their authorized service centers.A4: Regular maintenance and inspections of the pumping system should be carried out as per Isuzu's guidelines and recommendations to ensure its reliable performance.

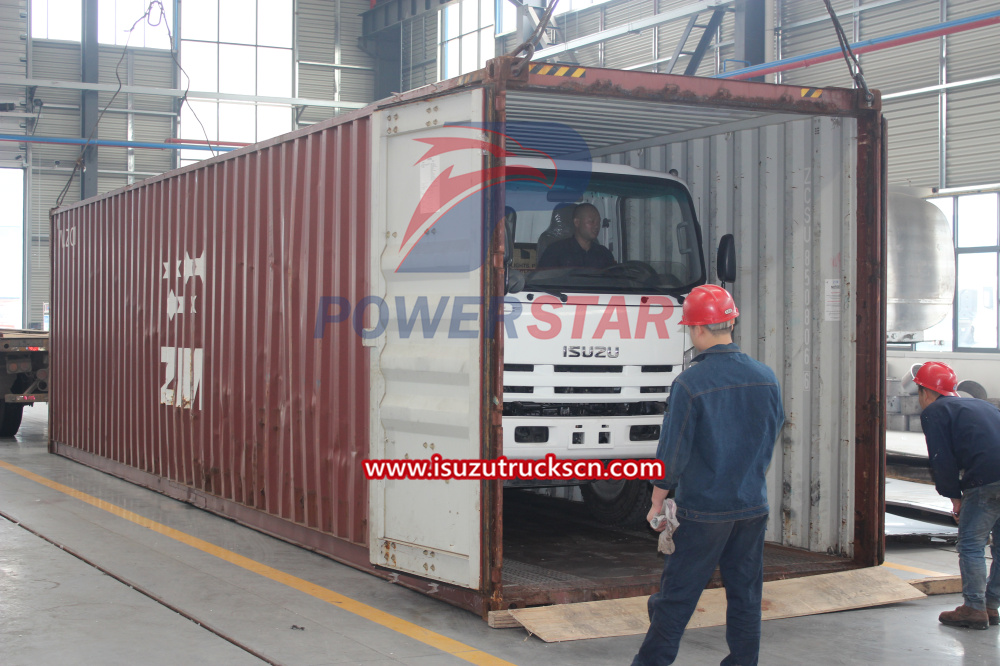

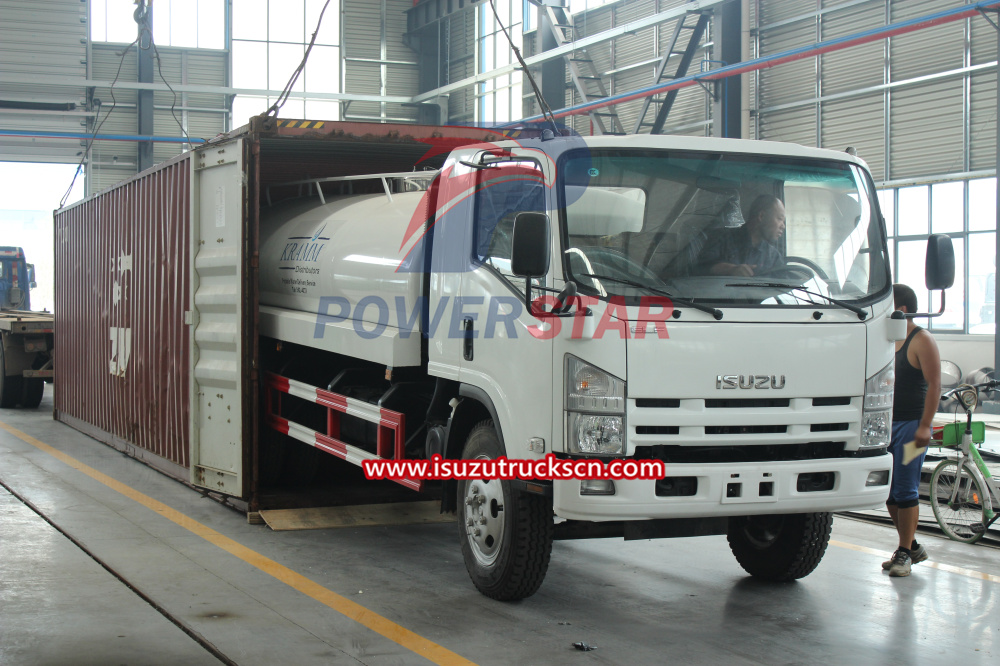

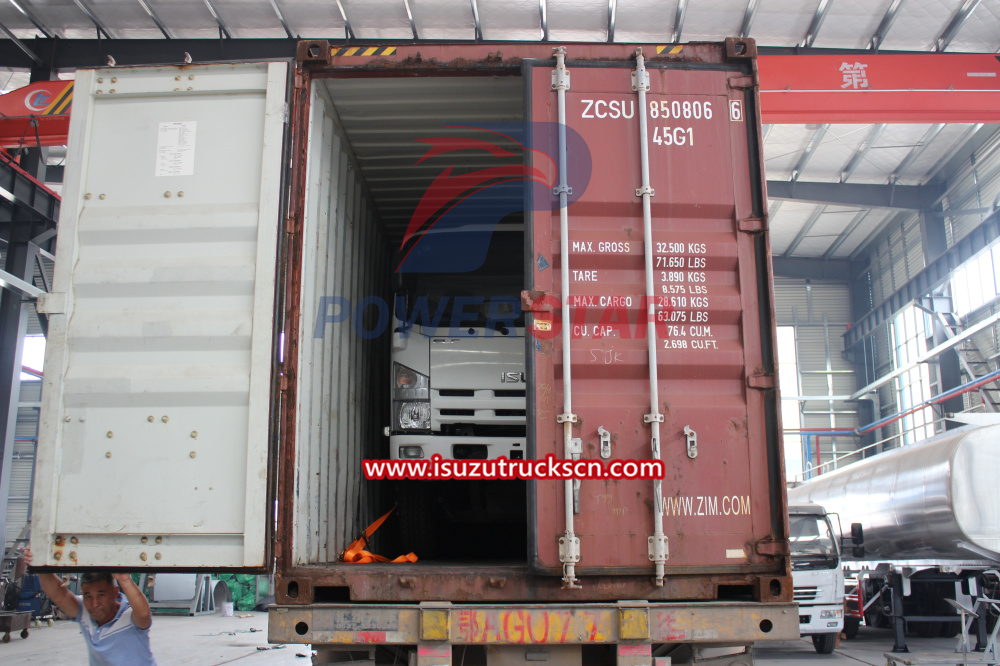

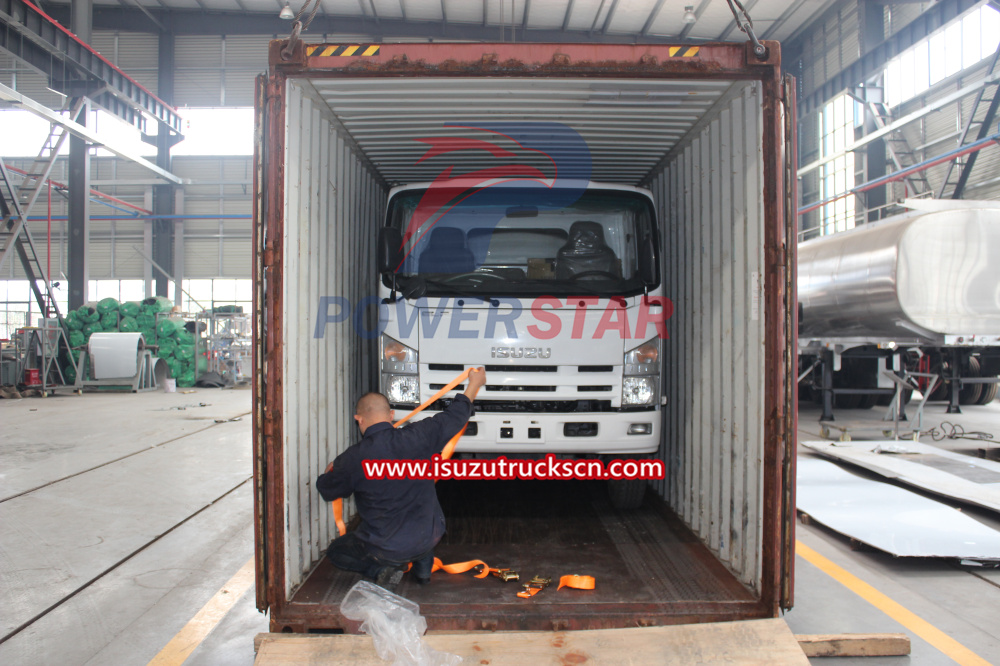

Isuzu NPR potable water tanker delivery truck ready shipment to Rwanda by container
Isuzu NPR potable water tanker delivery truck ready shipment to Rwanda by container
Isuzu NPR potable water tanker delivery truck ready shipment to Rwanda by container
Isuzu NPR potable water tanker delivery truck ready shipment to Rwanda by container
Isuzu NPR potable water tanker delivery truck ready shipment to Rwanda by container
