Single Man Basket Manlifter Truck Isuzu
The Isuzu single man basket lift truck's rugged construction, advanced features and superior performance make it an ideal choice for those seeking a reliable, efficient lifting and transport solution. Whether working in construction, industrial settings or any other environment that requires lifting and transporting, the truck delivers the performance and reliability needed for success.
Work capacity:
16 mTruck model:
PT5070GYZEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4X2,LHDGear box:
Isuzu MSB 5 forward gears& 1 reverseRemarks:
Remote control, easy to operateSingle Man Basket Manlifter Truck Isuzu also called Isuzu single man basket lift truck,Isuzu 100P aerial platform truck,Isuzu ELF 100P aerial lift and bucket truck,Isuzu 100P single man bucket truck, Isuzu ELF 16m manlifter truck.Built on a 100P chassis, the Isuzu single man basket lift truck is a versatile and efficient vehicle designed to meet the diverse needs of a wide range of industries.
This single man basket manlifter truck Isuzu is the embodiment of ingenuity and innovation from renowned heavy-duty vehicle manufacturer POWERSTAR. With its rugged construction, advanced features and superior performance, the Isuzu single man basket lift truck is the ideal choice for those seeking a reliable and efficient solution for lifting and transporting heavy objects.
Features:
★ Adopt world-class lSUZU 100P Chassis, High power and Fuel efficiency, Reliability, Uptime;
★ All Structural made of High Strength Steel;
★ Easy to mount and Minimum space required for Mounting;
★ Optional Chassis 4x2, 6x4,8x4 and engine power;
★ Wireless remote control system is avallable;
★ Safety Devices are avalable, such as relief valves, balance valves, double-way hydraulic locks, motor emergency system etc.
|
Isuzu single man basket manlifter truck |
||
|
Vehicle Description |
||
|
Manufacturer |
POWERSTAR |
|
|
Vehicle model |
PT5070GYZ |
|
|
Overall dimensions |
5995*2000*3050mm |
|
|
GVW |
7300kg |
|
|
Chassis brand |
Isuzu |
|
|
Traction type |
4x2,LHD |
|
|
Up-parts specification |
||
|
Arm |
Model |
Four arms telescopic |
|
Max working height |
16m |
|
|
Maximum operating range |
7m |
|
|
Maximum operating range height |
9m |
|
|
Maximum operating height operating range |
2.2m |
|
|
Elevation angle |
-12°～80° |
|
|
Working angle |
360° |
|
|
Landing leg |
Type |
H-type |
|
Longitudinal span |
2430mm |
|
|
Transverse span |
1670/2780mm |
|
|
Hanging basket |
Rated load |
≤200kg |
|
Dimension |
1080×610×1100mm |
|
|
Leveling type |
Mechanical rod |
|
|
Hydraulic system |
Hydraulic valve |
Manual |
|
Working pressure |
16Mpa |
|
|
Oil cylinder |
Equipped with lock function |
|
|
Operation type |
Both hanging basket and revolving mechanism |
|
|
Main structure |
Material |
High quality carbon steel and profiles, with slip-proof decorative steel plates |
|

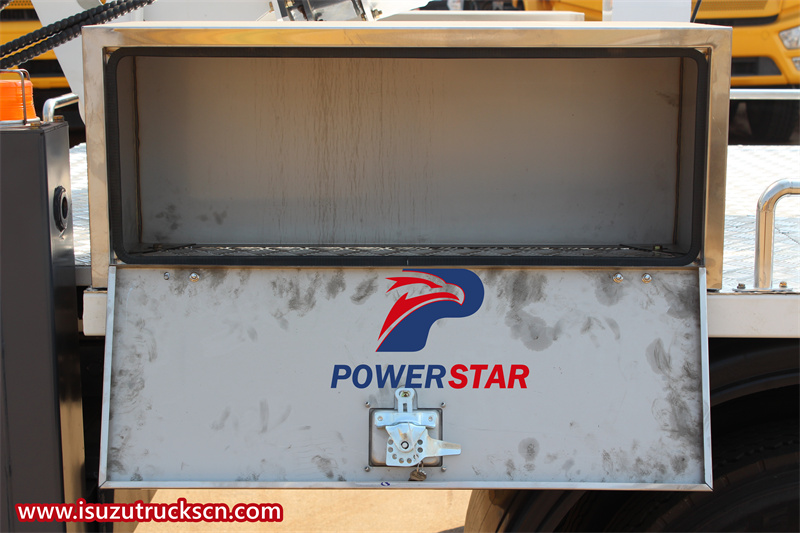

Tool box |
Mould stamping door with stainless steel door lock |
|
|
Fencing |
Stainless steel tube |
|
|
Steps |
With steps on drivers’ side |
|
|
Guard railing |
High quality cold bending carbon steel profile; High strength |
|
|
Wheel casing |
Injection mold molding, beautiful, high strength |
|
|
Rotary table |
Supporting Boom |
Low alloy steel plate welding |
|
Slewing bearing |
Single row of four - point contact ball belt outer teeth |
|
|
Reduction gears |
Planetary gear type |
|
|
Motor |
Axial piston motor |
|
|
Major Feature |
Outrigger |
computer controlled system, one key to stretch out & balance the level of the truck |
|
Balancing |
Automatically Balancing system with Tilting Angle Sensor & level detector |
|
|
Getting on & off Lock |
Computer control system, |
|
|
Telescopic Arm Control |
Controlling system in the bucket, with manual control. |
|
|
Platform Control system |
LED Screen Display with Button control |
|
|
Range Control |
Large Angle Sensor to Detect the Arm Length & Rotation Range |
|
|
Intercom |
Included |
|
|
Chassis Description |
||
|
Chassis model |
Isuzu 100P |
|
|
Cab |
100P,single row,2 seats, with A/C |
|
|
Wheelbase |
3360mm |
|
|
Tire specification |
700R16 |
|
|
Tire quantity |
6+1 tires |
|
|
Engine |
Engine model |
4KH1CN6LB |
|
Emission level |
Euro 6 |
|
|
Horse power |
120HP |
|
|
Displacement/output |
2999ml/88kw |
|
|
Gear box |
Model |
Isuzu MSB 5 forward gears& 1 reverse |
|
Brake system |
Full air brake |
|
|
Axle |
Front |
2.5T |
|
Rear |
4.8T |
|
|
Suspension |
Front |
Leaf springs |
|
Rear |
Leaf springs |
|
|
Fuel tanker |
Type |
Carbon steel tanker,with lockable cap |
|
Capacity |
140L |
|
The Isuzu Single Man Basket Man lifter Truck is a versatile and efficient vehicle designed to meet the needs of various industries requiring aerial work platforms. Built to provide enhanced safety, stability, and maneuverability, this truck is a game-changer in the realm of elevated access equipment.

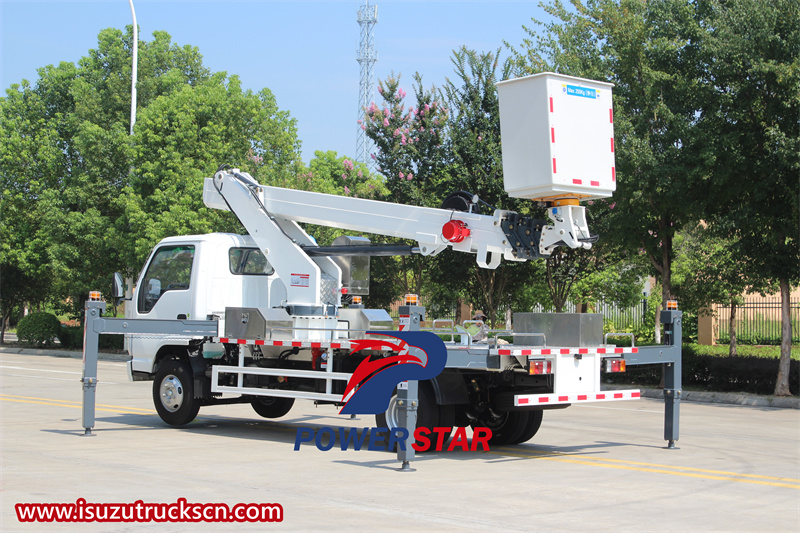

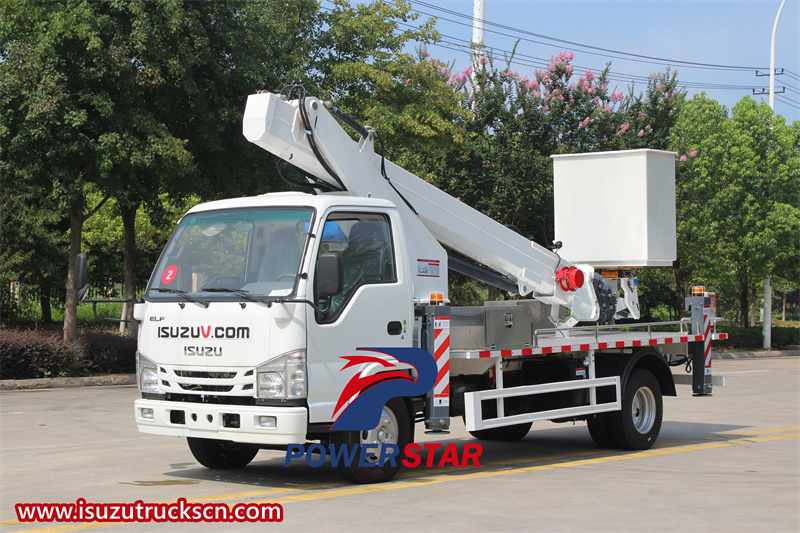

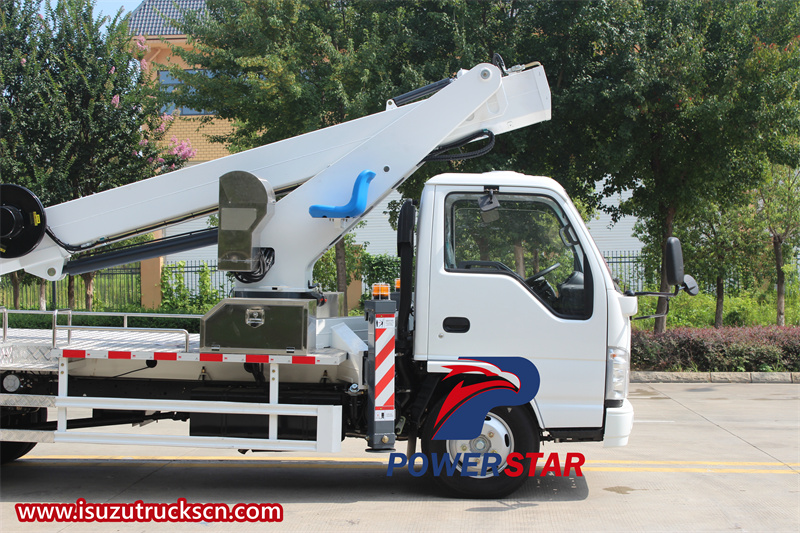

Isuzu single man basket lift truck
Starting with its exterior, the Isuzu Man lifter Truck boasts a sleek and robust design, reflecting durability and reliability. The striking Isuzu logo adorning the front grille symbolizes quality and performance synonymous with the brand. Its aerodynamic structure not only enhances the vehicle's aesthetics but also reduces wind resistance during transportation, improving fuel efficiency.

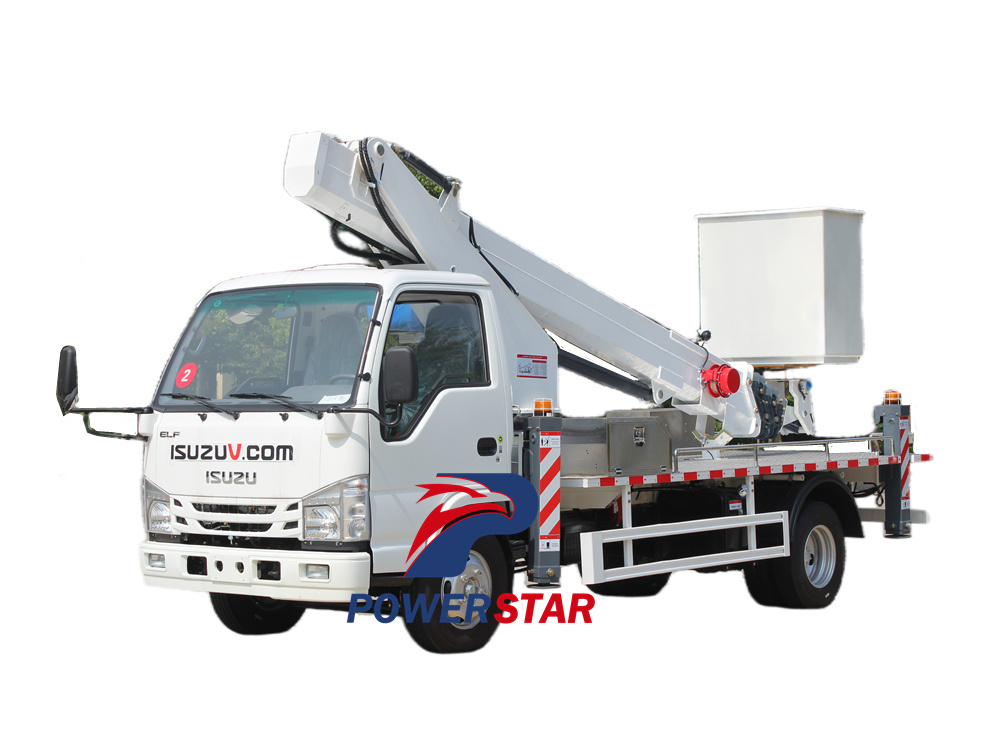

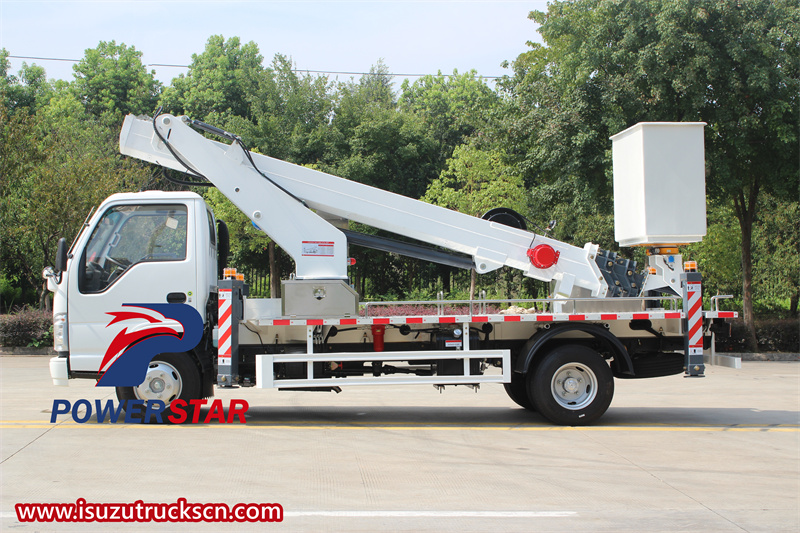

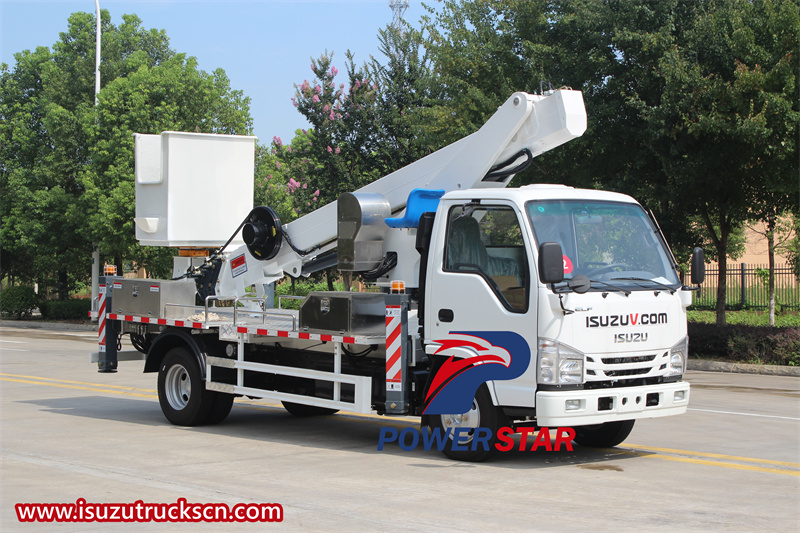

Isuzu ELF 100P aerial lift and bucket truck
Moving towards the heart of the truck, the powerful Isuzu engine powers the vehicle with remarkable efficiency and performance. Thanks to its cutting-edge engineering, the truck delivers exceptional power output combined with fuel economy, making it a cost-effective choice for businesses looking to optimize their operations. The smooth transmission system ensures seamless gear shifts, enhancing the overall driving experience for operators.

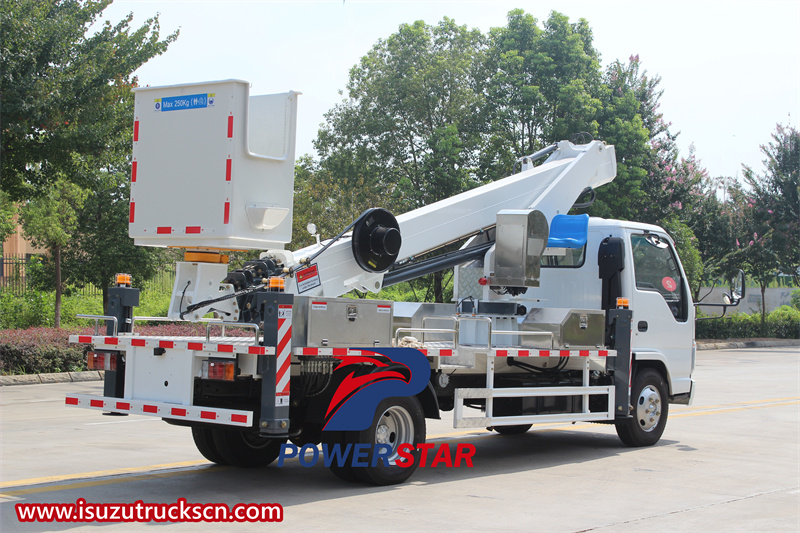

Isuzu 100P single man bucket truck
The single man basket, a key feature of the Isuzu Man lifter Truck, offers a secure and elevated working platform for operators. Constructed from high-strength materials, the basket provides a stable and spacious workspace for tasks requiring height access. Equipped with safety rails and harness attachment points, the basket ensures the well-being of the operator during aerial work, minimizing the risk of accidents or falls.

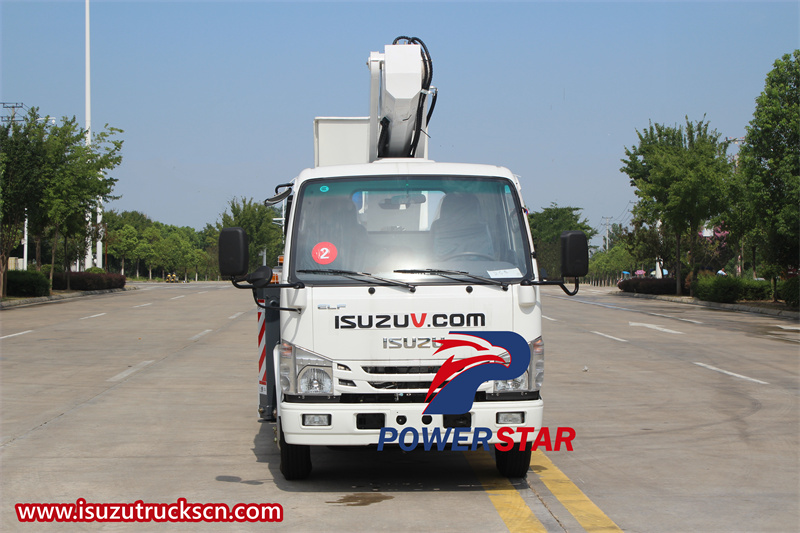

Isuzu ELF 16m manlifter truck
The truck’s integrated hydraulic man lift system enables precise and smooth vertical movement of the basket, allowing the operator to easily reach overhead locations. The smart control panel provides intuitive operation for accurate positioning and adjustment of the basket height. The system is controlled by a single operator, who can easily maneuver the truck and its load using a joystick or other control mechanisms. This makes loading and unloading the truck easy, even in tight spaces or challenging environments. Whether performing building maintenance, tree pruning or utility repairs, Isuzu man lift trucks offer versatile solutions for a variety of industries.
Truck Details
Outriggers

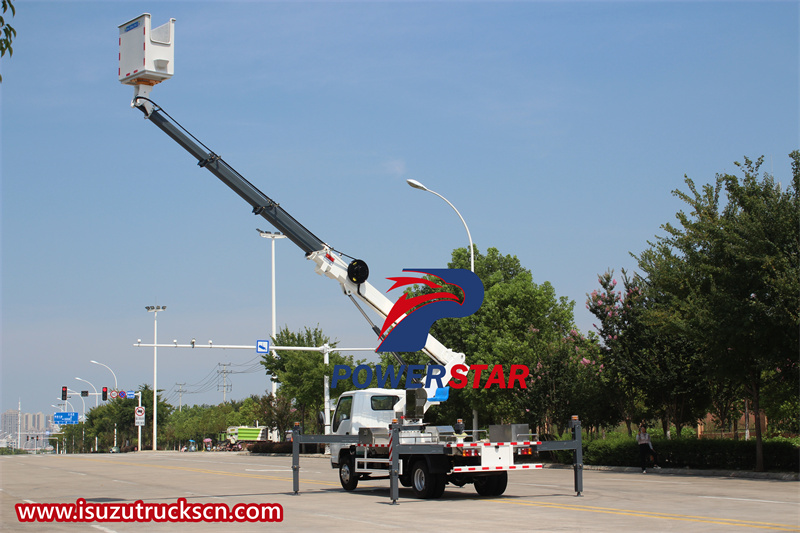

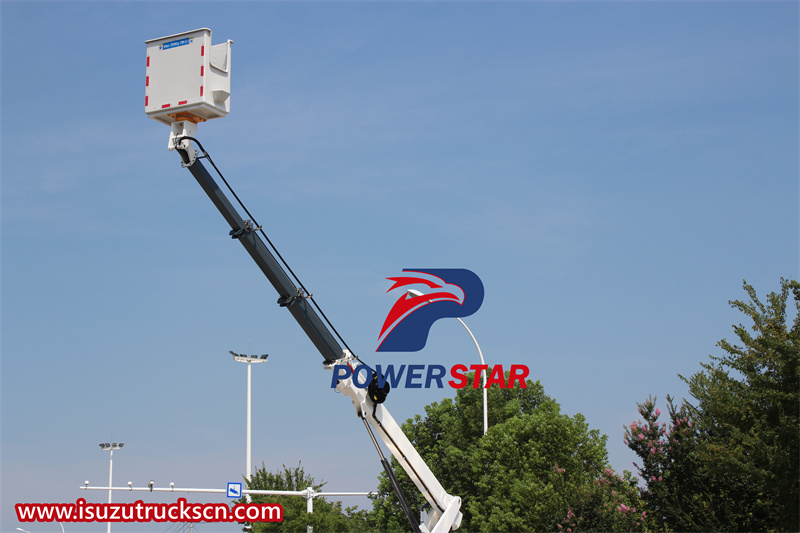

Boom lift

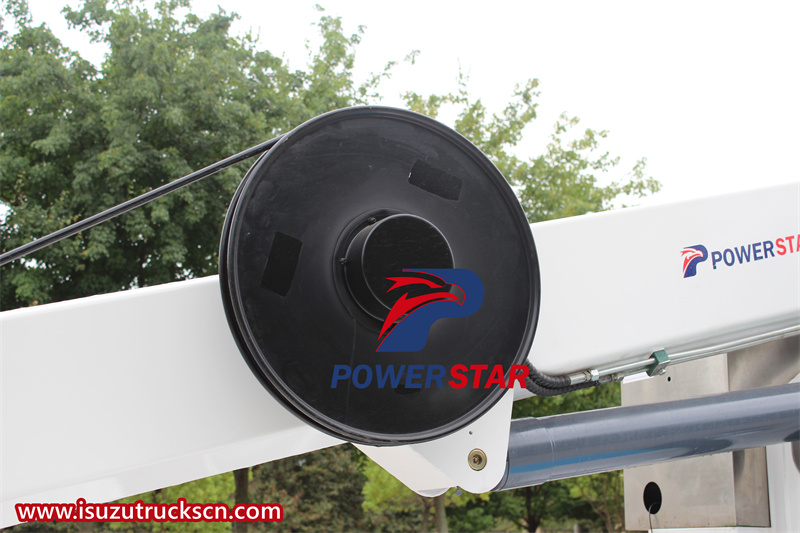

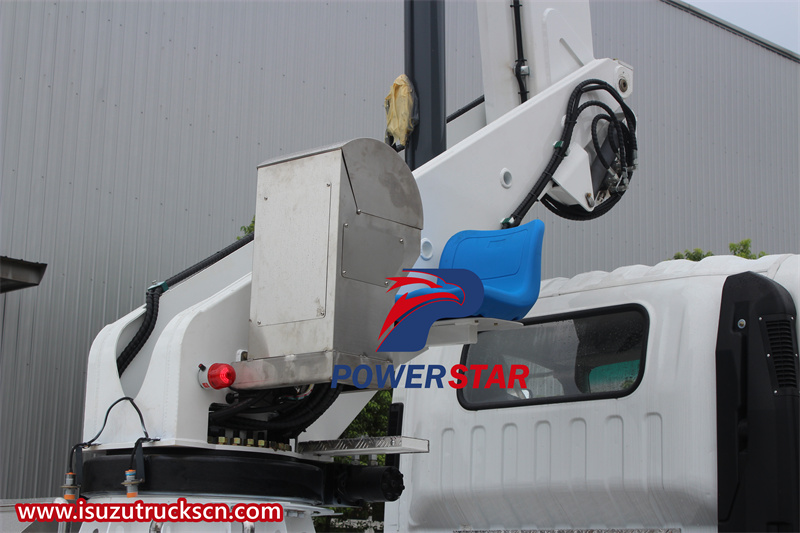

Revolving mechanism

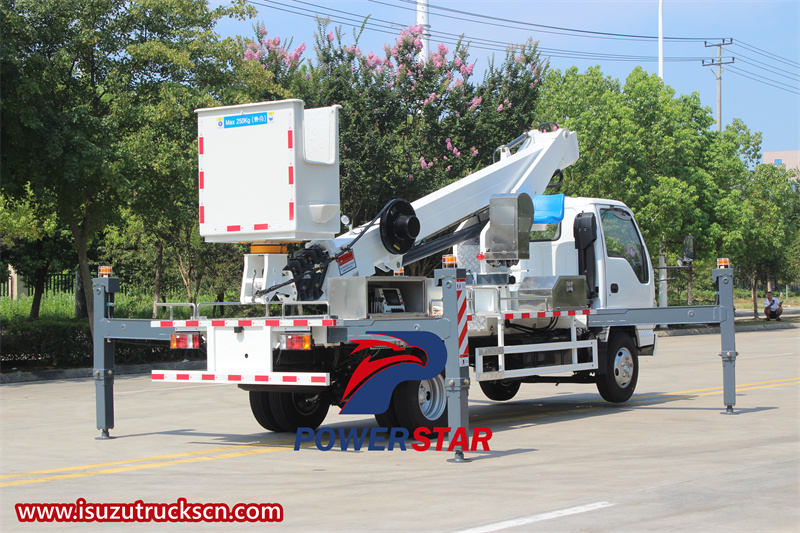

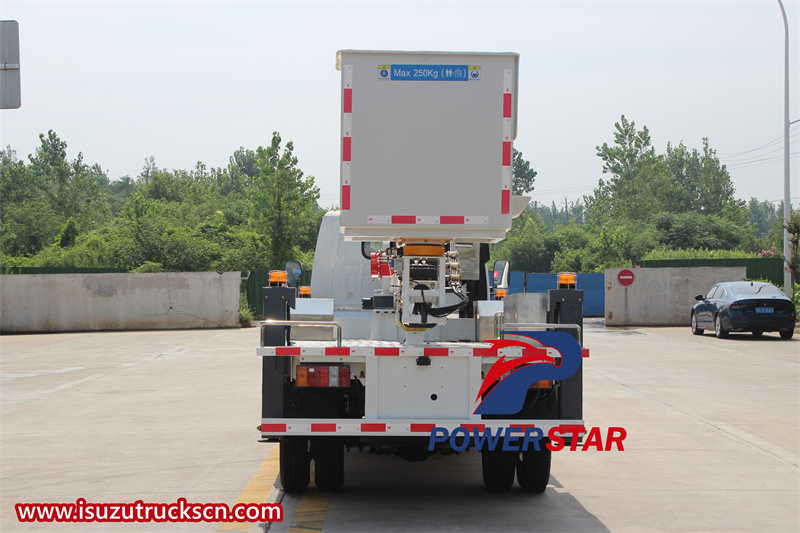

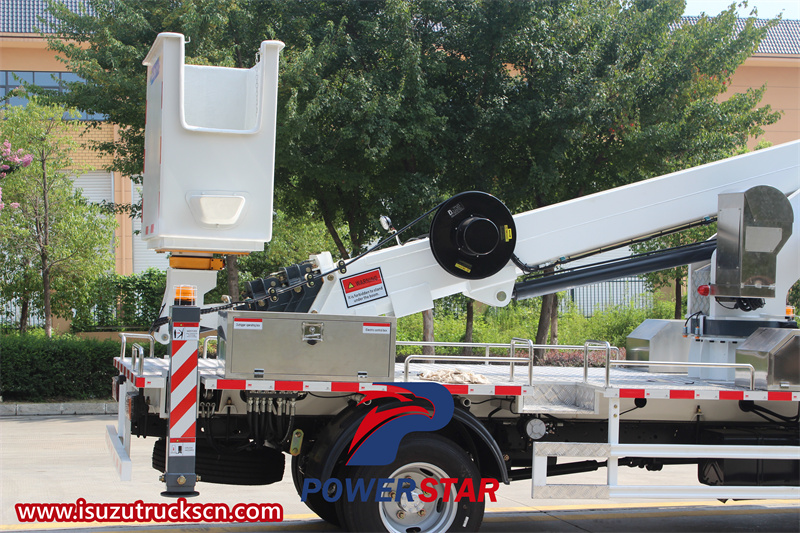

Rear support and basket

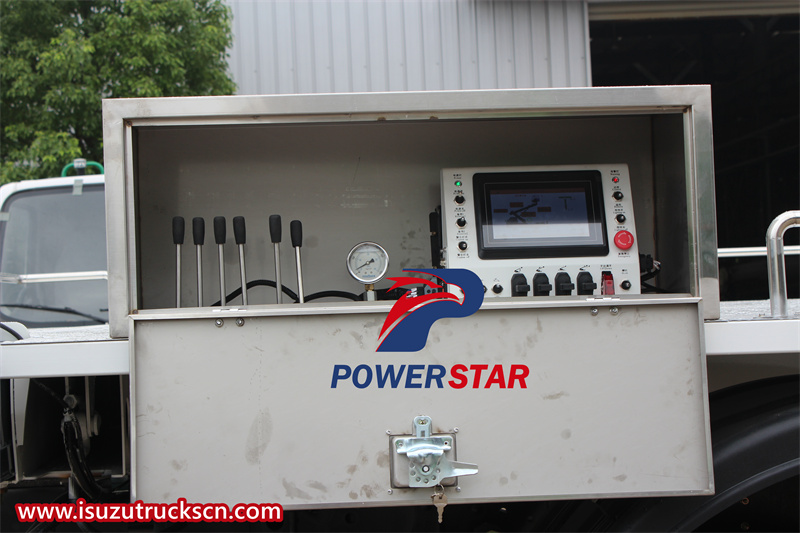

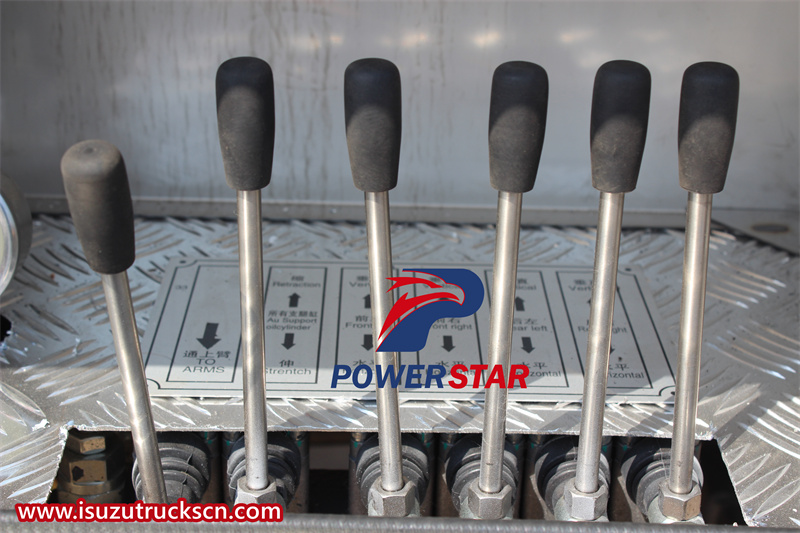

Operation box
Joystick

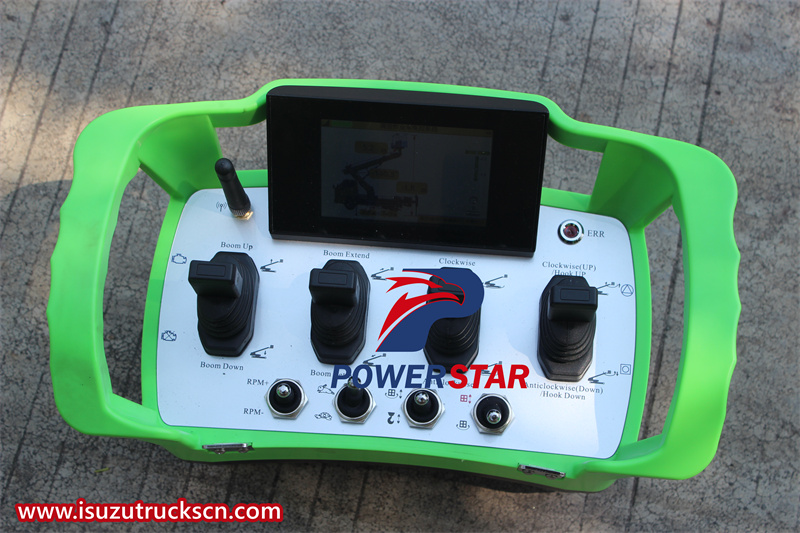

Remote control box
