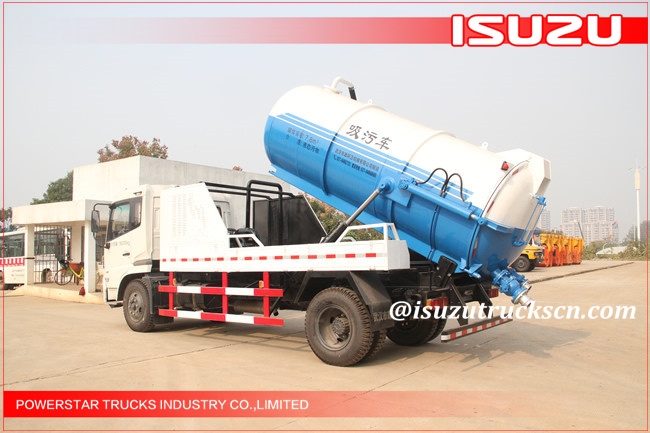

New Design Vacuum sewage suction truck Isuzu is equipped with a high-power vacuum sewage suction pump and a high-quality hydraulic system. The tank head is die-cast in one go, and the tank can be opened backwards and double-top self-unloading. The dirt in the tank can be dumped directly through the back cover. It has the characteristics of high vacuum (greater suction power than fecal suction trucks), large tonnage, high efficiency, and wider uses.
Order(MOQ):
1Work capacity:
8,000LTruck model:
PT5120GXWEngine power:
190 HPEngine type:
Isuzu 4HK1Axle drive:
4x2Gear box:
Isuzu MLD 6s shiftRemarks:
Italy MORO or Jurop pump avaiableLatest Japan Sewer Tanker truck Isuzu ELF NPR (8,000 Liters)，The tank shape of Isuzu ELF chassis sewage suction truck is cylindrical, made of WISCO 6mm thick high-quality carbon steel plate. The front of the tank has a sewage suction window, a hand washing device, a lifting device, a 5-meter sewage suction pipe, and a variety of tanks. Color selection, the rest is made according to factory standard configuration. The truck is equipped with a high-power vacuum sewage suction pump and a high-quality hydraulic system. The tank head is die-cast in one go, and the tank can be opened backwards and double-top self-unloading. The dirt in the tank can be dumped directly through the back cover. It has the characteristics of high vacuum (greater suction power than fecal suction trucks), large tonnage, high efficiency, and wider uses.
Sewer collect tank truck Isuzu (also called Sewer vacuum tanker, vacuum sewage suction truck, Vacuum tank truck, Sewage suction vehicle, Vacuum pump tanker trucks) is is used for suction, transportation and dumping soil and mud from various sewer man-hole, water wells and sediment.
 |
100% custom-made
|
|
|
3,000L to 30,000L available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU Sewage Suction Tanker Truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5100GXW |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
7500*2500*2900 |
|
Gross weight |
kg |
11,000 |
|
|
Kerb weight |
6,500 |
||
|
Wheelbase |
mm |
4,1750 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
ISUZU ELF NPR middle-duty |
||
|
Tire size |
235/75R17.5 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
4HK1-TC51 |
|
|
Type of fuel |
Diesel |
||
|
Power |
190HP |
||
|
Max speed |
Km/h |
110 |
|
|
Emission standard |
EURO 5,6 |
||
|
Vacuum Tanker performance |
Sewage Tank |
8,000L |
|
|
Body Material |
High-strength carbon Steel |
||
|
Full Suction Time |
≤5 min |
||
|
Vacuum Pump |
China Top brand |
||
|
Optional Italy Jurop or MC brand |
|||
|
Effective Suction Distance |
6 M |
||
|
Suction Pipe Inner Diameter |
110 mm |
||
|

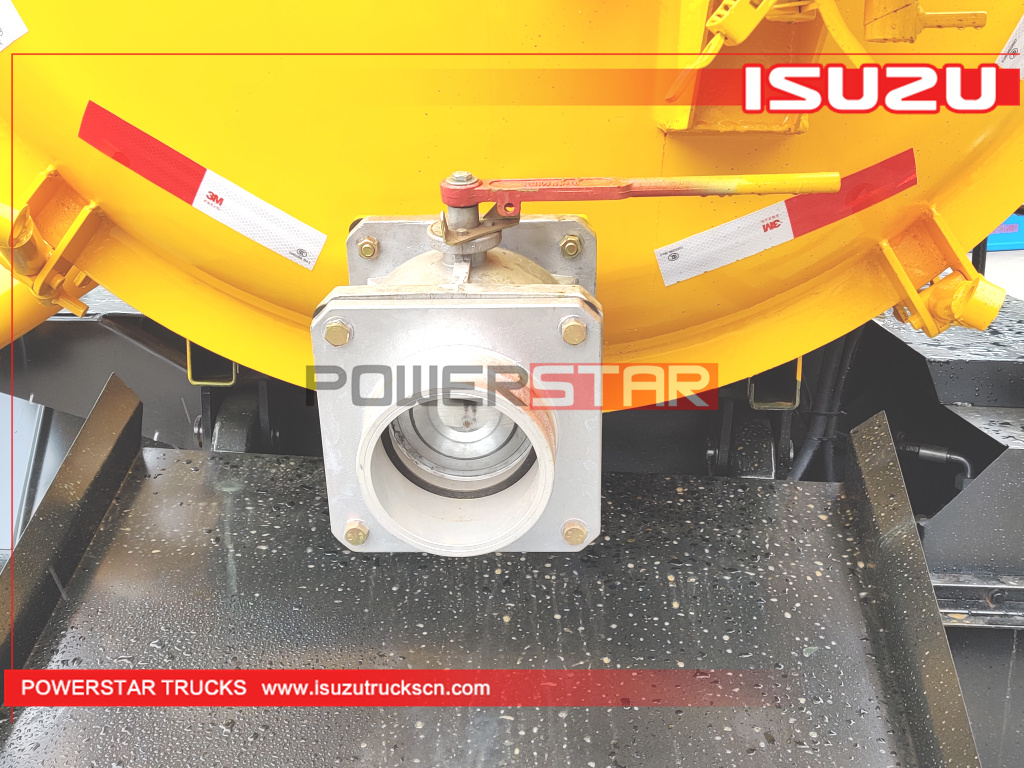

Discharge valve |
One way 100mm ball valve |
||
|
Over Pressure Device |
Yes |
||
|

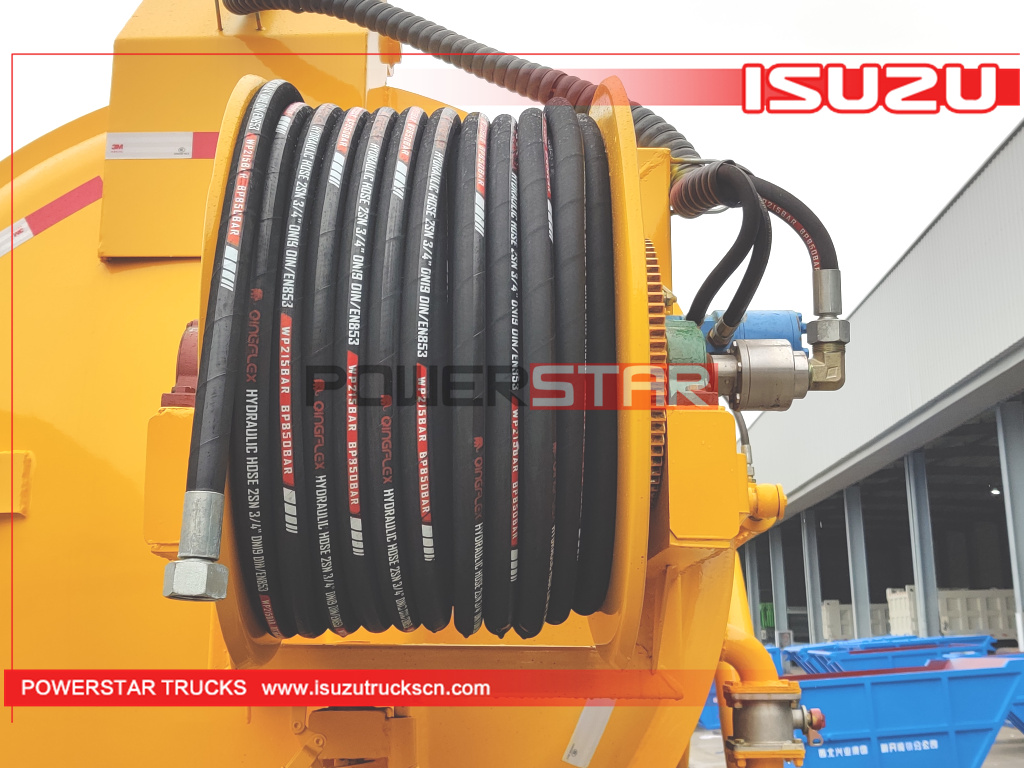

Hose & Hose-carrier |
Factory standard |
||
|
Control Panel |
English |
||
|
Tool box |
Yes |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Alarm, Water and gas separator, Vacuum pressure gauge, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Stainless steel tank 2, Vacuum pump brand or model can be optional 3, Electricity controlled optional 4, Water jetting system optional |
||
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.

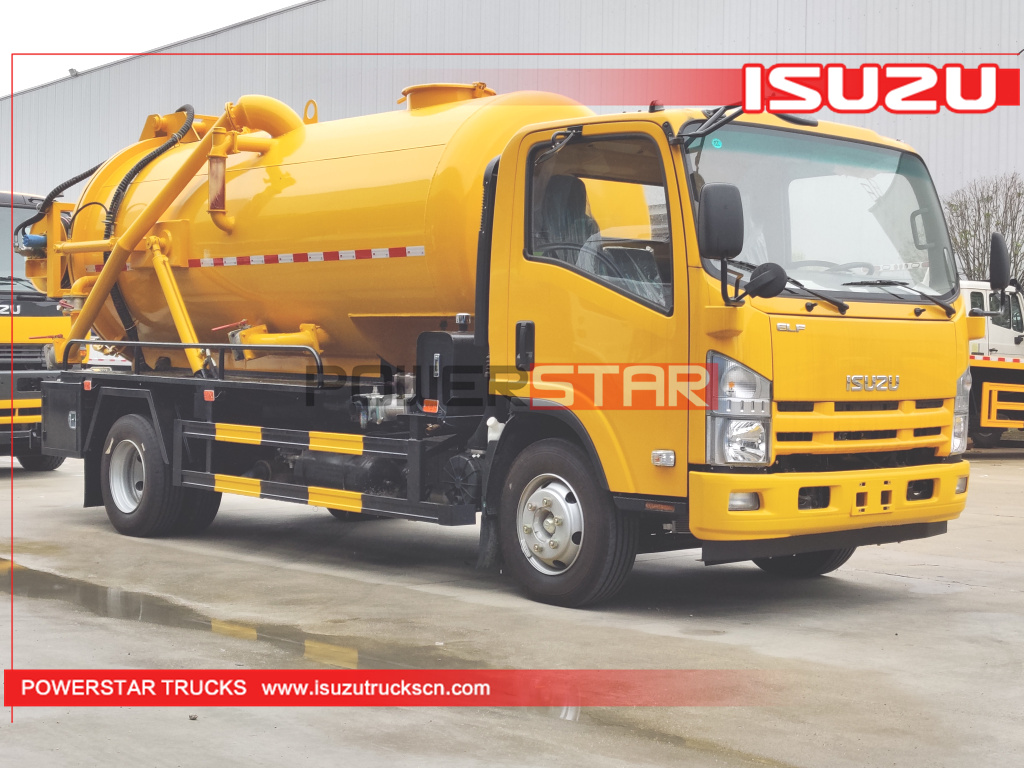

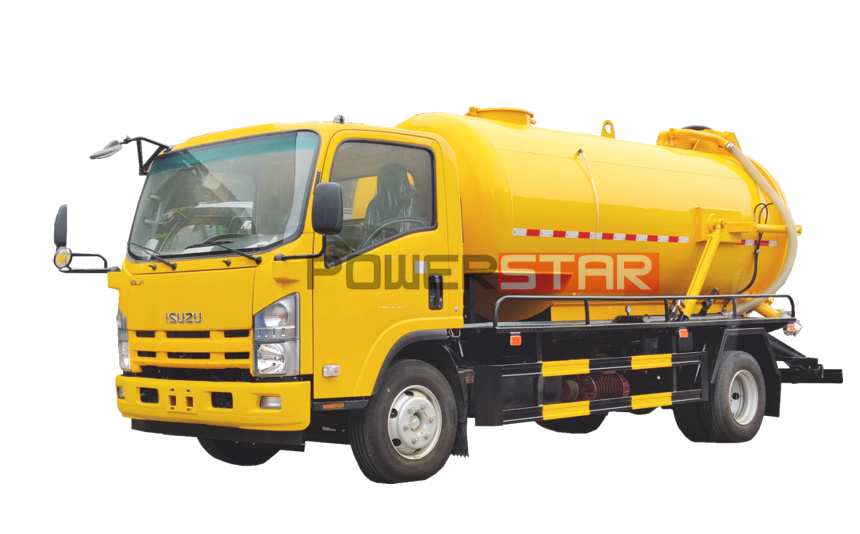

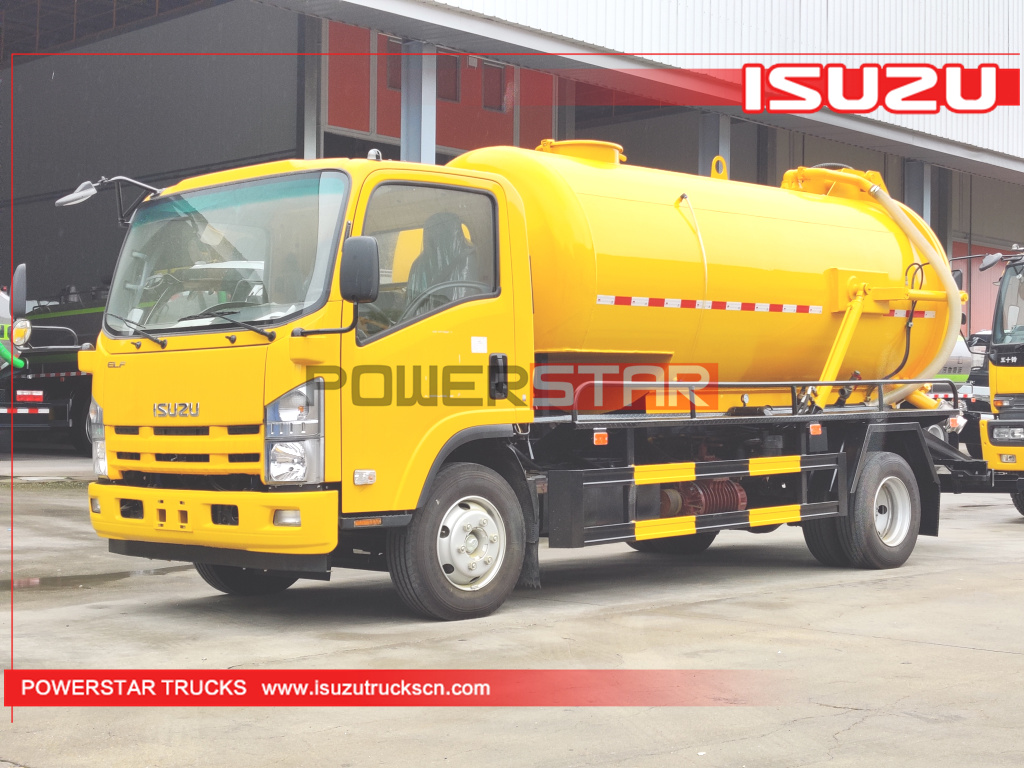

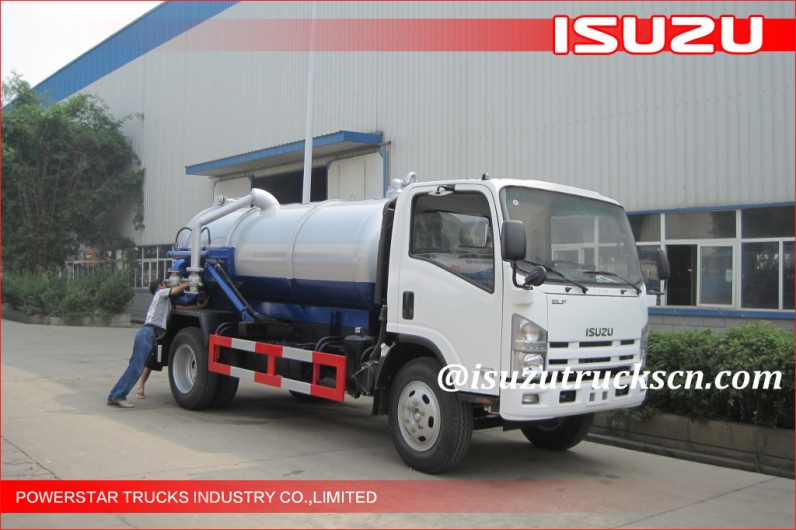

ISUZU ELF Sewer Tank Trucks Front view
ISUZU ELF Sewer Tank Trucks Front view

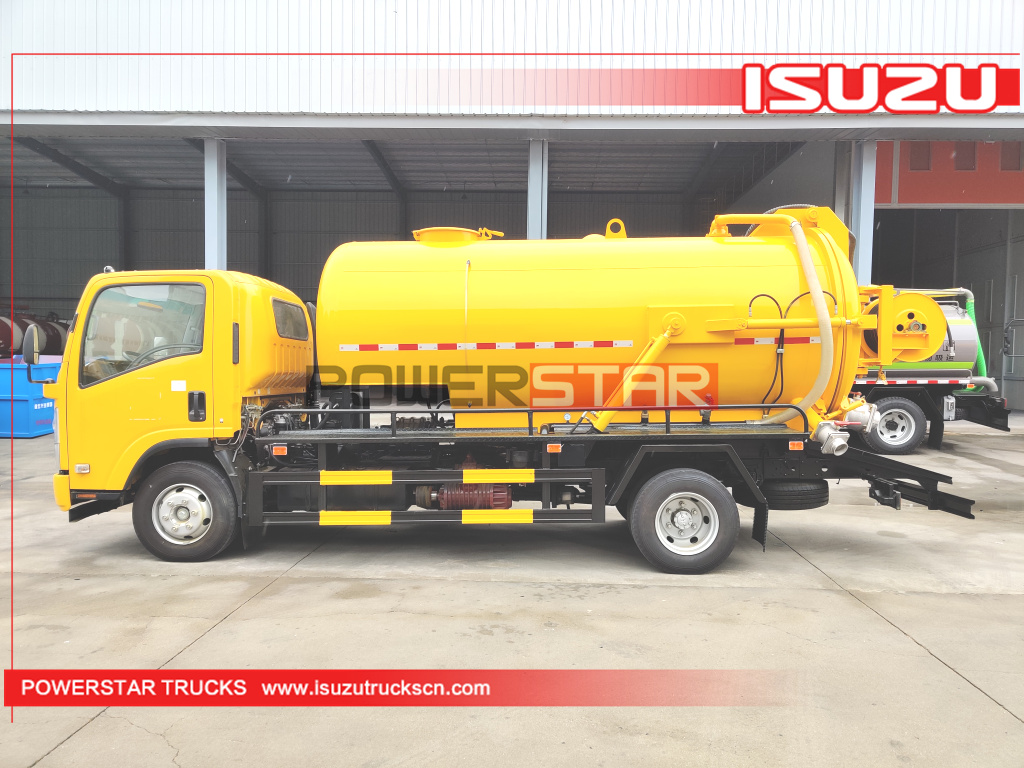

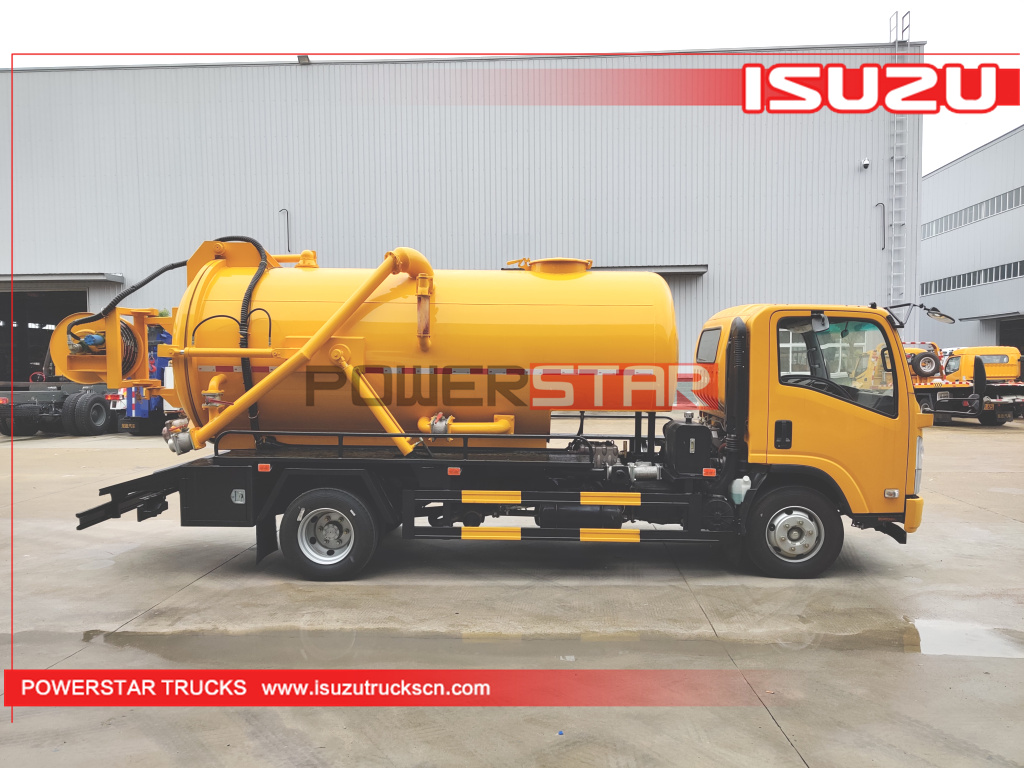

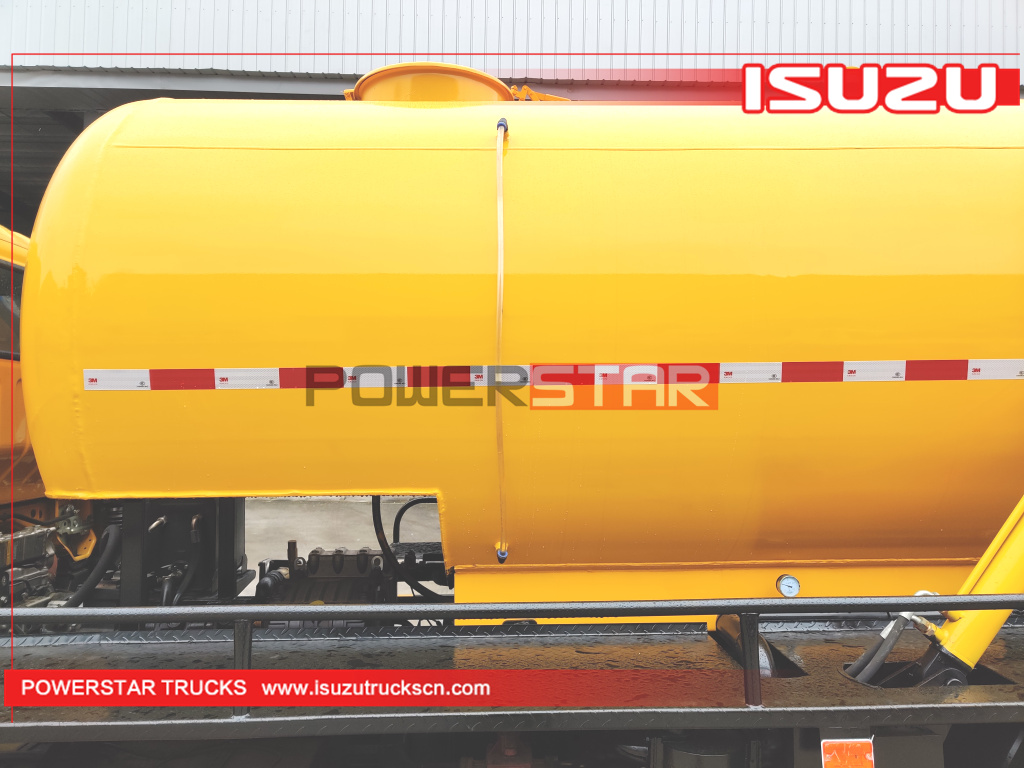

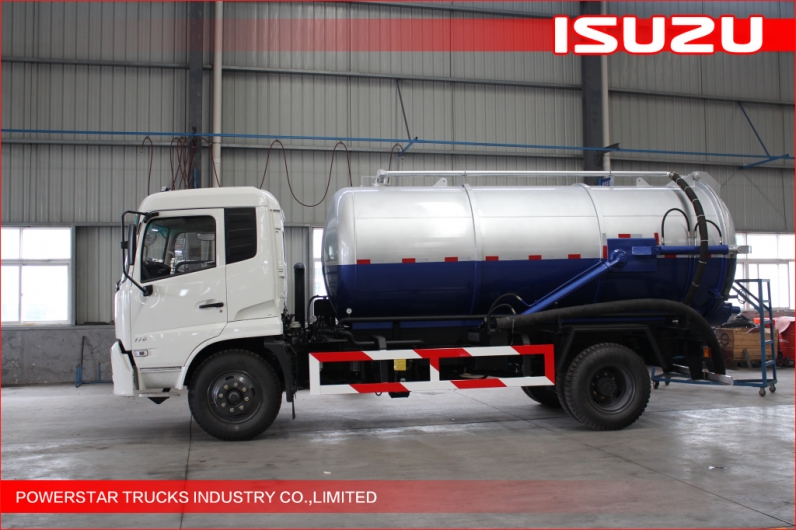

ISUZU ELF Sewer Tank Trucks side view
ISUZU ELF Sewer Tank Trucks side view

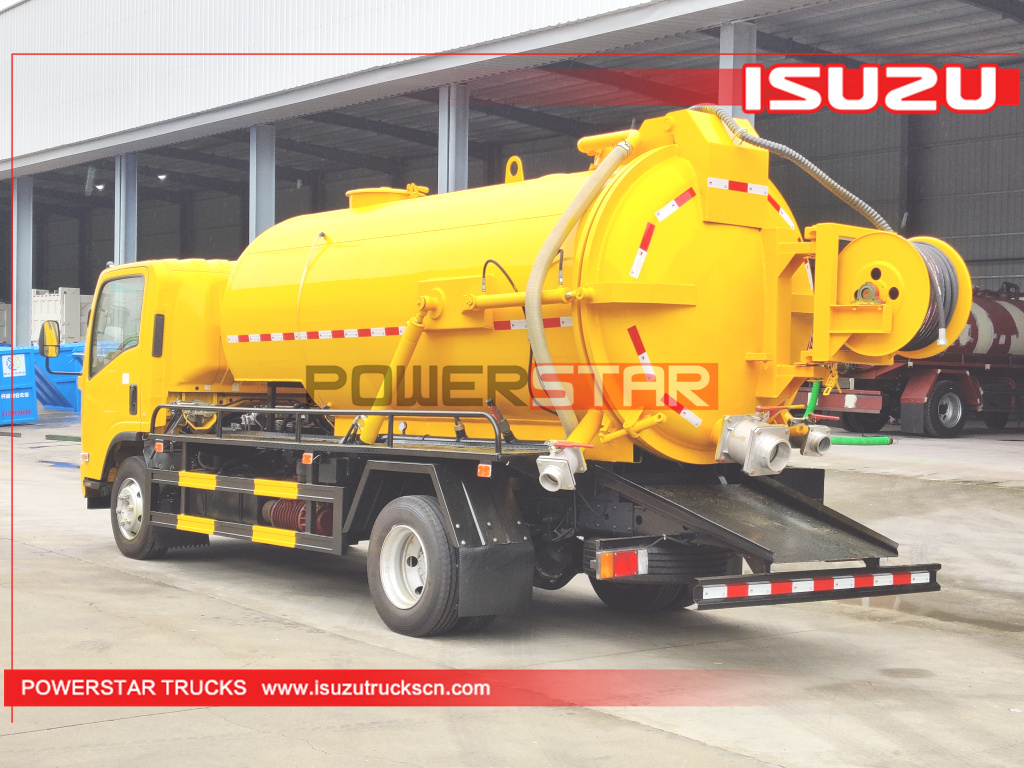

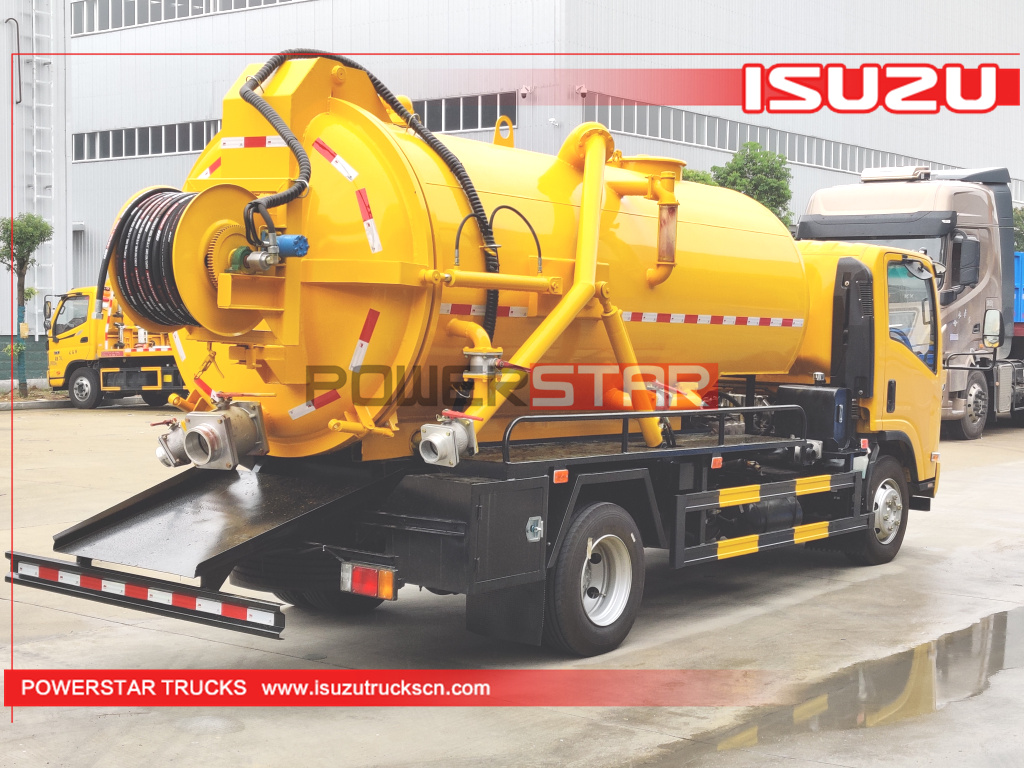

ISUZU ELF Sewer Tank Trucks rear view
ISUZU ELF Sewer Tank Trucks rear view

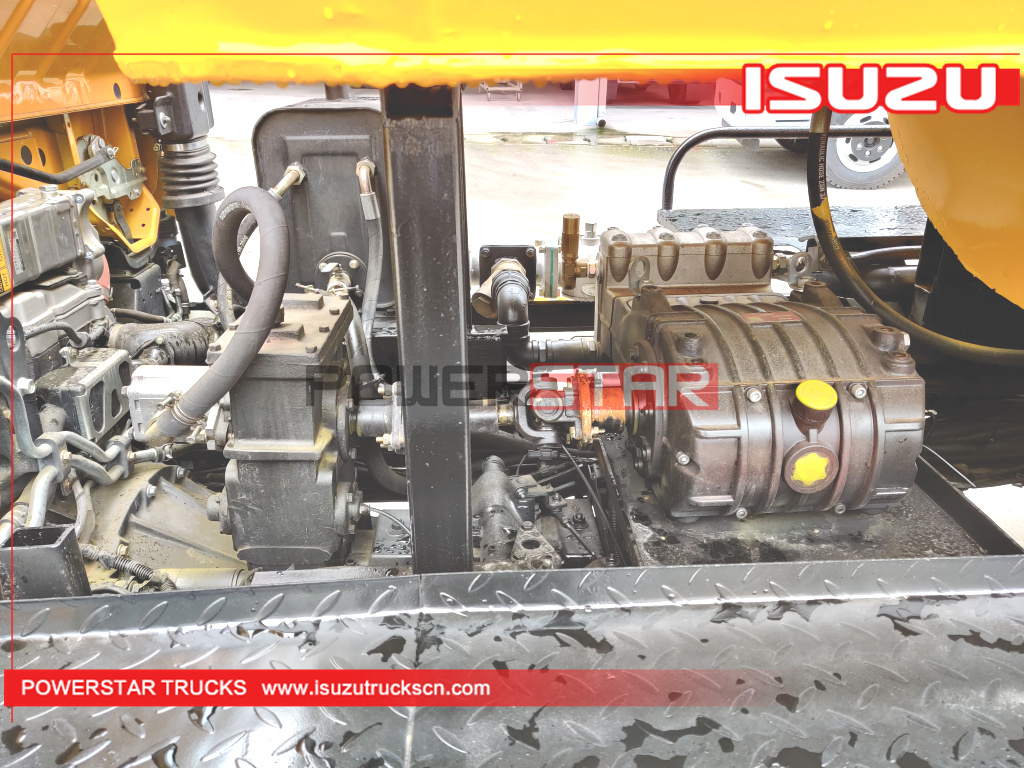

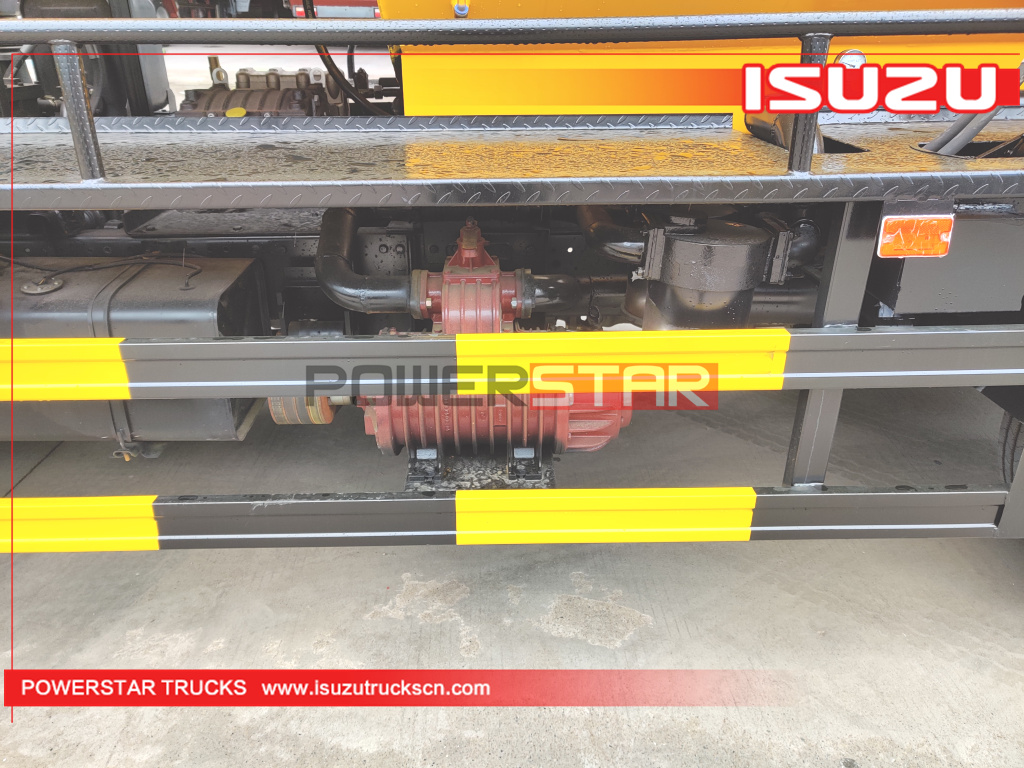

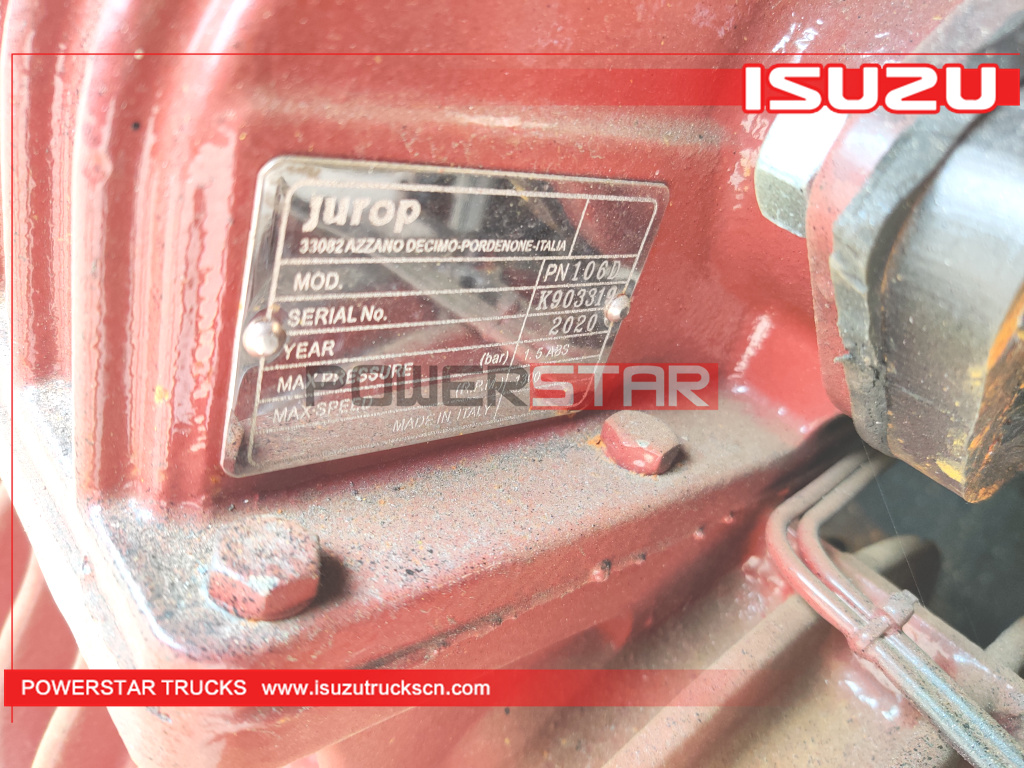

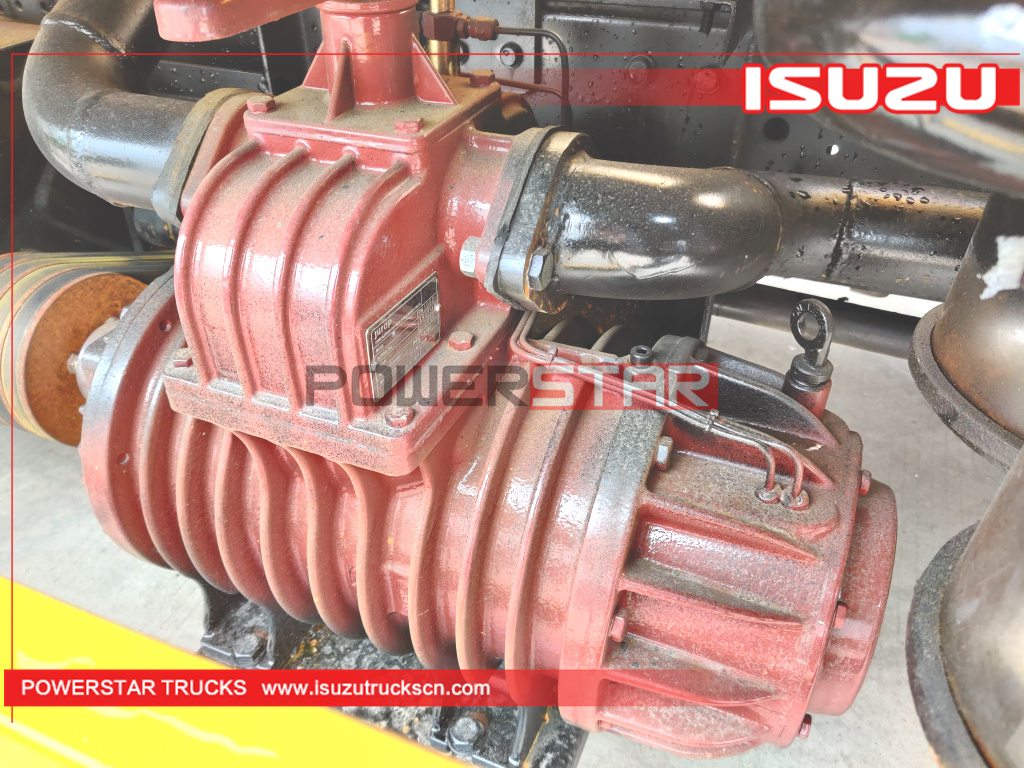

ISUZU ELF Sewer Tank Trucks Jurop vacuum pump view
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual | Chassis parts | Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
Low Price JAPAN ISUZU Suction Type Sewage Tank TrucK,JAPAN ISUZU cesspoolage truck for sale 1-2CBM sewage suction truck,8000L vacuum CHINA sewage suction truck,JAPAN ISUZU double bridge Suction sewage dump tipper vacuum truck 6x4 16CBM 18CBM 20CBM truck),Sewage Suction Truck 8M3 Spetic Tanker Vehicles,Vacuum Sewage Suction Truck,ISUZU High Quality Sewage Suction Truck,JAPAN ISUZU 4*2 Sewage Suction Truck
Learn More
5000L Vacuum Sewage Suction Truck!!China manufacturer,Manufacture offer baotou north benth beiben 4x2 wheel drive off road septic tank Vacuum Sewage Suction Truck,facture sale 5000L sewage suction tanker truck,JAPAN ISUZU 6000L sewage suction truck for sucking sludge and sewer cleaning ISUZU 8CBM Sewage suction truck,ISUZU brand sewage vacuum suction truck of Competitive Price for Sale,China new 3000L sewage suction tanker truck,New sewage suction truck,vacuum tanker truck,vacuum sewage suction truck
Learn More
3000L JAPAN ISUZU 4x2 Tanker Truck with Vacuum Pump,vacuum sewage truck,sewage suction truck 12000 L JAPAN ISUZU HOWO 4X2 vacuum suction tank truck (LHD & RHD), RHD 4x2 12000L 12000liter 12M3 12 cubic meters sewage sucking truck,SHACMAN AOLONG sewage suction truck 12T 4x2 vacuum truck,6X4 Sewage Tank Truck,Special Price! 10m3 Vacuum Tank Sewage SuctionTruck,3000L JAPAN ISUZU 4X2 Vacuum Sewage Truck,Heavy Vacuum Tank Truck,4*2 JAPAN ISUZU Sewage Suction Truck 6 WheelSewage Suction Truck 6000liters Sewage Suction
Learn More
10 Cbm Sewage Suction Truck 10 Cbm SewageTanker Truck,Heavy Duty Factory Direct Sell 4*2 Shacman SewageSuction Truck,Heavy Duty 4X2 8000L Foton Vacuum Sewage/Fecal Suction Truck 6*4 Vaccume Sewage Suction Truck 6*4,6 Wheels JAPAN ISUZU Sewage Suction Truck, Vacuum Sewage Suction Truck,4X2 Cummins 180HP JAPAN ISUZU High PressureSewage Suction Truck JAPAN ISUZU 4*2 7-10cbm Cleaning Sewage SuctionTruck, Fecal Suction Trucks
Learn More
Foton Mini Sewage Suction Truck with 2000L TankCapacity,3000L Forland 4X2 Vacuum Fecal Suction TankerTruck,China 4X2 ISUZU Sewage Suction Truck 5cbmSewage Truck,20000L JAPAN ISUZU HOWO 6X4 Sewage SuctionTanker Truck,Heavy Duty 4*2 6000liters Shacman Sewage SuctionTruck,Vacuum Sewage Suction Tank Truck Sewer Cleaner Semi Trailer,20000L Vacuum Sewage Tank Truck Factory Sale,JAPAN ISUZU 6X6 off Road Military Standard All Wheel Drive Vacuum Sewage Tank Truck Factory
Learn More

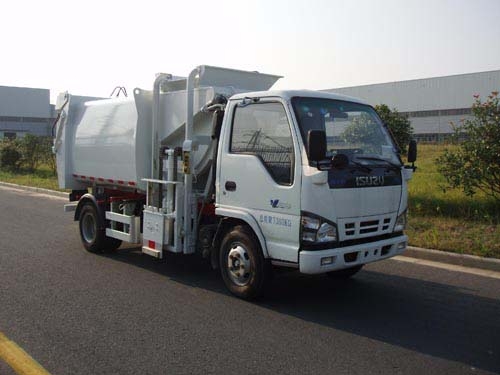

best small size garbage trucks , Kitchen swill garbage truck , waste collecting truck, NEW Isuzu side loader garbage truck kitchen garbage truck,6000L Isuzu High Quality Kitchen Garbage Truck
