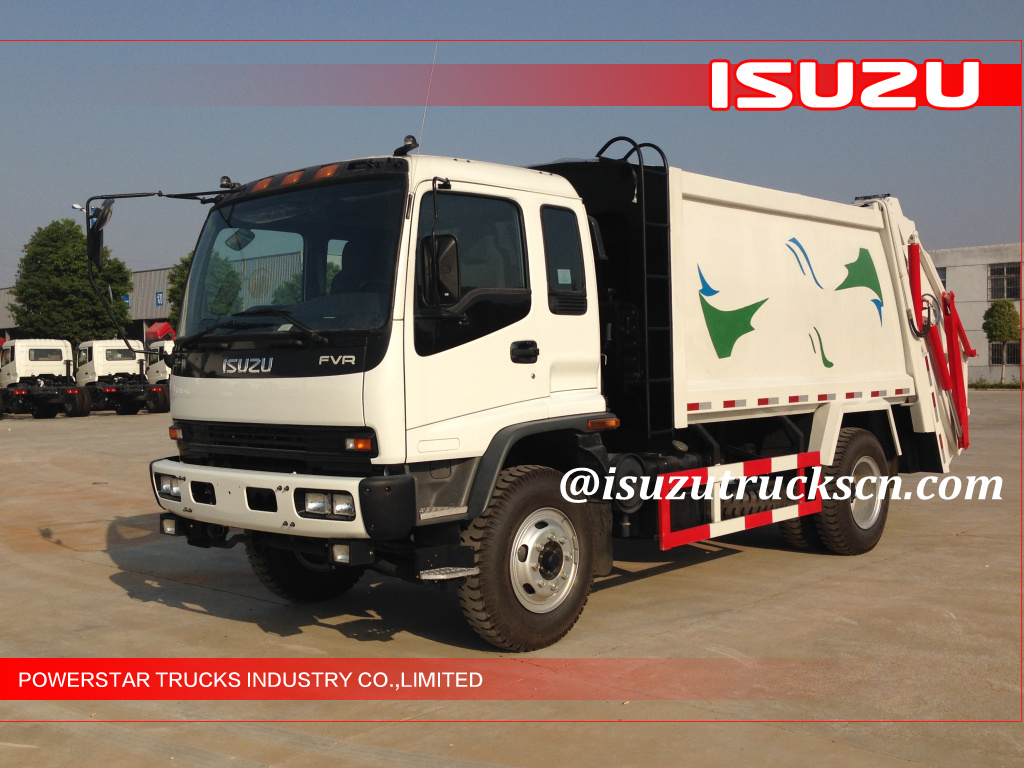

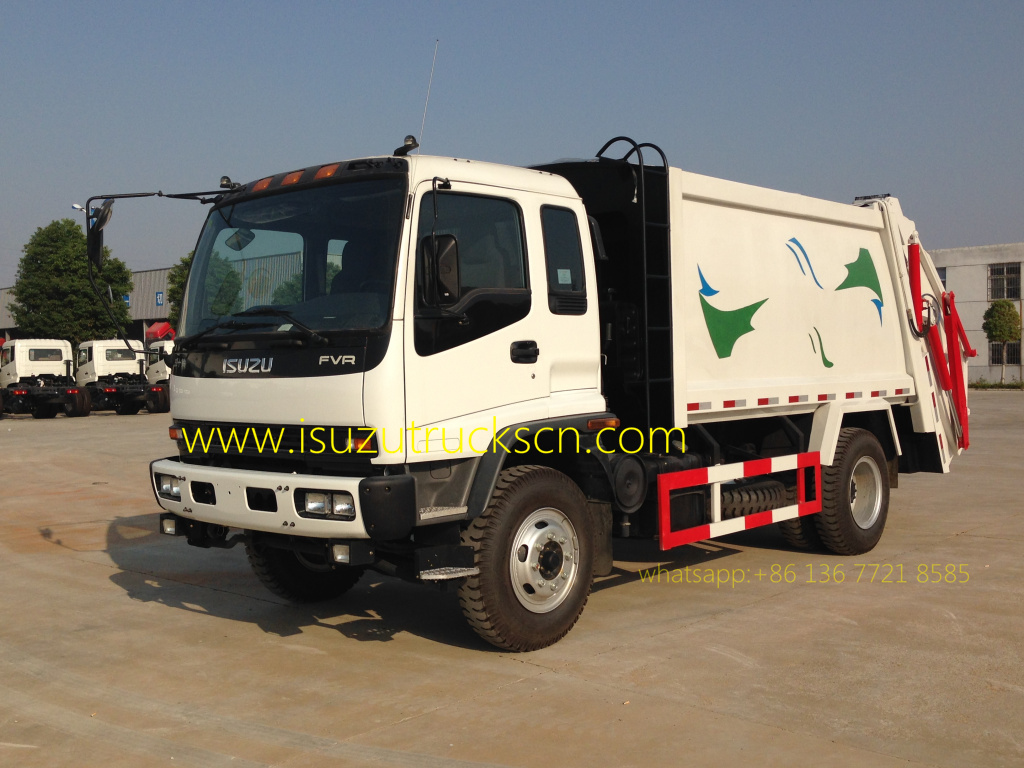

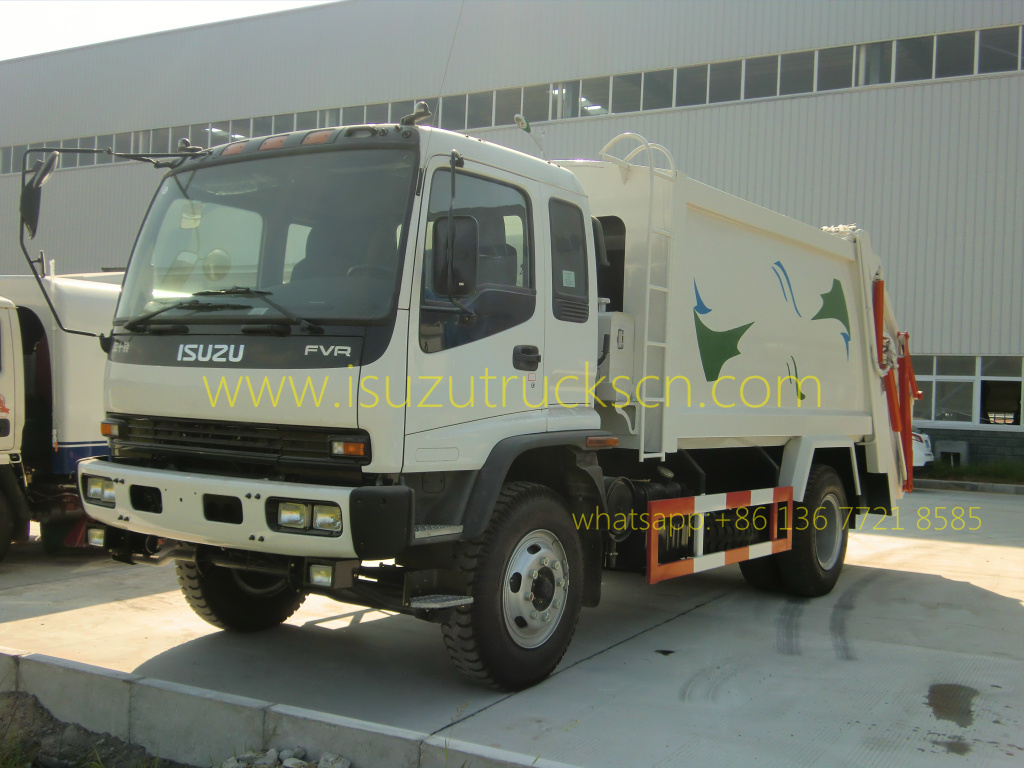

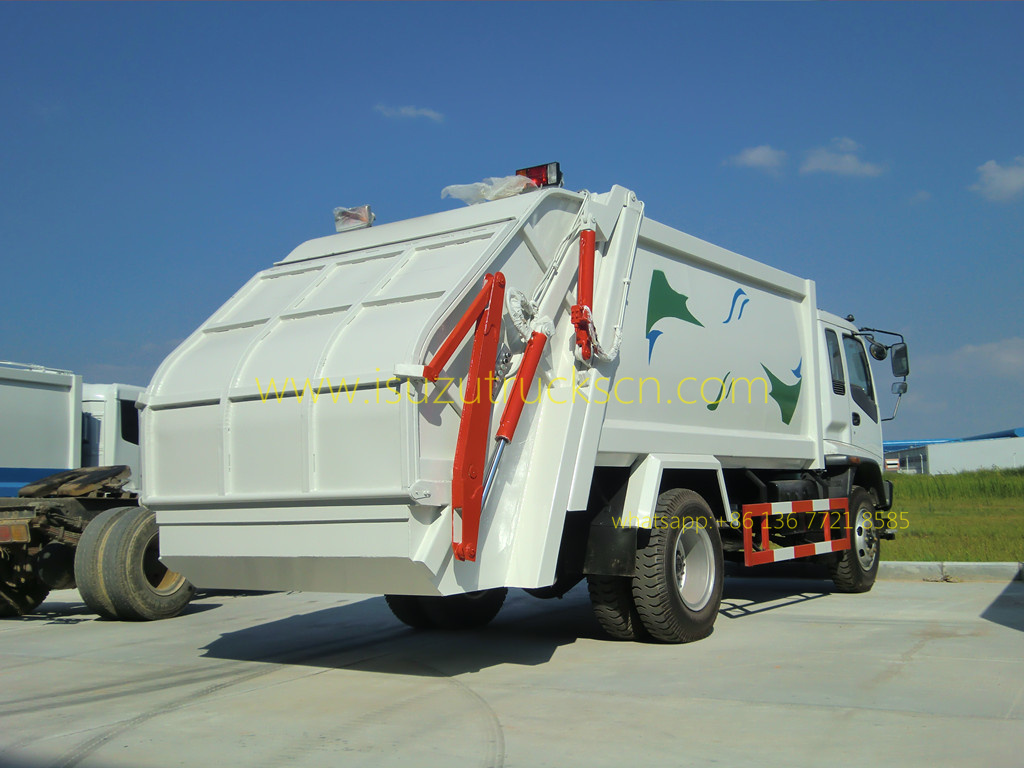

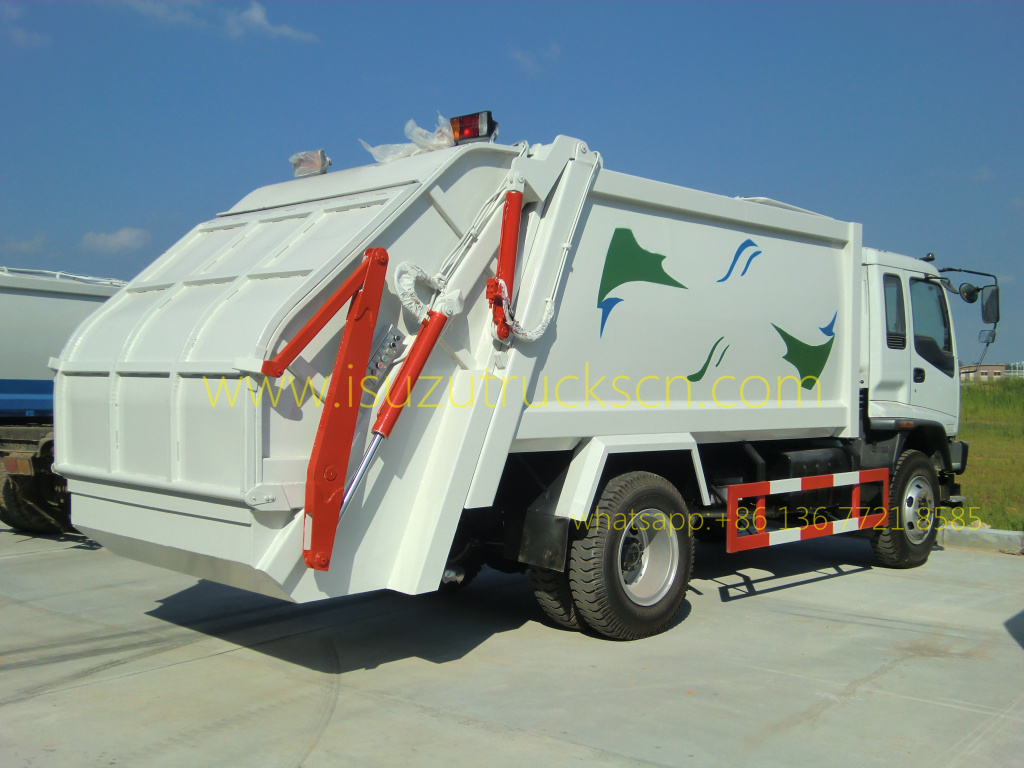

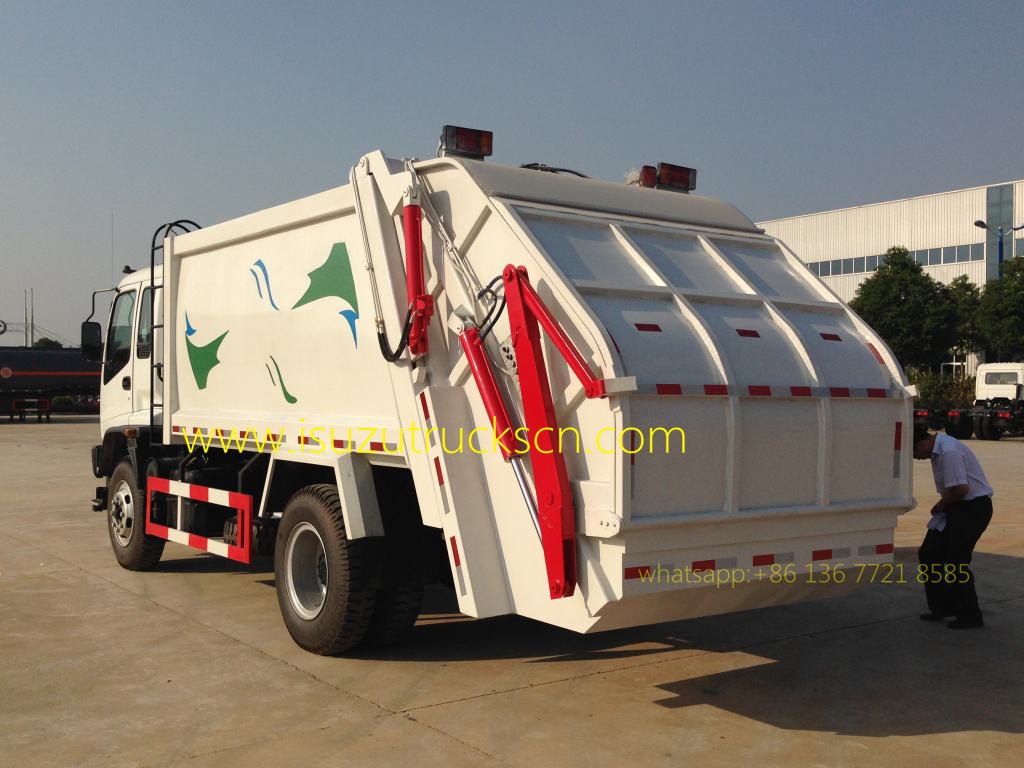

Libya custom made 12Cubic FVR Japanese Isuzu Rubbish compactor vehicles
EUR IV Garbage Compactor Truck with ISUZU chassis,The Faw Garbage Truck 10 Cbm CompactorGarbage Truck,JAPANESE ISUZU 6X4 Garbage Compactor Truck,Isuzu Mini 4*2 Garbage Compactor Truck,China Factory 4000L-6000L Capacity CompactorGarbage Truck,4X2 8cbm ISUZU Compressed Garbage TruckGarbage Compactor Truck,Competitive JAC Garbage Transportation Truck/Mini Sanitation Truck/Garbage Compactor Truck,12m3 Garbage Compactor Truck / Refuse Collection Vehicles / Compressed Garbage Truck,Isuzu 3t Compactor Garbage Truck,ISUZU Refuse Compactor / Garbage Truck
Order(MOQ):
1Waste Compactor Truck Isuzu 12 CBM
---- ISUZU chassis, perfect performance.
---- Compression ration > 60%
---- Compression body capacity from 3 CBM TO 20 CBM
---- Sealed transportation avoid the second time pollution
---- Massive, durable, perfect performance
Waste Compactor Truck Isuzu (12 CBM) |
||
General |
Vehicle Brand |
POWERSTAR |
Chassis Brand |
ISUZU |
|
Overall Dimension |
8930 * 2500 * 2760 mm |
|
GVW / Kerb Weight |
16,000kg / 6,890kg |
|
Cab |
Cab Capacity |
3 persons allowed |
Air Conditioner |
Heating/cooling air conditioner |
|
Engine |
Fuel Type |
Diesel |
Engine Brand |
ISUZU |
|
Power |
240 HP (178 KW) |
|
Displacement |
5199ml |
|
Emission Standard |
Euro IV or V |
|
Chassis |
Drive Type |
4X2, (left hand drive) |
Transmission |
ISUZU MLD 6 speed levers with 1 reverse |
|
Wheelbase/No. of axle |
3900 mm / 2 |
|
Tire Specification |
10.00-20 |
|
Tire Number |
6 tires and 1 spare tire |
|
Max Speed |
95 km/h |
|
Paint |
Metallic paint |
|
Superstructure |
Body Capacity |
12 CBM |
Fill Hopper Capacity |
1.4 m3 |
|
Sewager Tank volume |
200 L |
|
Body Material |
Weather resisting steel |
|
Filling work cycle time |
20~25 s |
|
Filling lift time |
6~9 s |
|
Filling lift capacity |
8 Tons |
|
Discharge time |
18~22 s |
|
Max compression force |
12 Tons |
|
Discharge model |
Horizontal Ejection |
|
Control |
Electrically Hydraulic control Manual Hydraulic control |
|
Emergency Stop Button |
Hopper Both Sides |
|
All standard accessories: Warning lights, music alarm, basic tool kit, English manual…… |
||
Optional |
** Backup alarm can be equipped. |
|
Working Principles of Garbage Compactor
|
 |
|
 |
 |
 |
 |
|
 |
 |

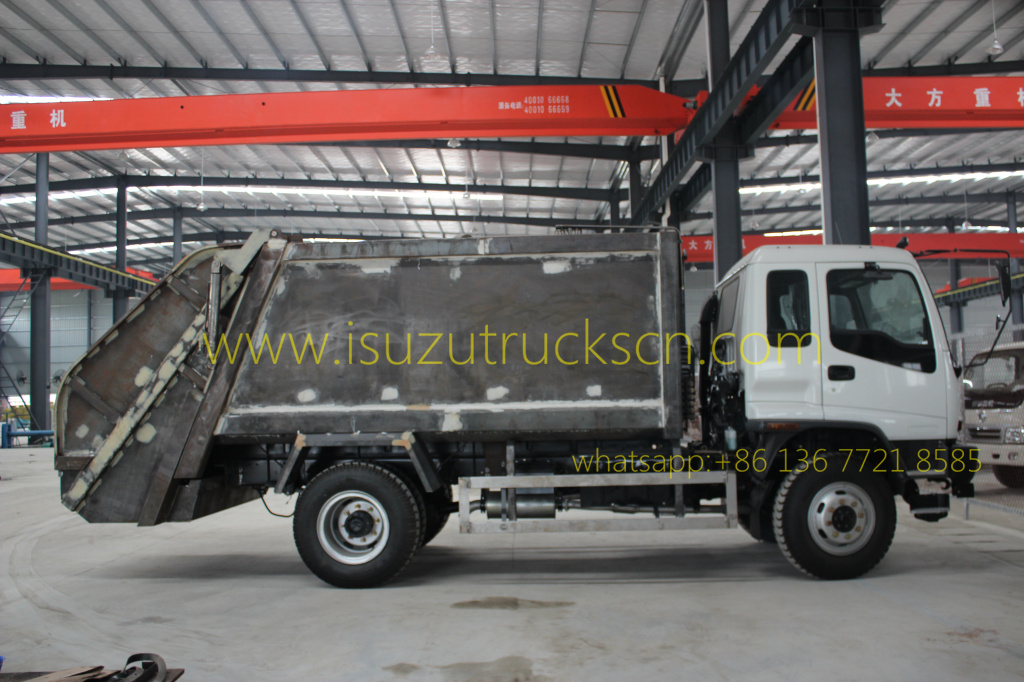

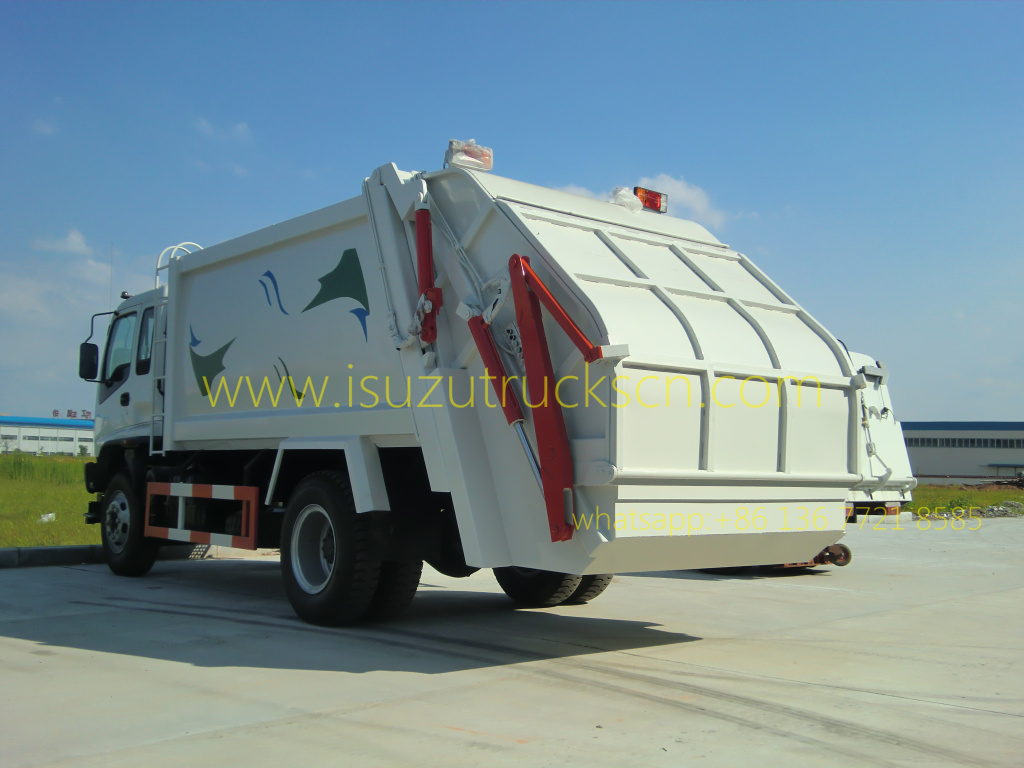

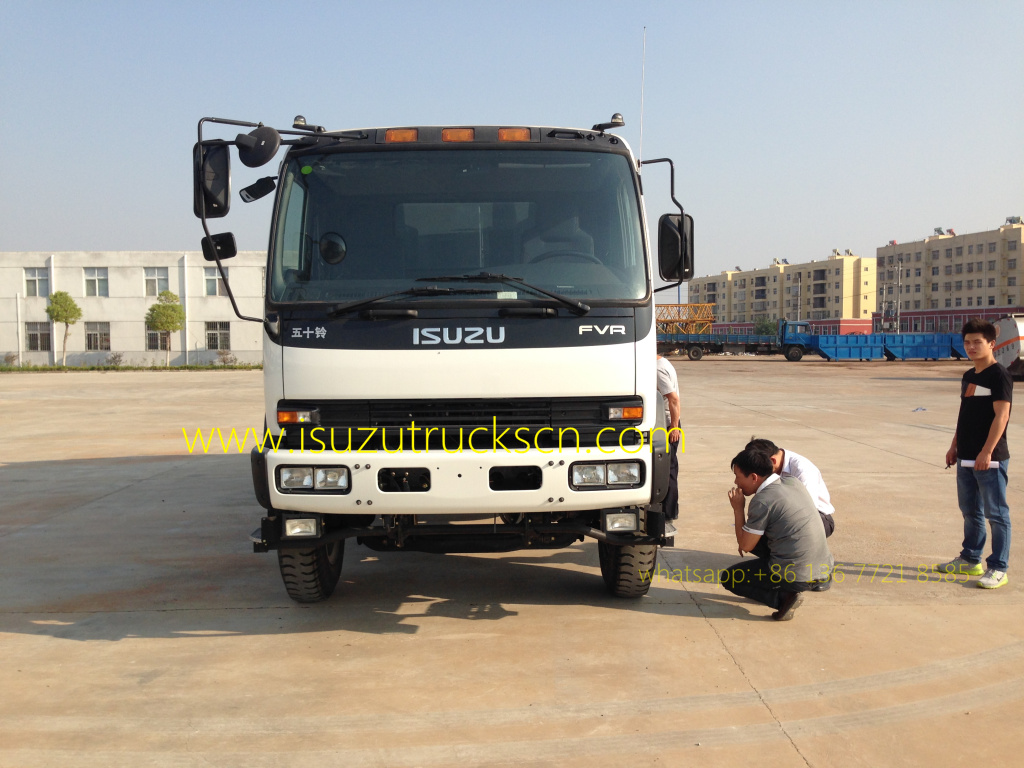

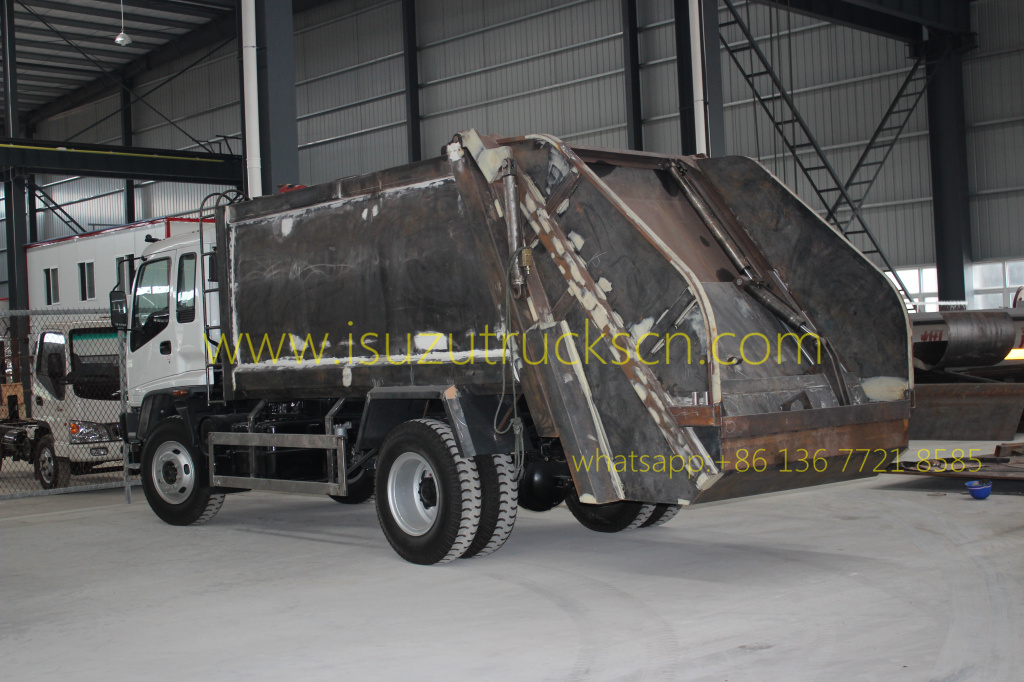

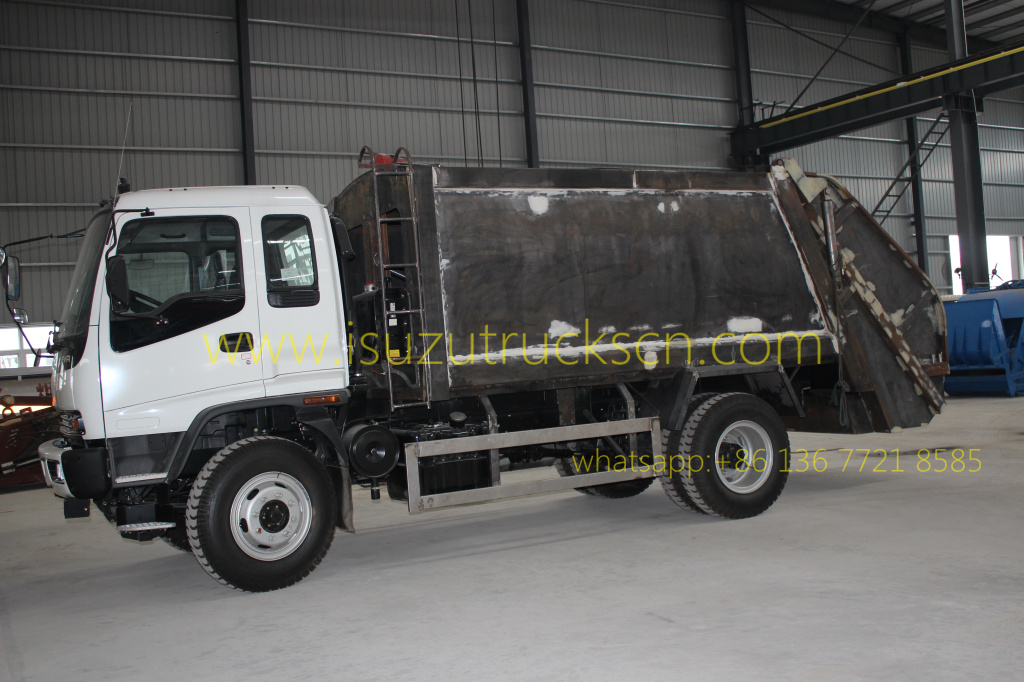

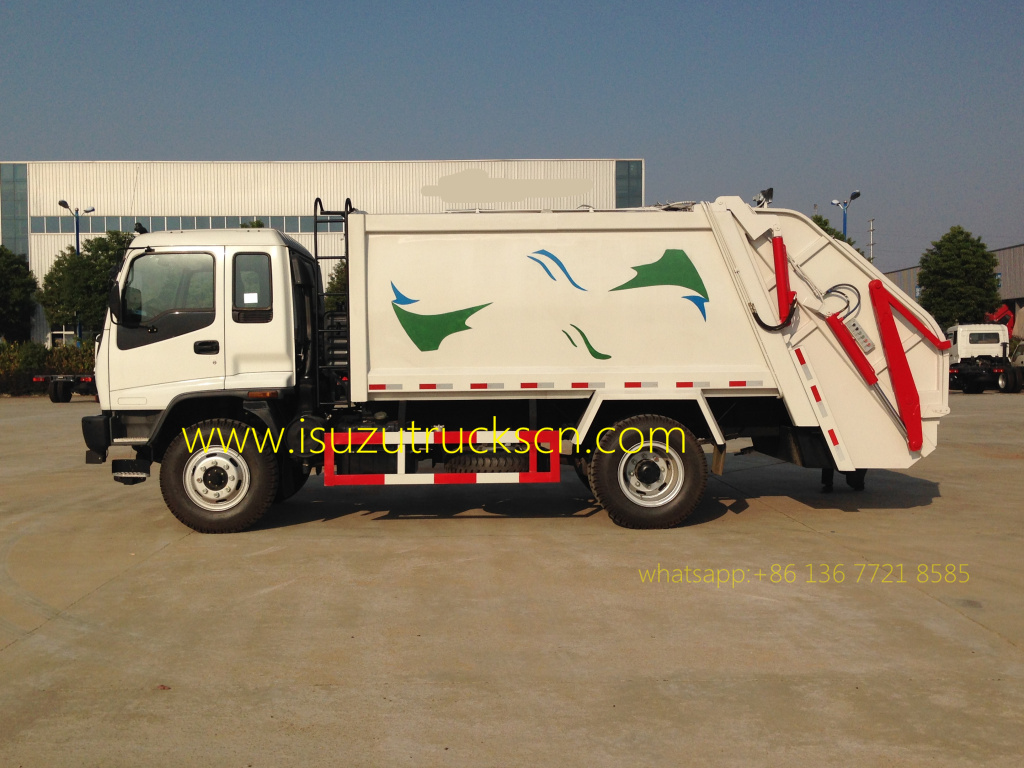

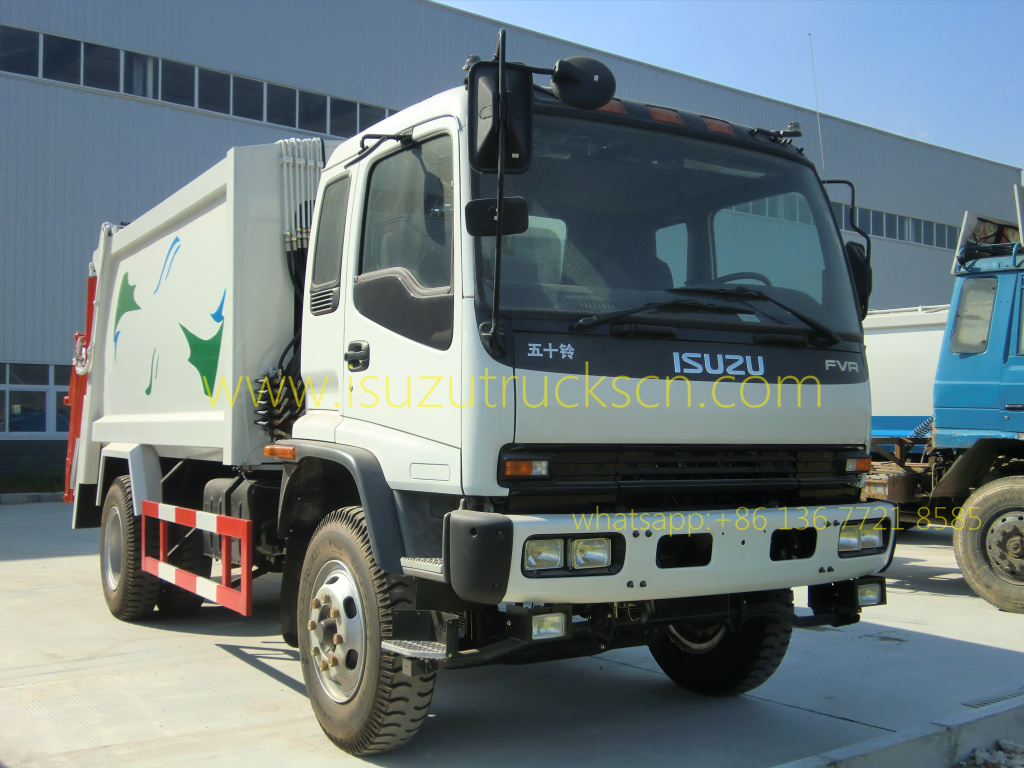

Details pictures of 4cbm Compression Garbage Truck Isuzu
Details pictures of 4cbm Compression Garbage Truck Isuzu
Operation manual of 4cbm Compression Garbage Truck Isuzu
