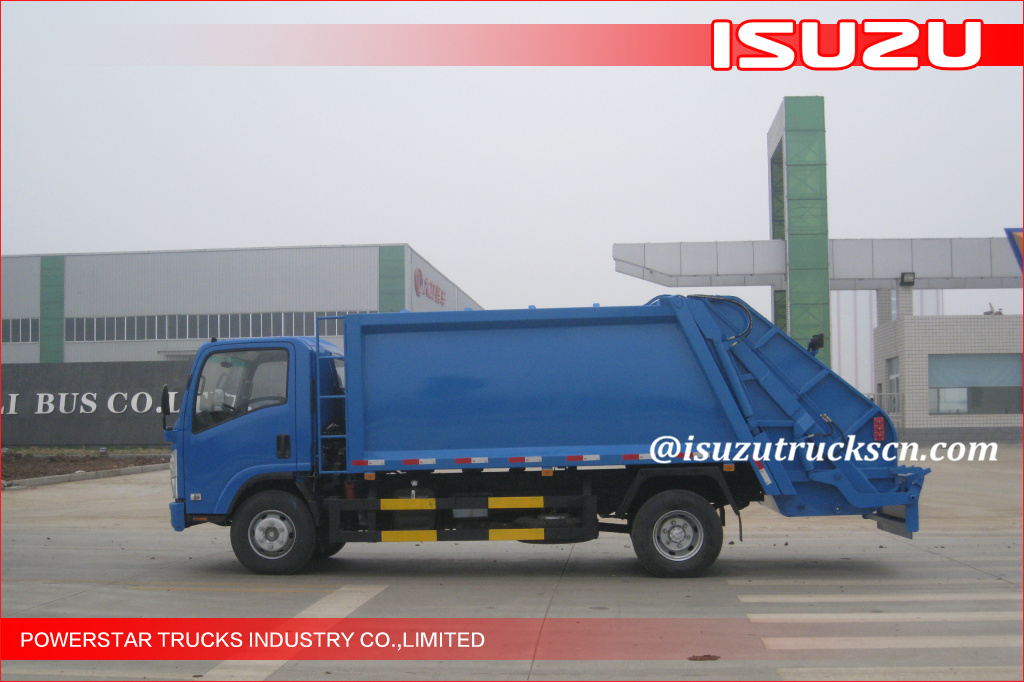

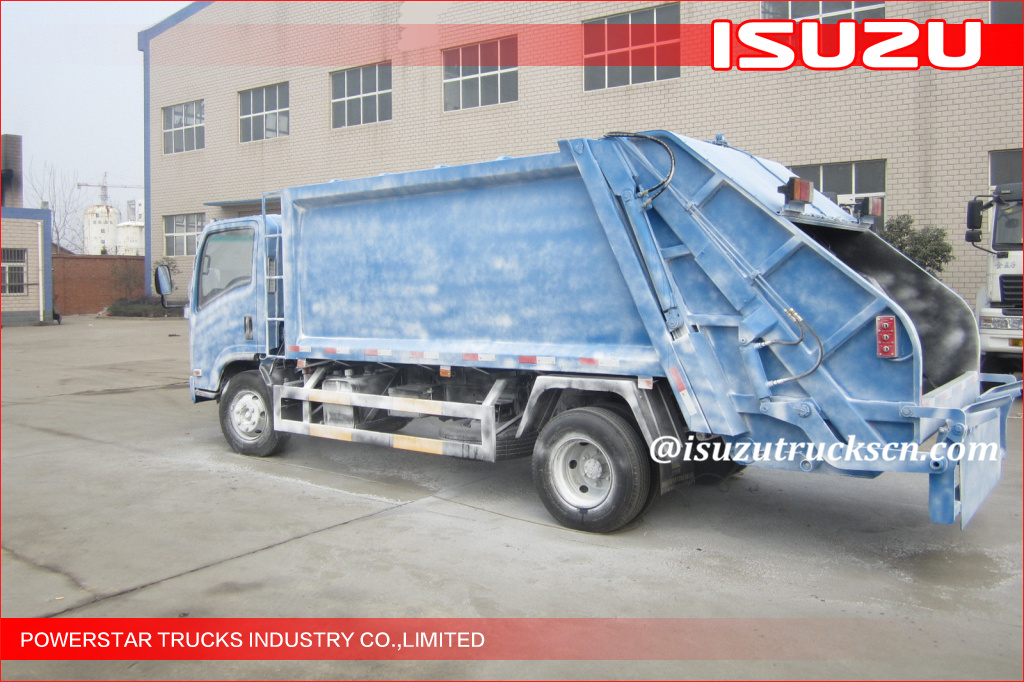

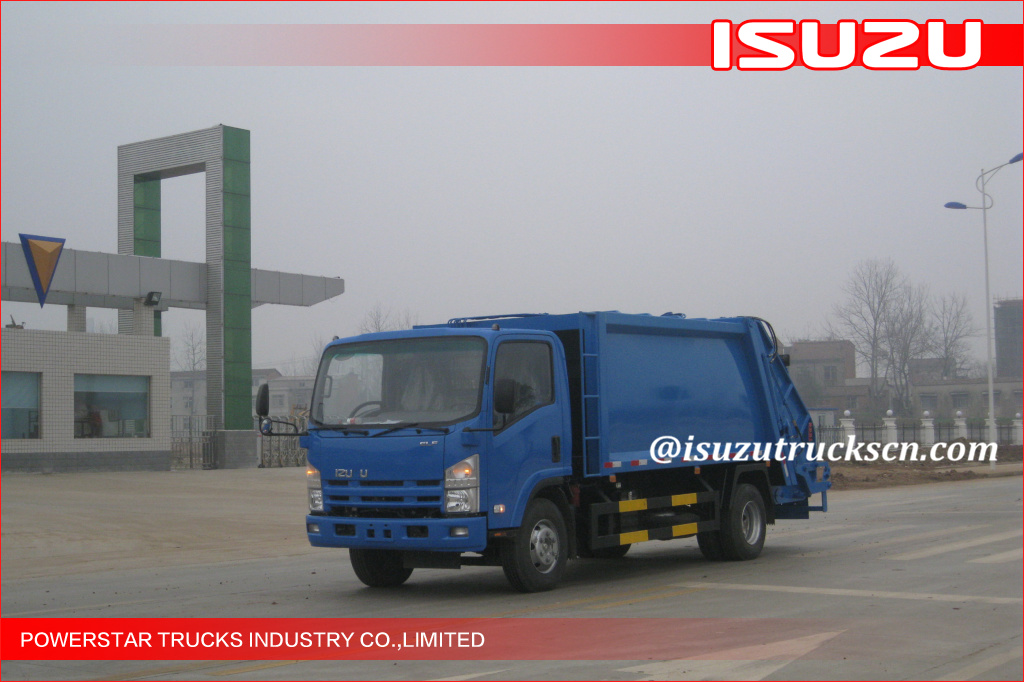

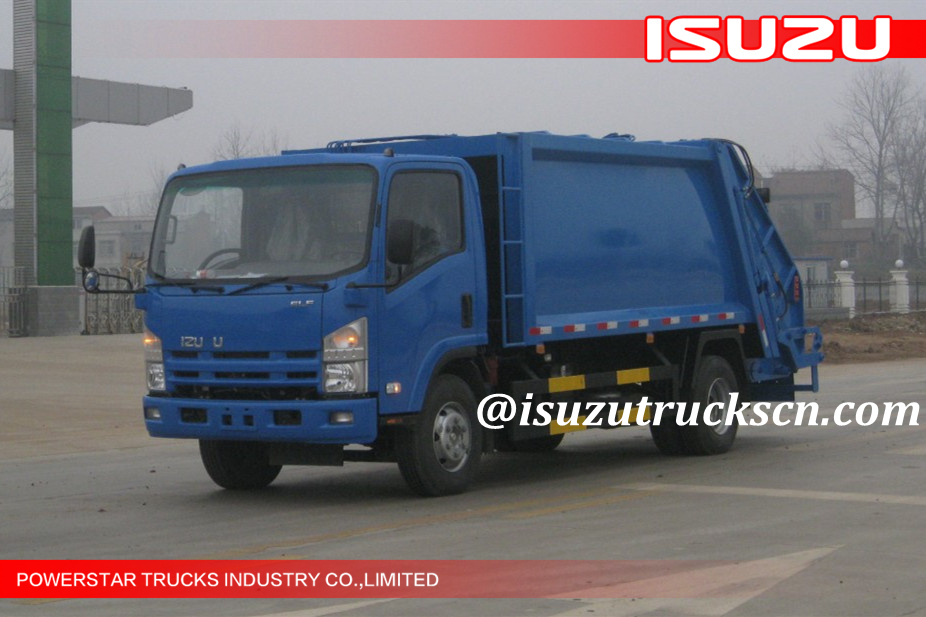

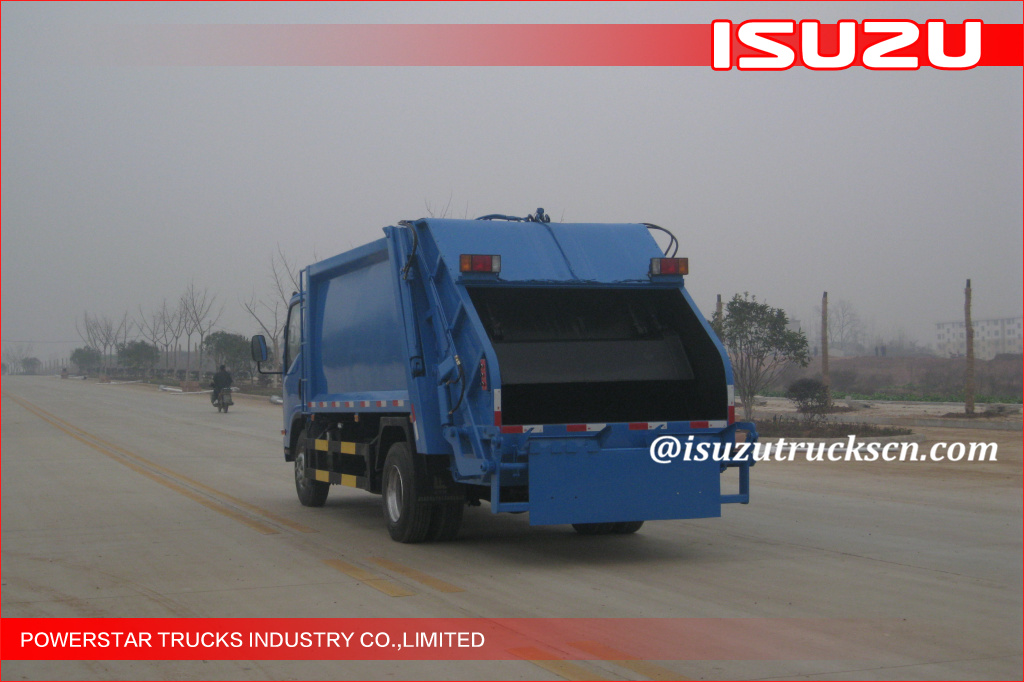

Nigeria 5Tons Isuzu Garage Truck for waste transportation
China Competitive Price Garbage Compressor Truck,Isuzu 12m3 Compressed Garbage Truck for Hot Sales,Sinotruck ISUZU Garbage Compression Truck,ISUZU 6X4 Compression Type Garbage Truck/Garbage, ISUZU 6X4 Garbage Truck Rear Loading for Sale,10m3 Compressed Garbage Truck, Garbage Compactor, Compression Refuse Collector, Waste Compactors
Order(MOQ):
1Nigeria 5Tons Isuzu Garage Truck for waste transportation
Description:
The new generation Refuse Garbge Compactor is mainly used in collecting and transporting the scattering refuse of the urban area, community, factory, school yard.
The refined appearance, the fully sealed truck body, the sealed door of the truck body is able to prevent the sewage from leaking during transporting so that secondary pollution is avoided. The imported hydraulic units are of the best quality with convenience and reliability.
Areas of Application and Use:
◆ Urban area or community garbage collecting
◆ Schoolyard garbage collecting
◆ Factory garbage collecting
◆ Suburban waste transfer
◆ Non-construction waste collecting
Features:
◆ Easy operation and easy maintenance!
◆ With imported PLC (programmable logic controller) for integrated control
◆ Collecting refuse in sealed condition, equipping with waste water tank, preventing re-pollution.
◆ Substantial truss structure, payload distributed appropriately in hopper lip, no deformation.
◆ Automatic controlled throttle and hydraulic safety valves, avoiding power wastage, lower oil consumption.
◆ Automatic and manual operating control, improving operation reliability
◆ The engine power output control, namely the throttle control, can realize fully automatic control through the electronic throttle controller, so the engine will automatically change to a higher speed or idle speed under different operating modes, thus avoiding power loss and system heat to reduce fuel consumption and realize good economical efficiency.
◆ Both automatic and manual control modes are available. Two operation boxes mounted in the cab and at the rear side of the vehicle respectively can facilitate the operation.
◆ Different bin (hopper) tipping mechanisms are provided for different users to select in accordance with different garbage collecting
Main specifications:
|
ISUZU ELF |
||
|
Model |
PT5110ZYS |
|
|
Driving Type |
4x2 (Left hand drive) |
|
|
Wheelbase |
3815 mm |
|
|
Overall Dimension |
7250x2200x2600 mm |
|
|
Garbage Container capacity |
5Tons |
|
|
Loading type |
Rear loading |
|
|
Compression ratio |
1: 3.2 |
|
|
Operation control system |
Electrically hydraulic control + Manual hydraulic control |
|
|
Discharging system |
Horizontal ejection |
|
|
Loading cycle time: (sec) |
10~15 |
|
|
Rubbish discharging time: (sec) |
20 |
|
|
Max hydraulic pressure (Mpa) |
16.2 |
|
|
Feeding equipment lift angle |
≥90 |
|
|
Multi-way shuttle valve |
Imported |
|
|
Body material |
Weather resisting steel |
|
|
Cab |
Forward control over engine, all-steel-welded construction |
|
|
Engine |
Model: |
4HK1-TCG40 |
|
Type: |
Diesel, turbo charged inter-cooled, 4 cylinder |
|
|
Max. Power: |
139 KW (190HP) |
|
|
Gearbox |
MLD 6-shift, mechanical type, 6 forward and 1 reverse with |
|
|
Tire |
8.25-16 |
|
|
Color |
Red (Any color & logos up to wish) |
|
|
Max Speed |
90 km/h |
|
Working Principles of ISUZU Truck Garbage Compactor
Different bin (hopper) tipping mechanisms:
Shipment:

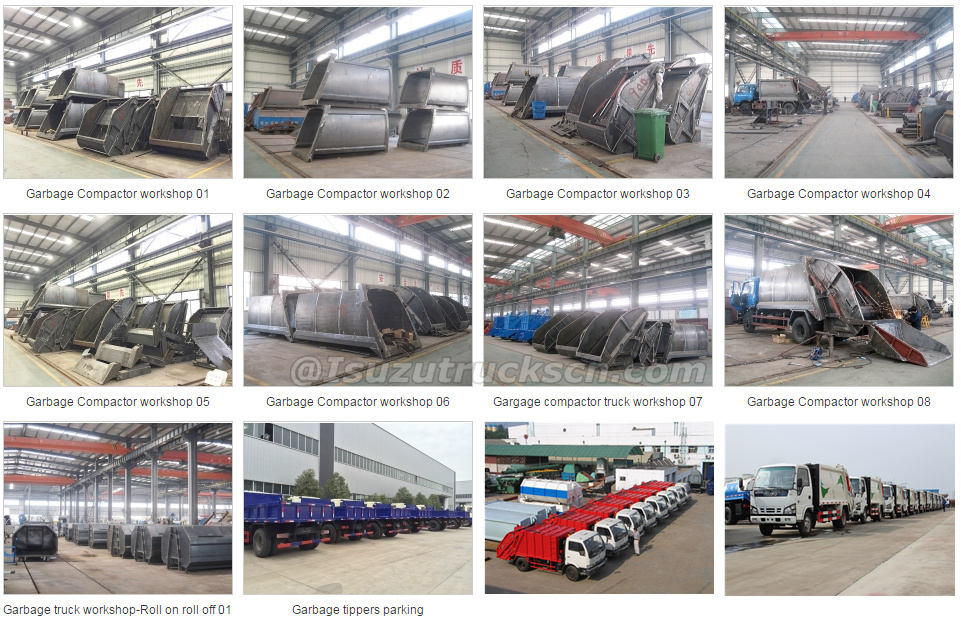

Recently Built Garbage Compactor Truck:
