Isuzu KV100 6cbm compression garbage truck,Its design is modern and simple, and its structure is sturdy and durable. It adopts advanced compression technology, equipped with intelligent operating system and perfect safety system. It is powerful, environmentally friendly and energy-saving, easy to operate, stable and reliable. It can be widely used in the field of urban garbage disposal and is a green and environmentally friendly tool that has attracted much attention.
Work capacity:
6cbmTruck model:
PT5070GXZEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4X2,LHDGear box:
MSB 5-speed,manualRemarks:
6CBM garbage boxI. PRODUCT Overview
Trash compactor made by Isuzu trucks also called Isuzu KV100 6cbm trash compactor truck,Isuzu truck with garbage compactor bodies,Isuzu 6cbm rear loader compactor truck,Isuzu KV100 waste collection truck,Isuzu 6cbm garbage disposal truck.
Trash compactor made by Isuzu trucks adopts advanced compression technology and automatic control system, which can compress garbage efficiently, thereby increasing loading capacity and transportation efficiency. The vehicle is equipped with high-strength garbage bins and compression mechanisms, ensuring the durability and reliability of garbage disposal. At the same time, the vehicle also adopts environmentally friendly materials and advanced sealing technology to effectively prevent garbage leakage and odor emission, reducing pollution to the environment.
Key Features:
★ Various size body from 3cbm to 20cbm,
★ ISUZU engine,super powerful;reliable performance. no overhaul,within 1000000km
★lmported SlEMENS PLC integrated control high-efficient working
★Diffient rear lifting systerm are optional.
★Can be put into 20",40"container and ship to worldwide
(1) Isuzu KV100 6cbm trash compactor truck video
(2) Isuzu T30 Explorer pickup Specifications
|
Isuzu KV100 6 cbm trash compactor truck |
||
|
Truck model |
PT5070GXZ |
|
|
Cabin |
Isuzu KV100 3X cabin,driving type 4*2 LHD,single row,2 passengers, air conditioner,USB,AC |
|
|
Overall Size(mm) |
6540*2300*2480 mm |
|
|
Bin capacity(mm) |
6CBM |
|
|
Wheel base(mm) |
3360 |
|
|
GVW(kg) |
7300 |
|
|
Curb weight |
3120 |
|
|
Front axle loading capacity(kg) |
2500kg |
|
|
Rear axle loading capacity(kg) |
4800kg |
|
|
Engine |
Model |
4KH1CN6LB |
|
Type |
4-stroke direct injection,4-cylinder in-line with water cooling, turbo-charging and inter-cooling |
|
|
Hose Power(HP) |
120HP/88KW |
|
|
Displacement |
2999ml |
|
|
Emission standard |
Euro 6 |
|
|
Max speed |
110km/h |
|
|
Tire |
700R16(6+1 tire) |
|
|
Transmission |
MSB 5-speed,manual |
|
|
Superstructure |
Body capacity |
6cbm |
|
Box material |
Side 4mm,bottom 5mm |
|
|
Design |
Whole unit with Leakage Proof Design |
|
|
Sewage tank |
200 liters |
|
|
Filling work cycling time |
20~25 s |
|
|
Garbage Compact Ratio |
1/3 - 1/4 |
|
|
Discharge model |
Horizontal Ejection |
|
|
Control system |
The system is controlled from the PLC control box, which enables, start, stop, 1-cycle, continuous cycles, and rescue activities. Tailgate and ejector controls are in front of the body. All devices for loading control are mounted on the tailgate right side, and all are manual control for safety purposes. Compaction is controlled electrically via push-buttons, and manually in case |
|
|
Control panel |
English or Your language |
|
|
All standard accessories: Dust bin lifter,Ladder, warning lights, Emergency stop button,handrail, fire extinguisher, basic tool kit, English manual... |
||
|
Brake system |
Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on rear wheels Auxiliary brake: engine exhaust valve brake |
|
|
Electrics |
Operating voltage:24V,negative grounded Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light |
|
|
Optional |
** Back alarm and Camera can be equipped. |
|
II. Product Detailed Description

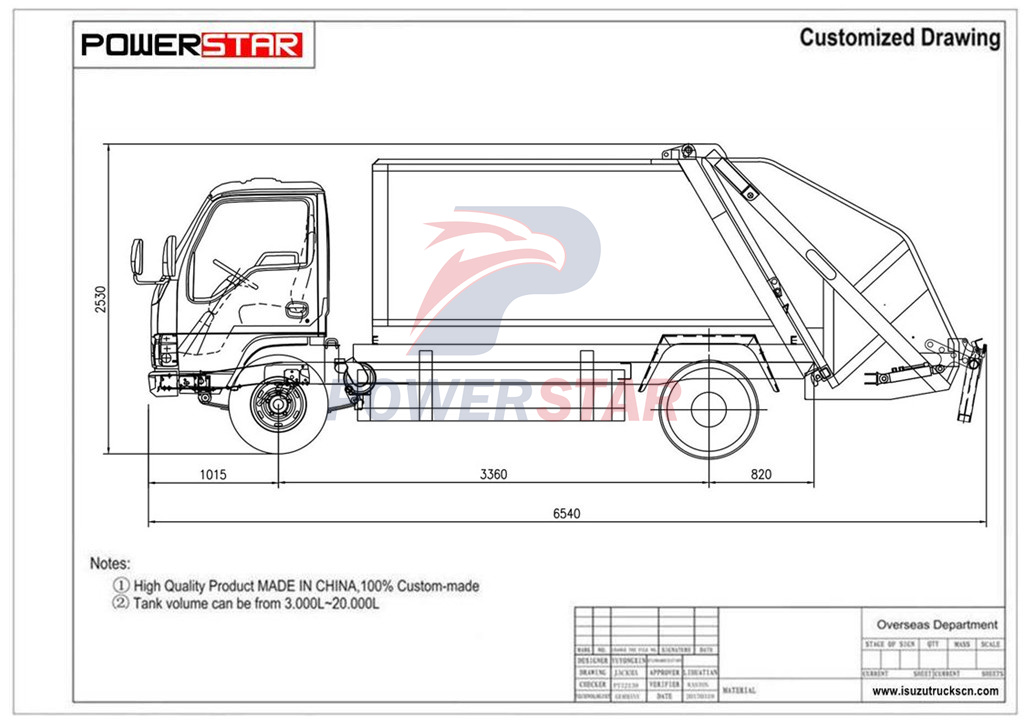

(3) Technical drawing of Isuzu KV100 6CBM Trash Compactor Truck
Isuzu KV100 6 cubic compression garbage truck is a special vehicle designed for urban sanitation work. It adopts advanced compression technology and automatic control system, which can realize the automatic operation of loading, compressing and unloading garbage, greatly improving work efficiency. It is an urban sanitation tool that integrates high efficiency, environmental protection, durability and intelligence.
Chassis and engine
The compression garbage truck is modified on the basis of Isuzu KV100 chassis. The number of spring leaves is 8/6+5, the number of tires is 6, and the tire specification is 7.00R16 14PR. Such chassis and tire configuration make the vehicle have better carrying capacity and driving stability.
Isuzu KV100 6 cubic compression garbage truck is equipped with Isuzu 4KH1CN6LB engine. This engine has a displacement of 2.999L, a maximum output power of 88kW, a corresponding maximum horsepower of 120 horsepower, an emission standard of National VI, and a fuel type of diesel. The engine is powerful, energy-saving and environmentally friendly, low fuel consumption, and easy maintenance, providing a solid guarantee for the stable operation of the vehicle.
The vehicle is equipped with Isuzu MSB five-speed gearbox with 5 gears. Such a gearbox configuration makes it easier to shift gears during driving, meets the different driving needs of drivers, and also improves the fuel economy of the vehicle.

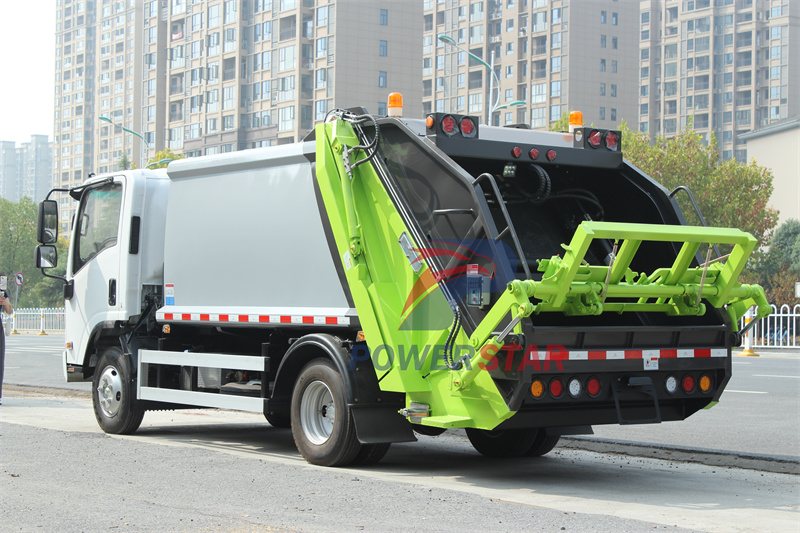

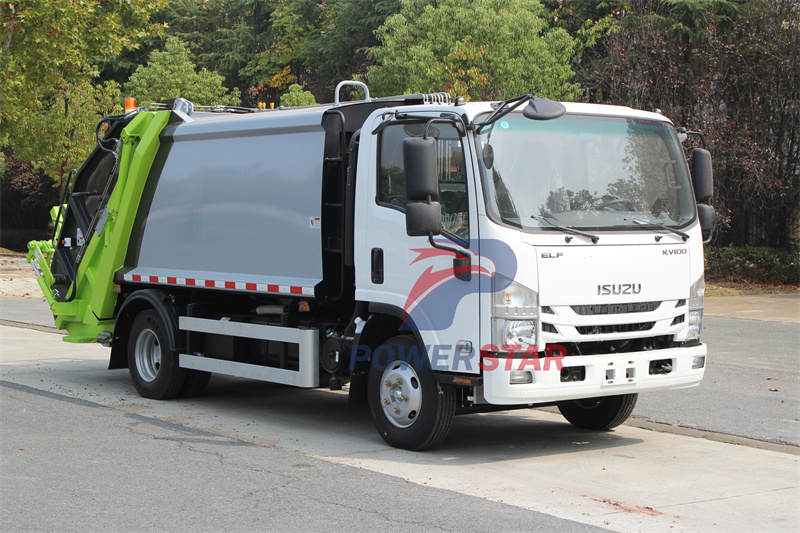

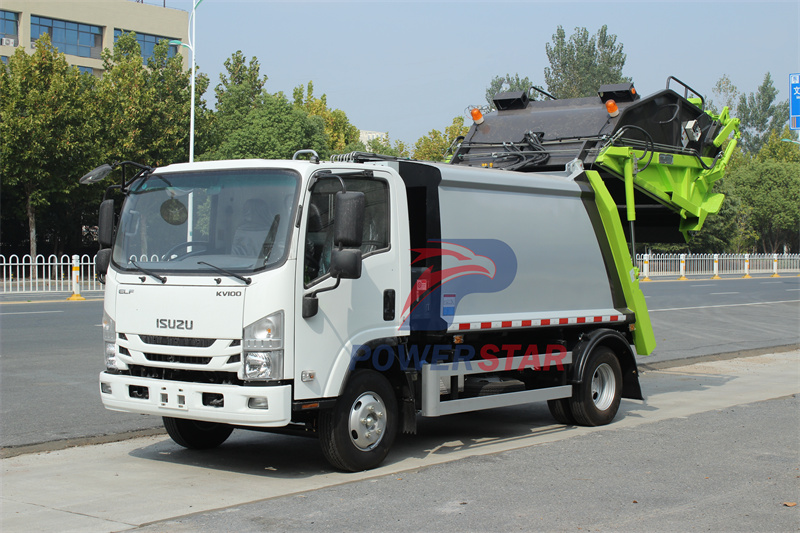

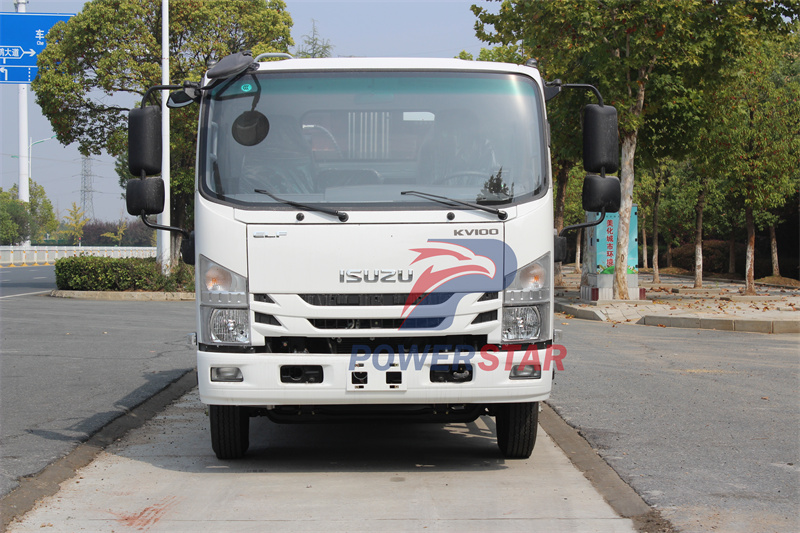

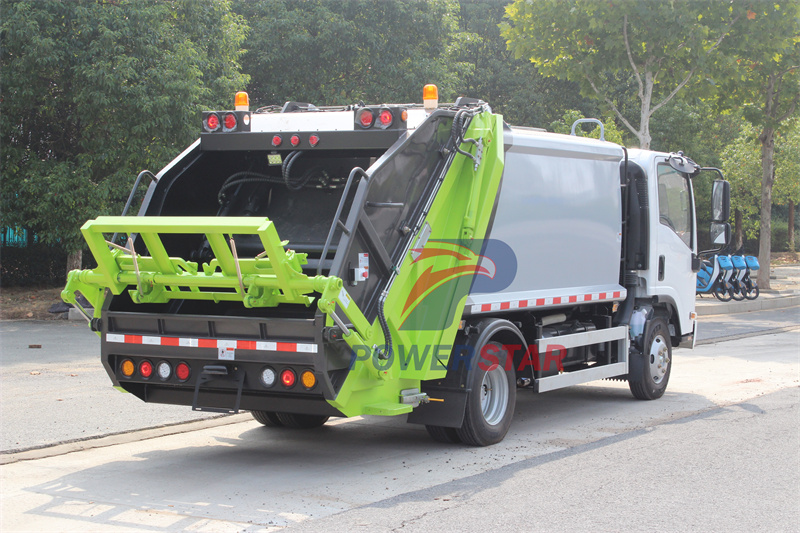

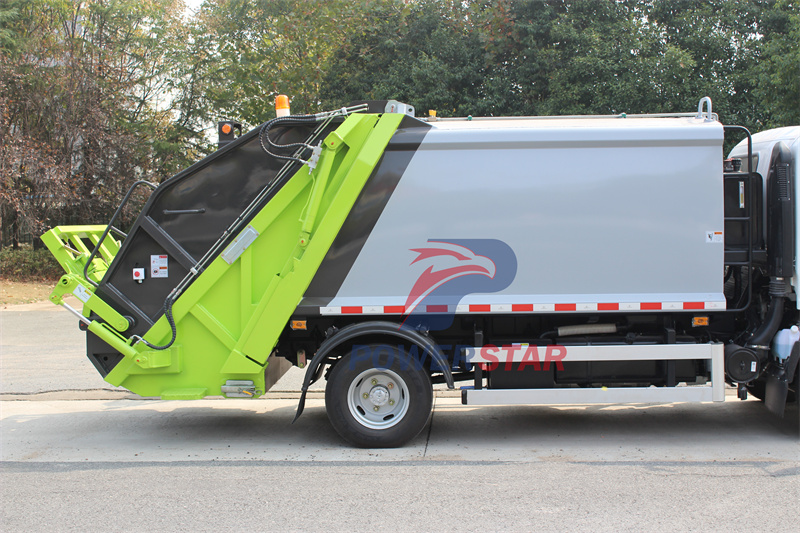

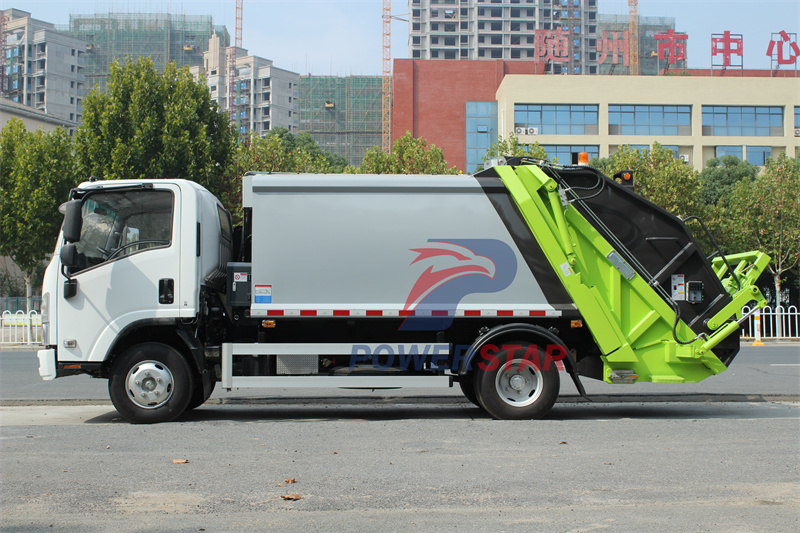

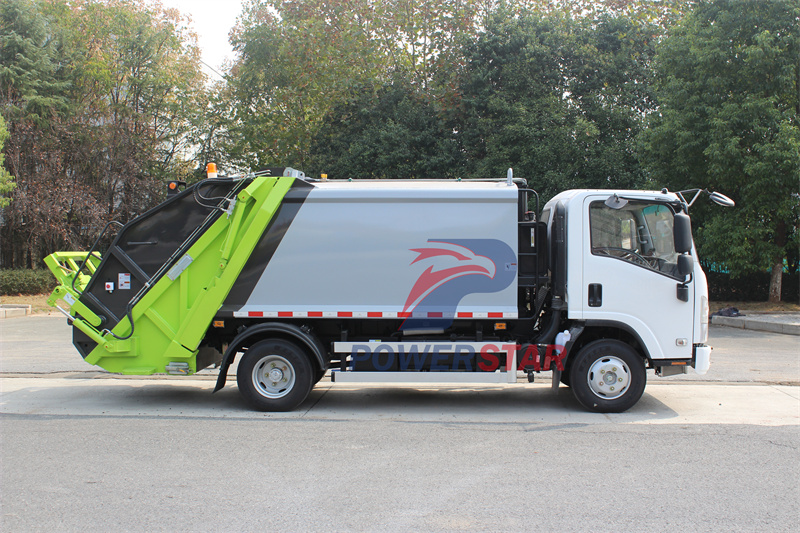

(4) Truck Pictures
Trash compactor made by Isuzu trucks

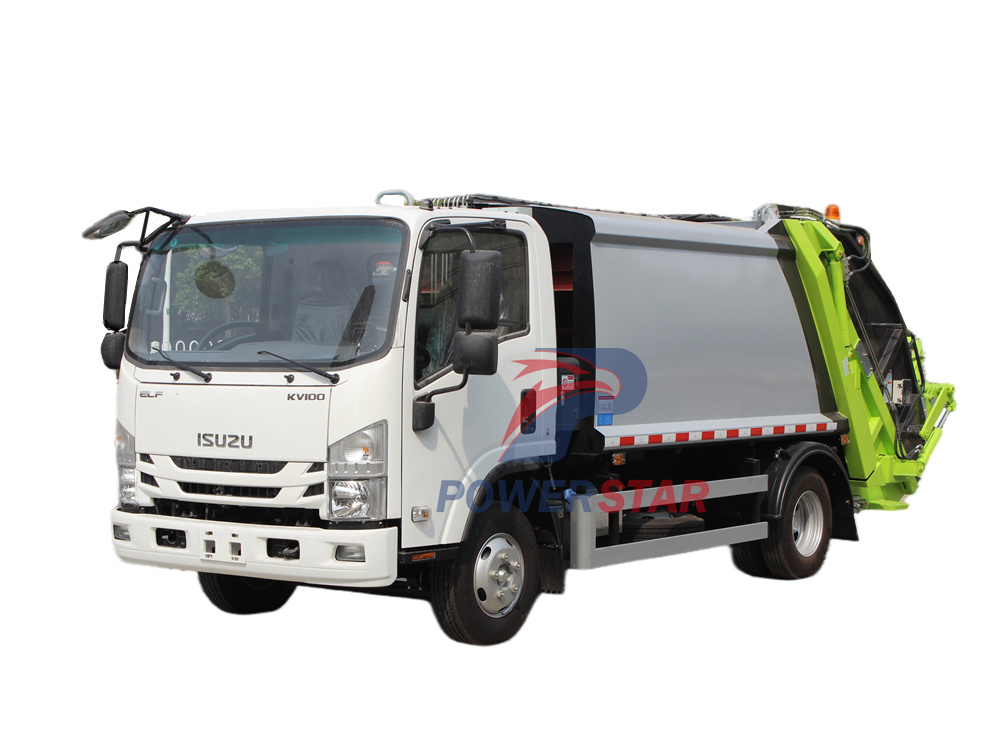

Isuzu KV100 6cbm compression garbage truck
Body design
The body design of Isuzu KV100 6-cubic-meter compression garbage truck adopts electromechanical and hydraulic integration technology. With the help of mechanical, electrical and hydraulic combined automatic control system, computer control and manual operation system, it realizes a series of automated operations such as garbage dumping, crushing or flattening, strong filling, compaction and unloading. The body material is WISCO high-quality carbon steel, with an effective compression volume of 6 cubic meters, PLC one-button operation control, integrated hand-light operation mode, dual electric control on both sides, and in-cab operation. The bottom plate support is strengthened, two-way compression, and the open and easy-to-clean sewage tank solves the problem of secondary pollution during garbage transportation.
Isuzu truck with garbage compactor bodies
Isuzu 6cbm rear loader compactor truck
III.Product Details of Garbage Collection Truck:
Garbage bin composition
The garbage bin is the main part of the compression garbage truck, which is used to load and compress garbage. The garbage bin of Isuzu KV100 6-cubic-meter compression garbage truck is mainly composed of the following parts:
1. Bin: The bin of the garbage bin is welded with high-strength steel plates, which has sufficient strength and rigidity to withstand the huge pressure generated when the garbage is compressed. The shape and size of the bin are carefully designed to maximize the loading capacity and optimize the compression effect.
2. Compression mechanism: The compression mechanism is a key component in the garbage bin, which consists of steel plates, channel steel welded pressure plates, guide wheels and cylinder seats. Driven by the cylinder, the compression mechanism can efficiently compress the garbage in the hopper into the car compartment, thereby improving the loading density and transportation efficiency.
3. Sealing device: The sealing device of the garbage bin adopts advanced sealing technology to ensure that the garbage will not leak or emit odor during compression and transportation. This helps to reduce secondary pollution and protect the environment.

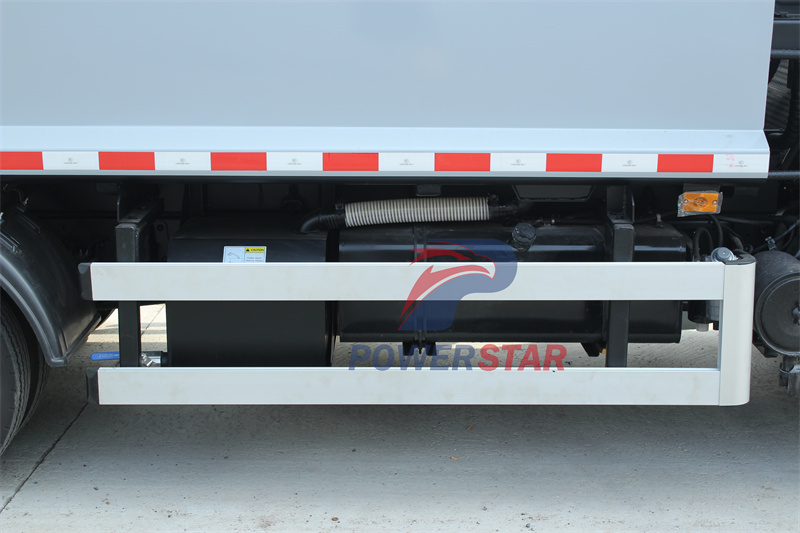

4. Sewage tank: A sewage tank is set at the bottom of the garbage bin to collect the accumulated water inside the car compartment and the excess water in the hopper. When unloading, the sewage in the sewage tank can be discharged automatically or manually to avoid pollution to the environment.
(5) Three control mode

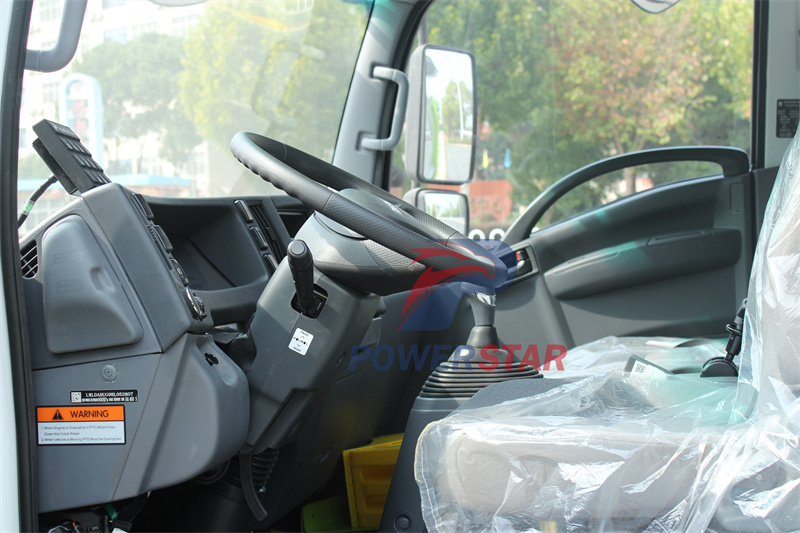

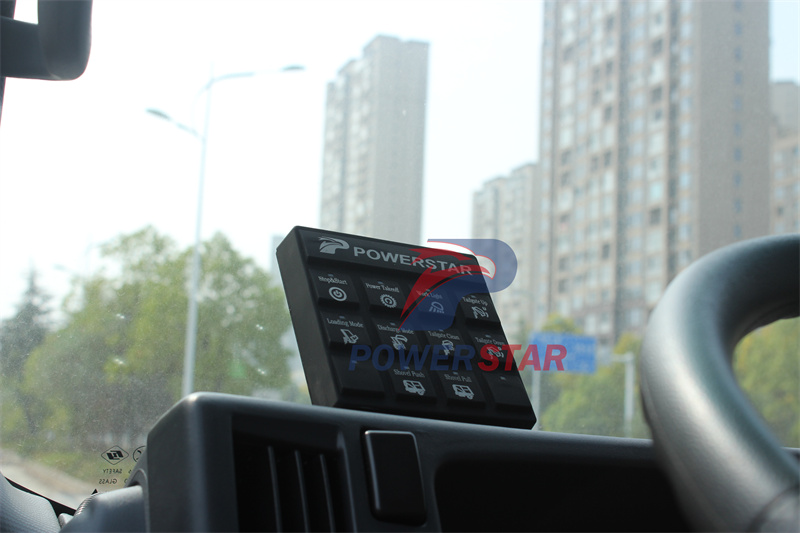

Cab control buttons

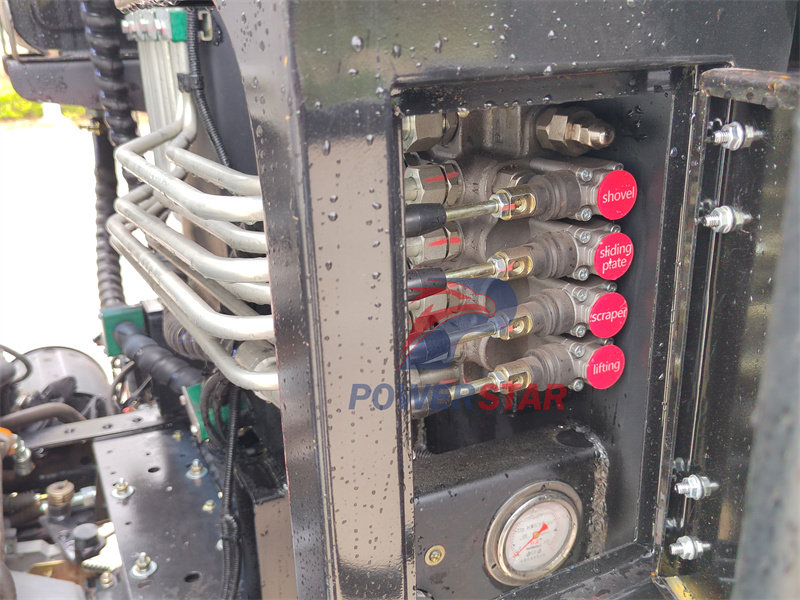

Hydraulic Control Joysticks(At drive side)

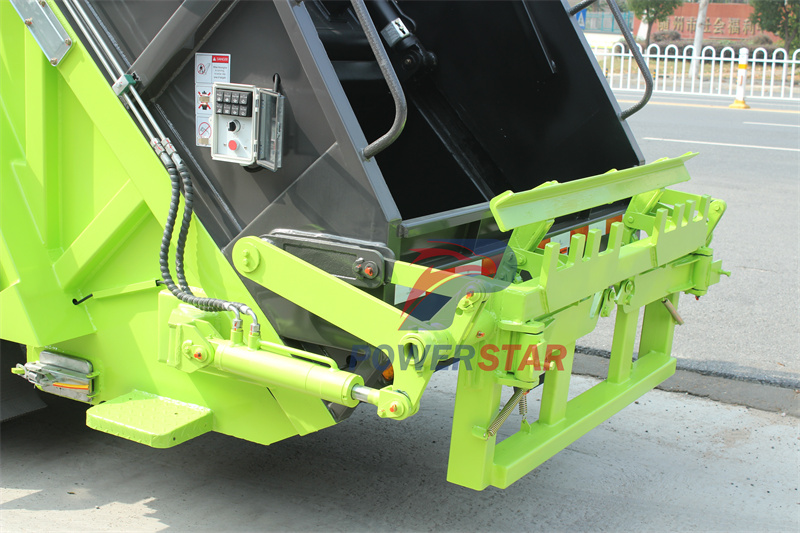

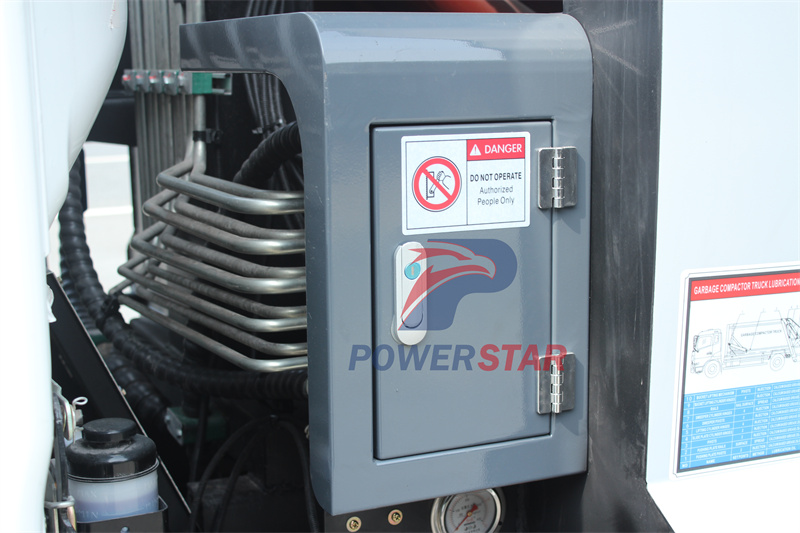

Electric Control Box (In tailgate)
(6) Other details

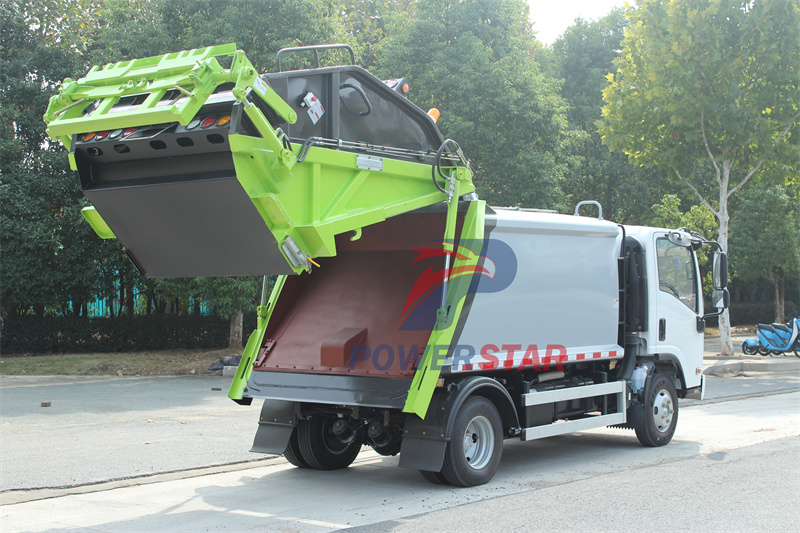

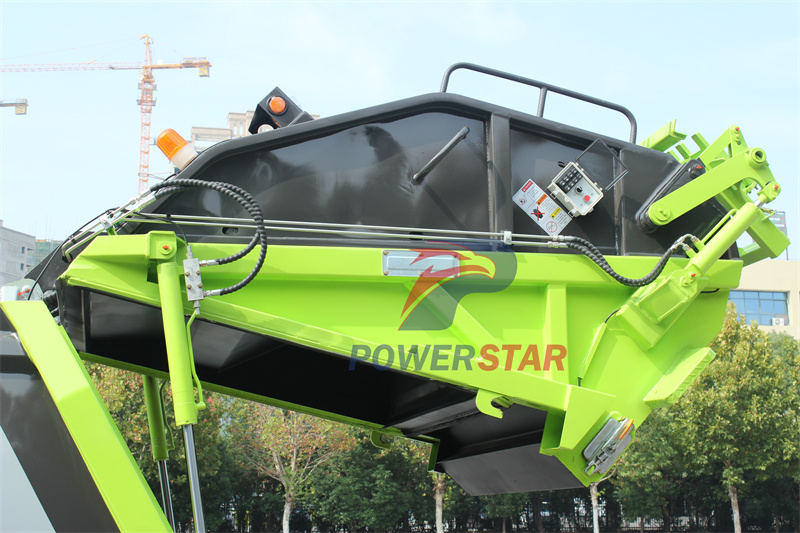

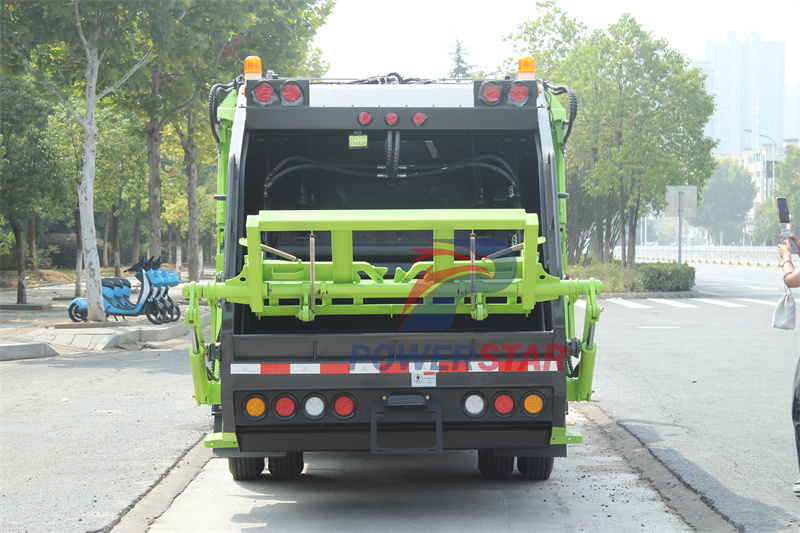

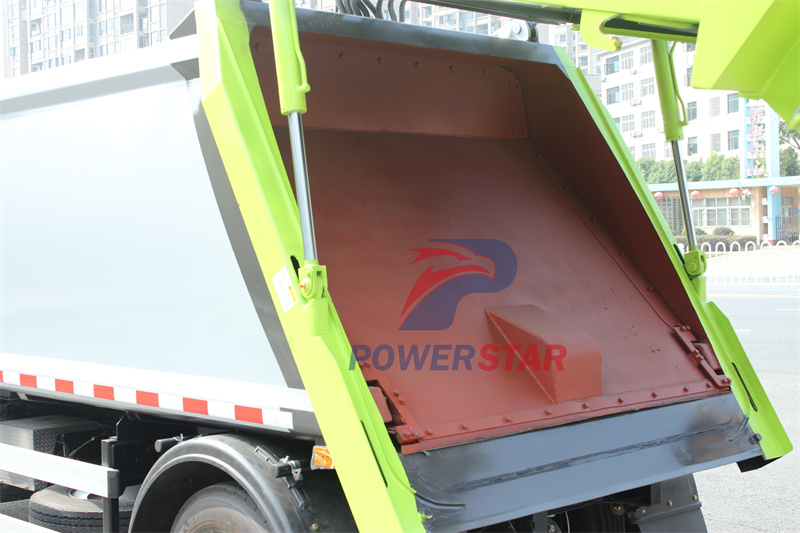

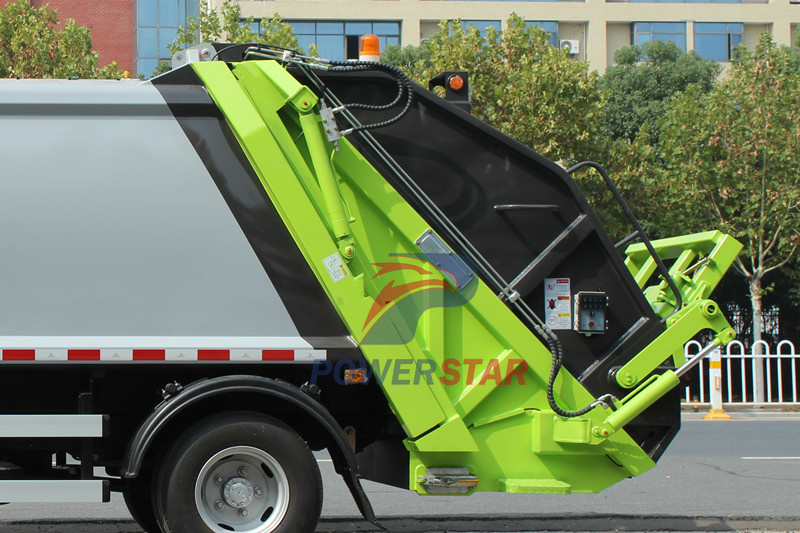

Tailgate
Push Plate Assembly
Flip mechanism

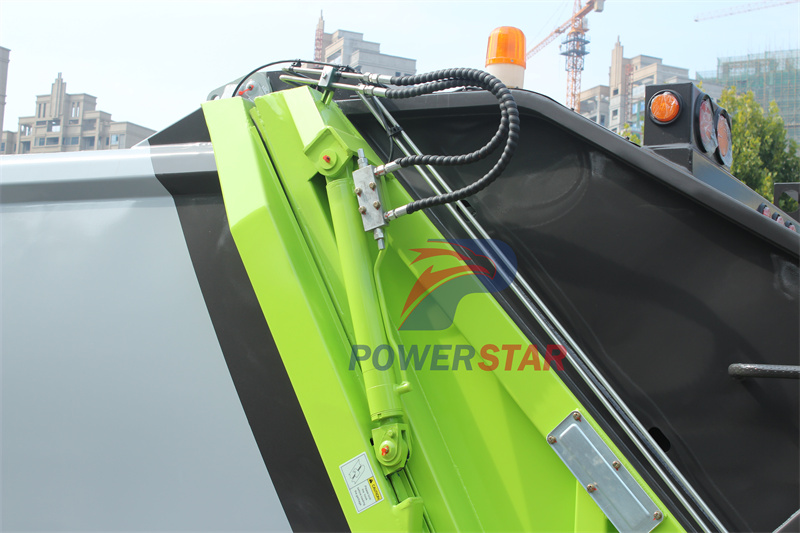

Hydraulic Cylinder
Slide Plate and scraper Hydraulic Cylinder
