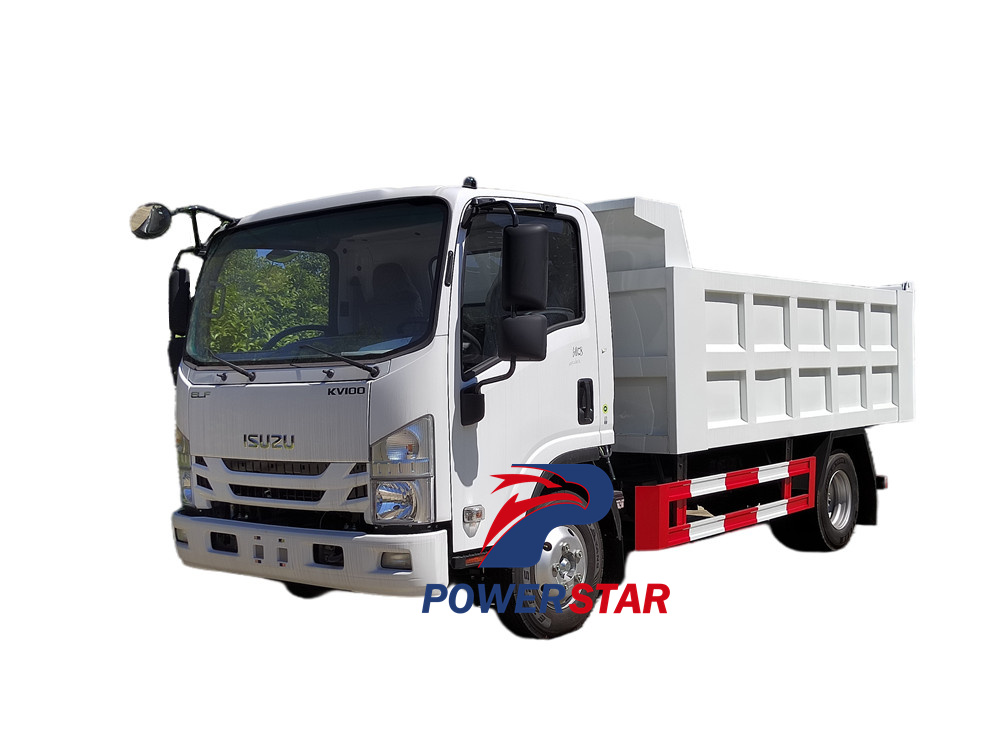

The Isuzu KV100 sand delivery dump truck is a shining example of excellence in sand transport services, offering a perfect combination of power, precision and performance. With its rugged structure, versatile capacity and advanced features, this truck is a trusted ally for construction professionals and logistics experts seeking to optimize their sand transport operations. As the wheels of progress continue to turn, the Isuzu KV100 chassis dump truck remains a steadfast partner in building a brighter, more efficient future.
Work capacity:
3～5 tonsTruck model:
PT5070GXYEngine power:
120HPEngine type:
4KH1CN6LBAxle drive:
4X2,LHDGear box:
MSB 5 shift, 5 Forward gear + 1 Reverse,manualRemarks:
Construction dump truckThe Sand delivery tipper truck Isuzu also called Isuzu KV100 sand delivery dumper truck,Isuzu KV100 light 5 ton sand transport tipper truck, is a robust and versatile dump truck designed for efficient sand delivery operations. Equipped with a sturdy chassis and a capacity of 3 to 5 tons, this truck combines power with precision to tackle diverse terrains with ease. Its hydraulic tipping mechanism ensures quick and accurate unloading of materials, enhancing productivity on construction sites.
From urban construction sites to rural development projects, the Isuzu KV100 Chassis tipper truck serves as a dependable workhorse, adept at navigating diverse environments and meeting the demands of evolving sand delivery needs. Its capability to transport 3 to 5 tons of material showcases a balance of efficiency and effectiveness, catering to a wide range of applications in the construction industry.
Features:
★ ISUZU NPR 700P chassis, perfect performance
★ 4HK1 engine, super powerful, reliable perfommance, no overhaul within 100,000 km.
★ Payloading from 2ton to 40 tons.
★ Easy operation and easy maintenance
★ Virious types of tipper body are available
|
ISUZU KV100 4x2 tipping truck |
||
|
Condition |
4X2, New condition, Left Hand Drive |
|
|
Truck model |
PT5070GXY |
|
|
|
Brand |
ISUZU |
|
GVW |
7300kg |
|
|
Curb weight |
2350kg |
|
|
Loading weight |
3~5 tons |
|
|
Wheelbase(mm) / No.of |
3360 / 2 axles |
|
|
Dimension(mm) |
5950×2250×2350 |
|
|
Front/rear overhang(mm) |
1110/1525 |
|
|
Wheel track(front/rear)(mm) |
1685/1525 |
|
|
Axle load(front/rear) |
2580/4720kg |
|
|
Max driving speed(km/h) |
90 |
|
|
Tire |
700R16,6+1 |
|
|
Paint |
Automotive metallic paint |
|
|
Cab |
Standard cab, 3 passengers allowed, with Air Conditioner, with FM |
|
|
|
Model |
Isuzu 4KH1CN6LB |
|
Fuel type |
Diesel |
|
|
Displacement (ml) |
2999 |
|
|
Max Horsepower (hp) |
120HP/88kw |
|
|
Maximum torque (N.m) |
290 |
|
|
Cylinder number |
Inline 4 cylinder |
|
|
Emission standard |
Euro VI |
|
|
Break |
Oil break system |
|
|
Transmission |
MSB 5 shift, 5 Forward gear + 1 Reverse,manual |
|
|
Upper |
||
|
Cargo body |
Size (L×W×H) |
3800×2050×800mm |
|
Loading capacity |
3~5 tons |
|
|
Material |
Q345/B High Tension Steel. |
|
|
Thickness |
Bottom 4mm, side & front 3mm |
|
|
Tipping hydraulics |
Type |
Middle Tipping |
|
Brand |
Chinese brand |
|
|
Tipping Angle |
45° |
|
|
Tipping Control |
By the lever in the cab |
|
|
Color and Logo |
Optional |
|
In the bustling world of construction and infrastructure development, where every grain of sand counts towards monumental progress,built on the Isuzu KV100 chassis, this gravel transport dump truck is a versatile and efficient workhorse designed for the tough task of transporting and delivering gravel efficiently and reliably. With a load capacity of 3 to 5 tons, this truck combines Isuzu's renowned durability and reliability with innovative features, making it an ideal choice for construction sites, landscaping projects, mining operations and other industries that require precise and timely delivery of gravel.

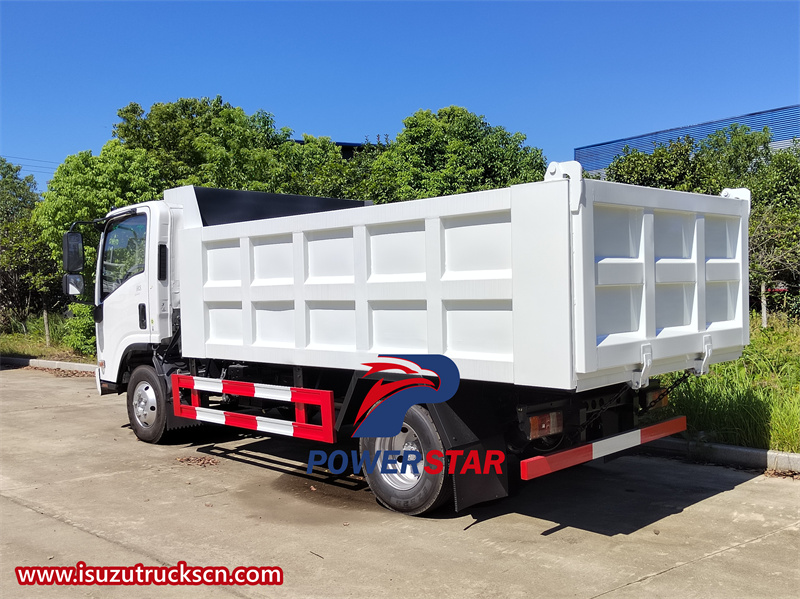

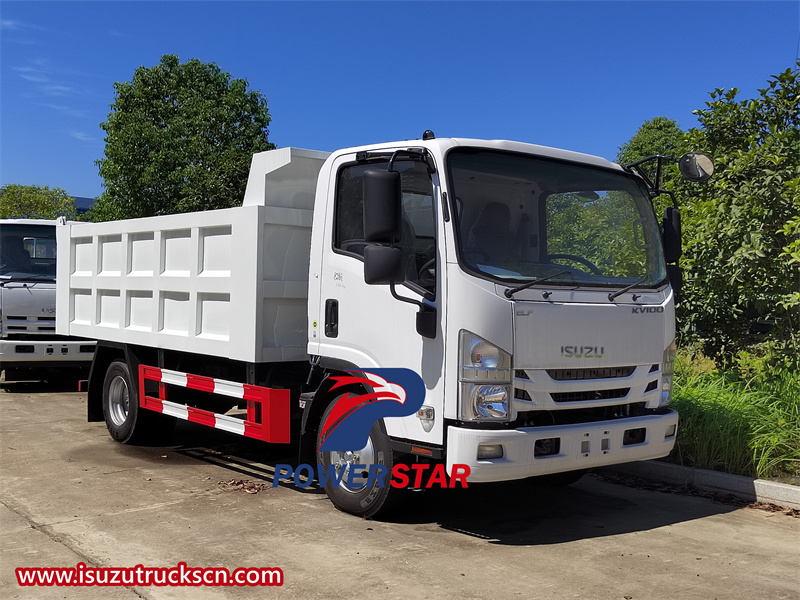

Sand delivery tipper truck Isuzu
Isuzu KV100 Chassis: A Solid Foundation
At the heart of this dump truck is the KV100 chassis, which incorporates advanced materials and design elements to ensure optimal weight distribution, stability, and durability even when carrying heavy loads.
The chassis is designed to seamlessly support the various components of the truck, including the engine, transmission, axles, and suspension system. This integration ensures smooth operation even on uneven terrain and rough roads, making the sand dump truck a reliable partner on any job site.

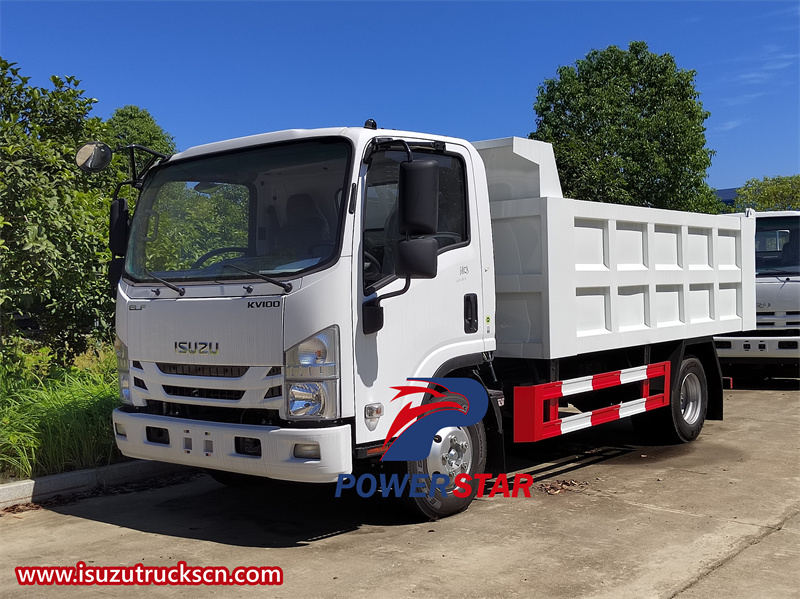

Isuzu KV100 sand delivery dump truck
Engine Performance: Powerful and Efficient
The sand dump truck is powered by the Isuzu 4HK1 engine, which has impressive power and torque output, allowing it to handle the toughest tasks with ease. The engine is designed to deliver maximum performance while maintaining optimal fuel efficiency, ensuring operators can get the job done quickly and cost-effectively.
Advanced technologies such as the engine's direct injection and turbocharging further enhance its power output and responsiveness, making it ideal for fast acceleration and maneuverability in tight spaces. In addition, the engine is designed to meet the latest emission standards, ensuring environmental protection and compliance with local regulations.

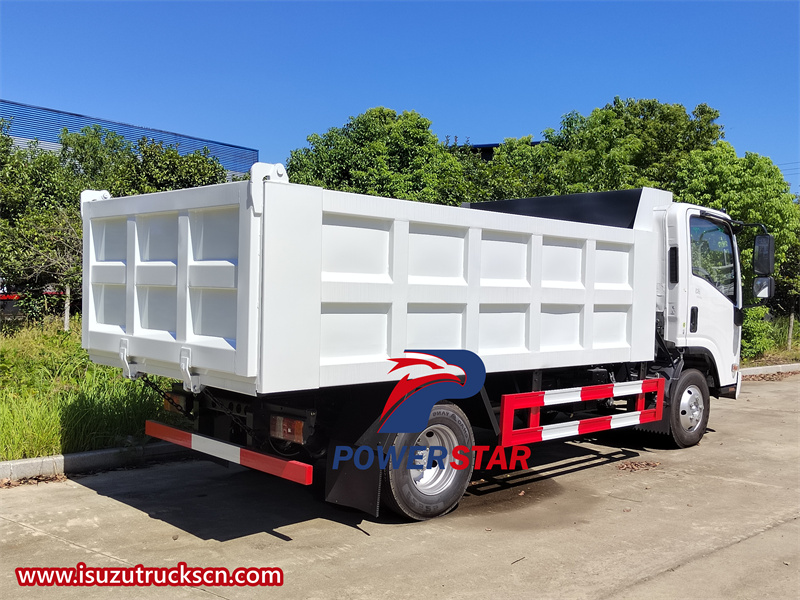

Isuzu KV100 light sand transport dumper
Hydraulic dump mechanism
The hydraulic dumping mechanism of the Isuzu KV100 dump truck adds convenience and efficiency to the sand and gravel transportation process, allowing materials to be unloaded quickly and easily at the desired location. This feature not only simplifies operation, but also minimizes physical labor and shortens turnaround time, thereby improving the overall productivity of the work site.

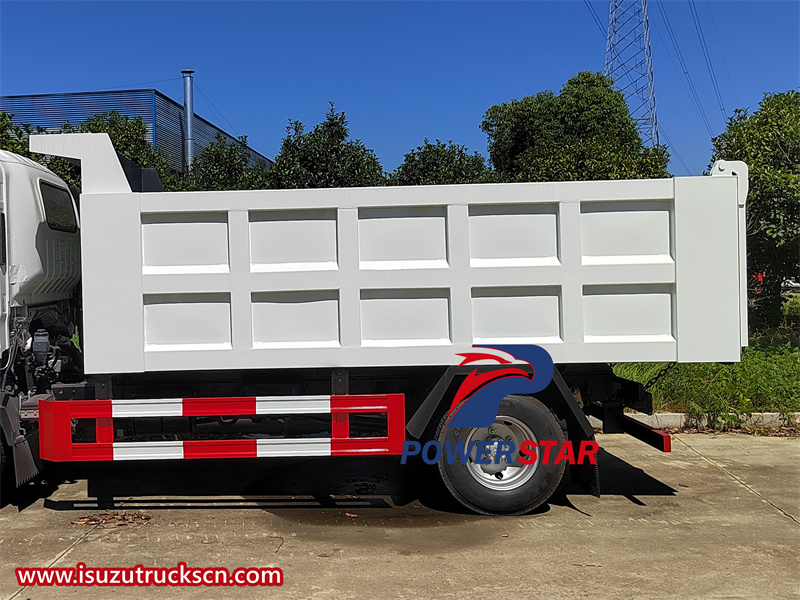

Isuzu KV100 4x2 5 ton sand transport tipper lorry truck
Strong adaptability to meet diverse needs
Multi-field application: Whether it is construction sites, road construction or mining, the Isuzu KV100 can demonstrate its excellent adaptability to meet the diverse operational needs of overseas users.
Customized service: Customized configuration options are provided, which can be personalized according to the actual needs of users, ensuring that the vehicle can perfectly match the user's working environment and needs.

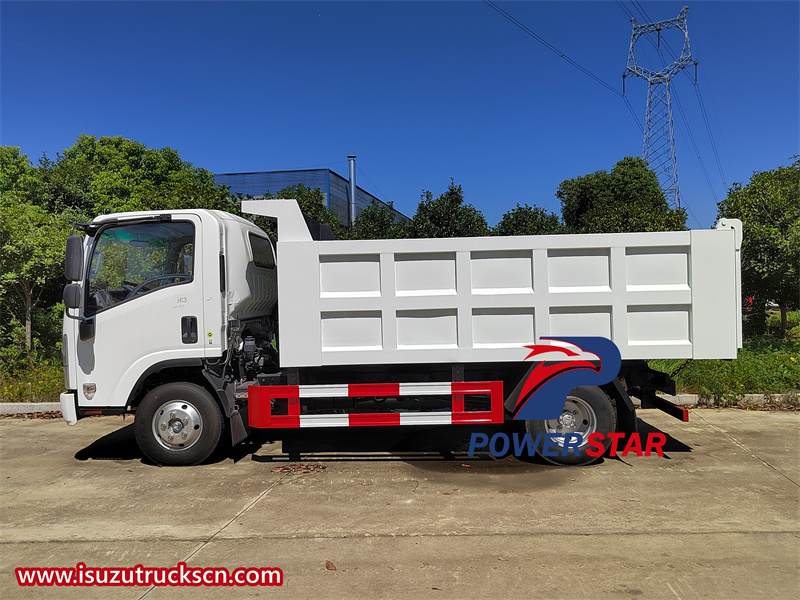

Isuzu dump truck for sand delivery

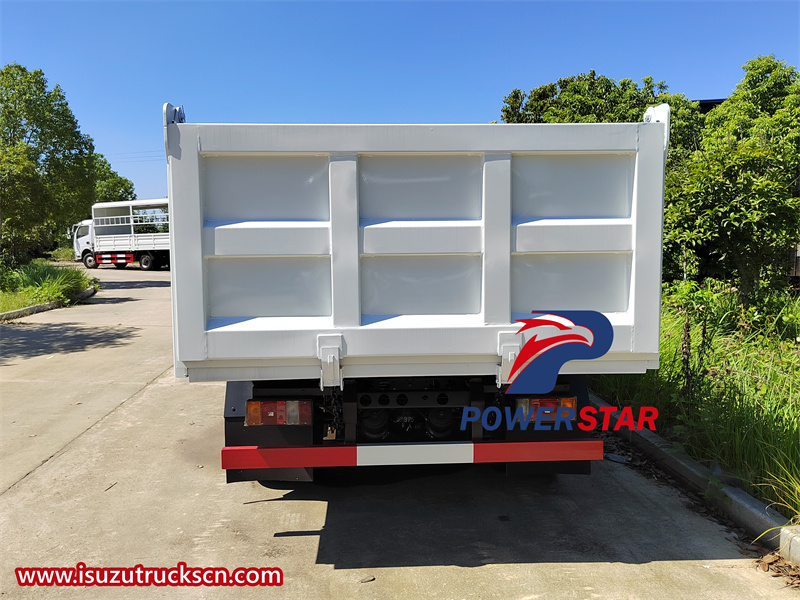

Isuzu KV100 5 ton tipper dump truck

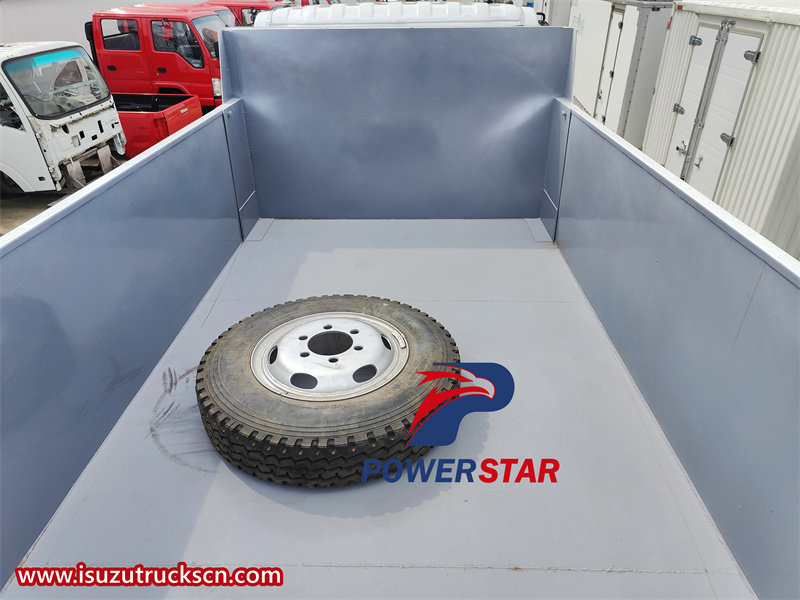

Dump box
