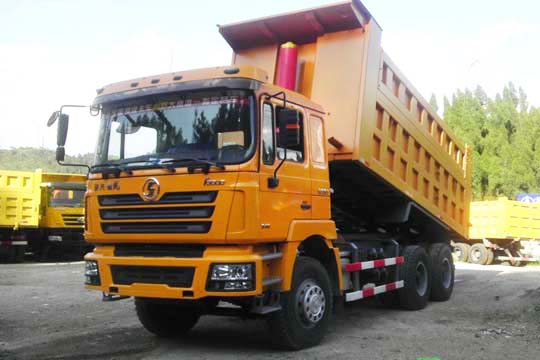

Shacman Delong F3000 10Wheels 6x4 35tons Dump Truck
|
Model |
SX3257DR384 |
|||
|
Overall Dimension（L*W*H） (mm) |
8600×2495×3450 |
|||
|
Wheel base (mm) |
3800+1450 |
|||
|
Curb weight （kg） |
12,500 |
|||
|
Dump Body |
5600x2500x1500mm |
|||
|
Payload (kg) |
12,000 |
|||
|
Max Speed：（km/h） |
≥80 |
|||
|
Engine
|
Model |
Diesel,WEICHAI Engine,CUMMINS Engine. |
||
|
Type |
water-cooled,4 strokes,6 cylinders in line,turbocharged |
|||
|
Horse Power |
340hp,380hp,420hp,460hp,460hp Max |
|||
|
Injection type |
Mechanical/Electrical |
|||
|
Fuel tanker capacity （L） |
400L square aluminum alloy fuel tank
|
|||
|
Clutch |
Model |
430, Single dry frictional disc，Hydraulic boosting |
||
|
Gearbox |
Model |
FULLER Technology, Manual Transmission, |
||
|
Brake system |
Service brake |
double circulation air brake system |
||
|
Assistant brake |
Engine exhaust brake |
|||
|
Park brake |
Potential springs pressing on middle and rear wheels |
|||
|
Steering system |
Model |
ZF technology |
||
|
Suspension System |
Rear Suspension |
Non-free standing stabilization Leaf spring |
||
|
Frame |
STEYR Technology variable width, variable sections |
|||
|
Front axle (Steyr Tech) |
Double-shoe pneumatic brake, non-driving steering axle |
|||
|
Middle and Rear axle
|
Double-shoe pneumatic brake, ductile casting casing, with hub redactor
|
|||
|
Tire |
315/80R22.5,12.00R22.5, 12.00R20,12.00-20 |
|||
|
Electrical system |
Battery |
2X12V/135Ah |
||
|
Generator |
28V-35A |
|||
|
Starter |
5.4Kw/24V |
|||
|
Cab
|
Long cab with sleeper （High roof with two sleeper),Can be tipped forwardly; |
|||
