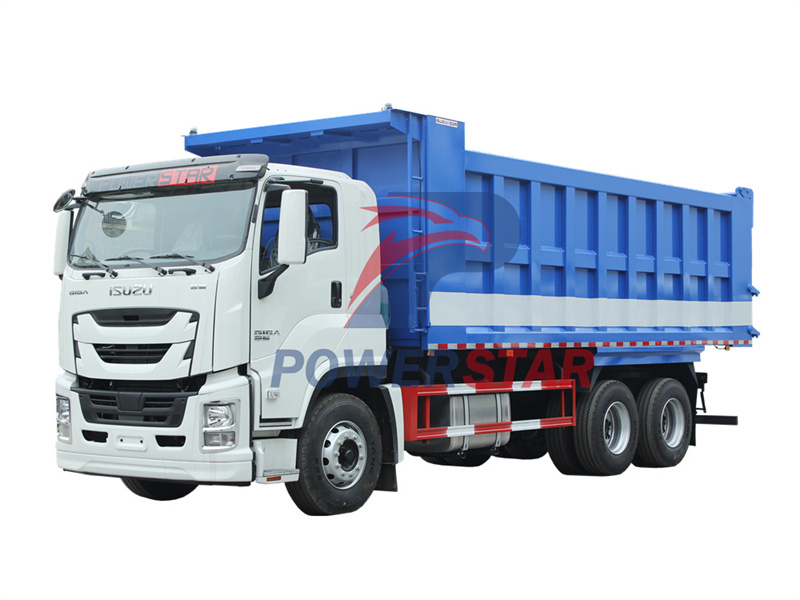

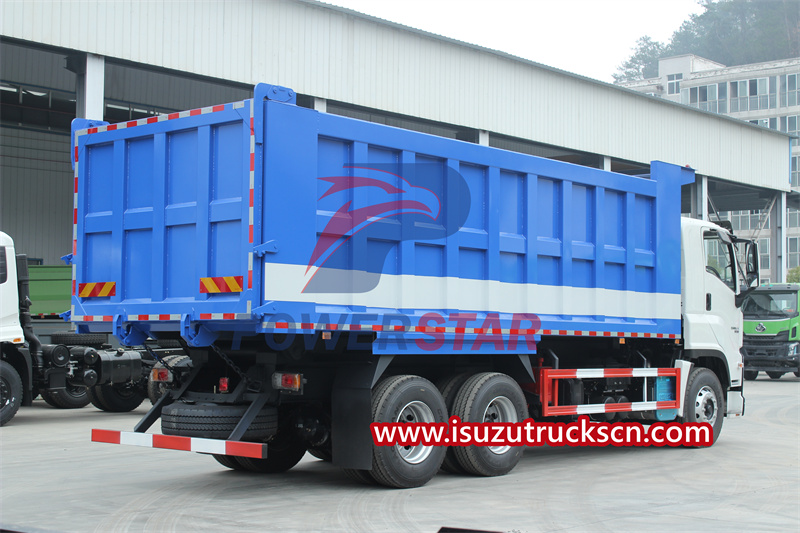

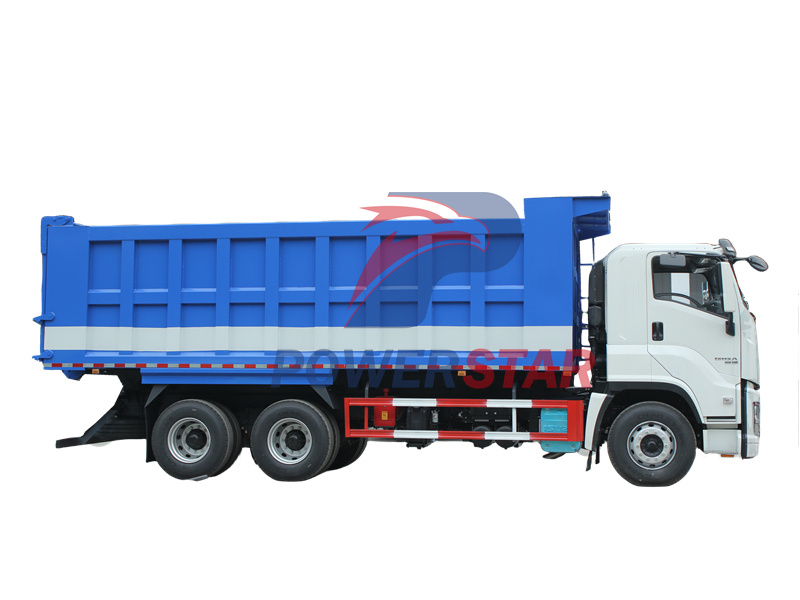

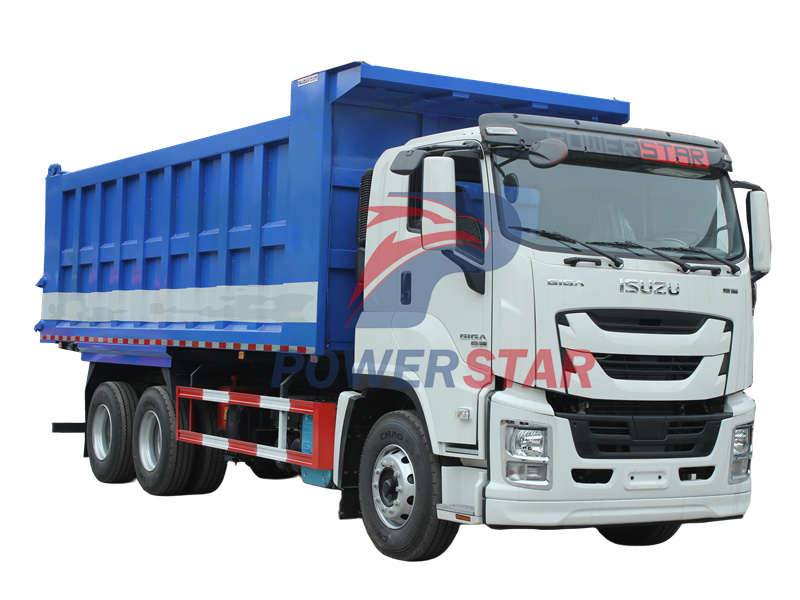

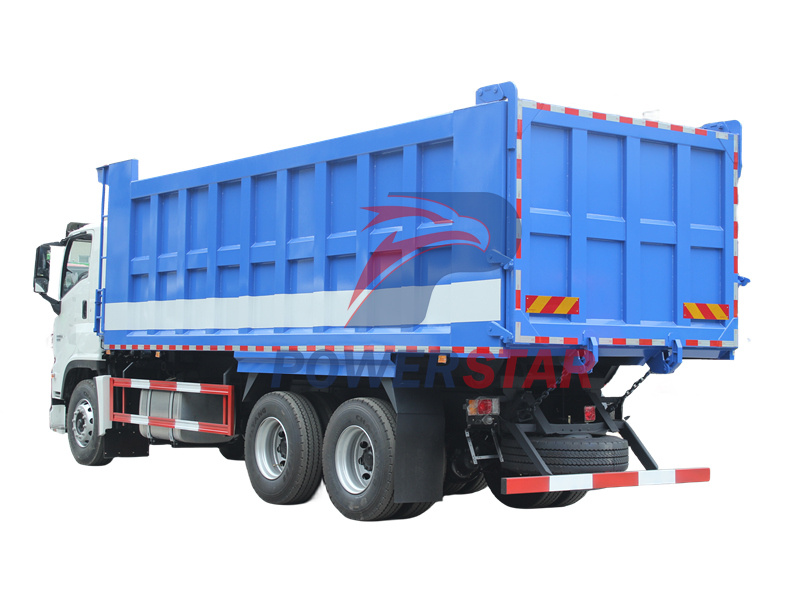

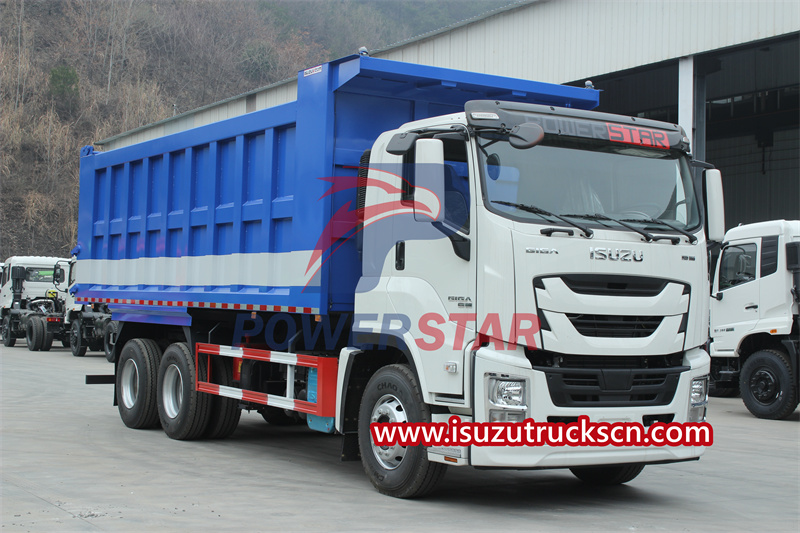

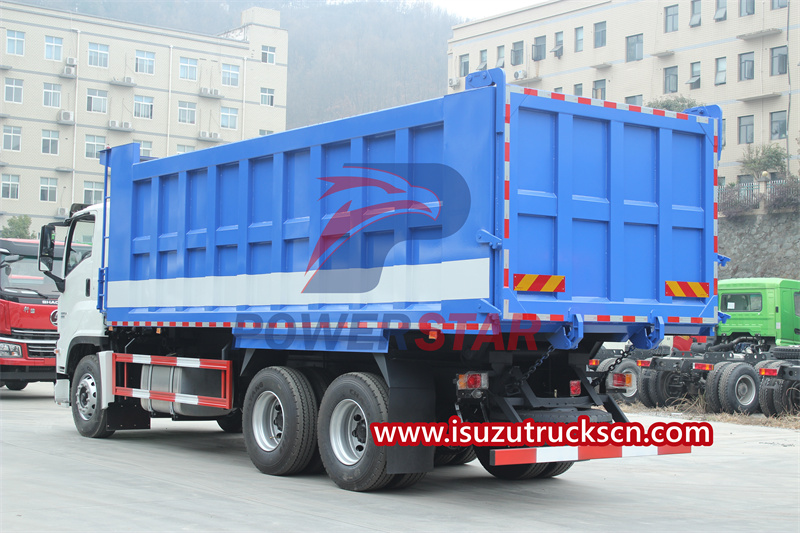

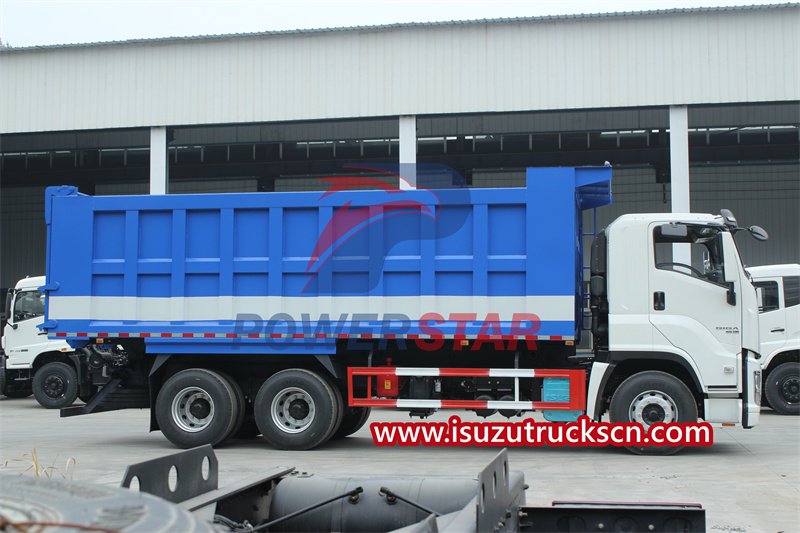

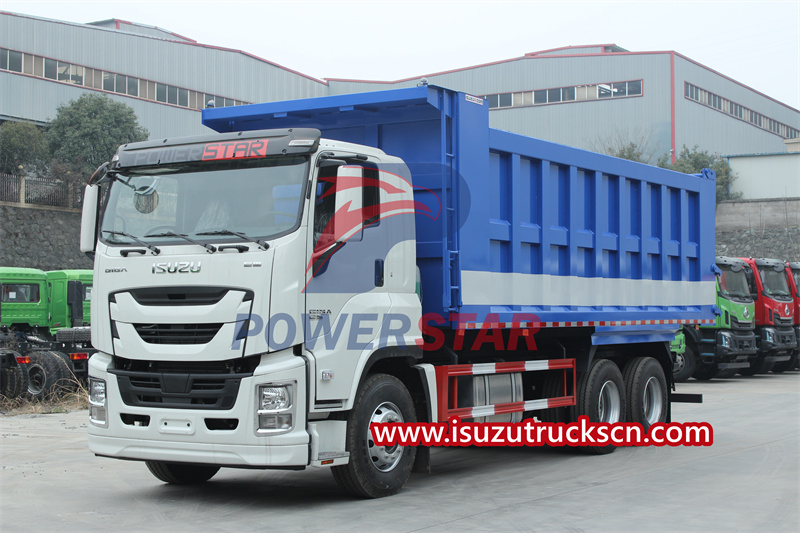

Isuzu GIGA Construction Dumper is a powerful and reliable dump truck specifically designed for construction and industrial waste disposal. With a robust construction and durable materials, it can withstand heavy loads and tough working conditions. The truck features a spacious cabin with two seats and one bed, providing comfort for the driver and the passenger. Its dimensions allow for easy maneuverability and flexibility on different terrains. Equipped with a 420 horsepower engine, the truck offers impressive performance and can reach a maximum speed of 105 km/h. The hydraulic control system ensures smooth and efficient operation, while the middle lifting device allows for easy dumping of materials.
Work capacity:
30 tonsTruck model:
PT305DSREngine power:
420hpEngine type:
Isuzu 6WG1-TCG52Axle drive:
4x2Gear box:
ZF 8 speed levers with 1 reverseRemarks:
Instruction waste dumpIsuzu heavy-duty construction dump truck is a versatile truck primarily used for transporting and processing industrial waste. Its performance characteristics are outstanding, first of all, its strong carrying capacity and stability, which can easily cope with the loading and transportation tasks of large amounts of garbage. Secondly, the vehicle adopts an advanced unloading system, which can quickly dump garbage and improve work efficiency. In addition, Isuzu heavy-duty construction dump truck also have flexible maneuverability and excellent road adaptability, making them suitable for working in various complex terrains and environments. This model also pays attention to energy conservation and environmental protection, and is equipped with an efficient engine and advanced emission control technology to reduce pollutant emissions. In short, the Isuzu heavy-duty construction dump truck has strong loading and unloading capabilities, efficient working performance, energy saving and environmental protection, and is an ideal choice in the field of industrial waste disposal.
Product Specifications:
|
Description |
Isuzu GIGA Construction Dumper |
|
|
Item |
Powerstar dump truck |
|
|
Model |
Isuzu GIGA |
|
|
Cabin |
Two seats and one bed |
|
|
whole vehicle main
|
Overall dimensions (L*W*H)mm |
9400*2680*3650 mm |
|

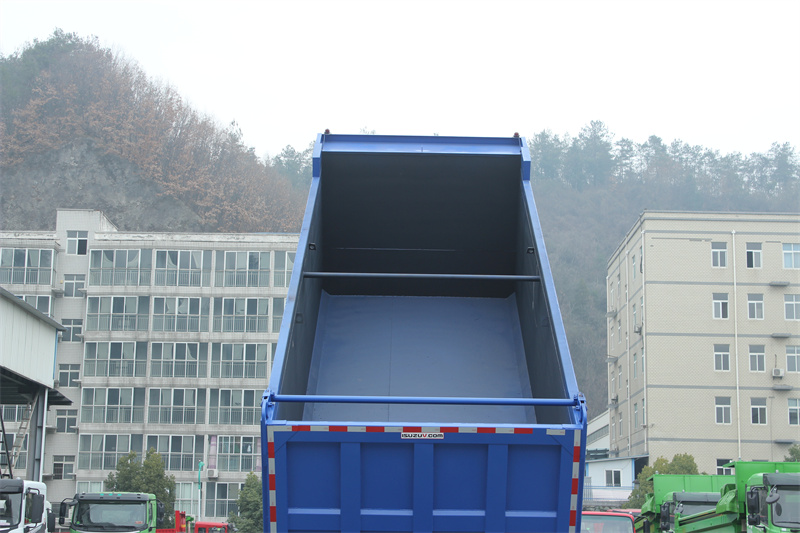

Dimensions of dump body (L*W*H)mm |
6000*2400*1500 mm |
|
|
Driving type |
Left hand drive 6×4 |
|
|
Wheel base |
4565+1370 |
|
|
Weight data |
Gross weight (kg) |
34,000 |
|
Kerb weight(kg) |
15,440 |
|
|
Person in cab (persons) |
3 |
|
|
whole vehicle main |
Max.speed(km/h) |
105 |
|
Max.slope of climb(%) |
25 |
|
|
Min.turning radius (m) |
7.5 |
|
|
Engine |
Engine model |
6WG1-TCG52 |
|
Engine type |
Vertical, water-cooled, six-stroke, |
|
|
Emission standard |
Euro 5,6 |
|
|
Displacement (L) |
15.681L |
|
|
Rated power (KW) |
420 hp |
|
|
Max torque (N.m/rpm) |
2060N.M |
|
|
Steering gear type |
Power steering |
|
|
Brake system |
Service brake and boosting type |
Air brake |
|
Parking brake |
Central drum brake |
|
|
Auxiliary brake |
Air brake |
|
|
Tyre size |
315/80R22.5 |
|
|
Electric system |
Rated voltage |
24V |
|
Battery |
100Ah |
|
|
Dump Performance |
Loading Capacity |
25 tons |
|
Body Material |
High performance carbon |
|
|
Plate Thickness |
Front/Side are 6mm |
|
|
Rear/Side are 8mm |
||
|
Control System |
Hydraulic |
|
|

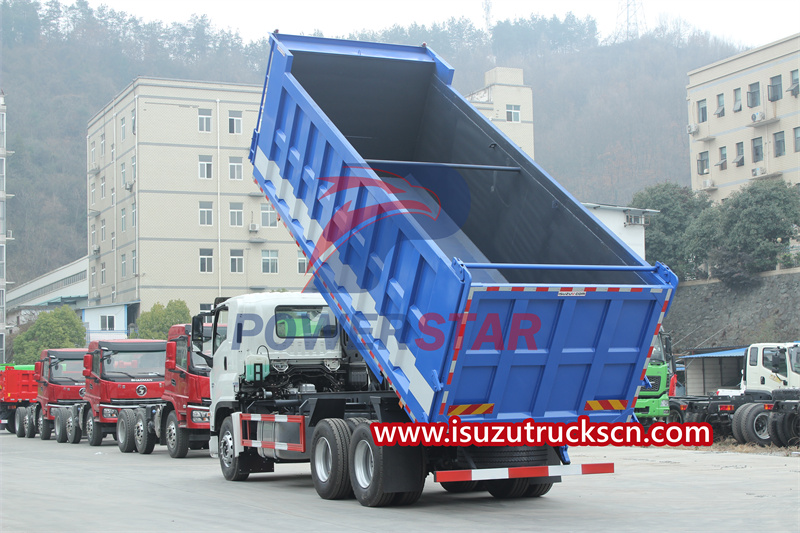

Discharging System |

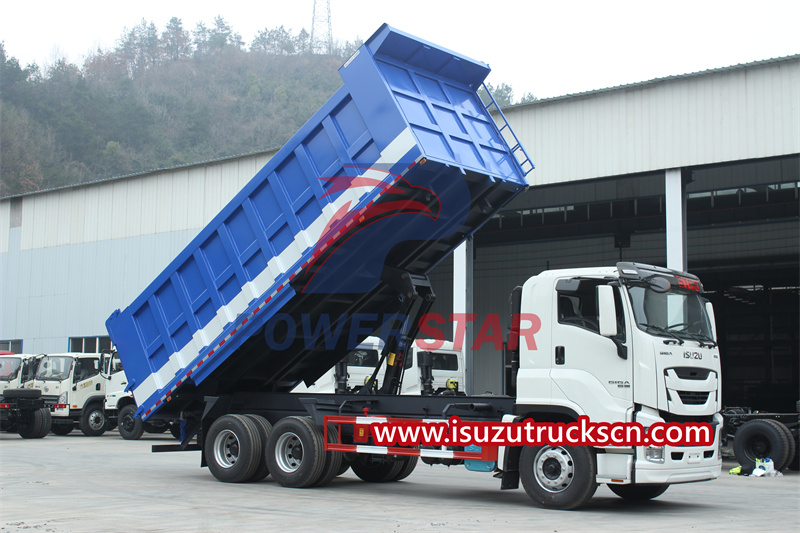

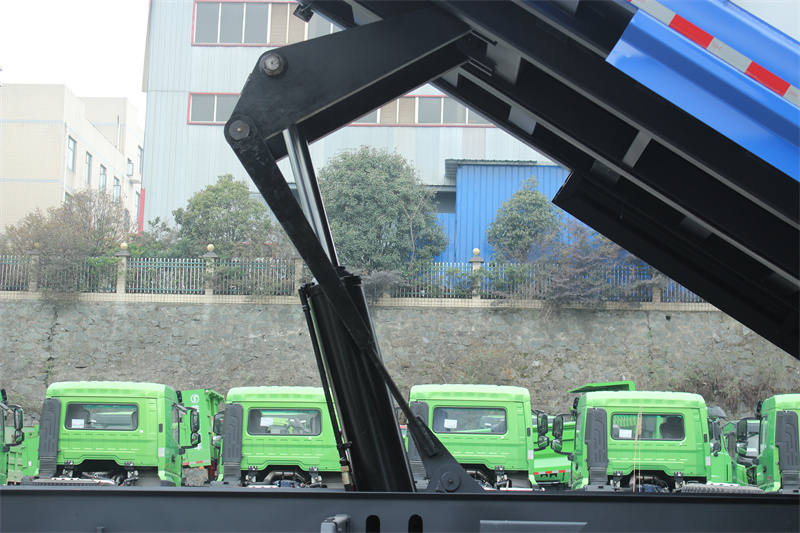

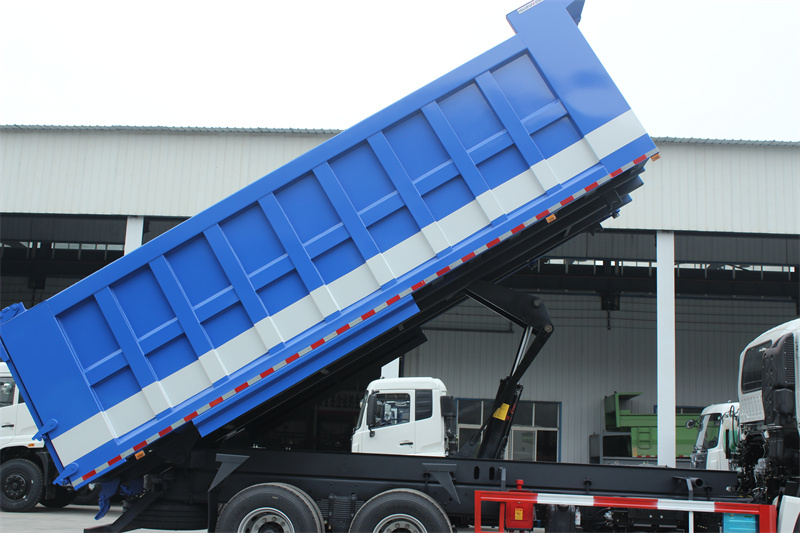

Middle lifting device |
|
|
Lifting Time |
Tipping 45 degree |
|
|
Lowering Time |
35 s |
|
|

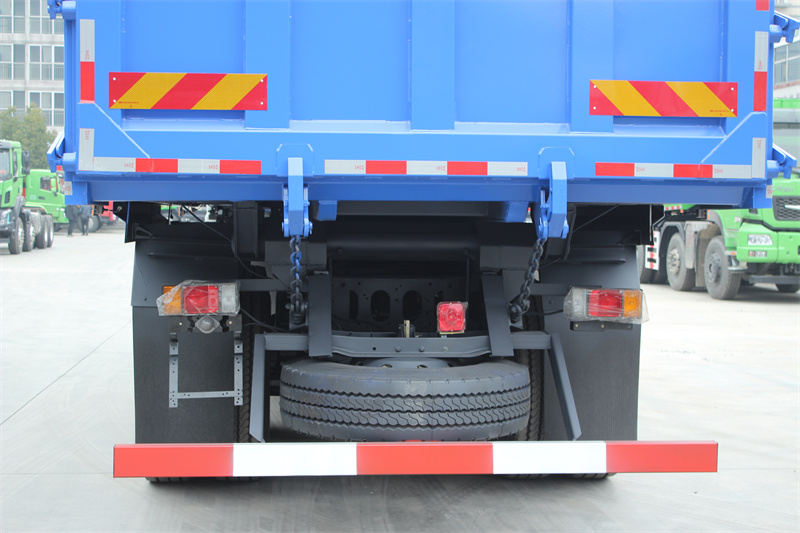

Tailgate |
25 s |
|
|
Drop side |
Auto release |
|
|
Painting |
Detachable |
|
|
Color & Logo |
Two primers,and one final paint coating |
|
|
Loading Capacity |
According to wish |
|
|
Factory Standard |
Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|
As a professional Isuzu dump truck export manufacturer, we provide good after-sales service guarantee which is a reflection of quality:
1.Regular maintenance: We will provide a regular maintenance plan list to ensure that the customer's truck remains in good working order. Customers can follow a checklist to regularly inspect key parts of their trucks to ensure they are in top condition and replace any worn or aged parts promptly.
2.Training and Support: We will provide comprehensive training and support to ensure customers operate and maintain their Isuzu dump trucks correctly. Our professional team will provide detailed operational training and answer any questions customers may have.
3.Spare parts supply: We will ensure that customers have easy access to original spare parts and accessories. We have a complete spare parts supply chain system that can provide the required parts in a timely manner. Our spare parts team will ensure customers have easy access to original spare parts to ensure vehicle performance and durability.
4.Cross-border express delivery service: In order to provide spare parts support more conveniently, we will establish cooperative relationships with express delivery companies and provide cross-border express delivery services. This allows customers to conveniently order and obtain the spare parts they need, no matter how far away they are.
