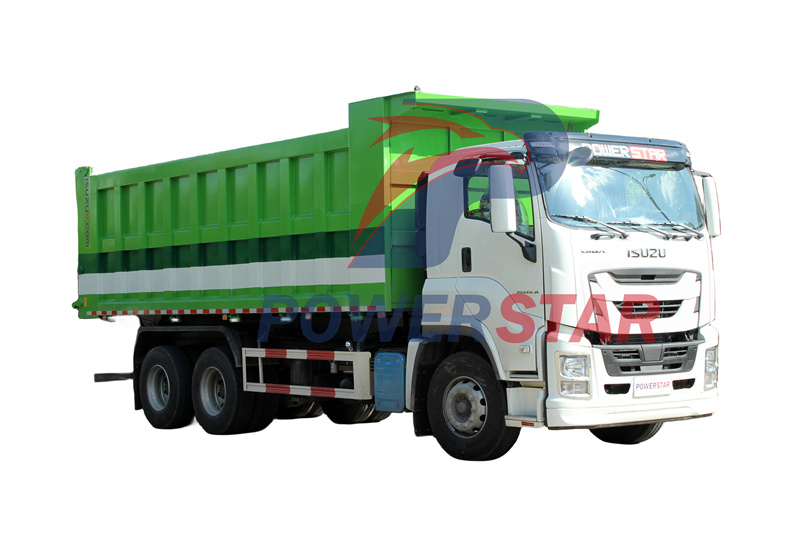

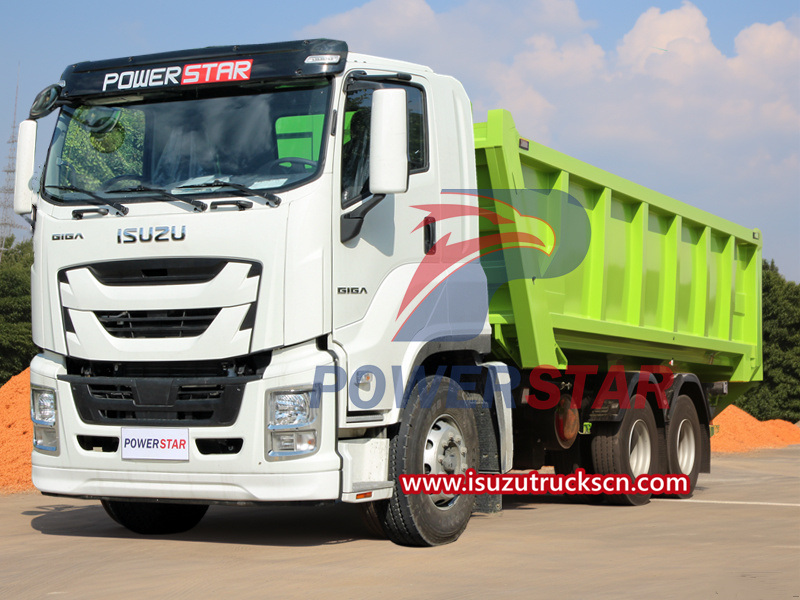

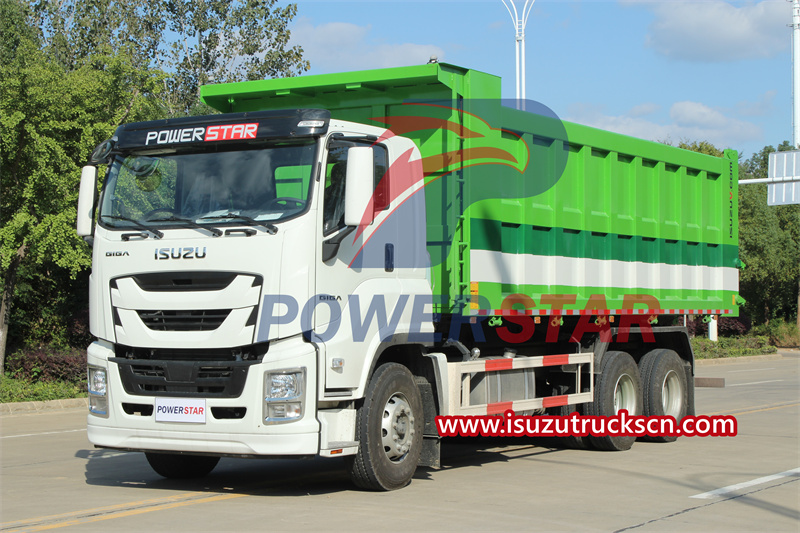

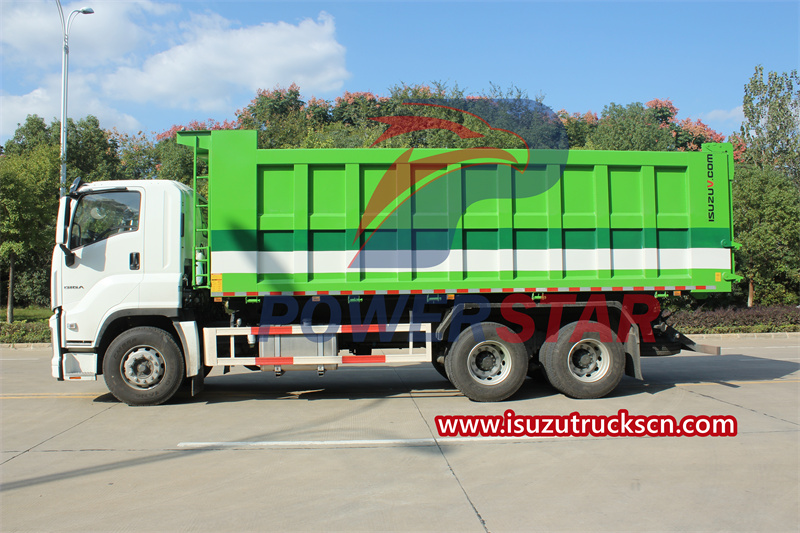

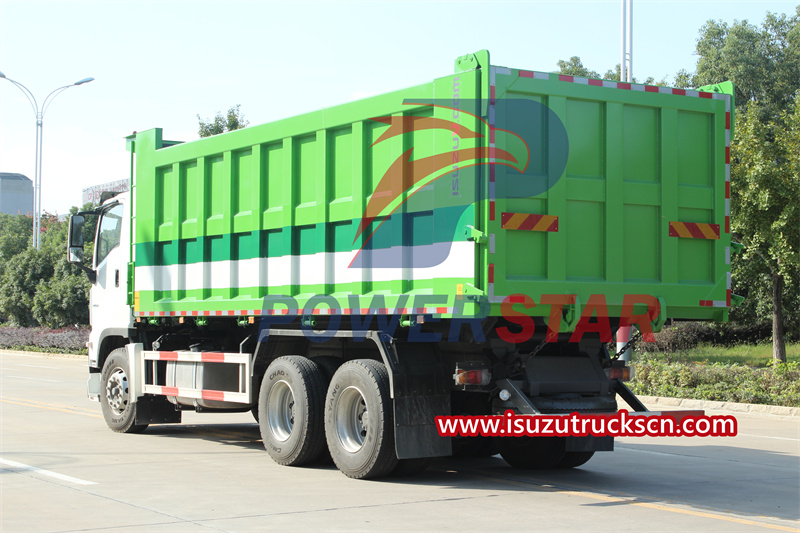

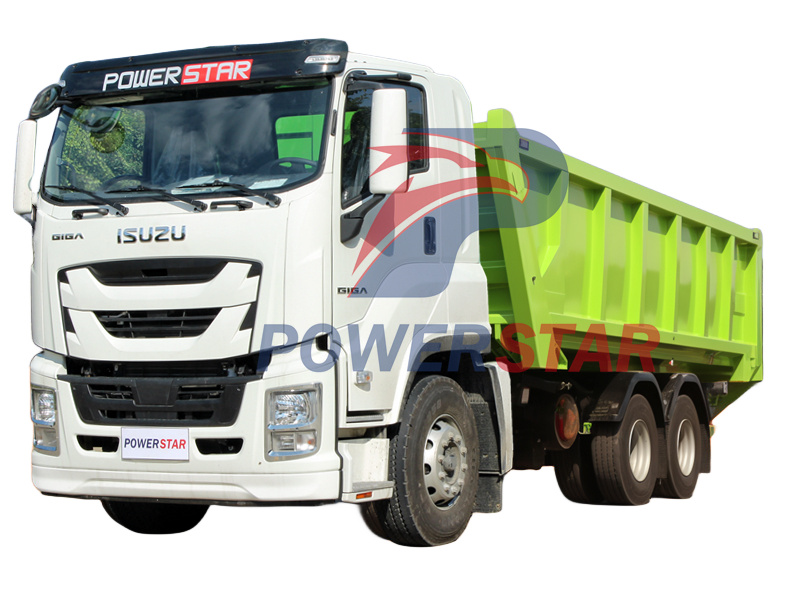

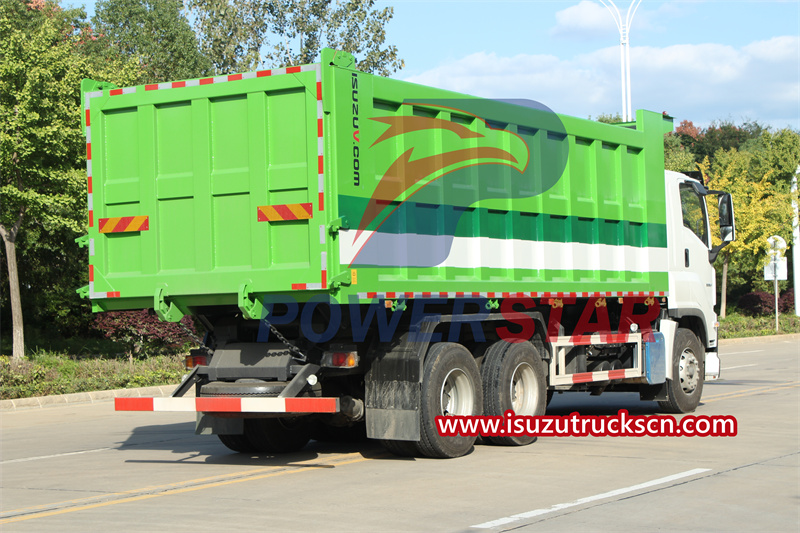

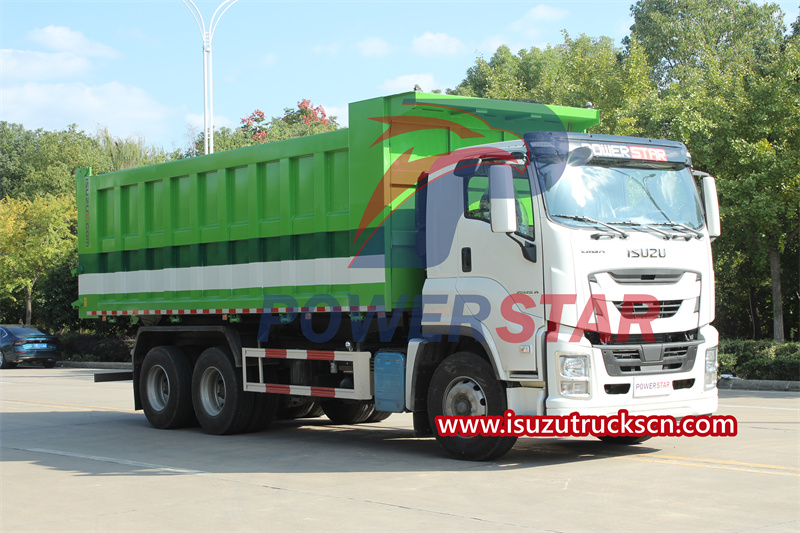

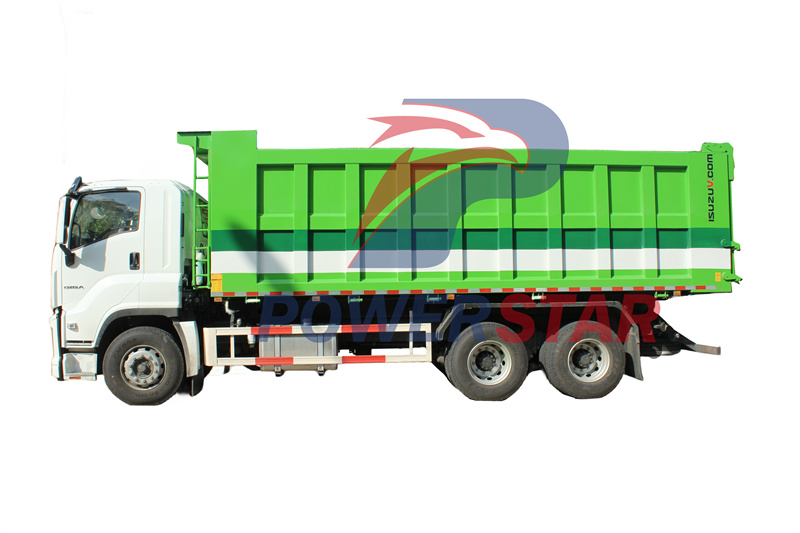

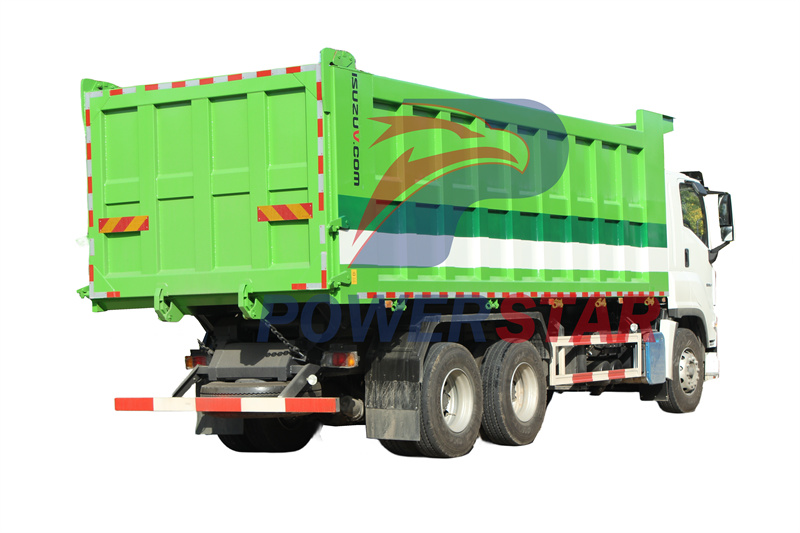

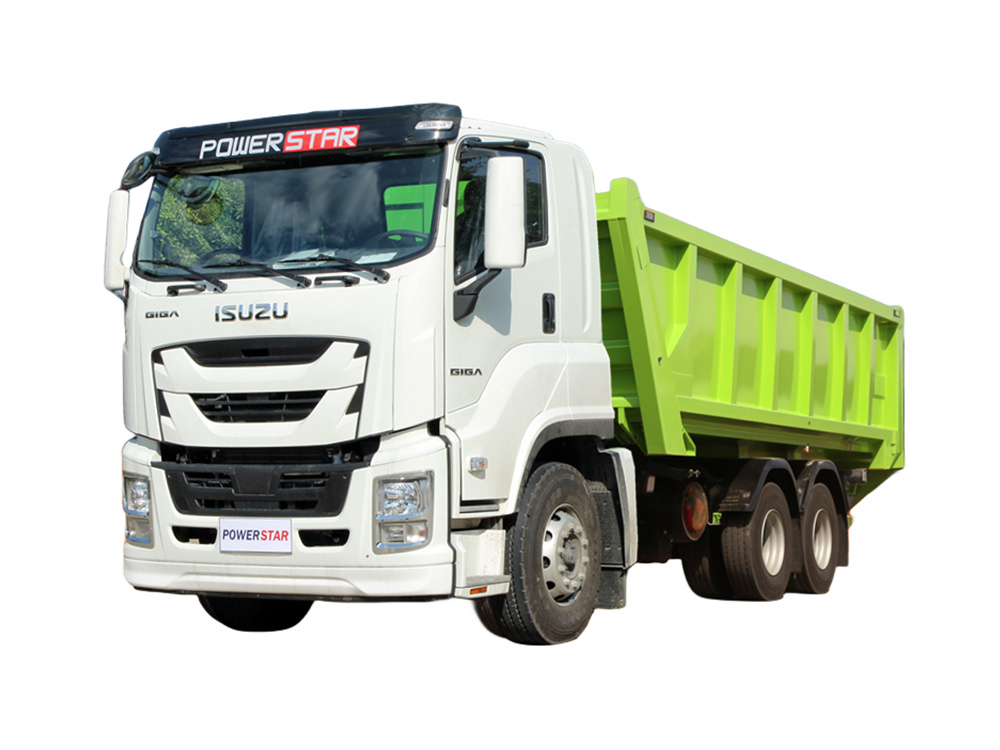

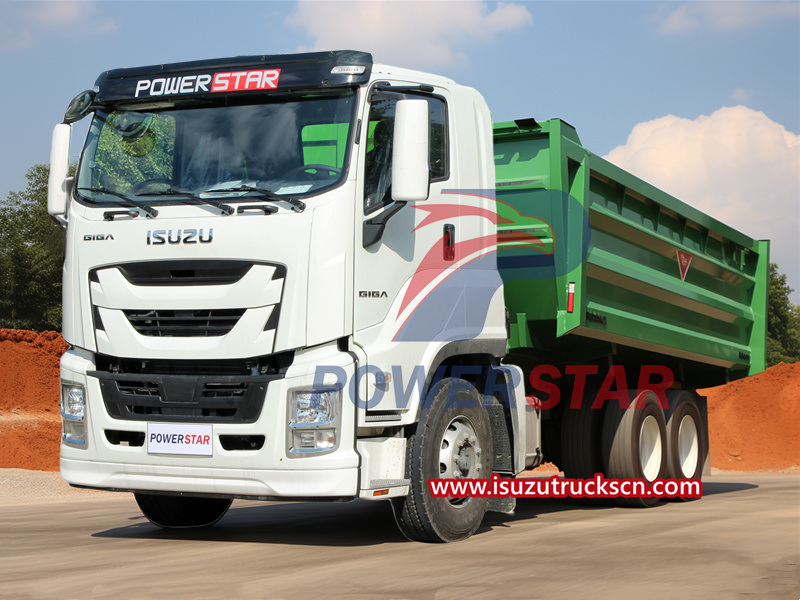

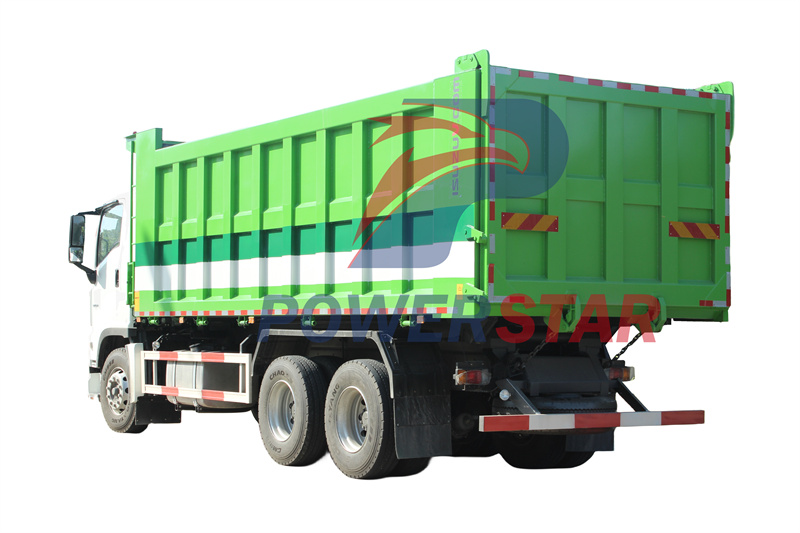

The Isuzu GIGA Construction Waste Dump Truck is a high-horsepower model. The 6WG1-TCG52 engine is a vertical, water-cooled, six-stroke, turbocharged and intercooled engine with a rated power of 420 horsepower. The steering gear adopts a hydraulic power-assist system. , the braking system is air brake and supercharged type, the parking brake is central drum brake, and the auxiliary brake is air brake. In terms of self-unloading performance, the vehicle has a loading capacity of 25 tons and uses a cabin made of high-performance carbon materials. The thickness of the front/side panels is 6 mm and the thickness of the rear/side panels is 8 mm.
Work capacity:
25tonsTruck model:
PT3050DAYEngine power:
420hpEngine type:
Isuzu 6WG1-TCG52Axle drive:
4x2Gear box:
ZF 8 speed levers with 1 reverseRemarks:
Instruction waste dumpThe Isuzu GIGA construction waste dump truck is a truck specially used in the field of construction waste disposal. Its main purpose is for transporting and unloading various waste and garbage generated at construction sites. The truck has excellent load-carrying capacity and can carry up to 25 tons of garbage and waste, reducing transportation times and costs and improving work efficiency. Its spacious body size and flexible unloading system enable easy loading and unloading operations, making it suitable for various sites and working environments. The truck also offers an optional bin lift system for easy loading and unloading of bins of different capacities and sizes. Whether at large construction sites, urban construction, road construction or garbage disposal sites, Isuzu GIGA construction waste dump trucks can reliably complete the cleaning and transportation tasks of various garbage and wastes, providing an important contribution to environmental protection and garbage work support.
Technical Parameters:
|
Description |
Isuzu GIGA Construction Dumper |
|
|
Item |
Powerstar dump truck |
|
|
Model |
Isuzu GIGA |
|
|
Cabin |
Two seats and one bed |
|
|
whole vehicle main
|
Overall dimensions (L*W*H)mm |
9400*2680*3650 mm |
|

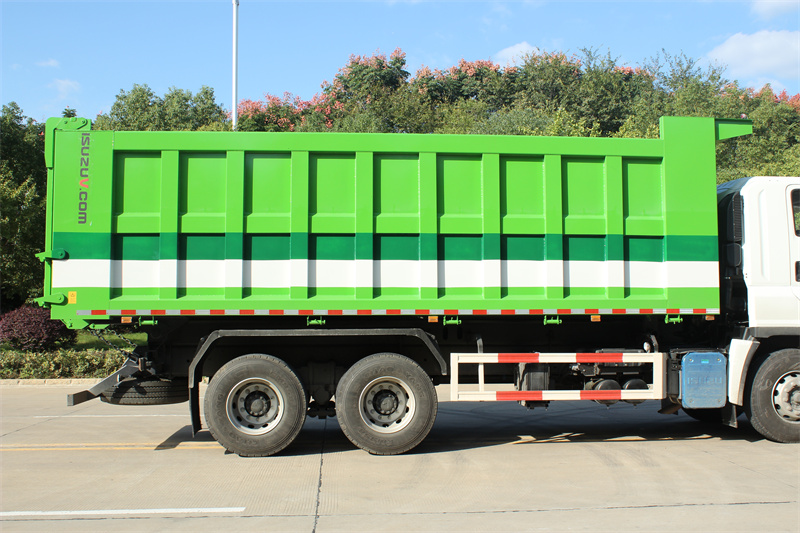

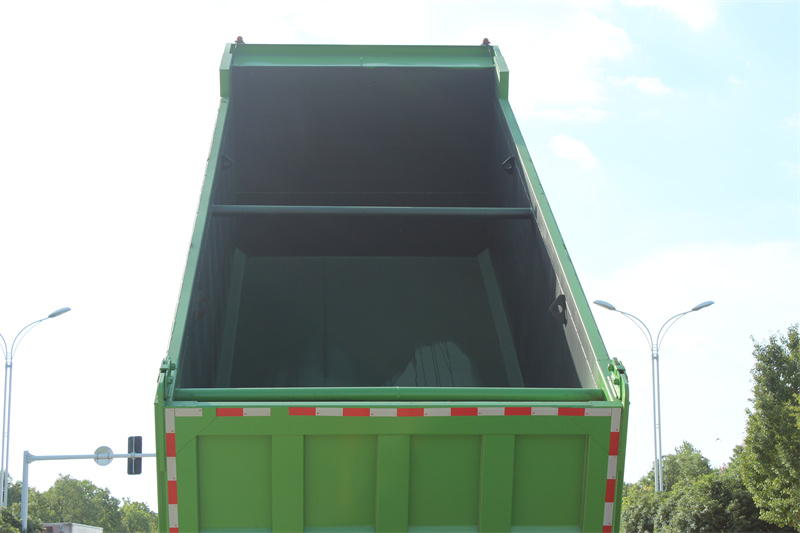

Dimensions of dump body (L*W*H)mm |
6000*2400*1500 mm |
|
|
Driving type |
Left hand drive 6×4 |
|
|
Wheel base |
4565+1370 |
|
|
Weight data |
Gross weight (kg) |
34,000 |
|
Kerb weight(kg) |
15,440 |
|
|
Person in cab (persons) |
3 |
|
|
whole vehicle main |
Max.speed(km/h) |
105 |
|
Max.slope of climb(%) |
25 |
|
|
Min.turning radius (m) |
7.5 |
|
|
Engine |
Engine model |
6WG1-TCG52 |
|
Engine type |
Vertical, water-cooled, six-stroke, |
|
|
Emission standard |
Euro 5,6 |
|
|
Displacement (L) |
15.681L |
|
|
Rated power (KW) |
420 hp |
|
|
Max torque (N.m/rpm) |
2060N.M |
|
|
Steering gear type |
Power steering |
|
|
Brake system |
Service brake and boosting type |
Air brake |
|
Parking brake |
Central drum brake |
|
|
Auxiliary brake |
Air brake |
|
|
Tyre size |
315/80R22.5 |
|
|
Electric system |
Rated voltage |
24V |
|
Battery |
100Ah |
|
|
Dump Performance |
Loading Capacity |
25 tons |
|
Body Material |
High performance carbon |
|
|
Plate Thickness |
Front/Side are 6mm |
|
|
Rear/Side are 8mm |
||
|
Control System |
Hydraulic |
|
|
Discharging System |
Middle lifting device |
|
|
Lifting Time |
Tipping 45 degree |
|
|
Lowering Time |
35 s |
|
|
Tailgate |
25 s |
|
|
Drop side |
Auto release |
|
|
Painting |
Detachable |
|
|
Color & Logo |
Two primers,and one final paint coating |
|
|
Loading Capacity |
According to wish |
|
|
Factory Standard |
Heightened dump body Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
|
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
|
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
|
As a professional truck manufacturer, the manufacturing level of Isuzu large dump trucks is reflected in the following five aspects:
1. Powerful load-carrying capacity: Isuzu large dump trucks have a load-carrying capacity of up to 25 tons. They use cabins made of high-strength carbon materials to ensure stability and durability during lifting and transportation.
2. Advanced engine technology: This model is equipped with a 6WG1-TCG52 engine, which uses advanced turbocharging and intercooling technology. It has strong power, meets European 5 and 6 emission standards, and provides a power output of up to 420 horsepower.
3. Efficient unloading system: The Isuzu large dump truck adopts an advanced hydraulic control system and is equipped with a middle lifting device. The lifting time is only 45 seconds, the lowering time is 35 seconds, and the tailgate unloading time is 25 seconds, ensuring fast and efficient unloading. operate.
4. Safe and reliable braking system: This model is equipped with reliable air brake and supercharged service brake system, and central drum parking brake to ensure safe parking under various road conditions. At the same time, an optional auxiliary braking system is also provided to further enhance driving safety.
5. Personalized configurations and optional equipment: Isuzu large dump trucks provide a variety of optional configurations and additional equipment, such as trash can lifting systems, rear-view cameras, etc., which can be customized according to the specific needs of customers to meet requirements of different industries and applications.
