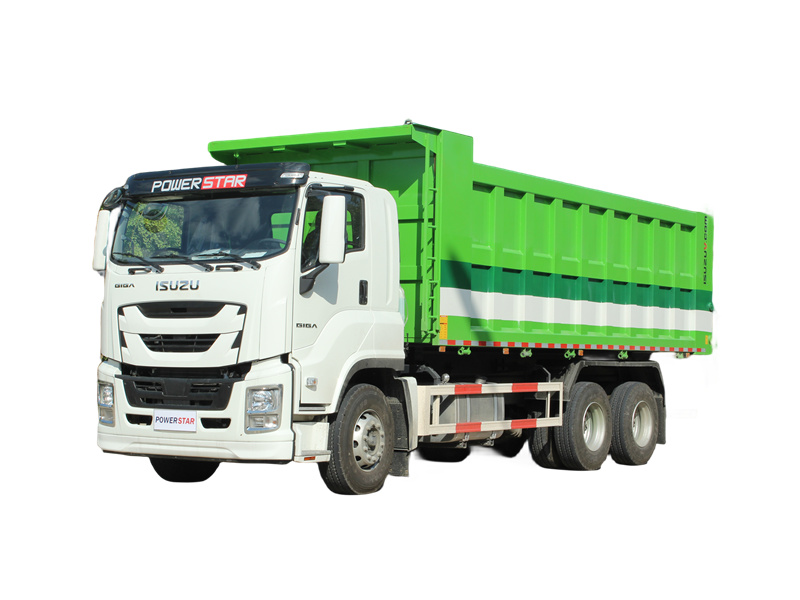

Factory supplying ISUZU GIGA/VC61 6×4 Tipper Lorry, with GVW 33 tons and payload 30 tons, the cargo body capacity is up to 32CBM. The ISUZU GIGA dump truck is equipped with ISUZU 420HP diesel engine, FAST 12-speed gearbox and customized hydraulic middle lifting system.
Order(MOQ):
1Work capacity:
25 tonsTruck model:
PT5250GZXEngine power:
420HPEngine type:
6UZ0-TCG50Axle drive:
6×4Gear box:
FAST 12-speed, manualRemarks:
Middle lingting cylinder, customized colorBest seller ISUZU GIGA 6×4 dump truck with 30CBM cargo box
A dump truck GIGA ISUZU (also know as Isuzu Giga tipper truck, Giga Isuzu tipper lorry) is a heavy-duty vehicle used to transport loose materials such as gravel, sand, soil or debris. It is equipped with a hydraulic lift mechanism that tilts the cargo box to dump cargo out of the rear end. They are commonly used in construction, mining, waste transportation and other industries where large materials must be transported efficiently.
POWERSTAR ISUZU GIGA tipper trucks are commonly used on construction sites to transport gravel, sand or earth for use in building roads, highways or foundations. They are also used in mining operations to transport extracted minerals or rocks from the mining site to processing plants or storage areas. In addition, they can be used for household waste transportation.
 |
Customized design to meet customers’ unique needs
|
|
|
Max. cargo box can be up to 32CBM
|
|
|
Different configurations available
|
|
|
ISUZU chassis, powerful and reliable
|
|
|
English operation manual and spare parts manual
|
|
Dimensions |
Overall size (L×W×H) |
9800×2550×3450mm |
|
Cargo body size (L×W×H) |
7000×2500×1800 |
|
|
Wheelbase |
3800+1450mm |
|
|
Wheel tread (Front/Rear) |
2060/1860mm |
|
|
Min. ground clearance |
285mm |
|
|
Weight |
Kerb mass |
15000kg |
|
Gross vehicle weight |
33000kg |
|
|
Rated loading capacity |
30000kg |
|
|
Performance |
Max. travel speed |
90km/h |
|
Min. turning diameter |
15m |
|
|
Max. grade ability |
32% |
|
|
Approach angle |
24° |
|
|
Departure angle |
23° |
|
|
Fuel consumption |
(48L/100 km) |
|
|
Engine |
Brand |
ISUZU |
|
Model |
6WG1-TCG52 |
|
|
Type |
4-stroke direct injection, 6-cylinder in-line with water cooling, turbo-charging and inter-cooling, electronic control |
|
|
Horse Power（HP) |
420 HP |
|
|
Emission standard |
Euro V (15.681L) |
|
|
Chassis |
Gearbox |
FAST 12-shift Manual, 12-speed forward, 2 reverse gears |
|
Clutch |
Reinforced diaphragm clutch, diameter 380mm |
|
|
Steering Gear |
Power steering, hydraulic steering with power assistance |
|
|
Fuel tank (L) |
400 |
|
|
Tire |
315/80R22.5 tire 11 pcs including one spare tire |
|
|
Dump body |
Material |
Carbon steel, side 6mm thickness, bottom 8mm |
|
Lifting system |
Hydraulic cylinder, front/middle lifting |
r

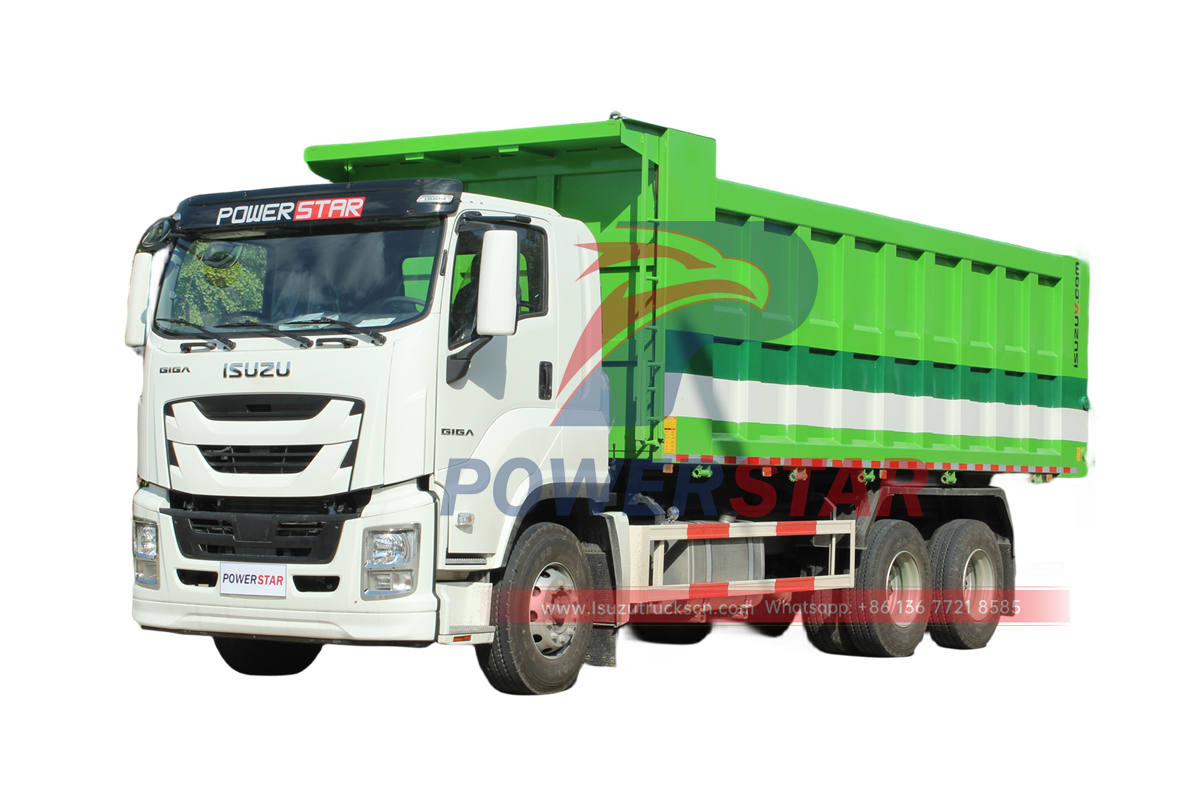

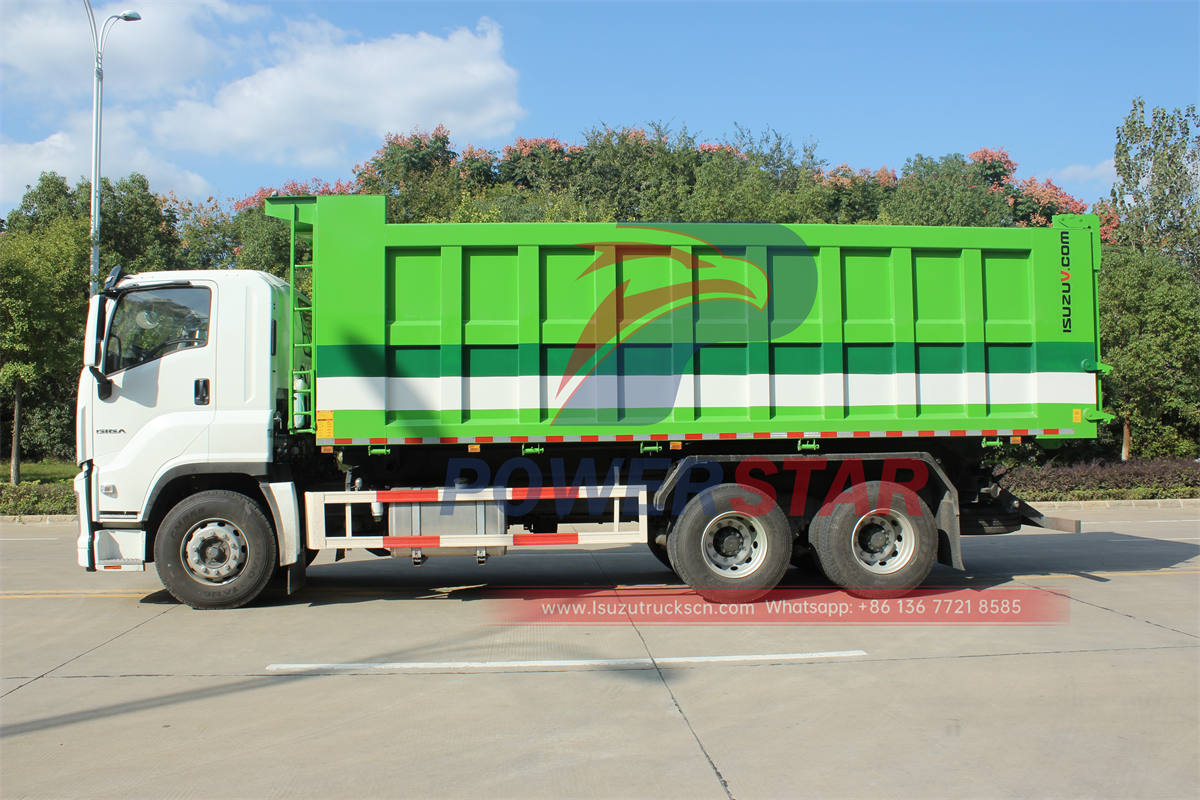

Factory outlet ISUZU GIGA 420HP tipper truck
ISUZU GIGA dumper truck for garbage transportation

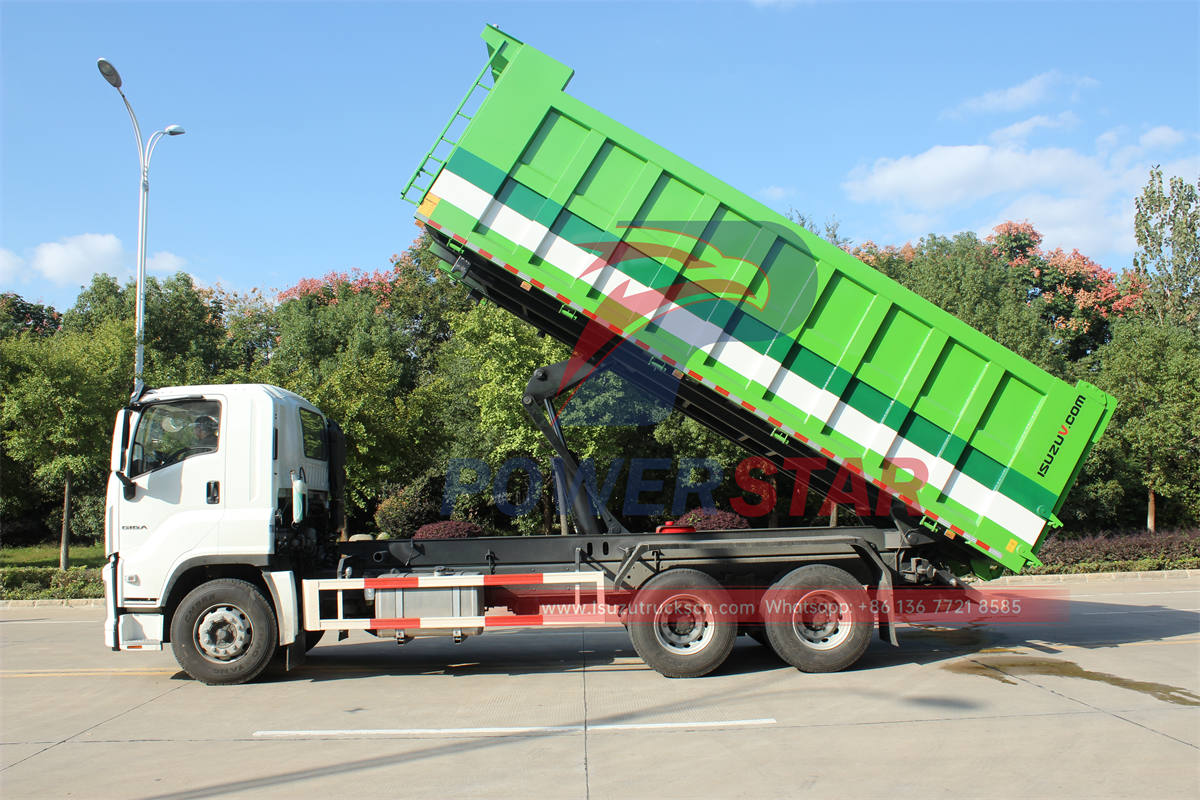

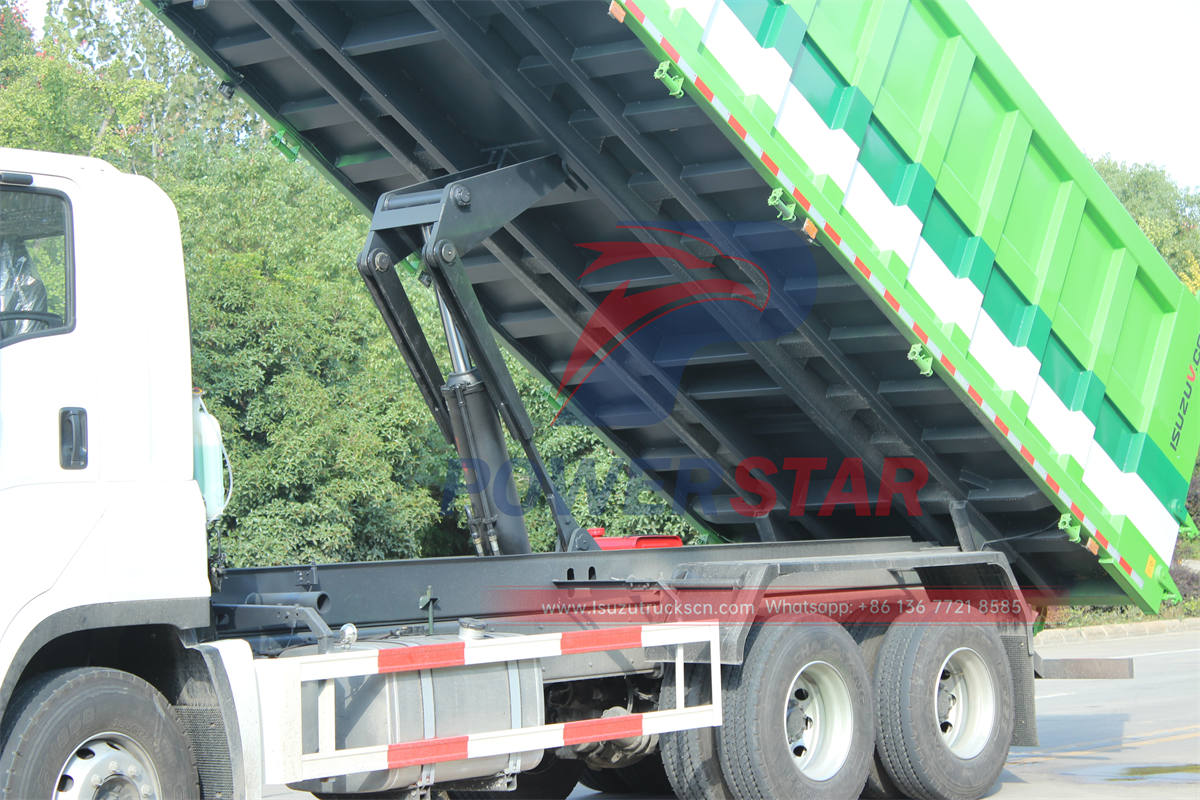

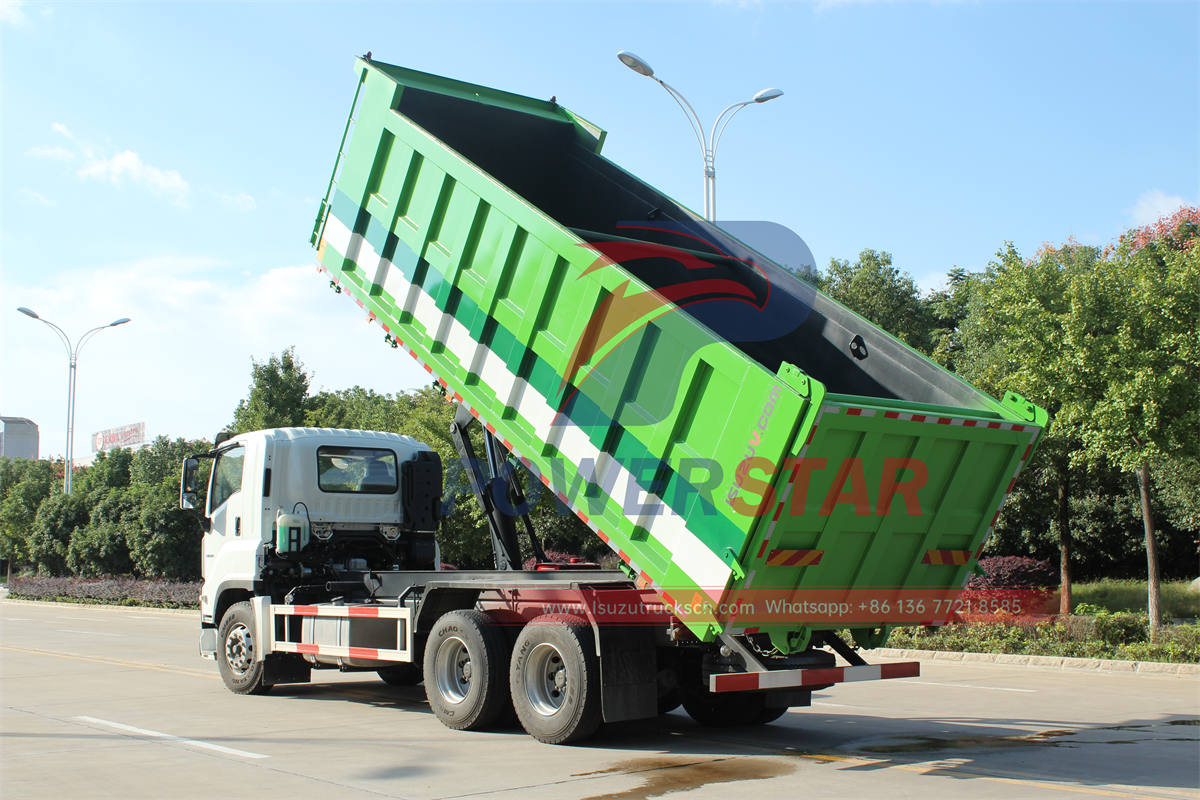

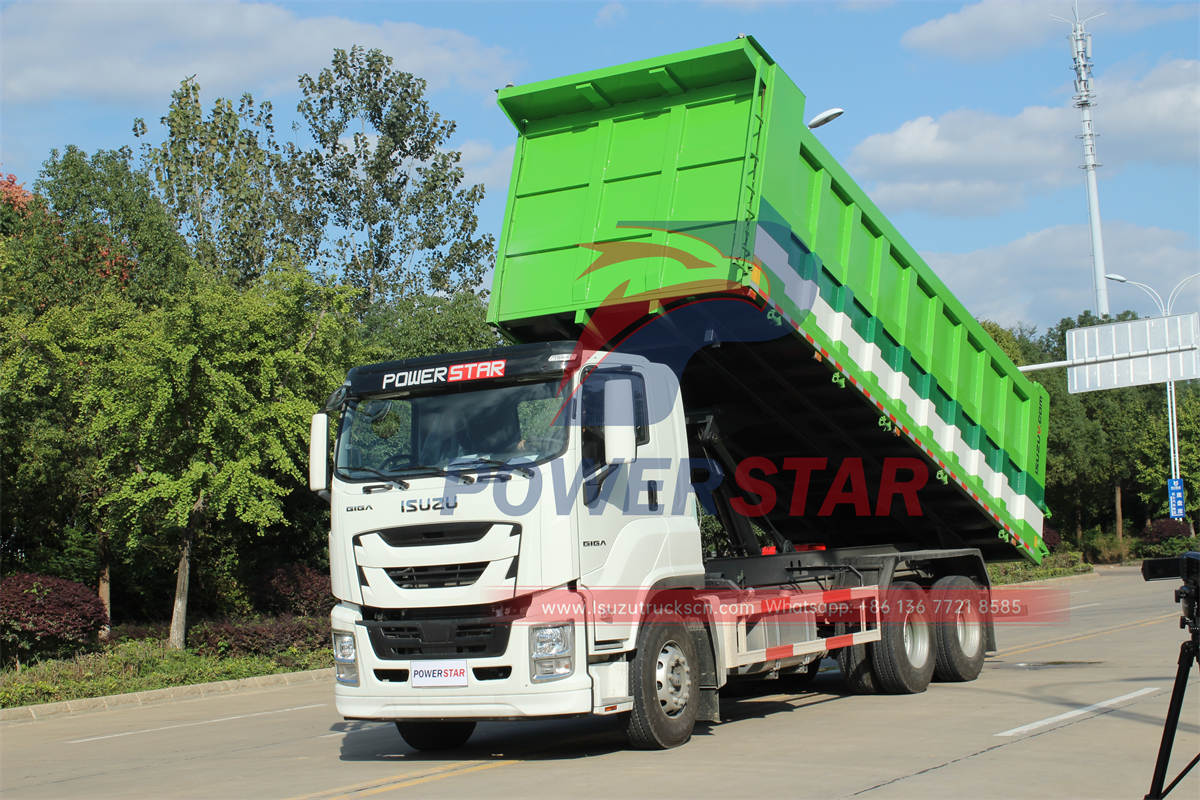

ISUZU GIGA 33CBM dumping truck with middle lifting

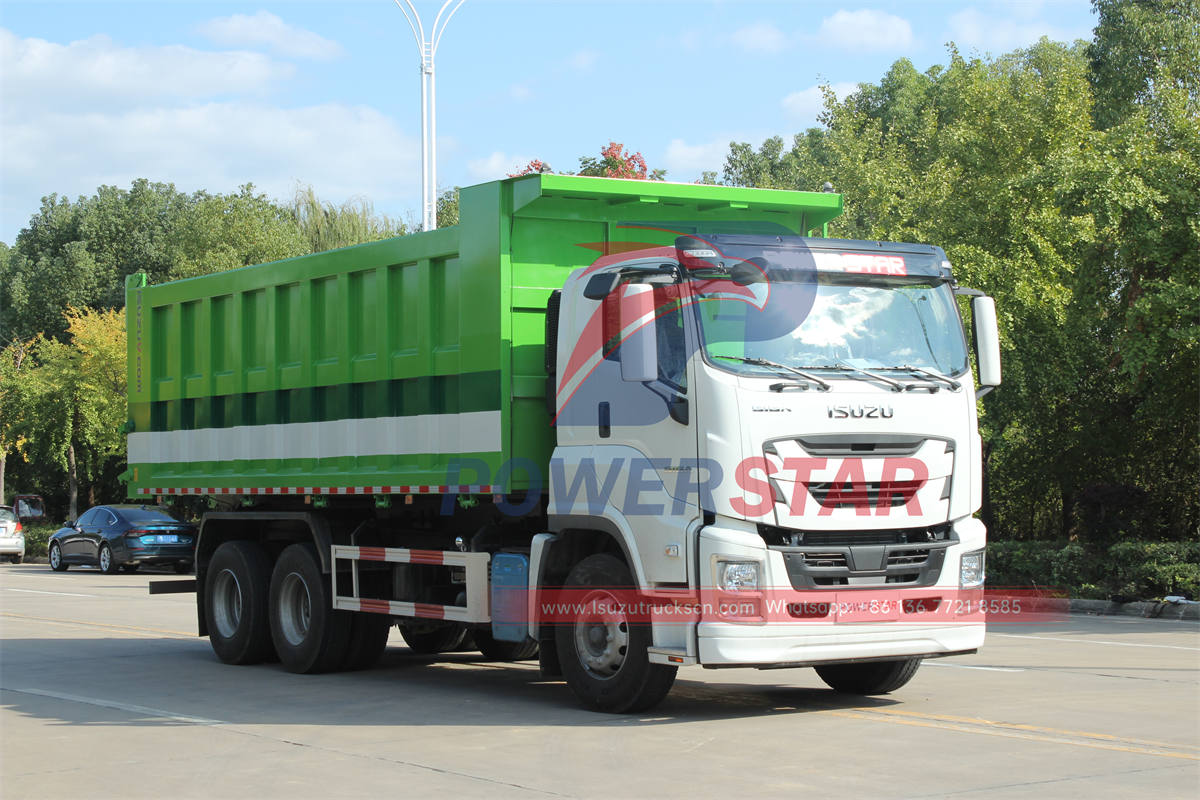

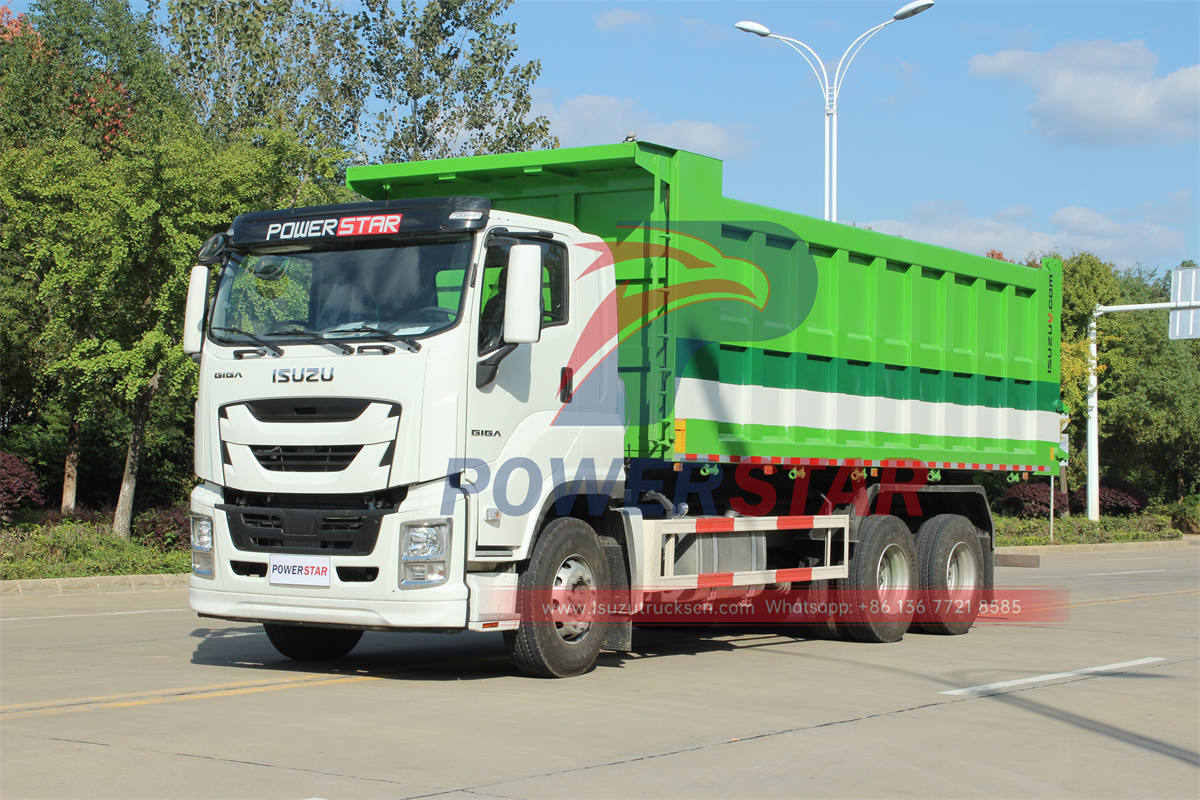

ISUZU GIGA heavy duty tipping truck with 30CBM cargo box

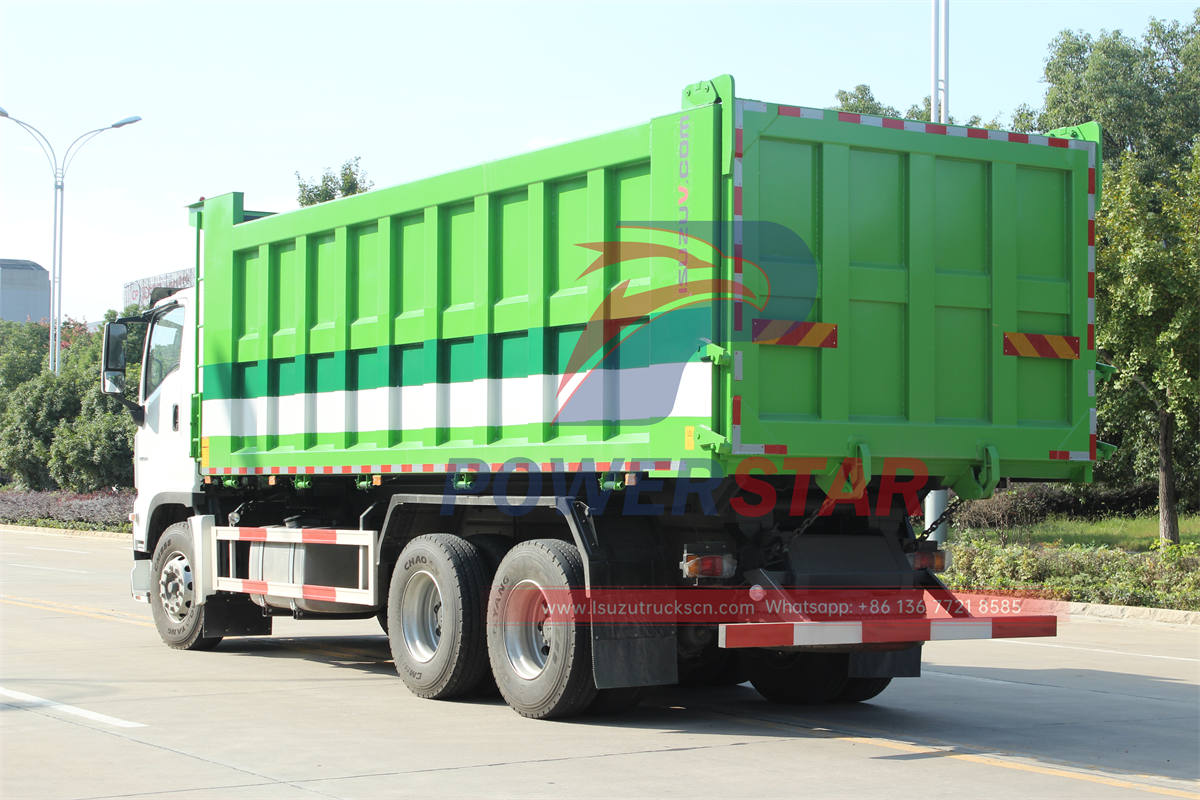

Brand new ISUZU GIGA dumper truck with 30 tons payload
