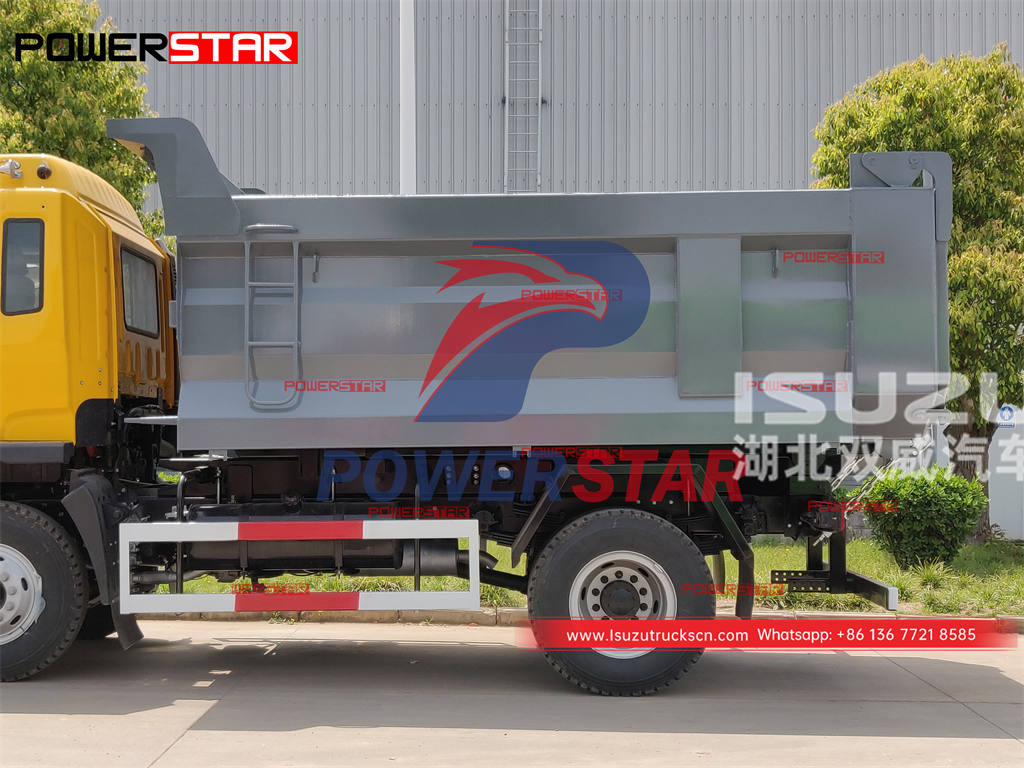

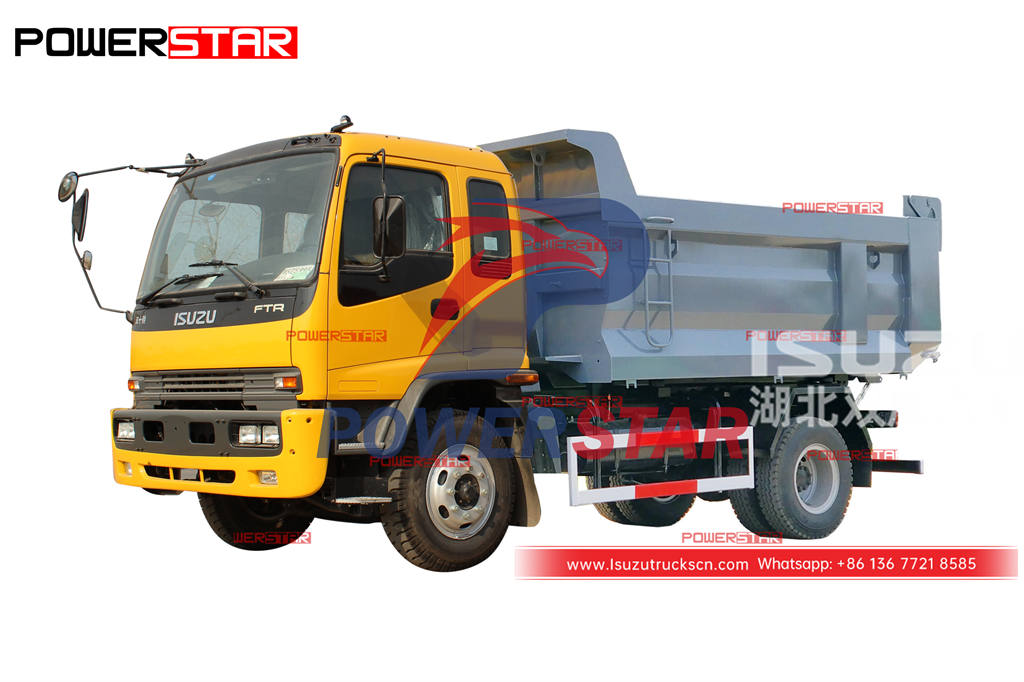

ISUZU FTR 205HP 6 wheeler dumper truck for sale
Brand new ISUZU 4×2 FTR Dump Truck, best quality ISUZU 6 wheeler 205HP tipper lorry, ISUZU tipper truck manufacturer. Isuzu brand 6-wheeler tipper trucks, which are commonly used for various purposes such as manufacturing, construction, and fabrication.Furthermore, specific models like the ISUZU FTR 6-wheel dump truck with detailed specifications are available for purchase
Order(MOQ):
1Work capacity:
10 TonsTruck model:
PT5160GZXEngine power:
205HPEngine type:
Isuzu 4HK1-TC50Axle drive:
4x2Gear box:
Isuzu MLD6SRemarks:
U-type dump body.ISUZU FTR/FVR 6 wheeler Tipper Lorry For Sale, Also called Isuzu FTR tipper trucks, also known as a dump truck Isuzu, is commonly used for transporting materials such as sand, gravel, or demolition waste. If you are referring to a mobile application for tipper lorry management or operations, it's recommended to specify the context or requirements in more detail for a more accurate response.
ISUZU FTR tipper lorry (also called ISUZU FTR dumper, ISUZU tipper truck) is designed for both overseas and domestic high end heavy truck markets. In order to prevail over its rivals in the global competition, key components of the tipper truck are designed in close collaboration with top suppliers in the world.
 |
100% custom-made
|
|
|
3 cbm to 22 cbm available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
|
Manufacturer |
PowerStar Trucks Industry Co., Limited |
||
|
Product Name |
ISUZU FTR Dumper Truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5160ZX |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
7900*2300*2600 |
|
Gross weight |
kg |
16,000 |
|
|
Kerb weight |
8,500 |
||
|
Wheelbase |
mm |
5,000 |
|
|
Driving type |
4*2 |
||
|
Chassis model |
ISUZU FTR medium duty |
||
|
Tire size |
10.00R20 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
4HK1-TC50 |
|
|
Type of fuel |
Diesel |
||
|
Power |
205HP |
||
|
Max speed |
Km/h |
95 |
|
|
Emission standard |
EURO 5,6 |
||
|
Compactor performance |

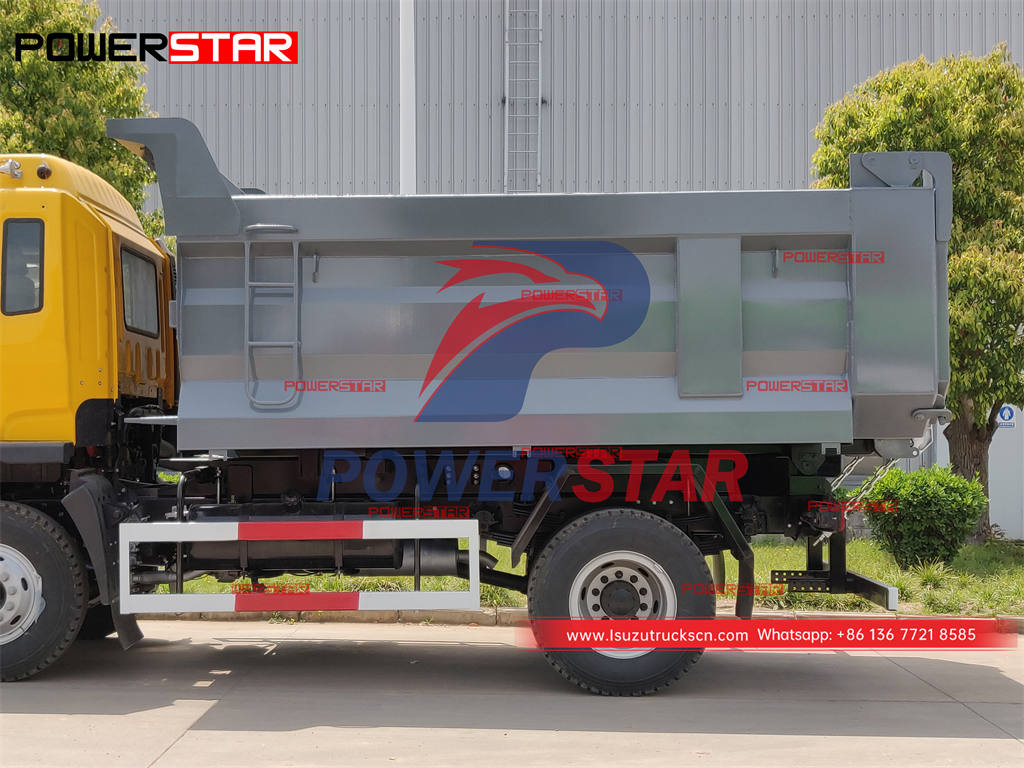

Dump body size |
5000x2300x1500 |
|
|
Loading capacity |
10 Tons |
||
|
Body materila |
High performance carbon s |
||
|
Plate thickness |
Front/Side are 3mm |
||
|
Rear/Floor are 4mm |
|||
|
Control system |
Hydraulic |
||
|
Hydraulic Lifting |
Middle lifting device |
||
|
Discharging system |

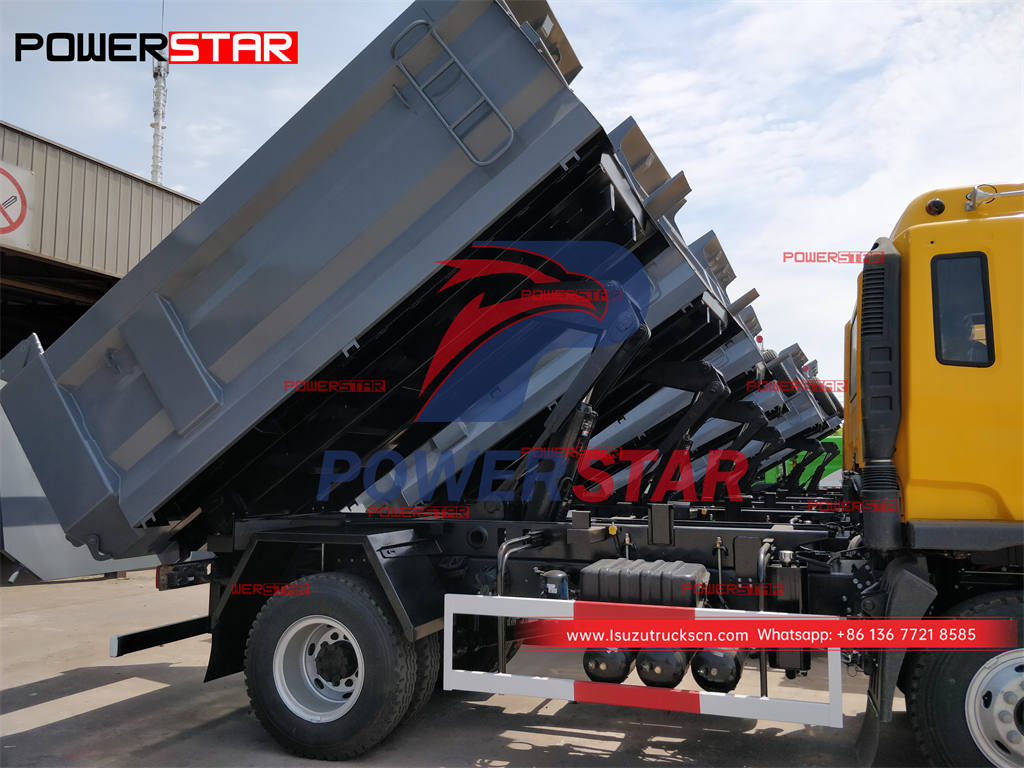

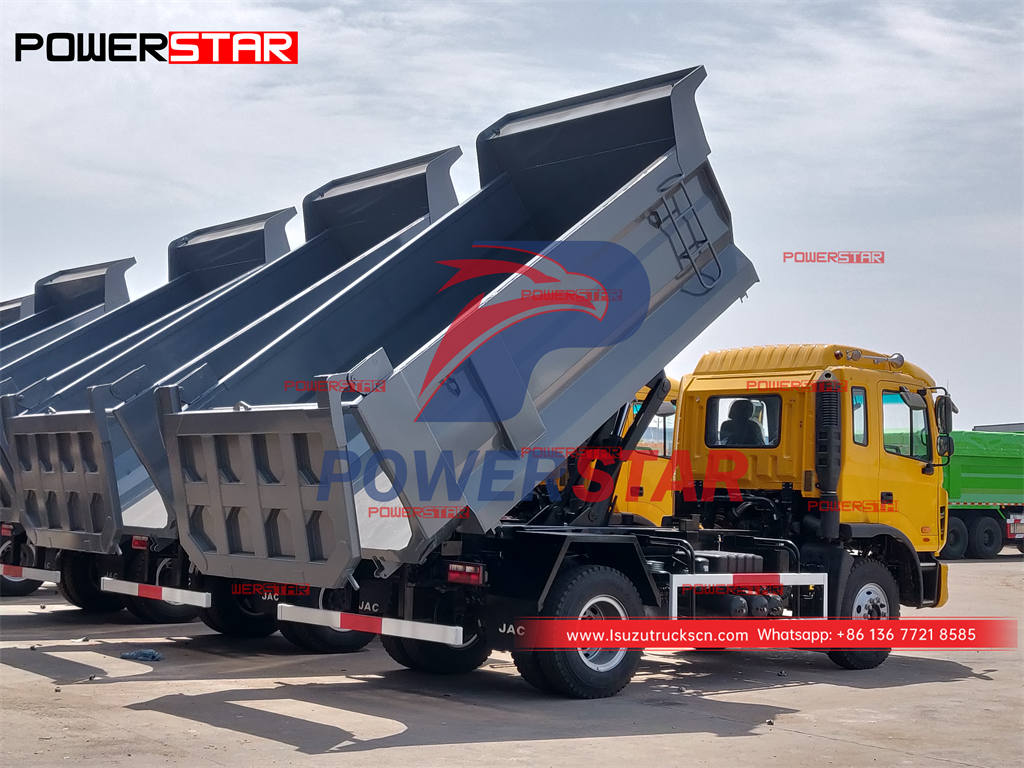

Tipping 45 degree |
||
|
Lifting time |
20 sec |
||
|
Lowering time |
15 sec |
||
|
Tailgate |
Auto release |
||
|
Drop side |
Detachable |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, Dust bin lifting system (with any option) 2, Rear vision camera 3, Italy imported multi-way valve 4, Optional stainless steel waste water tank |
||
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
 |
 |
|
 |
 |
|
 |
 |
 |
||

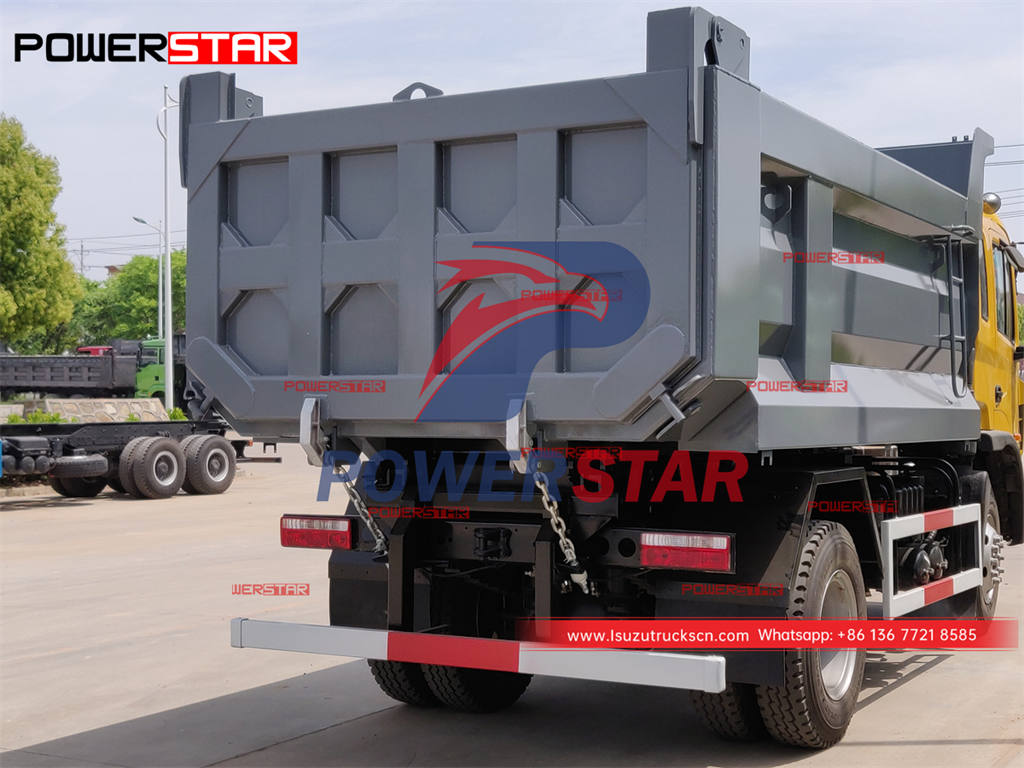

| Special U-shape body | Rear door safety hook | Rear door top lug hooks | ||
 |
 |
 |
||
| Reinforced dumper body | T-type hydraulic cylinder | Mining body | ||
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual | Chassis parts | Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
Key words: ISUZU FTR dumper truck, ISUZU 4×2 tipper lorry, ISUZU dump vehicles manufacturer
