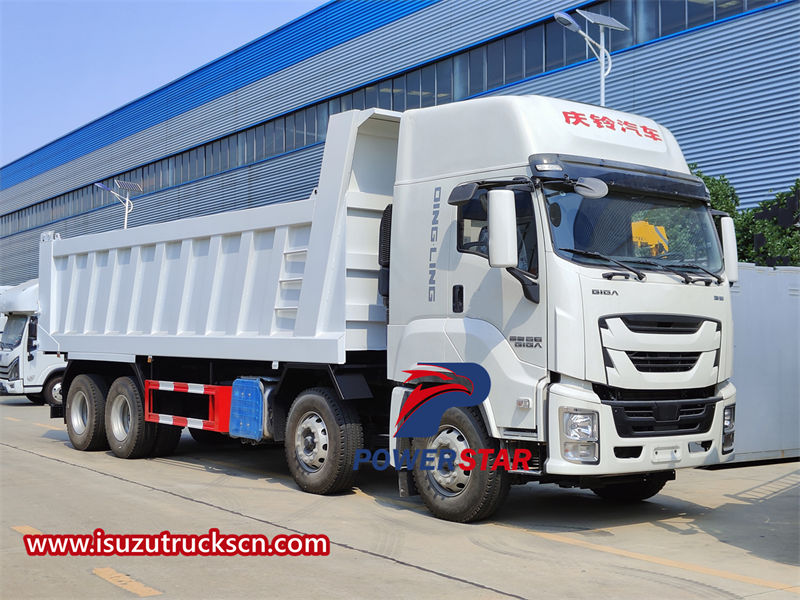

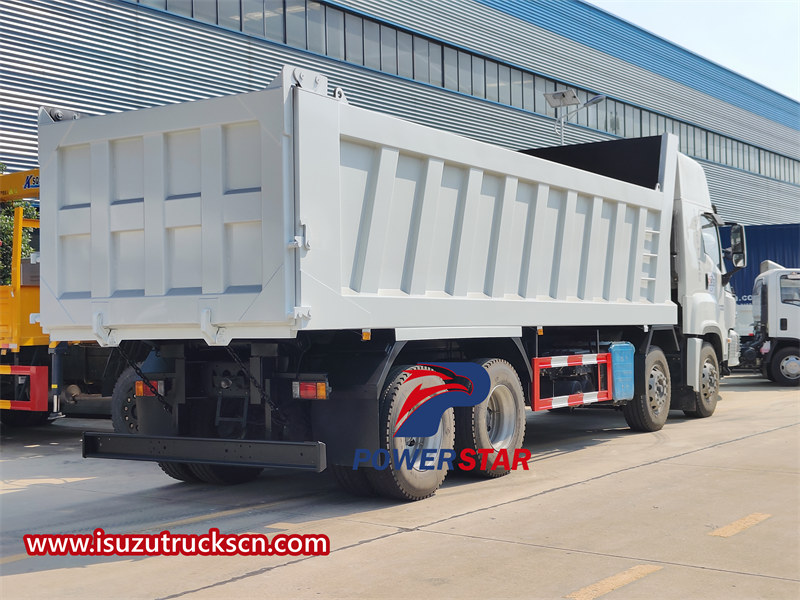

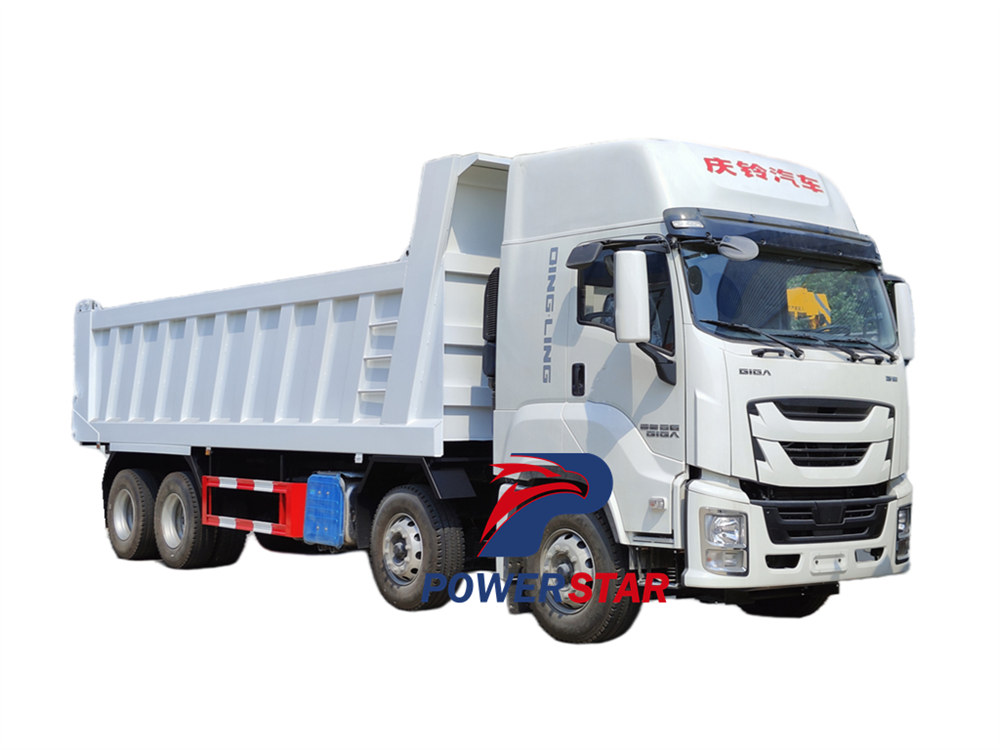

The ISUZU 8×4 GIGA dump truck has become a leader in the heavy-duty dump truck market with its excellent performance, efficient power system and sturdy cargo box structure. Its powerful 420HP engine and 50-ton load capacity meet various stringent transportation needs, while the unique cargo box design ensures efficiency and stability during transportation.
Work capacity:
50 tonsTruck model:
ISUZU3310ZXEngine power:
420 HPEngine type:
6WG1-TCG60Axle drive:
8×4Gear box:
FAST 12-speedRemarks:
ISUZU GIGA VC66 cabin, reinforced cargo boxThe ISUZU GIGA 8×4 dump truck is equipped with a 420HP engine, which provides ample power for the vehicle. This engine adopts advanced technology and technology, which is not only powerful but also highly fuel-efficient, and can provide continuous and stable power output for the vehicle. At the same time, its low noise and low emission characteristics also meet modern environmental protection requirements.
The maximum load capacity of this ISUZU GIGA dump truck reaches 50 tons, meeting the needs of heavy-duty transportation. The solid body structure and chassis design ensure the stability and safety of the vehicle under heavy loads. At the same time, its optimized load distribution and suspension system also ensure the vehicle's stability and comfort during driving.

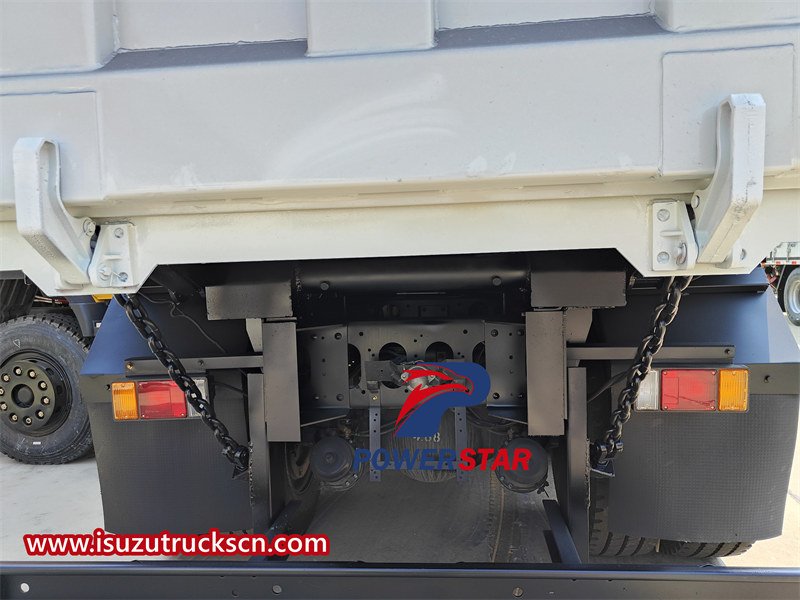

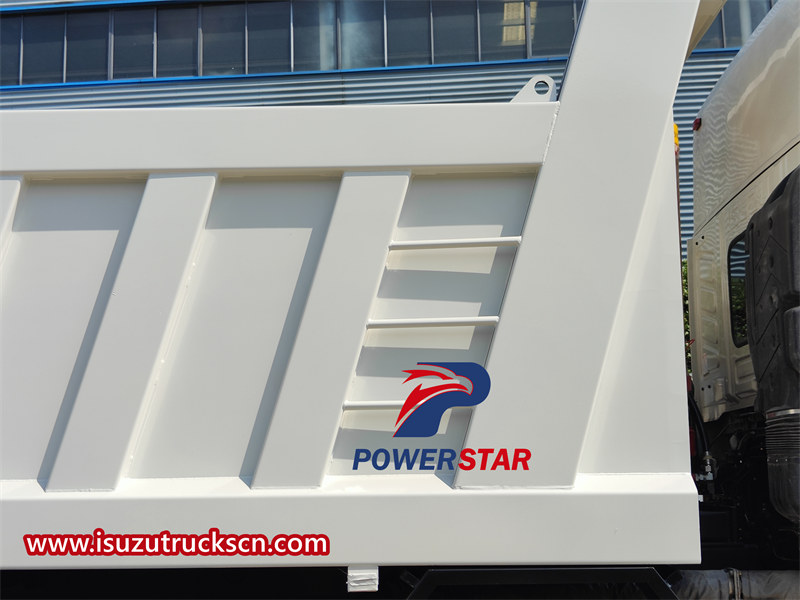

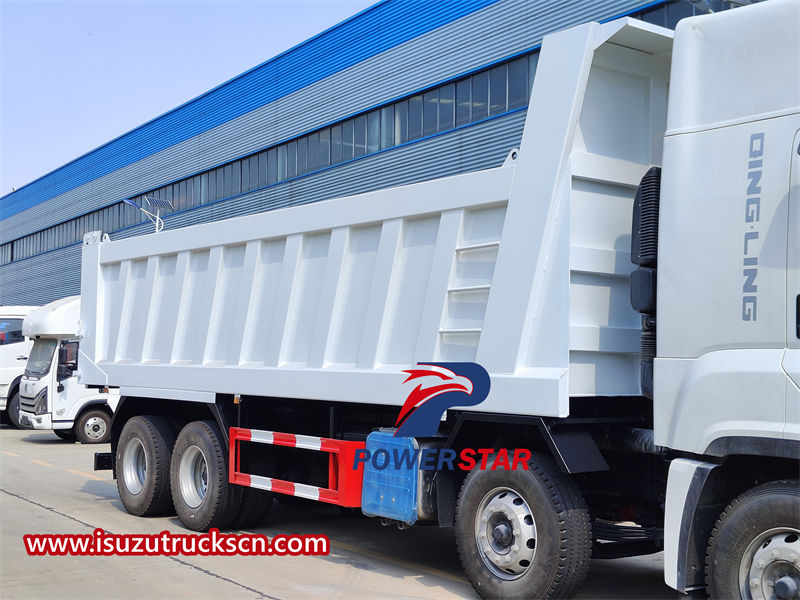

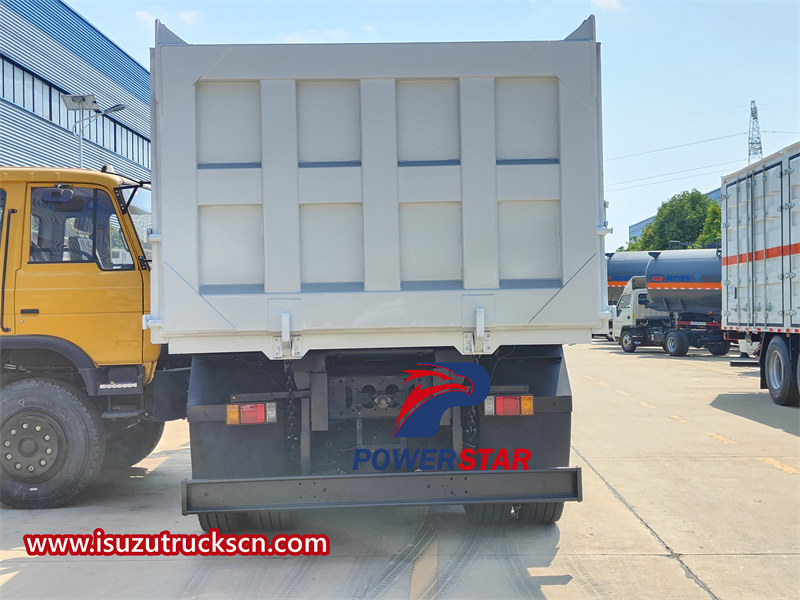

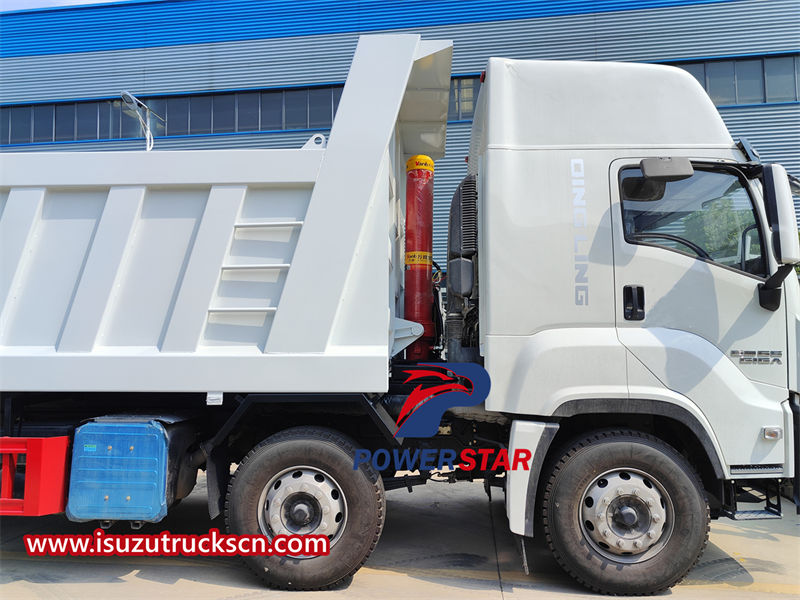

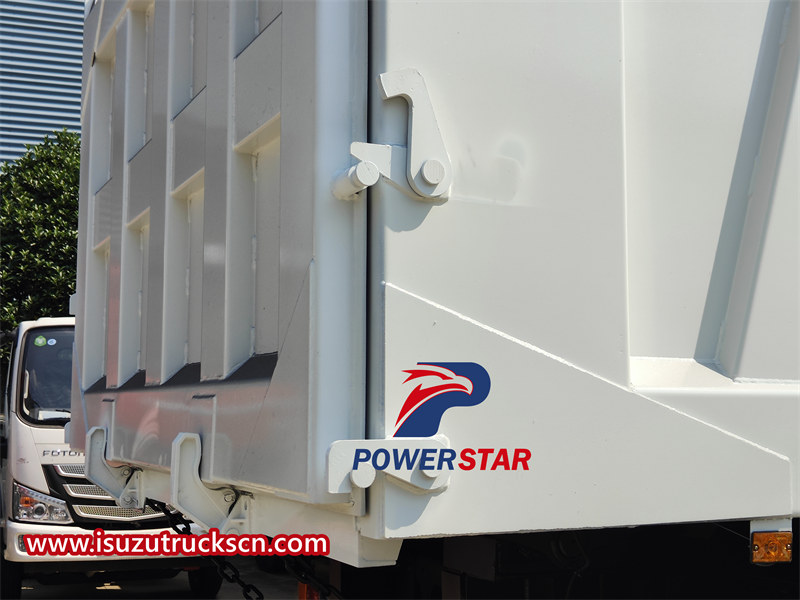

The cargo box structure of the ISUZU GIGA tipper truck is one of its important features. The cargo box is made of high-strength steel, which is durable and impact-resistant. The interior of the cargo box is reasonably designed and has large capacity, capable of accommodating a large amount of cargo. At the same time, the bottom of the cargo box adopts a special anti-slip design to ensure the stability of the goods during transportation. In addition, the cargo box is also equipped with an automatic unloading device, which can complete the unloading task quickly and efficiently.
Product Specifications
|
Model |
ISUZU3310ZX |
|
|
Driving type |
8×4 left hand driving |
|
|
Engine |
Make: ISUZU |
|
|
Diesel 4-stroke direct injection diesel engine, electronic control common rail, SCR |
||
|
Engine model:6WG1-TCG60 |
||
|
6-cylinder in-line with water cooled, turbo-charging and intercooler |
||
|
Maximum output: 420 hp (309 Kw) |
||
|
Maximum torque: 2250 N.m |
||
|
Displacement: 15.681 L |
||
|
Transmission |
FAST, 12 forwards and 2 reverse, manual |
|
|
Front Axle |
7.5 Ton Loading Capacity per unit |
|
|
Rear Axle |
26 Ton Loading Capacity, Speed Ratio 3.07-5.571 |
|
|
Chassis |
Frame: U-profile parallel ladder frame, and reinforced subframe 320×90×8MM |
|
|
Front suspension: semi-elliptic leaf springs |
||
|
Rear suspension: semi-elliptic leaf springs |
||
|
Aluminium fuel tank: 400 L capacity with locking fuel cap, fitted to the off side of the chassis |
||
|
Wheels & Tyres |
Tire:315/80R22.5 |
|
|
Driver's Cab |
ISUZU VC66 high roof cab, 2 seats+1 bed, central lock, electric glass, A/C |
|
|
Dimensions mm |
Wheel base |
1850+4575+1370 mm |
|
Overall length |
10500 mm |
|
|
Overall width |
2540 mm |
|
|
Overall height |
4000 mm |
|
|
Weight kg |
Dead weight |
14550 kg |
|
Rated Loading Capacity |
21450 kg |
|
|
Gross vehicle weight(GVW) |
36000 kg |
|
|
Front axle loading capacity |
7500*2 kg |
|
|
Rear axle loading capacity |
26000 kg |
|
|
Dump box |

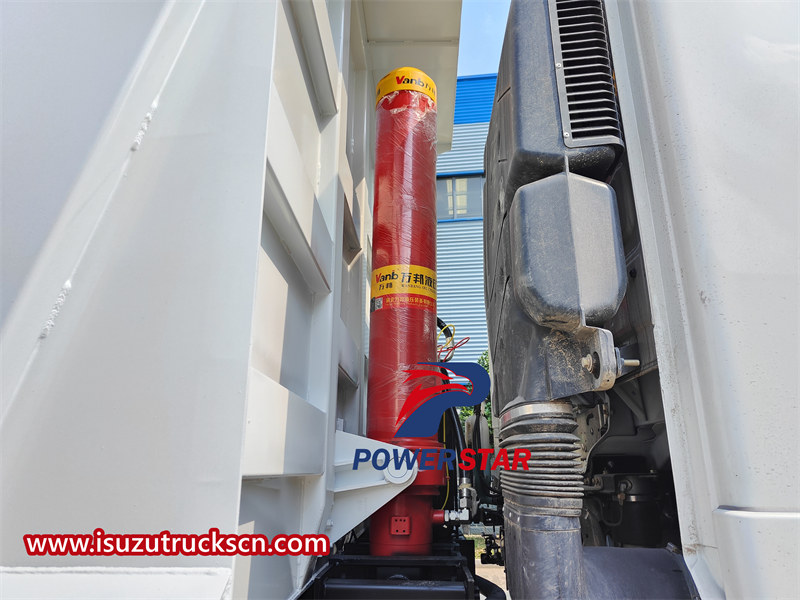

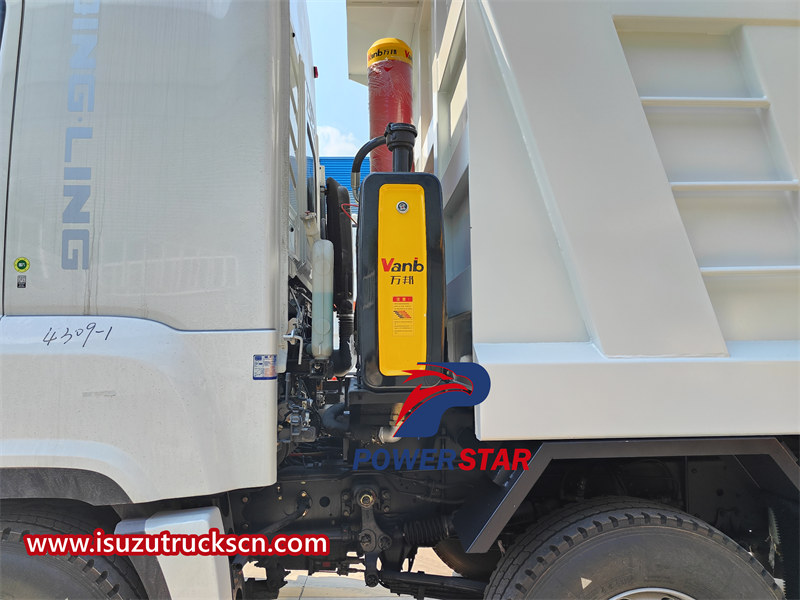

7300x2300x1800mm, bottom 8mm, side 6mm, front lift cylinder |
|
Product Advantages
1. Powerful power performance: This ISUZU GIGA dump truck is equipped with a high-performance engine, which provides powerful power output and ensures efficient and stable operation under various working conditions. The 420HP engine power is enough to cope with various heavy-load transportation challenges.
2. Excellent load capacity: The maximum load capacity of the ISUZU GIGA tipper truck reaches 50 tons, meeting the needs of heavy-duty transportation. Its solid body structure and chassis design ensure the stability and safety of the vehicle under heavy loads.
3. Modern design: The vehicle design is very modern. It not only has a stylish appearance, but also has very advanced internal configuration. For example, its large windshield and obvious air intake grille not only enhance the visual effect of the entire vehicle, but also improve the ventilation and heat dissipation performance of the cab.
4. Efficient cargo box structure: The cargo box is made of high-strength steel, which is durable and has strong impact resistance. At the same time, the interior of the cargo box is reasonably designed with large capacity and can accommodate a large amount of cargo.
5. Durability and maintainability: ISUZU GIGA tipper lorry uses high-quality materials and advanced manufacturing processes to ensure the durability and reliability of the vehicle. At the same time, its structural design and maintenance point layout are also very reasonable, making vehicle maintenance and repair more convenient and faster.
6. High safety: The ISUZU GIGA dumper truck is equipped with advanced safety configurations such as ABS, EBS, and ESC, providing comprehensive protection for the driver and cargo. In addition, the spacious cab design also provides the driver with a good working environment and vision.
Product Aplication
ISUZU GIGA dump trucks are suitable for a variety of different application scenarios with their excellent performance and modern design. The following are its main application scenarios:
1. Construction sites: On construction sites, dump trucks are responsible for transporting construction materials such as sand, bricks, and concrete. ISUZU GIGA tipper trucks, with their powerful load-carrying capacity and solid body structure, can easily cope with various complex road conditions and heavy transportation tasks.
2. Mining transportation: In mining, dump trucks are used to transport materials such as ore, waste rock, etc. With its efficient power system and excellent durability, the ISUZU GIGA dump truck can operate stably in the mining environment to ensure the smooth progress of mining operations.
3. Road and bridge construction: In the construction of roads and bridges, a large amount of earth and stone and other materials need to be transported. ISUZU GIGA tipper lorry can complete these tasks quickly and efficiently, providing strong support for project construction.
4. Municipal engineering construction: In municipal engineering construction, such as urban drainage systems, road maintenance, etc., dump trucks are also required to transport materials. The flexibility and stability of the ISUZU GIGA dump truck make it an ideal choice for these projects.
5. Port logistics: In port logistics, dump trucks are used to transport goods from the terminal to the warehouse or distribution center. The large capacity and efficient unloading capabilities of ISUZU GIGA tipper trucks ensure that goods are transferred quickly and safely.
