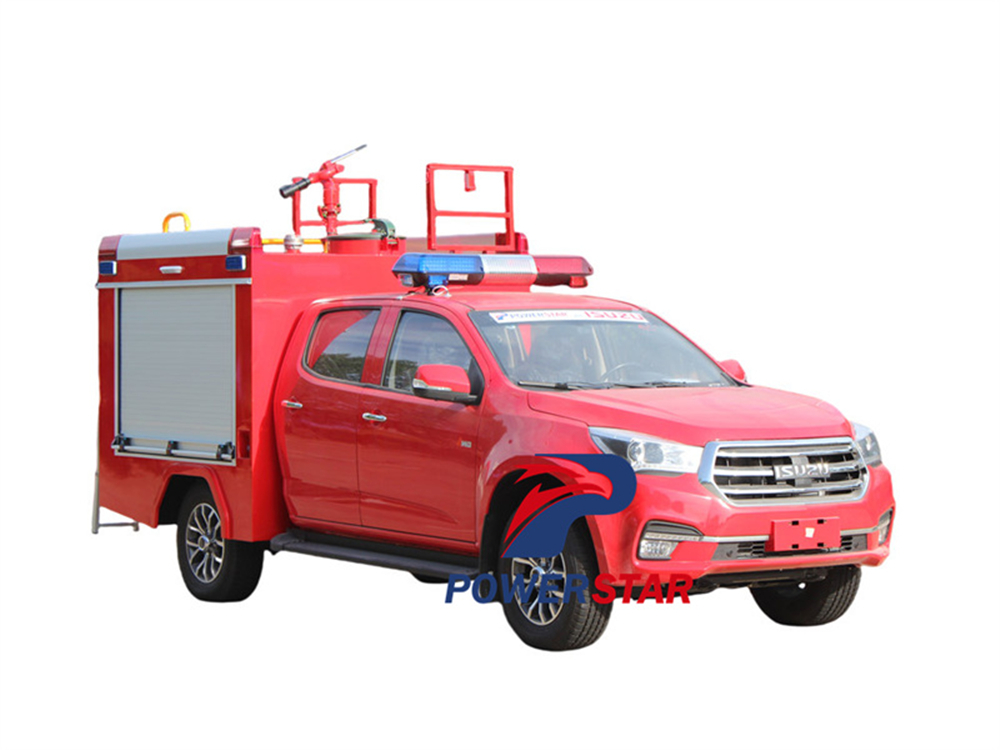

Isuzu 4x4 drive fire department firefighting pick up
Isuzu's all-wheel drive pickup fire truck is a professional firefighting equipment designed to cope with various fire and emergency rescue situations. The vehicle uses advanced four-wheel drive technology to improve emergency response capabilities and ensure efficient operation of fire and disaster scene rescue work. It is suitable for various roads and environments, providing firefighters with rapid response and effective firefighting support.
Work capacity:
1000LTruck model:
PT5040GWTEngine power:
143HPEngine type:
4KH1CT6H1Axle drive:
4X4Gear box:
5-shift speed levers with 1 reverseRemarks:
Isuzu 4WD fire department firefighting pickup for sale,customizable
Isuzu 4x4 drive fire department firefighting pick up also called Isuzu 4WD pickup fire truck,Isuzu 4x4 fire department emergency rescue pickup fire engine,is a special firefighting vehicle carefully built by Isuzu Motors combining the high mobility of pickup trucks with the professional performance of fire trucks. This model not only inherits the durability and efficiency of the Isuzu brand, but also provides the fire brigade with strong support for rapid response and efficient firefighting in complex environments through specially customized four-wheel drive system and professional firefighting equipment.The Isuzu 4x4 drive fire department firefighting truck stands as a versatile and essential tool within the firefighting arena, blending agility, power, and specialized features to effectively combat emergencies in diverse environments.
Key features:
---- ISUZU pickup chassis, perfect performance
---- ISUZU engine & gearbox, super powerful, no overhaul within 100,000 km.
---- Water tank and Foam tank capacity can be optional.
---- Easy operation and easy maintenance.
---- Various types of fire equipment are available.
This firefighting pickup thrives in urban, rural, and wildland settings. In urban locales, its maneuverability shines, deftly navigating through narrow streets inconducive to larger firefighting vehicles. Conversely, rural and wilderness areas benefit from its off-road prowess, pivotal during wildfire containment or emergencies in remote regions. Versatility defines its adaptability, making it a coveted asset across varied landscapes.
|
Isuzu 4x4 drive fire department firefighting pick up |
|||
|
General |
Vehicle Brand |
POWERSTAR TRUCKS |
|
|
Vehicle Model |
PT5050GWT |
||
|
Chassis Brand |
ISUZU |
||
|
Overall Dimension |
5295 * 2000 * 2780 mm |
||
|
GVW / Kerb Weight |
3295kg / 2170kg |
||
|
|
Wheelbase |
3406mm |
|
|
Cab |
Cab Capacity |
2+3 persons allowed |
|
|
Air Conditioner |
Heating/cooling air conditioner |
||
|
Engine |
Fuel Type |
Oil |
|
|
Engine Brand |
ISUZU |
||
|
Engine Type |
4KH1CT6H1 |
||
|
Power |
143HP |
||
|
Displacement |
2999 ml |
||
|
Emission Standard |
Euro 6 |
||
|
Chassis |
Drive Type |
4X4 (left hand drive) |
|
|
Transmission |
5-shift speed levers with 1 reverse |
||
|
No. of axle |
2 |
||
|
Tire Specification |
245/70 R17LT |
||
|
Tire Number |
4 tires |
||
|
Max Speed |
140 km/h |
||
|
Paint |
Metallic paint |
||
|
Fire performance |
Tank Capacity |
1,000L water |
|
|
Tanker Material |
Carbon Steel |
||
|
|
Pump Model: |
JBQ4.5/9 |
|
|
Flow Rate |
≥600L/min |
||
|
Exhaust Rate |
390ml |
||
|
Engine Model |
188F/GX390 |
||
|
Max.Power |
9.6Kw/13HP |
||
|
Engine speed |
3600r/min |
||
|
Max pressure |
0.65MPa |
||
|
Priming Time |
≤10s |
||
|
Range |
60m |
||
|
Fire monitor |
Water jet distance: ≥60m |
||
|
Electronic alarm |
LY CJB-100-C24 / 1.2 m long |
||
|
Control panel |
English or Your language |
||
|
All standard accessories: Fire hose, filter, coupling, wrench, water nozzle, basic tool kit, English manual…… |
|||
|
Optional |
** Back alarm and Camera can be equipped. ** Standard carbon steel, stainless steel optional. ** USA or Germany fire pump can be optional |
||
The Isuzu 4WD fire department firefighting pickup is equipped with an efficient fire pump and a large-capacity water tank, which can quickly deliver water to the fire scene and effectively control the fire through high-pressure spraying through a variety of water spraying equipment.
The combination of the four-wheel drive system and the professional chassis enables this fire truck to maintain a stable driving speed and maneuverability even in the face of muddy, rugged and other complex terrains, ensuring that firefighters can quickly reach the fire scene. Its payload capacity enables the transportation of important firefighting equipment and personnel, which is crucial to effectively alleviate crises.
The overall structural design of the vehicle is reasonable, with a low center of gravity and good stability during driving, and it can maintain a good posture even during high-speed driving and firefighting operations.

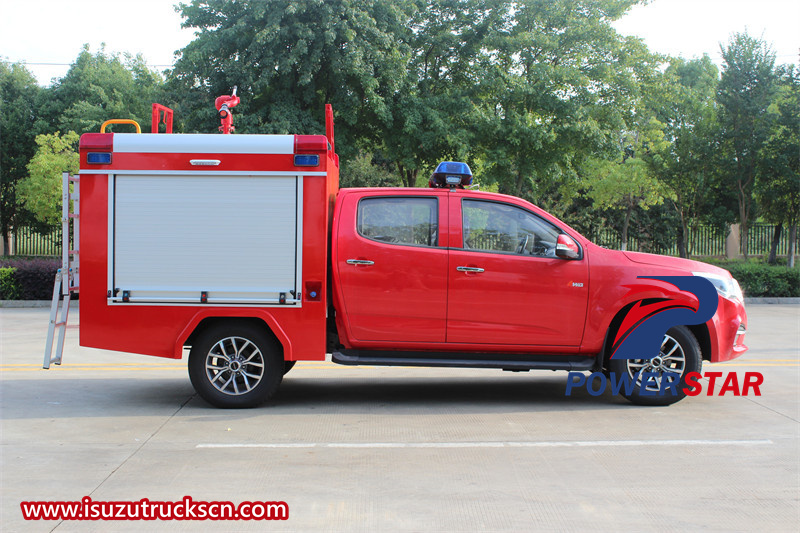

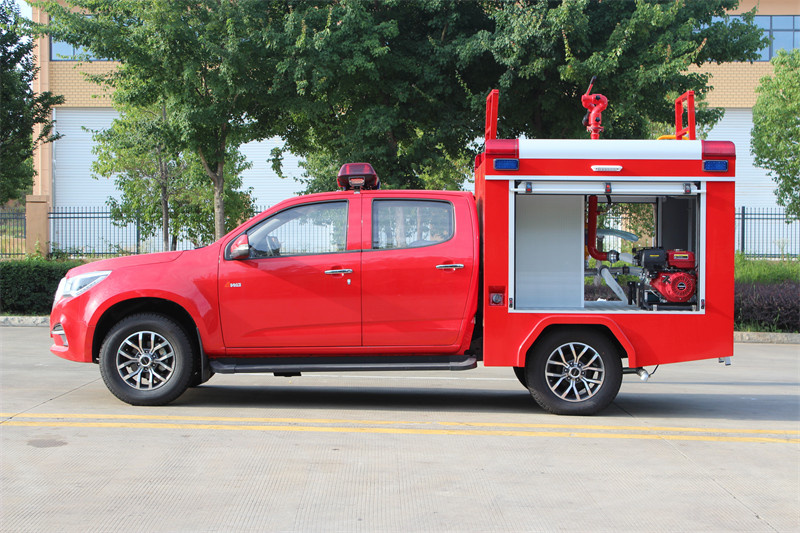

Isuzu 4WD fire department pickup fire truck
The Isuzu 4x4 drive fire department firefighting pickup truck stands as a versatile and essential tool within the firefighting arena, blending agility, power, and specialized features to effectively combat emergencies in diverse environments. It has the following features:
High mobility: The compact design of the pickup truck and the blessing of the four-wheel drive system enable this fire truck to easily shuttle through city streets, country roads, and complex terrains such as mountains and forests, and quickly approach the fire scene. It is equipped with powerful off-road capabilities and is a steadfast partner during emergency response. Customized firefighting equipment adorns its cabin, enhancing its readiness to effectively extinguish fires. Its compact size facilitates movement in narrow spaces, which is a boon for densely populated urban environments.
T

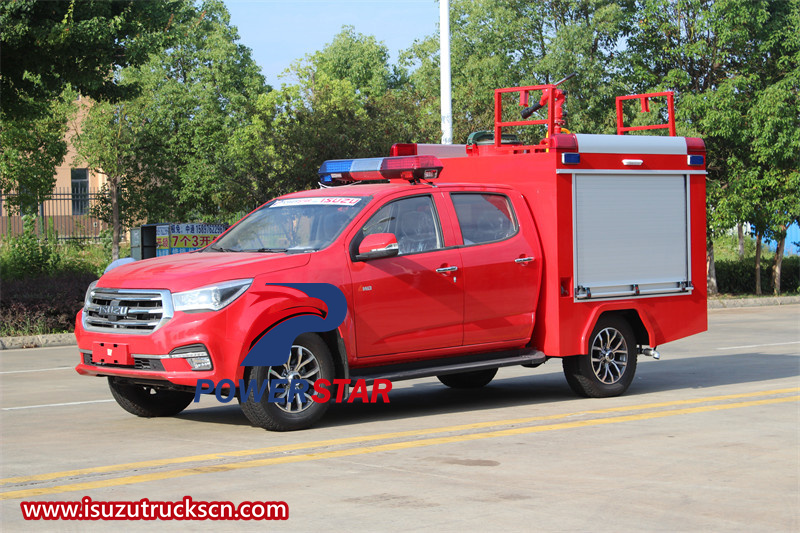

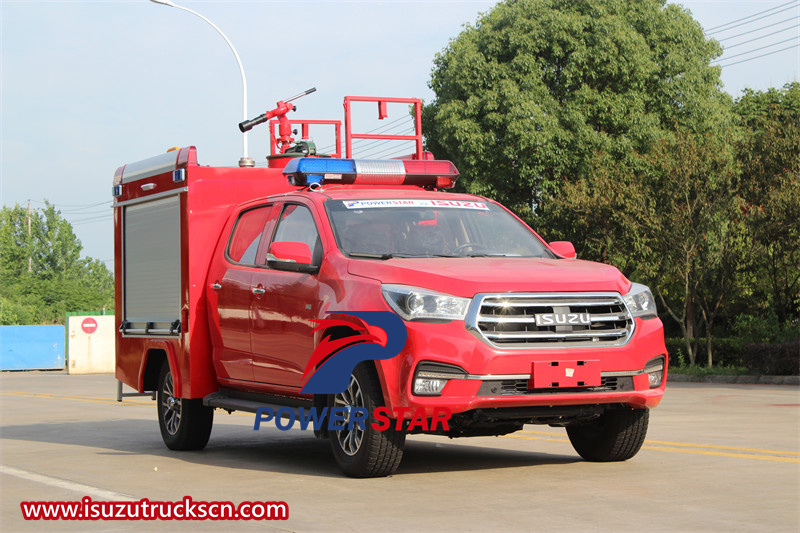

Isuzu 4x4 fire department emergency rescue pickup fire engine
Versatility: The interior of the vehicle is equipped with a complete firefighting system, including water tanks, fire pumps, and a variety of water spraying equipment, which can be flexibly configured according to different fire types to achieve efficient firefighting.
Sturdy and durable: The body is made of high-strength materials, and key components are specially treated to ensure long-term stable operation in harsh environments.
Humanized design: The interior space layout is reasonable, the number of passenger seats is moderate, and the field of vision is wide, which is convenient for the driver and firefighters to operate and command. At the same time, the vehicle is also equipped with advanced monitoring systems and communication equipment to ensure the timeliness and accuracy of information transmission.

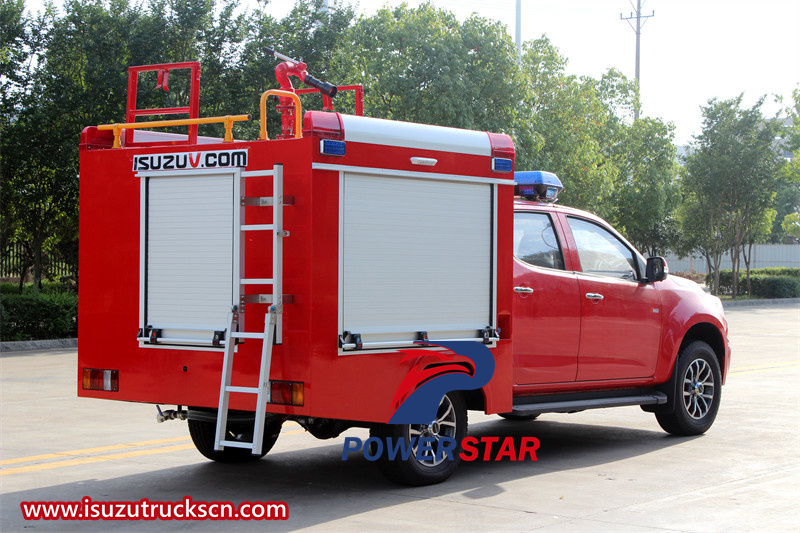

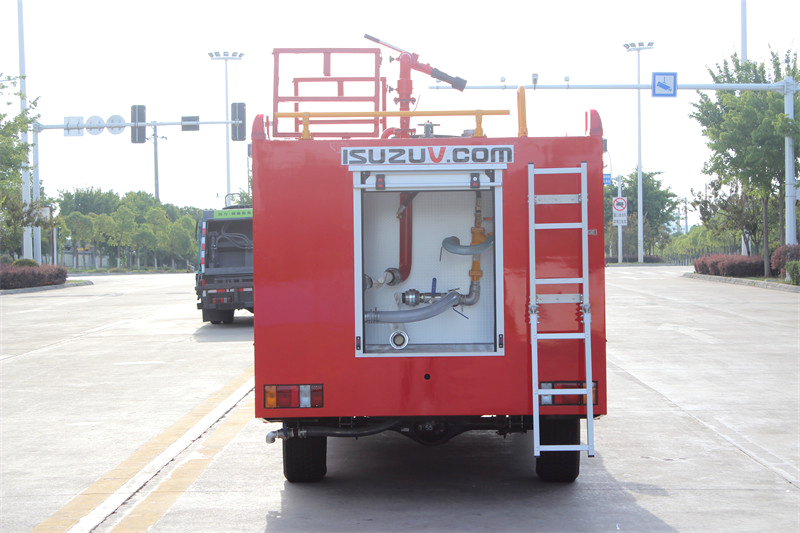

Isuzu 4x4 fire department pickup fire engine
Isuzu 4x4 fire department fire tender pickup
This Isuzu 4x4 drive fire brigade pickup fire engine, as a high-performance special vehicle designed for fire brigades, has a wide range of uses and is important, mainly reflected in the following aspects:
1.Quick response and fire extinguishing
First of all, its most important and direct use is to quickly respond to fire alarms and quickly arrive at the fire scene to carry out fire extinguishing operations. With its excellent 4x4 four-wheel drive system and high mobility, this fire truck can easily cross complex terrains such as urban congested roads, rural roads and rugged mountains, ensuring that firefighters can reach the fire scene as soon as possible. After arriving, through its high-efficiency fire pumps, large-capacity water tanks and a variety of water spraying equipment, firefighters can accurately and efficiently extinguish the fire source, effectively control the spread of the fire, and protect people's lives and property.
2. Rescue operation support
In addition to the direct fire extinguishing function, this fire truck is also often used in various emergency rescue operations. In natural disasters or emergencies such as earthquakes, mudslides, and traffic accidents, it can be used as part of the rescue force to quickly go to the scene to provide necessary support and help. For example, in traffic accidents, it can be used to clean up the scene and rescue trapped people; in earthquake-stricken areas, it can assist in building temporary shelters and transporting relief supplies.
Isuzu 4WD drive fire brigade pickup fire engine
3. Fire propaganda and education
In addition, this fire truck is often used in fire propaganda and education activities. Fire brigades can use it as a mobile propaganda platform to popularize and educate fire safety knowledge in communities, schools, enterprises and other places. By displaying firefighting equipment, demonstrating the firefighting process, and explaining fire prevention knowledge, the public's awareness of fire safety can be improved and their ability to rescue themselves and each other can be enhanced.
4. Responding to special fire types
For different types of fires, this fire truck can also be flexibly configured and adjusted. For example, for flammable liquid fires such as petroleum and chemicals, it can be equipped with a foam fire extinguishing system; for high-rise building fires, it can be equipped with remote fire extinguishing equipment such as high-altitude water cannons. This flexibility and versatility enable it to cope with various complex and changing fire situations and ensure the smooth progress of firefighting and rescue work.
5. Collaborative operations and command and dispatch
In large fires or complex rescue operations, this fire truck can also be used as an important tool for collaborative operations and command and dispatch. It can maintain real-time contact with the command center through on-board communication equipment, transmit fire scene conditions, receive instructions and coordinate other rescue forces for joint operations. At the same time, it can also be used as an on-site command vehicle to provide clear operational guidance and decision-making support for firefighters.

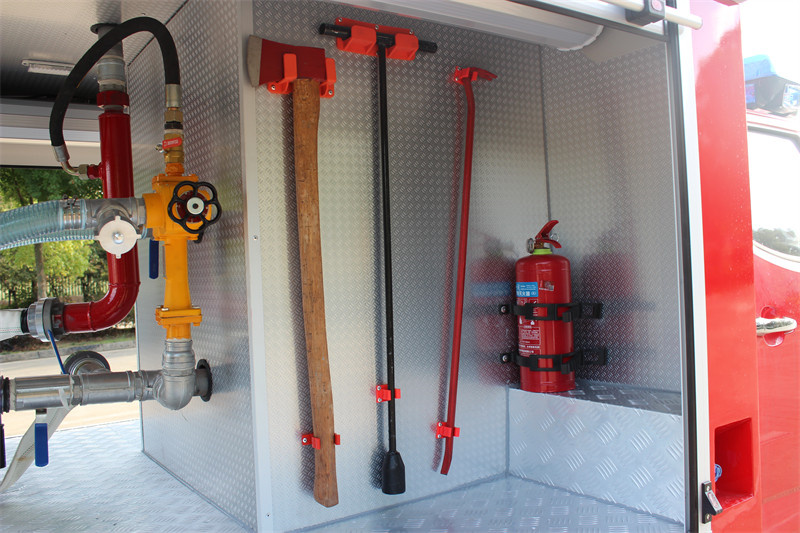

Isuzu all-wheel drive fire department pickup fire tender

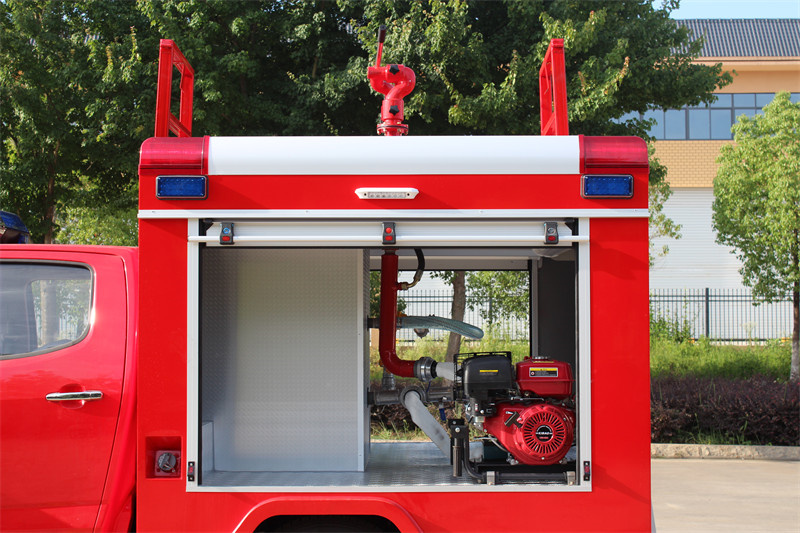

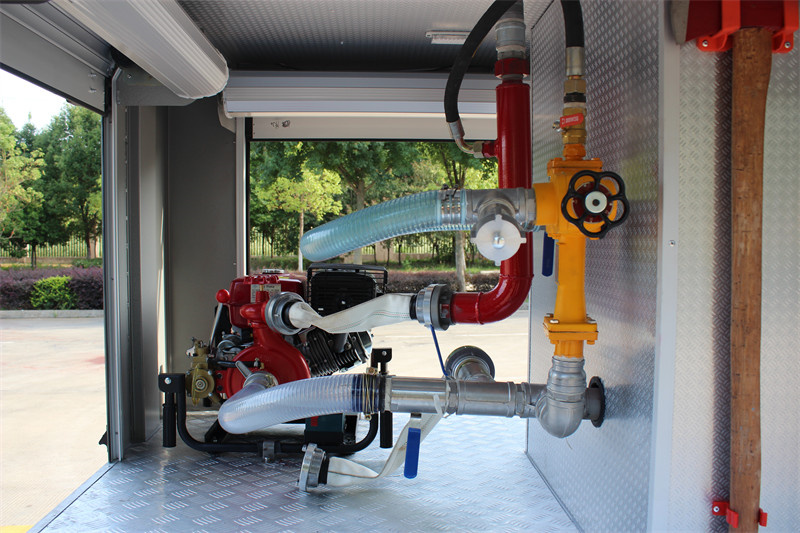

Fire pump and pipeline of Isuzu 4x4 fire truck pickup
ISUZU pickup 4x4 offroad pickup fire engine also called Isuzu rapid intervention vehicle. The city's rapid response fire truck is modified from original Japanese ISUZU technology 4x4 Pickup chassis. The vehicle is small and flexible, it has strong climbing ability and the ability to adapt to various terrains. Isuzu pickup fire engine can be widely used in port terminals and cargo piles. Fields, industrial and mining enterprises, business squares and community towns and other places can quickly reach the scene to extinguish the initial fire. It is an ideal equipment for the firefighting force to respond quickly to fire rescue.
Learn More
Japanese ISUZU 4x4 Pick-up Small Fire Truck and Rapid Intervention Vehicle (RIV). The city's rapid response fire truck is modified from original ISUZU TAGA 4x4 Pick-up chassis. The vehicle is small and flexible, it has strong climbing ability and the ability to adapt to various terrains. It can be widely used in port terminals and cargo piles. Fields, industrial and mining enterprises, business squares and community towns and other places can quickly reach the scene to extinguish the initial fire. It is an ideal equipment for the firefighting force to respond quickly to fire rescue.
Learn More
ISUZU pickup 1500L water tank fire truck is a fire truck modified based on the ISUZU TAGA model pickup chassis QL1030CZHW2. It is equipped with a 1500L water tank for firefighting operations at the fire scene. ISUZU 4x4 pickup chassis is known for its off-road performance and carrying capacity, which enables fire trucks to respond quickly and operate effectively under complex terrain conditions. Power: Usually equipped with a high-power diesel engine, providing sufficient power output to ensure rapid response under various load requirements.
Learn More

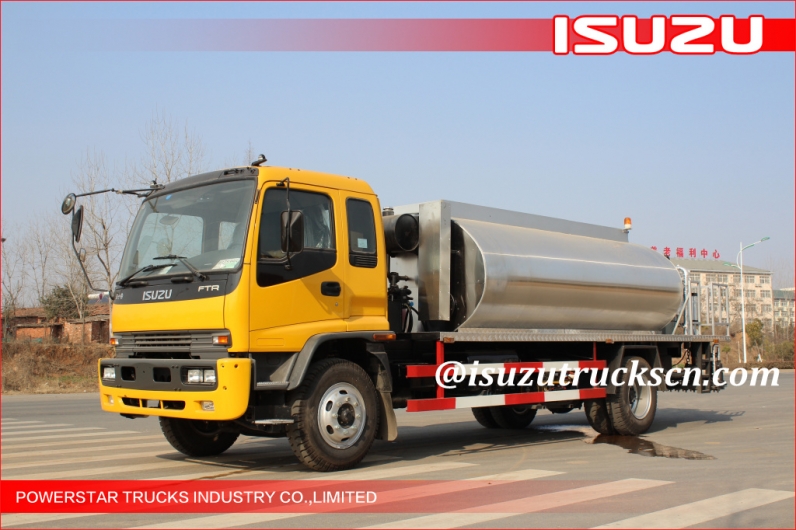

6x4 VC46 FVZ CXA8000L Isuzu Road asphalt distributor,Isuzu brand 6x4 8000L Asphalt Distributor Bitumen spreader truck,6x4 8000L high quality asphalt distributor truck,ISUZU 8000L Semi-Automatic electronic control asphalt distribut ISUZU ISUZU Automatic computerized asphalt distributor,4cbm Isuzu standard Hot Sales Asphalt Distributor,Hot sale ISUZU Intelligent Asphalt Distributor
Learn More

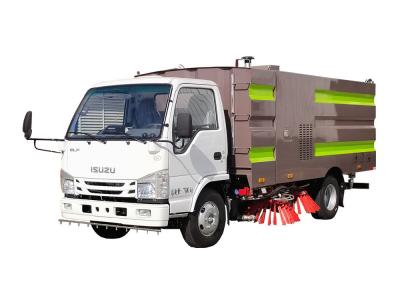

The ISUZU NKR street vacuum sweeper is modified from Isuzu NKR chassis with a gross vehicle mass of 7.3 tons. This road sweeper is compact in size, light and flexible, and is suitable for large-area and long-distance cleaning. It is often used on urban main roads, urban-rural fringes and highways. The vehicle is equipped with 3CBM water tank, 2CBM dust tank, front and rear spray nozzles, and a universal front spray device. Equipped with 4 central sweeping disks, Sanyo cycloid motor, CUMMINS 88 horsepower auxiliary engine, Schneider control switch, Hypress solenoid valve group, maintenance-free centrifugal fan, tail LED arrow light, high-quality electronic water pump, cleaning width 3 meters, suction particle size Φ120mm.
Learn More

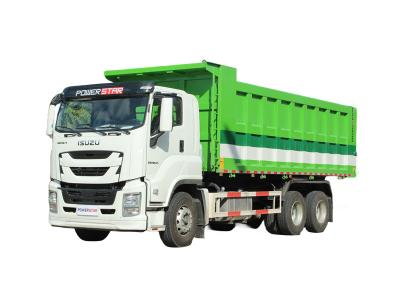

Factory supplying ISUZU GIGA/VC61 6×4 Tipper Lorry, with GVW 33 tons and payload 30 tons, the cargo body capacity is up to 32CBM. The ISUZU GIGA dump truck is equipped with ISUZU 420HP diesel engine, FAST 12-speed gearbox and customized hydraulic middle lifting system.
Learn More

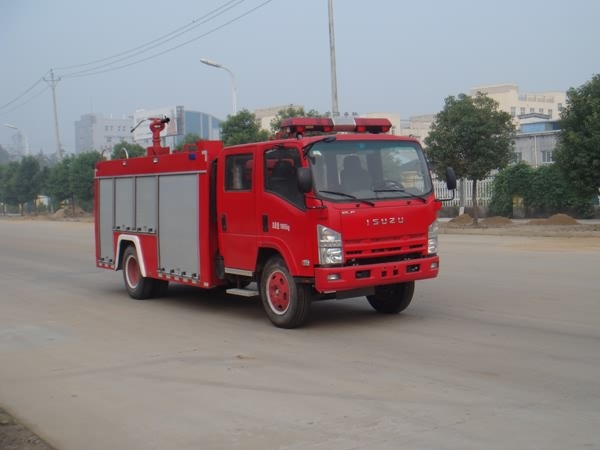

City Water Tank Fire Fighting Truck,Top Quality Isuzu Foam-Water Fire Fighting Truck of 4000L capacity,CB10/30 Fire pump Isuzu ELF water foam fire truck
Learn More

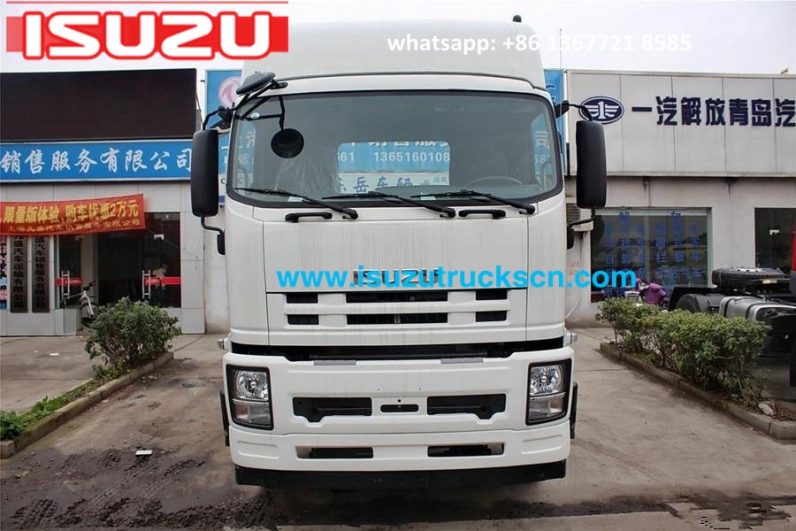

Isuzu Prime Mover tractor truck (also called as tractor head truck, prime mover Isuzu, Oil tank semi-trailer tractor truck, Trailer Trucks head, Towing trucks, 10 wheels tractor) is a specialized towing engine that provides motive power for hauling a towed or trailered load.
