Isuzu Prime Mover tractor truck (also called as tractor head truck, prime mover Isuzu, Oil tank semi-trailer tractor truck, Trailer Trucks head, Towing trucks, 10 wheels tractor) is a specialized towing engine that provides motive power for hauling a towed or trailered load.
Order(MOQ):
16x4 350 GXZ Prime Mover Tractor ISUZU
Isuzu Prime Mover Truck Tractor Unit
Tractor Trucks ISUZU (also called Semi trailer tractor head, tractor head truck, heavy tractor head, Tractors semi, prime mover, Truck-ractor trucks, Japan semi tractor, Hauler tractor truck,Semi tractor head, tractor unit, Prime mover trucks, road tractor, semi truck tractor, Mobile tractor unit, etc.) is a specialized towing engine that provides motive power for hauling a towed or trailered load.
Isuzu Truck tractor unit is an articulated vehicle composed of a towing engine or tractor and a trailer that carries the freight. The tractor and trailer are detachable, that is, the tractor can be used to haul other trailers, or vice versa. According to connection type of tractor and trailer, there are full trailer and semi trailer. A full trailer is a trailer that is supported by front and rear axles and pulled by a drawbar. A semi trailer is a trailer that has no front axle and is supported by a road tractor.
Key further of Isuzu VC46 Prime Mover
1. Excellent Isuzu 6UZ1 Surging Power
2. Lightweight and High Strength Frame
3. Style of Great General
4. Working with Great Care
5. Cost-efficient and Worry-free Performance
Main specifications:
|
PT4250UK46 |
|||
|
Driving Type |
6x4 |
Left hand drive |
|
|
Weight |
Kerb Weight (kg) |
8200 |
|
|
Max. Fifth Wheel Payload (kg) |
15000 |
||
|
Max. Towed Mass (kg) |
45000 |
||
|
Overload Range of Gross Vehicle Weight (kg) |
55000 @ complex road |
||
|
Dimensions (mm) |
Wheelbase |
3425+1300 |
|
|
Overall Dimension |
6775x2490x3580 |
||
|
Front Overhang |
1370 |
||
|
Rear Overhang |
680 |
||
|
King Pin Diameter |
90# |
||
|
Min. Ground Clearance |
285 |
||
|
Cab |
All-steel-welded construction, 3 seats with 1 sleeper |
||
|
Engine |
Model: |
6UZ1-TCG40 |
|
|
Cylinder in Line |
6 |
||
|
Capacity |
9839 ml |
||
|
Type |
Diesel, turbo charged inter-cooled |
||
|
Max. Power: |
257/2000 KW/RPM |
||
|
Max. Torque |
1422/140 N.m/RPM |
||
|
Gearbox |
9JS119TA 9-shift, mechanical type, 9 forward and 1 reverse with |
||
|
Brakes |
Type |
2 independent pneumatic circuits, disc/drum |
|
|
Parking |
Mechanic with spring cylinder, rear |
||
|
Emergency |
Combined with parking brake |
||
|
Engine |
Decompression |
||
|
ABS |
Yes |
||
|
Axles |
Type |
ISUZU exclusive high-performance axle |
|
|
Loading |
Front 9T Rear 20T+20T |
||
|
Tyre |
11.00-20 |
||
|

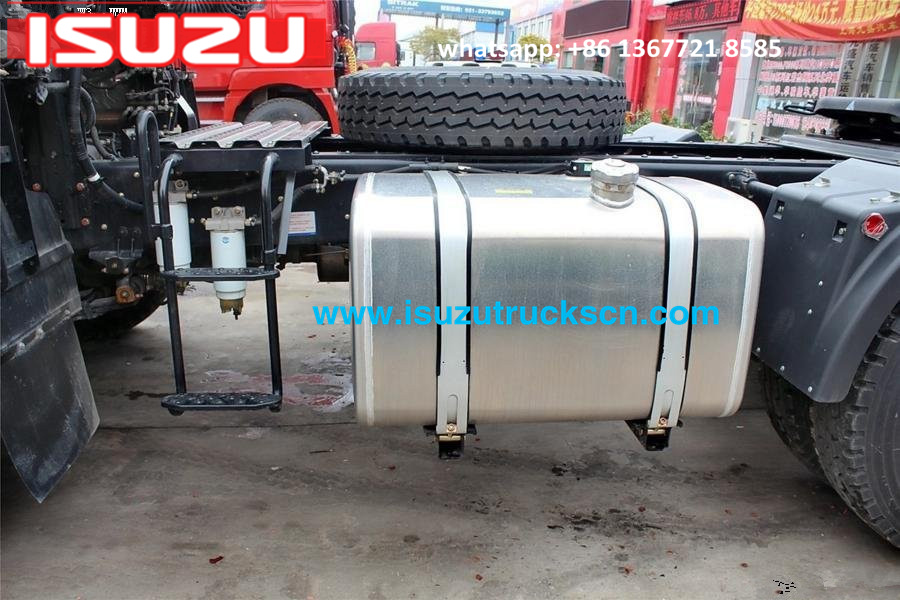

Fuel tank |
400 L |
||
|
Color |
White |
||
|
Max Speed |
105 km/h |
||
Over view of the 6x4 350 GXZ Prime Mover Tractor:

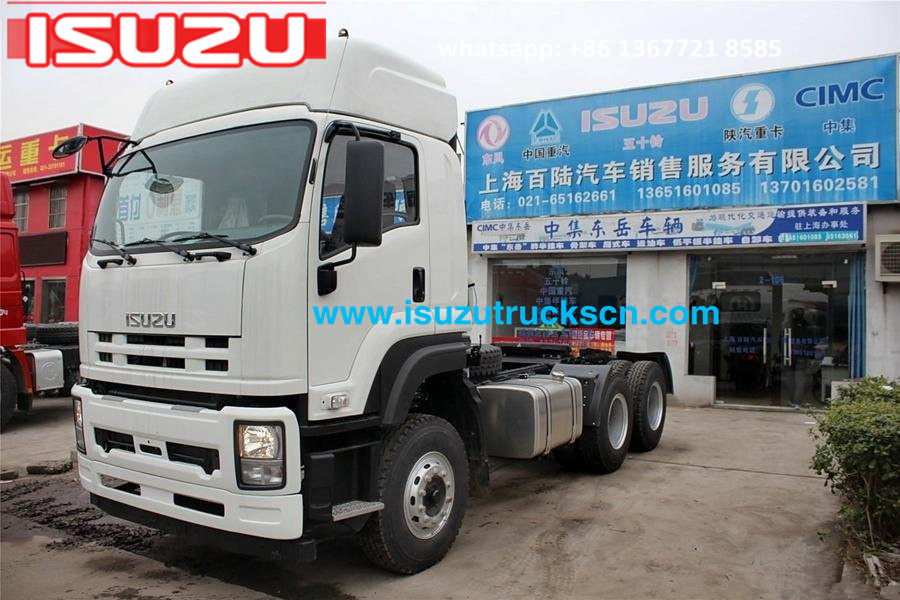

Front left view

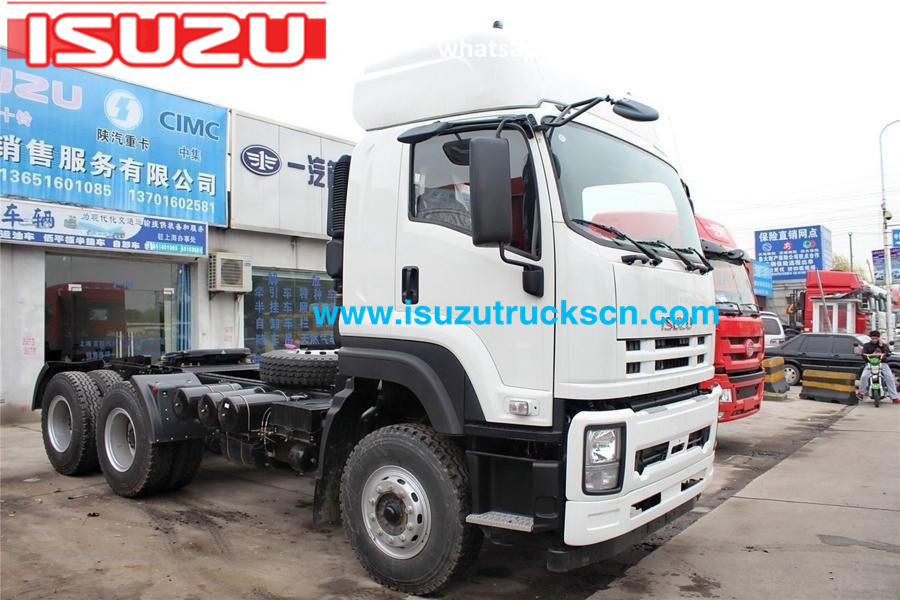

Front right view

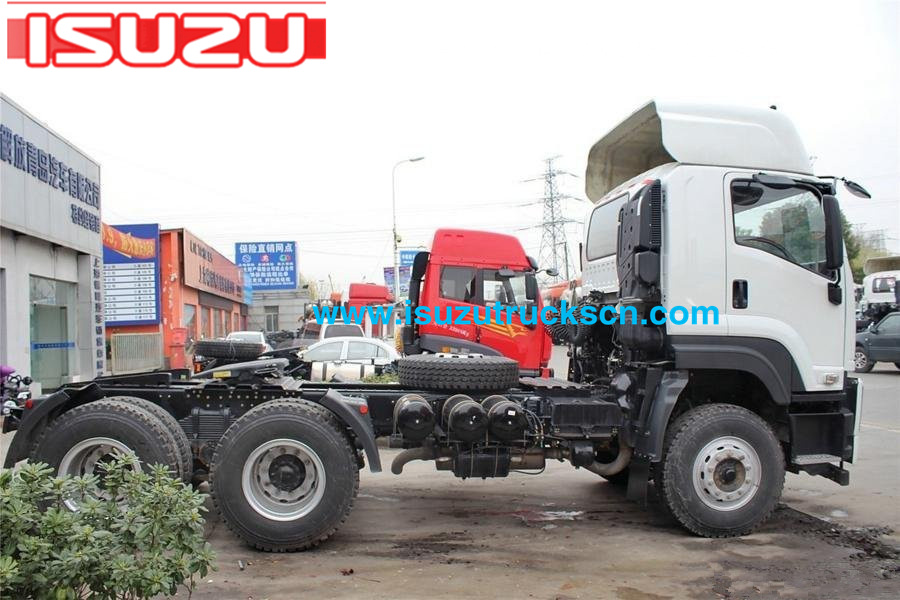

Right side view

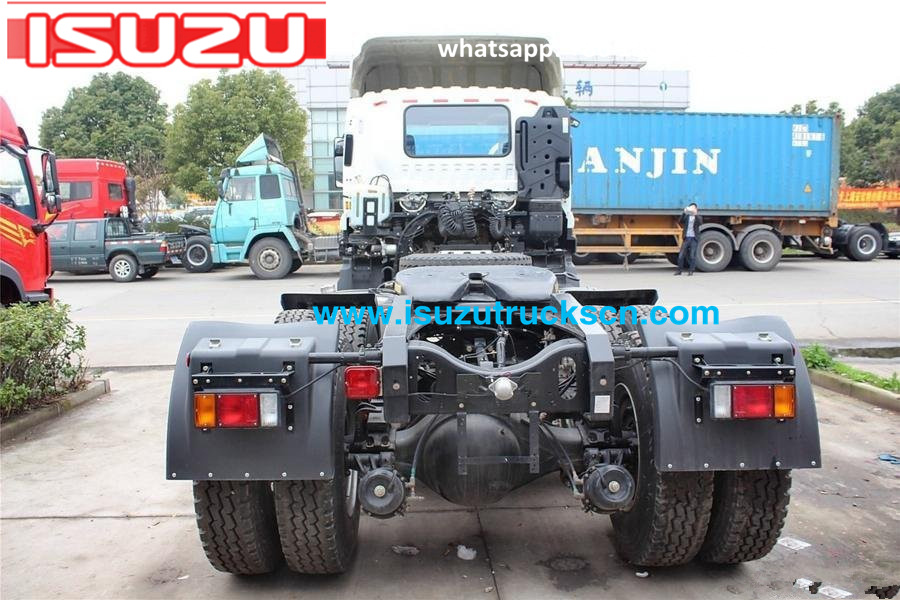

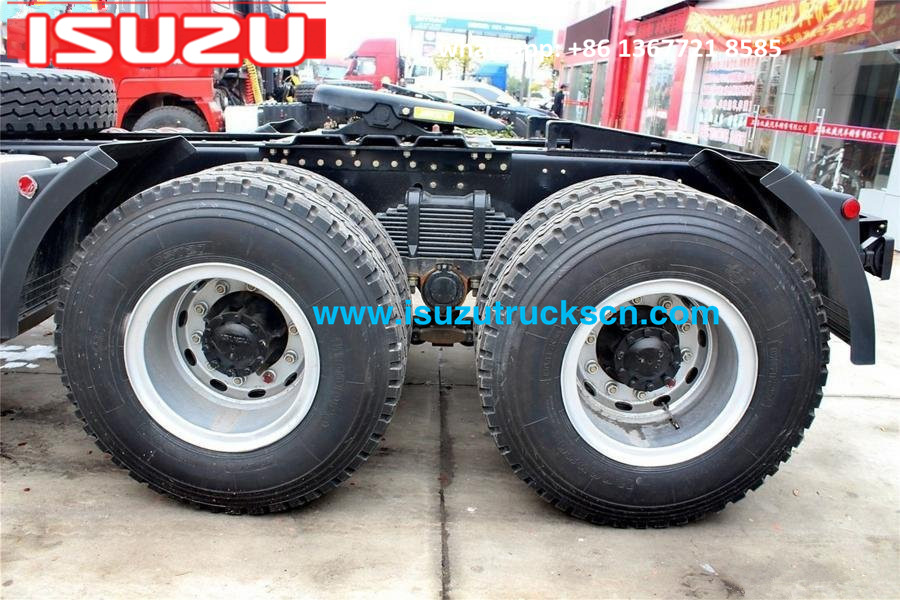

Rear view

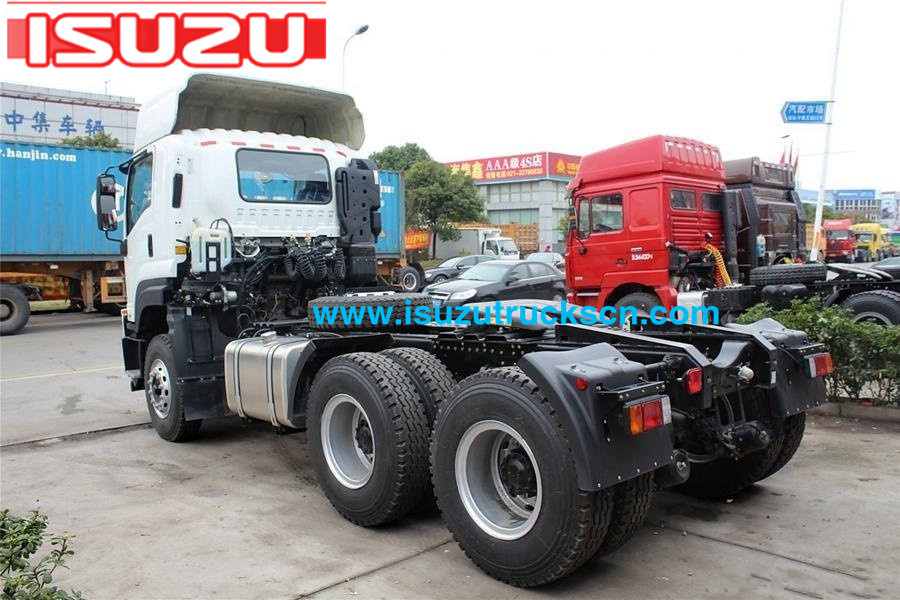

Rear left view

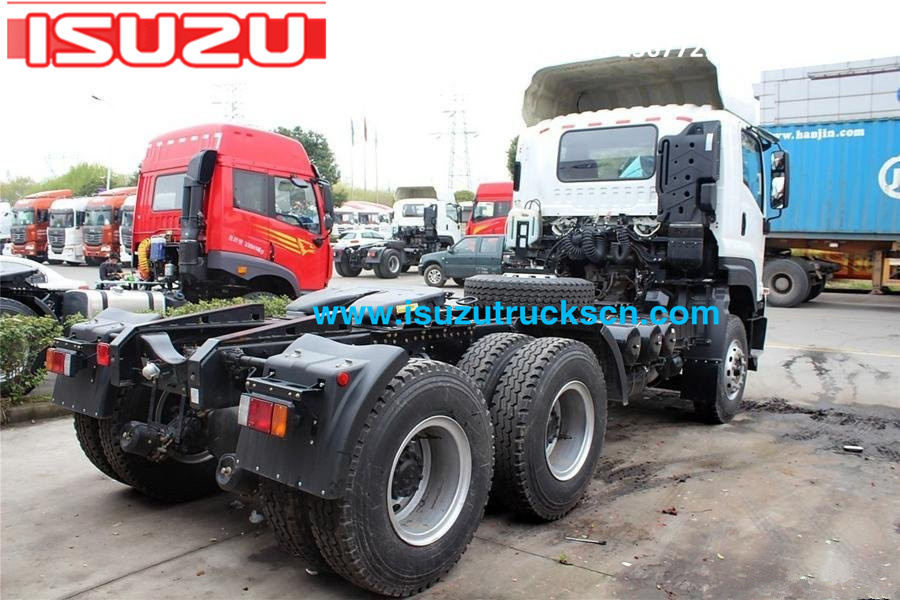

Rear right view
