1Good price New Isuzu street cleaning truck, road sweeper truck for sale

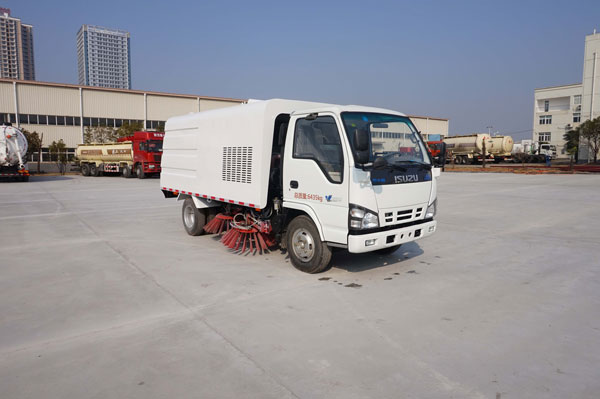

Isuzu Road Cleaning Sweeper Truck For Sale
Model |
PT5071TSL |
||
chassis model |
QL1070A1KAY Euro IV exhaust standard |
||
Configuration of cab |
cold and warm AC |
||
Dimension(L X WX H) |
6295x2005x2475mm |
||
Tread mm |
front |
1015 |
|
|
rear |
1425 |
|
Wheelbase(mm) |
3815 |
||
front/rear overhang(mm) |
1015/1470 |
||
Approach/ departure angle |
24°/25° |
||
Kerb mass |
5030 |
||
Total max weight |
7300 |
||
Clean water tank and sewage tank |
Clean Water tank volume |
4.5m³ |
|
|
Sewage tank volume |
2.5m³ |
|
|
Material |
Stainless steel in high quality |
|
|
Alarm device |
High/low water level alarm system |
|
Sweeping width (m) |
3 |
||
Clean width(M) |
3.2 |
||
High press water system |
Water pump model |
NP25/70-100(German) |
|
|
Water pump press(Mpa) |
10 |
|
|
Water pump flow(L/min) |
70 |
|
Working speed(km/h) |
3-15 |
||
Dump angle of container |
50° |
||
Max speed(km/h) |
100 |
||
Hydraulic system press(MPa) |
14 |
||
Engine Model |
4KH1-TCG40 |
||
Rated power kw(r/min)
|
96/3400 |
||
Max torque N(r/min) |
280/1700 |
||
Displacement (L) |
2.999 |
||
Auxiliary engine model |
4JB1 |
||
Rated power |
57/3600 |
||
