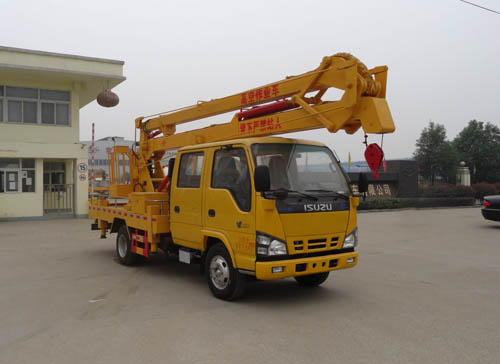

Isuzu High-altitude working Truck, Isuzu aerial operation vehicle , overhead working truck ,high-altitude operation truck also named aerial operation vehicle,overhead working truck,aerial platform truck,highplatform truck,
platform operation truck,hydraulic aerial cage,aerial working platform truck ,high platform operation truck ,working platform truck ,
aerial working vehicle.
| Products Technical Specification | ||
| Type | ISUZU high-altitude operation truck 14m | |
| Vehicle Description | ||
| Overall dimensions(mm) | 7300×2000×3100 | |
| G.V.W (kg) | 6300 | |
| Max speed (Km/h) | 98 | |
| Engine Description | ||
| Engine model | 4KH1-TCG40 | |
| Engine Type | 4 cylinders, straight in-line, exhaust turbo charging system to improve engine power | |
| Maximum power(hp) | 120 | |
| Displacement (lit) | 2.771 | |
| Emission Standard | Euro4 | |
| Engine Manufacturer | ISUZU | |
| Chassis Description | ||
| Wheel base | 3360 | |
| F/R overhang(mm) | 1105/1530 | |
| Approach/Departure angle(°) | 24/15 | |
| Spring plate | 7/4+5 | |
| Front / rear axle (T) | 2.5/4 | |
| Gear box | 5 forwarder gear,1 reverse gear, manual | |
| Driving Type | 4×2,left hand drive | |
| Tyre&Quantity | 7.50-16 radial tire, ,6+1 | |
| Up-parts Description | ||
| Max Working Height(m) | 14 | |
| Max working radius(m) | 6 | |
| Working bucket rated loading(kg) | 200 | |
| Max rotation angle(°) | 360 | |
| Rotation Speed(°/min) | 180 | |
| Expensive Speed(m/s) | 0.15~0.20 | |
