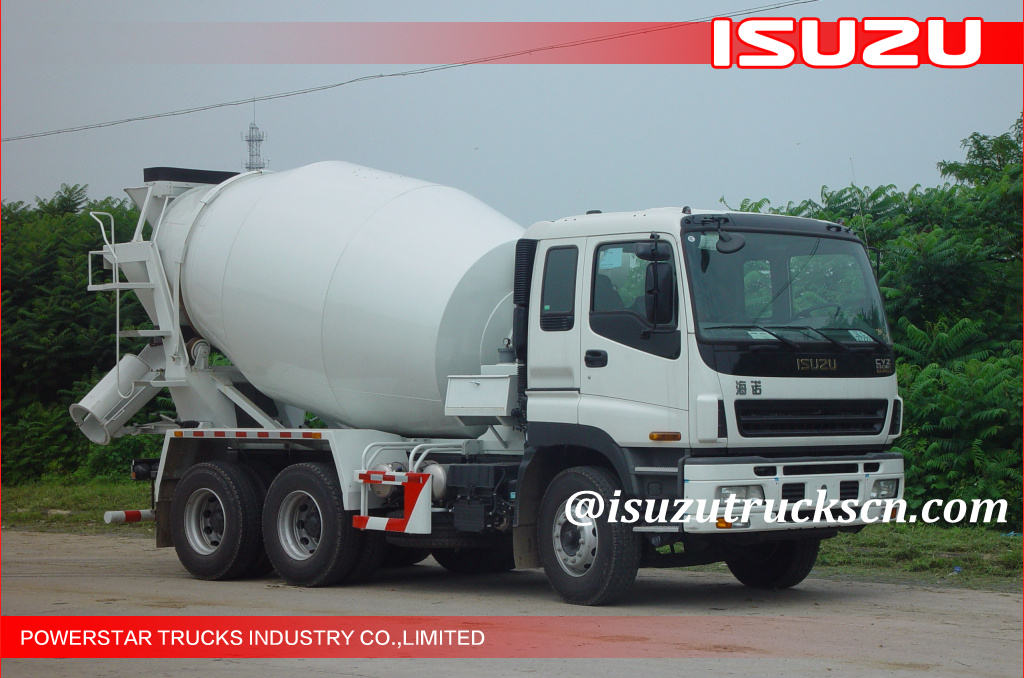

18cbm 10wheels Isuzu Brand Read Mix Concrete Truck
The concrete mixer is specially designed for mixing and carrying the concrete to the construction worksites. All cement mixer trucks are constructed with high-tensile steel for endurance and resistance to friction, it’s very easy to operation.
Key Features:
◆ World-class ISUZU heavy duty Chassis, High power and Fuel efficiency, Reliability, Uptime
◆ The hydraulic system adopts Germany Rexroth, America EATON, Italy ARK, America Sauer;
◆ Pneumatic Water Supple System. The pressure is provided by the air tank on the chassis with pressure protection devices .The Water inlet connector fits for both normal water pipe and fire fitting.
◆ New technology T-shape Blade. It is made of hard-wearing alloy steel, and thus protects the mixer blades from abrasion, extends the service life of the agitator drum, and enhances mixing performance;
◆ Equipped with the large diameter hopper, it can realize the quickly feeding, not plugging and spilling, and it is easy to clean;
◆ The optimized design of mixing drum ensure the concrete residue ratio is less than 1%;
◆ Colors can be customized.
◆ Mixer coverage can be customized. 3cbm, 5cbm,6cbm, 8cbm, 10cbm, 12cbm, 14cbm, 16cbm.
Main specifications:
|
PT5250GJB -8M3 |
|
|
Driving Type |
6x4 (Left hand drive) |
|
Max. External Diameter of Drum |
Φ2432 |
|
Length of the Drum |
4811 |
|
Geometric Volume of Drum |
14.6 |
|
Mixing Capacity |
8 |
|
Material of drum & blades |
Q345MN/B520JJ |
|
Inclination Angle for Drum |
13 |
|
Padding rate |
63 |
|
Residual Rate |
＜1 |
|
Charging Speed |
≥3 |
|
Discharging Speed |
≥2 |
|
Mixing Speed |
0~12 |
|
Slump Range |
70-260 |
|
Capacity for Water Tank |
350 |
|
Water Supply Pressure |
0.4 |
|
A Upper-fixing Length |
6115 |
|
B Sub-frame Length |
5045 |
|
C Chute Position |
804 |
|
D Center of Gravity when Fully Load |
2430 |
|
E Hopper Height |
2630 |
|
F Upper-fixing Height |
2665 |
|
Upper-fixing Width |
2490 |
|
Overall Dimension(L×W×H) |
6115×2490×2665 |
|
Weight |
4050 |
|
Color |
White (Any color & logos up to wish) |
