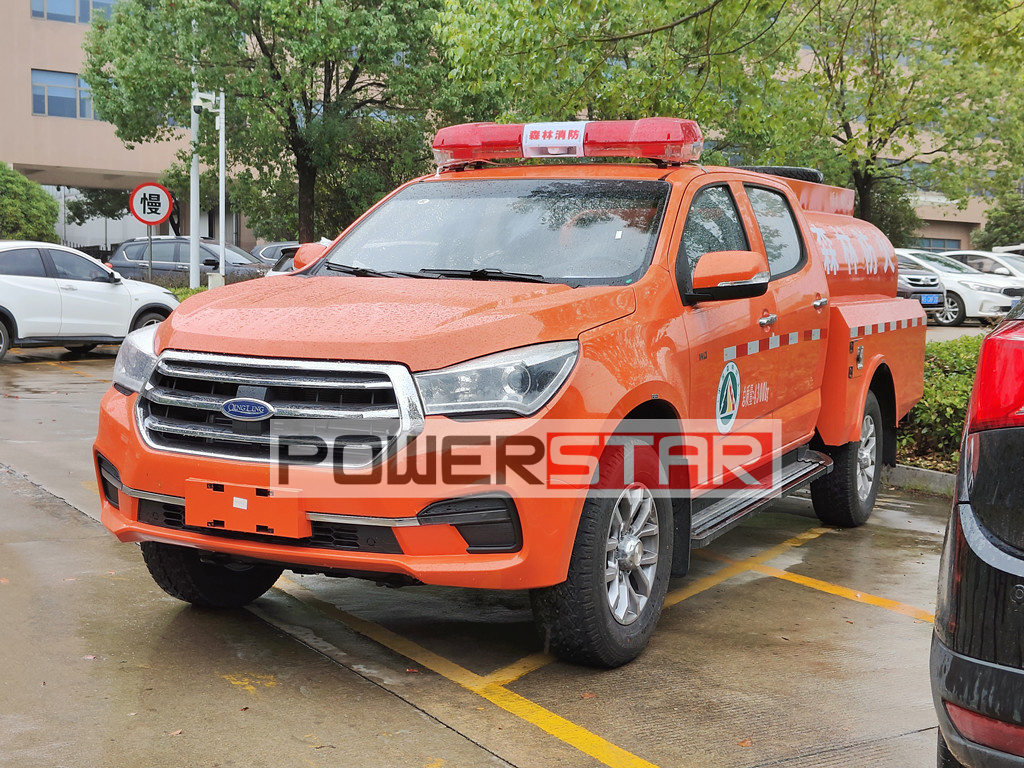

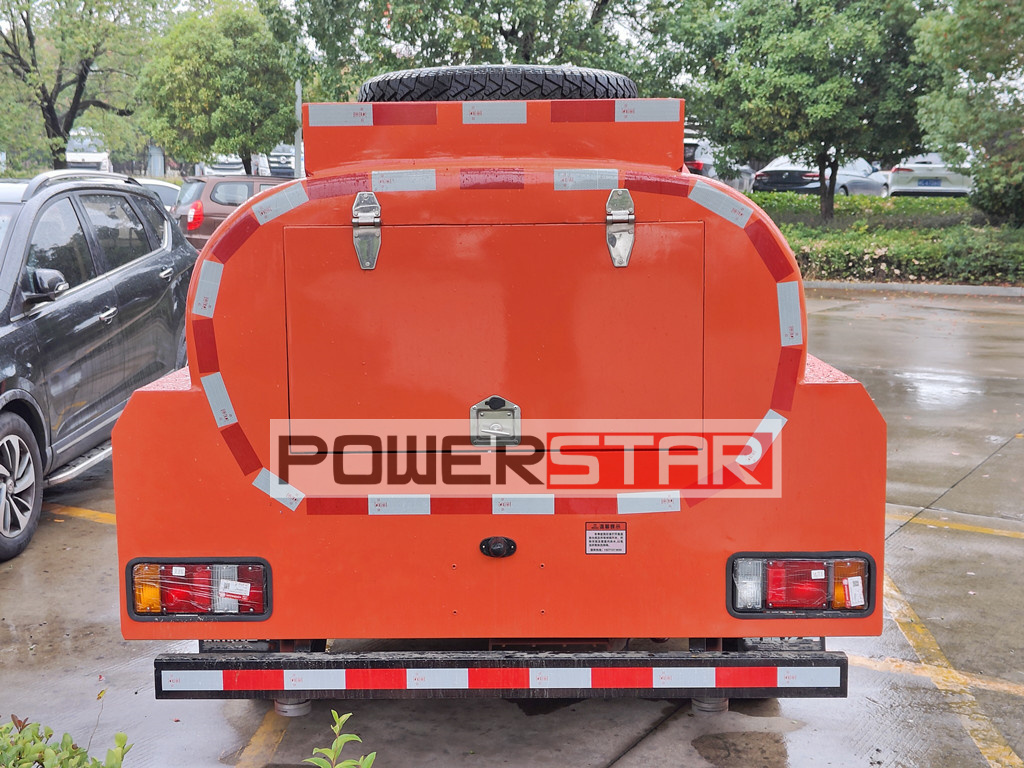

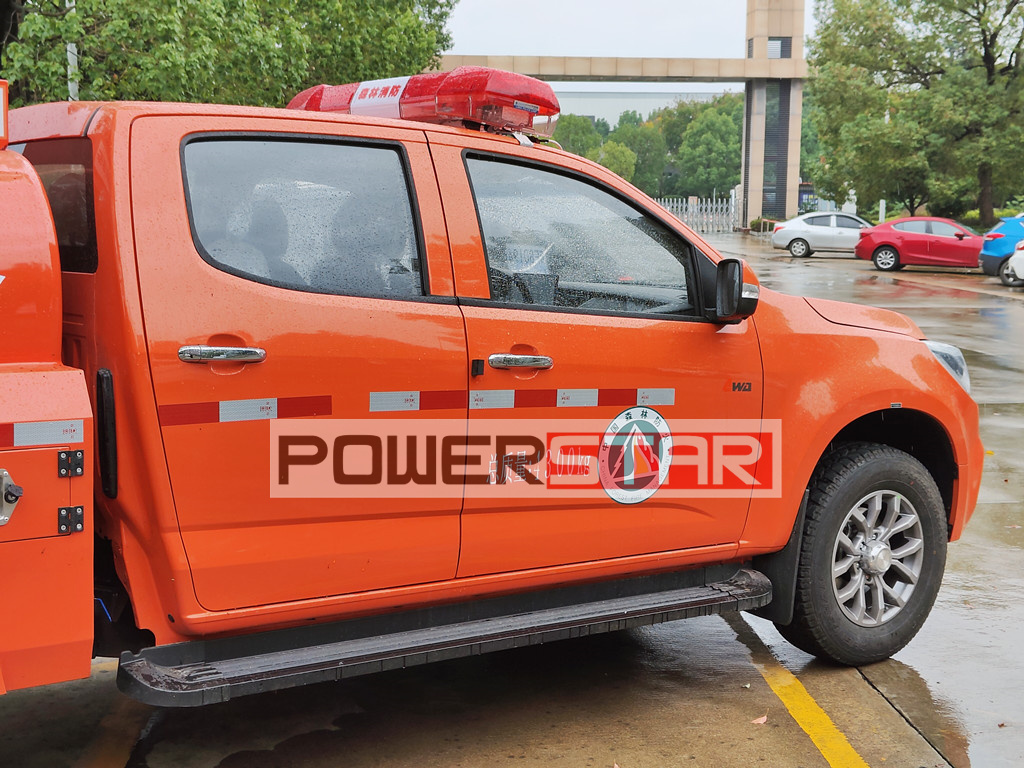

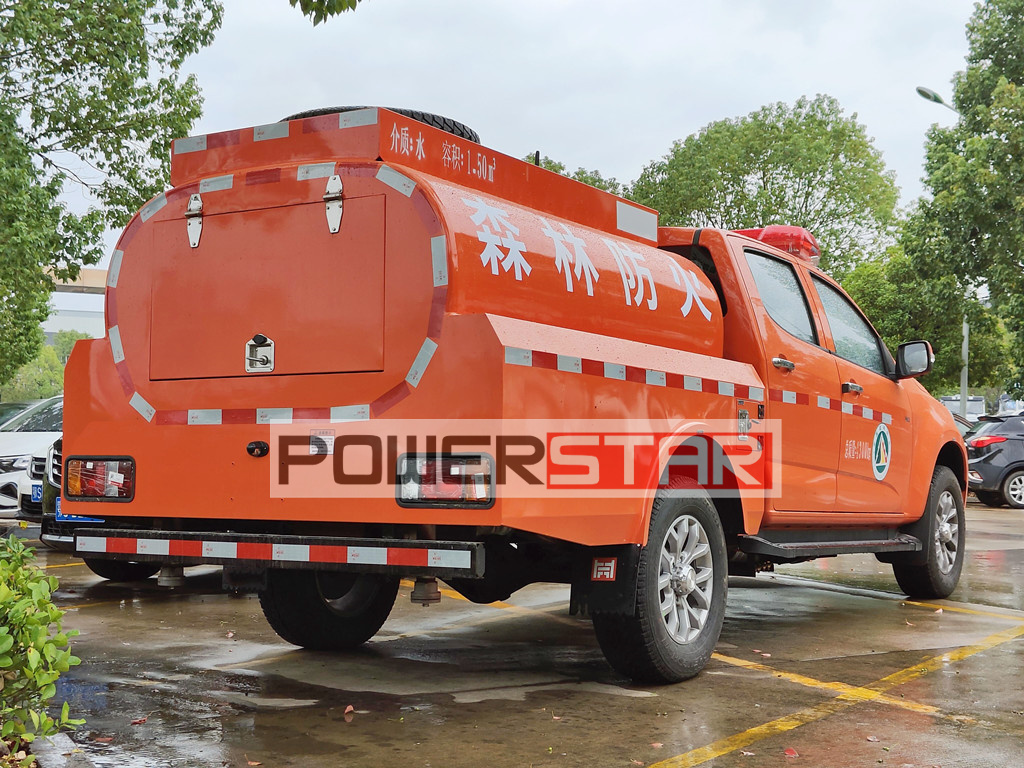

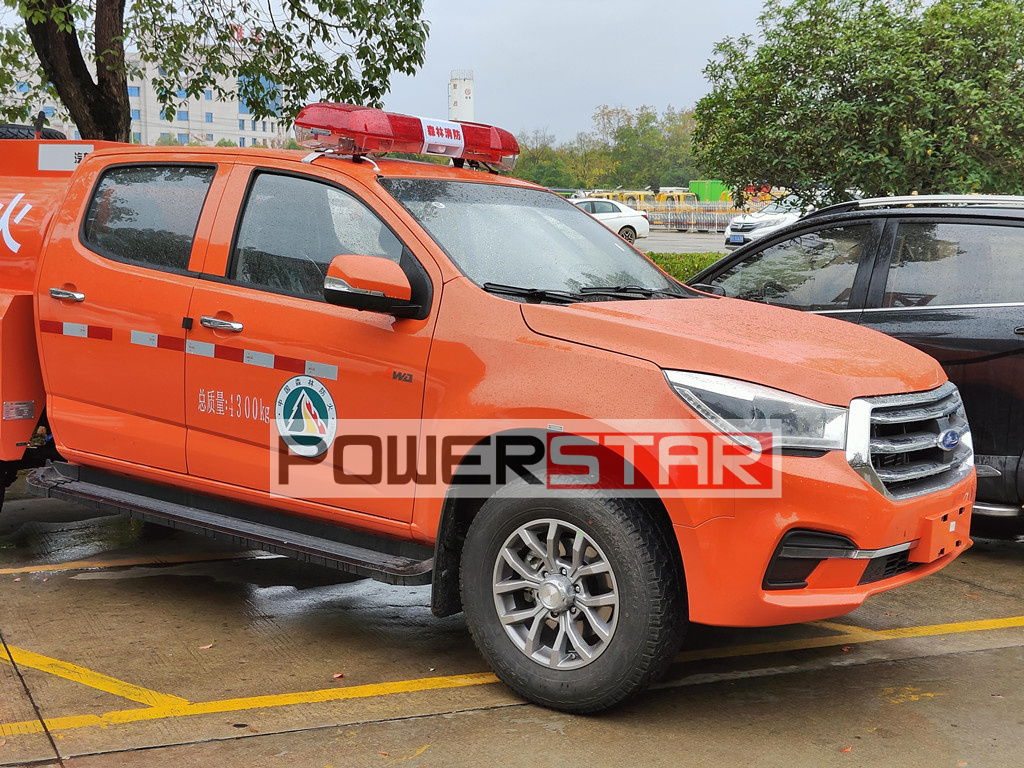

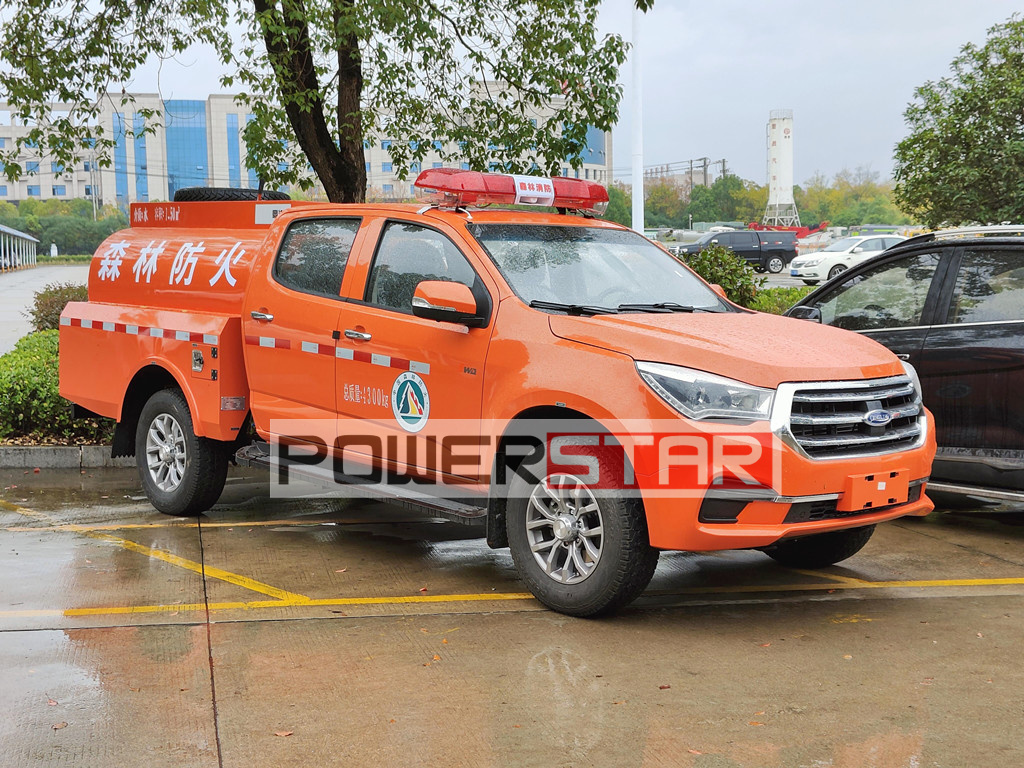

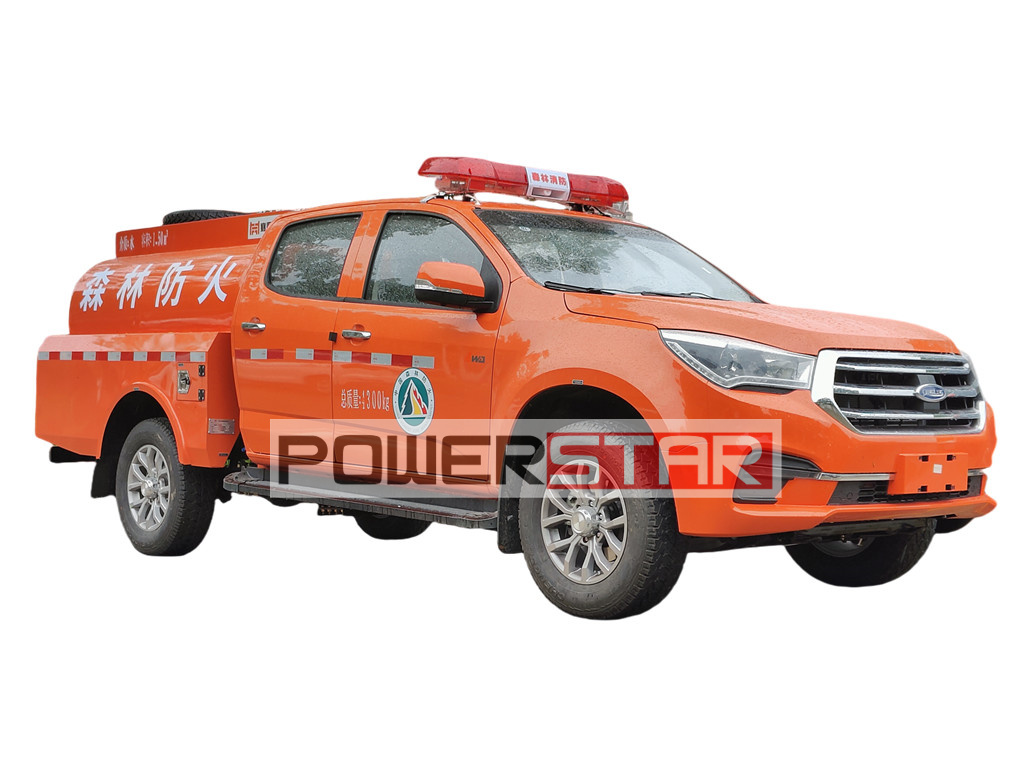

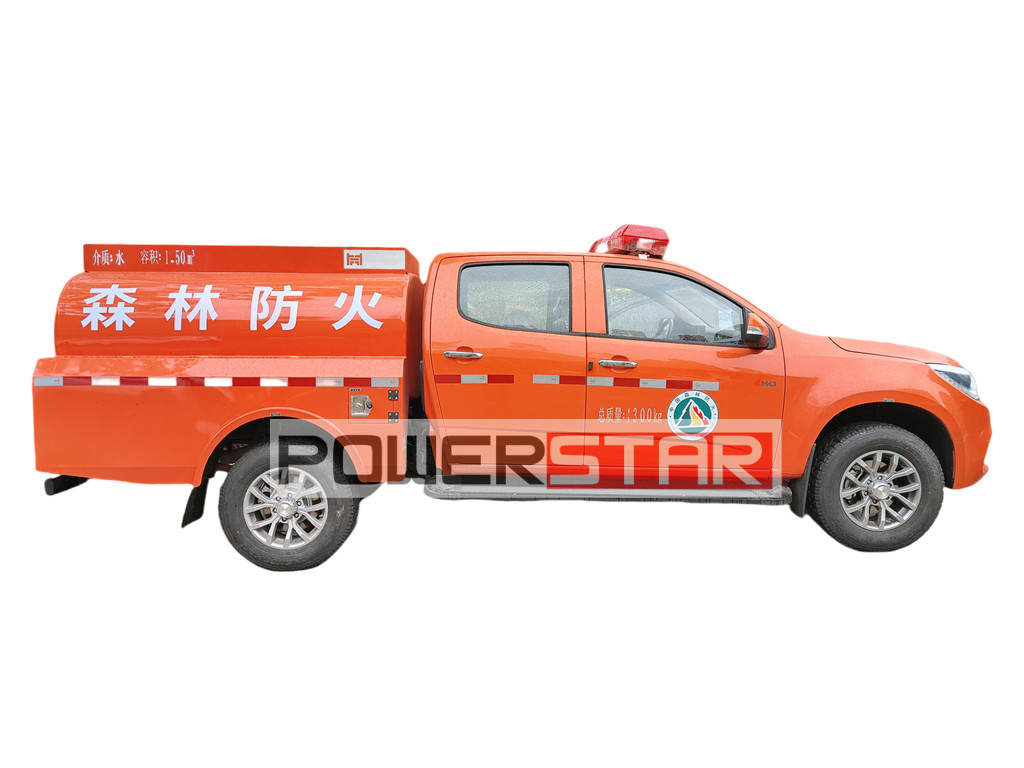

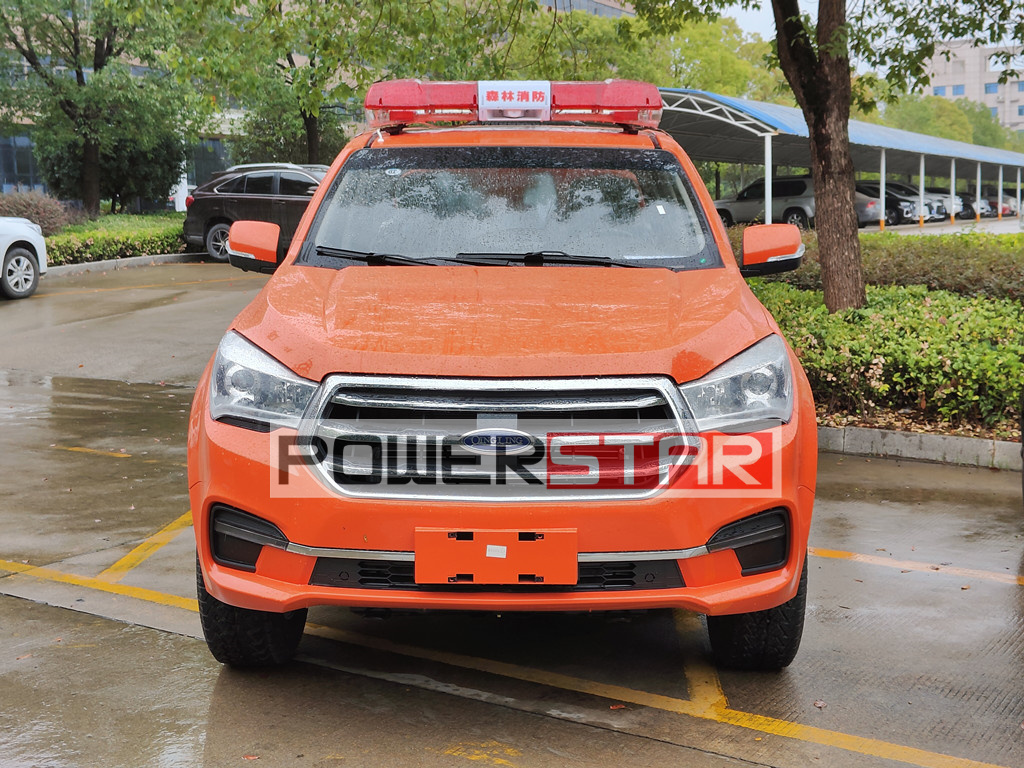

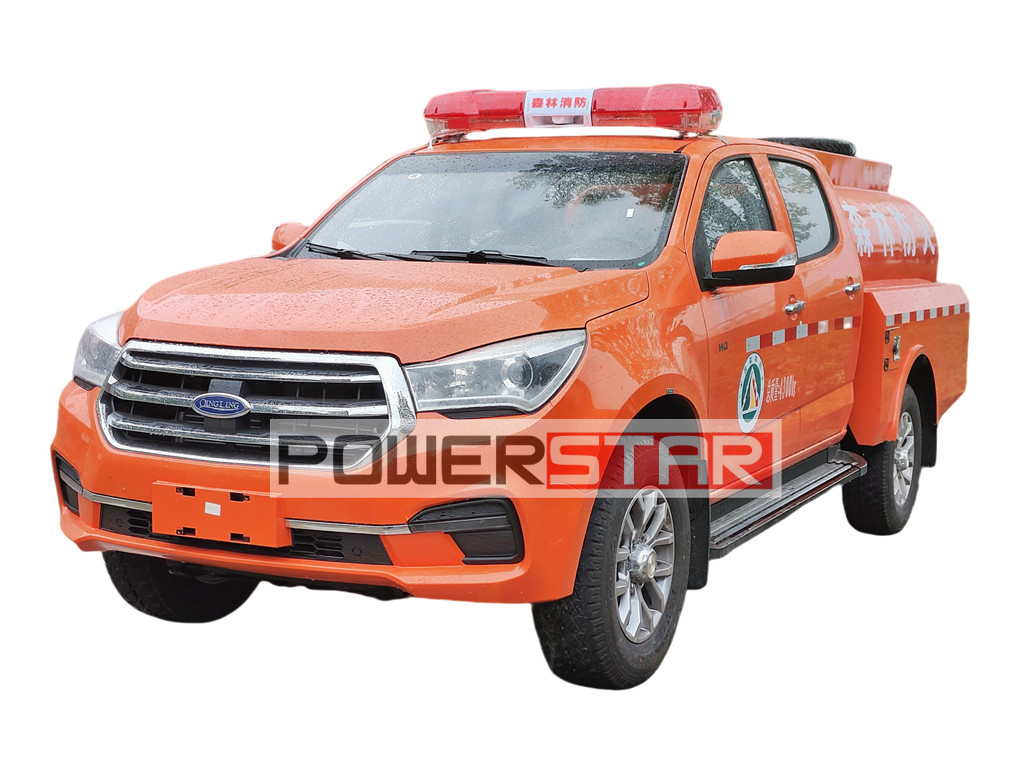

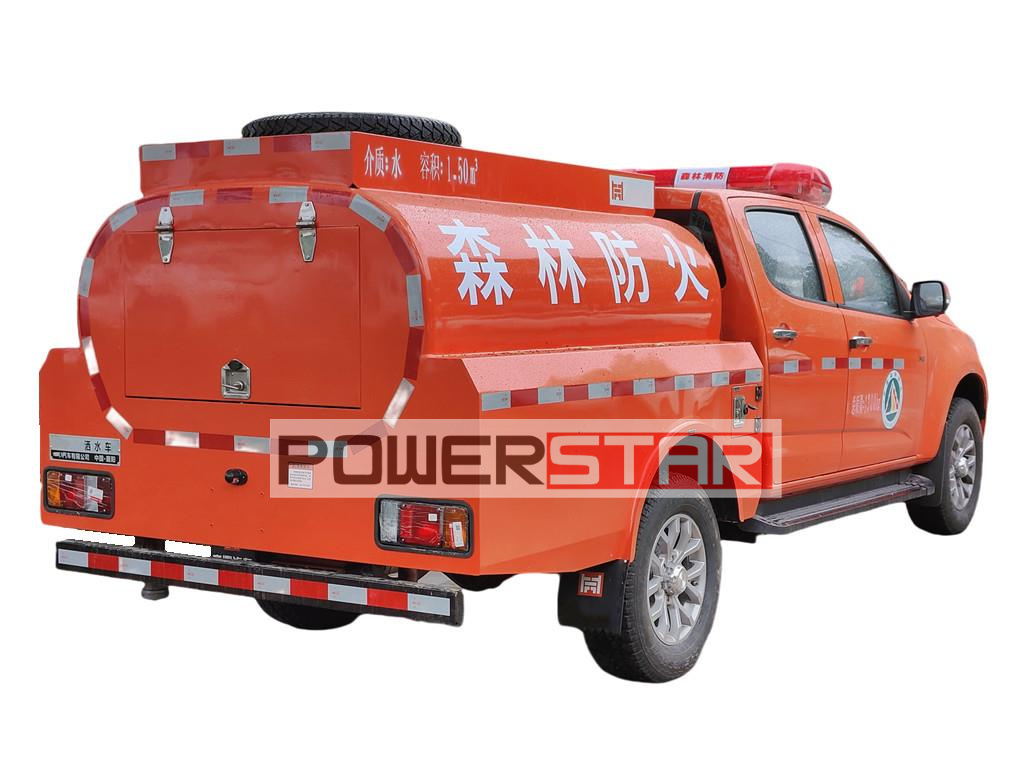

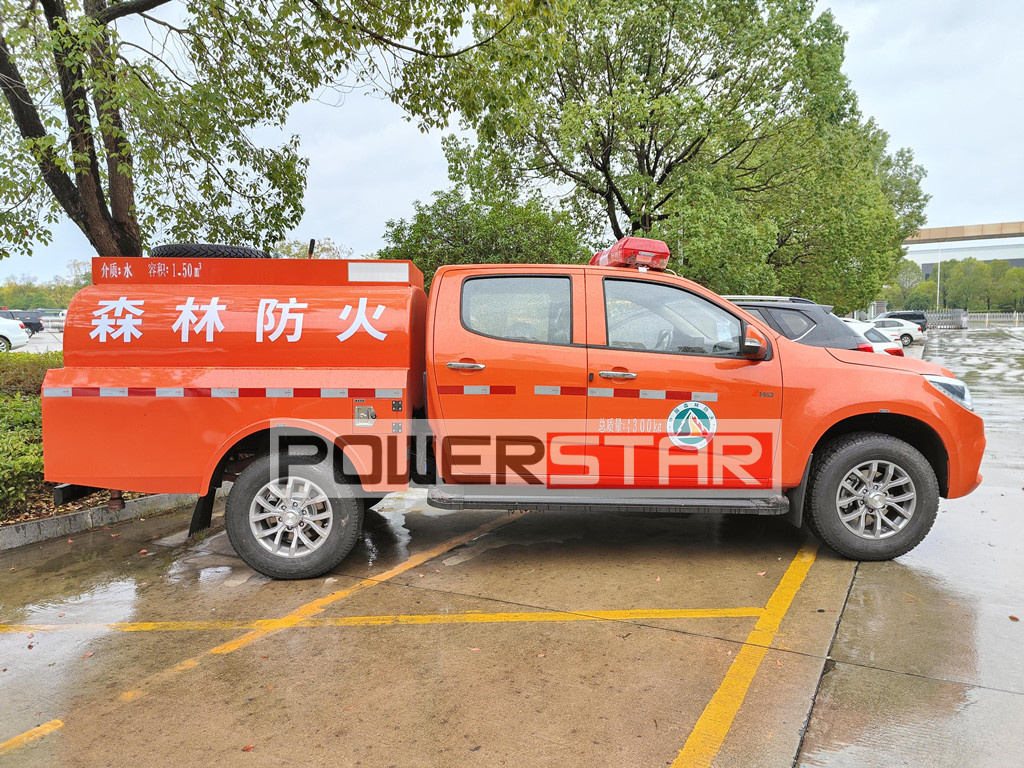

ISUZU pickup 1500L water tank fire truck is a fire truck modified based on the ISUZU TAGA model pickup chassis QL1030CZHW2. It is equipped with a 1500L water tank for firefighting operations at the fire scene. ISUZU 4x4 pickup chassis is known for its off-road performance and carrying capacity, which enables fire trucks to respond quickly and operate effectively under complex terrain conditions. Power: Usually equipped with a high-power diesel engine, providing sufficient power output to ensure rapid response under various load requirements.
Work capacity:
1500LitersTruck model:
PT5030GXFEngine power:
143HP/105kwEngine type:
Isuzu 4KH1CT6H1Axle drive:
4×4, LHDGear box:
Isuzu 5 speed,manualRemarks:
Water tanker fire pumper designOriginal Japanese ISUZU technology TAGA 4x4 offroad wildland fire truck mounted with 1500L water tanker. Isuzu 4x4 pickup water tanker fire pumper chassis with model QL1030CZHW2, double cabin row with 2+3 seats, independent safety belt equipped, also the airbags for front driver seat and passenger seat. Japanese design 4KH1CT6H1 model diesel engine 105KW / 143HP, and emission 2999cc with EURO 6 standard. ISUZU brand 5 shift manual gearbox with 5 forward and 1 reverse. 4x4 offroad driving model with electric control, convenient for working. 245/70R17LT 10PR tires can be customized as offroad type, Aluminium alloy wheel rim, both front and rear equipped disc brake, ABS+EBD+ESC for safety guarantee. Remote control key, tire inspection system, front and rear electric windows and equipped with electric folding function. Air conditional for warm and cooling function.
ISUZU Pickup 1500L Water Tank Fire Truck is a powerful, flexible and versatile firefighting vehicle that can provide effective firefighting support in a variety of scenarios to protect the safety of people's lives and property. Water Tank and Fire Extinguishing Device Water Tank Capacity are all can be customized as required. The required 1.5 cubic meters water tank capacity ensures continuous water supply during firefighting operations and meets the needs of long-term, high-intensity firefighting. Isuzu pickup fire trucks with customized Fire Extinguishing Device, It is usually equipped with firefighting devices such as water spray guns and fire cannons. The water spray gun can spray water to extinguish fires efficiently and remotely, while the fire cannon can form a more powerful water column to cover a wider firefighting area.
Isuzu offroad 4x4 pickup wildland fire truck Brief Introduction:
ISUZU pickup fire truck also named ISUZU pickup fire fighting truck, ISUZU pick up fire agent, ISUZU pickup fire pumper, pick up mini fire pumper, ISUZU pickup water tank rescue car, specification, ISUZU pick up fire agent for sale, fire pumper, pick up fire engine, pickup fire appliance, fire rescue vehicle, fire equipment, fire fighting tender, fire water truck, fire extinguisher water truck, fire rescue tanker truck, fire pumper)
ISUZU pickup water fire truck is widely used in urban public security fire brigade, petrochemical industry, Factories, mining enterprises, communities, forests, ports, docks and other departments can quickly approach the fire scene to start fire fighting and put out various fires. It is an ideal fire fighting equipment.
model No.: ISUZU newly pickup
Engine model: ISUZU engine Power: 105kW / 143HP
Drive type: 4x4 offroad all-wheel drive shaft

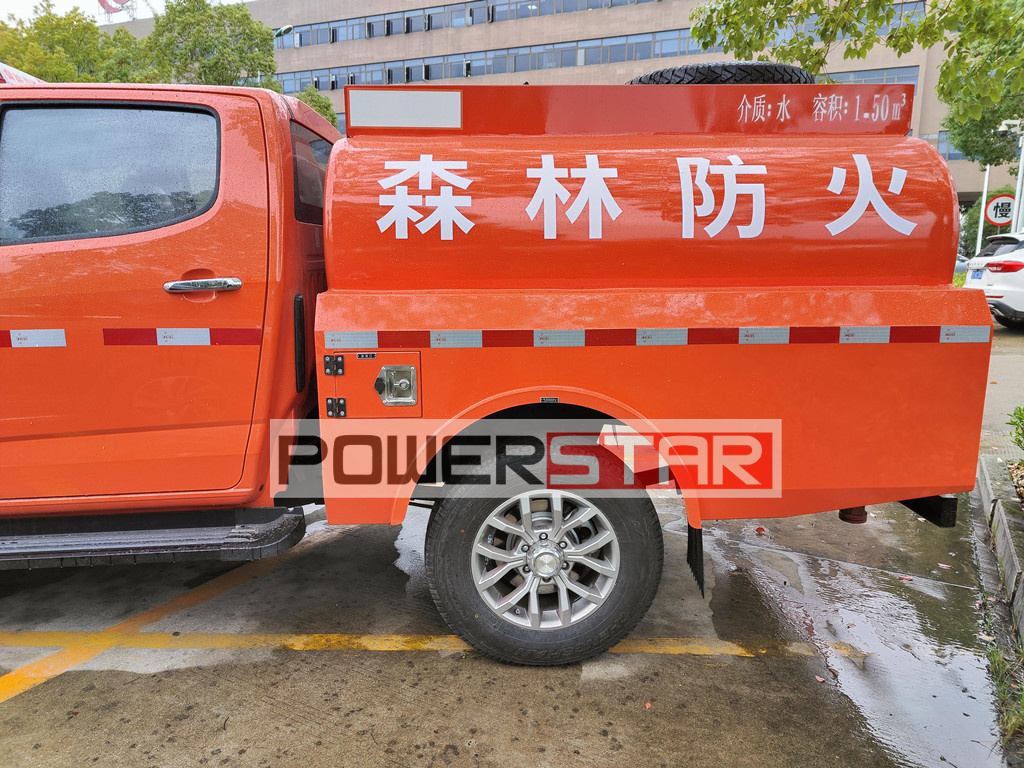

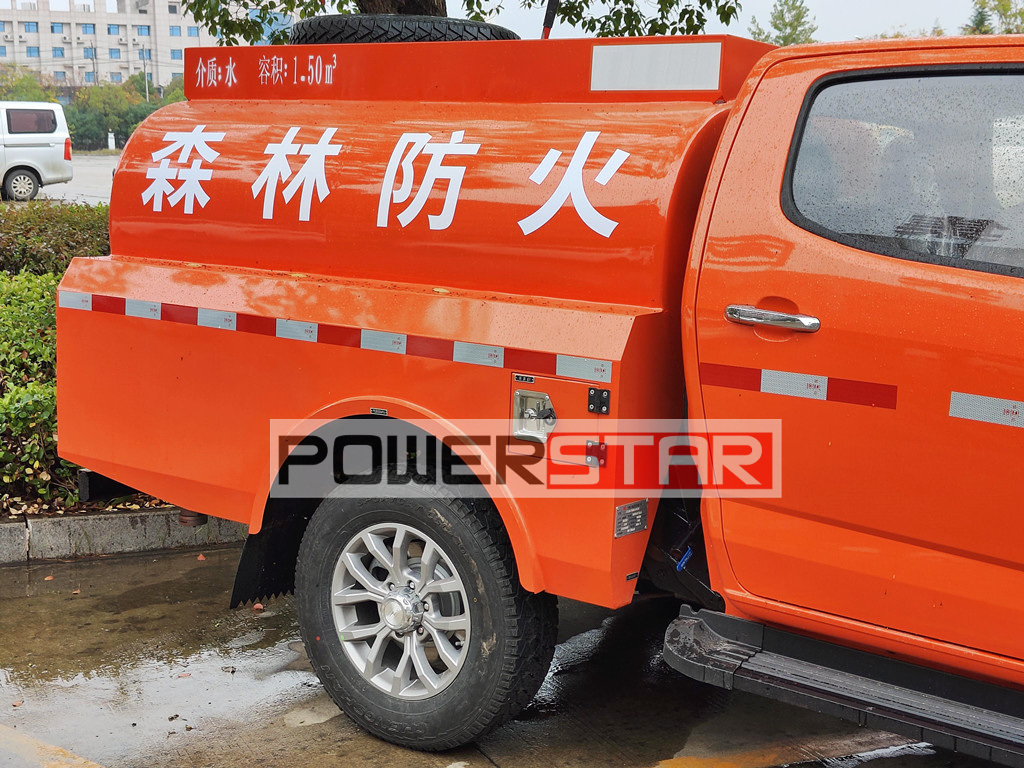

Water tanker: Customized Carbon steel 1500L capacity
Emission standards: GB3847-2005, GB17691-2018 country 6
Isuzu 4x4 pickup wildland water fire agent truck Technical Specifications:
The POWERSTAR produced and export city's rapid response fire truck is modified from 4x4 ISUZU TAGA pick up truck chassis. The body is small and flexible. It is equipped with a 4x4 four-wheel drive mode. It has strong climbing ability and the ability to adapt to various terrains. It can be widely used in port terminals and cargo piles. Fields, industrial and mining enterprises, business squares and community towns and other places can quickly reach the scene to extinguish the initial fire. It is an ideal equipment for the firefighting force to respond quickly to fire rescue.
| ISUZU pickup fire truck Products Technical Specification | ||
| Brand-Series | ISUZU | |
| Product Name | 4*2 Fire truck | |
| Chassis Model | QL1030CZHW2 | |
| Emission Standard | Euro 6 | |
| Fuel type | Diesel | |

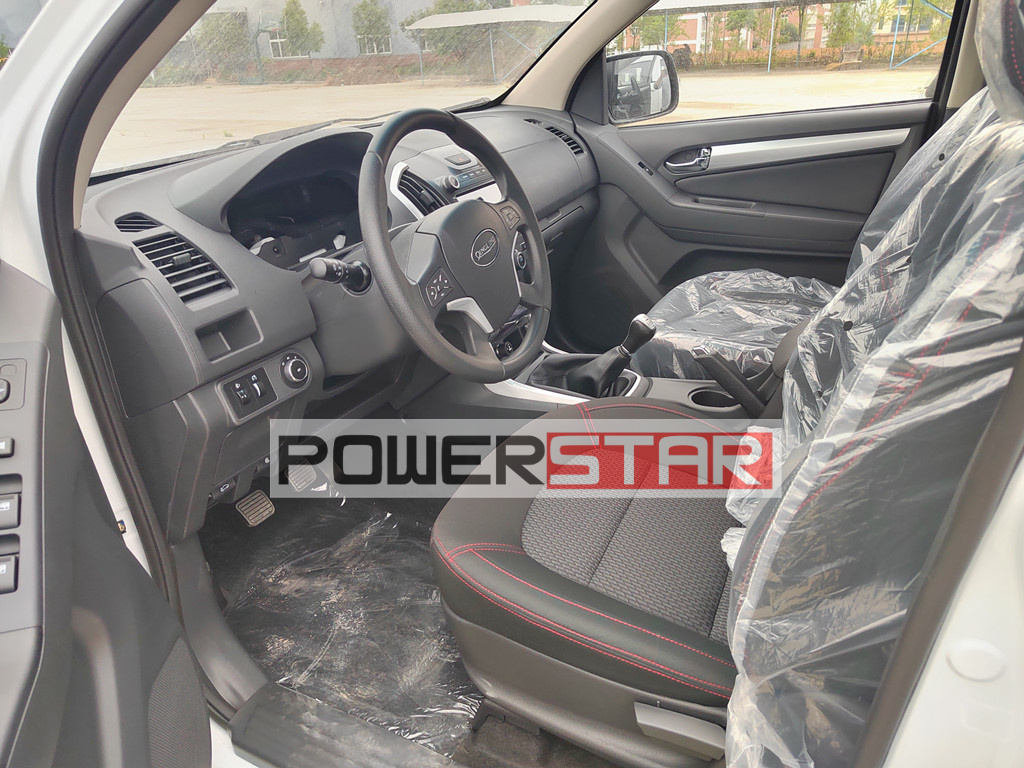

| Cabin | TAGA, Double row with 2+3 seats | |
| Whole vehicle main dimensions (mm) |
Overall dimensions (L×W×H) | 5850*1900*2250 |
| Wheel base | 3406 | |
| Front overhang | 945 | |
| Rear overhang | 1350 | |
| Min. ground clearance | 250 | |
| Weight data (kg) | G.V.W | 3295 |
| Curb weight (chassis) | 2400 | |
| Max payload | 1500 | |
| Whole vehicle main performance |
Max. speed (km/h) | 110 |
| Max. slope of climb (%) | 30 | |
| Engine | Model | 4KH1CT6H1 |
| Maximum power | 105kw / 143hp | |
| Number of cylinders | 4 | |
| Displacement (L) | 2.999 | |
| Engine Manufacturer | ISUZU ENGIEN | |
| Transmission | Model | ISUZU |
| Number of gears | 5 forward gears& 1 reverse | |
| Axle |
Front / Rear Load capacity |
1350 / 1945 |

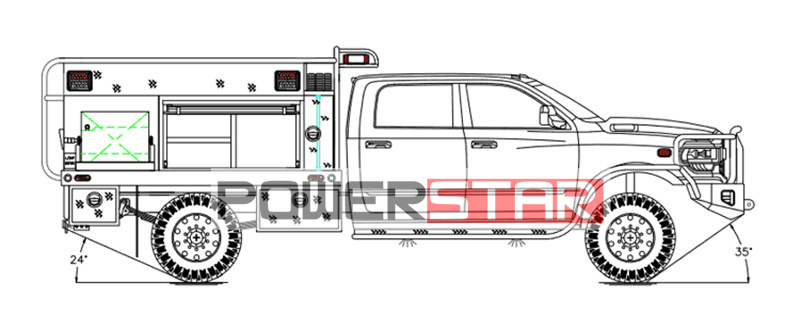

| Angle | Approaching and Departure |
33 / 26 |
| Steering Wheel | left/right hand drive | LHD |
| Brake system | Service brake | Disc braking |
| Electric device | Rated voltage | 12V |
| Tyres & Quantity | 245/70R17LT 10PR & 4+1 | |
| Firefighting Water Tank Description | ||
| Tank capacity | Water:1500L | |
| Water:500L Foam:100L |
||
| Fire pump | Model | 65QZ(F)-50/110N |
| Flux | 50m3/H | |
| Pressure | 1.0Mpa | |
| Fire fighting nozzle | Model | Carbon Steel with anticorrosion treatment |
| Pressure | 1.0Mpa | |
| PTO | PTO, splashing-type lubricate, can put out fire when driving. | |
| Material of carriage | Carriage is made of high quality steel and Aluminum embossed sheet | |
| Color | The whole vehicle is red for fire fighting, there are white in the middle of truck in accordance with the whole truck. |
|
| Optional Configuration (√:Standard Equipment o:Optional ×:Not Available) | ||
| Air Conditioner | √ | |
| Cab,Half row | √ | |
| Power Steering | √ | |
| Side bumper | √ | |
| Rear bumper | √ | |
| Radial tire | o | |
Isuzu 4x4 pickup forest fire truck Functions & Application:
ISUZU 4x4 forest water pickup truck mounted with customzied 1500L water tanker, also water pump and pump in & pump out device, which can be used for water spraying and jetting function. And the whole system is based on ISUZU 4x4 pickup truck chassis, the offroad driving model can make fire apparatus convenient for forest driving and used for fire extinguisher working.
Isuzu Pickup Fire Engine Functions and configurations
Off-road performance: The 4WD offroad pick chassis enables the Isuzu 4x4 pickup water tanker fire pumper to quickly reach the fire scene in rugged terrain.
Pump and water system: Isuzu pickup fire apparatus equipped with efficient fire water pumps and water systems to ensure that water can be quickly and accurately delivered to the fire extinguishing device.
Additional functions: Other additional functions and equipment, such as safety guardrails, fire extinguishing pumps, high-power power supplies, etc., can be equipped as needed to meet the fire extinguishing needs in different scenarios.
Isuzu forest fire agent water tank truck Application scenarios
Forest fire: With its off-road performance and sufficient water tank capacity, Isuzu pickup water fire pumpers can quickly reach the forest fire scene and carry out effective fire fighting operations.
Urban fire: In urban fires, the Isuzu fire truck can flexibly shuttle through narrow streets and complex building structures to provide timely fire fighting support.
Industrial fire: For fires in industrial plants, warehouses and other places, the fire truck can quickly provide a large amount of water to control the spread of the fire.
Isuzu pickup fire apparatus vehicle that equiped firefighting apparatus and customized for use during firefighting operations. These trucks are highly customized depending on their needs and the duty they would be performing. For the Firefighting Truck tank mediums, we have three types: water, foam, dry powder. And for the tanks material, we have carbon steel, stainless steel and PP material.
1.Fire fighting vehicle is accord with GB7965 Performance requirements and test methods for fire fighting vehicle.
2.Tank of foam and water is accord with GB39.5 General Specification for fire fighting vehicle.
3.The outside is very beauty, the surface roughness is accord with GB39.5 General Specification for fire fighting vehicle.
4.All operating switch and meter is accord with standard nameplate.
Isuzu's all-wheel drive pickup fire truck is a professional firefighting equipment designed to cope with various fire and emergency rescue situations. The vehicle uses advanced four-wheel drive technology to improve emergency response capabilities and ensure efficient operation of fire and disaster scene rescue work. It is suitable for various roads and environments, providing firefighters with rapid response and effective firefighting support.
Learn More
ISUZU pickup 4x4 offroad pickup fire engine also called Isuzu rapid intervention vehicle. The city's rapid response fire truck is modified from original Japanese ISUZU technology 4x4 Pickup chassis. The vehicle is small and flexible, it has strong climbing ability and the ability to adapt to various terrains. Isuzu pickup fire engine can be widely used in port terminals and cargo piles. Fields, industrial and mining enterprises, business squares and community towns and other places can quickly reach the scene to extinguish the initial fire. It is an ideal equipment for the firefighting force to respond quickly to fire rescue.
Learn More
Japanese ISUZU 4x4 Pick-up Small Fire Truck and Rapid Intervention Vehicle (RIV). The city's rapid response fire truck is modified from original ISUZU TAGA 4x4 Pick-up chassis. The vehicle is small and flexible, it has strong climbing ability and the ability to adapt to various terrains. It can be widely used in port terminals and cargo piles. Fields, industrial and mining enterprises, business squares and community towns and other places can quickly reach the scene to extinguish the initial fire. It is an ideal equipment for the firefighting force to respond quickly to fire rescue.
Learn More
Street sweeper super structure, also called as street sweeper up structure, dustbin sweeper kit system, it's suitable for customer own truck chassis. All our sweeper truck kit have the best price with high performance.
Learn More
The Isuzu KV800 compactor garbage truck produced by Powerstar adopts an inline four-cylinder engine model Qingling Isuzu 4JZ1-TCG60 with a displacement of 3.0. This engine meets the National VI emission standards and its maximum output power is 111kw (150 horsepower). ), the maximum output torque is 375 Nm, and the maximum torque can be output between 1300-2800rpm. Curved box body made of high-strength steel. The wheelbase is 3360mm. It comes standard with Isuzu MYY6S six-speed transmission, air conditioning, power steering, air brakes, ABS, standard 700R16 tires, electric doors and windows, and central locking. 6 cubic car body with sides 4 and bottom 5. The hydraulic operating system is electrically controlled and manually controlled, with a rear flip mechanism that can hang two 240L plastic barrels, pneumatic sealing covers, and two sewage tanks at the front and rear.
Learn More
Isuzu Mobile generator emergency trucks, also called Isuzu outdoor night lighting truck, are vehicles equipped with a generator that can be used to provide power in remote locations or during power outages. Isuzu powerstar manufacture huge type mobile generator trucks, but there are other companies that offer truck-mounted generators, such as Cummins, Geneforce, and Next Generation Power.
Learn More

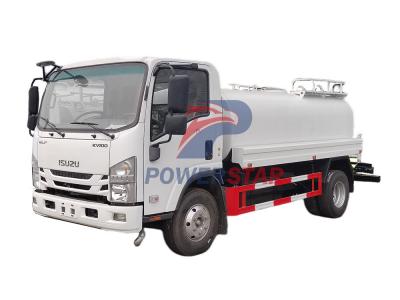

The ISUZU water bowser truck is a sprinkler vehicle based on the Isuzu light truck chassis. It is widely used in road sprinkling, garden irrigation, construction site dust reduction and other scenarios. This vehicle is equipped with a stainless steel water tank and uses an advanced water pump system with excellent performance and efficiency. It is a powerful assistant for environmental protection and urban greening.
