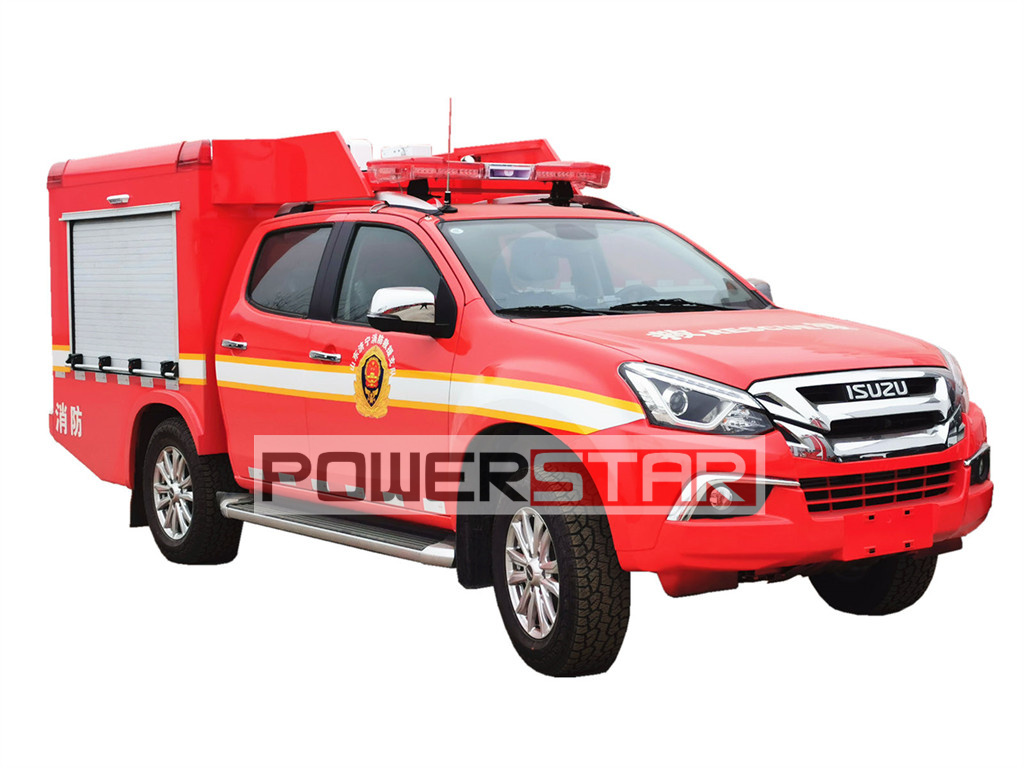

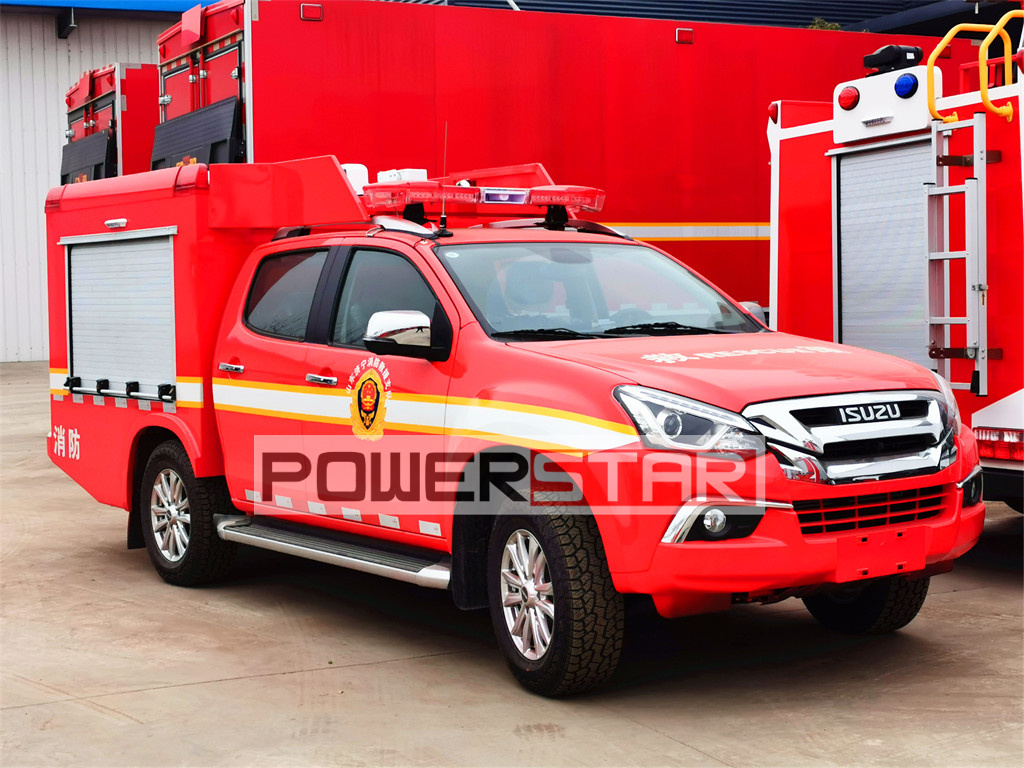

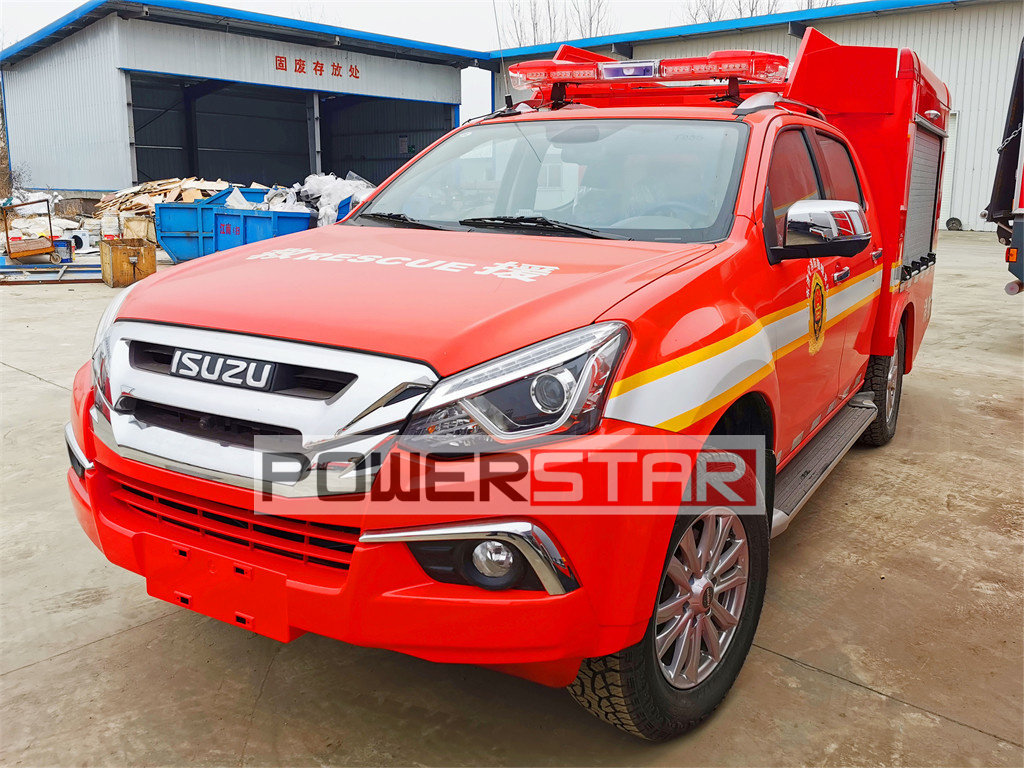

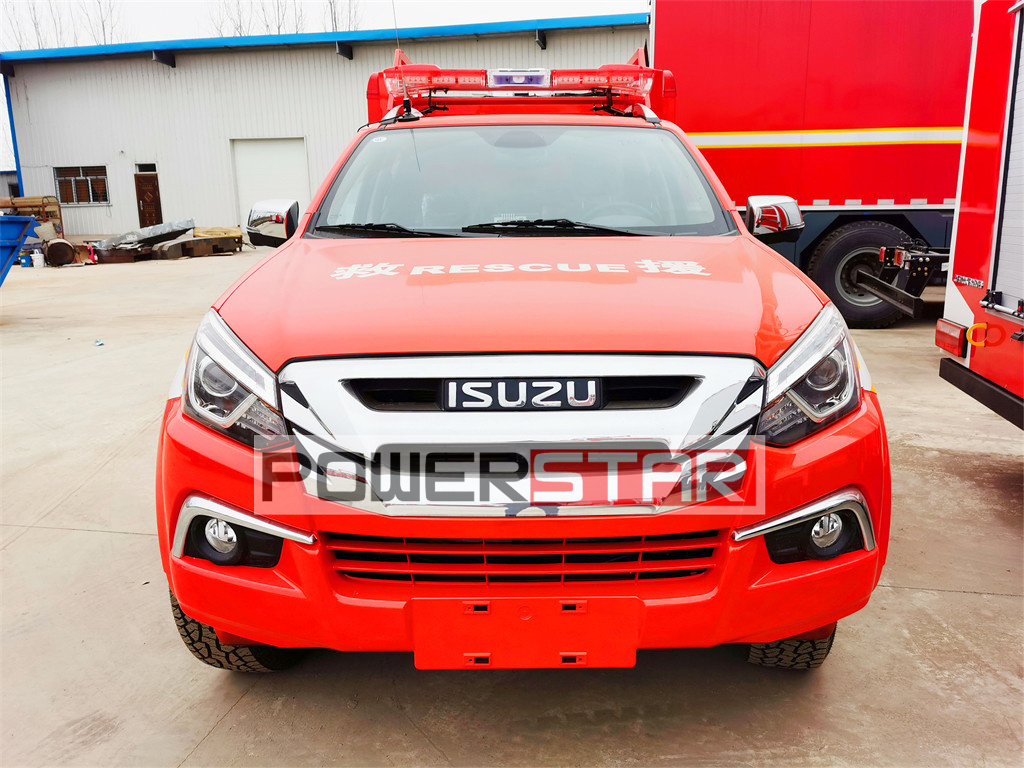

Japanese ISUZU 4x4 Pick-up Small Fire Truck and Rapid Intervention Vehicle (RIV). The city's rapid response fire truck is modified from original ISUZU TAGA 4x4 Pick-up chassis. The vehicle is small and flexible, it has strong climbing ability and the ability to adapt to various terrains. It can be widely used in port terminals and cargo piles. Fields, industrial and mining enterprises, business squares and community towns and other places can quickly reach the scene to extinguish the initial fire. It is an ideal equipment for the firefighting force to respond quickly to fire rescue.
Work capacity:
1000 KGTruck model:
PT5030GXFEngine power:
143HP/105kwEngine type:
Isuzu 4KH1CT6H1Axle drive:
4×4, LHDGear box:
Isuzu 5 speed,manualRemarks:
High altitude LED light systemISUZU pickup truck mounted high altitude lighting device, which is an Isuzu fire truck with lighting equipment, as the name implies, is a fire truck made on the basis of ISUZU pickup trucks by adding high-altitude lighting devices and related firefighting equipment. This fire truck not only retains the off-road performance, flexibility and good passability of pickup trucks, but also adds high-altitude lighting functions, enabling it to provide firefighters with sufficient lighting in the event of fire or other emergencies, and help them better carry out firefighting and rescue work. ISUZU pickup lighting fire truck is a special fire truck modified based on the chassis of ISUZU pickup truck. It combines the flexibility of pickup trucks and the high-altitude lighting function to provide unique and effective support for firefighting.
Isuzu pickup truck mounted fire engine Brief Introduction:
Isuzu Pickup Truck Chassis: The lighting fire equipment mounted on the orig ISUZU pickup trucks is adopted, which has strong carrying capacity and stable driving performance.

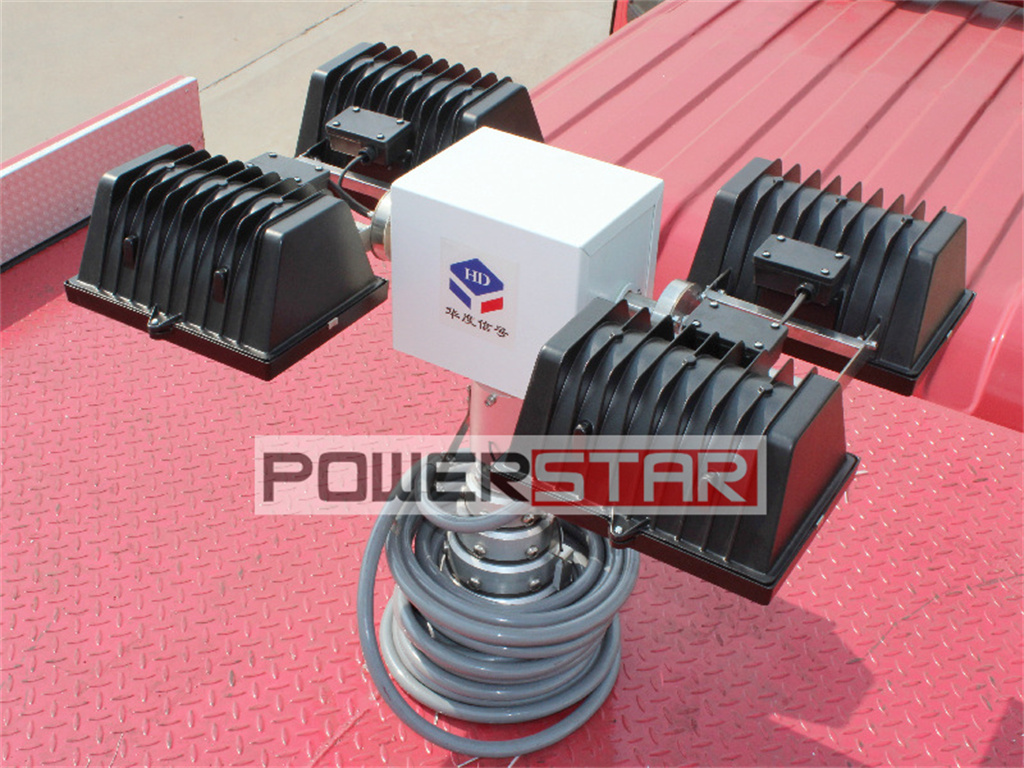

Lifting lighting device: This is the core part of ISUZU pickup lifting lighting fire truck, which is usually composed of telescopic light poles, lighting fixtures and control systems. The light pole can be telescoped to a certain height so that the lighting fixtures can be lifted to a high altitude position at the fire scene to provide a wide range of lighting. Lighting fixtures usually use high-efficiency LED light sources, which have the characteristics of high brightness, low energy consumption and long life.
Firefighting equipment: In addition to the lifting lighting device, ISUZU pickup lighting fire rescue trucks may also be equipped with other firefighting equipment, such as fire pumps, water guns, foam fire extinguishing agents, etc., to meet the firefighting needs in different fire scenes.
Convenient operation: The operating system of ISUZU pickup rescue trucks is reasonably designed. The driver can easily control the lifting and lowering of the light pole, the switch of the lighting fixtures and the operation of the firefighting equipment to improve work efficiency.
Isuzu pickup offroad 4x4 fire pumper truck Technical Specifications:
Rescue Fire Truck, which is also called pickup water fire engine, pickup water foam fire truck, pickup fire fighting equipment, pickup fire appliance truck, pickup foam fire tanker, pickup water foam pumper, pickup light rescue apparatus, pickup fire fighting vehicle, pickup foam discharging truck, pickup foam tanker fire truck is a special vehicle designed primarily for fire fighting operations and to extinguish fire efficiently to prevent fire spread, reducing the loss caused by fire maximumly.
---- ISUZU 4x4 pickup chassis, perfect performance.
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km.
---- Nice shape, rational structure.
---- High quality fire pump.
---- Massive, durable, long service life.
| 1. Isuzu 4x4 AWD pickup Chassis | |
| 1.1 | Chassis: ISUZU TAGA 4x4 pickup |
| 1.2 |
Engine: 2.1 Engine power: 105Kw 2.2 Engine model: V4 2.3 Number of cylinders: 4 2.4 Emission Standard: China 6 (Euro 6) 2.5 Transmission (type): 5-speed automatic 2.7 Torque (Nm): 420 2.7 Fuel tank capacity (L): 76 2.8 Fuel type: diesel |
| 1.3 | Drive Manner: 4×4 |
| 1.4 | Max. Speed(km/h): 140 |
| 1.5 |
Cabin: 5.1 Structure:4 doors, original double row cabin 5.2 Seats: 2＋3 |
| 1.6 | Wheelbase(mm): 3406 |
| 1.7 | Number of wheels: 4 |
| 1.8 | 5907*2083*2350 |
| 1.9 | Standard configuration: ABS/EBD/EBA/ASR/ESP, 360-degree panoramic image, reversing radar, keyless start system, keyless entry function, tire pressure alarm, uphill assistance, steep slope descent, electric adjustment of the main and passenger seats, Dual airbags, electric windows, electric adjustment of rear-view mirrors, up and down adjustment of steering wheel, large 8-inch center console color screen, driving computer display, Bluetooth/car phone. In addition, a winch is installed at the front of the vehicle and a rear trailer hook is installed at the rear of the vehicle. |
| 1.10 | Max. Weight: 2475kg |
| 2. Rescue Fire fighint truck Rear Superstructure | |
| 2.1 | Structure: The carriage adopts high-strength PP-C composite material welding structure, which is modified on the basis of the original car body. |
| 2.2 |

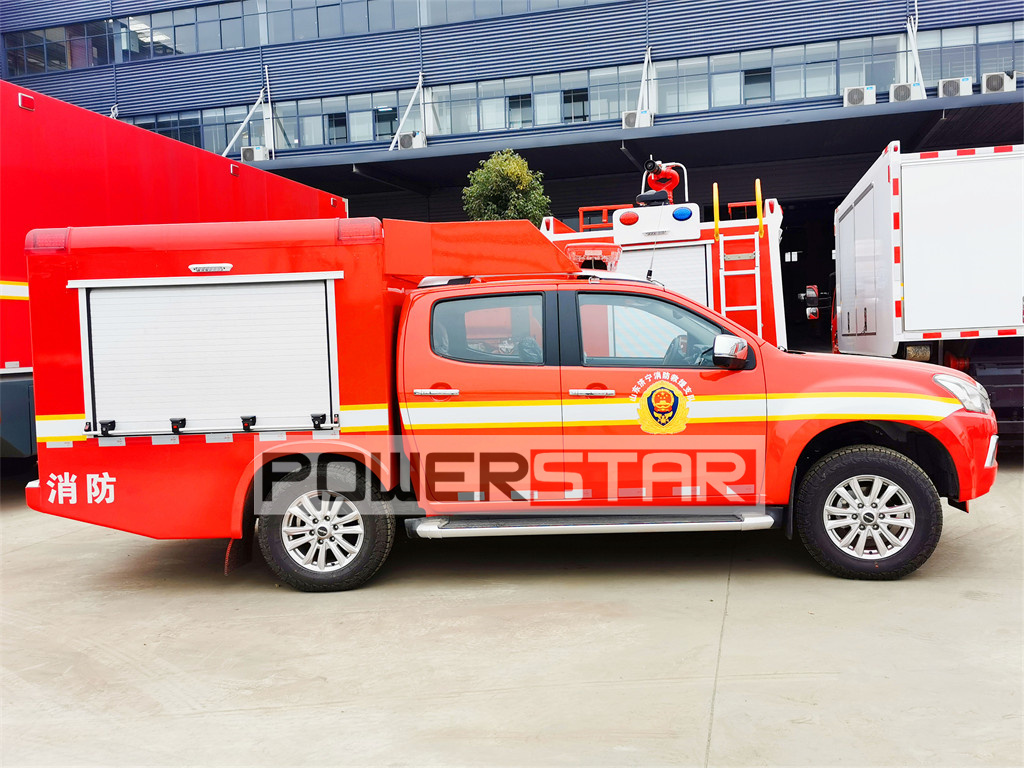

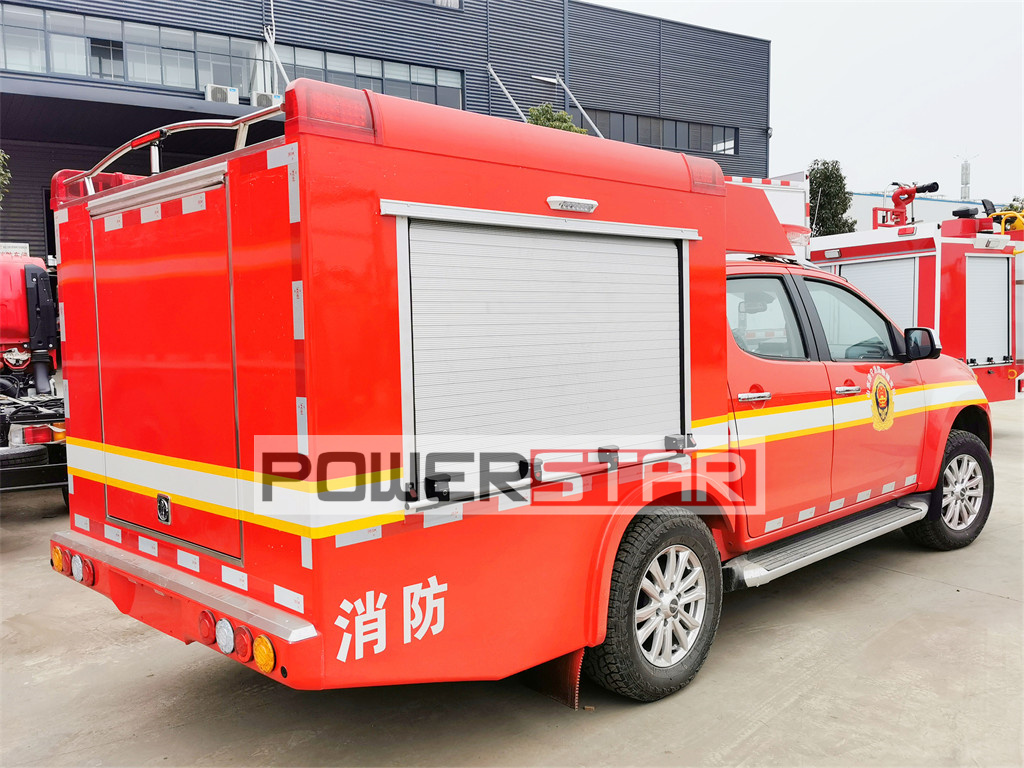

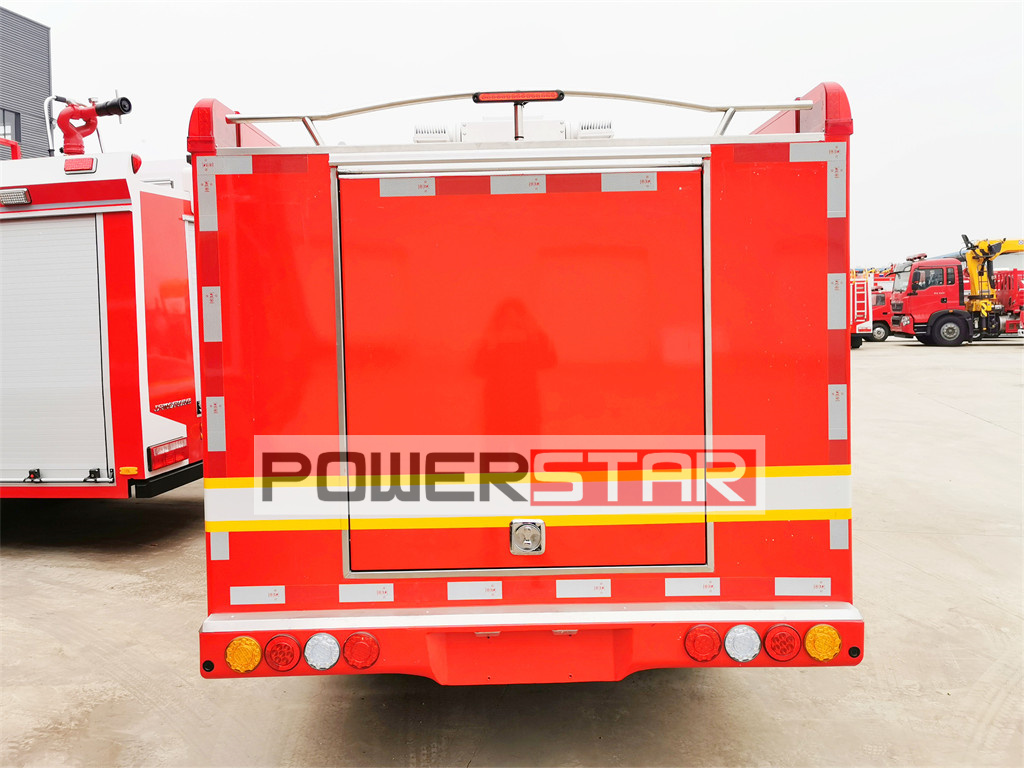

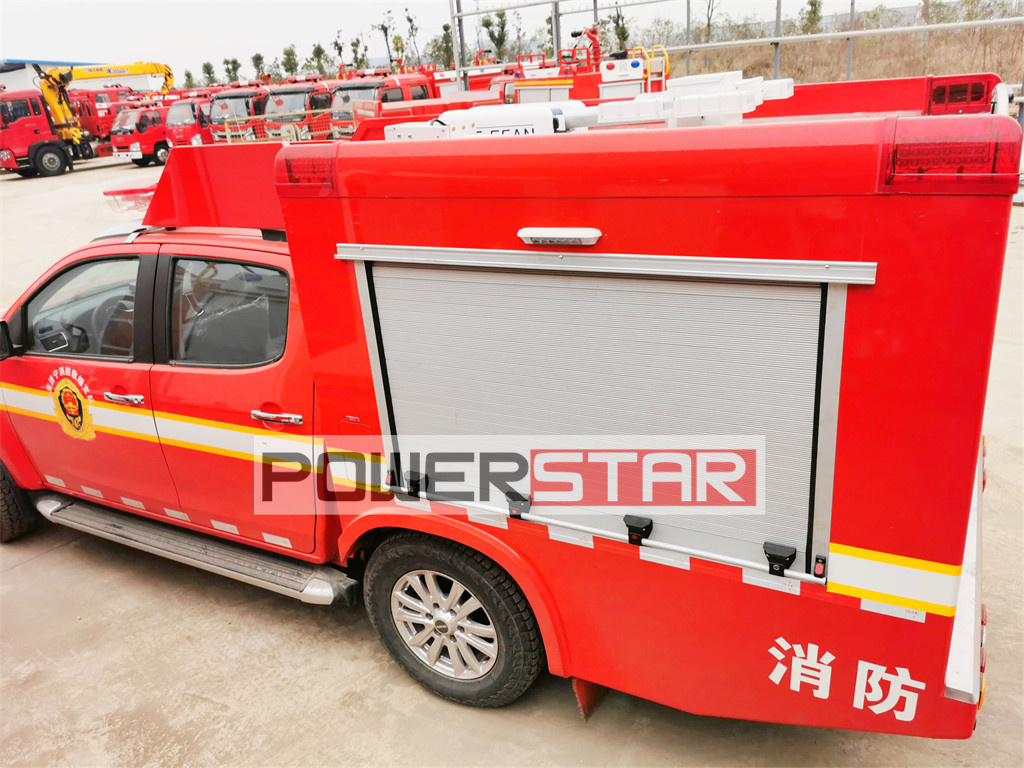

Equipment door: (1) There are 2 aluminum alloy rolling shutter doors on the left and right sides of the equipment box. The door frame is made of light high-quality aluminum alloy, which is flexible to open and close, good in sealing, low noise, beautiful in appearance, light and reliable. All rolling doors can be opened with one key . (2) The rear equipment box door adopts gas spring up and down door |

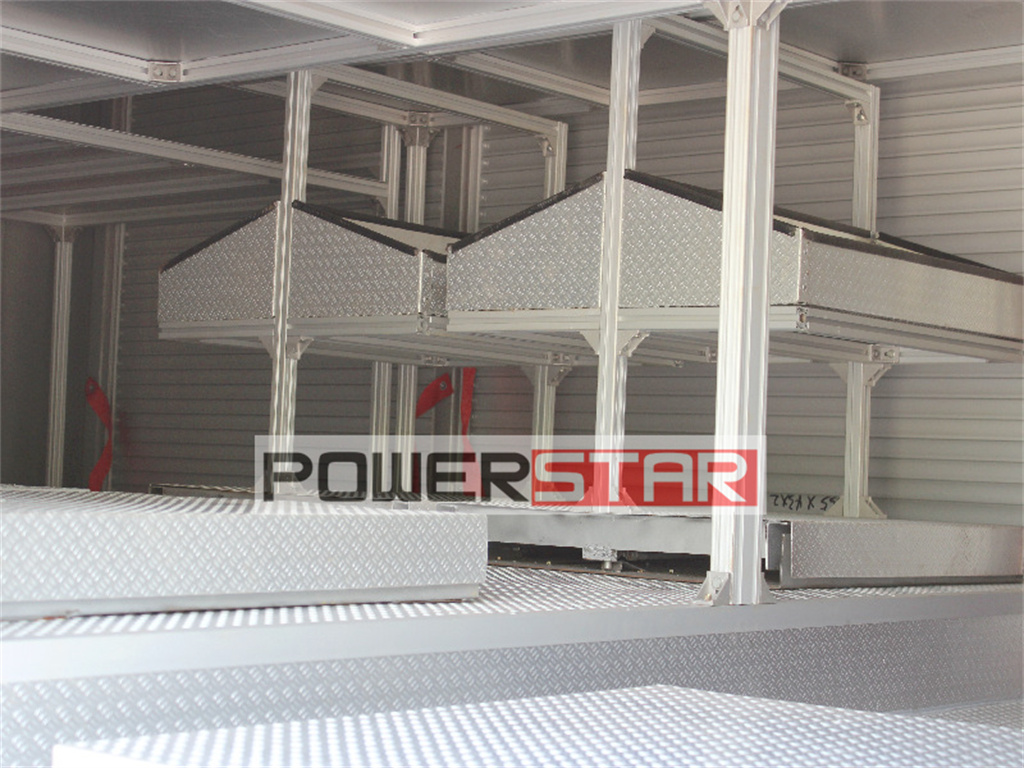

| 2.3 | Equipment layout: The left and right sides and the rear of the carriage can be equipped with hydraulic demolition, hydraulic support, detection, personal protection, and alert equipment. |
| 2.4 |
Equipment Layout Principle: ★ Design equipment integration according to battle organization and battle deployment; ★ Design various equipment brackets according to ergonomic principles; ★ Place the equipment according to the logical relationship and frequency of use; ★ Stand on the ground or pedals, take and place fire fighting equipment in 2 actions. |
| 3. Optional Front Winch | |
| 3.1 |

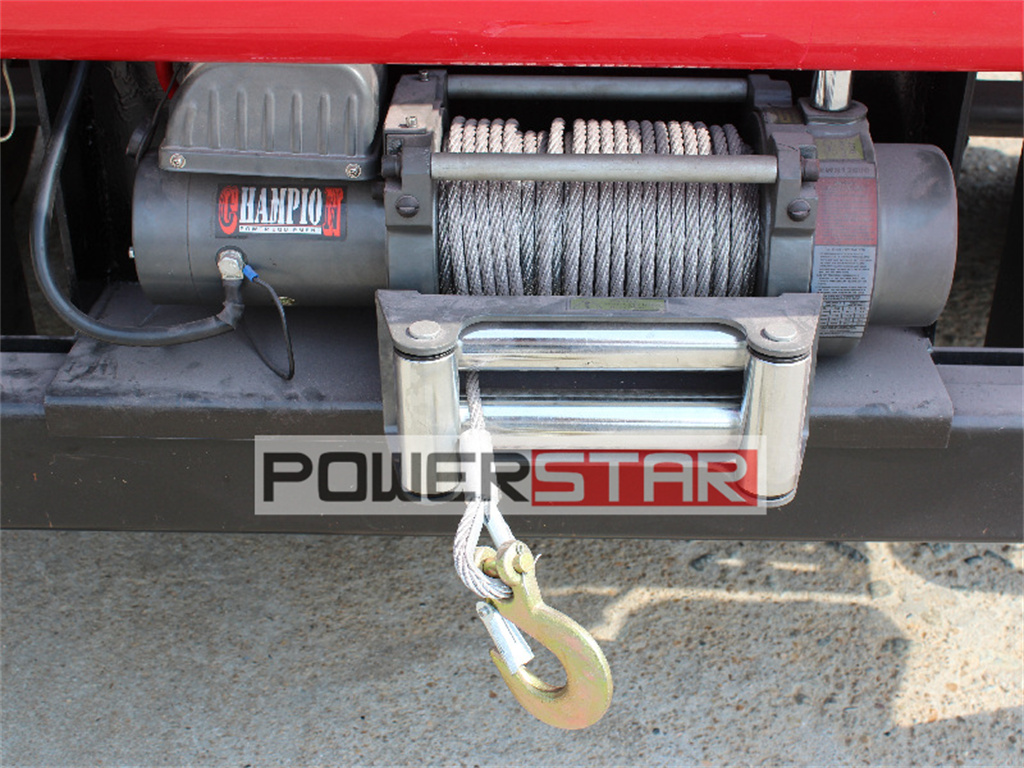

Brand: Champion Model: K8000XF Rated tension: 3629Kg |
| 3.2 | Traction wire: ∮8X29M |
| 4. Electrical system | |
| 4.1 |
Install 6 off-road lights on the front of the vehicle |

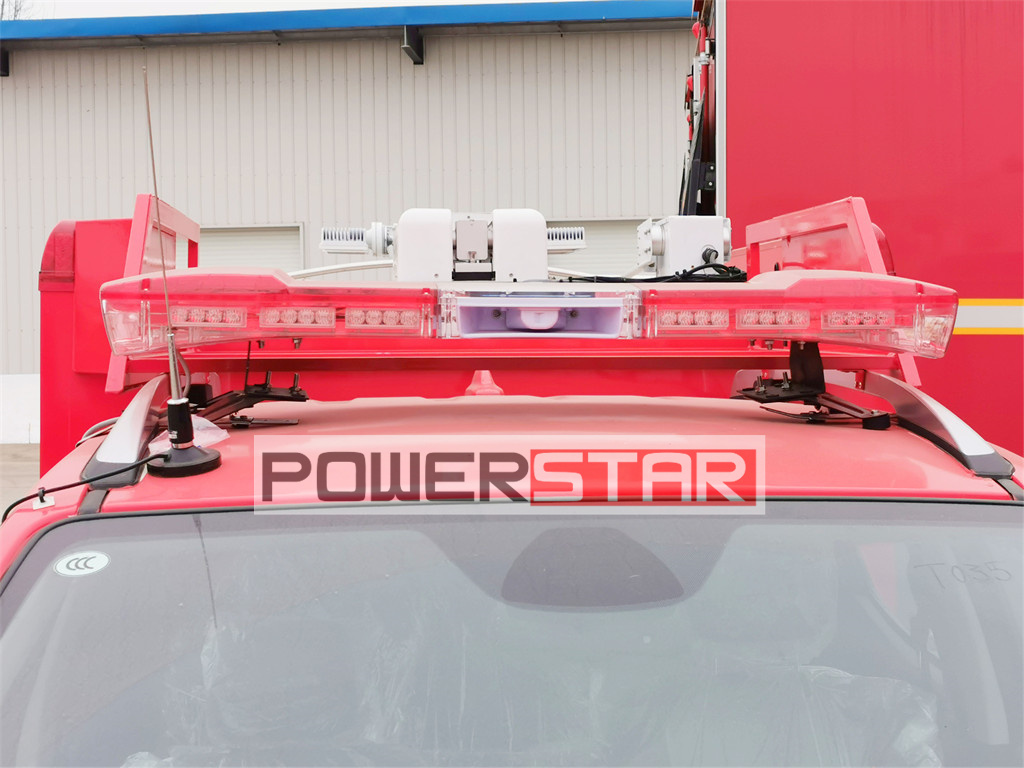

| 4.2 | The power of the alarm is 100W; the alarm and warning light circuits are independent additional circuits, and the control device is installed in the cab. |
| 4.3 | Two flashing lights are provided on the upper part of each side of the carriage. |
| 4.4 | There are two lights at the back of the equipment box. |
| 5.On-board equipment | |
| 5.1 | 5 sets of special warning tapes |
| 5.2 | On-board tool box 1 set |
| 6.Documents | |
| 1 | Vehicle Operation and Maintenance Manual |
| 2 | Vehicle Certificate |
Isuzu pickup fire engine truck Application:
ISUZU pickup truck mounted lighting device is a powerful, flexible and convenient special firefighting vehicle, which plays an important role in the rescue work of fires and other emergency situations. Isuzu pickup lighting fire truck is suitable for rescue work in a variety of fires and emergency situations, especially in the following scenarios:
High-rise building fire: In high-rise building fires, ISUZU pickup lighting fire trucks can lift lighting fixtures to a high altitude, providing firefighters with clear sight and sufficient lighting, helping them to better judge the fire situation and carry out firefighting work.
Complex terrain fire: In complex terrains such as mountainous areas, forests or narrow urban roads, ISUZU pickup rescue equipment fire trucks can quickly reach the scene with their good off-road performance and flexibility, providing firefighters with necessary lighting and rescue support.
Fire at night or in low light conditions: At night or in low light conditions, the lighting device of the ISUZU pickup truck can provide powerful lighting effects to help firefighters better carry out firefighting and rescue work.
Isuzu's all-wheel drive pickup fire truck is a professional firefighting equipment designed to cope with various fire and emergency rescue situations. The vehicle uses advanced four-wheel drive technology to improve emergency response capabilities and ensure efficient operation of fire and disaster scene rescue work. It is suitable for various roads and environments, providing firefighters with rapid response and effective firefighting support.
