Insulated Boom Lift Bucket Truck ISUZU
ISUZU aerial work vehicles are a kind of engineering machinery and equipment, mainly used for high-altitude operations, such as building maintenance, cleaning, installation, equipment inspection, etc. Its basic function is to provide a safe platform for workers to reach difficult-to-reach heights and perform various tasks.
Work capacity:
18 metersTruck model:
PT5180GGKEngine power:
130 HPEngine type:
4KH1CN5HSAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
ISUZU double cabin, working height up to 18 meters
An ISUZU aerial work truck is a special engineering vehicle used to transport aerial workers to a designated height for work, also known as ISUZU boom lift truck, ISUZU bucket truck. Because it has the characteristics of stable operation, automatic speed regulation, safety and reliability, motorized walking, flexible operation, and the ability to perform climbing operations across certain obstacles, it is widely used in municipal construction, garden maintenance, street light installation, power repairs, and communication installation. and maintenance, decoration and maintenance of buildings, etc. It has now been developed into commercial applications such as high-altitude photography, advertising shooting, and commercial decoration.
Aerial work platforms are divided into two categories according to their walking methods, namely vehicle-mounted aerial work platforms using a special truck chassis and self-propelled aerial work platforms using four-wheel drive. Vehicle-mounted aerial work platforms using modified truck chassis can be divided into folding arm aerial work vehicles, telescopic boom aerial work vehicles, hybrid boom aerial work vehicles and scissor lift aerial work vehicles according to their structural methods; according to their work performance It can be divided into insulated aerial work vehicles and non-insulated aerial work vehicles.

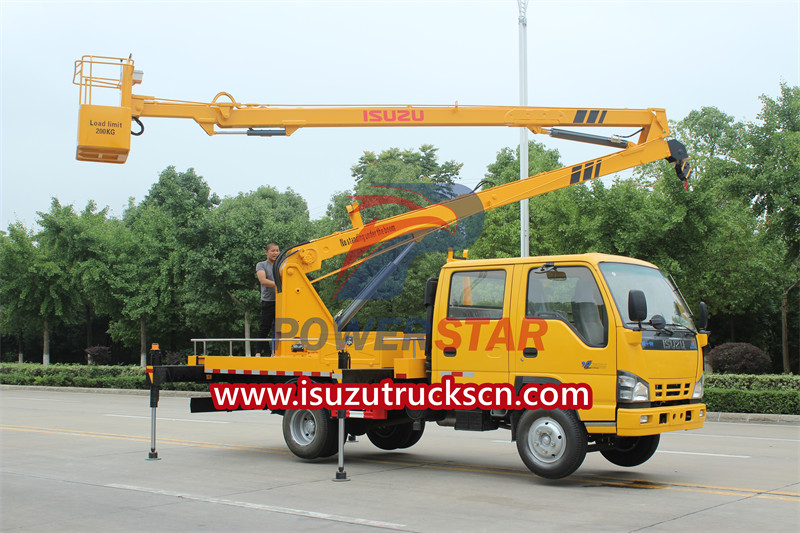

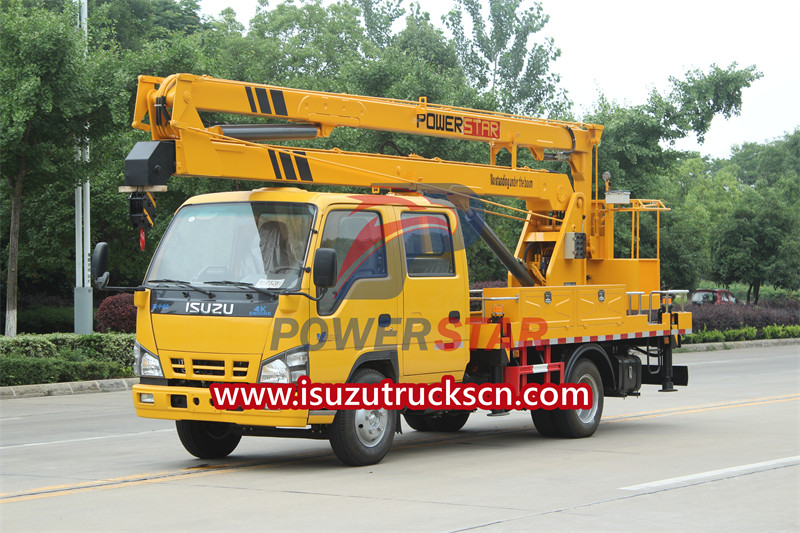

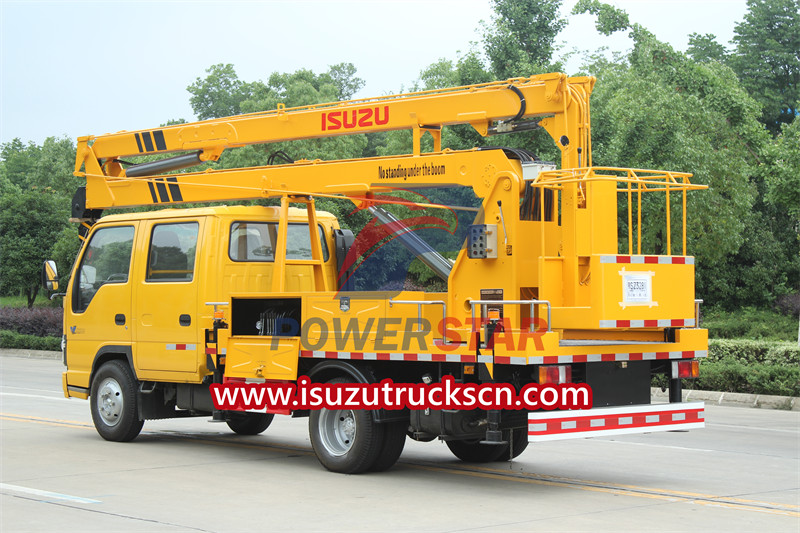

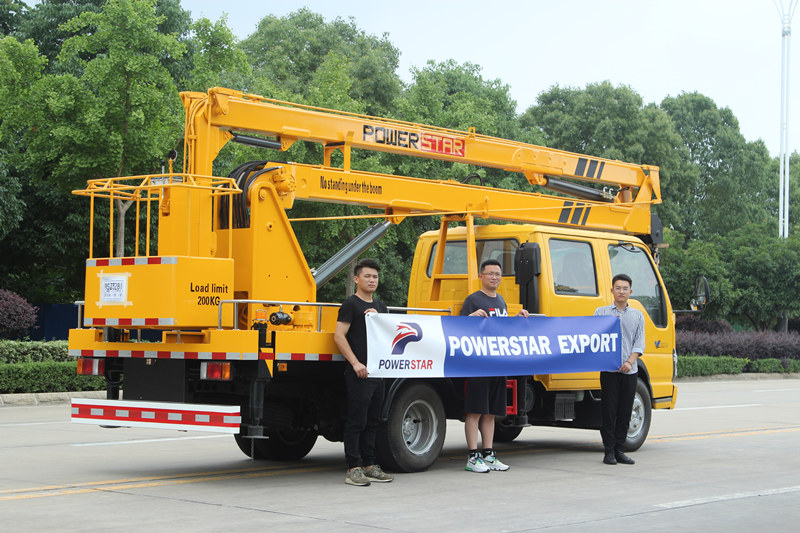

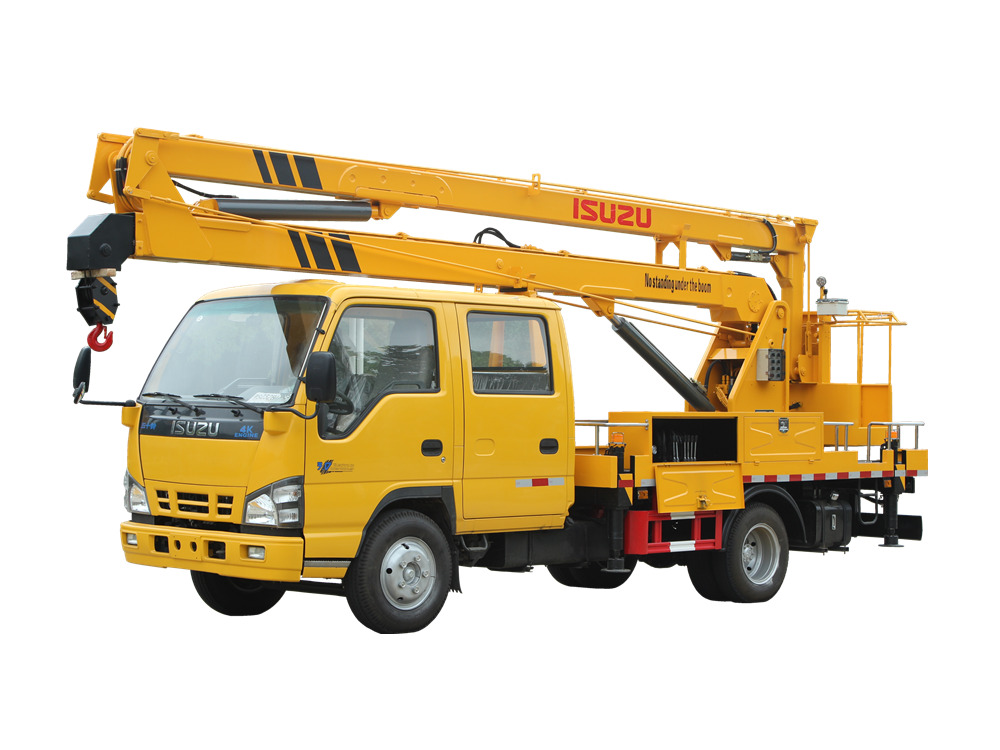

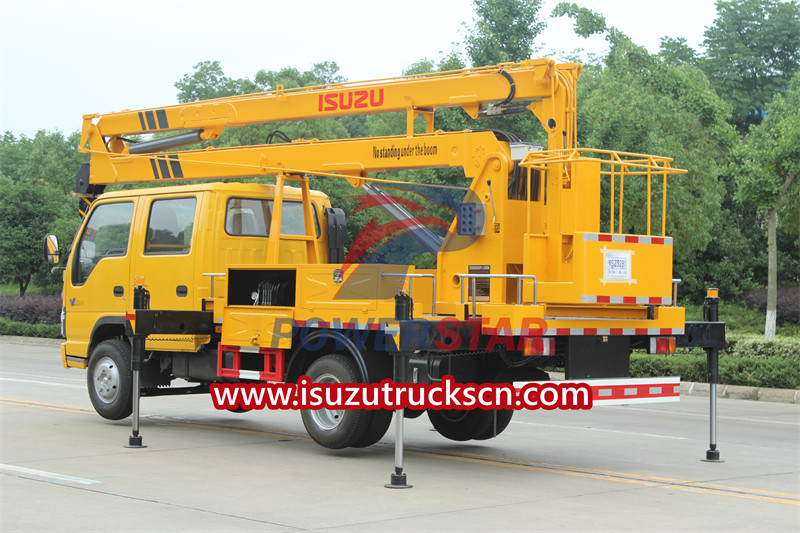

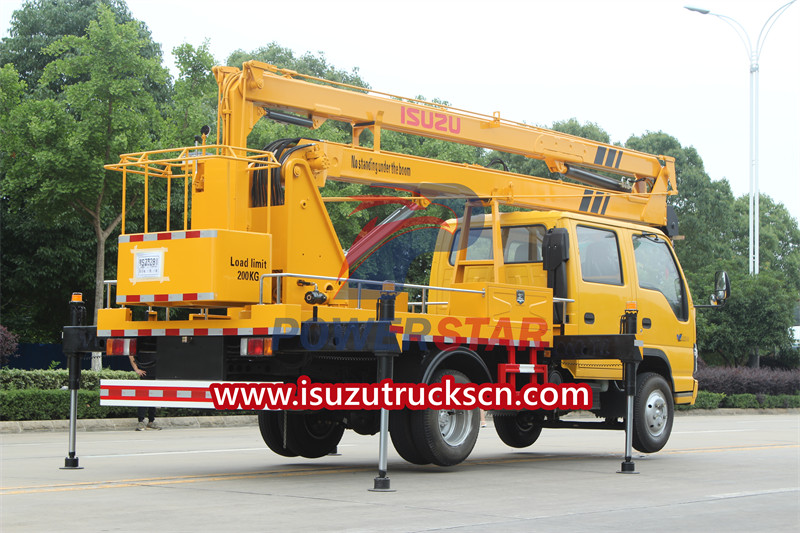

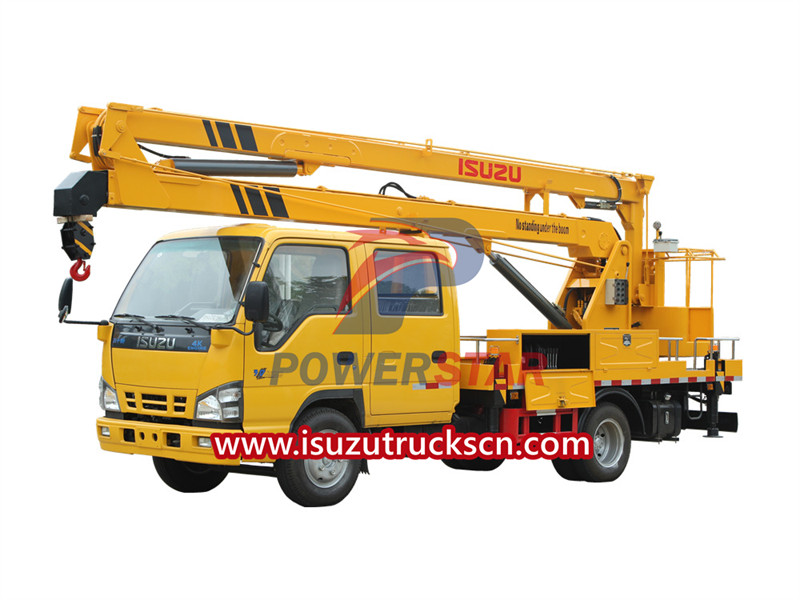

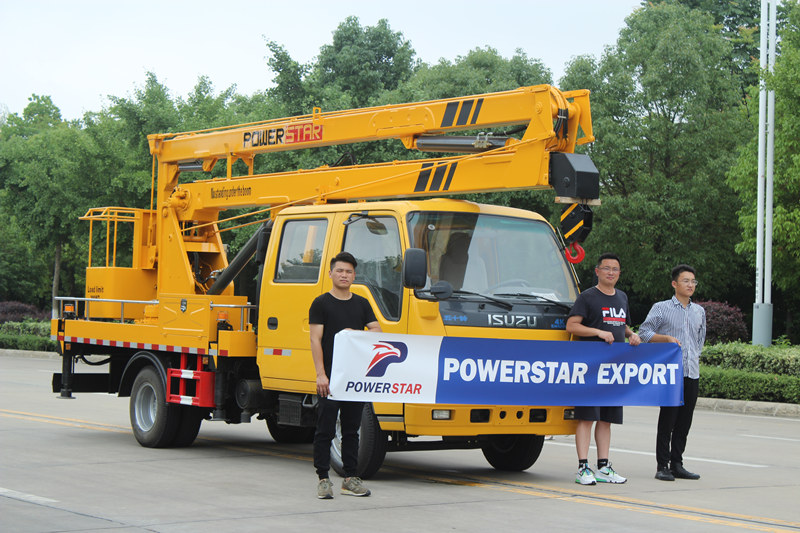

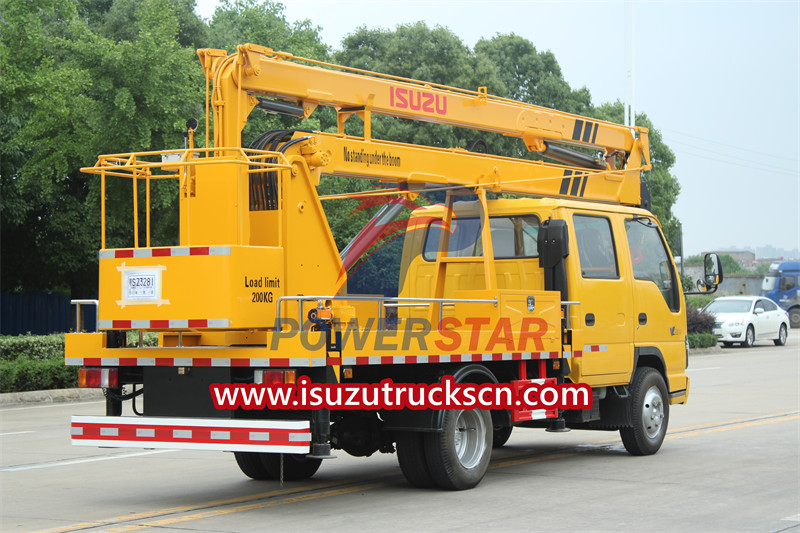

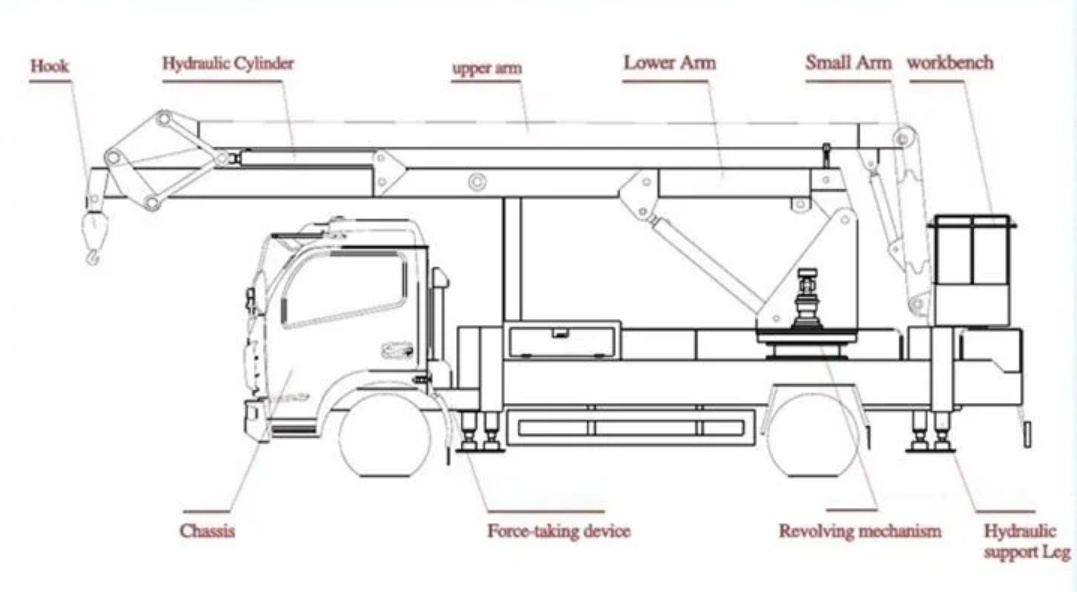

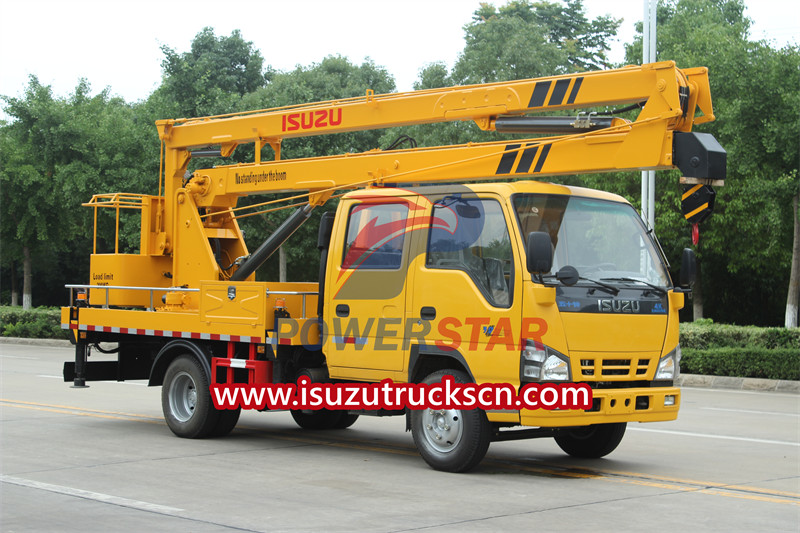

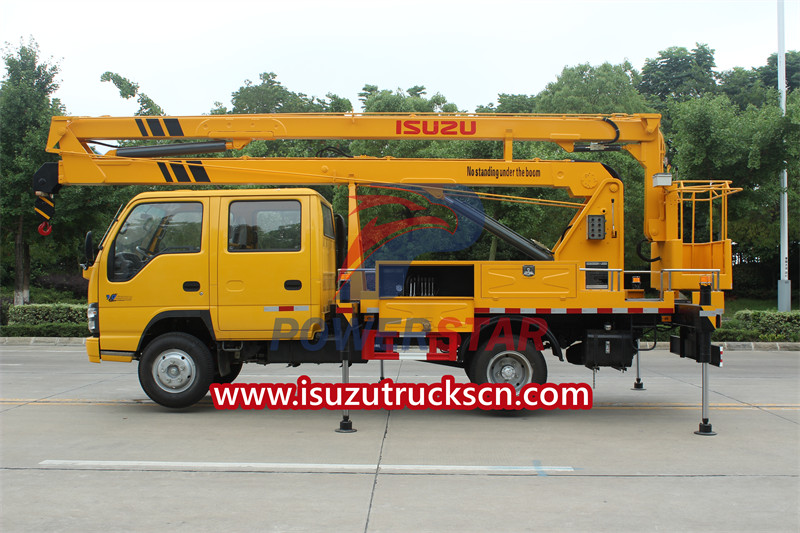

The insulated boom lift bucket truck ISUZU is a vehicle-mounted aerial work equipment designed and modified by POWERSTAR based on the ISUZU chassis. It is equipped with a three-section folding arm and can reach a maximum operating height of 18 meters. The ISUZU aerial lift truck is flexible and lightweight, has comprehensive telescopic and rotating functions, a stable chassis and an efficient control system, and can provide operators with a safe and efficient working platform.
Product Parameters
|
Vehicle Name |
ISUZU bucket lift truck |
Chassis Model |
QL1070A5HWY |
|
|
Vehicle Specifications |
GVW(kg) |
7300 |
Overall Dimension (mm) |
7610×1950×2900 |
|
Curb weight (kg) |
6850 |
Steering Wheel |
LHD |
|
|
Wheelbase (mm) |
3360 |
Driving Type |
4*2 |
|
|
Engine |
Engine Brand |
ISUZU |
||
|
Model |
4KH1CN5HS |
Emission Standard |
Euro 5 |
|
|
Horse Power(hp) |
130 |
Displacement |
2999 ml |
|
|
Type |
4 stroke,4-cylinders in line, water cooling |
Fuel |
Diesel |
|
|
Gear Box |
5 forward and 1 reverse |
|||
|
Performance |
Max Speed (km/h) |
100 |
Front Axle |
2500 |
|
Cab Seat |
2+3 |
Rear Axle |
4800 |
|
|
Leaf Spring |
7/5+6 |
Front Suspension |
1065 |
|
|
Tire No. |
6+1 |
Rear Suspension |
2005 |
|
|
Tire Specification |
7.00R16LT 10PR |
Approach Angle |
27 |
|
|
Axle No. |
2 |
Departure Angle |
15 |
|
|
Aerial Platform |
Arm Material |
Carbon steel Q345 |
||
|
Working Height(m) |
18 |
|||
|
Maximum working radius(m) |
7.8 |
|||
|
Platform average rise speed(m/s) |
≤0.4 |
|||
|
Arm structure type |
Three Section |
|||
|
Rotation |
360°continuous rotary |
|||
|
Outrigger |

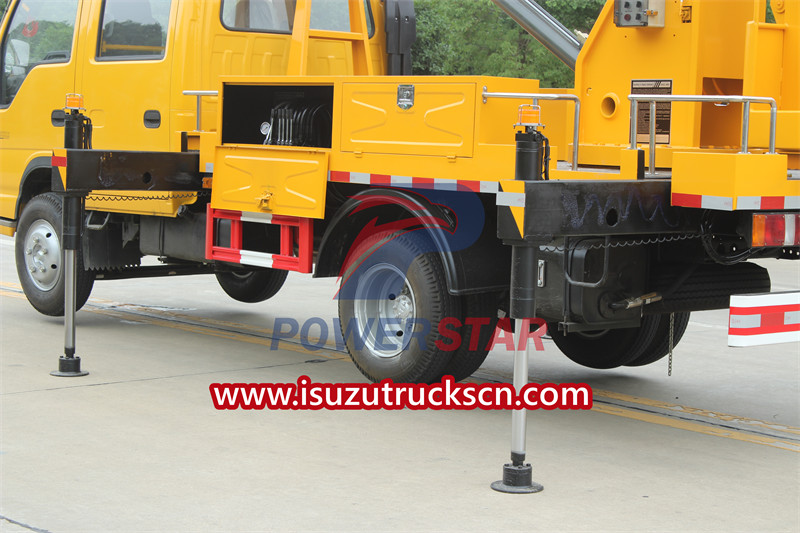

3250*3560mm distance; H type, independently |
|||
Product Features
The main features of Isuzu bucket lift trucks are as follows:
1. Excellent working height: The vertical working capacity of up to 18 meters makes it an ideal choice for high-altitude operations. This height provides extensive coverage to meet the needs of a variety of construction, maintenance and overhaul work.
2. Telescopic arm mechanism: The telescopic arm mechanism is the core of ISUZU bucket truck. It can be expanded and contracted as needed, achieving a high degree of flexibility and suitable for different operating environments and needs. This mechanism allows the operator to easily reach the designated working position and reduces unnecessary movements and adjustments.
3. Stability and controllability: The ISUZU aerial lift bucket truck provides excellent stability and controllability with its stable chassis and advanced drive system. This ensures stability when working at heights and provides a safe working environment for operators.

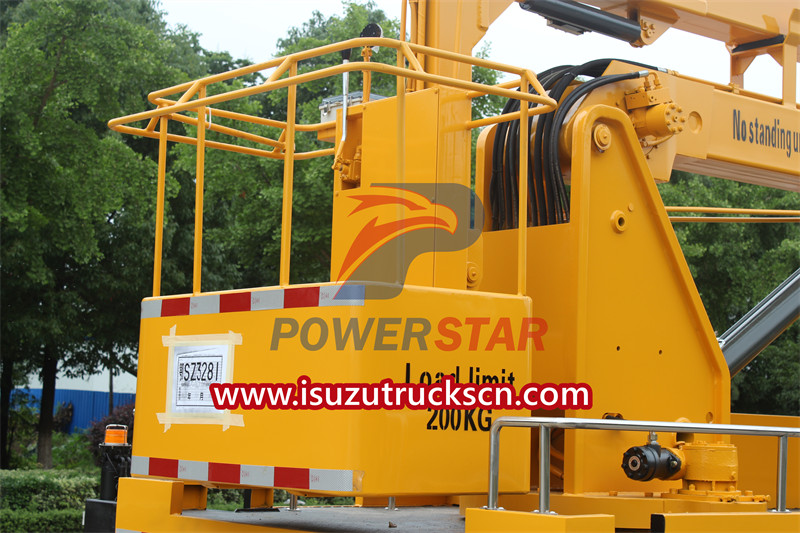

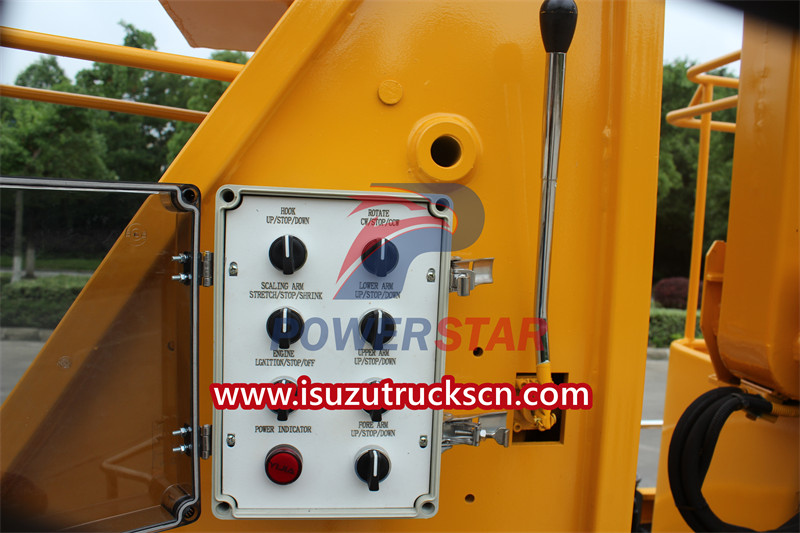

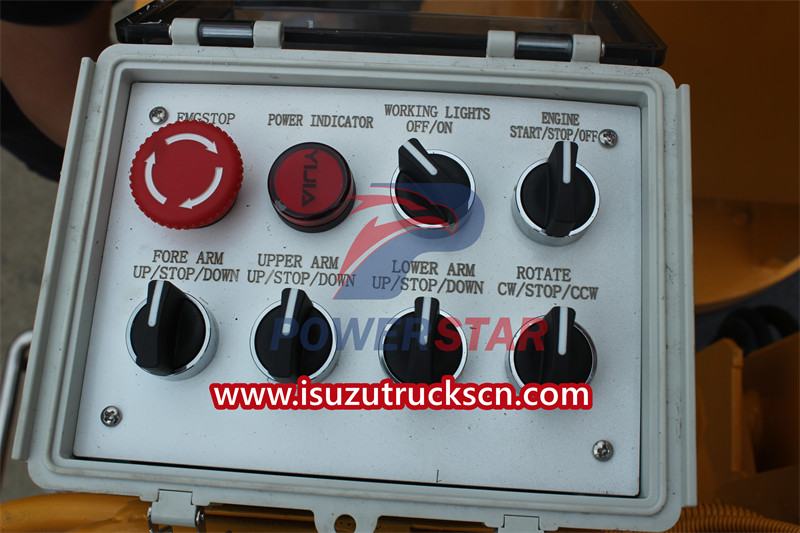

4. Comfortable working bucket: Equipped with a spacious and comfortable working bucket, the operator can stand or sit. The bucket is also equipped with a safety guardrail to provide the operator with necessary protection to prevent accidental falls. In addition, controls within the bucket simplify operation, allowing the operator to concentrate on completing the work task.
5. Wide range of applications: ISUZU boom lift truck is suitable for various application fields, such as construction, maintenance, power line inspection, tree pruning, etc. Its flexibility and stability make it ideal for these areas, improving work efficiency and safety.
6. Easy to operate and maintain: The design of the ISUZU aerial work truck focuses on ease of operation and maintenance. The user-friendly control system allows operators to get started quickly, reducing training time and costs. At the same time, the vehicle also has good maintainability, reducing operating costs and downtime.
7. High quality and reliability: As a well-known engineering vehicle manufacturer, our products are famous for their high quality and reliability. The ISUZU man lift truck is manufactured with high-quality materials and advanced technology to ensure long service life and reliability.
