Aerial work platform trucks are contemporary advanced aerial work equipment and another revolution in aerial work. ISUZU aerial lift trucks are easy to move, easy to operate, safe and reliable, and overcome the disadvantages of time-consuming and labor-intensive scaffolding construction, inconvenient movement and easy tilt and collapse. The demand for aerial work vehicles involves many fields such as gardening, electricity, street lights, airport advertising, transportation, telecommunications, decoration, photography, etc.
Work capacity:
14 metersTruck model:
PT5140GGKEngine power:
98 HPEngine type:
4KH1CN5LSAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:
The vehicle is small in size, with insulated bucket
The ISUZU aerial platform truck also named as ISUZU boom lift truck, ISUZU aerial work platform, ISUZU bucket truck, is an engineering vehicle used to perform various operations at high altitudes, such as building maintenance, cleaning, equipment installation, etc. The vehicle has a telescopic arm that can be height-adjusted so workers can reach different heights for work. Aerial work vehicles have the characteristics of high efficiency, safety, reliability, and easy operation. They are one of the indispensable and important tools for modern urban construction, maintenance and decoration.

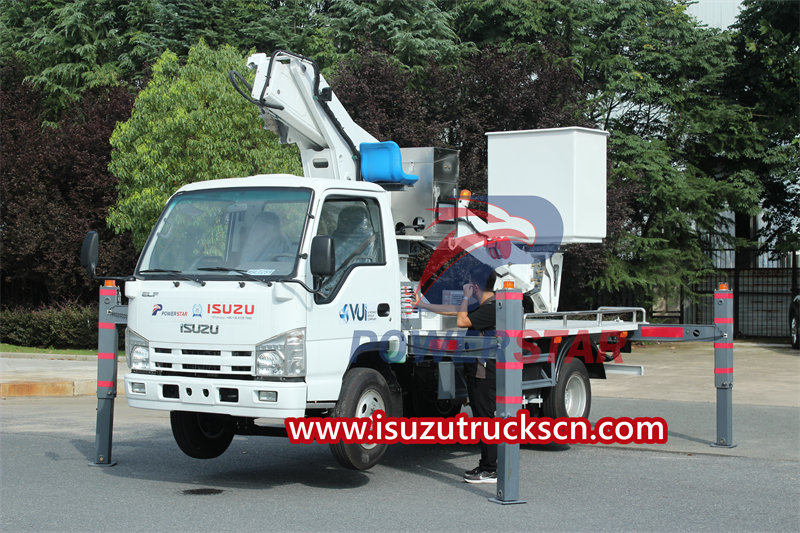

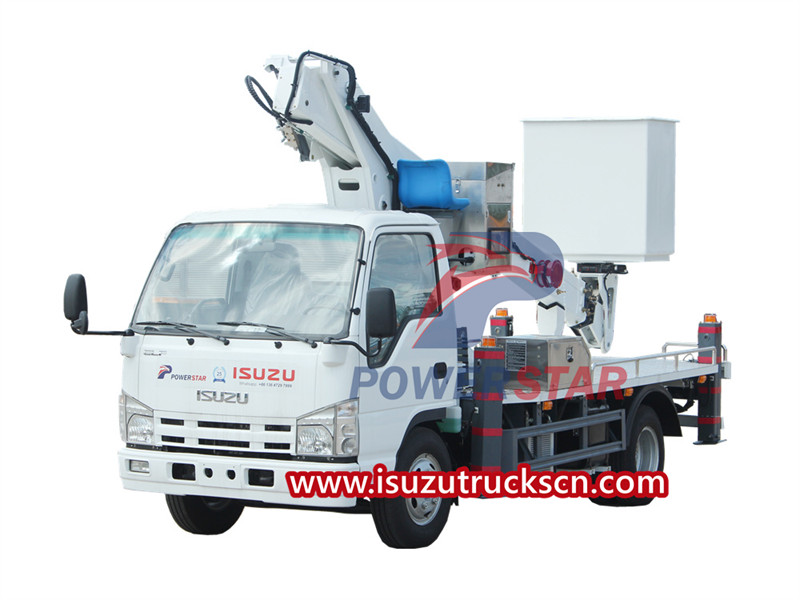

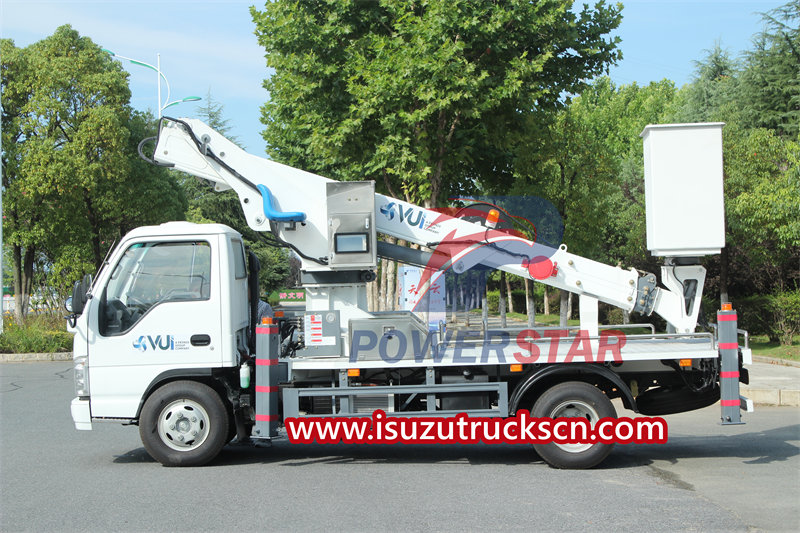

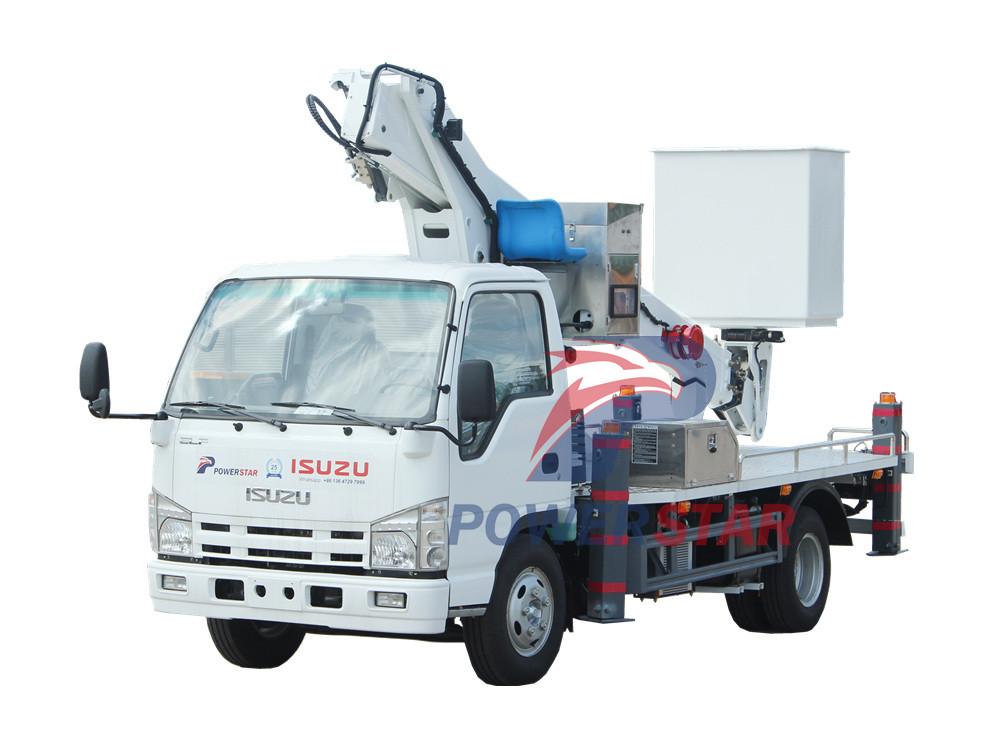

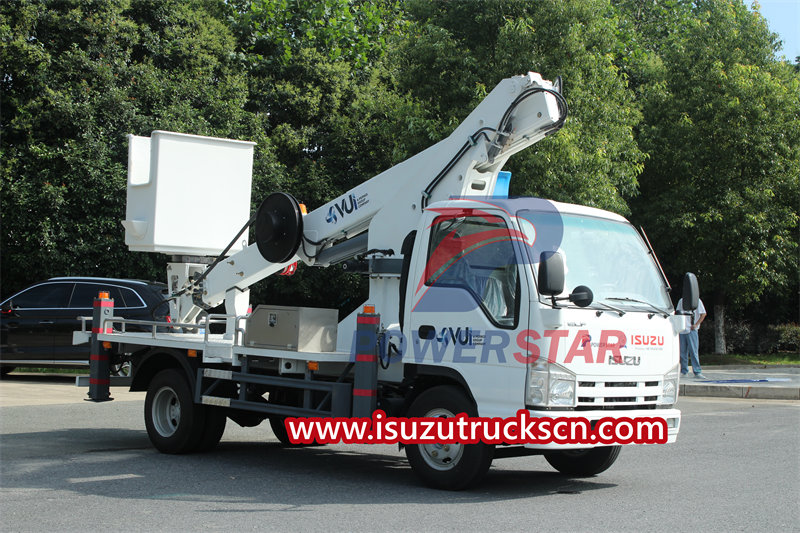

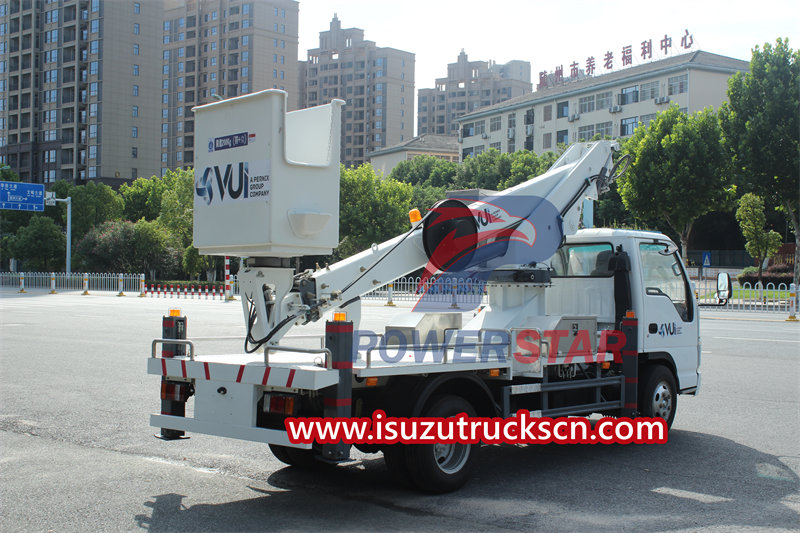

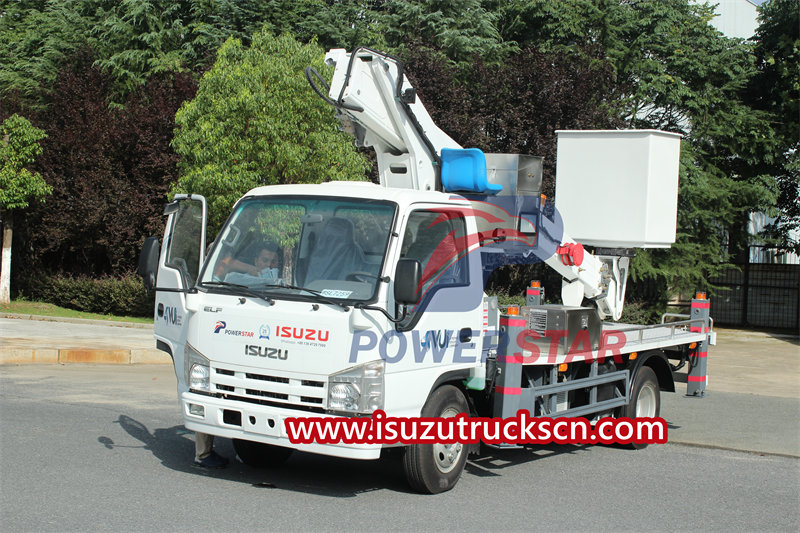

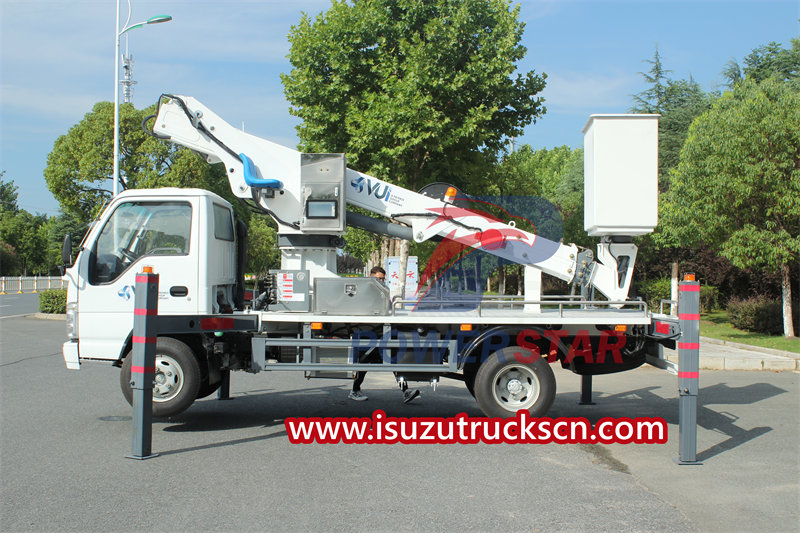

The ISUZU 14m bucket lift truck is a high-performance telescopic aerial work platform manufactured by POWERSTAR based on the ISUZU NKR chassis. The vehicle adopts a telescopic boom, which can carry out high-altitude operations safely and efficiently, and is suitable for various industries and purposes.
One of the important features of the ISUZU manlift truck is its 14-meter working height and excellent vertical reach capability. The vehicle is equipped with an insulated bucket with a load capacity of 200kg, providing a stable and reliable working platform suitable for various tasks. Whether it's performing high-altitude maintenance on a construction site, inspecting power lines, or being used for municipal work, it can handle any challenge with ease.
Product Specifications
|
Basic specifications |
Chassis brand |
ISUZU |
|
|
Chassis model |
QL1070A6 |
||
|
Overall dimension(L*W*H) |
5900x2000x2650mm |
||
|
Gross / Curb weight |
7,300kg / 7,050kg |
||
|
Chassis |
Drive model |
4*2 left hand drive |
|
|
Wheel base |
3360 mm |
||
|
Tyre size & number |
7.00R16, 6 pcs with one spare tyre |
||
|
Engine type |
In-line, water-cooled, four stroke, electronically controlled high pressure common rail |
||
|
Engine model |
4KH1CN5LS |
||
|
Fuel type |
Diesel |
||
|
Power |
98 HP (72KW) |
||
|
Emission standard |
Euro V |
||
|
Displacement |
2999 ml |
||
|
Transmission |
Model |
ISUZU MSB |
|
|
Type |
5-speed, manual |
||
|
Working condition |
Maximum working height |
14m |
|
|
Max. working radius |
6.1 m |
||
|
Rotation |
360° |
||
|
Boom Type |
3 Sections telescopic boom |
||
|

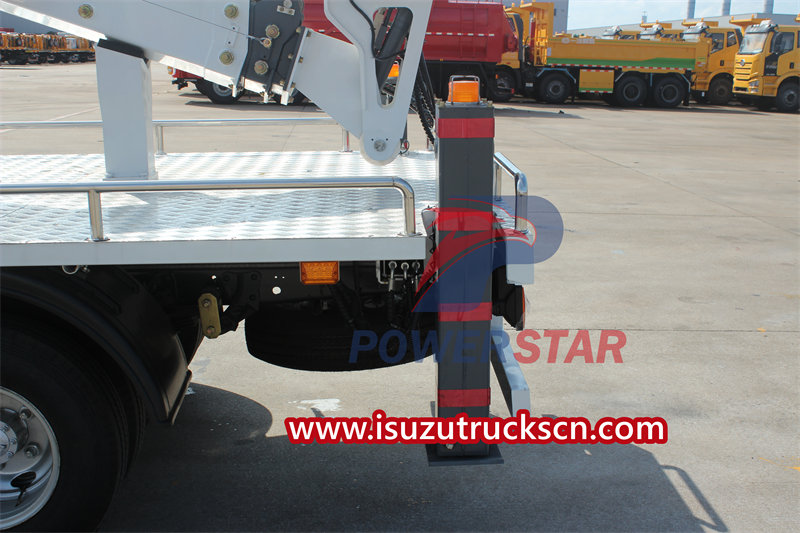

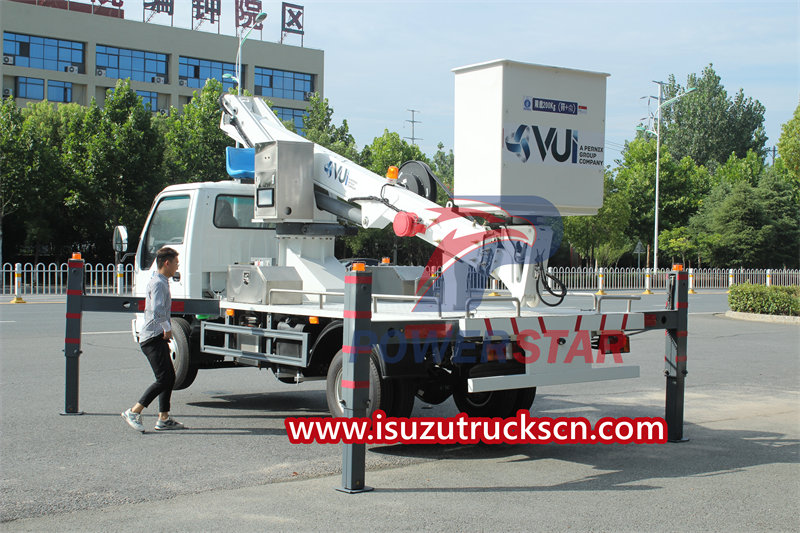

Outriggers |
Outrigger type |
H type, controlled independently |
|
|
Outrigger span |
Vertical |
4000mm |
|
|
horizontal |
4350mm |
||
|

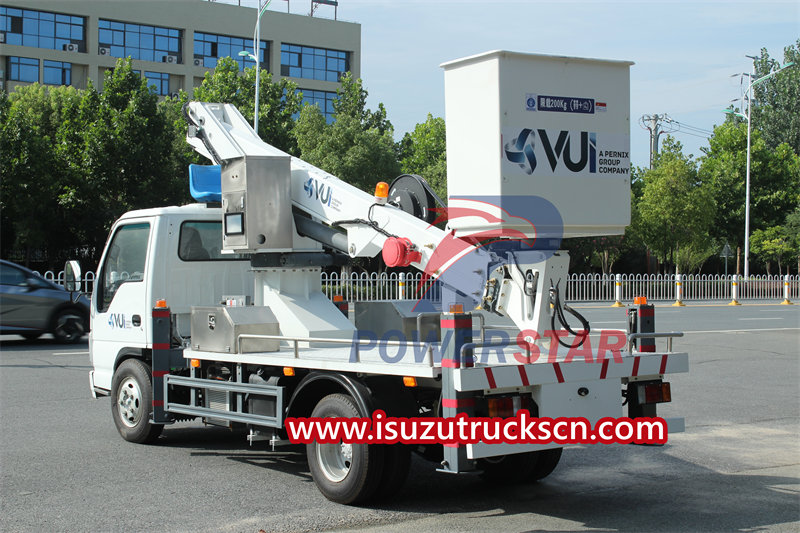

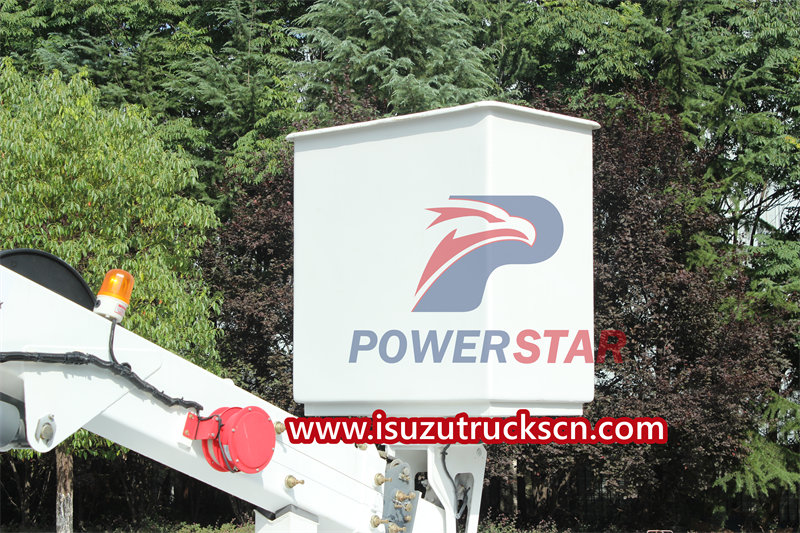

Bucket |
Rated loading weight |
200 kg |
|
|
Size |
1100x650x1100mm |
||
|
Type |
Insulated |
||
|

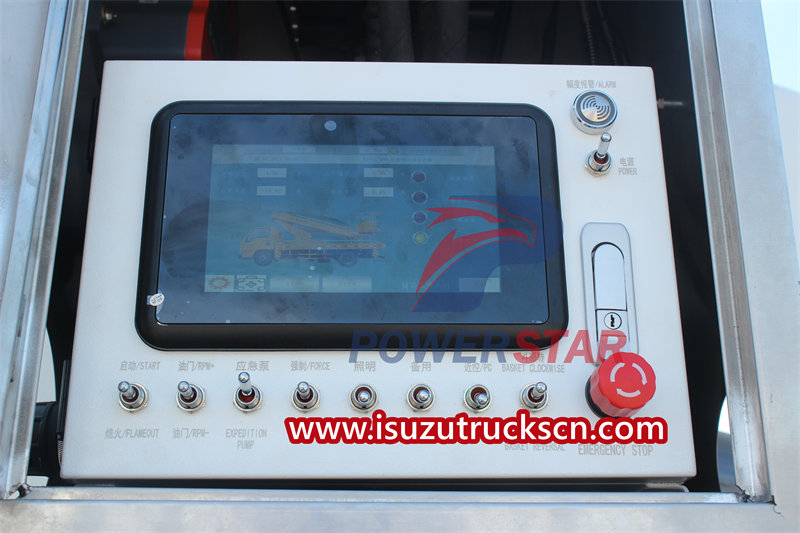

Operation system |
Operation |
4 operation mode: Electrical operation of working platform ,ground remote control ,controller in the bucket, and emergency lever. |
|
|
Control system |
Electro hydraulic proportional control system and optional load proportional system can realize double action synchronization and stepless speed regulation |
||
|
Leveling system |
Hydraulic automatic leveling |
||
|
Security configuration |
Automatic interlocking device for up and down |
For locking up and down the truck to prevent the risk of misoperation. |
|
|
Basket |
360 degree rotation |
||
|
Horizontal function |
Real time display |
||
|
Real time communication |
There is wireless intercom between the platform and the vehicle |
||
|
Emergency electric emergency pump |
When the engine and main pump failure, the operator can be sent back to the ground. |
||
Features of ISUZU boom lift bucket trucks:
1. Able to deliver workers smoothly and safely to working spaces with a height of less than 14 meters.
2. Equipped with an insulated work bucket, which is safer and has a wider range of uses.
3. The cab has a beautiful appearance and a comfortable interior. The vehicle is small in size, flexible and convenient to move, and can be suitable for operations in narrow areas;
4. The hydraulic systems of ISUZU boom lift truck are all unique stepless speed regulation systems, which are energy-saving, flexible, safe and reliable;
5. The outriggers are individually adjustable, enabling the vehicle to be leveled on uneven roads.
6. The hydraulic and electrical control systems of ISUZU aerial lift work trucks are equipped with various limit devices and engine emergency shutdown devices to ensure that the power supply is automatically cut off or the engine is stopped in an emergency in case of misoperation or failure, which is safe and reliable.
7. The electric operating systems all use waterproof switches, which avoids the problem that the switches are prone to water intrusion and corrosion.
8. The work and turntable are equipped with operating devices.
 |
 |
 |
 |
 |
 |
Maintenance of ISUZU bucket truck:
(1) After the cylinder has been operated for 300 times, all hydraulic oil should be replaced. Unscrew the oil drain plug of the hydraulic oil tank, then inject new oil from the upper oil filling hole, then start the engine and test run each cylinder twice to confirm that it works reliably.
(2) High-pressure oil pipes should be replaced regularly every two years. If cracks, damage, expansion, etc. are found during use, they should be replaced in time.
(3) Check the hydraulic system for oil leakage frequently, and repair and replace the oil seal in time.
(4) Use general automotive lithium-based grease for lubrication. You can use a grease gun to drive it in from the grease nozzle until it squeezes out from the gap.
(5) Clean the surface of the ISUZU aerial boom truck such as the upper body, boom, and bucket after each day's work. Check the hydraulic oil inventory frequently and add lubricating oil to all moving parts regularly.
(6) Regularly check and adjust the working pressure of the gear pump; check the oil filter element, remove surface impurities or replace the filter element; regularly replace the hydraulic oil.
(7) Regularly check the tightness of each mechanical connection part. If looseness is found, tighten or replace parts in time. If mechanical deformation or failure is found, contact the manufacturer in time.
