ISUZU Aerial Lift Bucket Truck 24m
The main function of ISUZU bucket truck is to provide a stable and safe working platform so that workers can perform various tasks at height, such as maintenance, installation, cleaning, inspection and decoration, etc. This type of vehicle is widely used in construction sites, power facility maintenance, bridge construction, landscaping, warehousing facilities and aviation maintenance.
Work capacity:
24 metersTruck model:
PT5240GGKEngine power:
120 HPEngine type:
4KH1CN6LBAxle drive:
4×2Gear box:
MSB 5-speed, manualRemarks:

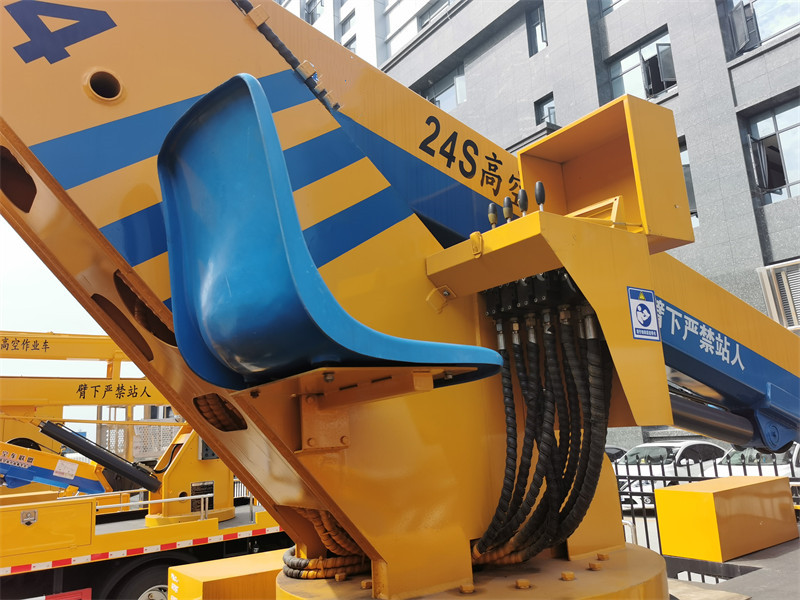

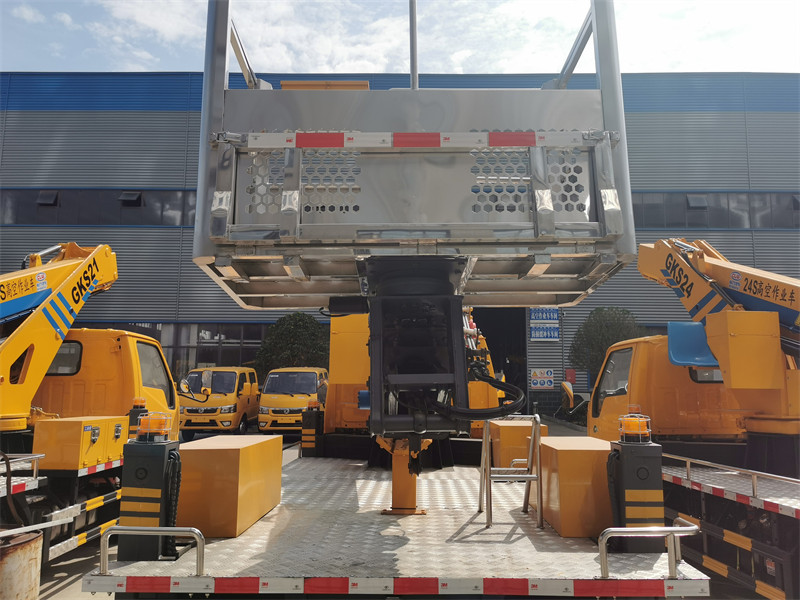

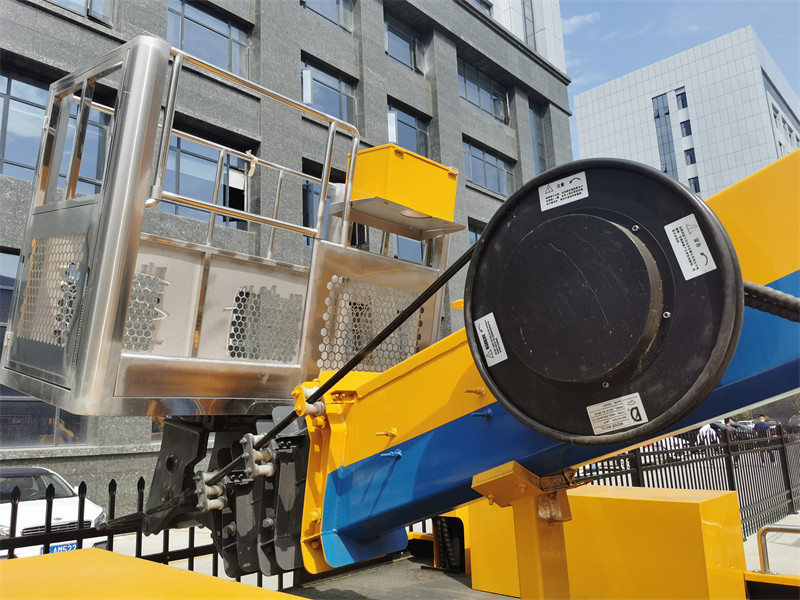

24m working height, stainless steel bucket, aerial seat

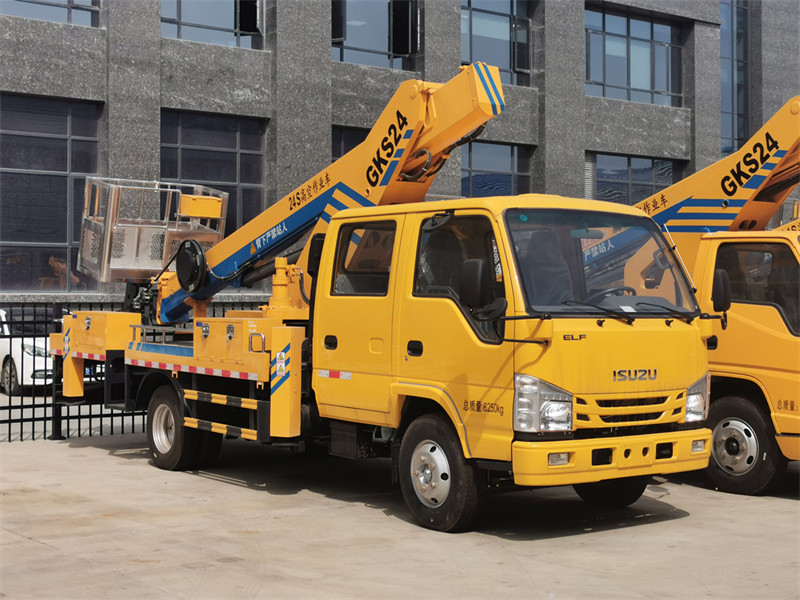

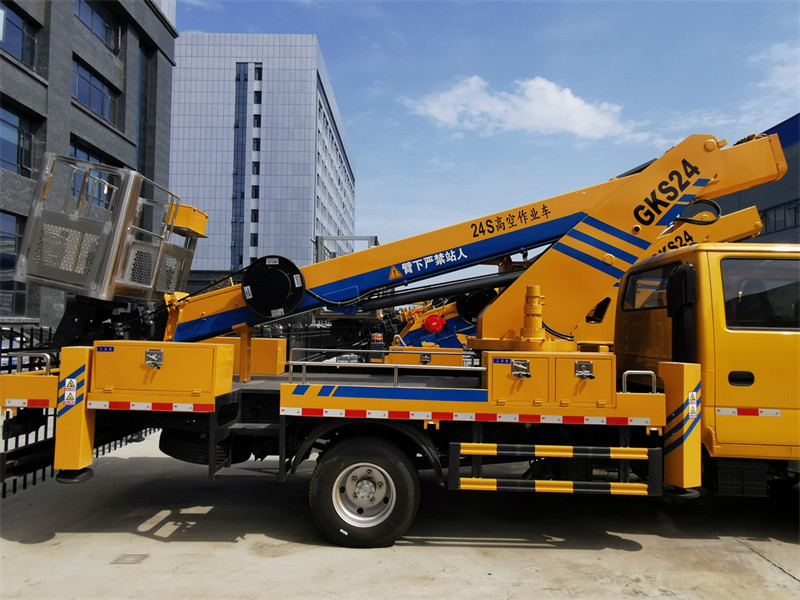

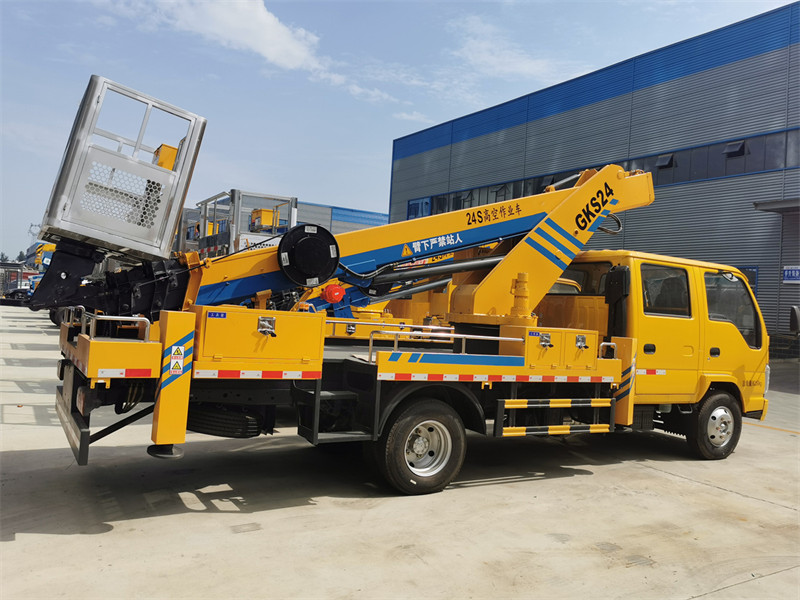

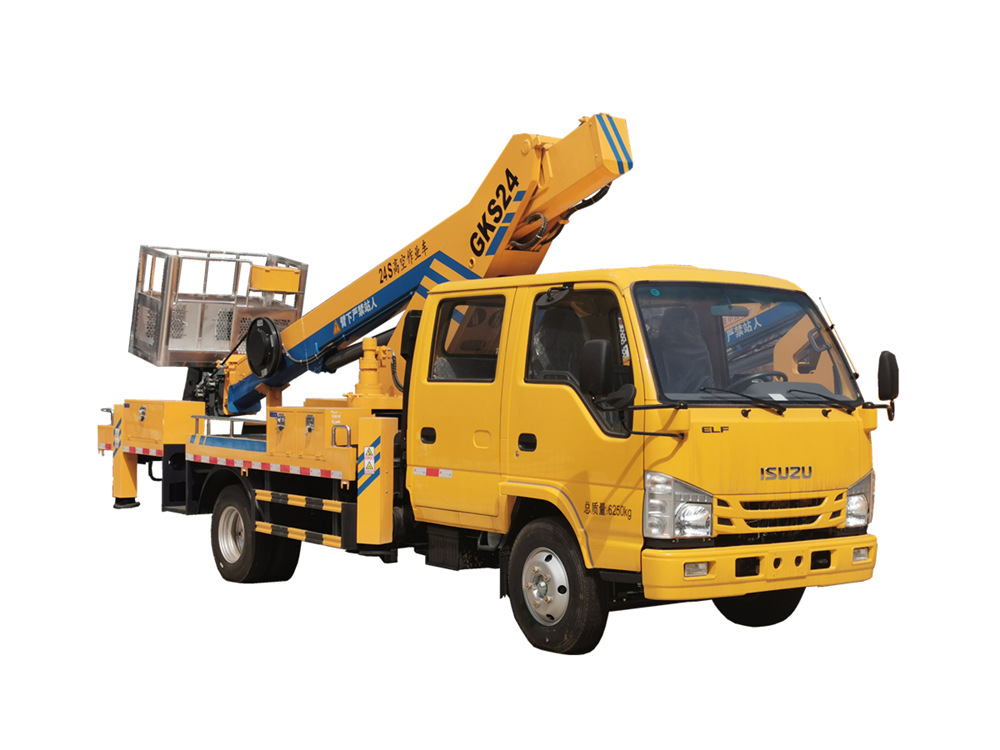

The ISUZU 24m bucket truck is a lifting aerial work equipment manufactured by POWERSTAR, also known as ISUZU aerial work platform truck, ISUZU manlift truck, ISUZU boom lift truck. The vehicle is based on the Isuzu 100P chassis and is equipped with a telescopic boom and has a vertical working capability of up to 24 meters.
ISUZU aerial lift bucket truck has significant advantages such as excellent working height, telescopic arm mechanism, stability and maneuverability, comfortable working barrel, wide range of application areas, easy operation and maintenance, and high quality and reliability. The vehicle is suitable for construction, maintenance, power line maintenance, tree pruning and other application fields. It has a high degree of flexibility and stability, improving work efficiency and safety. In addition, the design of ISUZU man lifter truck focuses on ease of operation and maintenance, and is manufactured using high-quality materials and advanced processes to ensure long service life and reliability.
Product Specifications
|
Gross vehicle weight |
6250 kg |
|
Curb weight |
6080 kg |
|

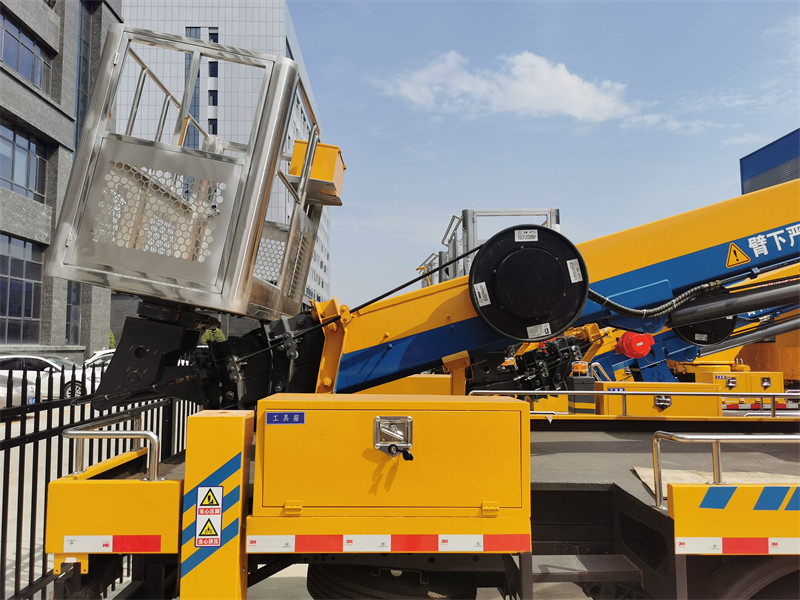

Bucket |
|
|
Max. work height |
24m |
|
Max. bucket floor height |
22 m |
|
Max. work radius |
12m |
|
Material |
Stainless steel |
|
Rated load |
200kg |
|
Boom |
|
|
Type |
Three sections telescopic |
|
Rotation angle |
360° |
|
Elevation angle of lower boom |
-18°~80° |
|

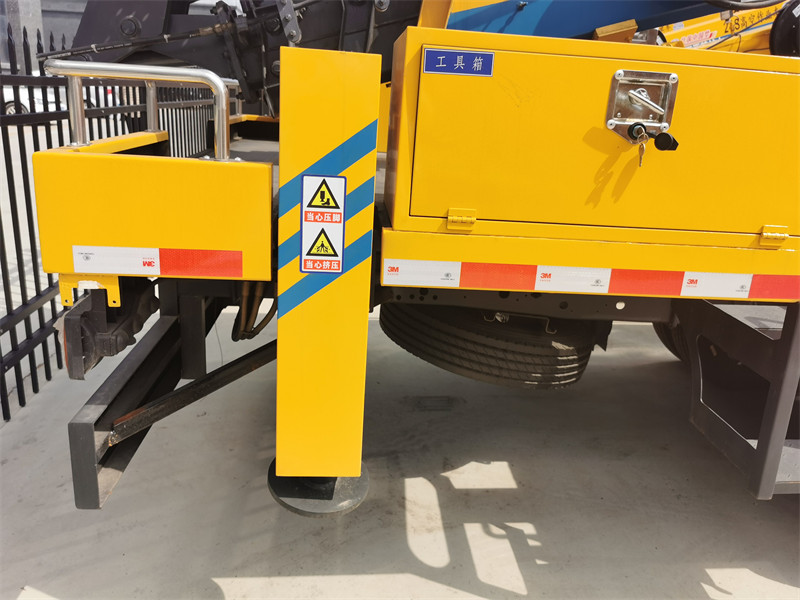

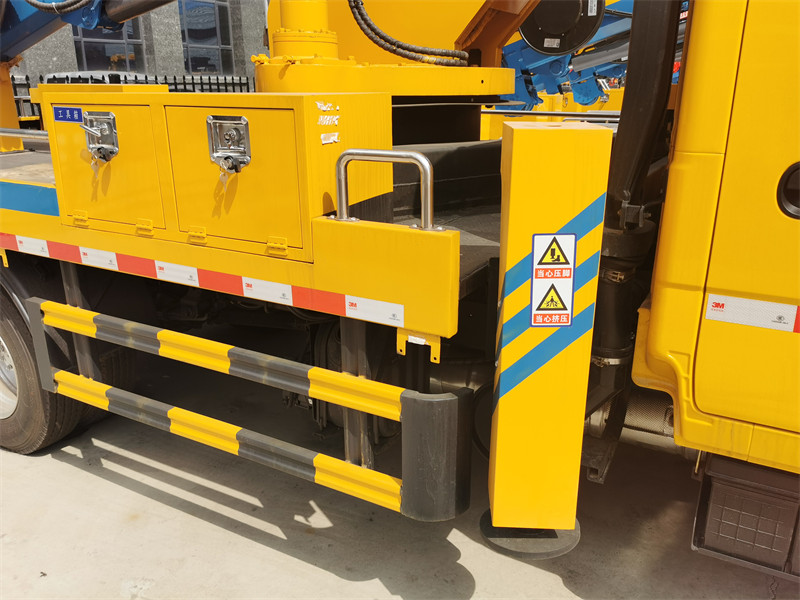

Outrigger |
|
|
Type |
H |
|
Vertical span |
Left 3180mm, right 3180mm |
|
Horizontal span |
Front3220mm, rear 2750mm |
|
Adjustment |
Adjusted separately |
|
Chassis |
|
|
Brand |
ISUZU |
|
Model |
QL1070BU |
|
Cabin |
Double, 4-doors |
|
Seat capacity |
2+3 persons |
|
Wheelbase |
3360mm |
|
Steering |
Power steering, L.H.D. |
|
Front/rear axle |
2500/4800 kg |
|
Front/rear wheel track |
1504/1425 mm |
|
Gear box |
ISUZU MSB, 5-speed, manual |
|
Brake |
Oil brake |
|
Tyre |
7.00R16, 6+1 pcs |
|
Engine |
|
|
Model |
4KH1CN6LB |
|
Engine power |
88KW/120HP |
|
Discharge Standard |
Euro 6 |
|
Fuel |
Diesel |
Features of ISUZU bucket lift truck
1. ISUZU engine: ISUZU engine, with its excellent power and stability, provides powerful power for ISUZU aerial work truck. The engine not only ensures operating efficiency, but also ensures the durability of the equipment.
2. Telescopic boom mechanism: Equipped with an advanced telescopic boom mechanism, which has a wide range of operations and can operate at different heights and angles. Its optimized structural design makes operation easier and improves the stability and safety of operations.
3. Aerial work platform: The aerial work platform is stable in operation and provides a safe and comfortable working environment, allowing operators to better perform high-altitude operations.
4. Hydraulic system: Using advanced hydraulic system, precise control can quickly respond to operations and improve work efficiency.
5. Safety protection devices: The equipment is equipped with comprehensive safety protection devices, including seat belts, anti-skid devices, emergency stop buttons, etc., to ensure the safety of operators in all aspects.
6. Comfortable driving environment: The cab design focuses on comfort, providing good vision and operation interface, which helps to improve work efficiency.
7. Humanized control system: The control system is designed to be user-friendly and easy to operate, so both new and experienced operators can get started quickly.
Applications of ISUZU bucket lift trucks
As an important special purpose vehicle, bucket trucks are widely used in many industries. The following are the main application scenarios of ISUZU bucket lift trucks in various fields:
1. Construction industry: Aerial work vehicles are widely used in the construction industry, mainly involving exterior and interior decoration, cleaning and maintenance of high-rise buildings. Through aerial work trucks, construction workers can safely perform various operations at high altitudes, such as exterior wall painting, glass cleaning, and billboard installation.
2. Electric power industry: In the electric power industry, ISUZU bucket trucks are mainly used for the installation and maintenance of power transmission and transformation lines. Using aerial work vehicles, electric workers can easily reach the top of transmission and transformation towers to install, inspect and repair lines.
3. Garden maintenance: In garden maintenance, ISUZU boom lift trucks are mainly used for pruning and maintaining tall trees. Aerial lifts can easily transport workers and equipment to the top of the tree canopy for pruning and maintenance work.
4. Fire rescue: In fire rescue, ISUZU aerial work vehicles are used for firefighters’ rescue operations. It can help firefighters quickly reach the fire scene of high-rise buildings to carry out rescue and fire-fighting work.
5. Film and television shooting: In film and television shooting, ISUZU manlift trucks are used to shoot high-altitude scenes. By mounting camera equipment on aerial work vehicles, stunning aerial shots can be captured to enhance the visual effects of the film.
6. Cleaning and cleaning: Aerial work vehicles are also widely used in the cleaning and cleaning industry, such as exterior cleaning of high-rise buildings, glass cleaning, etc. Aerial work trucks make it easy to carry out high-altitude cleaning and cleaning work.
7. Festival celebrations: During festival celebrations, ISUZU aerial work platform trucks are used to decorate and decorate the event site. For example, during large-scale celebrations such as National Day and Spring Festival, aerial work vehicles can install lanterns, national flags and other decorations on the top of buildings or at high altitudes.
8. Communications industry: In the communications industry, ISUZU boom trucks are used to install and maintain communications equipment. Through aerial work vehicles, communication engineers can quickly reach the top of the communication tower to install, debug and maintain equipment.
