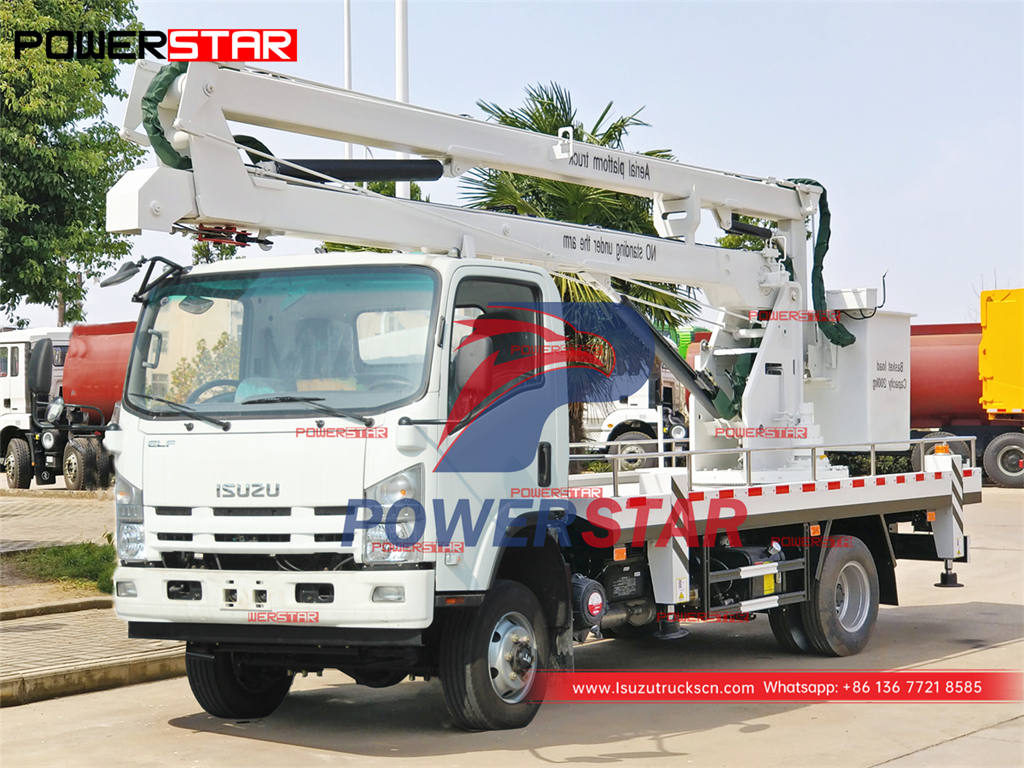

ISUZU 700P 4×4 off-road 18m Aerial Work Platform Truck
Order(MOQ):
1
ISUZU 4WD Off-road 190HP 18m Aerial Platform Man Lift Truck
ISUZU 4WD Truck Mounted Boom Lift (also called ISUZU 4WD aerial lift truck, ISUZU 4×4 Aerial Platform, ISUZU off-road arm lift bucket truck) suitable for aerial working or operation, such as repairing road lights, maintain high buildings, windows, hanging AD boards, power grid maintenance, etc.
|
100% custom-made
|
|
|
Working height from 10M to 32M available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
|
PowerStar Trucks Industry Co., Limited |
|||
|
Product Name |
ISUZU Manlift Truck |
||
|
Vehicle Brand Series |
ISUZU |
||
|
Vehicle Model |
PST5110GK |
||
|
Production Time |
25 days |
||
|
Chassis parameters |
Overall dimensions |
mm |
8200*2300*3200 |
|
Gross weight |
kg |
11,000 |
|
|
Kerb weight |
8,500 |
||
|
Wheelbase |
mm |
4,175 |
|
|
Driving type |
4×2 / 4×4 |
||
|
Chassis model |
ISUZU ELF/700P |
||
|
Tire size |
235/75R17.5 |
||
|
Number of Tires |
6+1 |
||
|
Passengers in cab |
3 |
||
|
Engine |
Engine model |
4HK1-TC51 |
|
|
Type of fuel |
Diesel |
||
|
Power |
190HP |
||
|
Max speed |
Km/h |
110 |
|
|
Emission standard |
EURO 5,6 |
||
|
Operation performance |
Working height |
18 m |
|
|

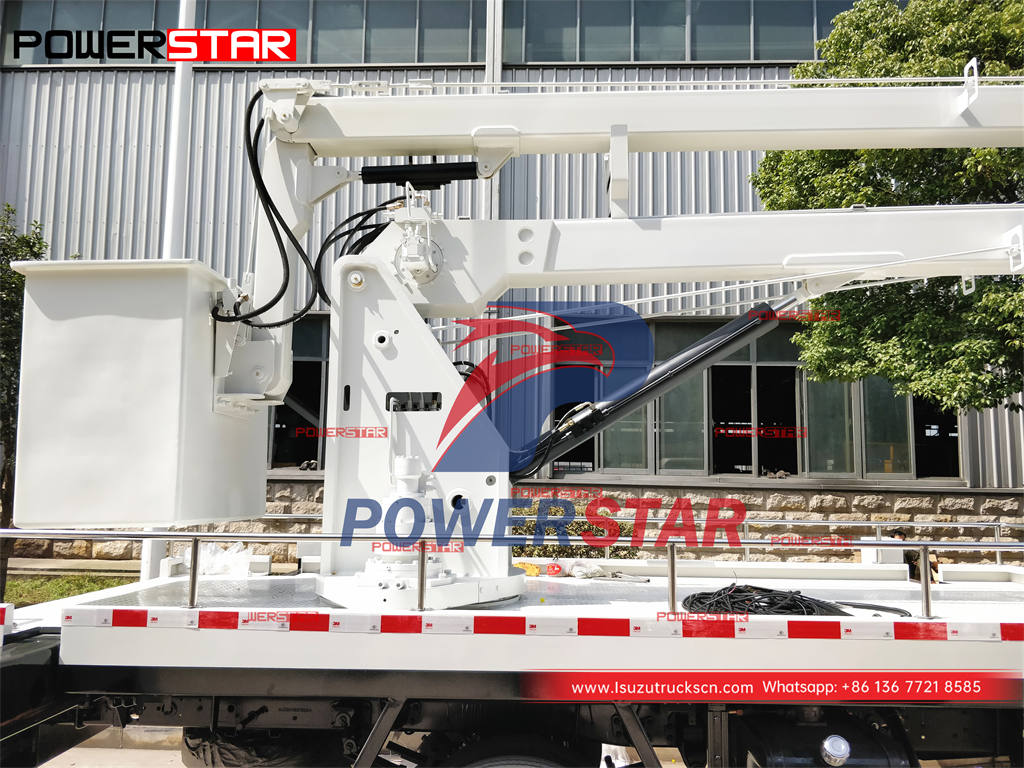

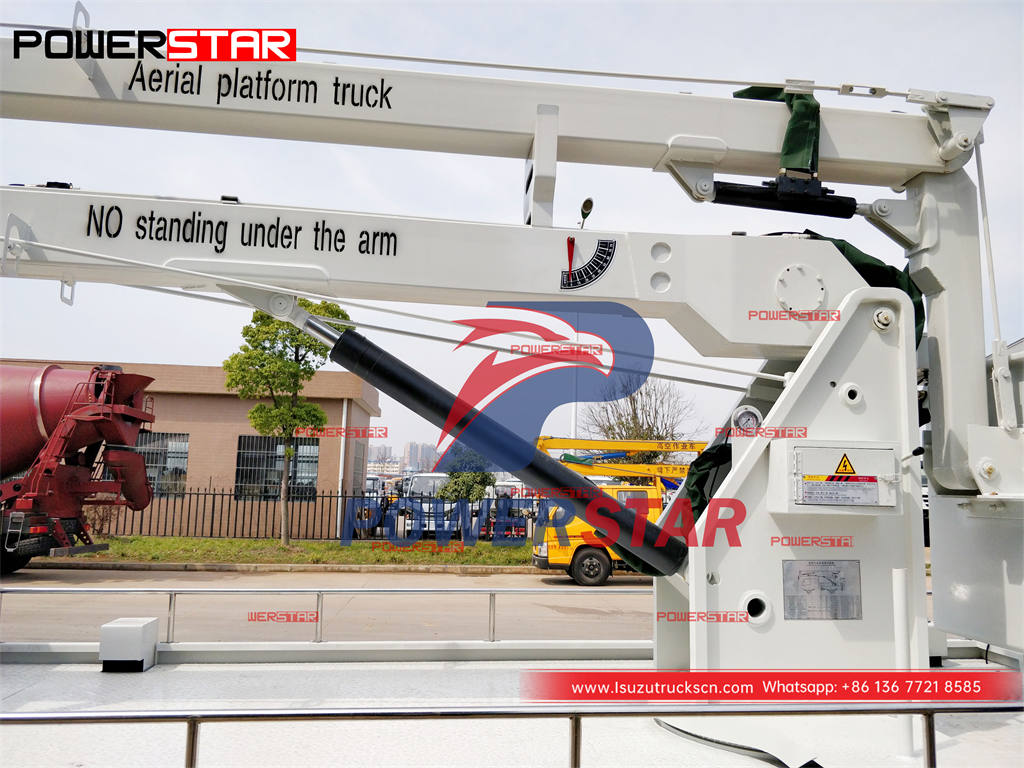

Boom Type |
Telescopic boom |
||
|

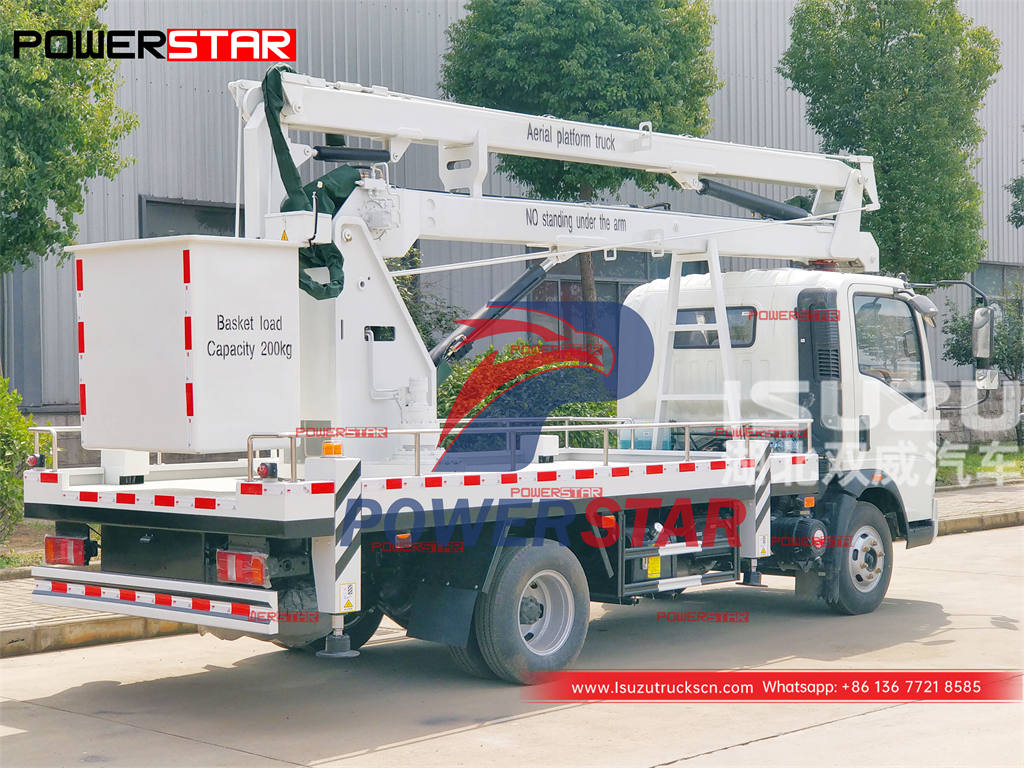

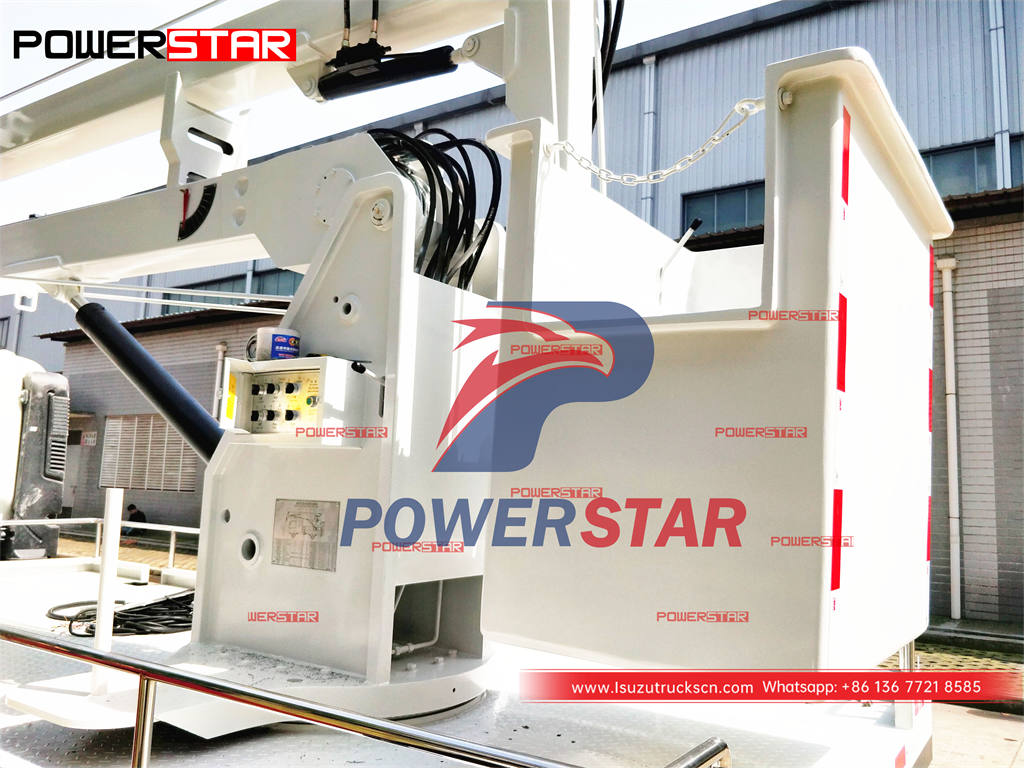

Basket payload |
200 kg |
||
|
Automatic interlock device |
Basket and ground control lock |
||
|
Can't operation at same time. |
|||
|
Emergency pump |
Equipped |
||
|
Engine ON/OFF in basket |
Equipped |
||
|
Emergency stop |
Equipped |
||
|

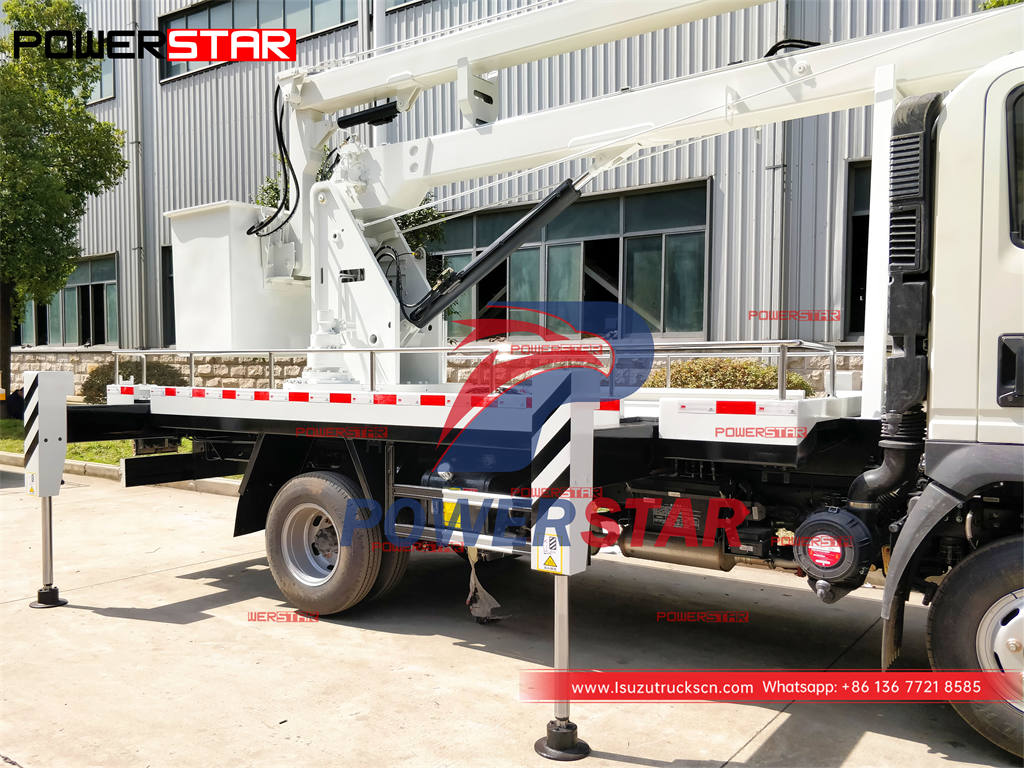

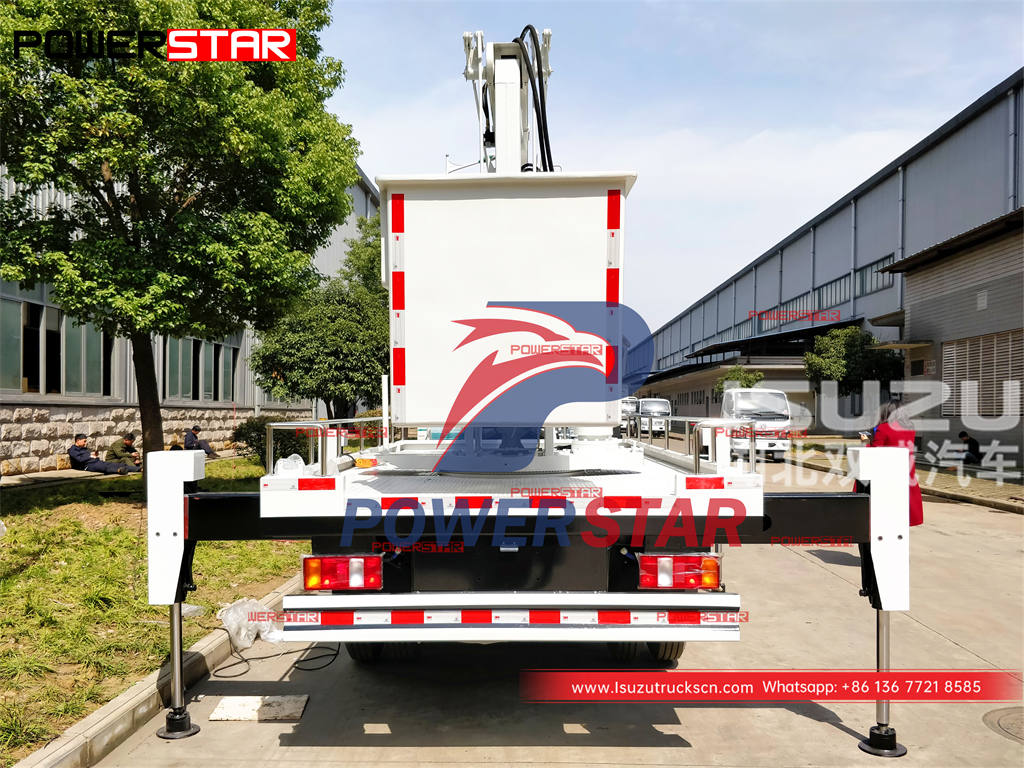

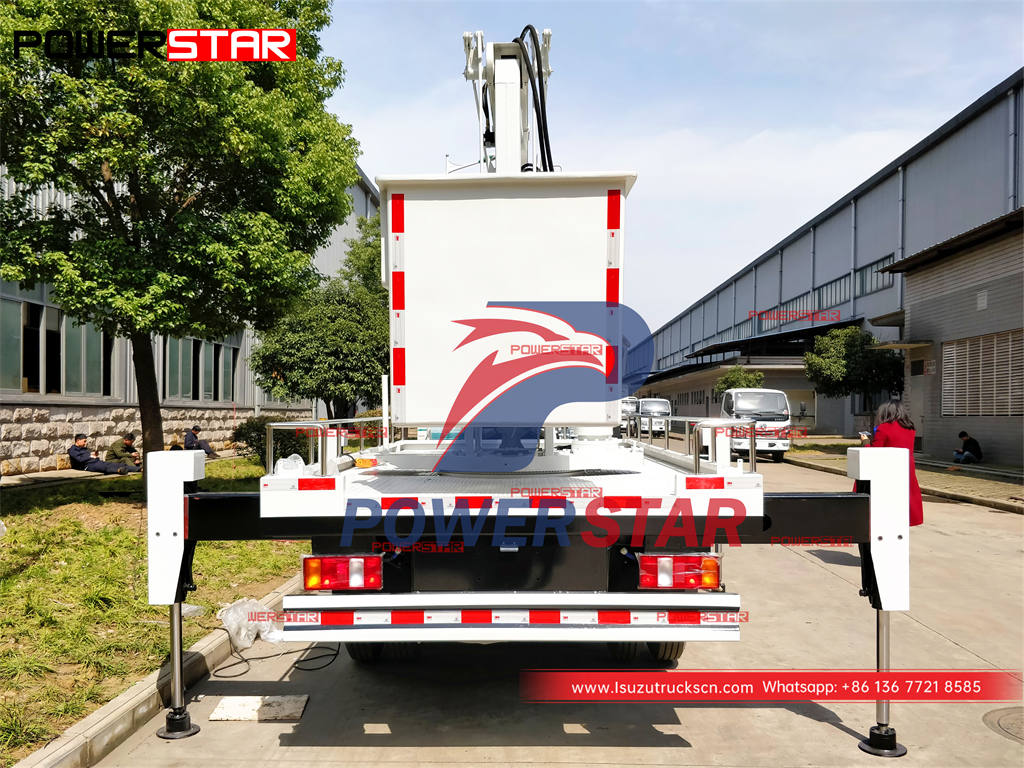

Outrigger |
4 pcs |
||
|
Operation |
Hydraulic control |
||
|
Hook lift capacity |
1000 kg |
||
|
Control Panel |
English |
||
|
Painting |
Two primers, and one final paint coating |
||
|
Color & LOGO |
According to wish |
||
|
Factory standard |
“U” shape Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp, Working Lamp, Hand holds, Mudguards and rubber flaps... |
||
|
Documents |
English operation manual, Spare parts list, and all necessary export docs. |
||
|
Optional equipment |
1, 50M Wireless Remote control
2, Fiber-glass working bucket 3, Italy imported multi-way valve
4, Optional aluminum alloy body |
||
Key words: ISUZU 4WD Arm Lift Bucket Truck, ISUZU 4×4 Truck Mounted Boom Lift, ISUZU 4×4 Off-road Truck Mounted Aerial Work Platform
