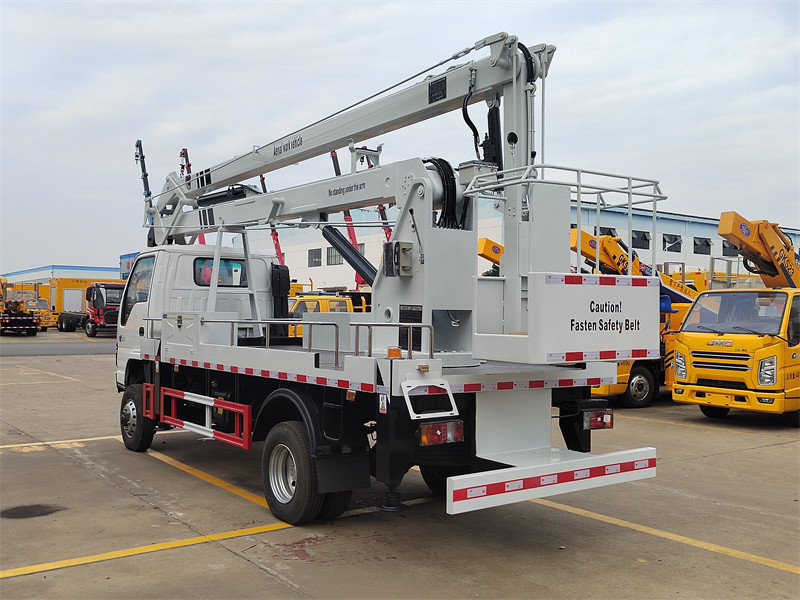

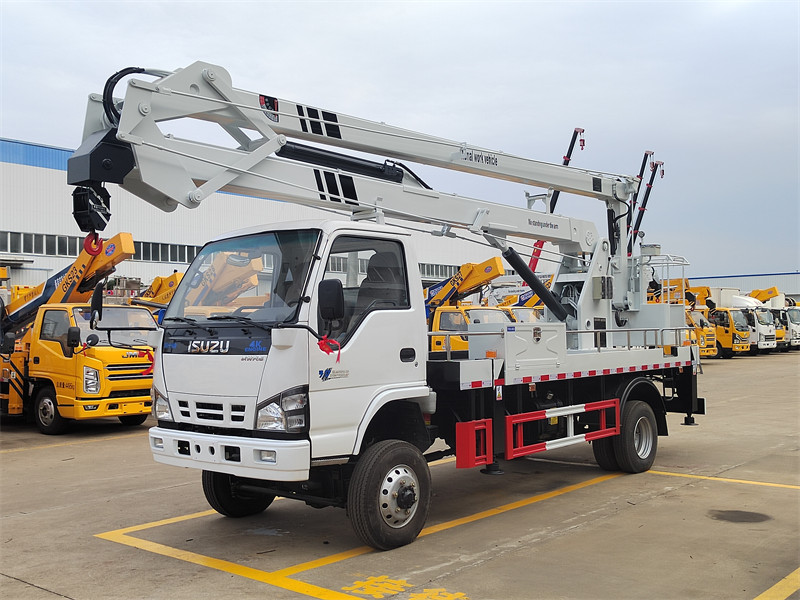

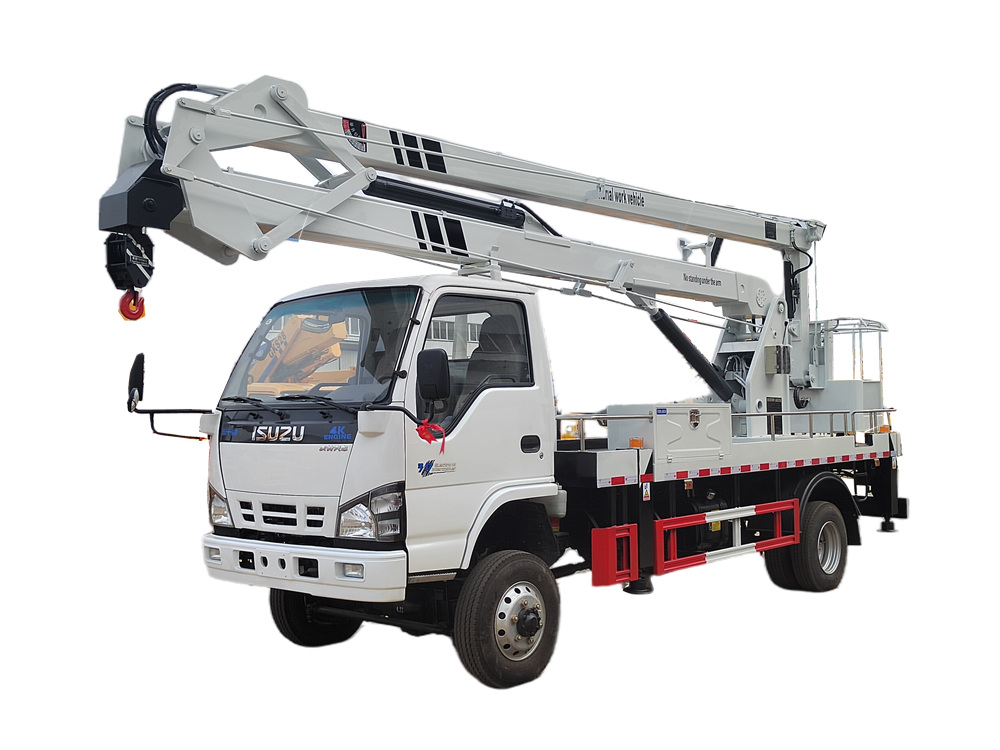

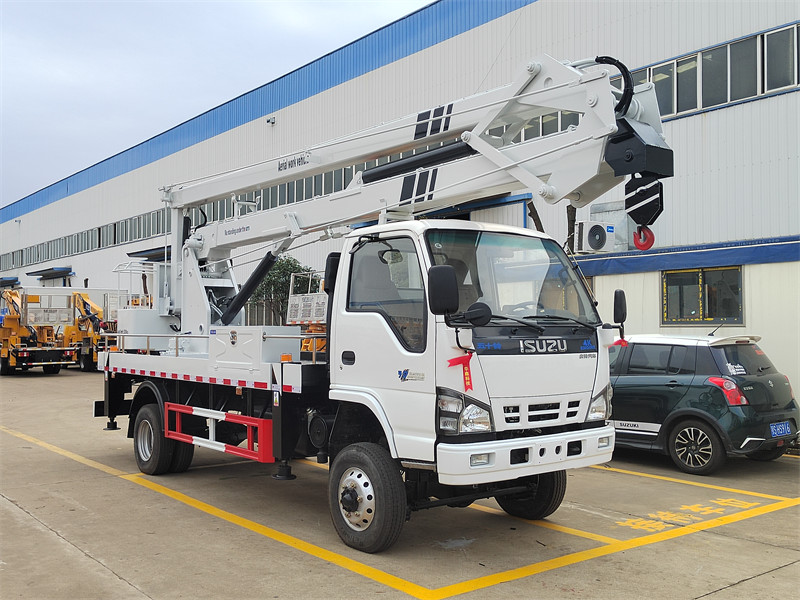

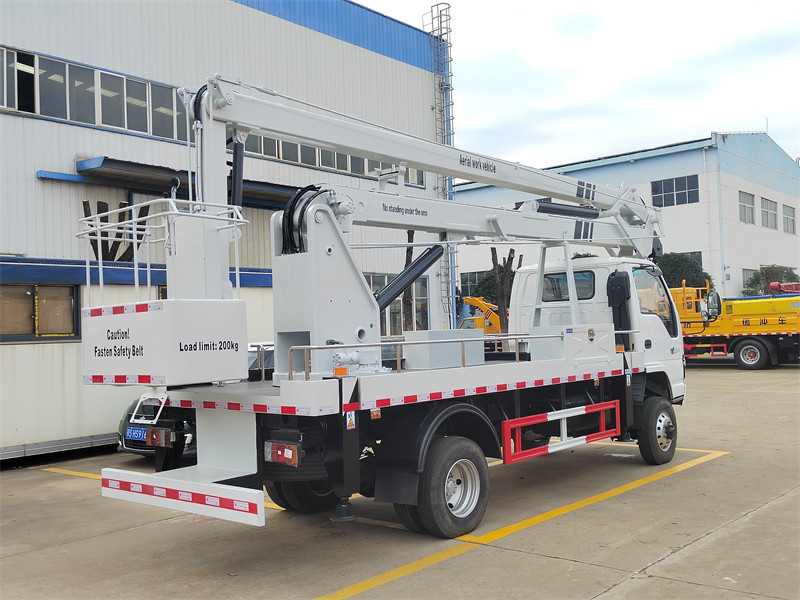

ISUZU Insulated Aerial Work Platform Truck
The ISUZU aerial work platform truck is a reliable and efficient special purpose vehicle equipped with a durable lifting mechanism and stable working platform that can reach a height of up to 16 meters, making it suitable for a variety of high-altitude work tasks. Its working platform can rotate 360 degrees and is equipped with an adjustable arm, allowing workers to easily access and operate high task points. This enables them to perform a variety of high-altitude work tasks such as building construction, electrical maintenance, municipal facility maintenance and cleaning.
Work capacity:
16 metersTruck model:
PT5160GGKEngine power:
130 HPEngine type:
4KH1CN5HSAxle drive:
4×4Gear box:
MSB 5-speed, manualRemarks:
ISUZU 4×4 chassis, insulated bucket
ISUZU aerial work vehicle also known as ISUZU aerial work platform truck, ISUZU bucket truck, ISUZU boom lift truck, is a special-purpose vehicle that is usually used for operations at high altitudes, such as electrical maintenance, equipment installation, etc. Compared with ordinary aerial work vehicles, ISUZU insulated aerial work platform truck have good insulation performance and can operate in high-voltage electricity environments to ensure the safety of workers.
The body of the ISUZU aerial lift truck is made of insulating materials, which can effectively isolate the contact between the vehicle and high-voltage electricity, avoiding the occurrence of electric shock accidents. At the same time, the vehicle is also equipped with a variety of advanced operating equipment, such as insulating arms, lifting platforms, etc., which can meet the needs of different heights and different operating environments.
ISUZU boom lift truck also have the characteristics of easy operation, good stability, and strong load-bearing capacity, which can greatly improve work efficiency and quality, and reduce the work intensity and risks of operators. Therefore, the vehicle is widely used in high-altitude operations such as electric power, communications, and street lighting.
Product Parameters
|
Vehicle Information |
|
|
Vehicle name |
ISUZU Insulated aerial work platform truck |
|
Overall dimension |
5900×2000×3200 mm |
|
Gross vehicle weight |
7300 kg |
|
Curb weight |
7080 kg |
|
Chassis Information |
|
|
Cabin |
ISUZU ELF , single row cabin , A/C |
|
Seats |
2 |
|
Wheelbase |
3360 mm |
|
Front/rear axle |
2500/4800 kg |
|
Front/rear wheel track |
1504/1425 mm |
|
No. of leaf spring |
8/6+5 |
|
Brake |
Oil brake |
|
Tire |
7.00R16, 6+1 pcs |
|
Fuel tank |
100 L |
|
Engine |
|
|
Brand |
ISUZU |
|
Model |
4KH1CN5HS |
|
Emission standard |
Euro V |
|
Fuel type |
Diesel |
|
Power |
96kw/130hp |
|
Type |
4 cylinders, in line, water cooling, turbocharged |
|
Displacement |
2999 ml |
|
Boom |
|
|
Boom type |
Articulated Booms |
|
Upper boom lifting angle |
70° |
|
Lower boom lifting angle |
70° |
|
Turn around angle |
360° |
|

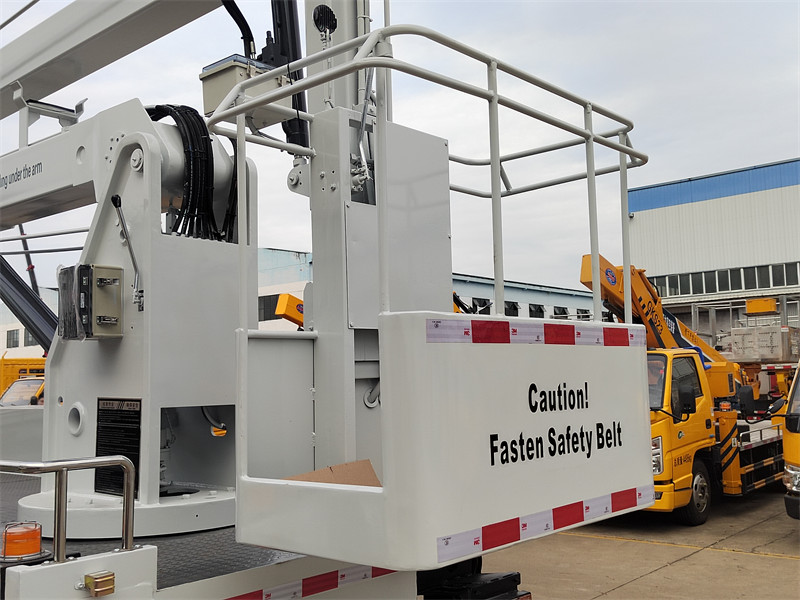

Bucket |
|
|
Material |
Fiberglass, insulated |
|
Size |
1100×650×1100 mm |
|
Payload |
200 kg |
|
Platform |
|
|
Max. Rated Load |
200kg(2 persons) |
|
Max. Working Height |
16M |
|
Max Height off ground |
14.3M |
|
Max. working range |
7M |
|
Outrigger |
|
|
Adjustment |
Individual adjustment |
|
type |
H type |
|
Hook |
|
|
Max. loading |
1000kg |
Product performance characteristics
1. The maximum extension angle of the upper arm reaches 90°, so that it can be adjusted to the best working position.

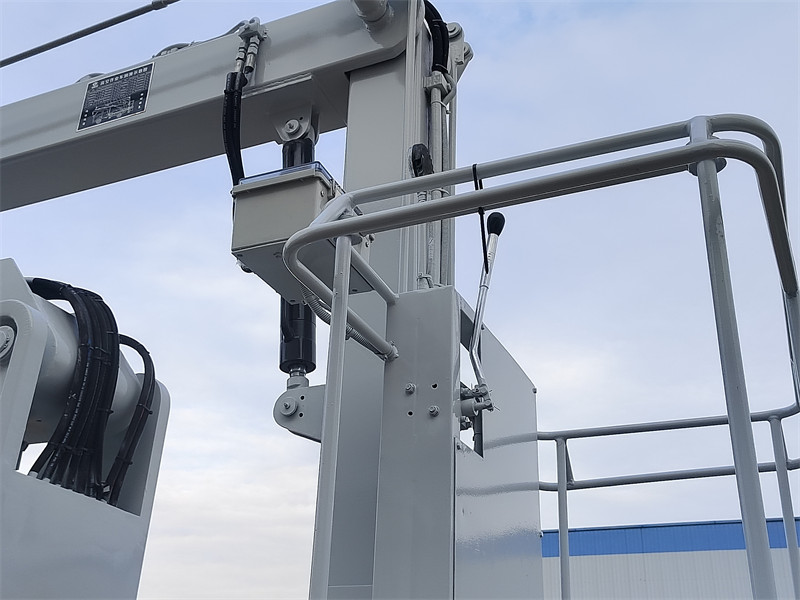

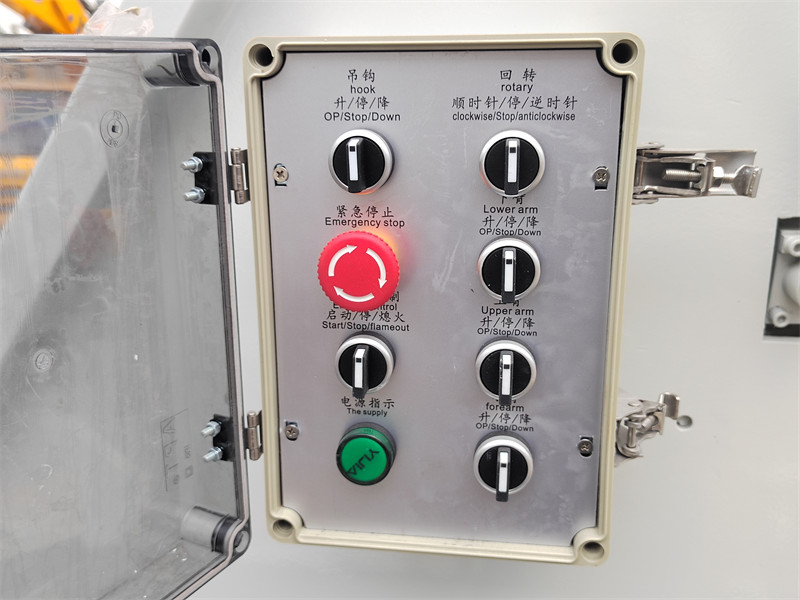

2. Two sets of operating systems can complete various operating actions on the working bucket and turntable.

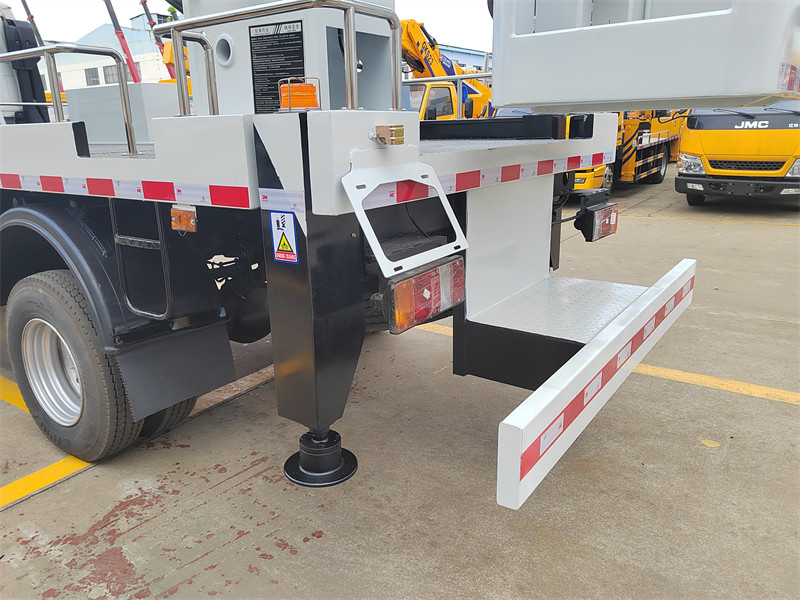

3. The outriggers are individually adjustable. Each outrigger can be adjusted individually according to the working ground environment. Even if the ground is uneven, the entire vehicle can be adjusted to a stable state.
4. Both the lifting and rotating movements can realize stepless speed regulation, that is, in the upper and lower operating systems, the speed of the lifting and rotating movements can be realized from zero to the maximum, so that the whole vehicle can move smoothly during the operation, so that Workers feel more secure and comfortable.
5. The upper and lower operating tables are equipped with operating lights. There is also a large light on the work bucket for night operations.
6. The turntable and work bucket are equipped with engine start and shutdown buttons, which can remotely control the start and shutdown of the engine. When the work bucket enters the operating state, the engine can be shut down to reduce fuel consumption. When the operation is completed, it can be restarted.
Product Applications
ISUZU bucket lift trucks are widely used in the following scenarios:
1. Electric power work: ISUZU aerial work vehicles are very useful in power work, especially for inspection, repair and installation on high-voltage lines. Due to its good insulation properties, it can ensure that workers can work safely at high altitudes.
2. Communication operations: In the field of communication, aerial work vehicles are used to install and repair signal towers, optical cables and other facilities. ISUZU manlift trucks can meet the installation and maintenance needs of various communication facilities due to their excellent stability and load-bearing capacity.
3. Electrical maintenance: ISUZU truck mounted aerial platform plays an important role in electrical maintenance and overhaul. It provides a height-adjustable work platform that allows power engineers to access equipment such as transmission lines, transformers and power towers for inspection, repair and installation work.
4. Building maintenance: In terms of building maintenance, ISUZU aerial work platform trucks can be used for cleaning, repair and maintenance of high-rise buildings. Due to its height adjustability, it can be adapted to buildings of different heights.
5. Municipal facilities maintenance: This vehicle can be used for the maintenance and upkeep of municipal facilities, such as street light repair, sign replacement, tree trimming and installation of urban decorations. Through the aerial work platform, workers can easily reach higher positions and improve maintenance efficiency.
6. Film and television shooting: Provide a stable shooting platform for photographers to shoot high-altitude scenes.
