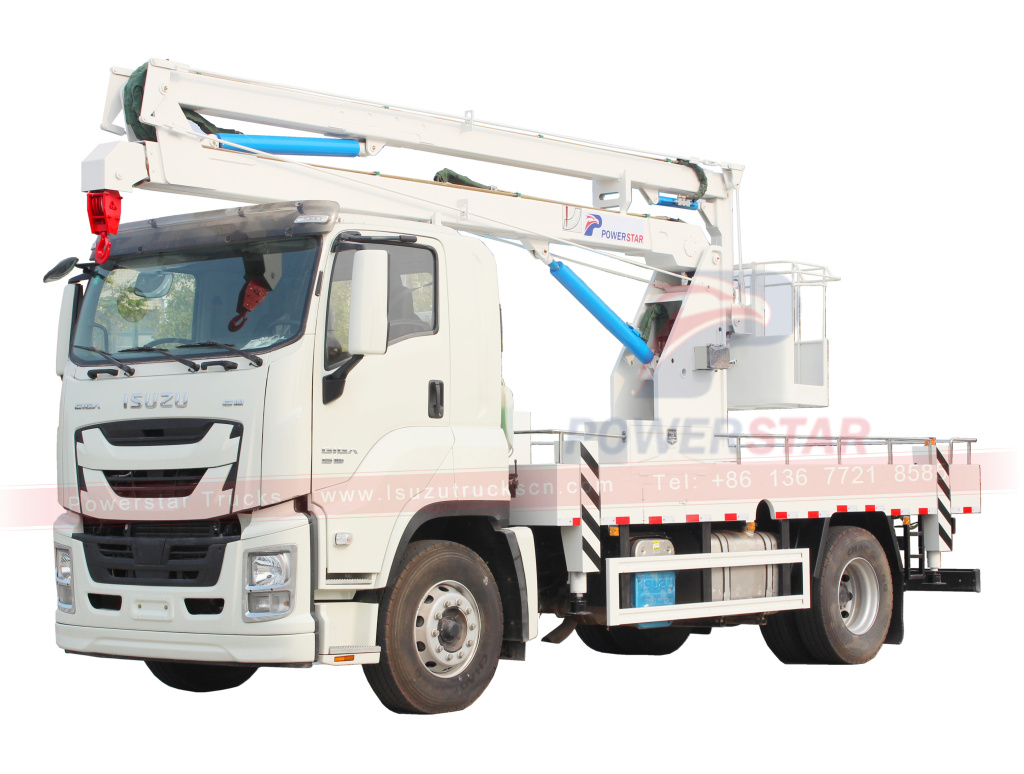

ISUZU GIGA Manlifter Aerial Platform Truck

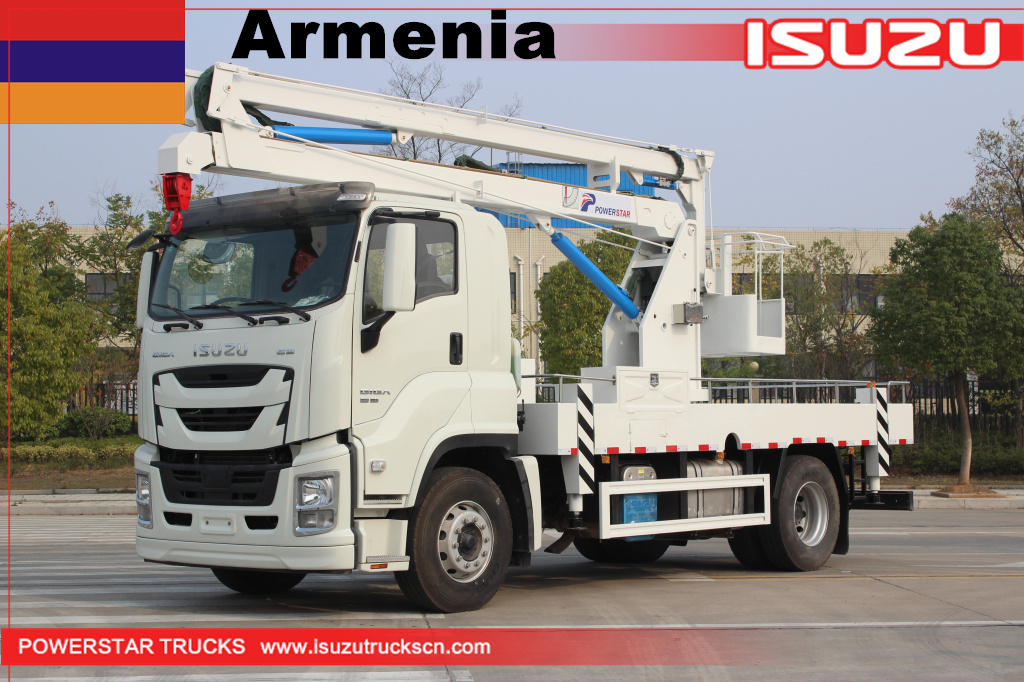

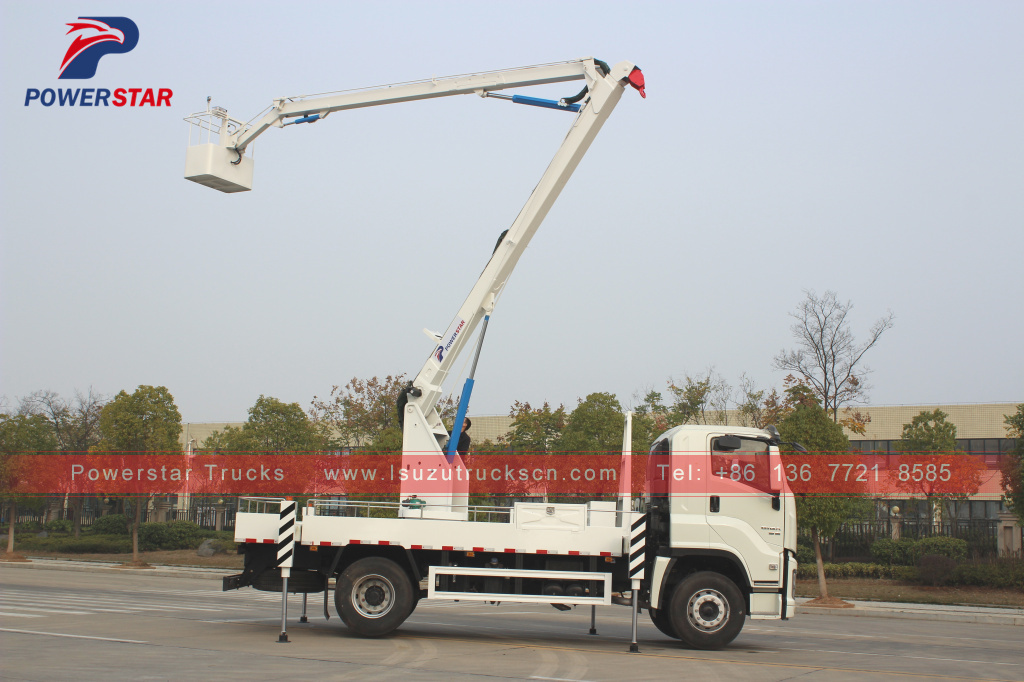

Armenia ISUZU 20 meters aerial platform truck with folding manlift
Armenia ISUZU 20 meters aerial platform truck with folding manlift
Armenia ISUZU 20 meters aerial platform truck with folding manlift
Armenia ISUZU 20 meters aerial platform truck with folding manlift
Armenia ISUZU 20 meters aerial platform truck with folding manlift
Armenia ISUZU 20 meters aerial platform truck with folding manlift
Armenia ISUZU 20 meters aerial platform truck with folding manlift
Armenia ISUZU 20 meters aerial platform truck with folding manlift
Armenia ISUZU 20 meters aerial platform truck with folding manlift
Armenia ISUZU 20 meters aerial platform truck with folding manlift
Armenia ISUZU 20 meters aerial platform truck with folding manlift
Armenia ISUZU 20 meters aerial platform truck with folding manlift
Armenia ISUZU 20 meters aerial platform truck with folding manlift
Armenia ISUZU 20 meters aerial platform truck with folding manlift
Armenia ISUZU 20 meters aerial platform truck with folding manlift

ISUZU GIGA Manlifter Aerial Platform Truck

Isuzu GIGA Aerial work platforms play a significant role at worksite, particularly for the construction of electrical and telecommunication infrastructures, that are essential for daily life
  • Order(MOQ):

    1

ISUZU GIGA Manlifter Truck with Basket Crane

ISUZU GIGA Manlifter Truck with Basket Crane



Introduction


ISUZU GIGA sky manlifter (also called Isuzu basket crane truck, Aerial lift trucks, Telescopic boom aerial platform truck etc) suitable for the construction of electrical and telecommunication infrastructures, that are essential for daily life. A variety of models are also available for general construction.


Also ideal for maintenance of traffic lights, street lights, landscaping trees, cleaning/setting signboard and other high aerial works.



Advantages


  100% custom-made
  10m to 32m available
  Short delivery time 7~30 days
  Easy operation & Easy maintenance

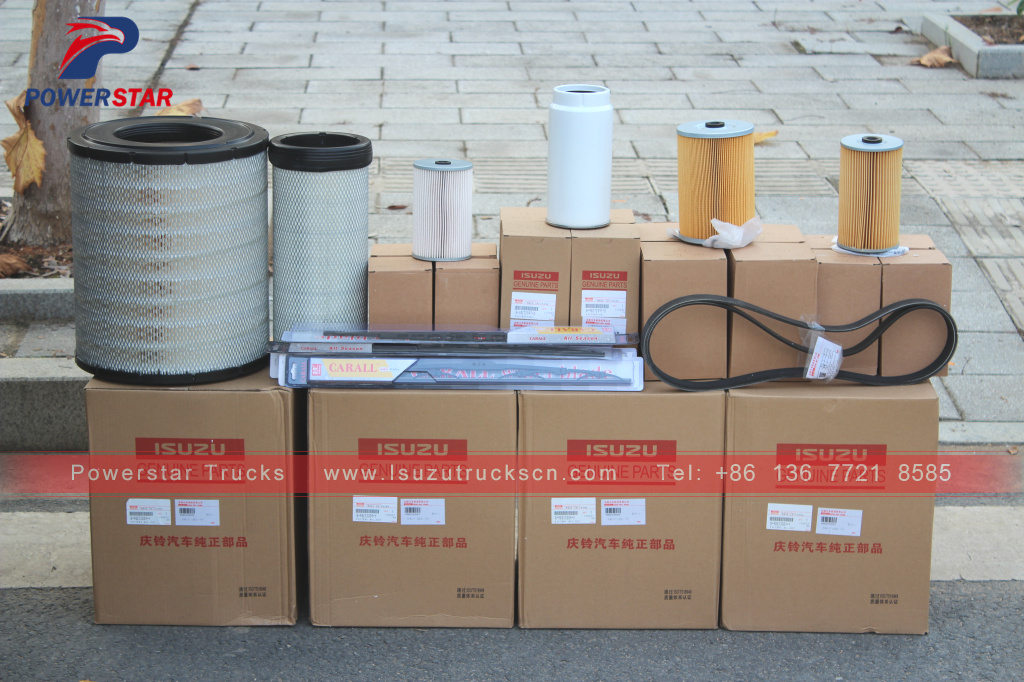

  15 years spare parts & Technical support



Main Parameters


Manufacturer

PowerStar Trucks Industry Co., Limited

Product Name

ISUZU Aerial Platform Truck

Vehicle Brand Series

ISUZU GIGA

Vehicle Model

PST5310TGK

Production Time

25 days

Chassis parameters

Overall dimensions

mm

9500*2500*3500

Gross weight

kg

34,000

Kerb weight

10,700

Wheelbase

mm

4,600

Driving type

4*2

Chassis model

ISUZU GIGA Heavy-duty

Tire size

12.00-20

Number of Tires

6+1

Passengers in cab

3

Engine

Engine model

6UZ1-TCG50

Type of fuel

Diesel

Power

380HP

Max speed

Km/h

110

Emission standard

EURO 5,6

Lifting performance

Max Working height

20m/18m

Max Working radius

7.1m

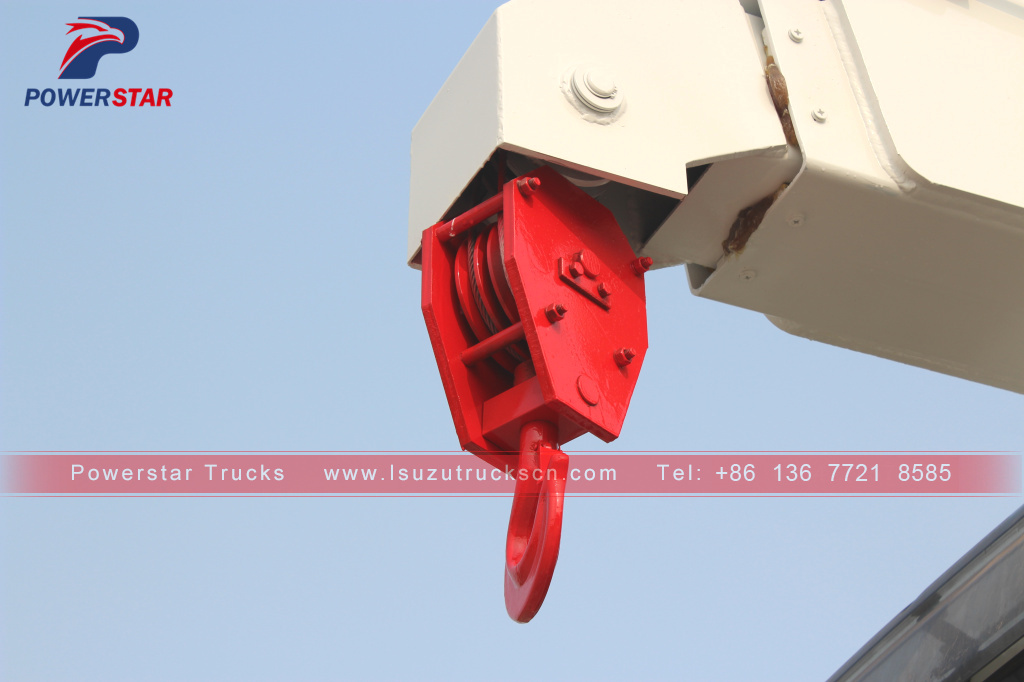

Hook

1000kg

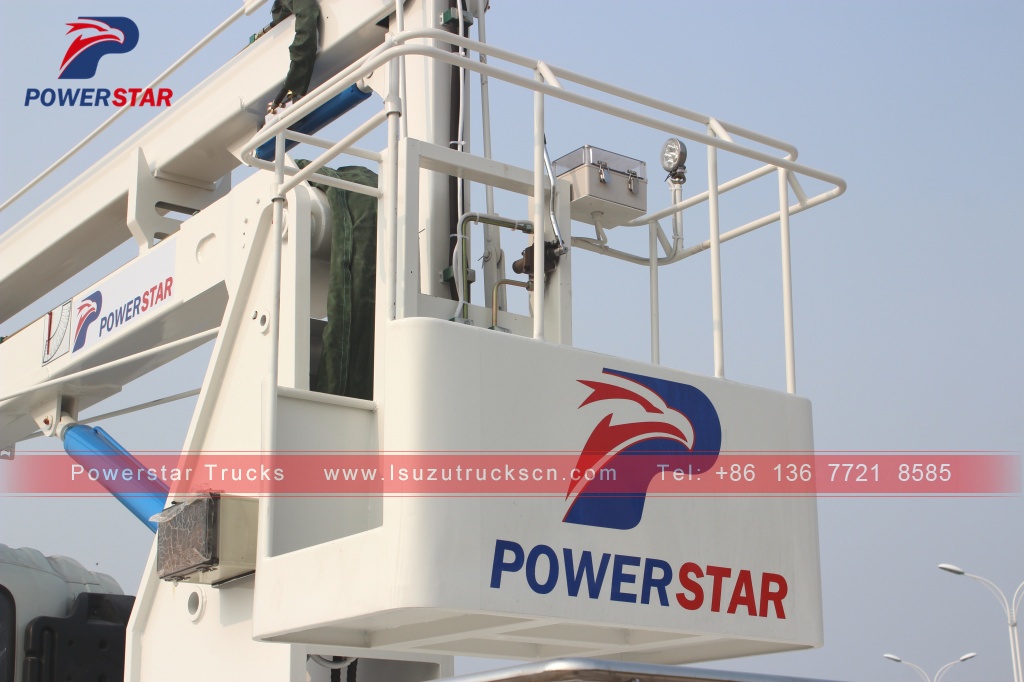

Bucket/Cage

200 kg loading capacity

1100x1100x660mm

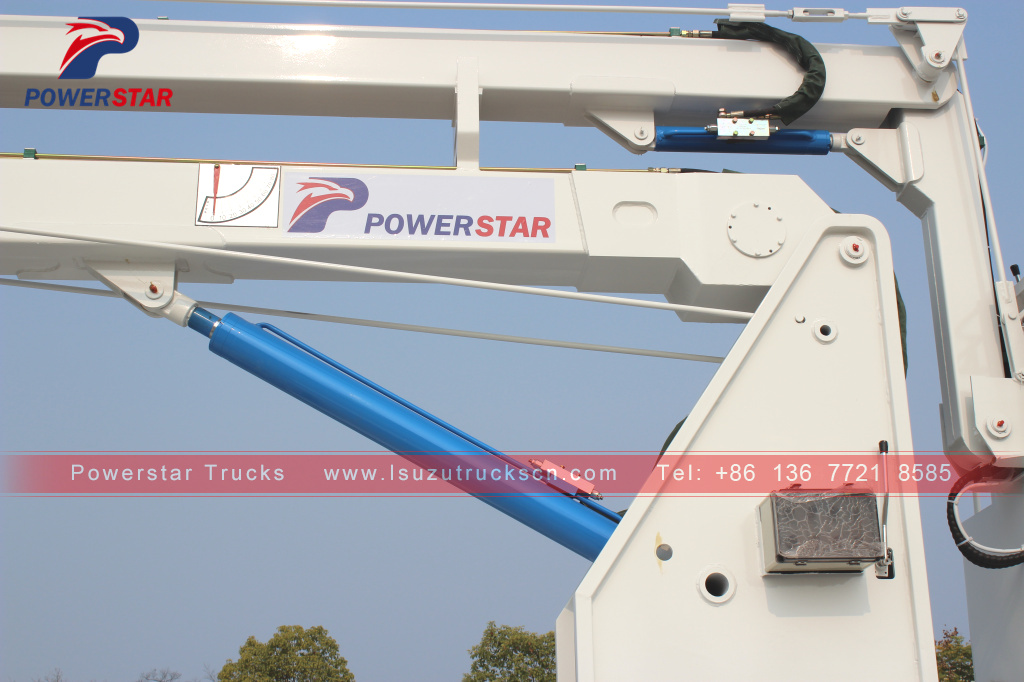

Boom

Three-section, Articulated

Rotation Angle 360

Control

Control both on the ground and remote control in cage

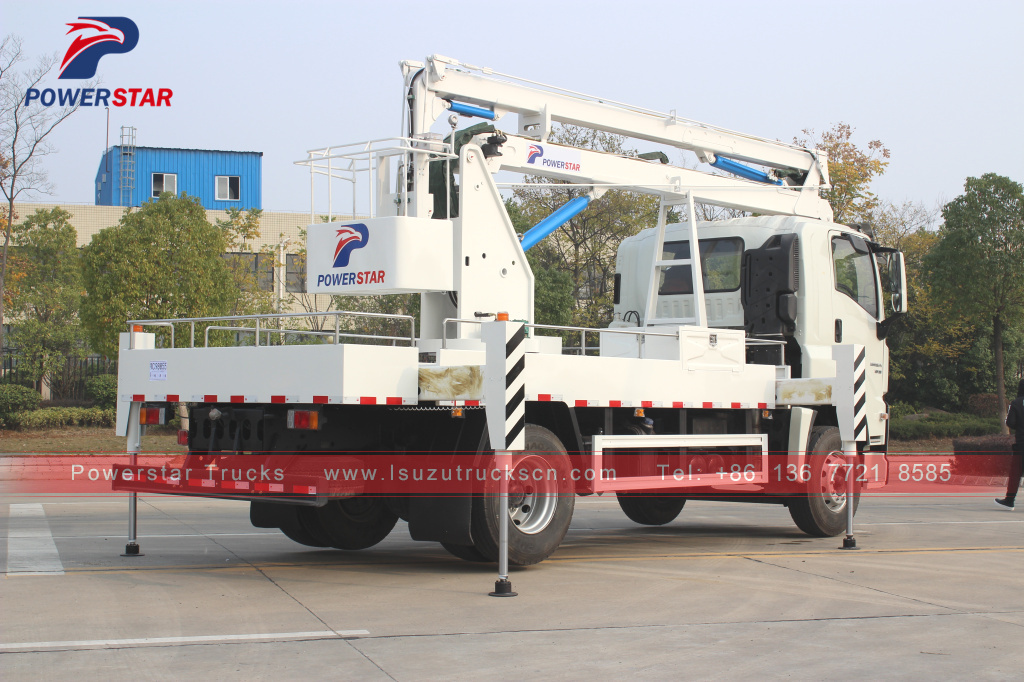

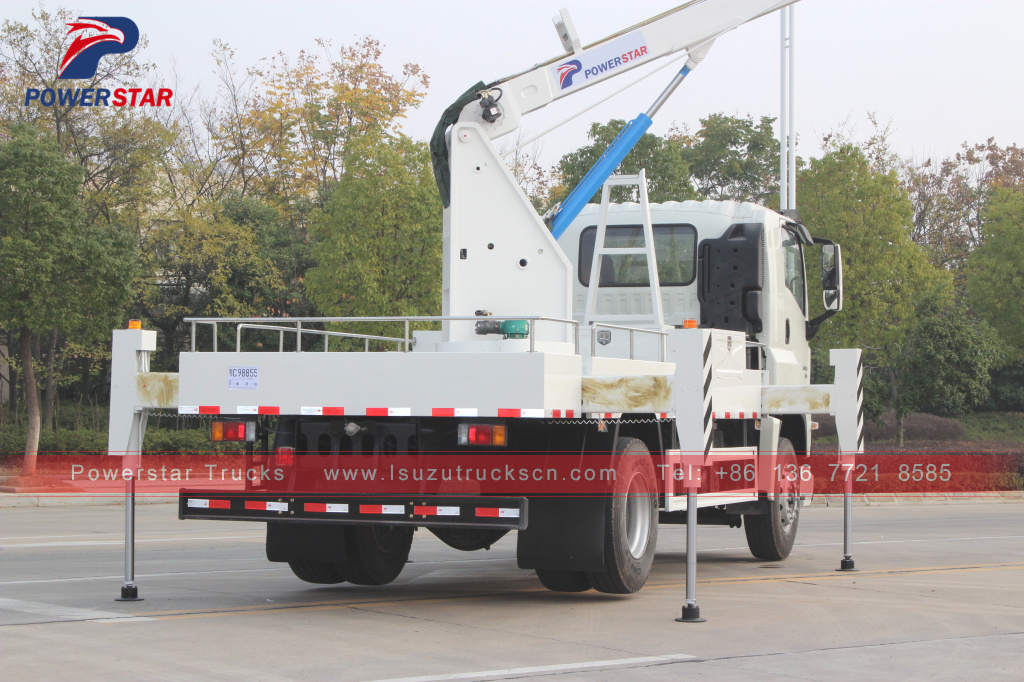

Outrigger

4 pcs/Adjusted separately

Leveling System

Hydraulic stabilizer to level the vehicle on uneven ground

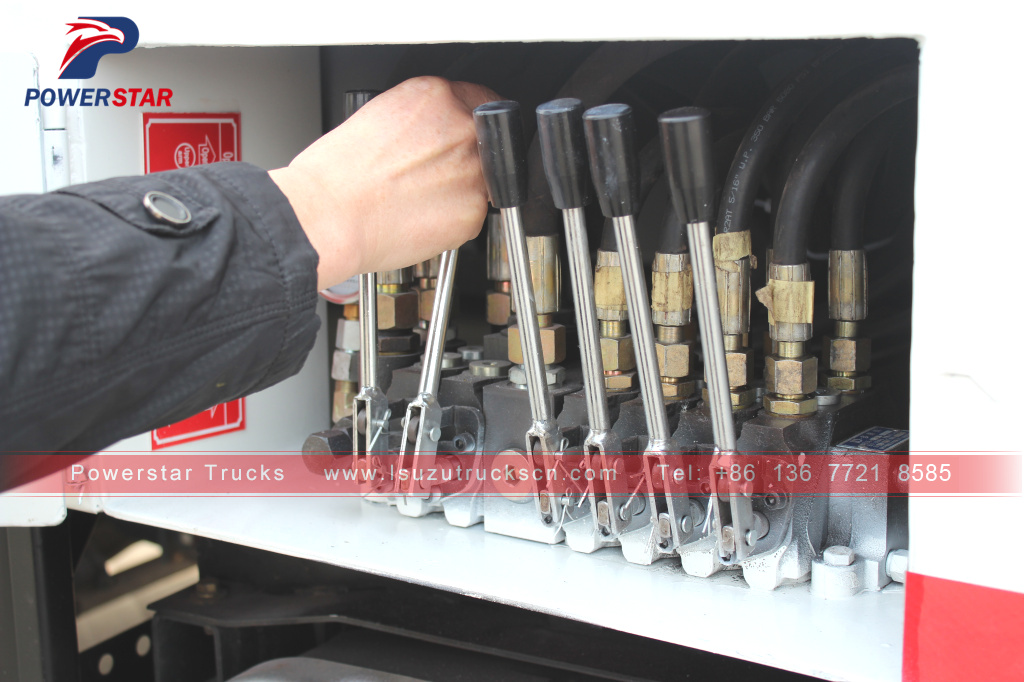

Operation

Hydraulic control lever system

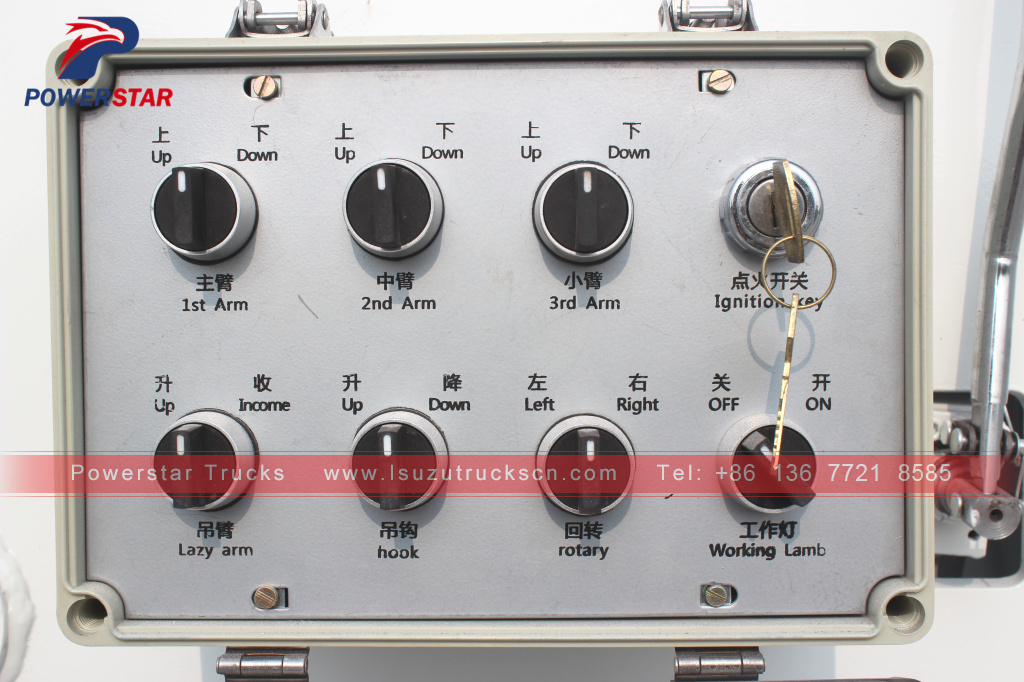

Control Panel

English

Emergency pump

Included, When the engine and main pump fail, workers can be sent back to the ground

Painting

Two primers, and one final paint coating

Color & LOGO

According to wish

Factory standard

  “U” shape Sub Frame, Hydraulic system,Relief valve, balance valve, double-way hydraulic lock, hand operated emergency hydraulic pump, Working Lamp, Hand holds, Mudguards and rubber flaps...

Documents

  English operation manual, Spare parts list, and all necessary export docs.

Optional equipment

1, Other Working height  (with any option)

2, Fiber-glass bucket

3, Italy imported multi-way valve

4, Optional remote control





Japan ISUZU GIGA 16m 18m 20m Aerial Manlift Work Platform Trucks for sale


Japan ISUZU GIGA 16m 18m 20m Aerial Manlift Work Platform Trucks for sale


Japan ISUZU GIGA 16m 18m 20m Aerial Manlift Work Platform Trucks for sale


Japan ISUZU GIGA 16m 18m 20m Aerial Manlift Work Platform Trucks for sale


Japan ISUZU GIGA 16m 18m 20m Aerial Manlift Work Platform Trucks for sale


Japan ISUZU GIGA 16m 18m 20m Aerial Manlift Work Platform Trucks for sale


Japan ISUZU GIGA 16m 18m 20m Aerial Manlift Work Platform Trucks for sale


Japan ISUZU GIGA 16m 18m 20m Aerial Manlift Work Platform Trucks for sale


Japan ISUZU GIGA 16m 18m 20m Aerial Manlift Work Platform Trucks for sale


Japan ISUZU GIGA 16m 18m 20m Aerial Manlift Work Platform Trucks for sale


Key words:  ISUZU man lifter truck, Overhead working truck Isuzu, Bucket lift truck Isuzu
