Work capacity:
5 CBMTruck model:
PT5050TSLEngine power:
98 HPEngine type:
4KH1CN5LSAxle drive:
4×2Gear box:
ISUZU MSB 5-speed, manualRemarks:
3CBM water tank and 2CBM dustbin, with front spray nozzlesThe use of road sweepers for road maintenance has become a trend. Road sweepers are special sanitation vehicles equipped with sweepers and other cleaning systems. They are mainly used in large and medium-sized urban sanitation departments for cleaning operations. It greatly reduces the work intensity of sanitation workers, improves work efficiency, and reduces secondary pollution such as dust. Road sweepers are widely used in highways, city streets, airport runways, highways, public places and other areas. It can not only clean up garbage, but also dust and purify the air medium on the road, which not only ensures the beauty of the road, maintains the hygiene of the environment, maintains the good working condition of the road surface, and reduces and prevents the occurrence of traffic accidents and further Extends the service life of the road surface.

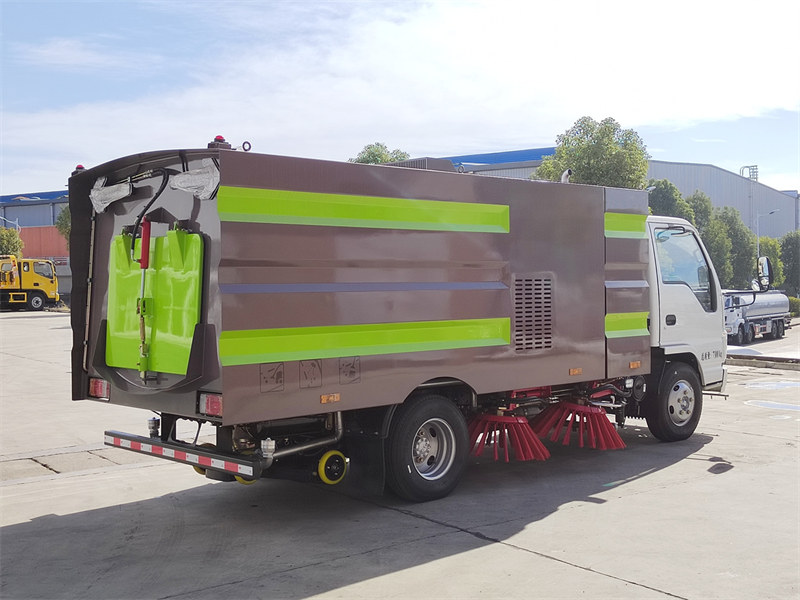

The ISUZU NKR street vacuum sweeper uses a cleaning brush plate and a central suction disk to suck the garbage on the road into the dustbin through the suction pipe. After entering the dustbin, the volume of the space instantly expands, causing the air flow to slow down, causing the garbage to interact with the airflow. Separated, the waste settles into the bin. The air flow is filtered through a stainless steel filter to filter out large but light garbage such as leaves and paper scraps. The filtered airflow enters the dust bin at the front of the body. The dust bin is equipped with a large-area dust removal filter cartridge. The airflow filtered by the dust removal filter cartridge enters the suction fan for completion.
Product specifications
Vehicle
Description
Overall
dimension
5900*2200*2440mm
GVW
7300kg
Curb weight
5260kg
Chassis brand
ISUZU
Traction type
4*2, left hand
drive
Chassis
Description
Chassis model
QL1070A
Cab
Single cabin,
two seats with AC
Wheelbase
3360mm
Tire
specification
7.00R16
Tire quantity
6+1 units
Engine
Engine model
4KH1CN5LS
Number of
cylinders
4
Emission standard
Euro 5
Displacement
2999ml
Horse power
98hp
Gear box
Type
ISUZU, MSB, manual
Number of gears
5 forward gears& 1
reverse
Brake system
Oil brake and vacuum booster
pump
Axle
Front
2.5T
Rear
4.8T
Suspension
Front
Leaf spring
Rear
Leaf spring
Fuel tanker
Type
Steel fuel tank, with
lockable cap
Capacity
100L
Superstructure description
Tanker capacity
Water tanker
3cbm
Garbage tanker
2cbm
Standard configuration
Equipped with
auxiliary engine, sub-frame and fan.
Optional configuration
Snow shovel, cannon, front
spray nozzles, rear sprinkler
Equipped with water tanker, garbage tanker.
Equipped with 4 sweeping brushes on each side and suction nozzle on the rear.
Equipped with dust suppression system.
Equipped with hydraulic system.
Equipped with electrical system.
Main features of road sweeper truck
1. The road sweeper drives the fan and
other working devices through the auxiliary engine, and adopts the working
principle of suction as the main, suction and sweep combination, and wet dust
removal to clean the road surface, electro-hydraulic control, and hydraulic
tipping and unloading;
2. The transmission between the auxiliary
engine of the road sweeper and the fan is equipped with an original automatic
clutch device. This device can ensure the automatic separation of the auxiliary
engine from the fan when starting without load and stopping the auxiliary
engine, simplifying the operation, reducing the impact on the auxiliary engine,
and improving the working reliability and service life of the auxiliary engine.
At the same time, the auxiliary engine has no work in addition to the speed
display, there is also an automatic record display of the accumulated operating
time, which is convenient for use and maintenance;

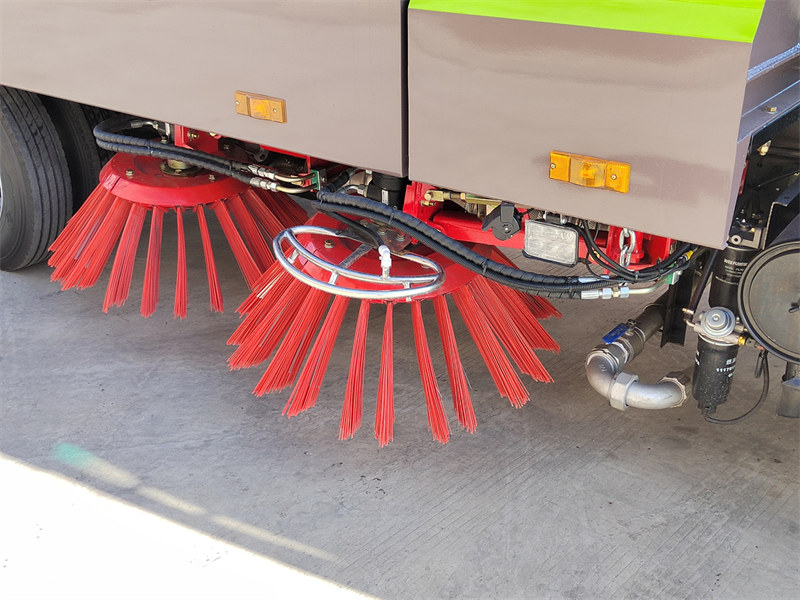

3. The sweeping device of the road sweeper
has automatic avoidance protection function and automatic reset function when
encountering obstacles. The brush plate of the road sweeper automatically
retracts when it encounters an obstacle, and automatically resets after
crossing the obstacle. This function effectively solves the problem of the
cleaning device being easily damaged;
4. The brush disk speed of the road sweeper
can be selected from three gears: high, medium and low according to various
cleaning conditions, ensuring good cleaning results under various pollution
conditions and reducing operating costs accordingly.
The
injection-molded sheet-type sweep brush is easy and quick to replace, and a
steel-sheet hybrid sweep brush is available as an option;

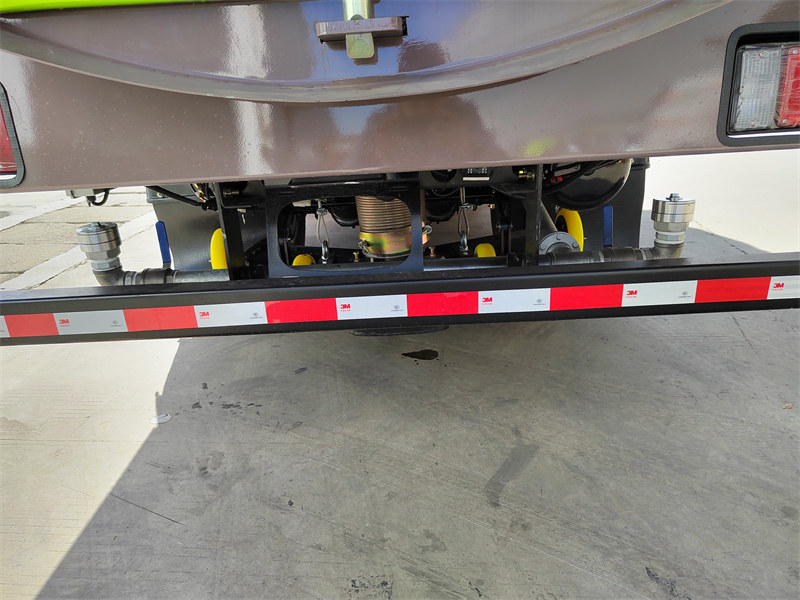

5. The road sweeper adopts the structural
arrangement of "four brushes in the middle and suction nozzle in the
rear", which has a large cleaning width, high cleaning efficiency, and is
convenient for adjustment and maintenance of the cleaning device and suction
nozzle; due to the front suspension of this structure It is short and the
suction nozzle has a large ground clearance, so the vehicle has good
passability during transportation;

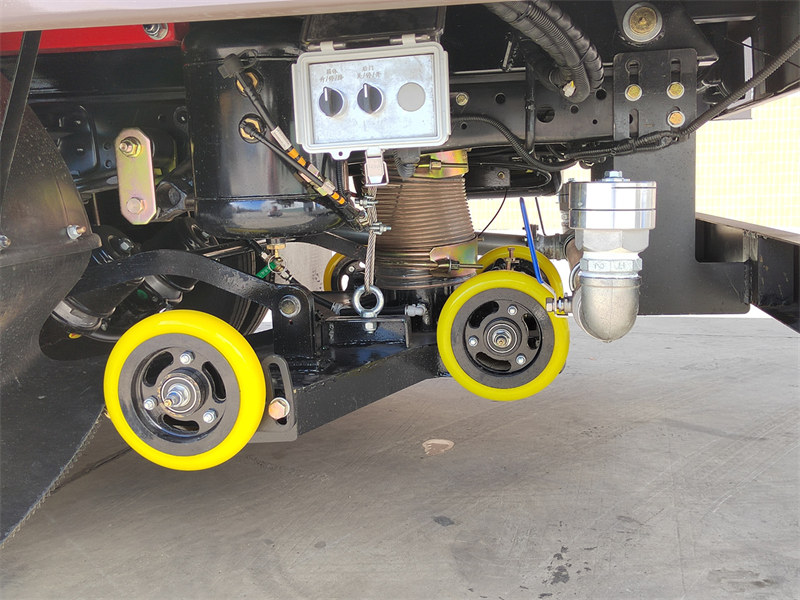

6. The pneumatic conveying system of the
road sweeper adopts a high-efficiency special fan that absorbs advanced foreign
road sweeper technology and a fully floating suction nozzle that can
automatically level with the road surface. It has strong suction power and even
suction nozzle clearance from the ground. It can effectively remove common road
garbage, mud and sand, small stones and light objects can be sucked clean;
7. The air outlet of the road sweeper fan
adopts the downward exhaust method, which has good dust suppression effect and
low secondary pollution;
8. The road sweeper can use imported
high-quality electric water pumps;
9. The road sweeper uses all stainless
steel garbage bins and water tanks, which are corrosion-resistant;
10. The road sweeper chassis has a large
load capacity, a large capacity of garbage bins and water tanks, and a long
continuous operation time.
11. The left and right brush disks of the
road sweeper can work independently or in conjunction, ensuring that the right or
the left disk can be selectively used to work independently during use, which
not only reduces the road width, but also improves the safety of working
vehicles and passing vehicles. It is safer, reduces brush wear, and helps
reduce operating costs;
12. The road sweeper is equipped with a manual
pump emergency system, which ensures that the working device and the garbage
bin can be retracted and retracted even when the auxiliary engine is stopped
for easy maintenance; the hydraulic system uses manual and superimposed
electromagnetic hydraulic valve groups, which are highly integrated and neatly
arranged, reliable operation and easy maintenance;
