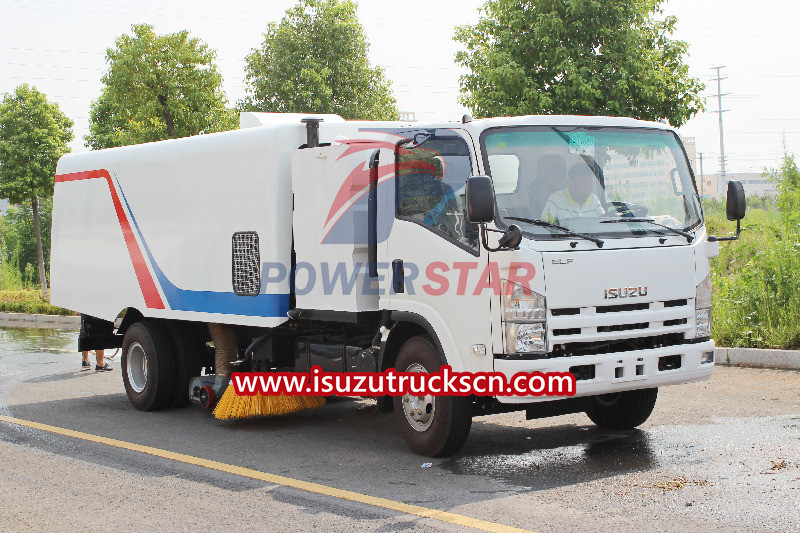

ISUZU 6 to 8cbm Road Sweeping Truck for Street Cleaning. original Japanese ISUZU NPR 4x2 LHD truck Chassis, super stronger sub
frame, stainless steel 304 material body, including 7000liters dust tank and 2000liters clean water tank, Standard 4 sweeping plate with each side 2 sets, maintenance free 5T fan, this is centrifugal fan with large size suction pipe parts DN120, ISUZU technology 77HP auxiliary engine, electromagnetic control box in truck cabin with one-key working, Germany brand solenoid valve, all position equipped with sensor device for safety working. suction
cup, Italy brand sweeping motors which service for longer life, sprinkler system, hydraulic system and electrical system.
ISUZU NQR / NPR / ELF 9M3 Road cleaning Truck City Street Vacuum Road Sweeper Truck
Work capacity:
7000+2000 LitersTruck model:
PT5100TSLN9Engine power:
190 hpEngine type:
4HK1-TCAxle drive:
4x2Gear box:
MLD 6-shift manualRemarks:
Stainless steep 304 material tankers with 7cbm dustbin and 2cbm water tank
Isuzu 700p Cleaner Truck Sweeper Truck Road Regenerative Air Street Sweeper Truck. which is a new generation of medium-sized and environmental protective
vehicle, combined with suction type and road sweeping.It's mainly
applied to city streets, municipal square, large-scale mechanized
factory and so on, with high efficiency, advanced technical performance,
good appearance. Isuzu airport runway road sweeper trucks with advanced details as below:
1. Free maintenance fan, super powerful, reduces maintenance costs and long service life.
2. Water tank and garbage tank made in stainless steel. Better anti-corrosion performance and easy maintenance.
3. Wear-resisting sweeper brushes, oil-less rotating mechanism.
4. Italian hydraulic motor, Schneider switch control, Taiwanese multifold solenoid valve.
5. World famous brand auxiliary engine, optional as Japanese ISUZU brand 77HP, American CUMMINS brand 140HP or 170HP.
Airport Runway Sweeping Trucks:
The runway is one of the most critical locations to maintain for safe air travel. A key method to preventing airplane accidents is a runway sweeper that can tackle foreign object debris (FOD). FOD refers to any out-of-place debris, substances or objects that can harm a plane on the runway. Many airports hire entire crews to sweep and visually check for the smallest potential obstacles on the runway.
POWERSTAR TRUCKS INDUSTRY CO., LIMITED offers powerful mechanical brooms and regenerative air sweepers to tackle your runway cleanup. Trust the Isuzu airport runway road sweeper truck company that has sold these solutions to businesses like yours for over 20 years. Whether you operate a private taxi service or a large commercial airport, we have an airport FOD sweeper solution for you. Our team can help you find the perfect machine to handle your runway’s size with the speed and efficiency you need.

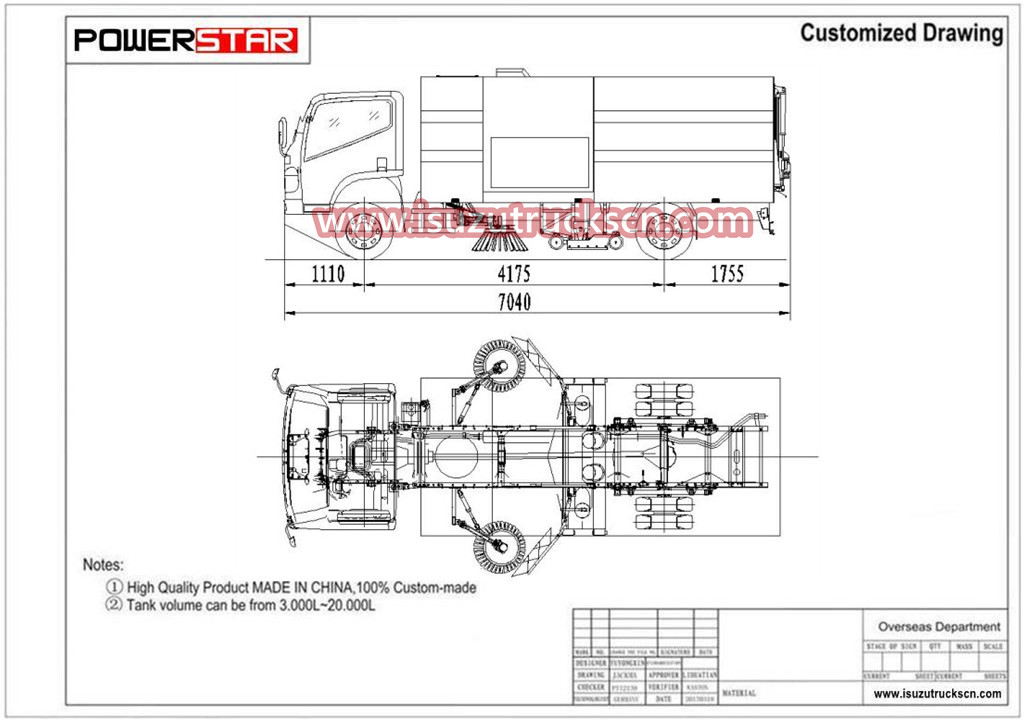

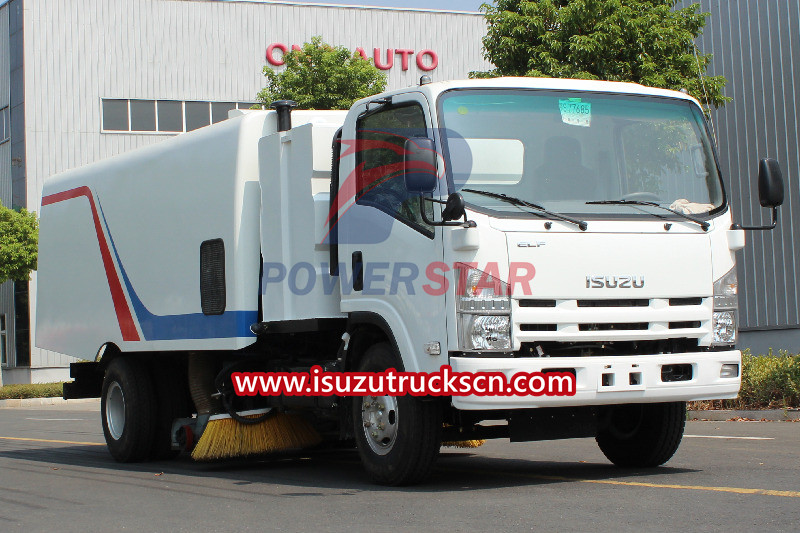

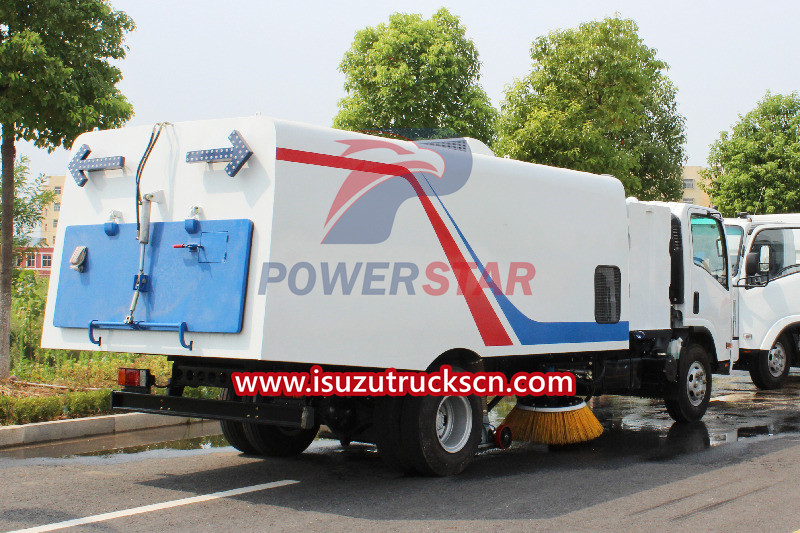

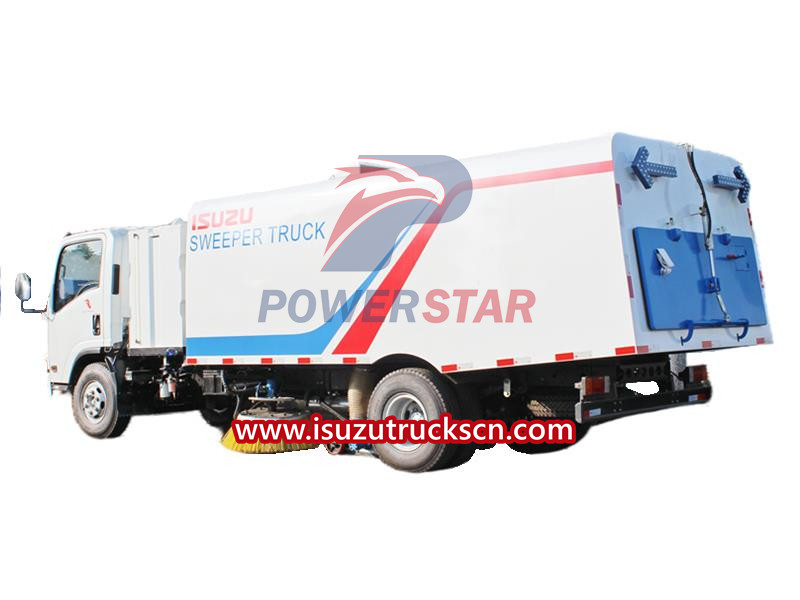

Technical Specification for ISUZU airport runway road sweeper truck
Item No.
Parameters
Overall Dimension
7600 x 2300 x 2700 mm
Curb Weight
9750 kg
Loading Weight
6055 Kg
Wheel Base
4175 mm
Front/rear Tread
1430 / 1960 mm
Approach/Departure Angle
20 / 12 degree
Cabin
ISUZU 700P, Left Hand Driving, with Air Conditioner,
Engine
ISUZU 4KH1-TCG40 Diesel Engine, 190HP, 5.193Liter, 4 Cylinder in Line, Turbo Charge,
Gear Box
ISUZU MLD Manual, 6 Forward Gear & 1 Reverse Gear,
Brake
Oil Brake with Vacuum Pump
Steering Gear
Hydraulic Power Steering
Tire
825-20, 6 Piece with 1 Spare
Fuel Tank
100 Liters
Sweeping System
Dust Bin
5 m3
Water Bin
4 m3
Material of Both Bin
Stainless Steel
Engine
Cummin B140, 140HP
Brush Quantity
4 Pieces
Brush Diameter
900mm
Work Width
3.0-3.5 meters
Working Speed
3-15 km/h

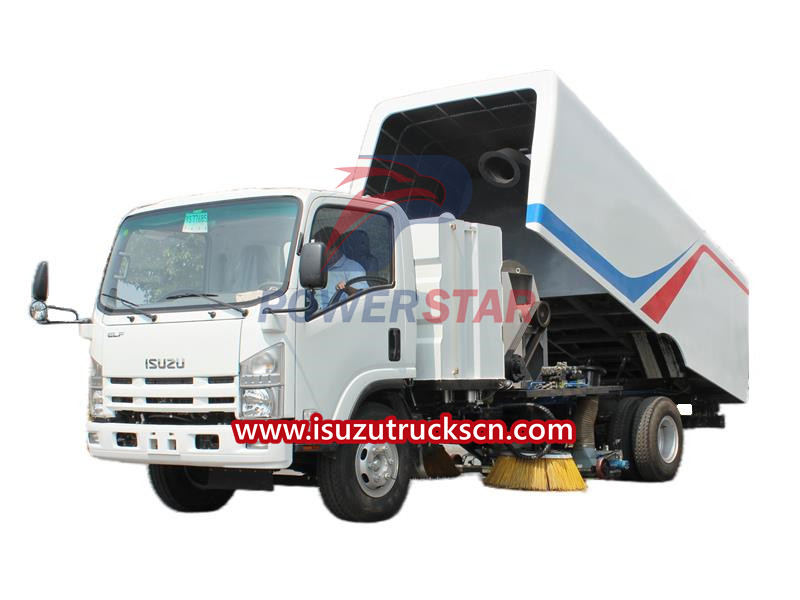

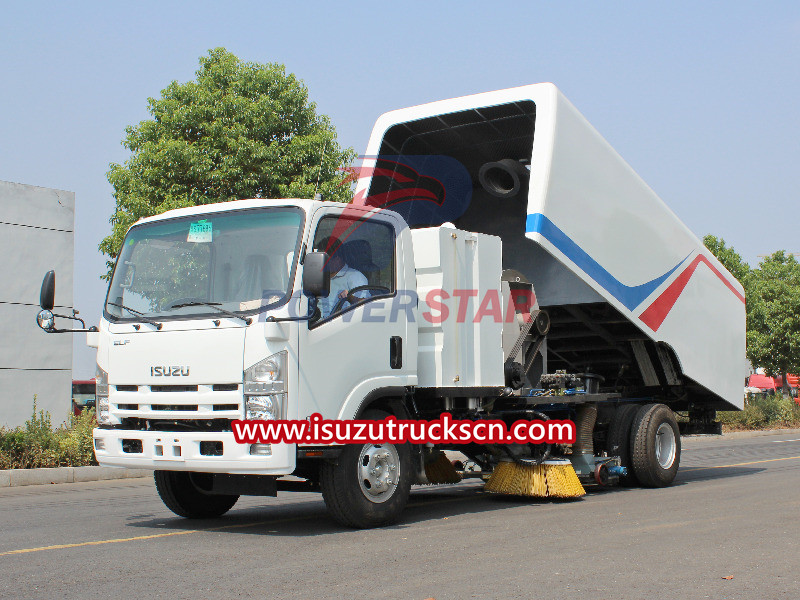

Dust Bin Tipping System
Hydraulic Tipping
Dust Bin Tipping Angle
More than 40 degree
Dust Cleaning Percentage
90-95%
Maximum Capacity
16,000 - 64,000 m2/h
Sucking Object Diameter
less than 50mm (coal)
Max Truck Speed
90 km/h
Function Specification:
1. All Controlling System are Inside the Cabin Easy for Handling.
2. All Stainless Steel Dust Bin & Water Bin.
3. Separated Engine Support Hydraulic Pump & Suction Machine.
4. Hydraulic Pump Control Left & Right Brush Can Work Separately or Simultaneously.
5. Left & Right Brush System are Patented by Chinese Government for Avoiding the Obstacle.
6. Major Hydraulic Parts are Imported Good Quality parts.
7. Water Spraying System to Control Dust on Road.
Benefits of owning an ISUZU Airport Runway Road Sweeper Truck:
FOD detection and removal is a necessary process for every airport. Industrial-strength machinery like a runway sweeper can automate the process with superior quality, faster speeds and lower costs. There are several more benefits to purchasing an airfield sweeper:
1. Quality assurance: Sweeping FOD can be a life-saving part of air travel preparation. When you own a sweeper truck, you can maintain the highest standard of excellence and select your best operators.
2. Capital Investment: Equipment ownership is an excellent investment for airports. You can sell, rent and modify your truck at will to make a profit or recover from a loss.
3. Cost Savings: FOD accidents can occur from debris as small as a piece of wire. Regularly sweeping with a powerful truck can minimize the financial and humanitarian risks of destruction of equipment and injury to employees.
From private airports and heliports to the busiest international airports, it is very important for the airport runways, ramps, aprons and taxiways to remain clean and clear of any debris that could potentially be classified as Foreign Object Debris (FOD).
According to National Aerospace FOD Prevention, FOD is a substance, debris or article alien to a vehicle or system that has potential to cause damage.1 This means that FOD could potentially be any material and any size, sometimes smaller than what can be seen by just glancing out over an open airfield. Because of the potential of Foreign Object Damage (FOD), most airports conduct routine FOD checks where airport personnel will drive back and forth over the runways and taxiways looking for FOD. Many airports have personnel dedicated to operating sweepers on the airfield to sweep all debris while they perform their routine checks for larger FOD.
What is the influence for ISUZU NPR Airport Runway Road Sweeper Truck?
ISUZU Airport Road Sweeper is a vehicle specially used for airport ground cleaning and FOD (Foreign Object Debris) cleaning. In the airport environment, ISUZU airport road sweepers play an important role and have a positive impact on FOD cleaning. It can efficiently clean the airport ground, reduce the impact of FOD on aircraft operations, and improve flight safety. The introduction and use of airport road sweepers can ensure that the airport ground is clean and tidy, and improve the efficiency and safety of airport operations. Designed to ensure airport runways and taxiways are clean and safe.
ISUZU airport road sweeper has the following features and functions:
1. Efficient sweeping capabilities: The airport road sweeper is equipped with a powerful broom and vacuum device, which can quickly remove garbage, debris and debris on the airport ground, including paint chips, sand and gravel, paper, etc. Its efficient cleaning capabilities ensure that the airport ground is clean and tidy, reducing the impact of FOD on aircraft taking off, landing and taxiing.
2. Safety performance: ISUZU airport runway sweeper truck pays attention to safety performance and has reliable performance and operating system in airport ground cleaning operations. It adopts advanced chassis technology and suspension system to provide stable driving and handling performance. In addition, airport road sweepers are equipped with safety equipment such as warning lights and reflectors to enhance the vehicle's visibility and reduce the risk of accidents.
3. Multifunctional operation: The airport road sweeper can adjust the height and angle of the broom according to the cleaning needs to adapt to different ground materials and sites. It also has the function of adjusting the vacuum strength and cleaning speed to better adapt to different cleaning tasks.
4. Impact of FOD cleaning: The main goal of airport road sweepers in airport ground cleaning is to prevent and remove FOD. FOD refers to foreign object debris on airport runways and taxiways, such as screws, blades, paint chips, etc. These objects can cause damage to aircraft engines, blown tires, and other serious accidents. Airport sweepers can efficiently clean and collect these FODs, ensuring that the airport ground is clean and safe and reducing flight safety hazards.
