Work capacity:
4CBMTruck model:
PT5110TCXEngine power:
190 HPEngine type:
4HK1-TCG61Axle drive:
4×2Gear box:
MLD 6-speed, manualRemarks:

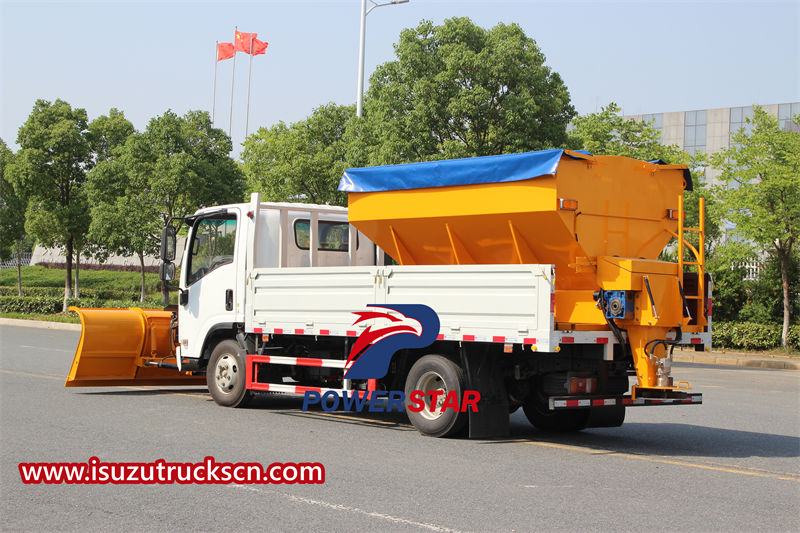

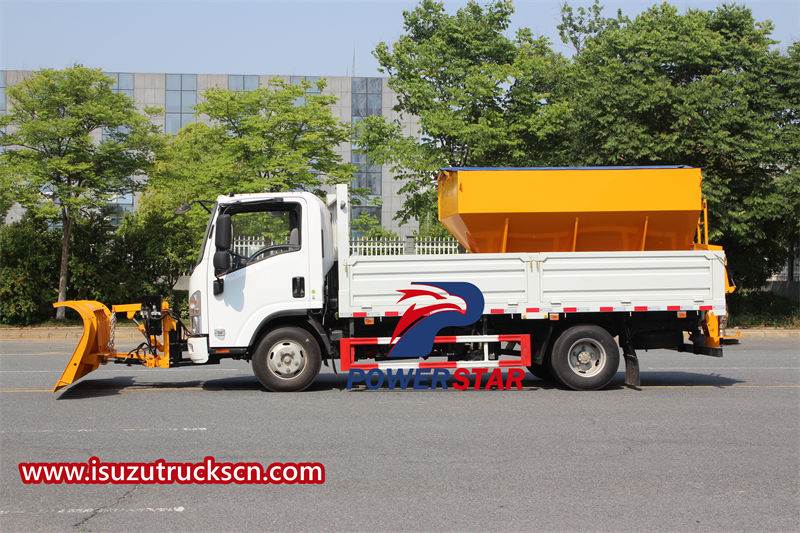

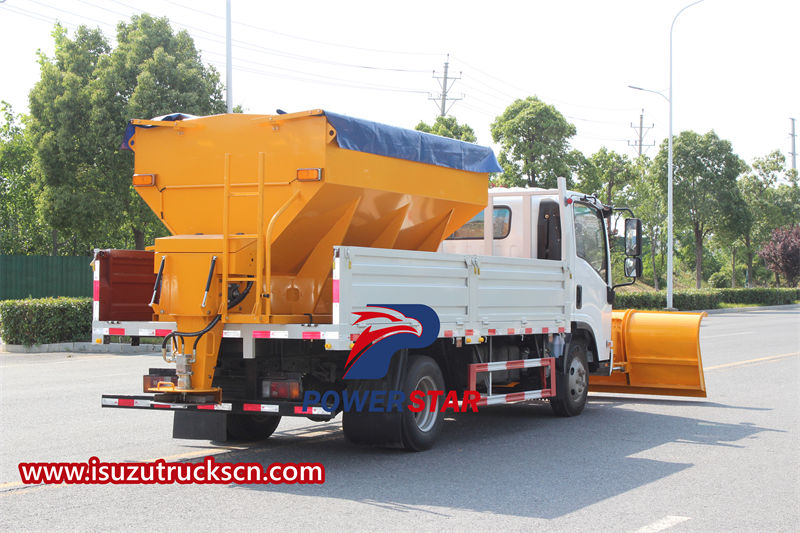

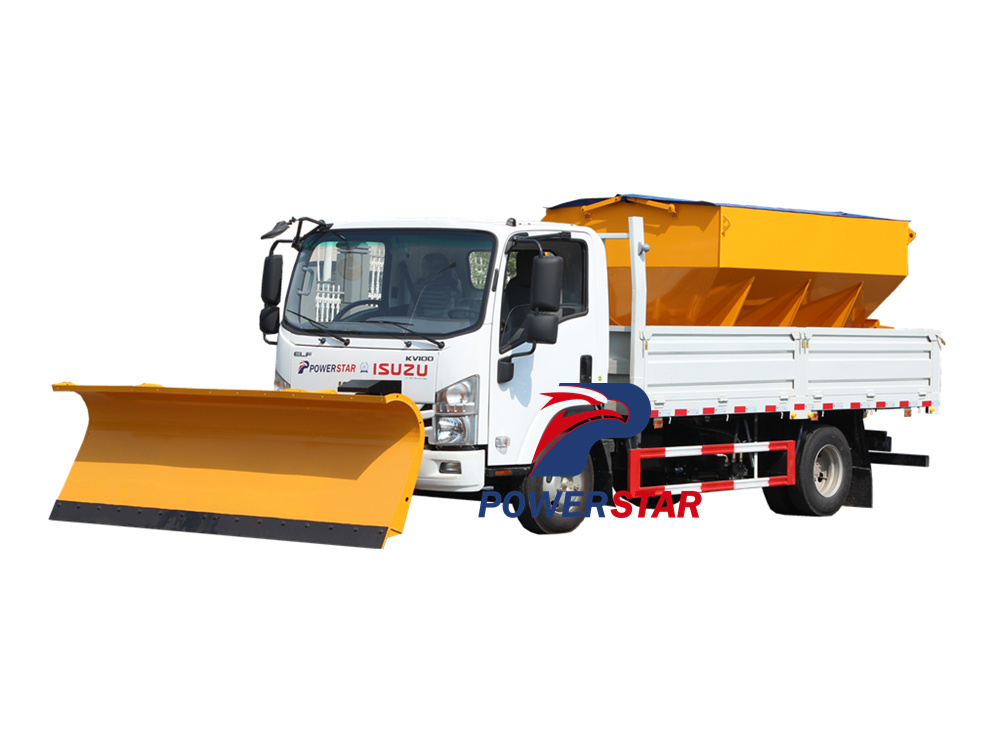

Equipped with salt spreader and snow shovelISUZU snow melt spreader truck, also called ISUZU salt spreader truck, ISUZU snow removal truck, is a vehicle professionally used for winter snow removal operations. It combines the functions of snow melting agent spreading and snow plowing to improve the efficiency of road snow removal and ensure smooth traffic.

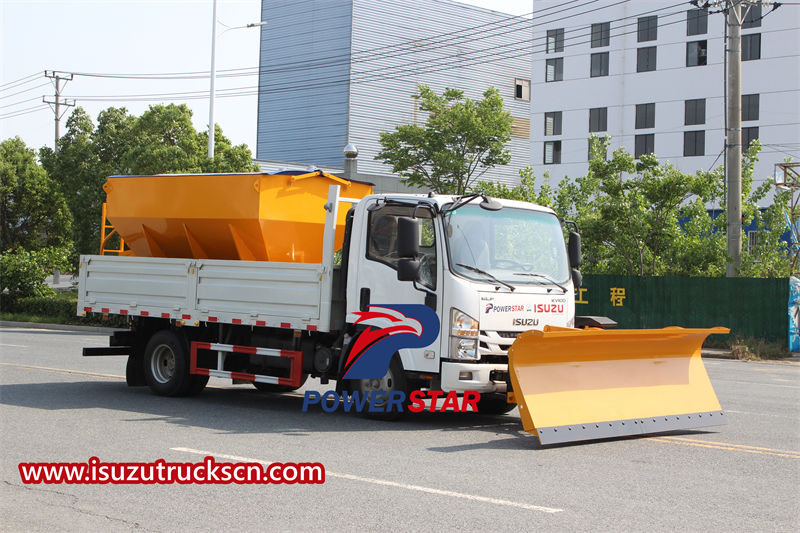

As a professional snow removal equipment, this ISUZU snow removal truck is equipped with a 3-meter-wide snow shovel, which can quickly and effectively clear snow on the road. The snow shovel has a hydraulic adjustment function, which allows the driver to adjust the snow discharge direction according to actual needs to ensure efficient snow removal operations.

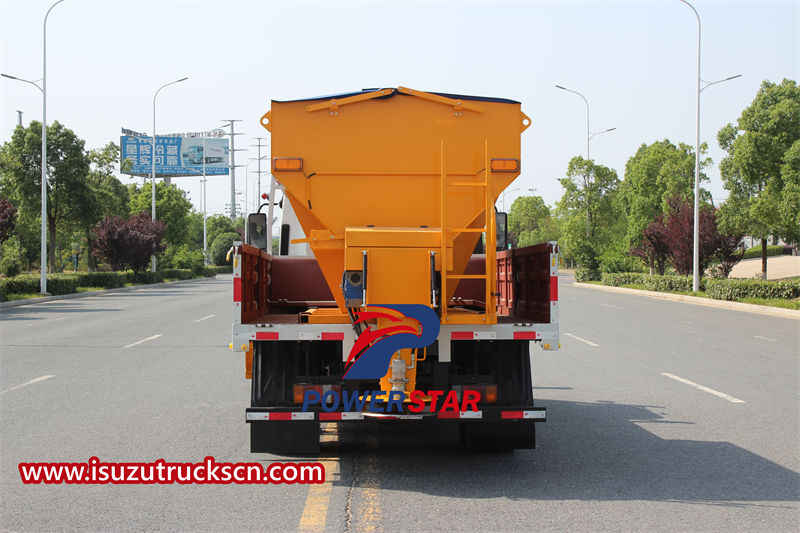

In addition to the snow shovel, the ISUZU salt spreader truck is also equipped with a snow melting agent spreader. During the snow removal process, the spreader can evenly spread the snow melting agent on the road, accelerate the melting of snow, and improve the traffic capacity of the road. The spreading width can be adjusted according to actual needs to meet the snow removal needs of different roads.
Product Specifications
|
Truck Parameter |
||
|
Model |
PT5110TCX |
|
|
Overall dimension |
10700×3000×2600 mm |
|
|
Chassis model |
QL1110AN |
|
|
GVW (kg) |
4175 |
|
|
Curb weight (kg) |
5800 |
|
|
Wheel base (MM) |
4175 |
|
|
Overhang (front/rear) |
1015/980 |
|
|
Engine |
Engine model |
ISUZU 4HK1-TCG61 |
|
Engine power |
190HP |
|
|
Type |
4 cylinders, inter cooled, turbocharged |
|
|
Displacement |
5193 ml |
|
|
Emission standard |
Euro 6 |
|
|
Axle |
Front |
4 Ton |
|
Rear |
7 T |
|
|
Tyer |
235/75R17.5 |
|
|
Max speed (km/h) |
90 |
|
|
Transmission |
ISUZU MLD, 6-speed, manual |
|
|
Cabin |
Single row, 3 seats, with A/C |
|
|
Snow removal equipment specifications |
||
|
Snow Shovel |
size |
3000x1200x1000mm |
|
working width |
2800-3000mm |
|
|
Shovel weight |
680kg |
|
|
left and right rotation angle |
≥±30° |
|
|
Lift cylinder stroke |
200mm |
|
|
Maximum gap from ground |
300-500mm |
|
|
Barrier height |
140mm |
|
|
Snow removal thickness |
≤200 mm |
|
|
Shovel edge(thickness*Width) |
14x130 |
|
|
Edge material |
High wear resistant steel |
|
|
Scrabble |
High strength, high toughness, high quality carbon steel |
|
|
Snow melting agent dispenser |
Medium |
Saltwater, salt, sand. |
|
Structure |
V type bunker |
|
|
Overall dimension |
5500*2050*1500 |
|
|
auxiliary power |
Hyundai petrol engine |
|
|
Transmission mode |
Screw conveying or Belt transmission |
|
|
Tank Size |
8m3 |
|
|
Spaying width |
0-20M |
|
|
Spraying capacity |
20-150g/m2 |
|
|
Hydraulic pressure |
≥18(Mpa) |
|
|
Hydraulic flow |
80(L/min) |
|
|
Motor displacement |
30ml/r |
|
|
Discharge Dia |
480mm |
|
|
Working speed |
15-40km/h |
|
|
Control Unit |
12V--24V Liquid control valve adjustable |
|
|
Weight |
1870kg |
|
Features
• Snowmelt agent spreading: The vehicle is equipped with a snowmelt agent spreader, which can uniformly spread snowmelt agents (such as coarse salt, fine salt, deicing agents, etc.) on the road to accelerate the melting of snow. The spreading width and amount can be adjusted according to actual needs to meet the snow removal requirements of different roads.

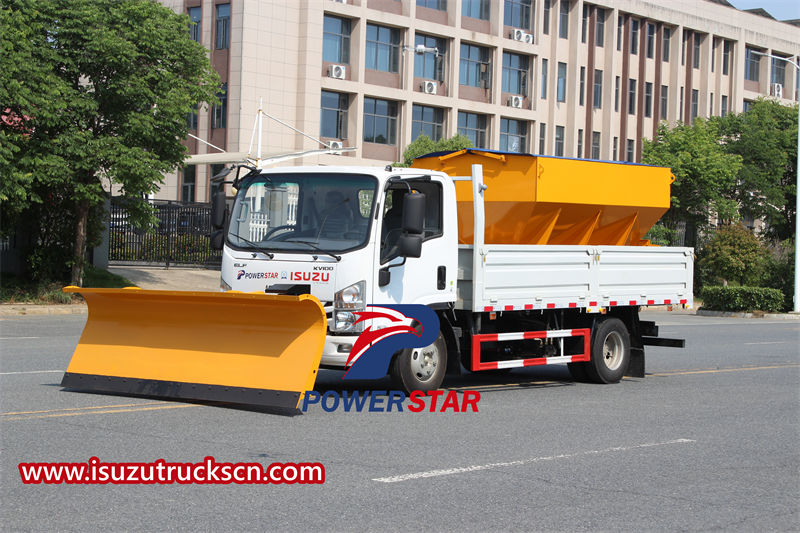

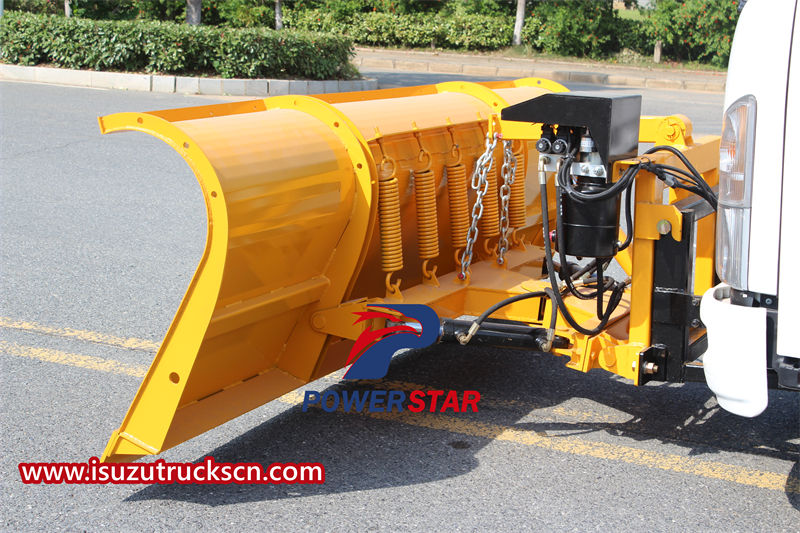

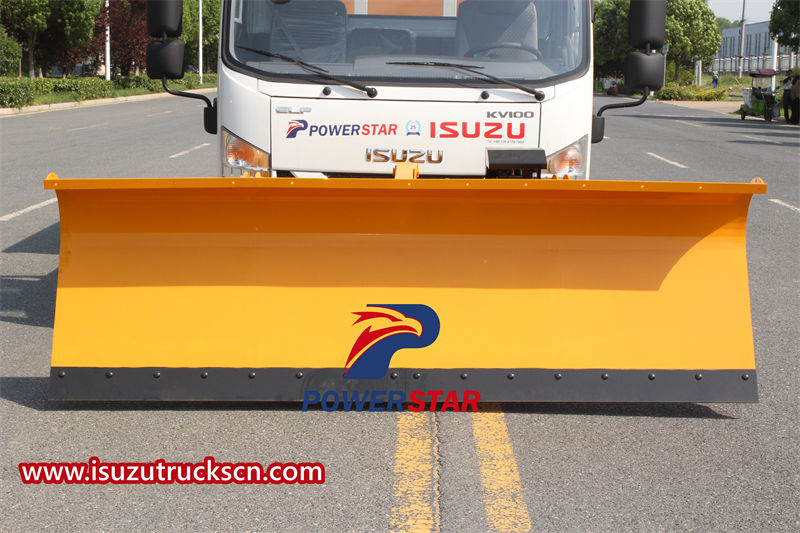

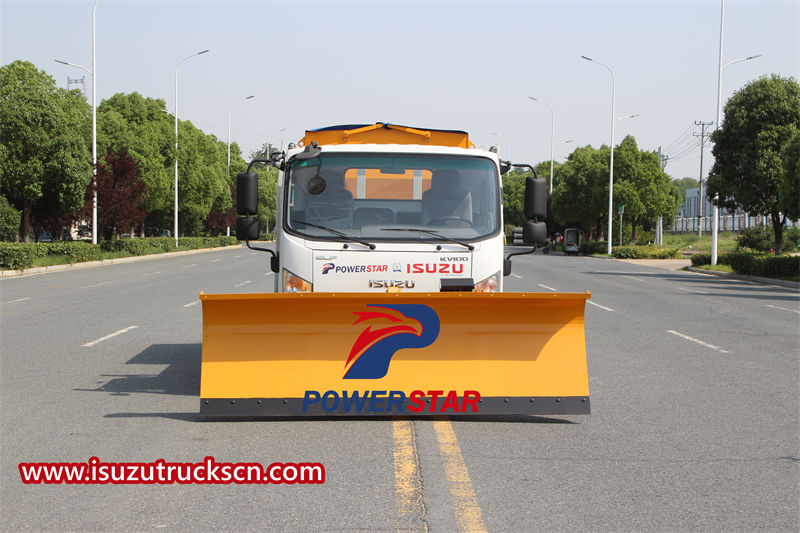

• Snowplow function: The front of the vehicle is equipped with a yellow shovel and a snowplow with red borders, with a width of up to 3 meters, which can quickly and effectively remove snow on the road. The snowplow is equipped with flexible blocking devices on both sides, allowing the driver to adjust the snow discharge direction according to actual needs.

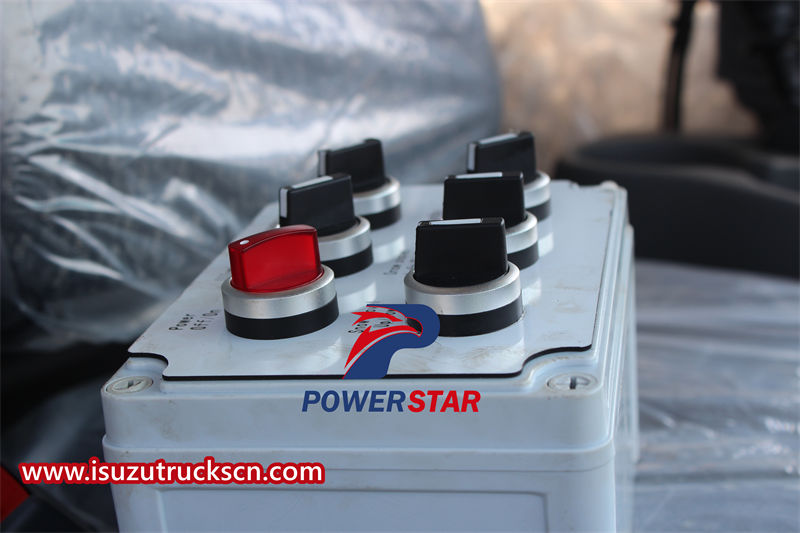

• Cab control: The spreading rate, width, and throttle-controlled spreading amount can be operated through the control box in the cab. The driver can easily adjust the equipment parameters in the cab, improving the efficiency of snow removal operations.

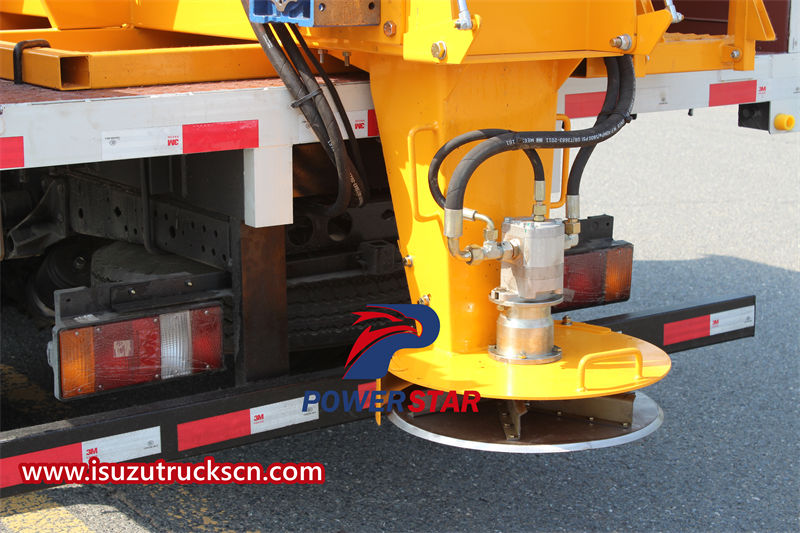

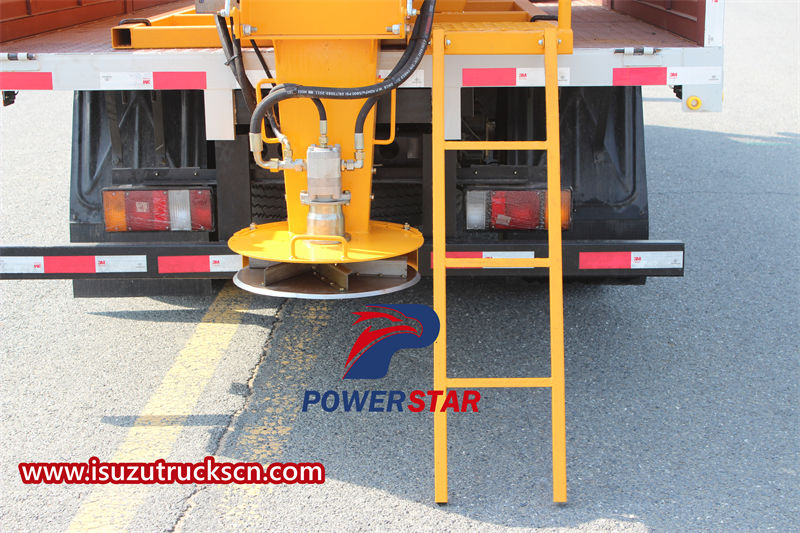

• Anticorrosive treatment: The entire machine adopts carbon steel plate and stainless steel structure, with the hopper inside and outside using carbon steel plate structure, and the throwing disc adopting high-quality 304 stainless steel. The entire machine undergoes three-level anticorrosive treatment, including phosphate coating at the bottom, middle coating, and acid-alkali resistant topcoat painting, ensuring the service life of the equipment in harsh environments.

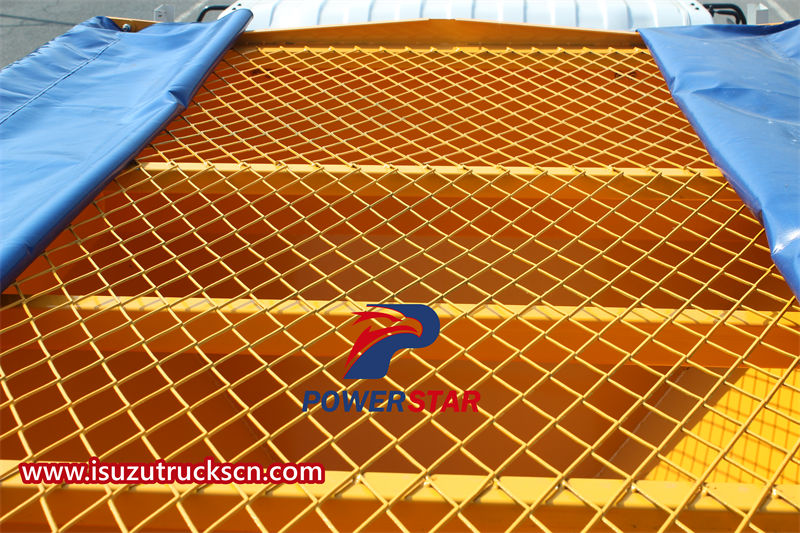

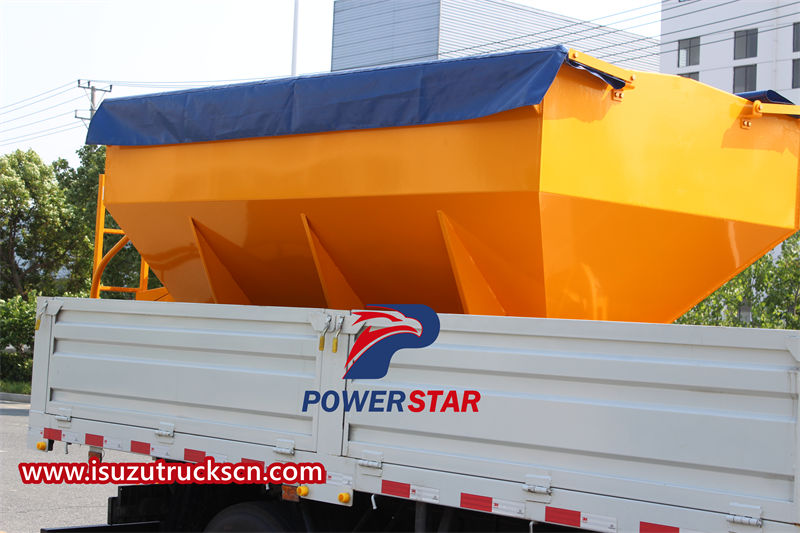

• Hopper design: The top of the hopper is equipped with a weather-resistant and anti-aging rain cover, ensuring that rain and snow will not enter the material bin during operation in rainy or snowy weather, causing the snowmelt agent to become damp and agglomerate.
 |
 |
 |
 |
