The new Isuzu 100P road sweeper adopts advanced chassis technology and power system, ensuring the stability and reliability of the vehicle in various road conditions. The vehicle has a compact overall structure and flexible operation, making it very suitable for cleaning operations in various places such as urban roads, highways, squares, airports, etc.
Work capacity:
1.5cbm water tank,4 cbm dustbinTruck model:
PT5070GZWEngine power:
130HPEngine type:
4KB1-TCG60Axle drive:
4X2,LHDGear box:
ISUZU MSB 5 forward and 1 reverse speeds,manualRemarks:
Isuzu new 100P chassis,large capacity cabinetIsuzu brush type street sweeping truck also called Isuzu 100P road sweeper truck,Isuzu ELF 5.5 cbm street sweeper truck,Isuzu 100P broom sweeper truck,Isuzu NPR 100P vacuum sweeper with brush.The Isuzu brush type street sweeping truck is a professional cleaning equipment that combines efficiency, durability, and environmental friendliness. It is designed specifically for urban road cleaning and has won widespread praise in the market for its excellent performance and user-friendly design.
The Isuzu 100P road sweeper truck stands as a beacon of efficiency and innovation in the realm of urban cleanliness. This road sweeper truck integrates cutting-edge technology with robust design elements to ensure cities remain pristine, streets free of debris. At its core lies a powerful engine that effortlessly propels the vehicle forward, addressing sweeping needs with unparalleled precision and speed.
Features:
★.Control box in cabin, centralized control of allelectric system, convenient to operate.language can be customized as English, French, Russia. Arabic, etc
★. Four sweeping plate with matched totally 88pcs sweeper brushes and suction nozzle working together for an excellent sweeping performance.
★. Both sides of sweeping brushes can work at the same time or only one side work dependently. In cabin electric control
★. Stainless truck body system, including 1500liters water tank and 4000liters dust tank
★. Originally imported hydraulic system key parts. Motor and Hydraulic valves.
★. Road sweeper mounted on original Japanese ISUZU truck chassis NKR, NPR, NOR, FTR. FRR. FVR. GIGA
Specifications
|
Isuzu Brush type Street sweeping Tuck |
||
|
Main Specification |
||
|
Vehicle Brand |
Powerstar |
|
|
Chassis Brand |
ISUZU NEW ELF 100P |
|
|
Overall dimensions (L x W x H) |
6200x2030x2610 mm |
|
|
Drive Type |
4x2 Left hand drive |
|
|
Wheelbase |
3360mm |
|
|
Cabin |
Isuzu N-series cab, with A/C and 2 seats, Forward control, all steel welded construction. Manual tilt,Mechanical suspension |
|
|
Weight |
GVW |
7300kg |
|
Kerb weight |
5040kg |
|
|
Engine |
Model |
Isuzu 4KB1-TCG60 |
|
Type |
Inline 4-cylinder diesel engine |
|
|
Power |
130HP/96Kw |
|
|
Displacement |
2499ml |
|
|
Emission standard |
Euro 6 |
|
|
Transmission |
Manual |
ISUZU MSB 5 forward and 1 reverse speeds |
|
Tyre |
7.00R16 |
6+1 spare tyre |
|
Upper Structure Parameter |
||
|
Volume of water tank |
1500L |
|
|
Volume of Dustbin |
4000L |
|
|
Material |
water tank |
Carbon steel |
|
garbage tank |
Inner stainless steel, outer carbon steel |
|
|
Hydraulic valve |
Taiwan famous brand |
|
|
Hydraulic motor |
Domestic famous brand |
|
|
Switch |
Schneider control switch |
|
|
Auxiliary Motor |
Brand |
ISUZU 493 |
|
Horsepower |
77HP |
|
|
Sweeping Technical |
Max sweeping width (mm) |
3.5m |
|
Max. sweeping capacity |
70000m3/h |
|
|
Sweeping speed |
3-20km/h |
|
|
Cleaning efficiency |
≥95% |
|
|
Max. particle inhalation |
110mm |
|
|
Disc plate brush extension size |
>400mm |
|
|
Garbage tank door max.discharge angle |
>50° |
|
|
Sweeping system |
Type |
Total 4 pcs mechanical brushes and 1 sucking discmounted in the rear, it is driven by the hyraulic motoispeed is adjustable, can be independently controlled,has automatic avoidance function |
|
Sweeping brush diameter |
ф 850mm |
|
|
Sweeping disk speed |
1 10r/min high-speed,80r/min medium speed50r/min low-speed |
|
|
Sweeping disk dip angle adjust |
forward 4 ° ~ 6 ° extroversion 4 °~ 7 ° |
|
|
Sucking disc |
Type |
Double suction hole, hydraulic control, spring suspension |
|
Suction hole diameter |
180mm |
|
|
Suction performance |
Delivers air blast and suction |
|
|
Hydraulic system |
Type |
Open type, electrical |
|
Main components |
Gear pump, hydraulic motor, hydraulic cylinder, solenoid valve |
|
|
Pressure |
16Mpa |
|
|
Hydraulic oil volume |
60L |
|
|
Oil temperature |
60°C |
|
|

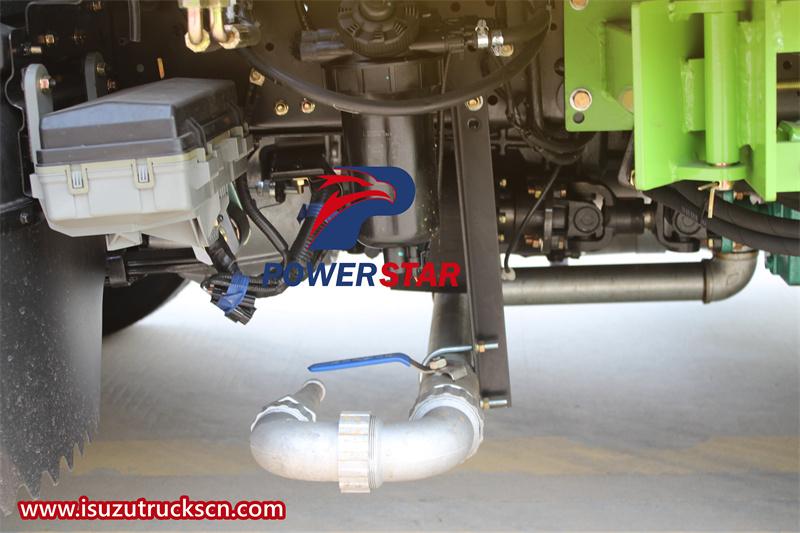

Water spraying system |
Components |
Pump, nozzle, water filter, etc. |
|
Low pressure water system |
Model |
Hangzhou Weilong 60/90 |
|
Flow rate |
60m3/h |
|
|
Water delivery distance |
90m |
|
|
Washing width |
24m |
|
|
Washing road |
Type |
Front washing bar |
|
Electrical system |
Type |
DC24V, PLC control |
|
Volts |
24V |
|
|
Battery |
2x12V |
|
|
Tools |
2 pcs fire hose,1 pcs fire wrench,1pcs water filter wrench,1 set chassis tools,1 pcs manual hydraulic pump rocker |
|
|
Spare parts |
88 pcs sweep brush,1 pcs fan seal,1 pcs rear door seal,2 pcs suction tube seal |
|
Applications
Isuzu's new 100P road sweeper is a professional road cleaning equipment that integrates efficient cleaning, stable performance, environmental protection and energy saving, and intelligent operation. The vehicle is equipped with a powerful cleaning system and a maintenance-free centrifugal fan to ensure large-area, high-efficiency cleaning operations; it adopts advanced power systems and stable control technology to provide long-lasting and reliable power support and a comfortable driving experience; at the same time, it focuses on environmentally friendly design, reduces emissions and promotes classified resource utilization. The intelligent operation interface and remote monitoring system make operation easier and maintenance more convenient. It is suitable for a variety of scenarios such as urban roads, highways, public places and industrial parks, and is an ideal choice for urban cleaning operations.

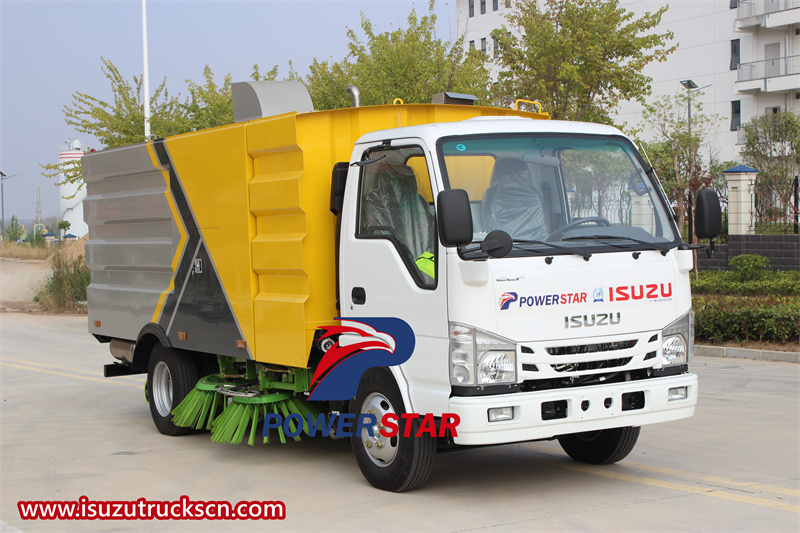

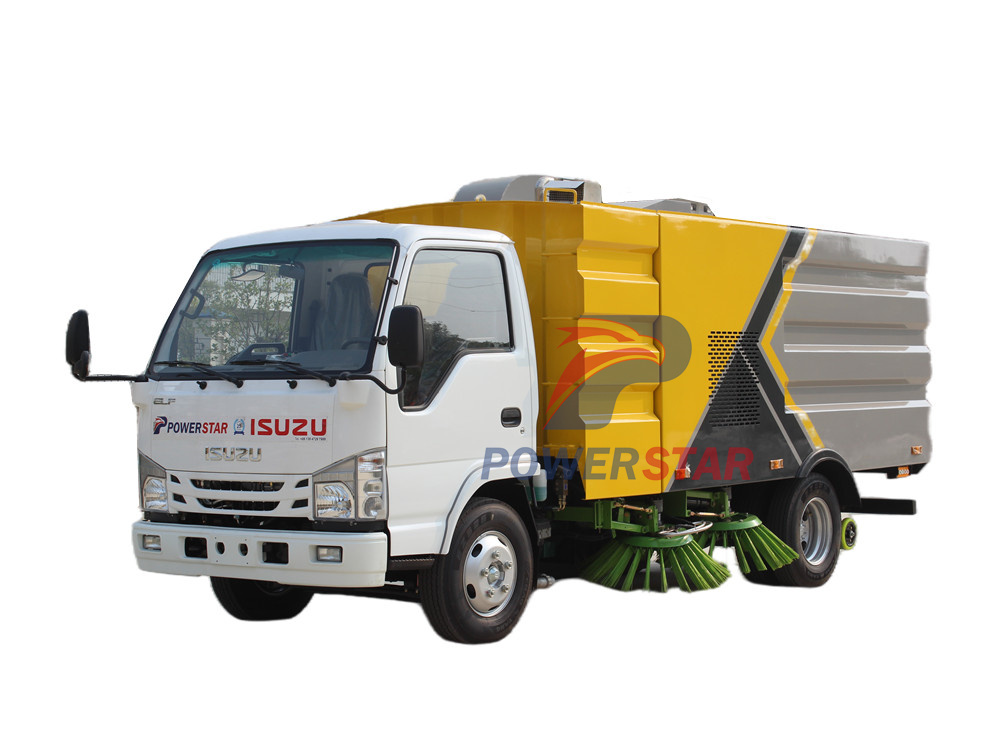

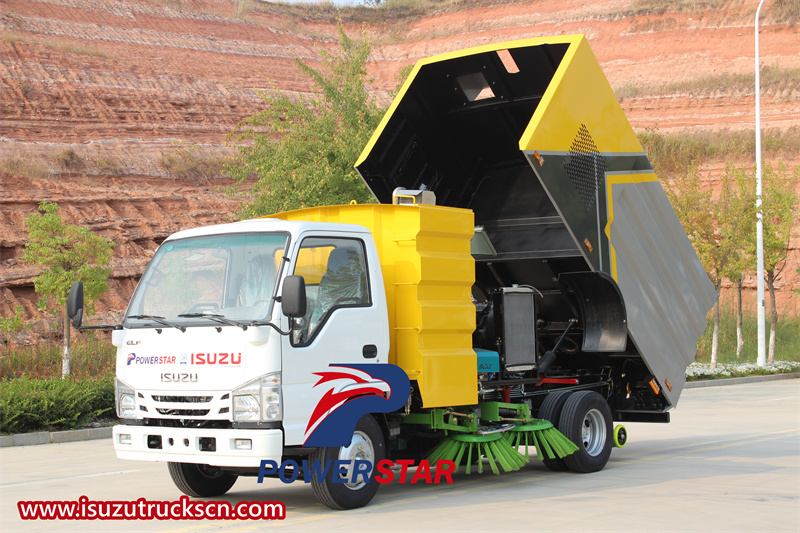

Isuzu 100P road sweeper truck
★ Power system
Isuzu Brush type Street sweeping Tuck is modified on the basis of Isuzu's new 100P chassis. The chassis is equipped with an advanced Isuzu 4KB1-TCG60 130HP diesel engine, which is more powerful, fuel-efficient and low-emission compared to the previous 120HP engine. The engine has been carefully tuned and optimized to ensure the stability and reliability of the vehicle under various working conditions. At the same time, the vehicle is also equipped with an intelligent transmission system and an advanced suspension system to further improve the stability and comfort of driving.

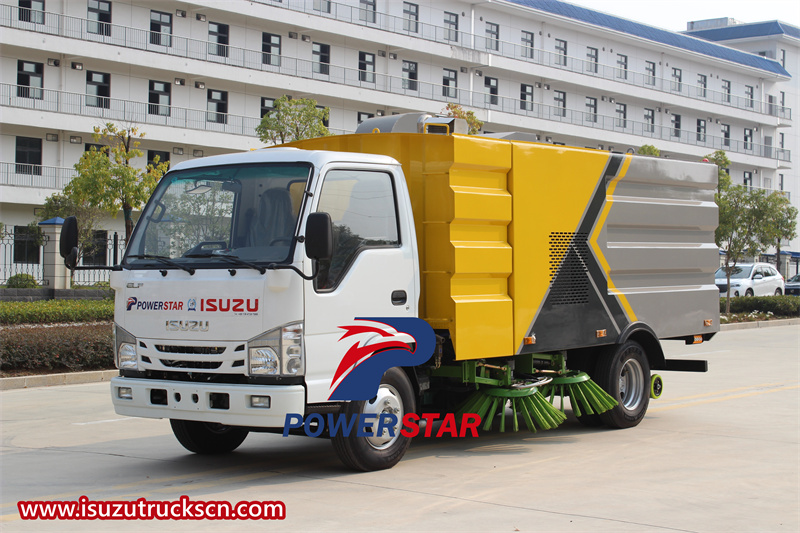

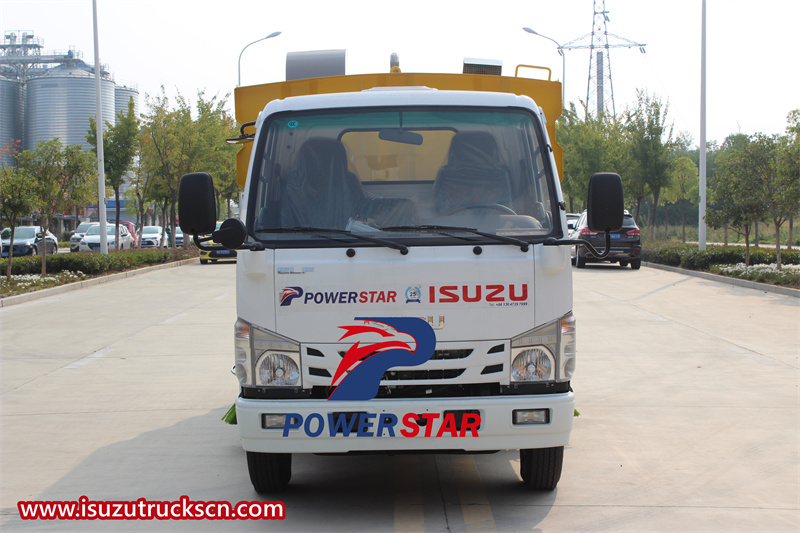

Isuzu Brush type Street sweeping Truck

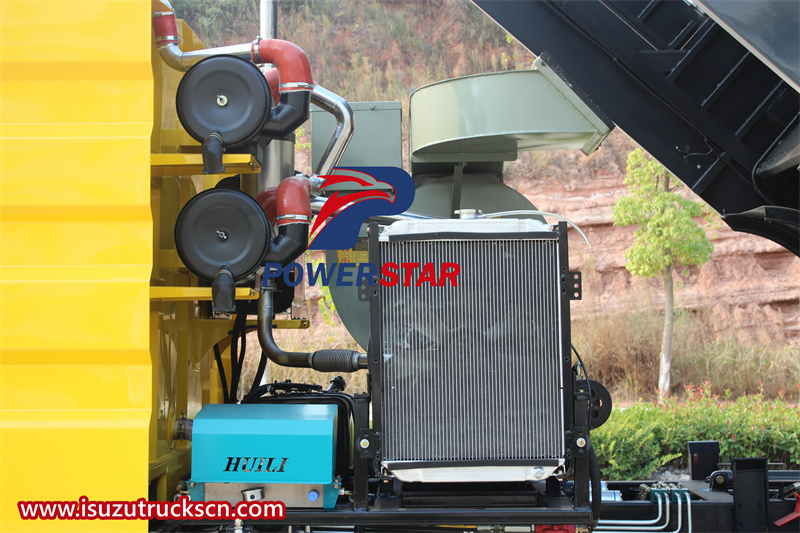

★ Isuzu 77HP auxiliary engine
Isuzu 77HP auxiliary engine is an important power component on the Isuzu road sweeper, designed for auxiliary sweeping operations. The Isuzu 77HP auxiliary engine uses advanced fuel injection technology and an optimized combustion chamber design to improve fuel economy and reduce emissions. At the same time, the engine is also equipped with an intelligent control system that can automatically adjust the power output according to the needs of the sweeping operation to achieve the best balance between energy consumption and efficiency.
In terms of maintenance, the Isuzu 77HP auxiliary engine adopts a modular design that is easy to disassemble and inspect, making repair and maintenance work more convenient. In addition, the engine is also equipped with a complete protection system, including overheating protection, oil pressure protection, etc., to ensure the safe operation of the engine under various harsh working conditions.

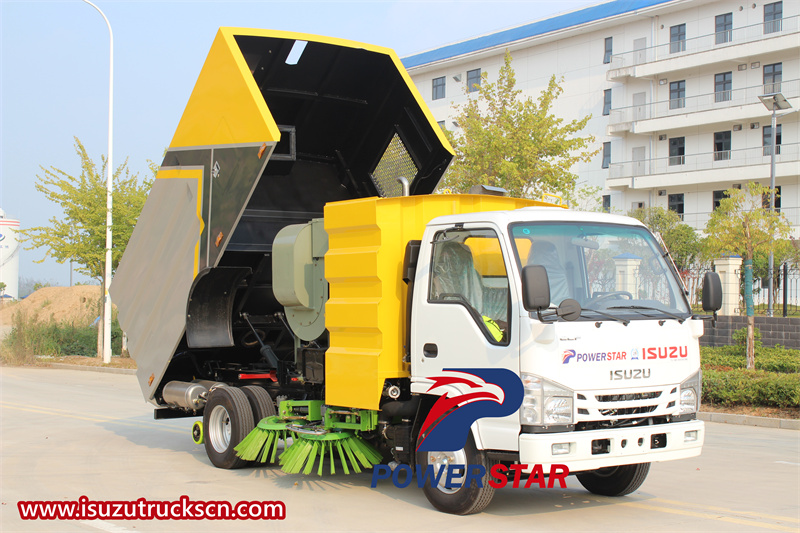

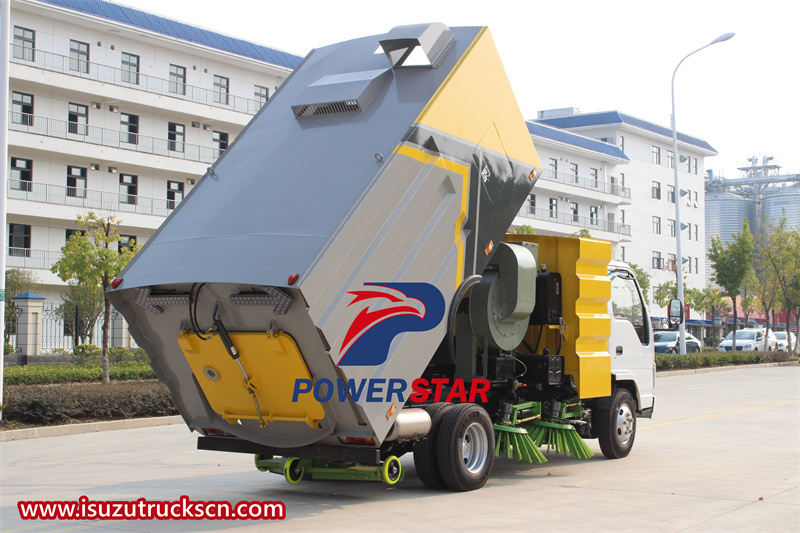

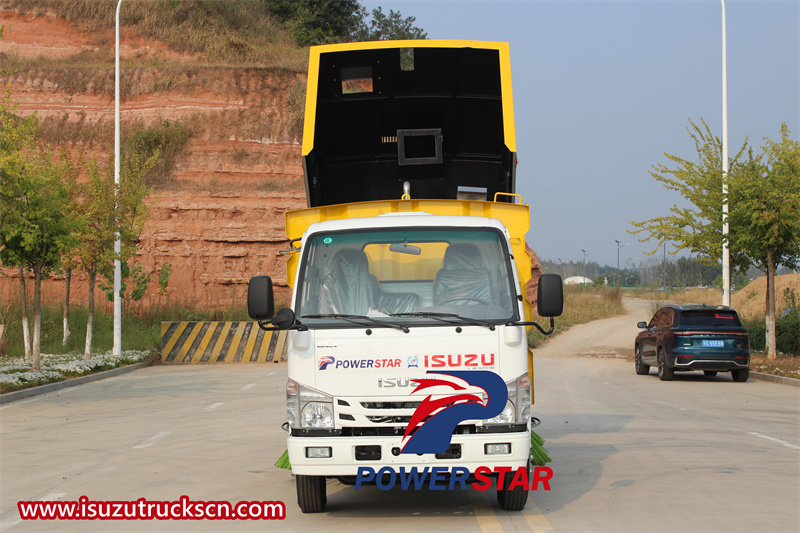

★ Water tank and garbage bin
Isuzu's new 100P road sweeper is equipped with a spacious 1.5 cubic meter carbon steel water tank to ensure a continuous water supply to suppress dust during sweeping operations. This large capacity can extend the working time without frequent water addition, thus optimizing productivity. Complementing this, it is also equipped with 4cbm stainless steel trash boxes, each of which can hold a large amount of garbage. This setup enhances the truck's waste management capabilities and promotes a thorough and comprehensive cleaning process.
★ Cleaning system
The cleaning system is the core part of the vehicle, mainly composed of cleaning brushes, high-pressure water pumps, negative pressure dust suction devices, etc. The arrangement of four central sweeping brushes and rear suction ports is adopted, which makes the cleaning width large and the efficiency high.
The cleaning brush is made of wear-resistant material and can effectively remove stains and dust on the road;The high-pressure water pump provides strong water pressure to spray the cleaning water onto the ground;
The sturdy brushes installed in strategic locations can effectively collect dust and larger objects to keep the road clean. Its cleaning width covers a considerable area, minimizing the operation time while maximizing the cleaning efficiency.
The negative pressure dust suction device sucks the garbage and dust on the ground into the garbage bin through strong suction. The entire cleaning system works together to achieve efficient and fast cleaning results.

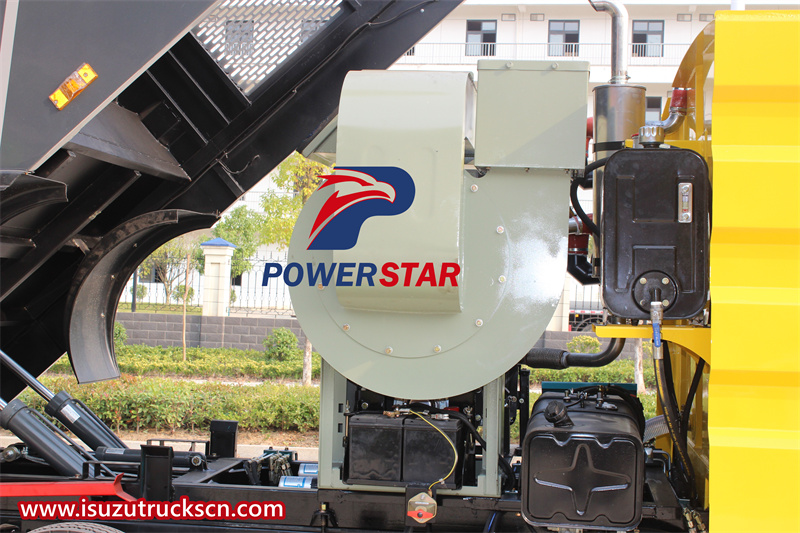

★ Weiye 6.0 maintenance-free centrifugal fan
The Weiye 6.0 maintenance-free centrifugal fan adopts an advanced centrifugal design, which can generate high negative pressure at low speed and effectively absorb garbage and dust on the ground. At the same time, the fan is also equipped with an efficient filtration system that can filter out fine particles in the air to ensure that the discharged air meets environmental protection standards.
The maintenance-free design makes this fan unnecessary to frequently replace the filter or perform other maintenance work during use, greatly reducing the cost of use. In addition, the fan also uses low-noise technology to ensure quietness and comfort during the cleaning operation.

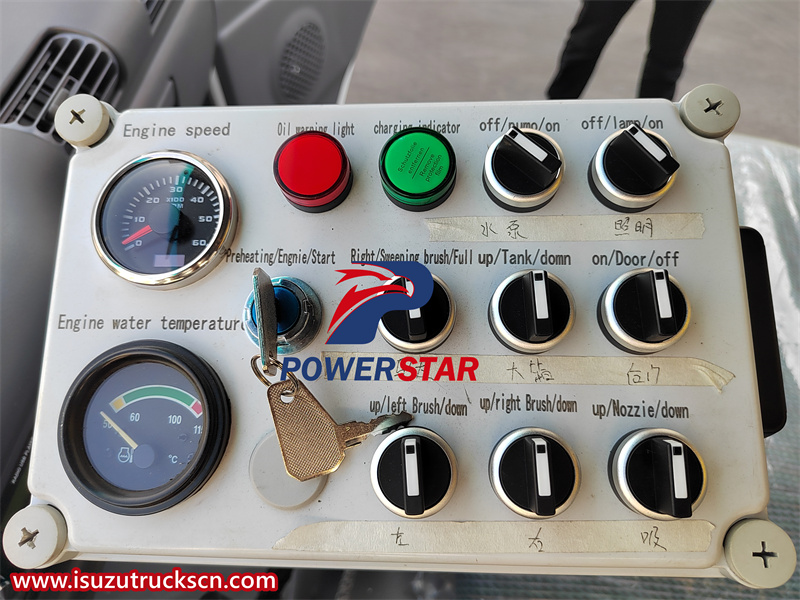

★ Control system

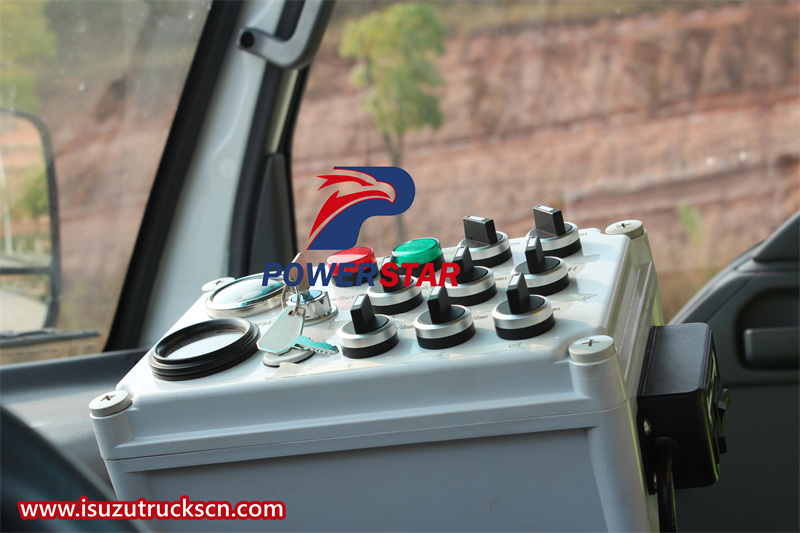

Isuzu100P 5.5 cubic meter road sweeper is equipped with an advanced control system, including various instruments and buttons in the cab, the road sweeper work operation box and the box operation control box under the tail of the box. The driver can easily control the vehicle's driving, sweeping, watering, vacuuming and other actions through the control system.
★ Hyderava solenoid valve group
Hyderava solenoid valve group adopts advanced solenoid valve technology, which has the characteristics of fast response, precise control and stable and reliable. By precisely controlling the switching and adjustment of each component, the solenoid valve group can ensure that the sweeper can maintain the best working condition under various working conditions.
At the same time, the solenoid valve group is also equipped with a complete protection system, including overload protection, short circuit protection, etc., to ensure the safe operation of the solenoid valve during long-term use. In addition, the solenoid valve group is designed to be easy to disassemble and inspect, making repair and maintenance more convenient.

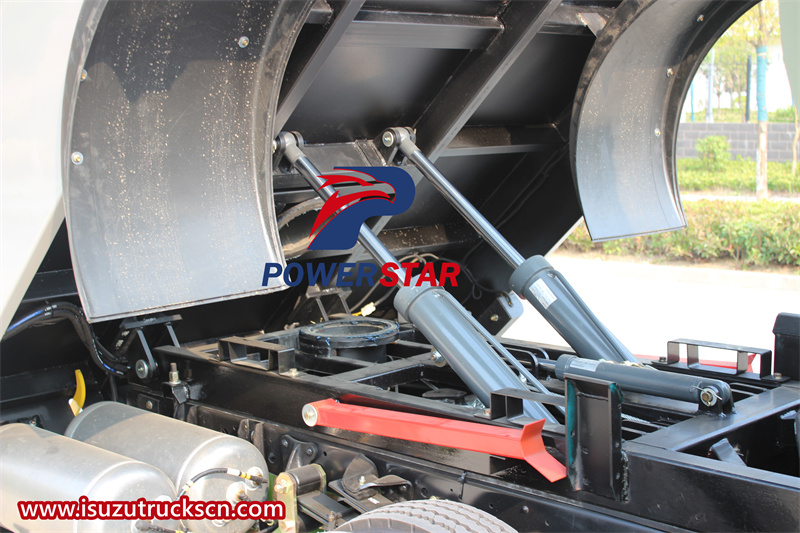

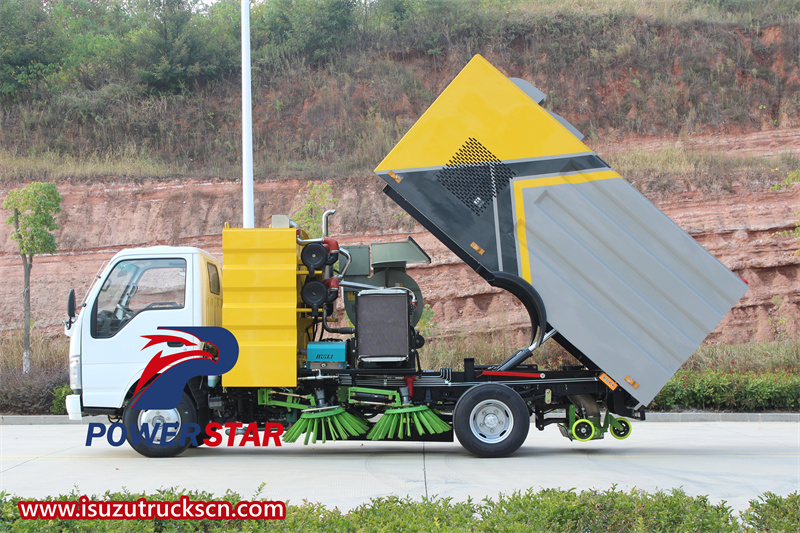

Lifting cylinder

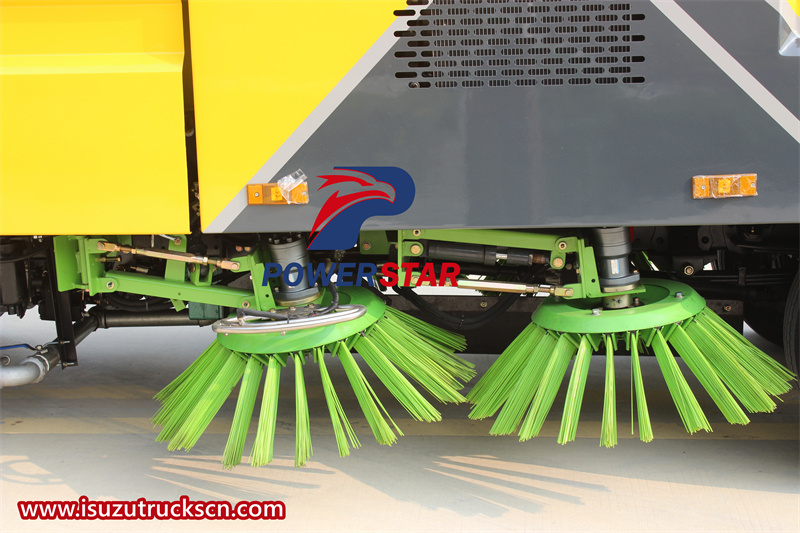

Sweep brush

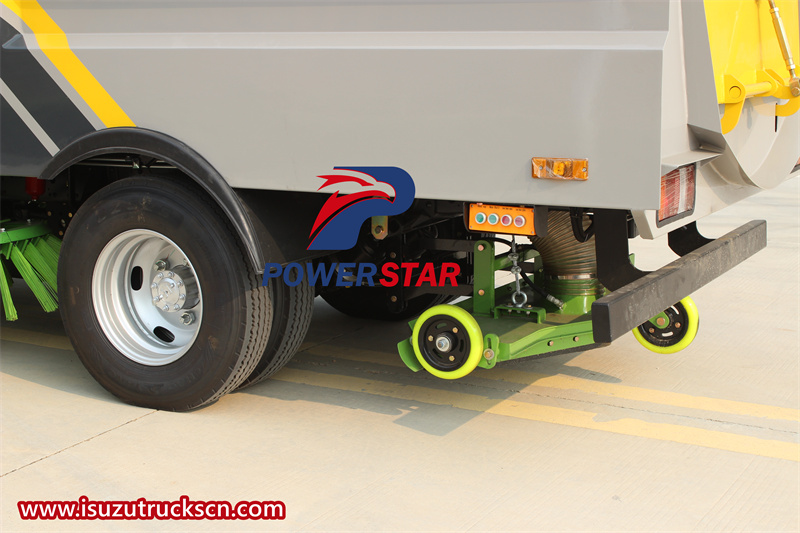

Sucker

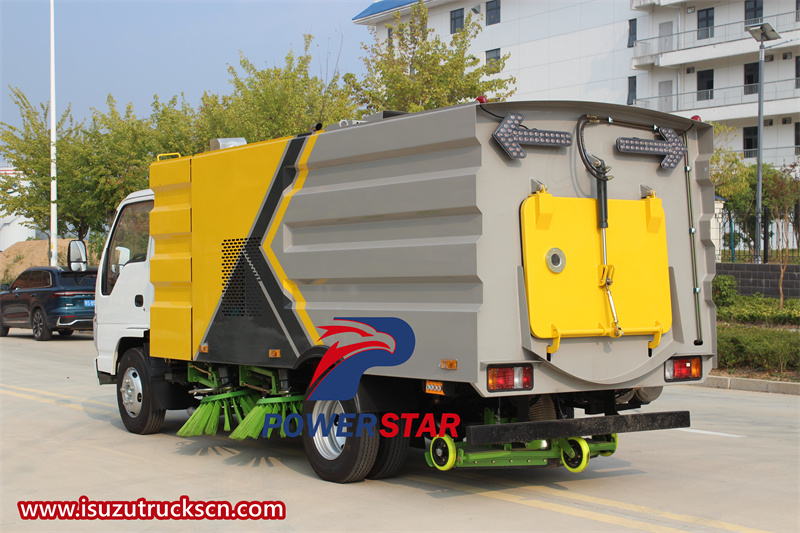

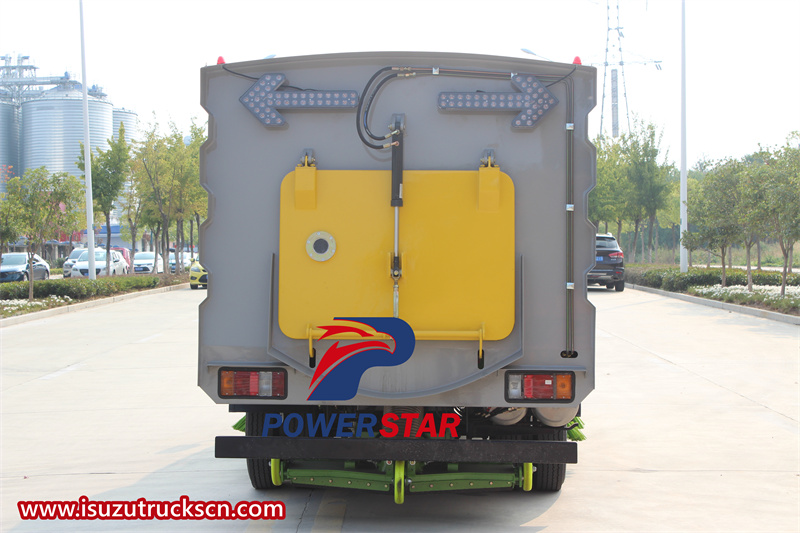

Rear operation box
