10000L Myanmar Japanese ISUZU FTR Automatic Bitumen Transportation Tank/Asphalt Transportation Tank Truck
6x4 VC46 FVZ CXA8000L Isuzu Road asphalt distributor,Isuzu brand 6x4 8000L Asphalt Distributor Bitumen spreader truck,6x4 8000L high quality asphalt distributor truck,ISUZU 8000L Semi-Automatic electronic control asphalt distribut
ISUZU ISUZU Automatic computerized asphalt distributor,4cbm Isuzu standard Hot Sales Asphalt Distributor,Hot sale ISUZU Intelligent Asphalt Distributor
Order(MOQ):
110000L Myanmar Japanese ISUZU FTR Automatic Bitumen Transportation Tank/Asphalt Transportation Tank Truck
Description:
ISUZU automatic asphalt distributor is typical kind of road construction machinery. We also provide automatic asphalt distributors andrubber asphalt distributors as well as common distributors.
The asphalt distributor can transport asphalt or spray asphalt binder on the ground. It is extensively used in the construction of highways, urban roads, airports, and ports. It can be applied to seal coat, prime coat, waterproof layer, bonding layer of different grades of highway pavement, as well as transport liquid asphalt or other heavy oil.
Application
Isuzu Automatic Bitumen distributor is a kind of road
machinery. It is applicable for layer-penetration oil, waterproof layer and
bond coat at the bottom layer of high-level asphalt road.
Key Features:
◆ The intelligent nozzle has strong atomization capability so that the asphalt could be evenly sprayed and the pavement could withstand more pressure and water penetration.
◆ PLC regulating spray volume automatically
◆ Imported heat-resistance seal elements

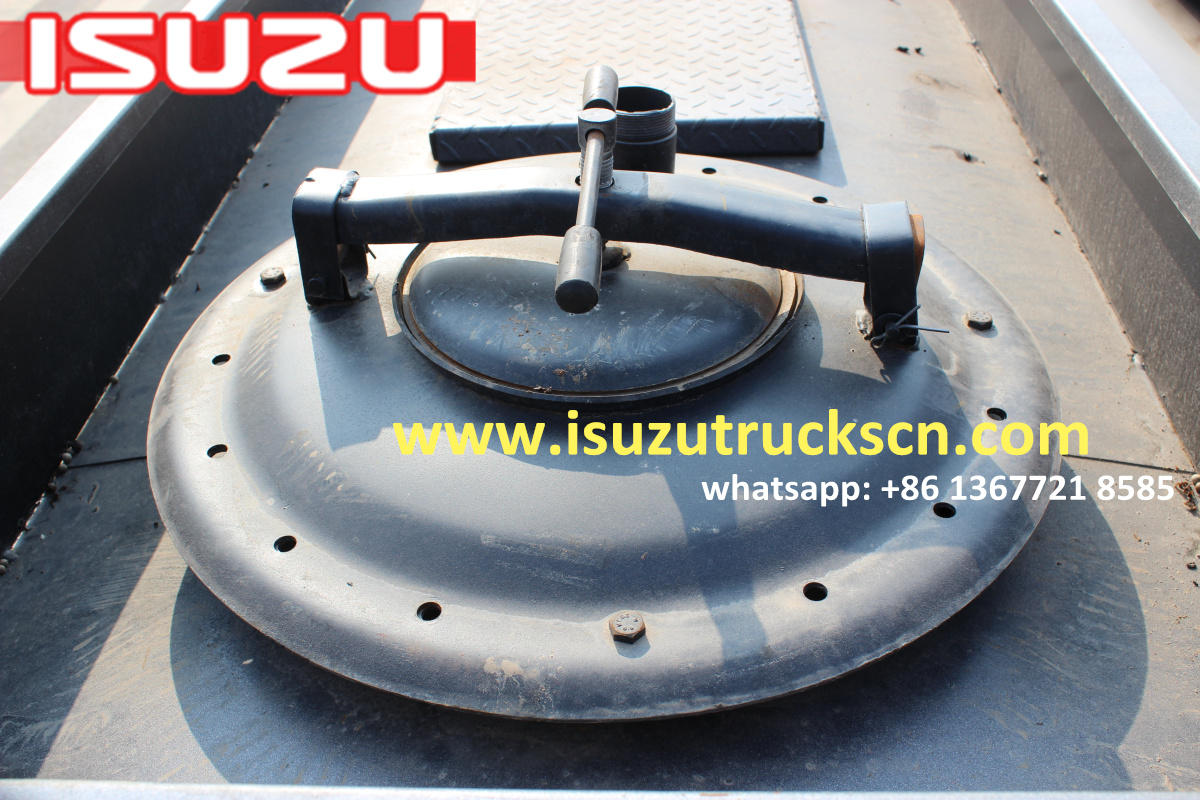

◆ Burner hood of optimization design preventing damages by asphalt eruption through manhole
◆ High-viscosity asphalt pump

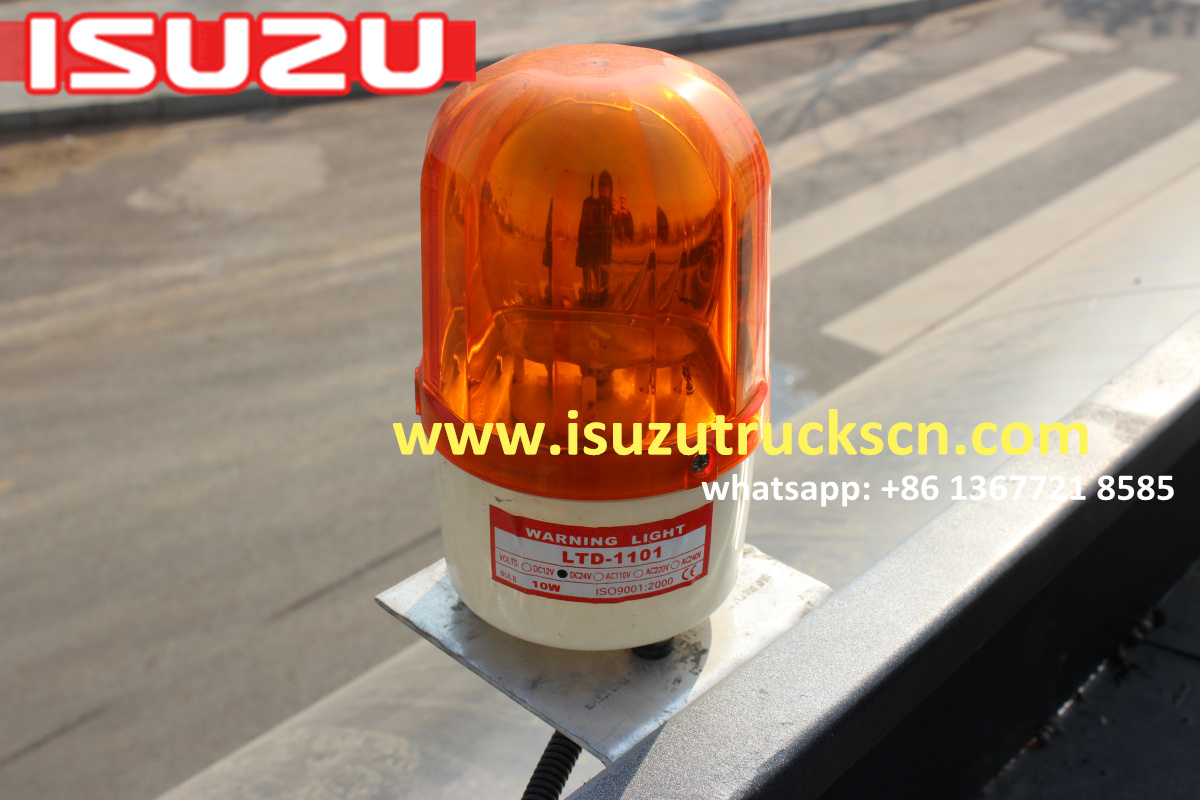

◆ Warning signs and lighting installation for working at night
◆ Capacity can be customized 4000L, 6000L, 8000L, 10000L, 15000L and so on
Main specifications:
|
PT5160GLQ |
|
|
Driving Type |
4x2 (Left hand drive) |
|
Wheelbase |
4700 mm |
|
Engine |
177 kw (240hp) |
|
Tyre |
10.00-20 |
|
Outline Dimension of Complete Vehicle (L/W/H mm) |
8990×2350×2855 |
|
Tank Capacity (m3/density) |
10000L |
|
Seating Capacity (including the driver) |
3 |
|
Top Speed (km/h) |
90 |
|
Complete Vehicle Weight (kg) |
12005 |
|
Rated Load (kg) |
4400 |
|
Working Speed (km/h) |
1.2~6.5 |
|
Asphalt Pump Discharge (L/r) |
0.86 |
|
Max. Spray Width (m) |
6 |
|
Asphalt Spray Volume (L/m2) |
0.3~3.0 |
|
Drive System |
Driven by hydraulic system |
|
Max. Pressure of hydraulic system (MPa) |
15 |
|
Asphalt Heat Preservation Way |
Heat is preserved by the heat transfer oil system. |
|
Cleaning Way |
Cleaning through using the high pressure air and diesel. |

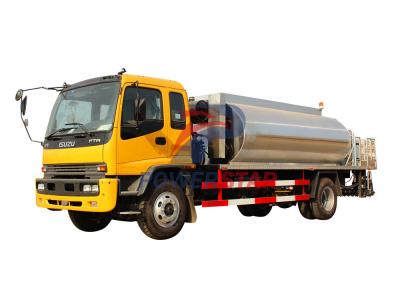

Custom made example of 10,000L ISUZU FTR Bitumen Distributor

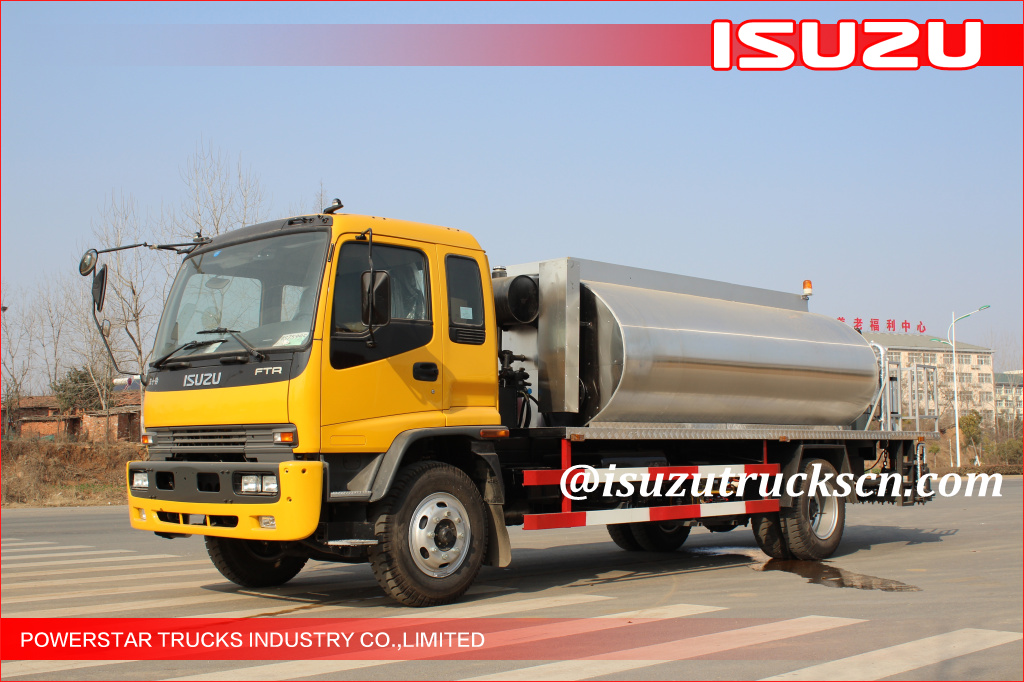

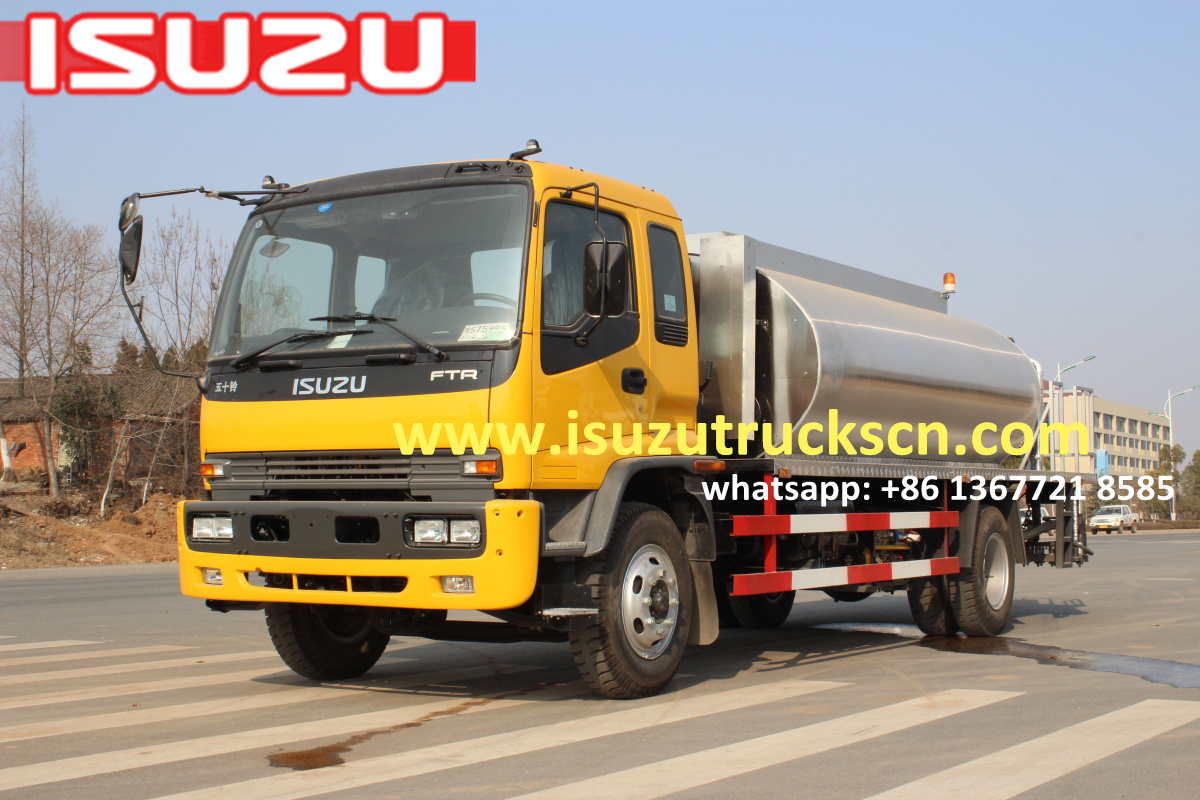

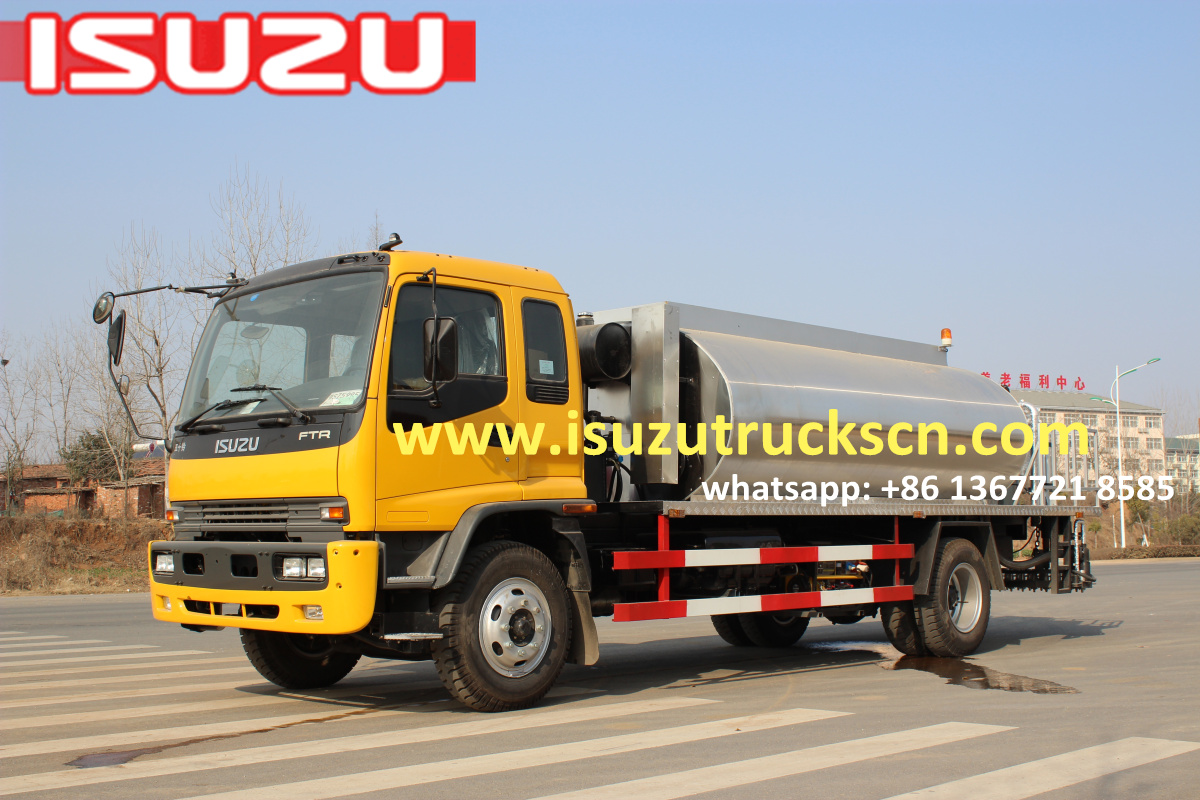

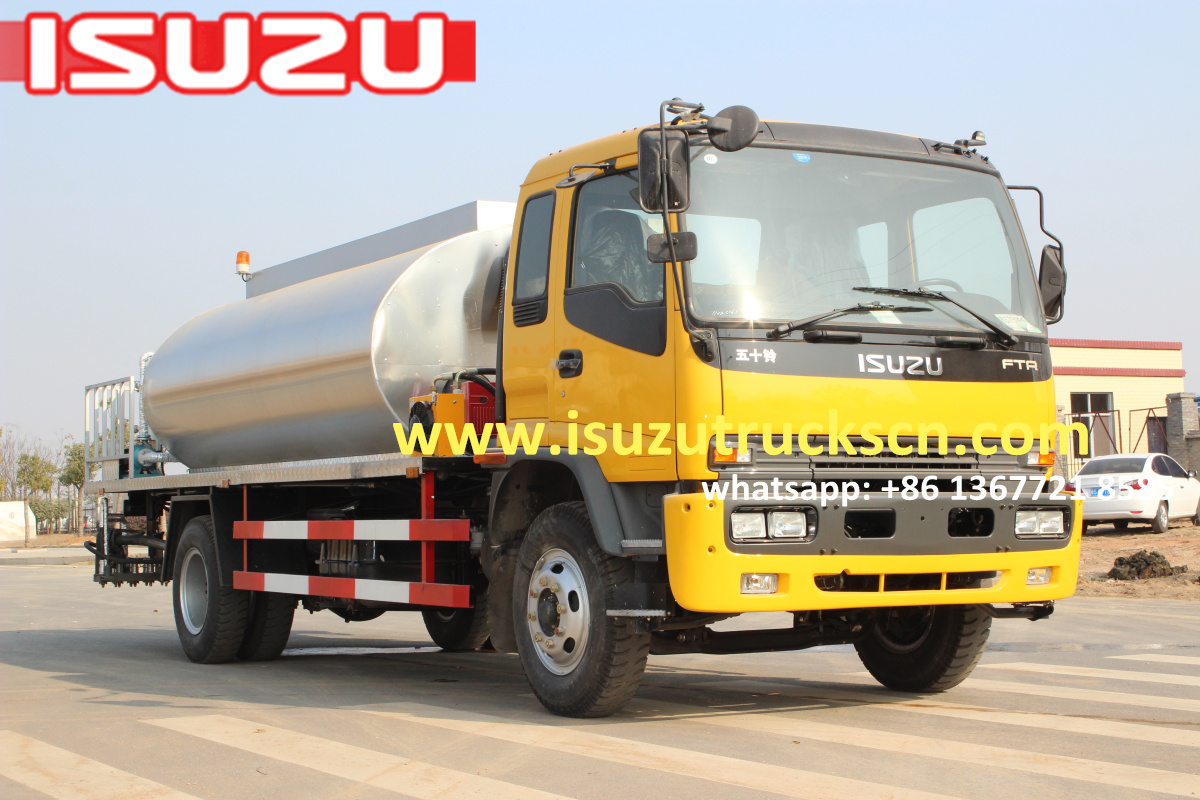

Front left view
Front right view

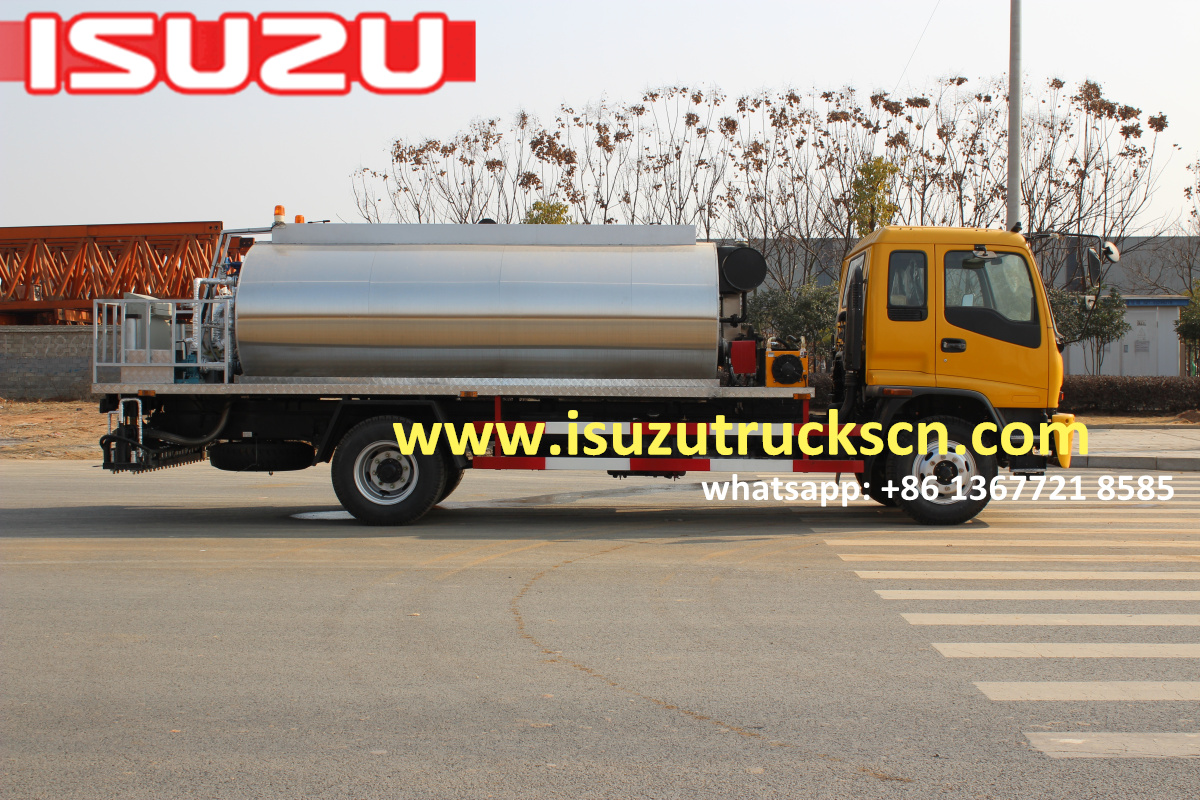

Left side view

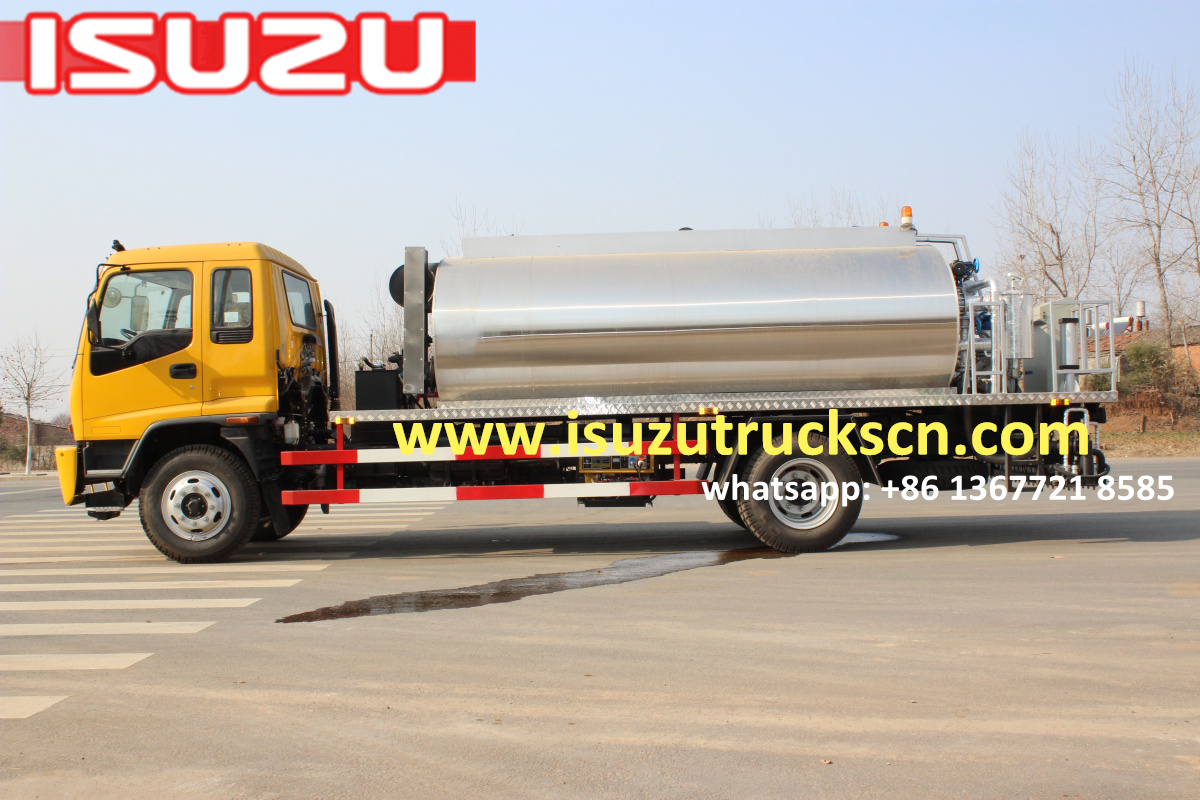

Right side view

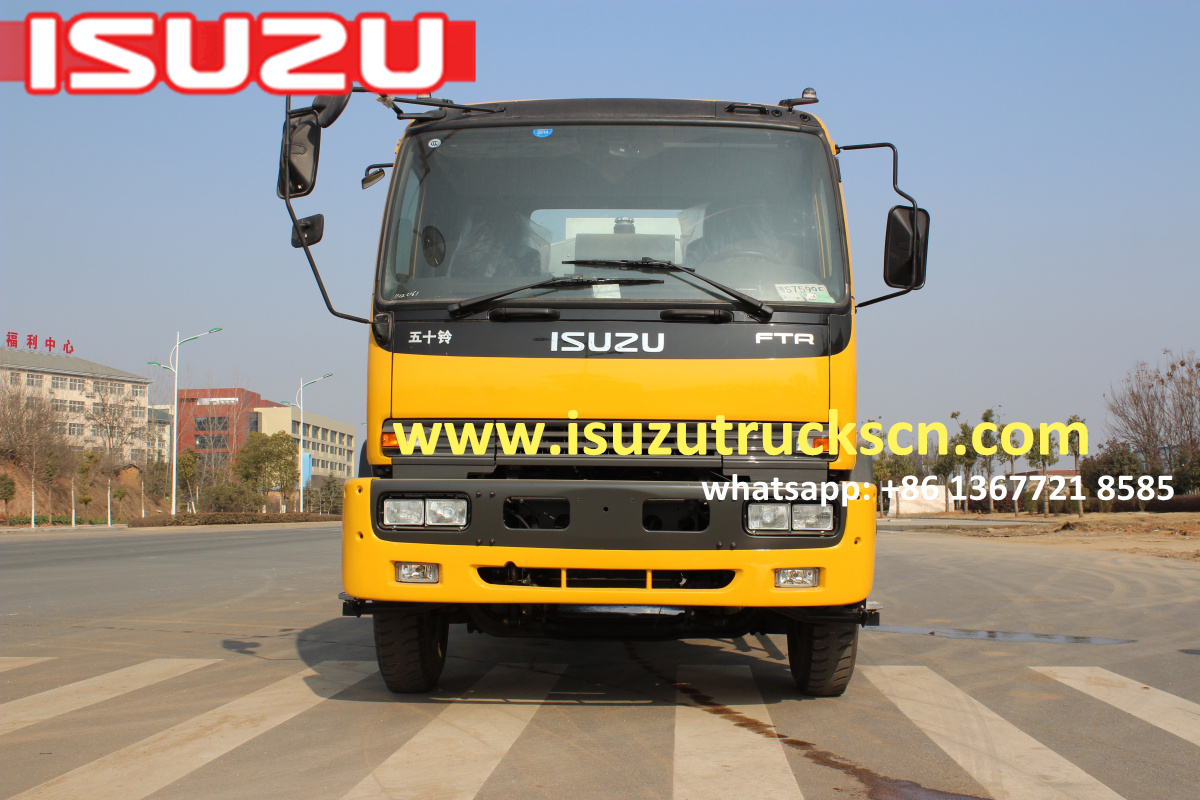

Front view

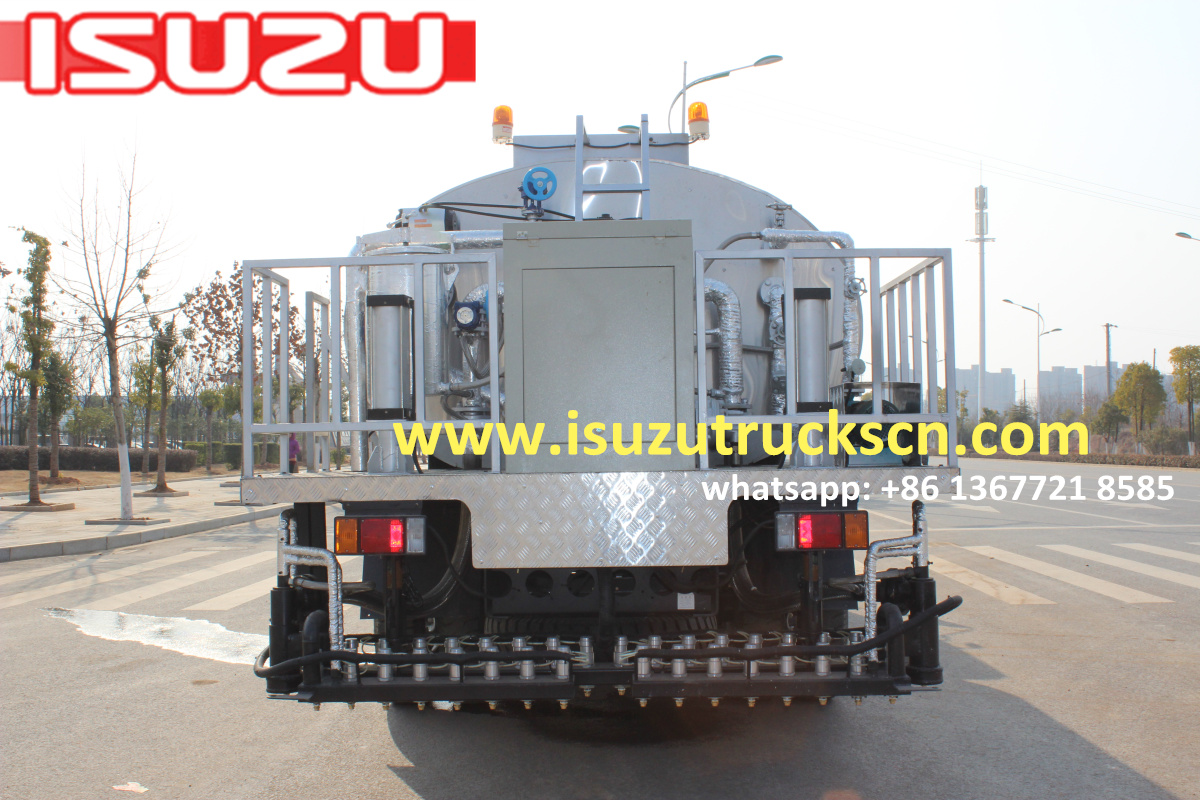

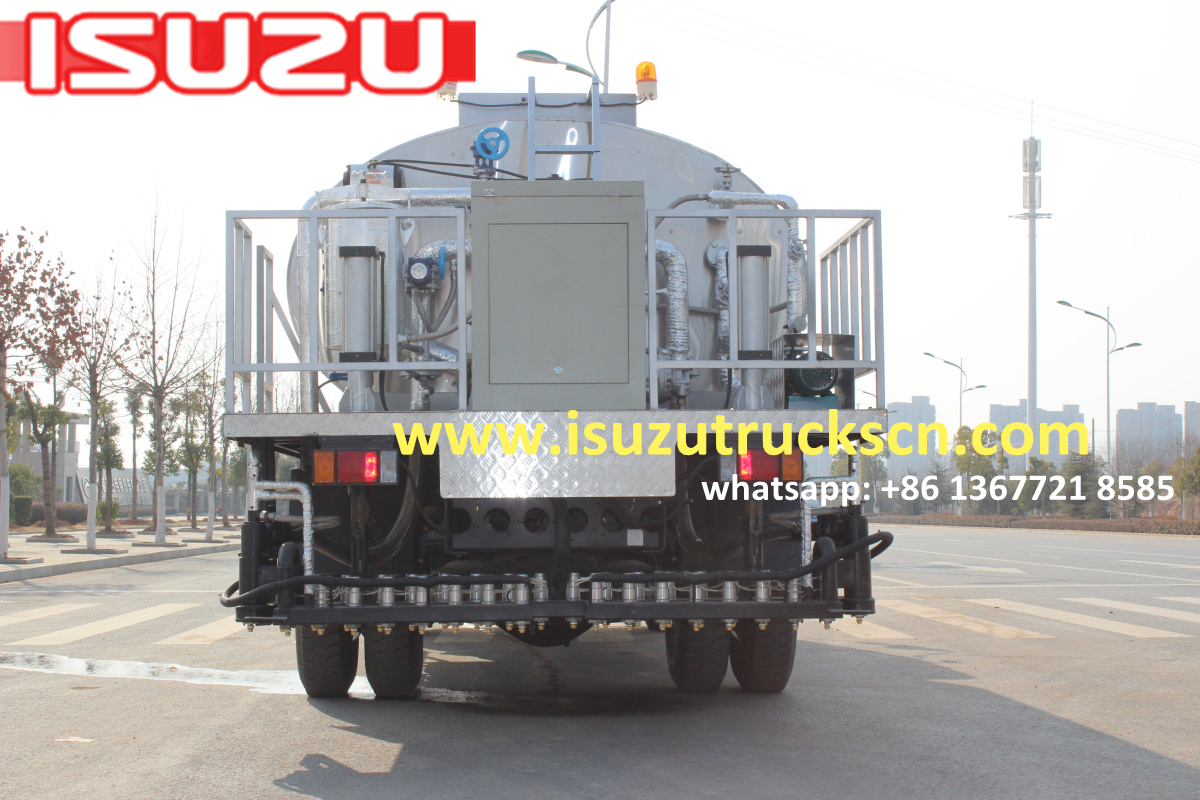

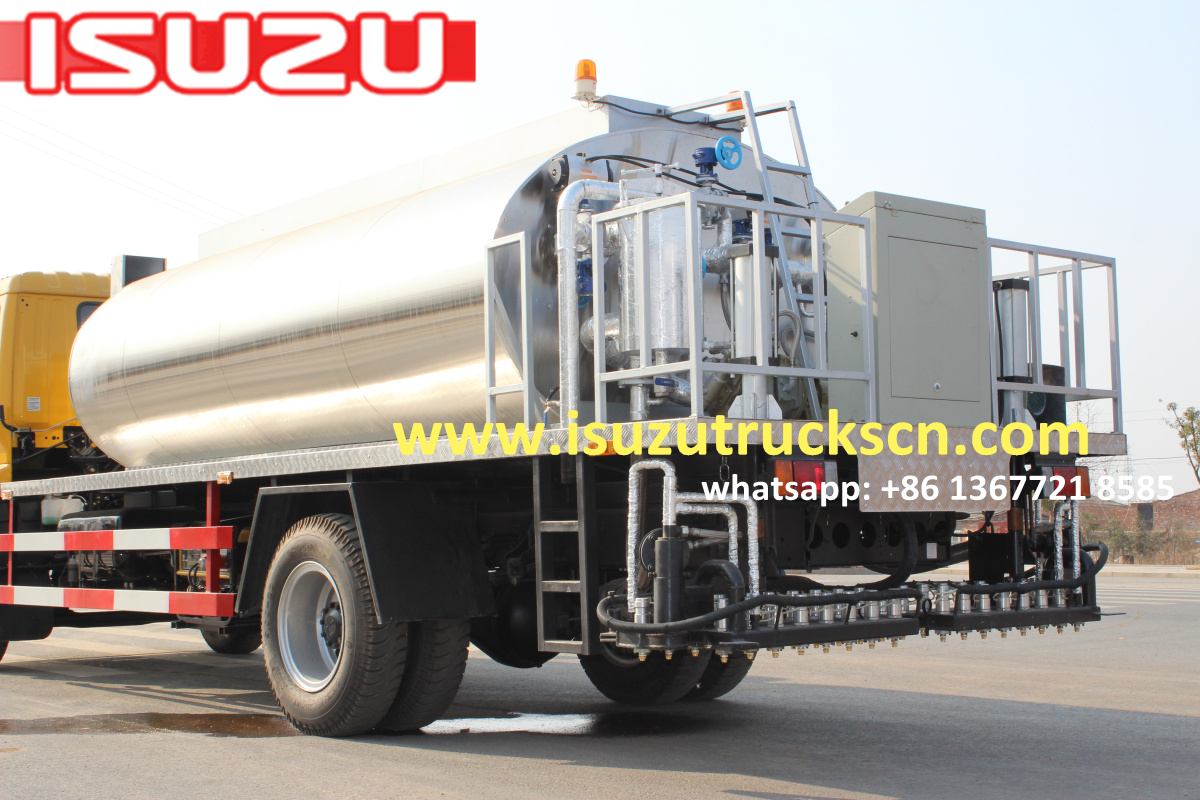

Rear view

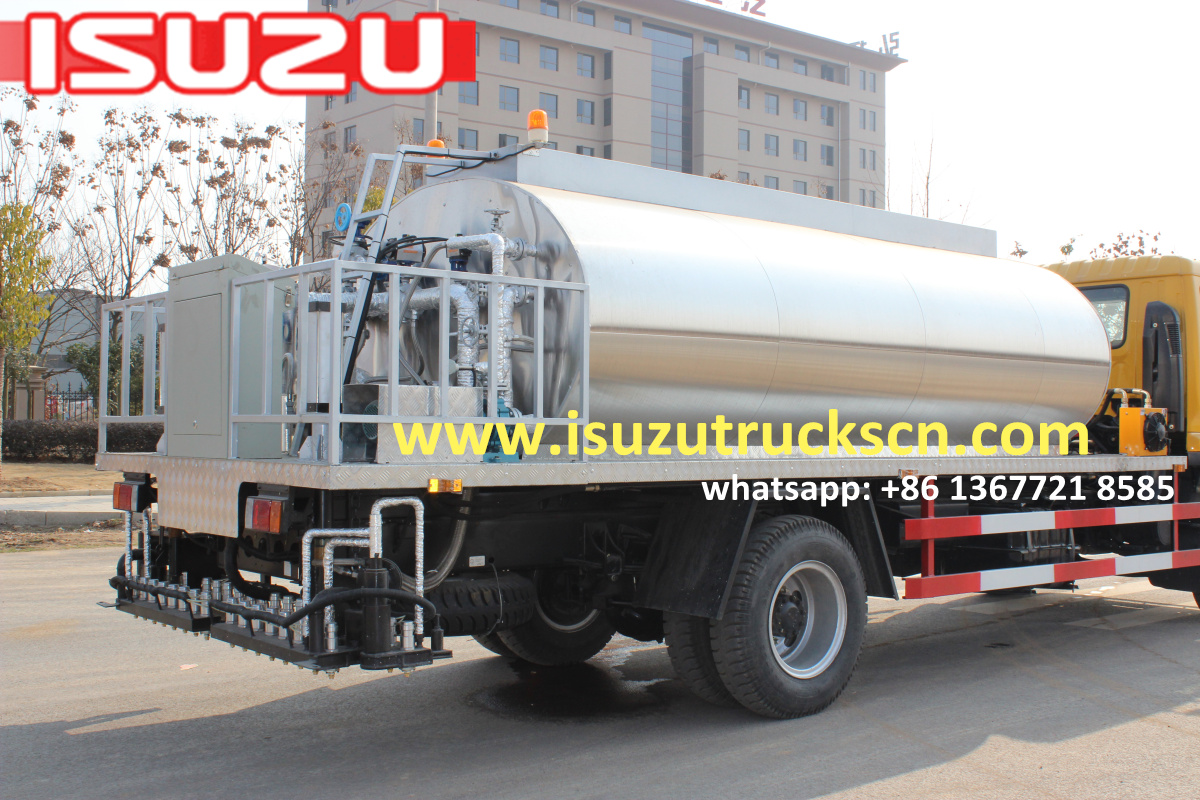

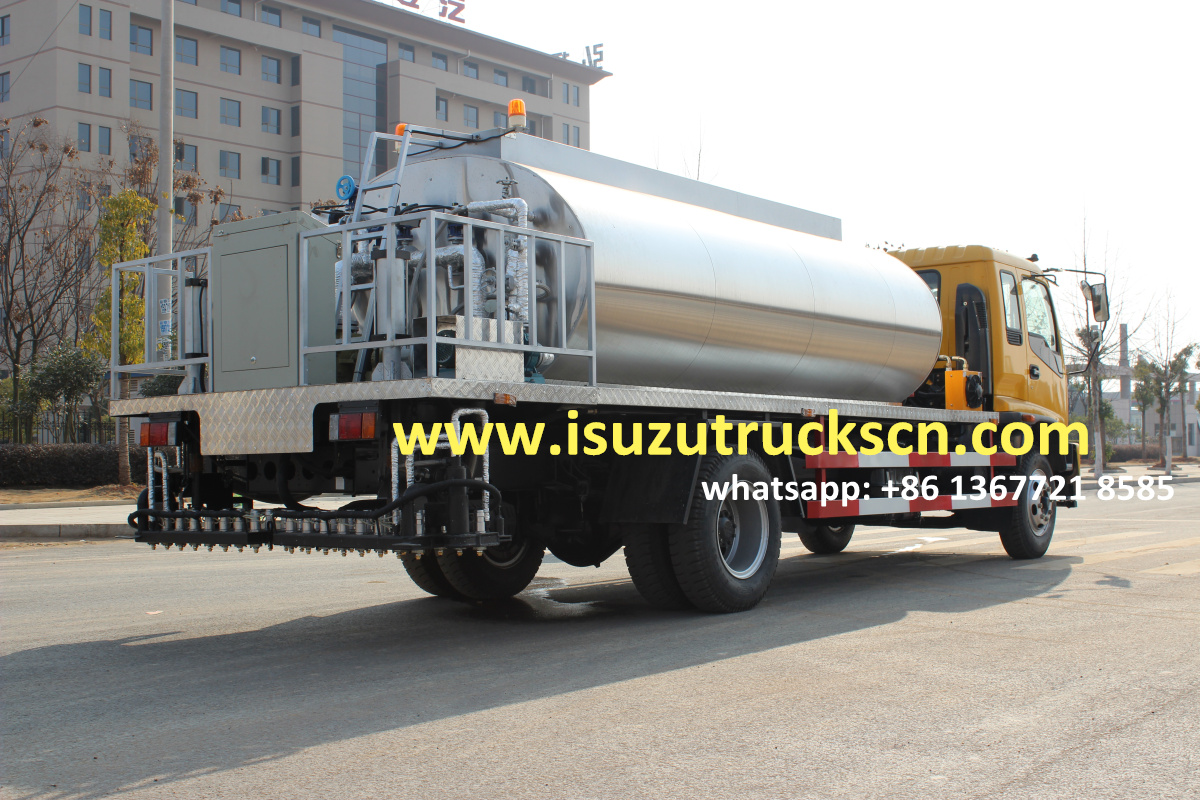

Rear right view
Rear left view

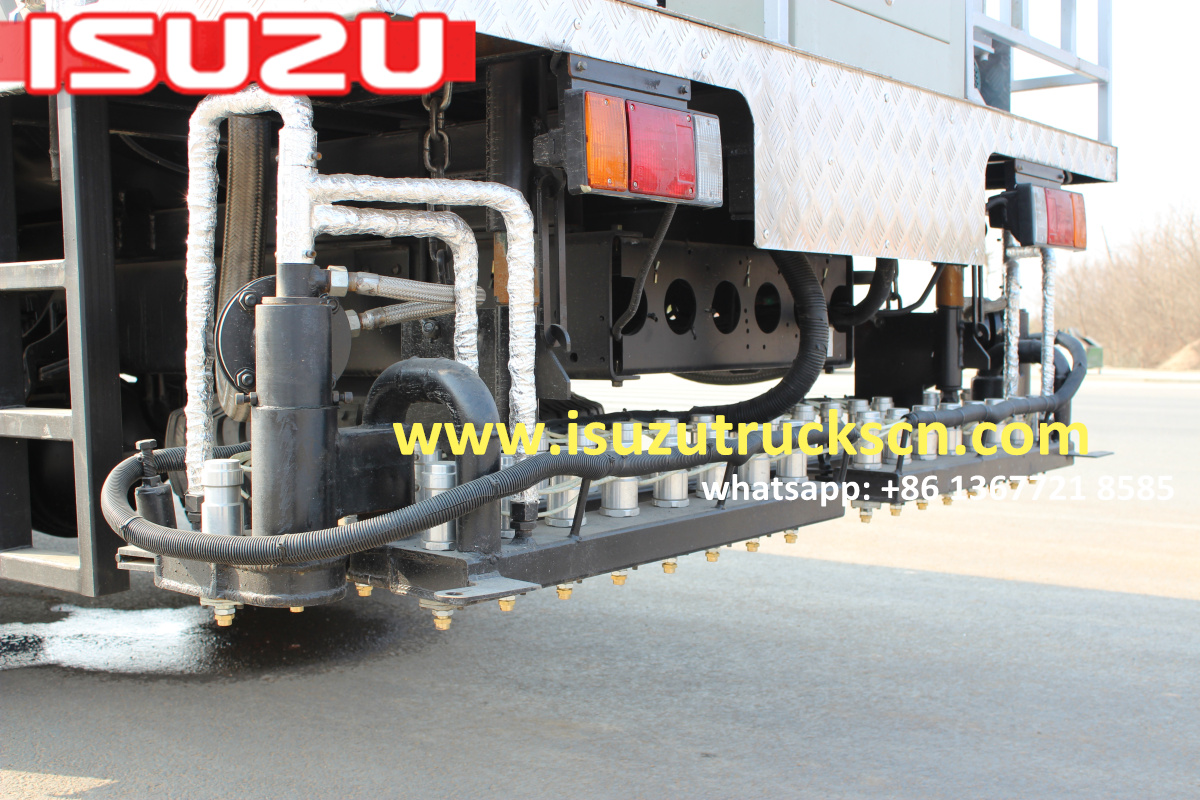

Spray nozzle of 10,000L ISUZU FTR Bitumen Distributor

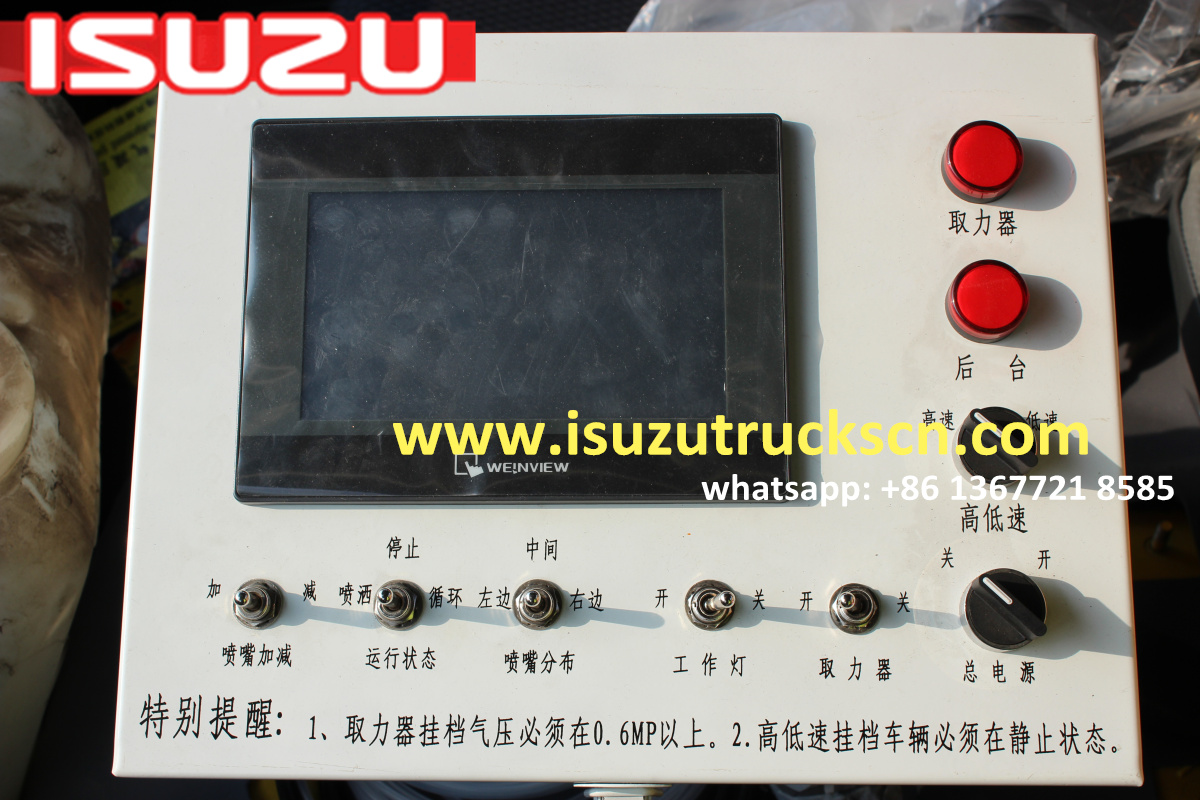

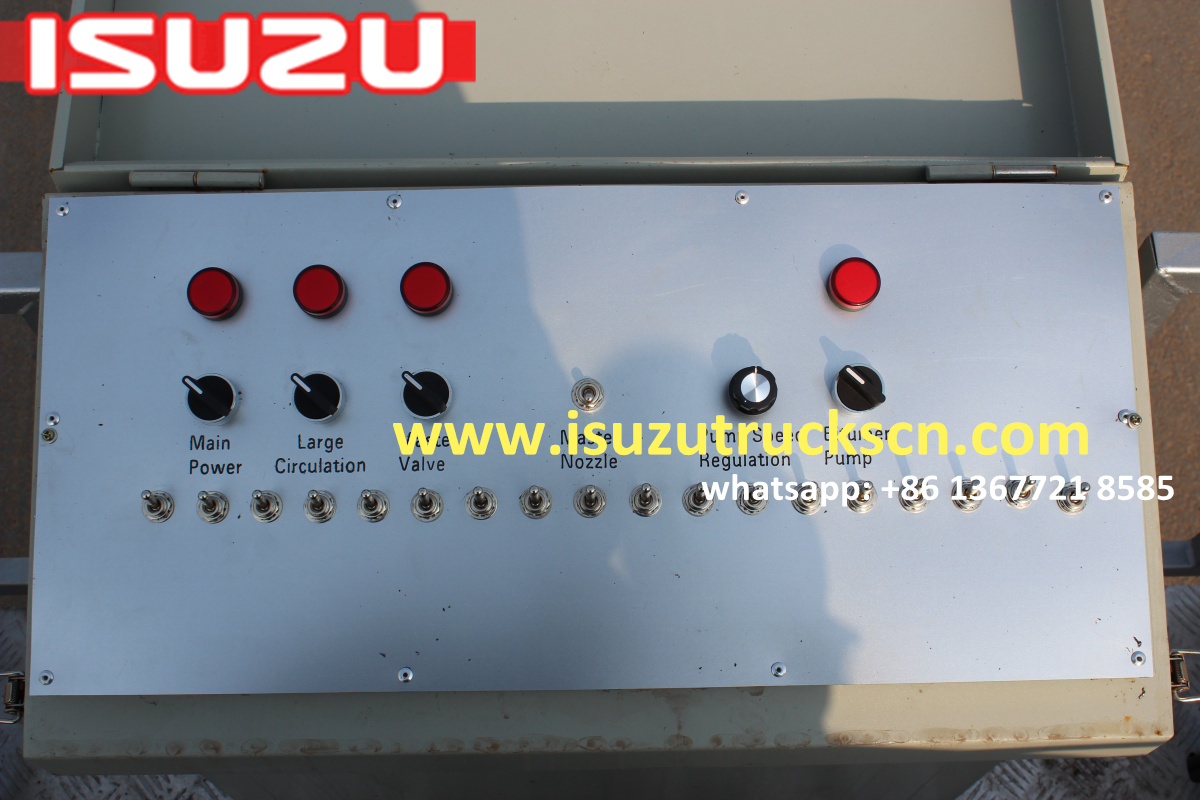

Operation panel of 10,000L ISUZU FTR Bitumen Distributor
