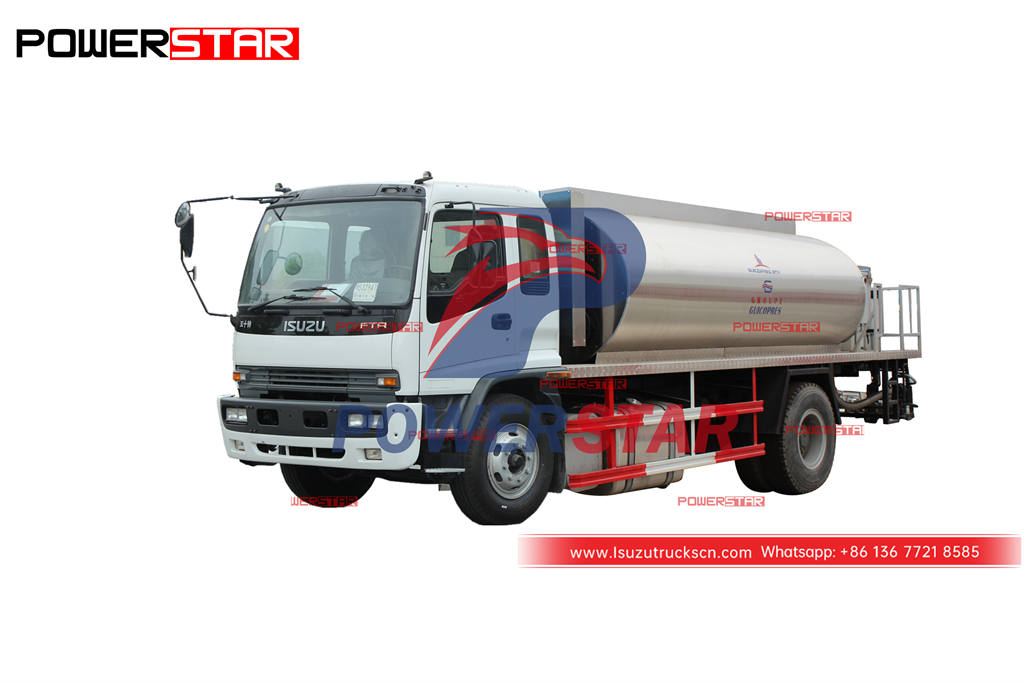

ISUZU FTR 12CBM asphalt distributor truck for sale
Japan brand ISUZU FTR Road asphalt distributor, ISUZU 4x2 12000L Bitumen
sprayer truck, high quality truck mounted asphalt distributor,ISUZU truck mounted bitumen sprayer
ISUZU Automatic asphalt distributor, 12cbm ISUZU FTR hot-selling Truck Mounted Bitumen Sprayer, best-seller ISUZU Intelligent Asphalt Distributor
Order(MOQ):
1
Hot sale ISUZU FTR Truck Mounted Asphalt Distributor 12000 liters
Description:
ISUZU automatic bitumen sprayer truck is typical kind of road construction machinery. We also provide automatic asphalt distributors and rubber asphalt distributors as well as common distributors.
The asphalt distributor can transport asphalt or spray asphalt binder on the ground. It is extensively used in the construction of highways, urban roads, airports, and ports. It can be applied to seal coat, prime coat, waterproof layer, bonding layer of different grades of highway pavement, as well as transport liquid asphalt or other heavy oil.
Application
Isuzu Automatic asphalt distributor is a kind of road
machinery. It is applicable for layer-penetration oil, waterproof layer and
bond coat at the bottom layer of high-level asphalt road.
Key Features:

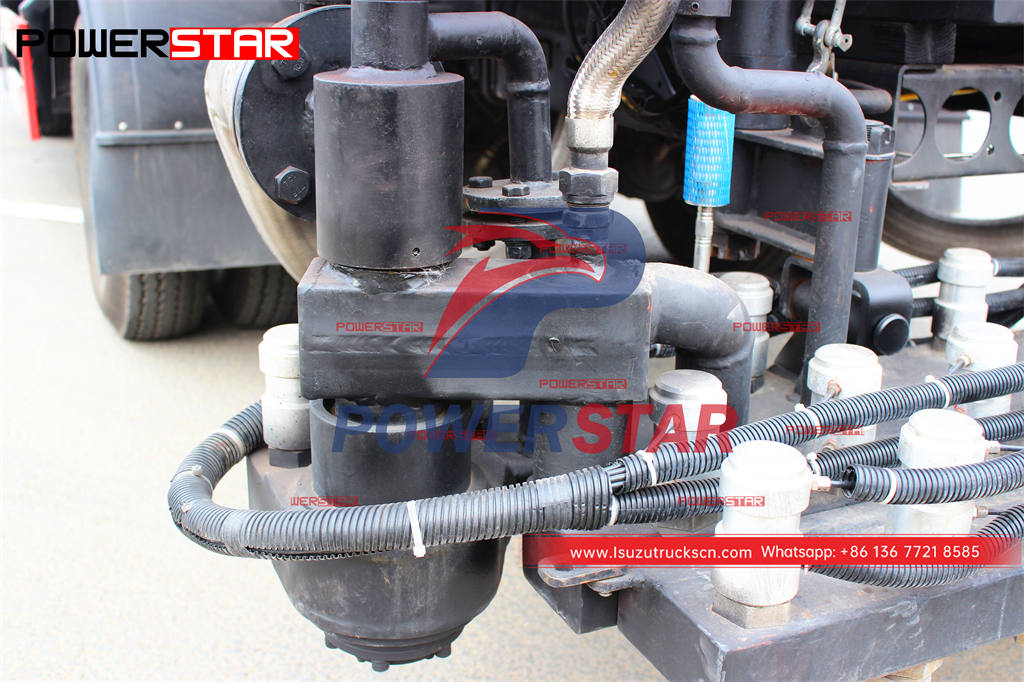

◆ The intelligent nozzle has strong atomization capability so that the asphalt could be evenly sprayed and the pavement could withstand more pressure and water penetration.
◆ PLC regulating spray volume automatically
◆ Imported heat-resistance seal elements
◆ Burner hood of optimization design preventing damages by asphalt eruption through manhole

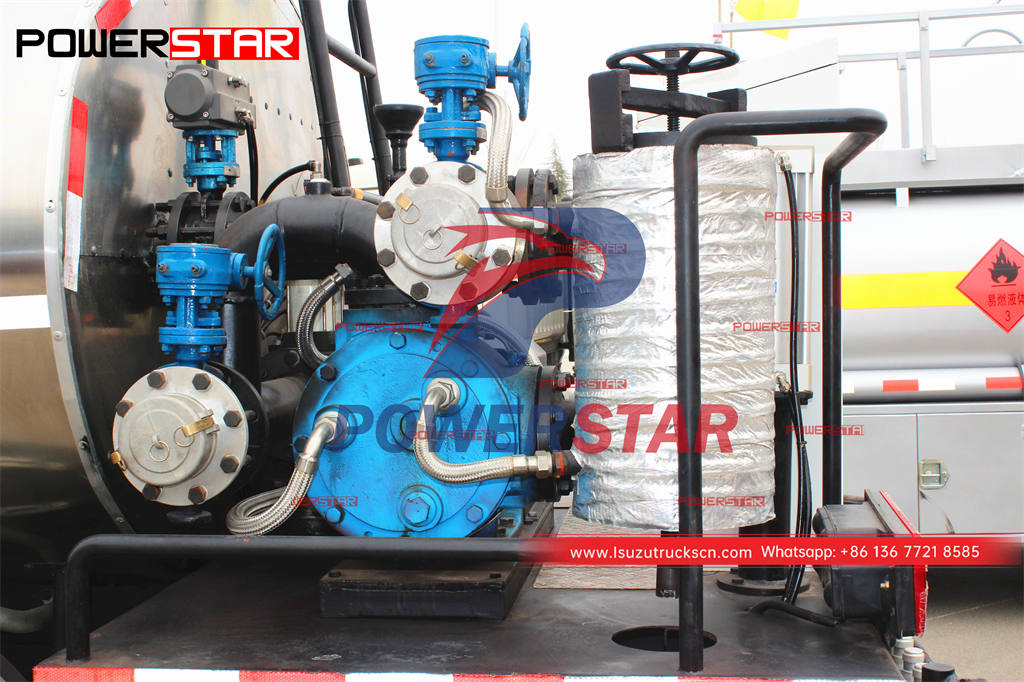

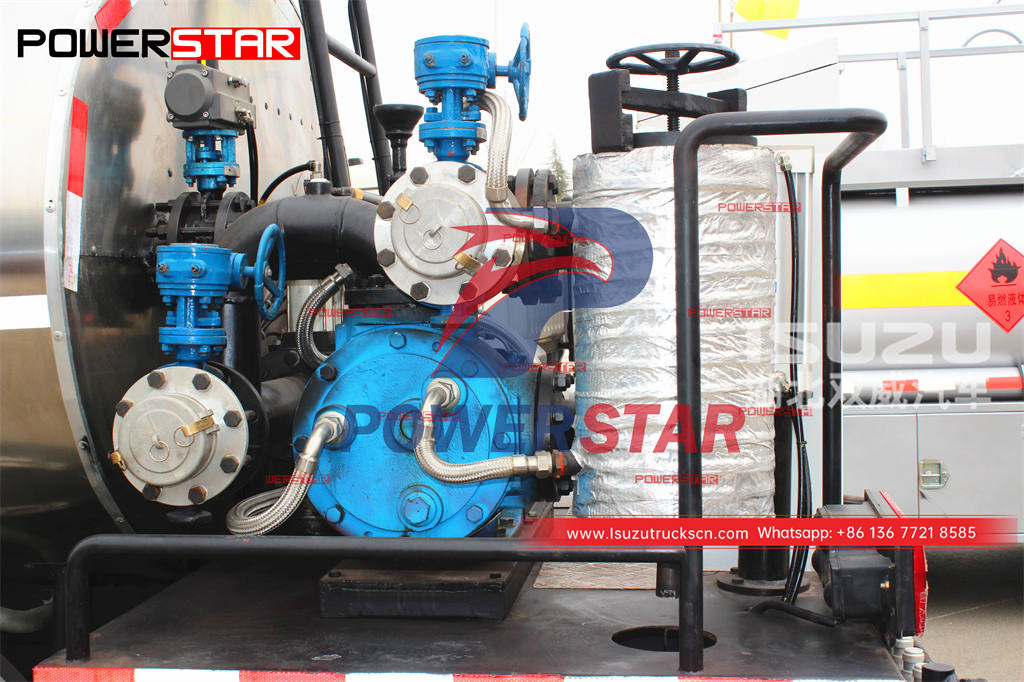

◆ High-viscosity asphalt pump
◆ Warning signs and lighting installation for working at night
◆ Capacity can be customized 4000L, 6000L, 8000L, 10000L, 15000L and so on
Main specifications:
|
PT5160GLQ |
|
|
Driving Type |
4x2 (Left hand drive) |
|
Wheelbase |
4700 mm |
|
Engine |
151 kw (205hp) |
|
Tyre |
10.00R20 |
|
Outline Dimension of Complete Vehicle (L/W/H mm) |
8990×2350×2855 |
|
Tank Capacity (m3/density) |
12000L |
|
Seating Capacity (including the driver) |
3 |
|
Top Speed (km/h) |
90 |
|
Complete Vehicle Weight (kg) |
12005 |
|
Rated Load (kg) |
4400 |
|
Working Speed (km/h) |
1.2~6.5 |
|
Asphalt Pump Discharge (L/r) |
0.86 |
|
Max. Spray Width (m) |
6 |
|
Asphalt Spray Volume (L/m2) |
0.3~3.0 |
|
Drive System |
Driven by hydraulic system |
|
Max. Pressure of hydraulic system (MPa) |
15 |
|
Asphalt Heat Preservation Way |
Heat is preserved by the heat transfer oil system. |
|
Cleaning Way |
Cleaning through using the high pressure air and diesel. |

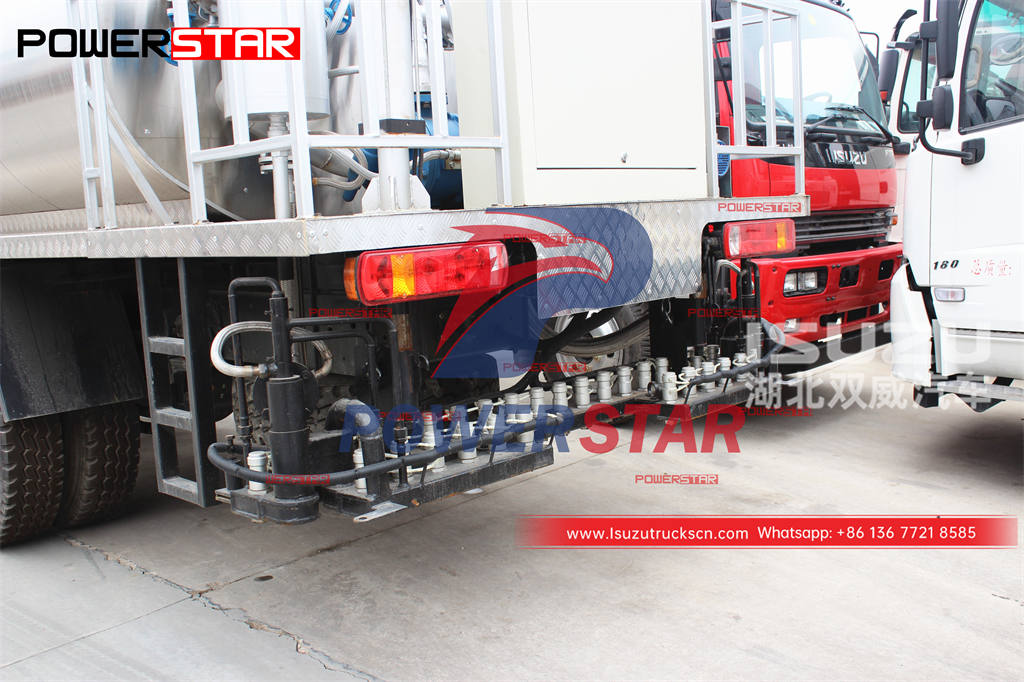

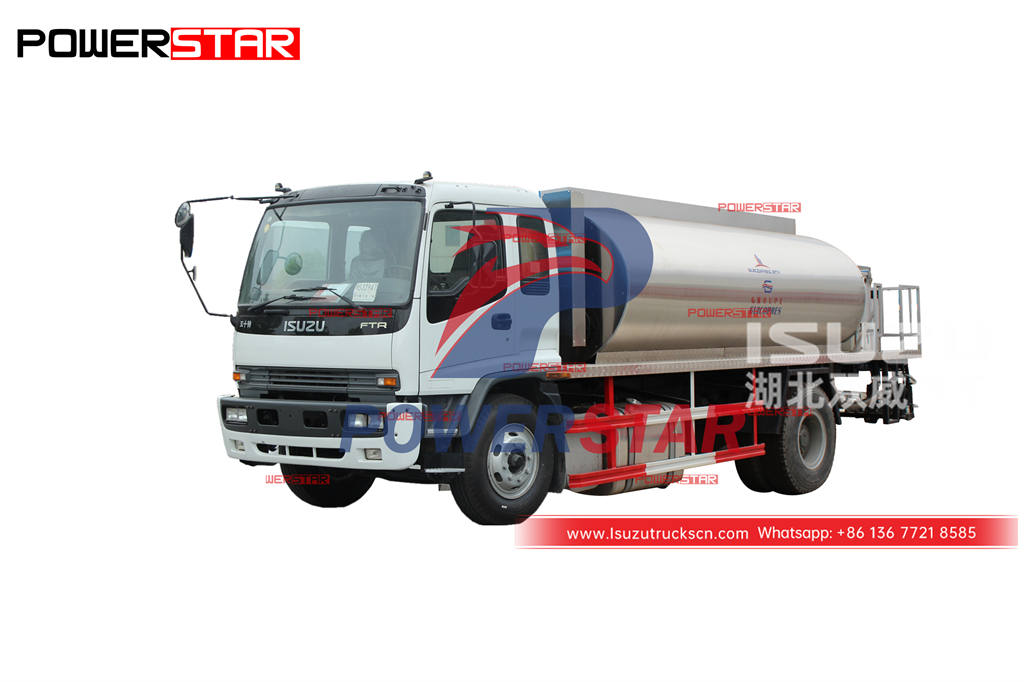

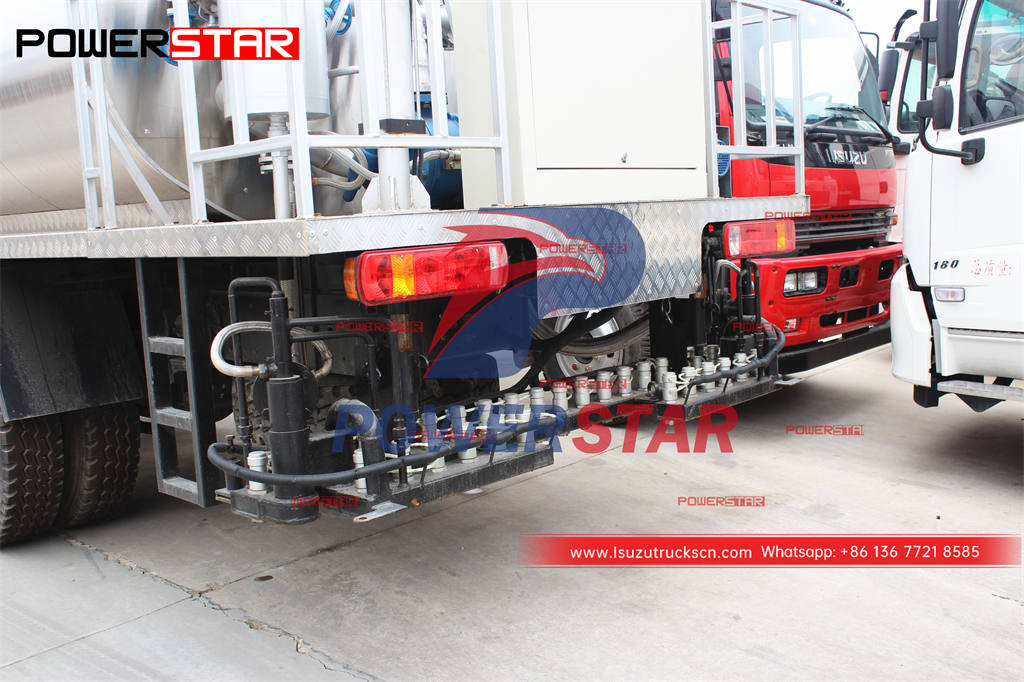

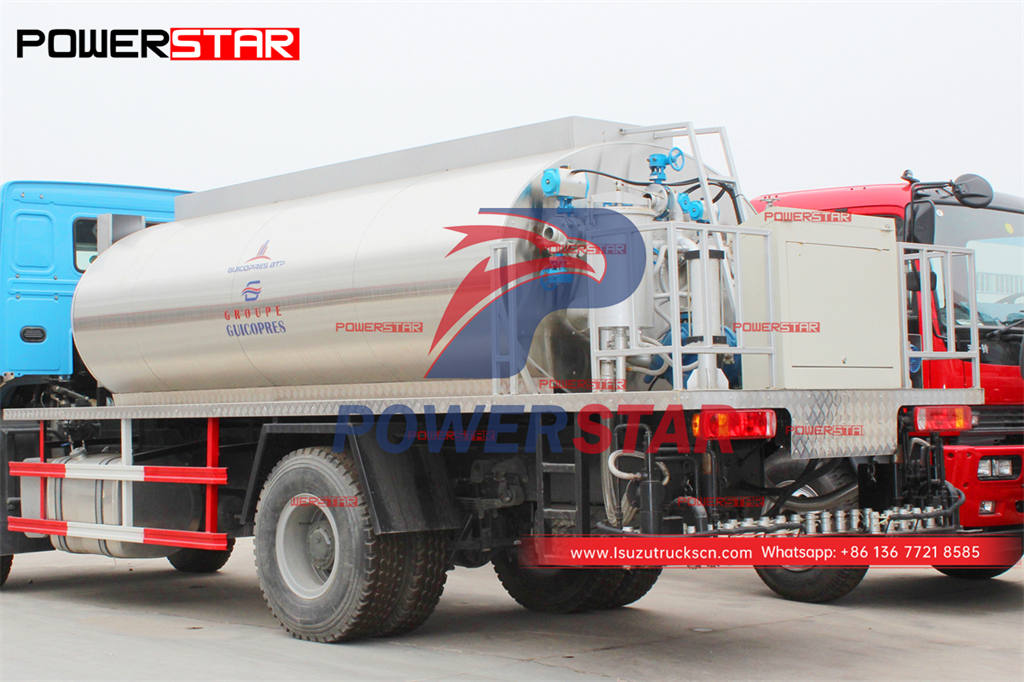

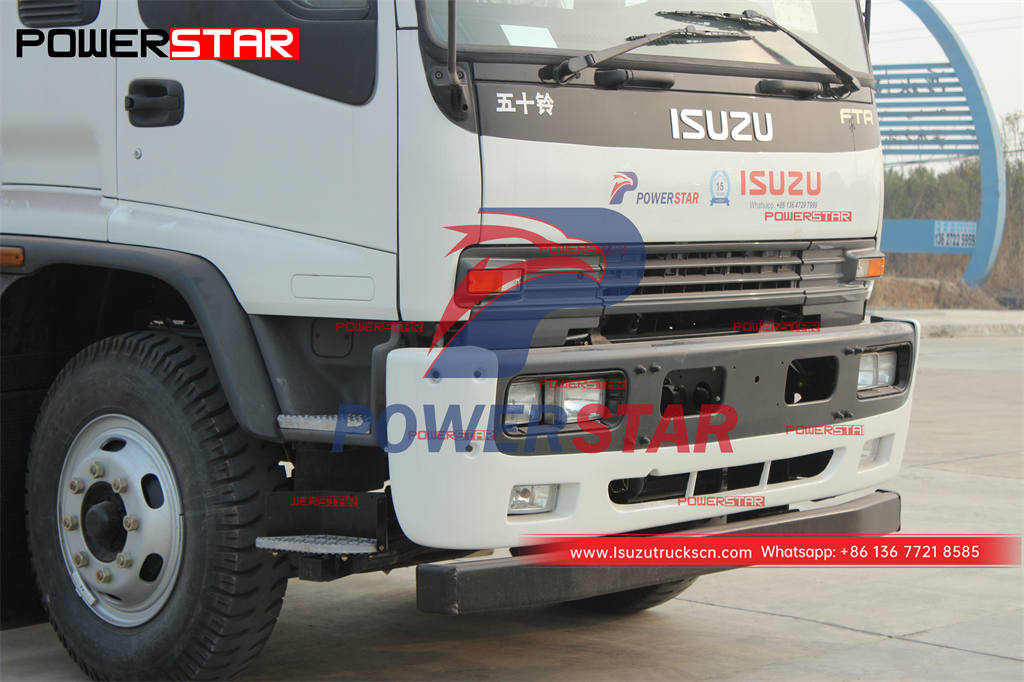

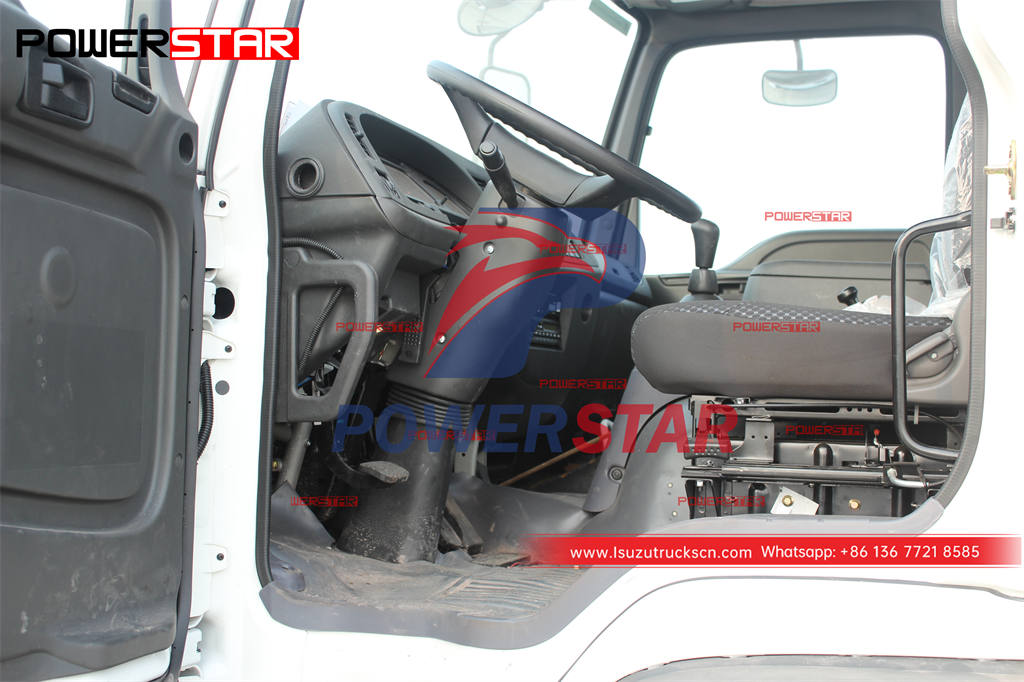

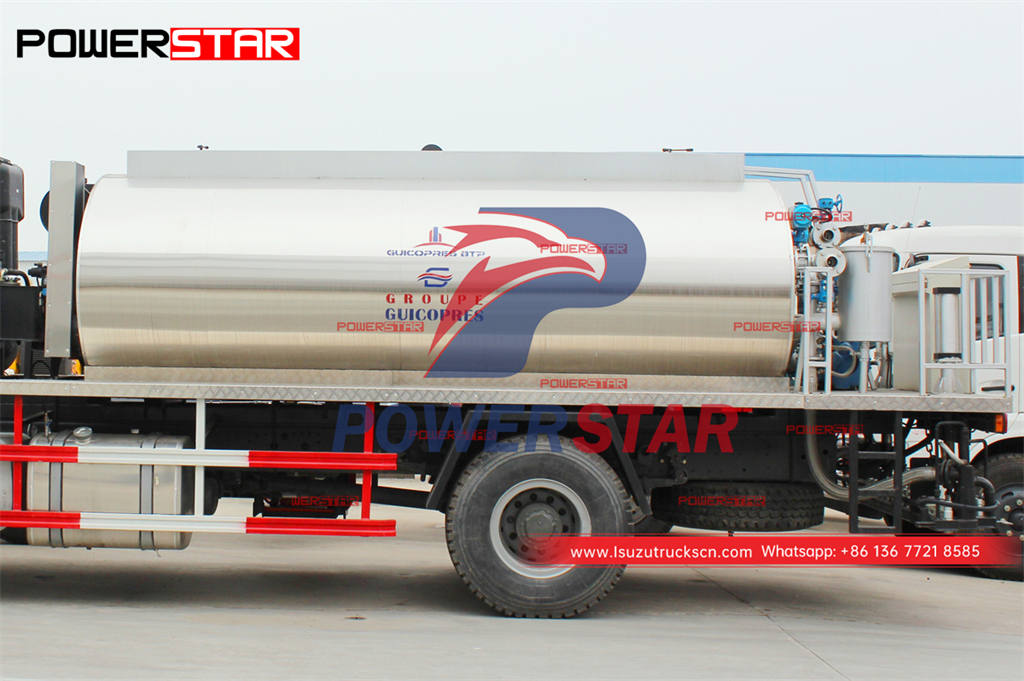

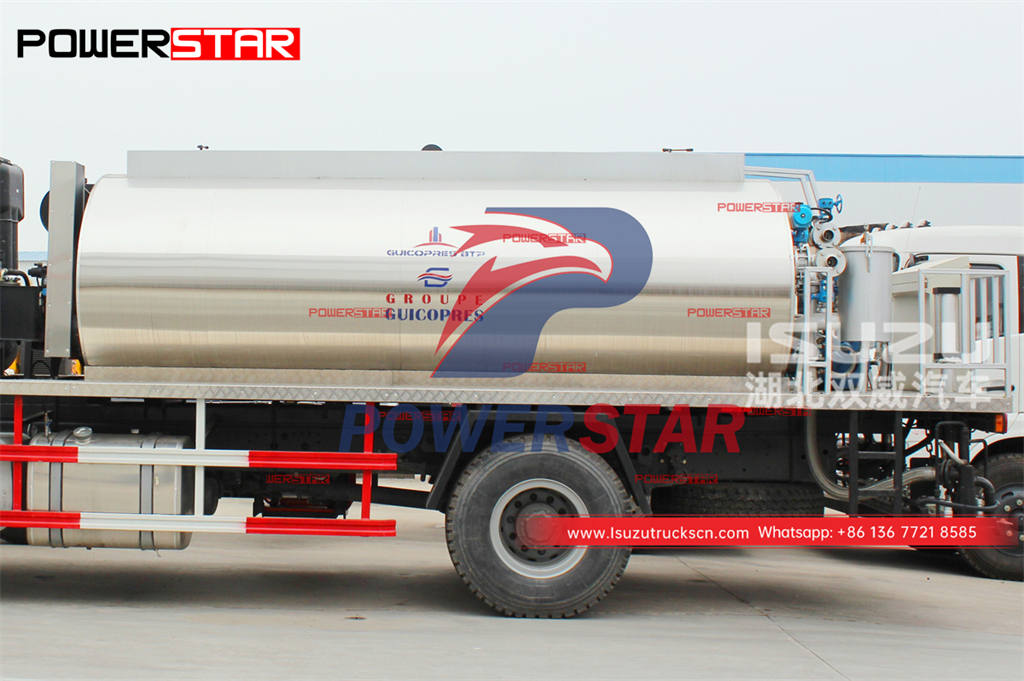

Custom made example of ISUZU FTR 12tons Bitumen Sprayer Truck
