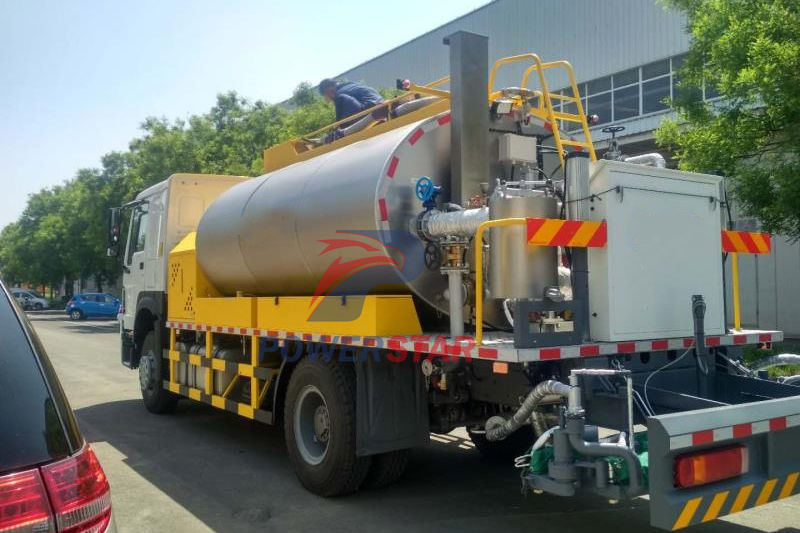

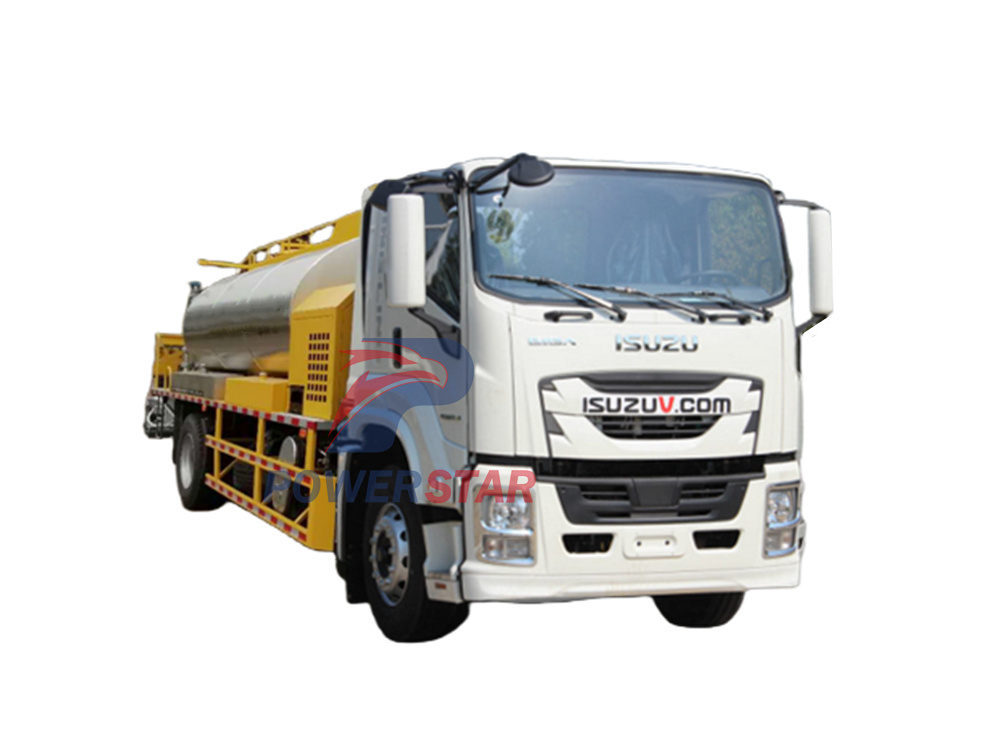

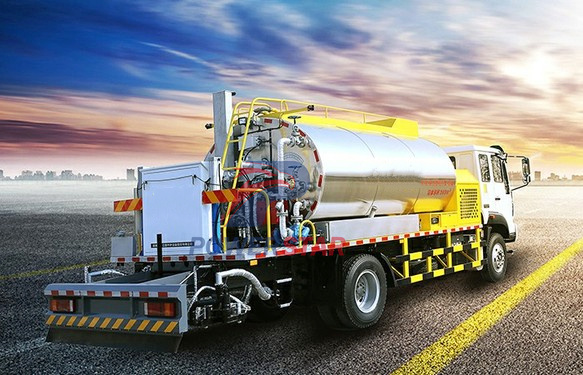

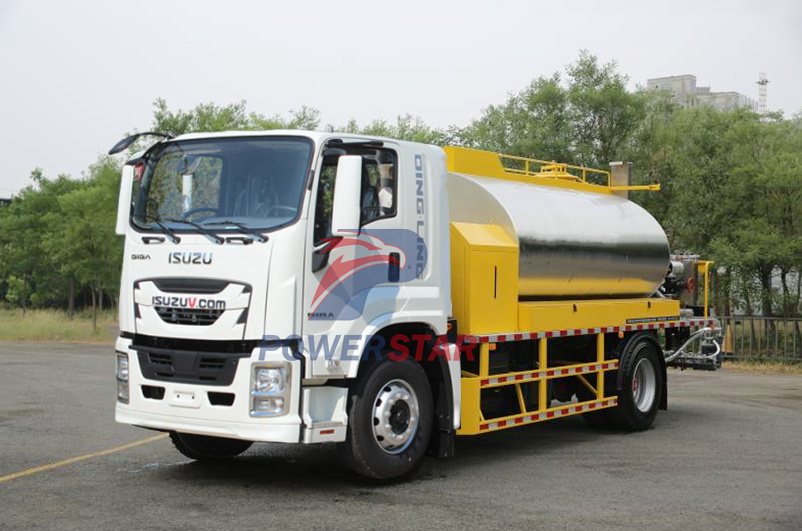

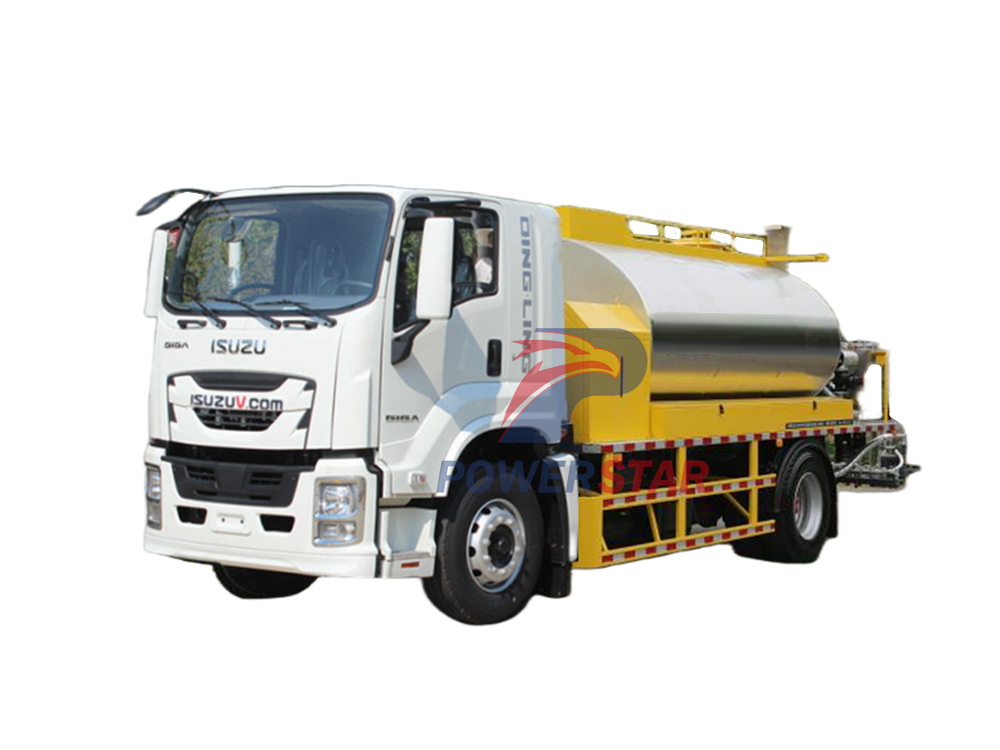

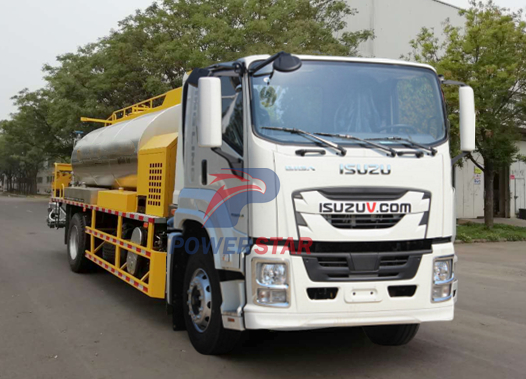

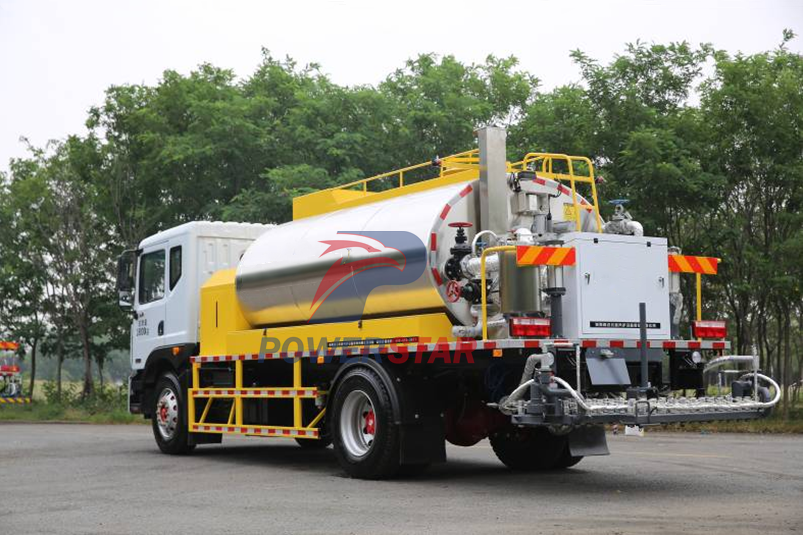

Isuzu New FTR 8000L Asphalt Spreader truck
Isuzu New FTR 8000L Asphalt Spreader truck is an eye-catching road paving tool, which combines Isuzu's excellent engineering technology and innovative design. The vehicle has a capacity of 8000L, a powerful Isuzu 4HK1-TC60 engine and a 26 Kw Auxiliary Engine. This Isuzu asphalt spreader truck stands out in the road construction industry with its excellent performance and efficient paving capabilities.
Work capacity:
8000LTruck model:
PT5160GZREngine power:
205HP/150kwEngine type:
Isuzu 4HK1-TC60Axle drive:
4×2,LHDGear box:
Isuzu MLD 6 speed,manualRemarks:
8000L tank capacityIsuzu New FTR 8000L Asphalt spreader truck produced by POWERSTAR is a asphalt spreading machinery products that are both easy to operate and economical and practical. Our asphalt spreader truck is equipped with an 8000 liter asphalt tank and is designed for large-scale road construction. It has a high engine power of 220PS, the asphalt is heated by thermal oil, and has automatic temperature control.
The Isuzu New FTR 8000L Asphalt spreader truck can spray the heated asphalt in manual or automatic mode. For automatic control, the operator only needs to set the spraying amount, and the truck can automatically turn on the speed detector. Then, the automatic control system will adjust the speed of the asphalt pump according to the vehicle speed to make the asphalt road surface uniform.
|
Isuzu FTR 8000L Asphalt Spreader Truck |
||
|
General |
Truck Model |
PT5160GZR |
|
Cab |
Isuzu new FTR single row,3 seats,with A/C,USB... |
|
|
Dimension (L×W×H) |
8350×2500×3150 mm |
|
|
GVW/Curb weight |
16000/7850kg |
|
|
Drive Type |
4×2,LHD |
|
|
Max speed |
95km/h |
|
|
Engine |
Engine Type |
4 cylinders in line, 4-stroke,water cooling, turbo-charged diesel engine, inter-cooling |
|
Engine model |
Isuzu 4HK1-TC60 |
|
|
Horse power |
205HP/150kw |
|
|
Fuel Type |
Diesel |
|
|
Emission Standard |
Euro 6 |
|
|
Displacement |
5193ml |
|
|
Auxiliary Engine Model |
4TE35A-39A |
|
|
Auxiliary Engine Power |
26 Kw/35HP |
|
|
Chassis |
Chassis Brand |
Isuzu |
|
Wheelbase |
4500mm |
|
|
Tire No. |
6+1 |
|
|
Tire size |
295/80R22.5 |
|
|
Axle No. |
2 |
|
|
Steering Wheel |
With power-assisted |
|
|
Gear Box |
Isuzu MLD 6 speed forward with 1 reverse, manual |
|
|
Brake |
Air brake |
|
|
Tank |
material |
Stainless steel/carbon steel |
|
capacity |
8000L |
|
|
Asphalt Pump |
Famous brand |
|
|
Spray |
Width |
6000 mm |
|
Volume |
0.2-3 kg/㎡ |
|
|
Precision |
1% |
|
|
Medium |
Modified asphalt, hot asphalt, emulsified asphalt and other asphalt media |
|
|
Apply |
road paving,etc |
|
|
Asphalt Heating Method |
Imported diesel burner (calorific value 10×10⁴kcal/h) |
|
|
Asphalt Heating Rate |
12 ℃/h |
|
|
Equipment |
The intelligent asphalt spreader truck consists of a car chassis, an asphalt tank, an asphalt pumping and spraying system, a thermal oil heating system, a hydraulic system, a combustion system, a control system, a pneumatic system, and an operating platform. |
|
Isuzu New FTR 8000L Asphalt Spreader Truck: Black Artist of Highway Construction
On the busy highway construction site, heavy trucks shuttle back and forth, carrying various construction materials and contributing to the paving and maintenance of roads. Among them, Isuzu New FTR 8000L Asphalt Spreader Truck has become a star in the hearts of many builders with its excellent performance and unique charm. This truck is not only a capable assistant for highway construction, but also a creator of art on black asphalt.
Attractive appearance
Isuzu New FTR 8000L Asphalt Spreader Truck reveals an extraordinary temperament from its appearance. The body lines are smooth and powerful, like a lion ready to go, ready to gallop on the road. Its unique body design is not only beautiful and generous, but also reaches the extreme in practicality. The spacious cab provides a comfortable control environment for the driver, and the various control buttons and dashboards are reasonably arranged, allowing the driver to operate with ease.
In terms of power, this truck is equipped with Isuzu's advanced 4HK1-TC60 205HP diesel engine. This engine is known for its strong power output and efficient fuel economy, providing a steady stream of power for the truck's travel. Whether on a flat highway or on a rugged mountain road, the Isuzu GIGA 8000L Asphalt Sprayer Truck can easily cope with it and show its excellent power performance.

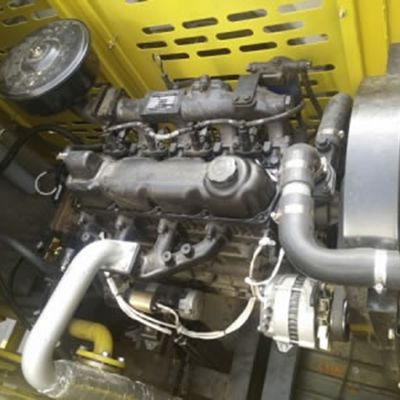

High efficiency auxiliary engine
The vehicle is also equipped with a 26 Kw auxiliary engine, which uses advanced technology and design concepts to ensure efficient and stable power output. It is like a tireless partner, always ready to provide additional power support for the truck. In the asphalt paving process , the auxiliary engine plays a vital role. It drives the asphalt spreading system to ensure that the asphalt can be evenly and continuously spread on the road surface, thereby ensuring the paving quality.
This auxiliary engine also has excellent fuel economy. During long working hours, it can maintain a low fuel consumption rate, which not only reduces construction costs, but also reflects Isuzu's commitment to environmental protection and energy saving. At the same time, its advanced emission system ensures the reduction of emissions and reduces the impact on the environment, making the Isuzu New FTR 8000L Asphalt Spreader Truck also outstanding in environmental protection.
In addition to providing power for the asphalt spreading system, the 26 Kw auxiliary engine also provides other support for the entire vehicle. For example, when additional power is needed for climbing or accelerating, the auxiliary engine can respond quickly and provide additional power support to the main engine, allowing the truck to cope with various complex road conditions more easily. This not only improves construction efficiency, but also ensures driving safety.
However, the charm of the Isuzu FTR GIGA 8000L Asphalt Distributor Truck goes far beyond this. As a professional asphalt spreader, it shows unparalleled professionalism in the paving of asphalt. With an asphalt storage capacity of 8,000 liters, it can complete large-scale asphalt paving tasks at one time. The asphalt paving machine is well designed and evenly distributes asphalt on the road, ensuring that the quality of the entire road surface is uniform and stable, greatly improving work efficiency. Its precise asphalt spreading system ensures that each paving can achieve the best results, making the paved road smooth and of high quality.
In addition, Isuzu FTR Asphalt Spreader truck also focuses on environmental protection and energy saving. Its advanced emission system and fuel economy design enable it to reduce pollutant emissions during construction and reduce the impact on the environment. This not only conforms to the environmental protection concept of modern society, but also reflects Isuzu's commitment to social responsibility.
Main Features
The Isuzu FTR chassis offers numerous benefits for vehicle users, including a large carrying capacity, a high engine power output, low fuel consumption and exhaust output, simple operation, and reliable braking.
Equipped with an auxiliary engine for heating the asphalt during transport. By thanks to this, the construction time is shorter, and the work efficiency can be increased.

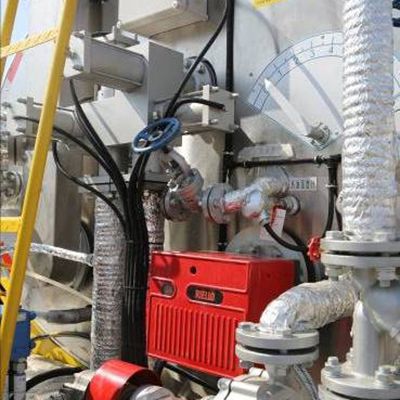

The asphalt tank is equipped with diesel burner to achieve high combustion efficiency, high heat rate, as well as safe and stable operation.

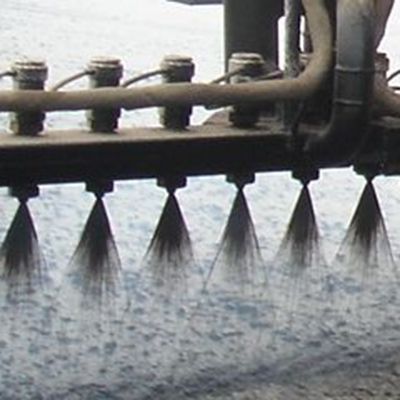

The high precision spray nozzle equipped can guarantee uniform spray and superior spraying effect.

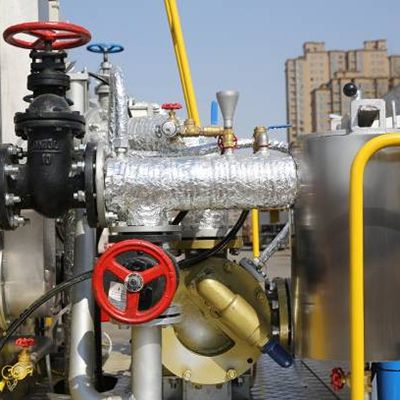

The asphalt pump adopts the gear pump purchased from Viking for good performance of self-priming, wide range of rotation speed, good sealing performance and stable flow rate.

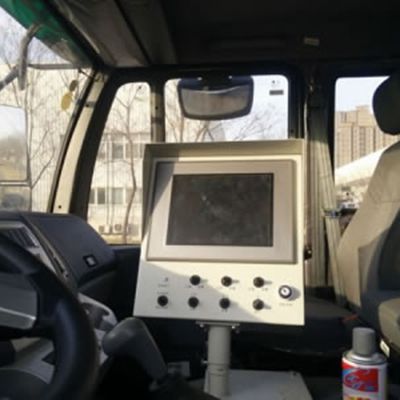

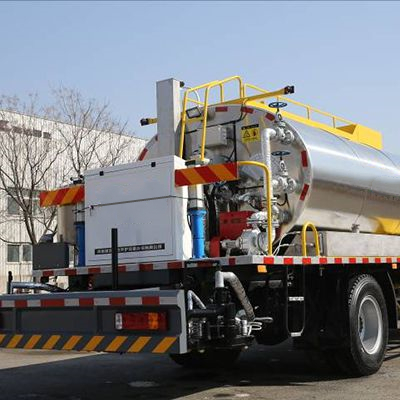

The asphalt distributor truck can be operated in the operator cab or on the rear operation platform.

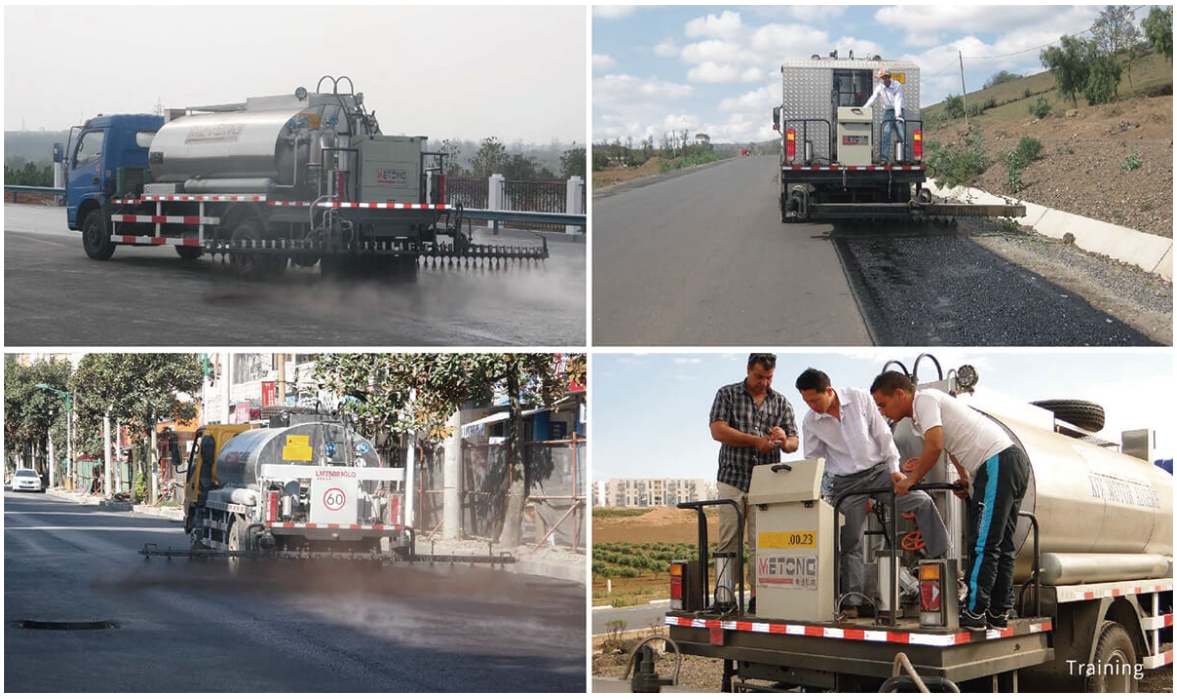

Asphalt paving scene
