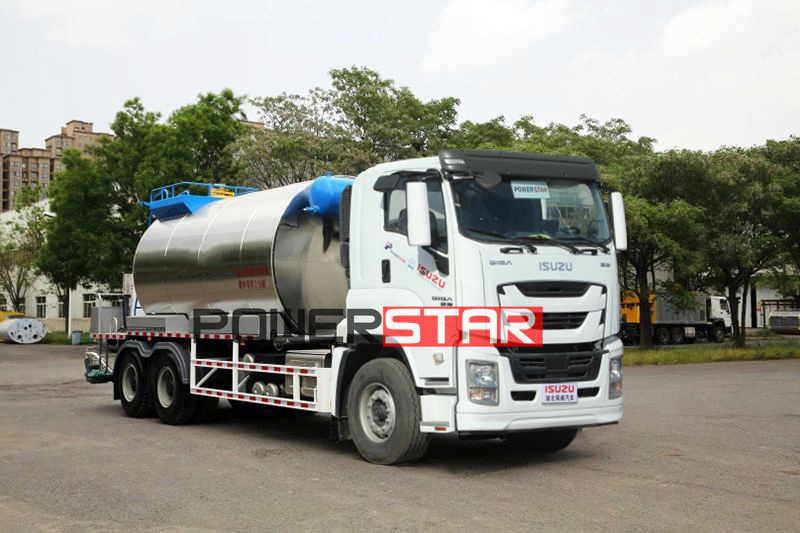

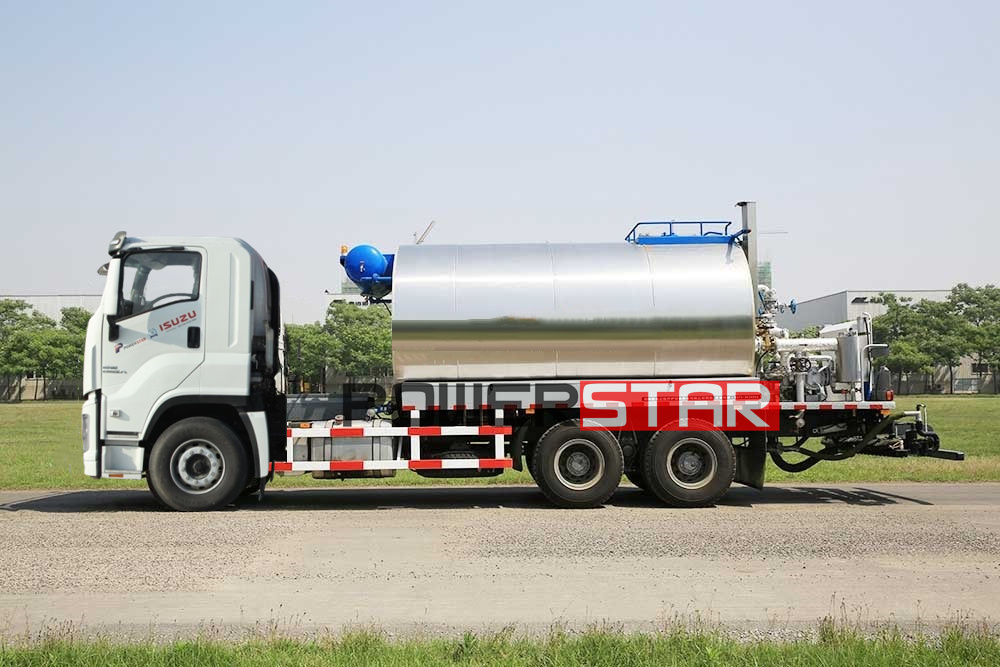

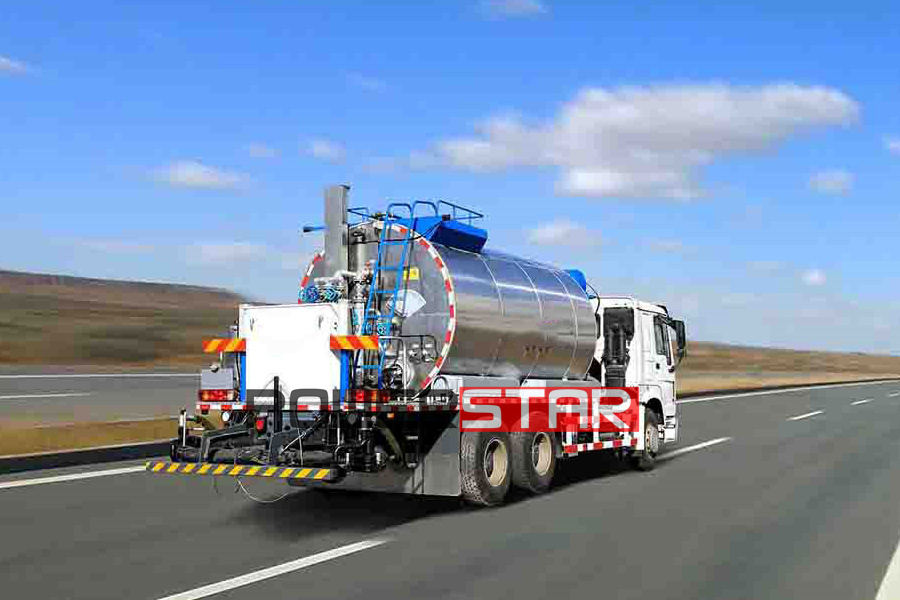

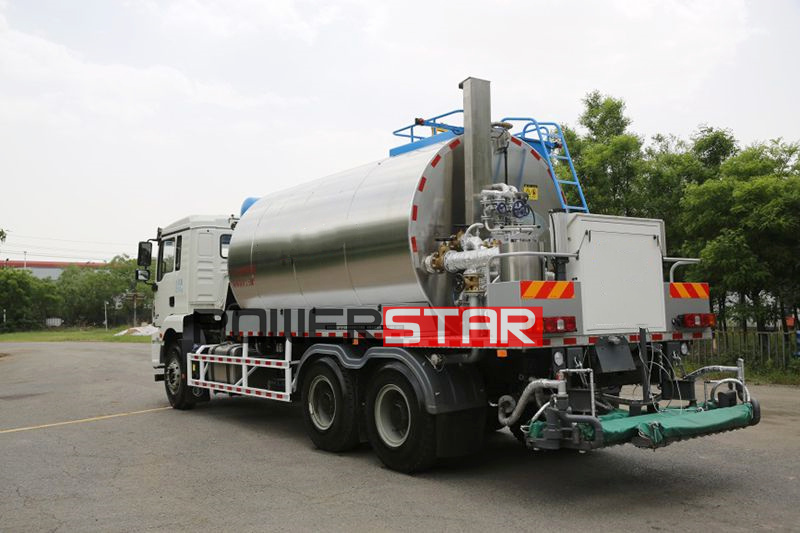

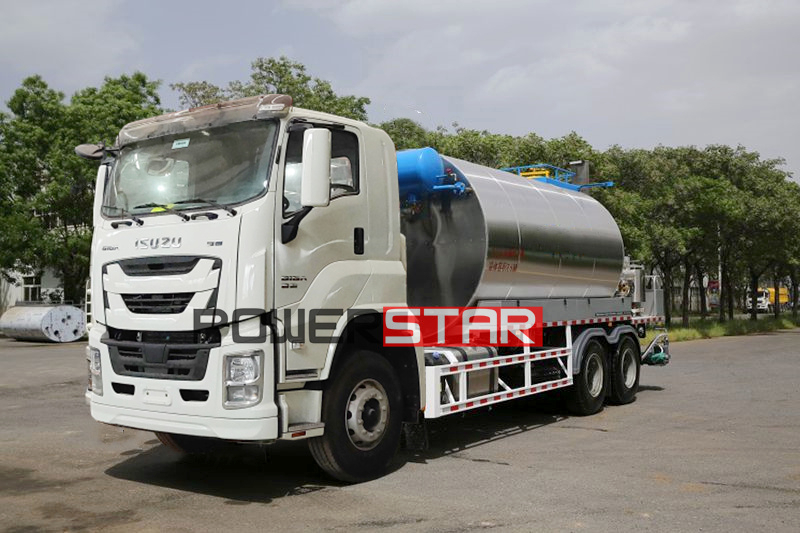

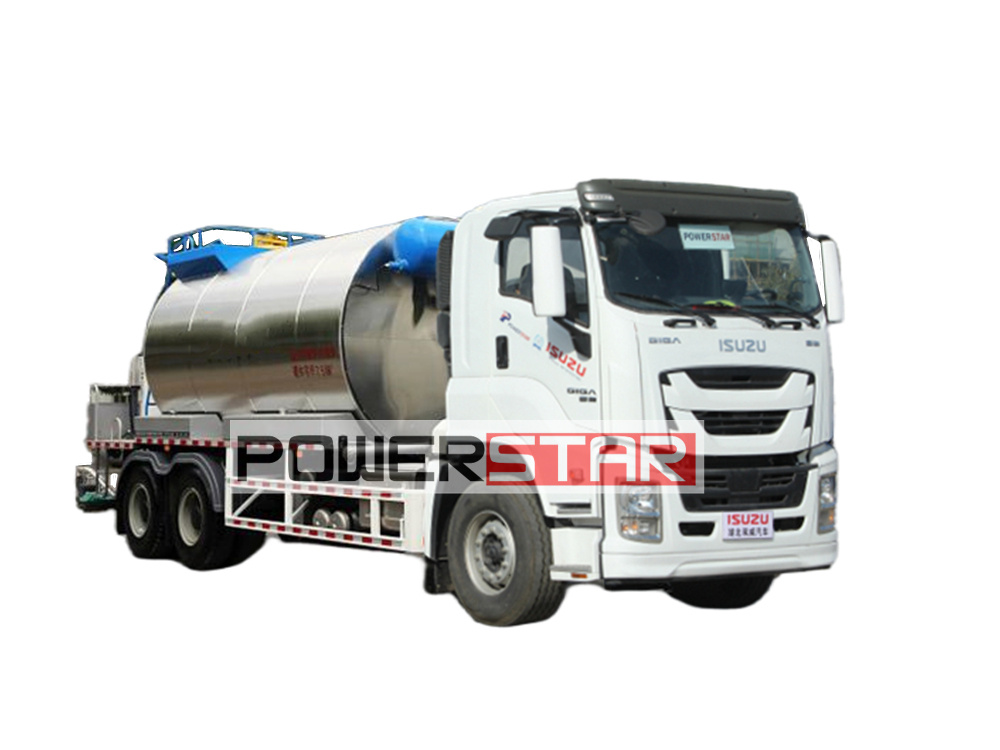

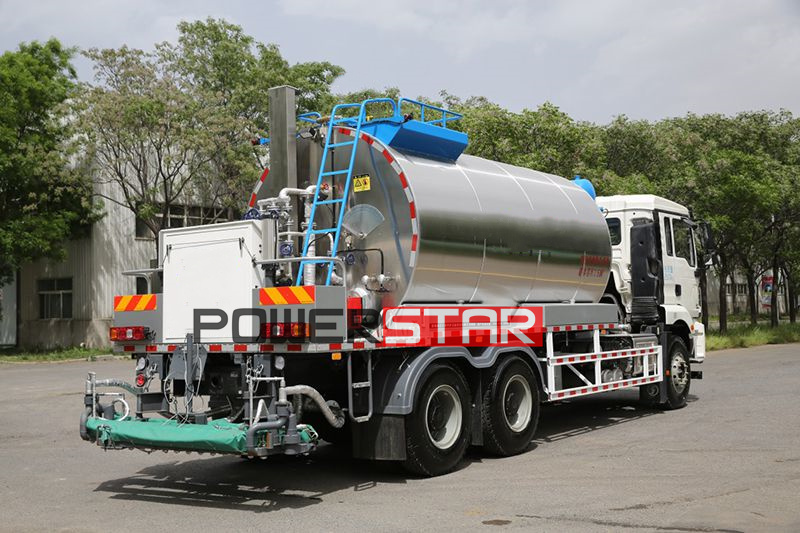

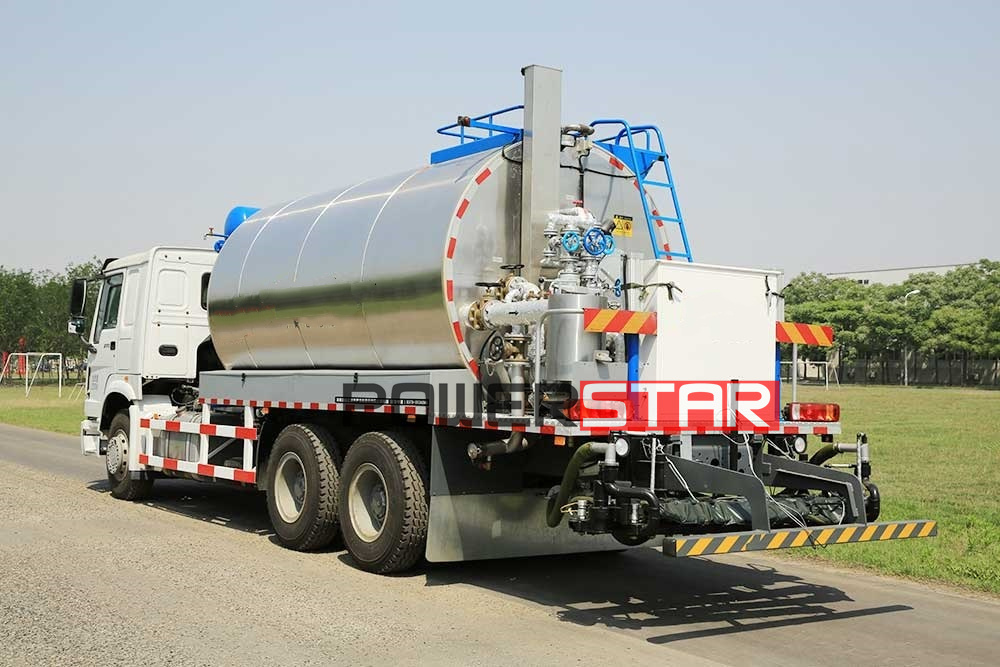

Isuzu GIGA 6x4 14000L bitumen distributor truck
POWERSTAR specializes in manufacturing asphalt repair and maintenance equipment and is a reliable asphalt paving truck manufacturer and supplier. This asphalt paving truck has a large 14,000 liters asphalt tank and a high-powered 380HP engine, suitable for heating and spraying modified asphalt and emulsified asphalt. We recommend this asphalt paving truck because it is equipped with a fully automatic asphalt dispensing system, high efficiency, and good asphalt tank insulation performance, suitable for road construction and maintenance applications on large construction sites.
Work capacity:
14000LTruck model:
PT5250GZREngine power:
380HPEngine type:
6UZ1-TCG61Axle drive:
6×4,LHDGear box:
FAST 12-speed, manualRemarks:
14000L spraying capacityIsuzu GIGA 14000L fully automatic asphalt distributor is an easy-to-operate, economical and practical asphalt distributor produced by our company. It is a construction equipment for distributing emulsified asphalt, diluted asphalt, hot asphalt, hot modified asphalt and various adhesives.
On a busy road construction site, an efficient and reliable asphalt distributor is an important tool to ensure the quality and progress of the project. Isuzu GIGA 6x4 14000L Bitumen Distributor Truck is such a high-quality product that combines performance and practicality. It not only carries the excellent quality of the Isuzu brand, but also becomes a powerful assistant in the field of road construction with its powerful functions and humanized design.
Key Features:
★ The intelligent nozzle has strong atomization capability so that the asphalt could be evenly spraved and the pavement could withstand more pressure and water penetration.
★ PLC regulating spray volume automatically
★ lmported heat-resistance seal elements
★ Burner hood of optimization design preventing damages by asphalt eruption through manhole
★ High-viscosity asphalt pump
★ Warning signs and lighting installation for working at night
★ Capacity can be customized 4000L,6000L,8000L,10000L,15000L and so on.
|
Isuzu GIGA 6X4 14000L bitumen distributor truck |
||
|
General |
Truck Model |
PT5250GZR |
|
Cab |
Isuzu GIGA 6x4 cabin,one and half row,3 passengers,with A/C,USB... |
|
|
Dimension (L×W×H) |
10150×2550×3860 mm |
|
|
GVW/Curb weight |
25000/10850kg |
|
|
Drive Type |
6×4,LHD |
|
|
Max speed |
89km/h |
|
|
Engine |
Engine Type |
6 cylinders in line, 4-stroke,water cooling, turbo-charged diesel engine, inter-cooling |
|
Engine model |
Isuzu 6UZ1-TCG61 |
|
|
Horse power |
380HP/279kw |
|
|
Fuel Type |
Diesel |
|
|
Emission Standard |
Euro 6 |
|
|
Displacement |
9839ml |
|
|
Maximum Torque |
1800N.m |
|
|
Auxiliary Engine Model |
4TE35A-39A |
|
|
Auxiliary Engine Power |
26 Kw/35HP |
|
|
Chassis |
Chassis Brand |
Isuzu |
|
Wheelbase |
4600+1370mm |
|
|
Tire No. |
10+1 |
|
|
Tire size |
315/80R22.5 |
|
|
Axle No. |
3 |
|
|
Steering Wheel |
With power-assisted |
|
|
Gear Box |
FAST 12-speed, manual |
|
|
Brake |
Air brake |
|
|
Tank |
Material |
Stainless steel/carbon steel |
|
Capacity |
14000L |
|
|
Asphalt Pump |
Famous brand |
|
|
Spray |
Width |
6000 mm |
|
Volume |
0.2-3 kg/㎡ |
|
|
Precision |
1% |
|
|
Medium |
Modified asphalt, hot asphalt, emulsified asphalt and other asphalt media |
|
|
Apply |
road paving,etc |
|
|
Asphalt Heating Method |
Thermal oil heating (with automatic temperature control) |
|
|
Asphalt Heating Rate |
12 ℃/h |
|
|
Burner Power |
20×104 kcal/h |
|
|
Recommended Construction Speed |
3-10 km/h |
|
|
Equipment |
The intelligent asphalt spreader truck consists of a car chassis, an asphalt tank, an asphalt pumping and spraying system, a thermal oil heating system, a hydraulic system, a combustion system, a control system, a pneumatic system, and an operating platform. |
|
Isuzu GIGA 6x4 14000L Asphalt Spreader: A Powerful Tool for Road Maintenance
As a leader in the field of road maintenance and construction, the Isuzu GIGA 6x4 14000L Asphalt Spreader has won wide acclaim for its excellent performance, powerful power and efficient spraying and paving capabilities.
Powerful Heart: 6UZ1-TCG61 380HP Engine
The core power of the GIGA 6x4 14000L Asphalt Spreader comes from the 6UZ1-TCG61 380HP engine. This engine is well-known for its excellent power performance and reliability, providing the vehicle with a steady stream of power output. The powerful power of 380 horsepower enables the vehicle to handle various complex road conditions and heavy-load tasks with ease. At the same time, the engine also uses advanced fuel injection technology and emission control technology, which not only reduces fuel consumption, but also reduces the emission of harmful substances, meeting modern environmental protection requirements.
Efficient auxiliary power: 26kw 4TE35A-39A auxiliary engine
In addition to the main engine, the GIGA 6x4 14000L asphalt spreader is also equipped with a 26kw 4TE35A-39A auxiliary engine. This auxiliary engine is mainly used to drive the spraying system and paving system of the vehicle, ensuring the precise spreading and uniform paving of asphalt. The addition of the auxiliary engine not only improves the working efficiency of the vehicle, but also reduces the load of the main engine and extends the service life of the vehicle.
Excellent spraying and paving capabilities
The spraying and paving capabilities of the GIGA 6x4 14000L asphalt spreader are one of its biggest highlights. The vehicle is equipped with a 14,000-liter ultra-large capacity tank, which can load enough asphalt materials to meet the needs of long-term and large-scale spraying and paving. At the same time, advanced heating and insulation technology is used inside the tank to ensure the temperature stability of the asphalt material and avoid affecting the spraying effect due to temperature fluctuations.
In terms of the spraying system, GIGA 6x4 14000L uses advanced spraying technology and control systems. The spraying system can accurately adjust the spraying amount and spraying width of asphalt according to the needs of road maintenance, ensuring that each spraying can achieve the best effect. At the same time, the control system also has an intelligent control function, which can automatically adjust the spraying parameters according to parameters such as vehicle speed and road conditions, greatly improving work efficiency and spraying quality.
Excellent road maintenance effect
With a powerful power system and efficient spraying and paving capabilities, the GIGA 6x4 14000L asphalt spreader has shown excellent results in the field of road maintenance. Whether it is a highway, urban road or rural road, the vehicle can easily cope with various complex road conditions and spraying needs. The road surface after spraying is flat and smooth, and the asphalt material is evenly distributed, which greatly improves the durability and service life of the road.
In addition, GIGA 6x4 14000L also has excellent environmental performance. The vehicle adopts advanced emission control technology and noise control technology to ensure that the impact on the environment is minimized during the work process. At the same time, the vehicle is also equipped with various safety protection measures and driving assistance systems to provide drivers with all-round safety protection and comfortable driving experience.
