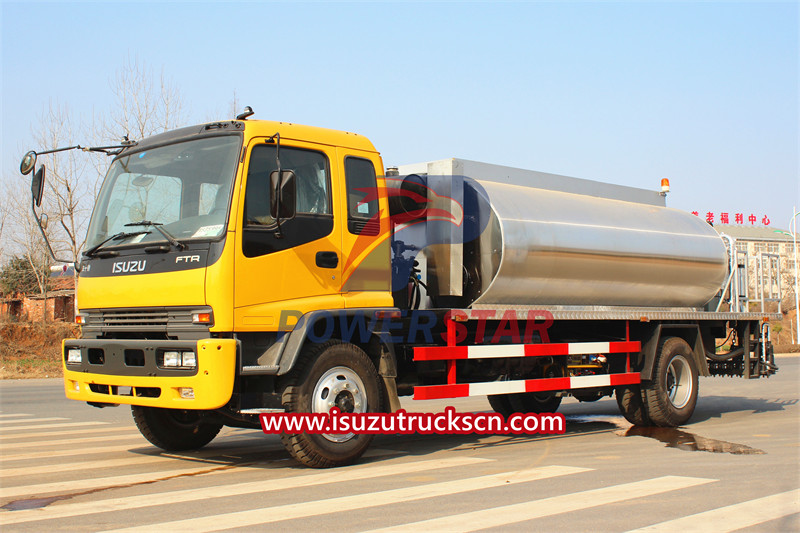

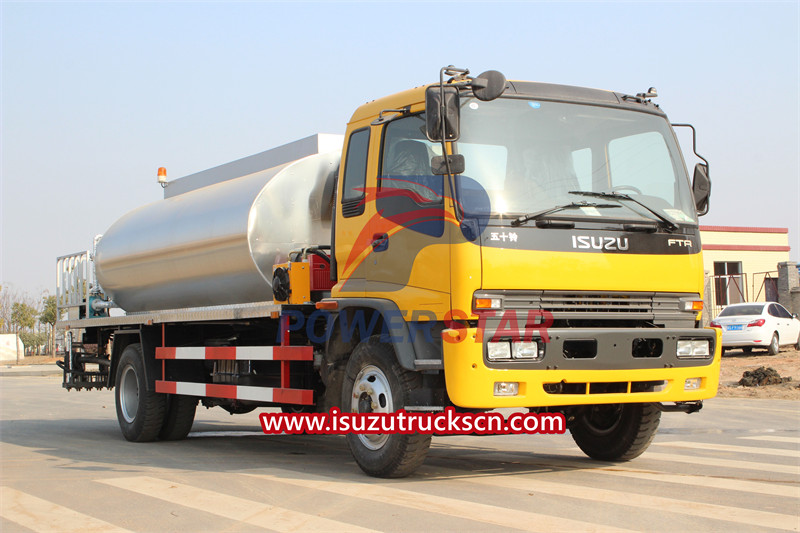

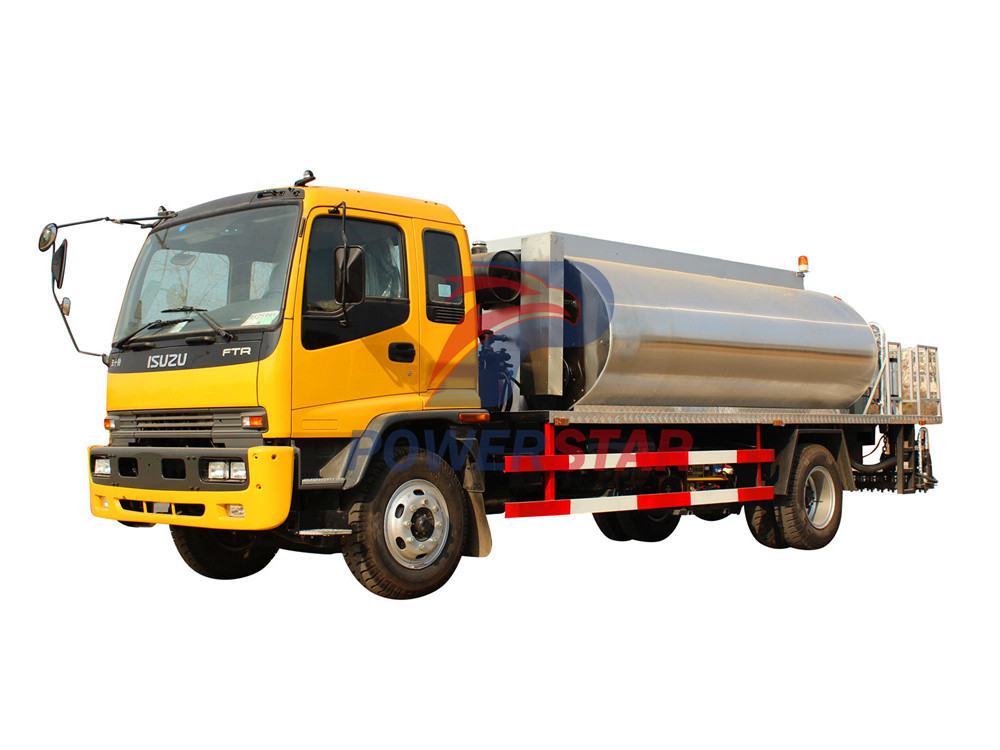

ISUZU FTR Asphalt Distributor Truck
Asphalt distributor truck is one of the main equipment used in the construction and maintenance of asphalt pavement, which can effectively improve the construction speed and quality of the pavement. Isuzu asphalt distributor truck consists of Isuzu chassis, asphalt tank, asphalt pumping and spraying system, thermal oil heating system, hydraulic system, combustion system, control system, pneumatic system, operating platform and other parts. It can be used to transport and spread liquid asphalt, including hot asphalt, emulsified asphalt and residual oil.
Work capacity:
8 CBMTruck model:
PT5180GLSEngine power:
205 HPEngine type:
4HK1-TC50Axle drive:
4×2Gear box:
MLD 6-speed, manualRemarks:
ISUZU FTR chassis, large bitumen tank, automatic control system
Isuzu asphalt distributor truck is a professional road construction machine that is used in various road construction, maintenance, repair and reconstruction projects. Its main function is to evenly spread asphalt materials on the road surface to achieve bonding, densification and Waterproof function. Isuzu asphalt distributor trucks use spraying methods to spray asphalt, covering it evenly and forming a thin film on the road surface to protect the road and enhance its strength and durability.
Isuzu asphalt distributor truck is composed of Isuzu chassis, distribution system, heating system, transmission system and control system. Among them, the spreading system and heating system are the core parts of the asphalt spreading truck.

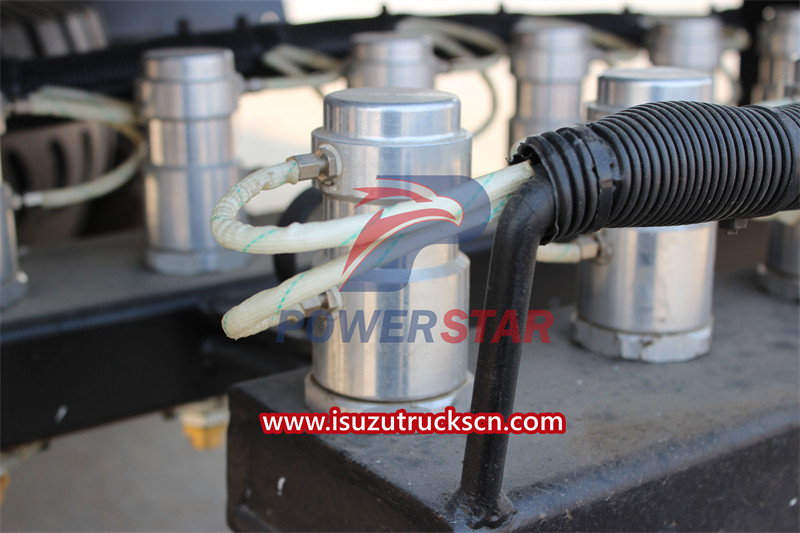

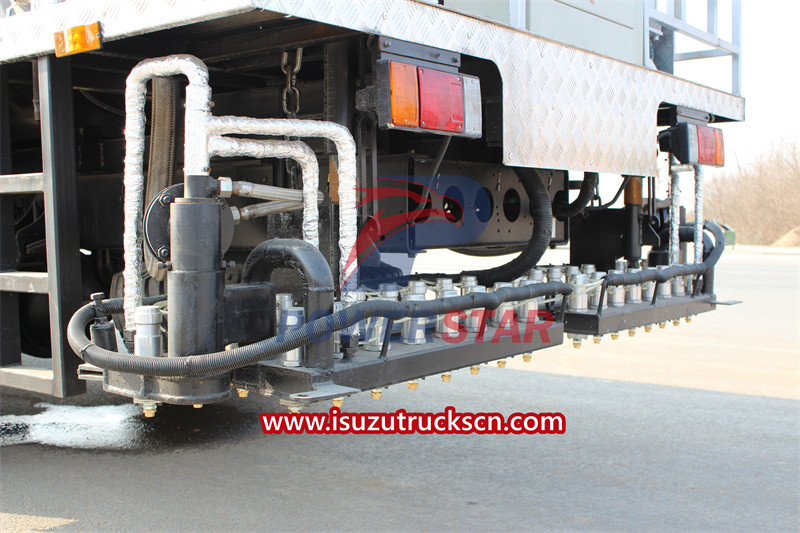

The distribution system of the Isuzu asphalt distributor truck uses spray technology to transport hot asphalt from the storage tank to the spreader, and spray the hot asphalt evenly on the road surface through the nozzle to achieve compaction and solidification of the road surface.
The heating system of the Isuzu asphalt distributor truck uses an oil furnace to heat the asphalt to the required temperature so that it becomes a fluid state so that it can be transported to the spreader through the delivery pipe for spraying.

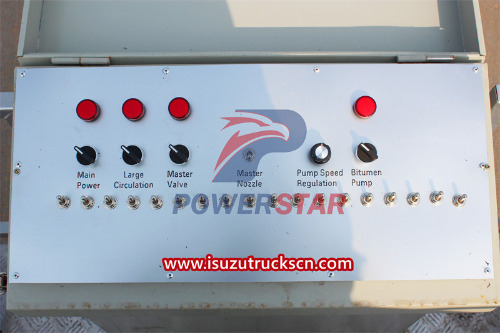

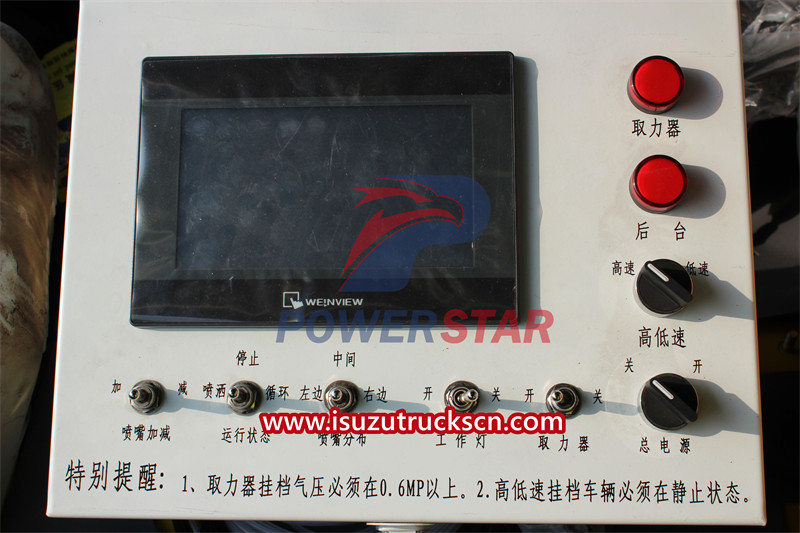

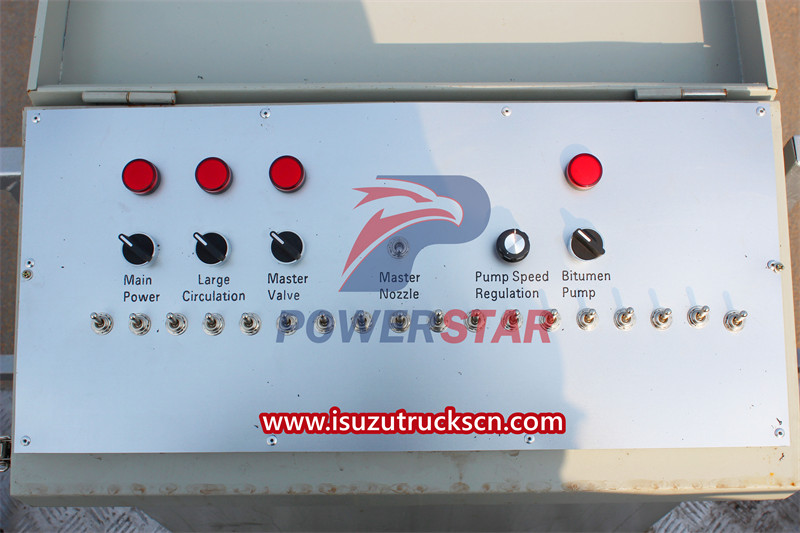

During the work process, the Isuzu asphalt distributor truck first transports hot asphalt from the oil storage tank to the heating system for heating, and then transports the heated hot asphalt to the spreader for spraying. The driver can adjust the asphalt spraying volume and flow through the control system, and control the asphalt spraying speed and range.
Product Specifications
|
Vehicle Specifications |
||
|
Cab |
Single, with power steering. |
|
|
Driving Type |
4*2 left hand drive |
|
|
Max Speed (km/h) |
90 |
|
|
Overall dimension(mm) |
8790*2480*2840mm |
|
|
GVW( kg) |
18000 |
|
|
Wheelbase(mm) |
4500 |
|
|
F/R overhang (mm) |
1200/1545 |
|
|
Approach/Departure Angel |
16/23 |
|
|
Tire |
10.00R20 |
|
|
Engine |
Model |
4HK1-TC50 |
|
Fuel Type |
Diesel |
|
|
Type |
Water-cooled four-stroke, direct injection, turbocharged |
|
|
Exhaust(ml) |
5193 |
|
|
Power |
205 HP |
|
|
Emission standar5d |
Euro 5 |
|
|
Brake system |
Service Brake |
Air over hydraulic dual circuit system |
|
Park Brake |
Mechanical, internal expanding acting on transfer output shaft |
|
|
Electric system |
24v |
|
|
Upper-Body specifications |
||
|
Tank Volume (m3) |
8 |
|
|
Asphalt pump discharge(L/min) |
950 |
|
|
distribution width measurement(mm) |
4500-6000 |
|
|
Distribution height from ground level(mm) |
200~450 |
|
|
Sprinkle Density(kg/m2) |
0.2-3.0 |
|
|

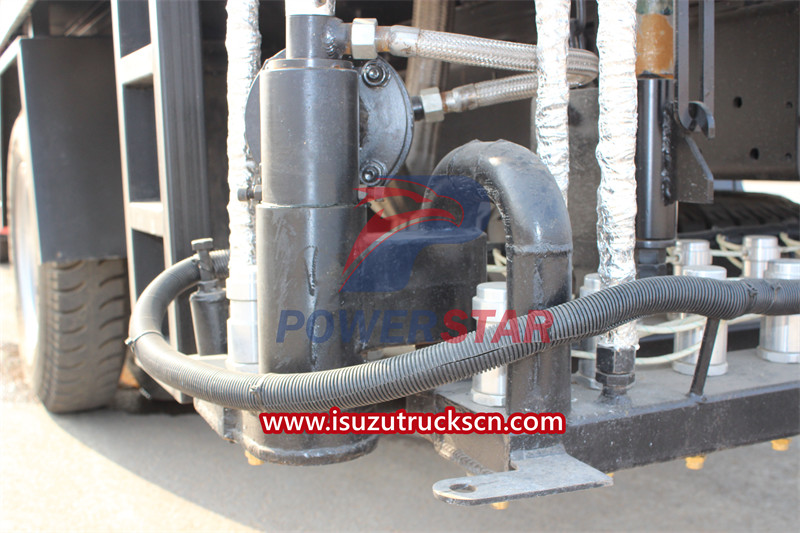

Burner |
G20 |
|
|

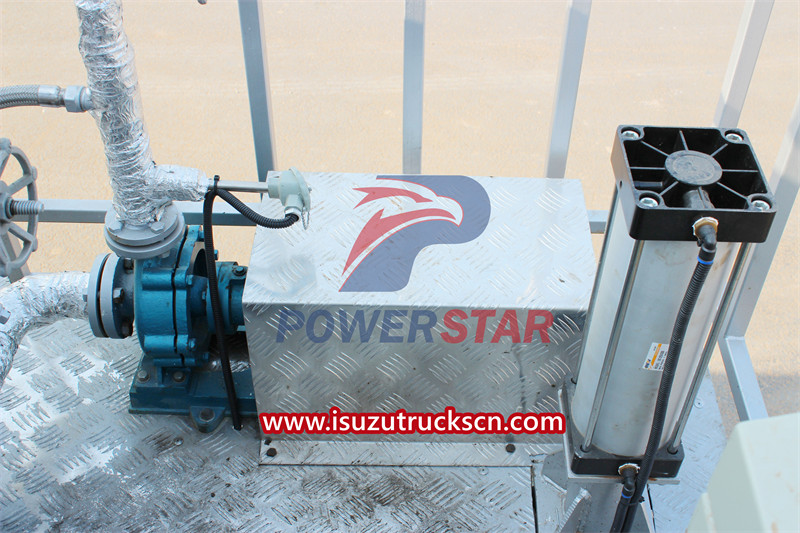

Asphalt pump |
QGB950 |
|
|
Asphalt pump hydraulic motor |
05-110-BD31 |
|
|
Heating Model |
Thermal fuel Automatic heating |
|
 |
 |
 |
 |
 |
 |
Product Advantages
As an important equipment in road construction, Isuzu asphalt distributor trucks have many significant advantages. The following are the advantages of this equipment in road construction:
1. Efficient spreading: Isuzu asphalt distributor trucks are equipped with high-performance asphalt pumps and spraying systems, which can transport and spray asphalt quickly and accurately. This not only improves construction efficiency, but also shortens the construction period and reduces labor costs.
2. Uniform coverage: This equipment ensures that the asphalt evenly covers the entire road surface by precisely controlling the spray volume, spray width and spray height. Compared with traditional manual spreading methods, Isuzu asphalt distributor trucks can avoid problems such as leakage and heavy spreading, and achieve a more uniform coating effect.
3. Cost saving: The use of Isuzu asphalt distributor trucks can reduce construction costs. The operating costs of this equipment are relatively low, including fuel consumption, maintenance costs, etc. Due to its efficient operation and uniform coating, it can reduce the waste of raw materials, thereby reducing costs.
4. High construction quality: The uniform coating and reliable and stable performance of Isuzu asphalt distributor trucks ensure the construction quality of the road. This not only increases the service life of the road surface, but also enhances the safety of the road surface.
5. High degree of automation: The ISUZU asphalt distributor trucks come with an advanced control system, which can monitor the spraying of asphalt in real time and automatically adjust parameters. This reduces manual intervention and errors and increases the automation of construction. The advantages of a high degree of automation also include improved construction accuracy, reduced labor costs and human errors, etc.
The importance of Isuzu asphalt distributor trucks in road construction
1. Improve construction efficiency
Isuzu asphalt distributor trucks play an important role in road construction and can significantly improve construction efficiency. Traditional asphalt spreading methods require a lot of manual operations, are inefficient and error-prone. Isuzu asphalt distributor trucks use mechanical automation technology to quickly and accurately complete asphalt spreading work, greatly shortening the construction cycle and improving construction efficiency. This can not only reduce construction time, but also reduce work errors caused by human factors and ensure construction progress and quality.
2. Ensure construction quality
Isuzu asphalt distributor trucks use advanced control and metering systems to achieve precise control of spreading volume, spreading width and spreading speed. This makes the asphalt spread more evenly and avoids problems such as uneven asphalt distribution and leakage that occur in traditional manual spreading methods. Precise spreading control can ensure construction quality, improve road durability and safety, and reduce the workload of subsequent maintenance and repairs.
3. Extend the service life of roads
Isuzu asphalt distributor trucks can ensure that the asphalt is evenly covered on the road surface during road construction, forming a complete and continuous waterproof layer. This can not only enhance the waterproof performance of the road surface, but also improve the smoothness and durability of the road surface. A uniform asphalt cover can reduce cracks and damage to the road, delay the aging and damage of the road, and thereby extend the service life of the road.
4. Reduce maintenance costs
The use of Isuzu asphalt distributor trucks can reduce road maintenance costs. Because the asphalt is spread evenly, the possibility of road damage is reduced and the repair costs caused by road damage are reduced. At the same time, precise control and metering systems can reduce unnecessary waste of asphalt and reduce material costs. Taken together, the use of asphalt distributor trucks can reduce road maintenance costs and improve the economic benefits of road construction and maintenance.
