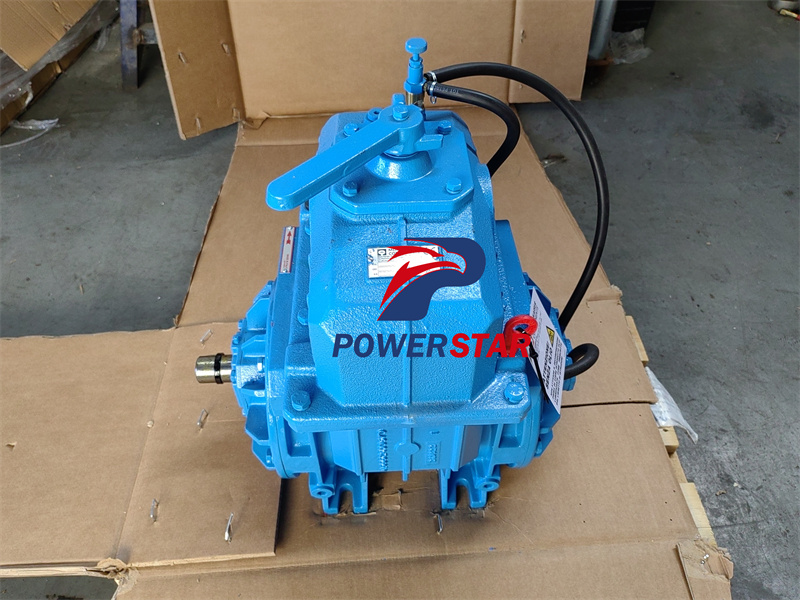

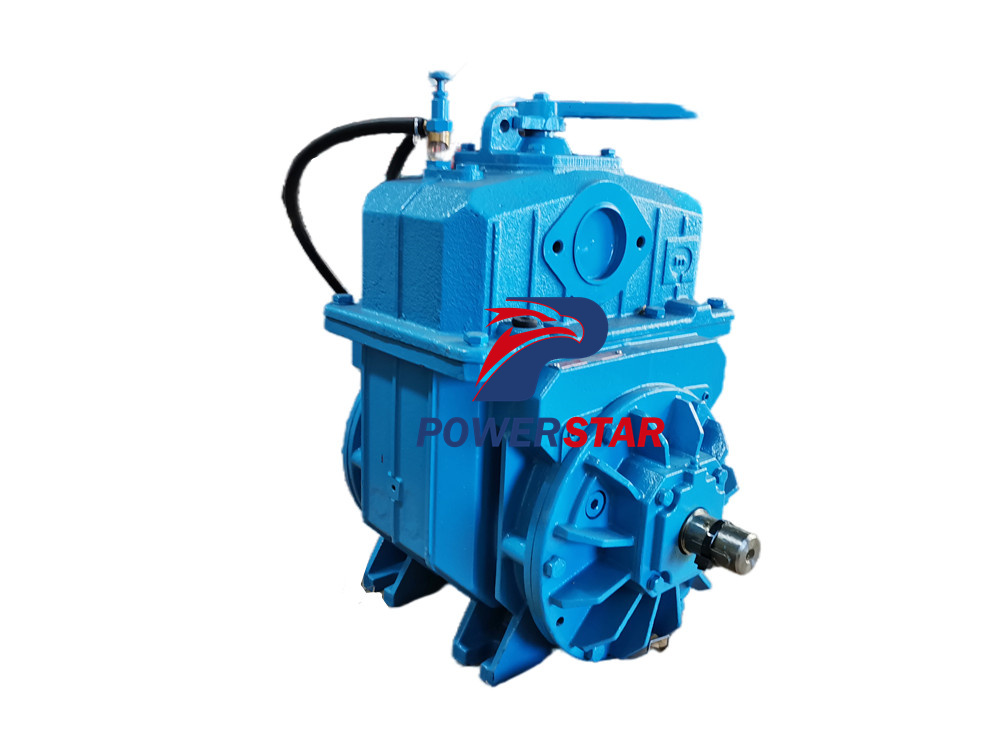

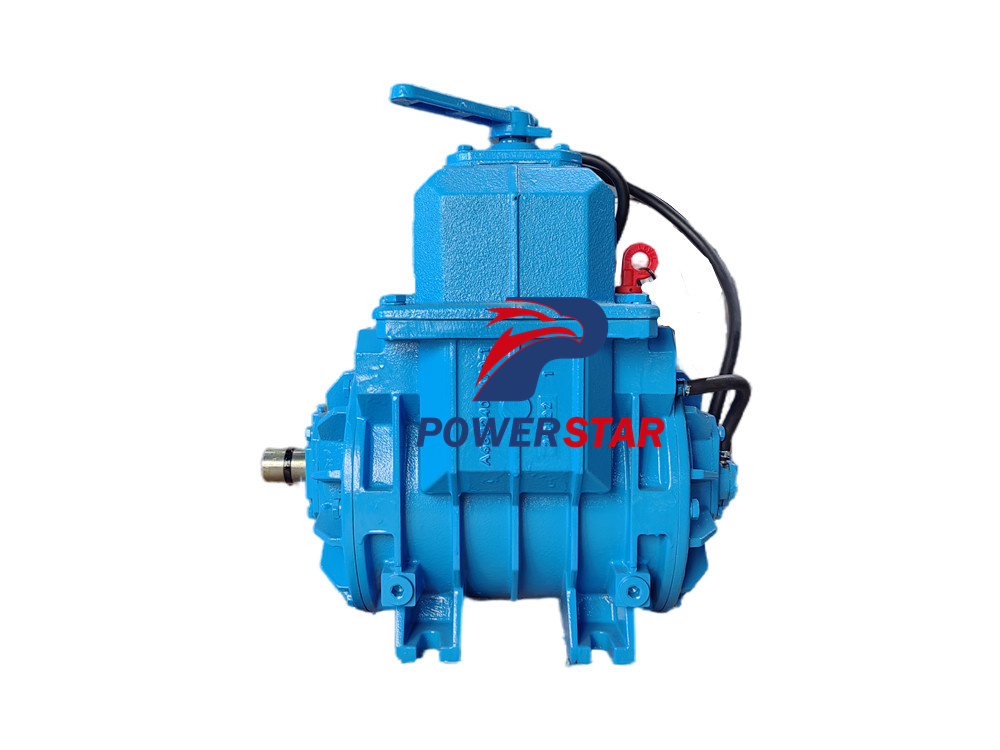

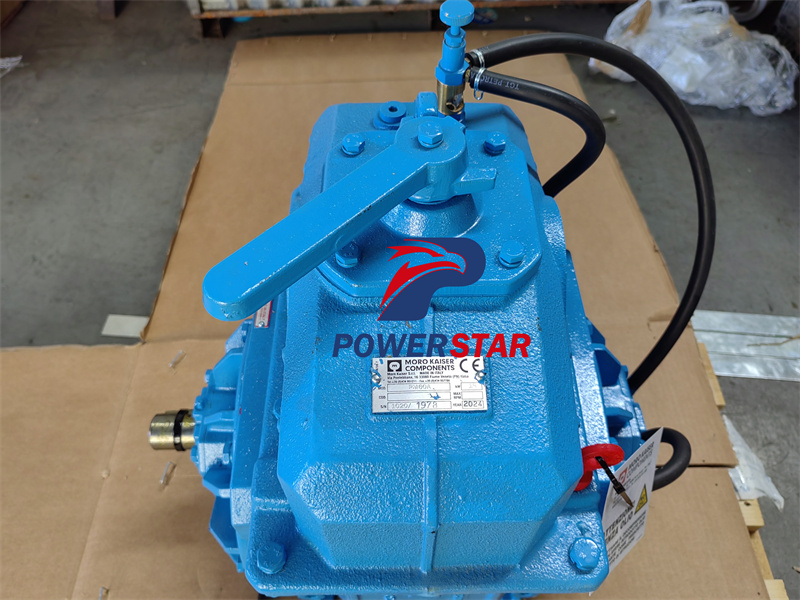

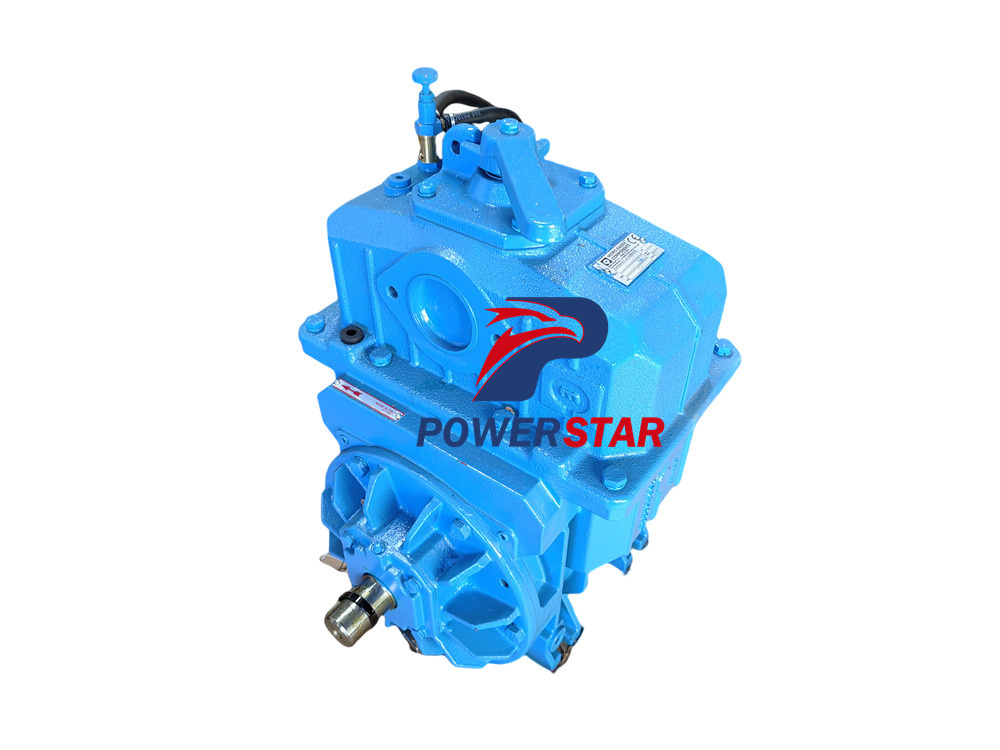

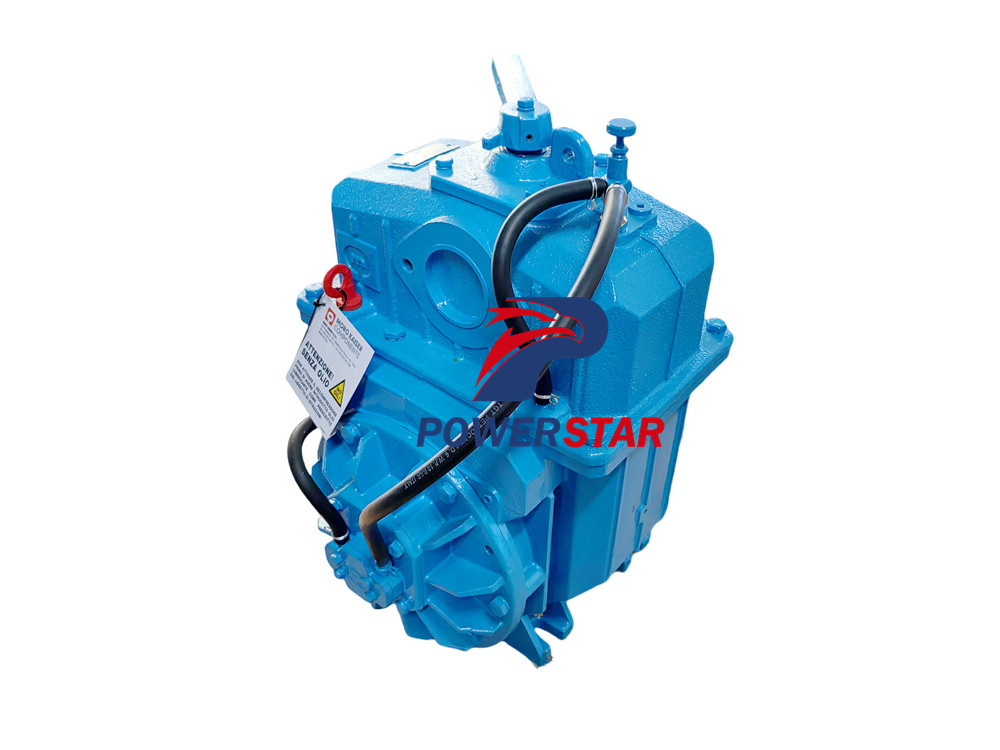

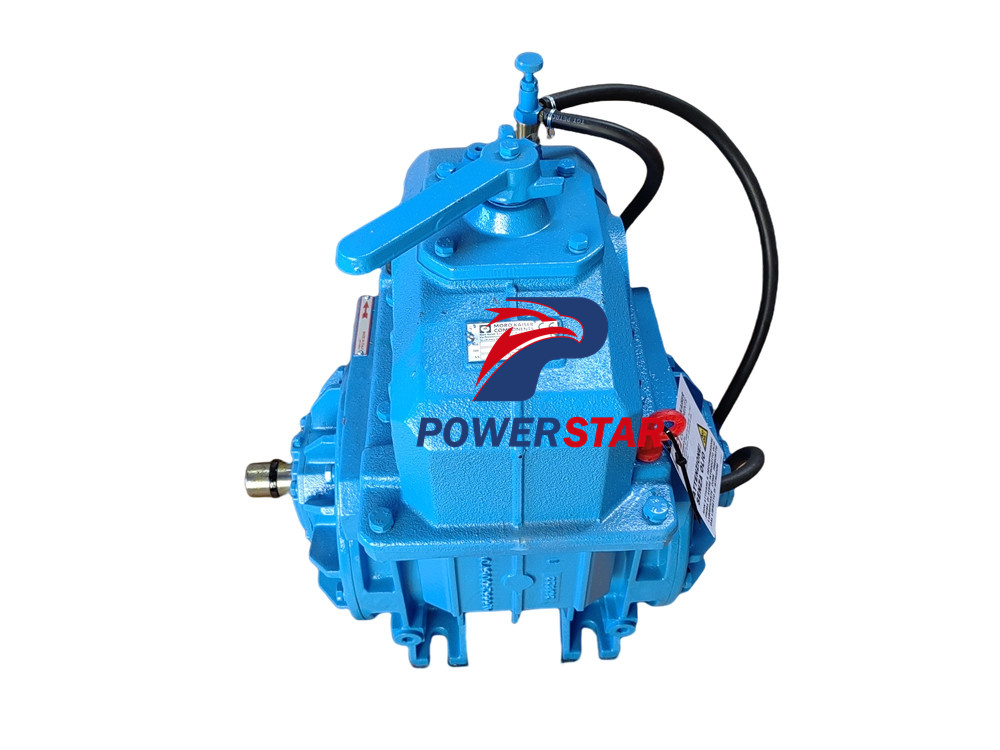

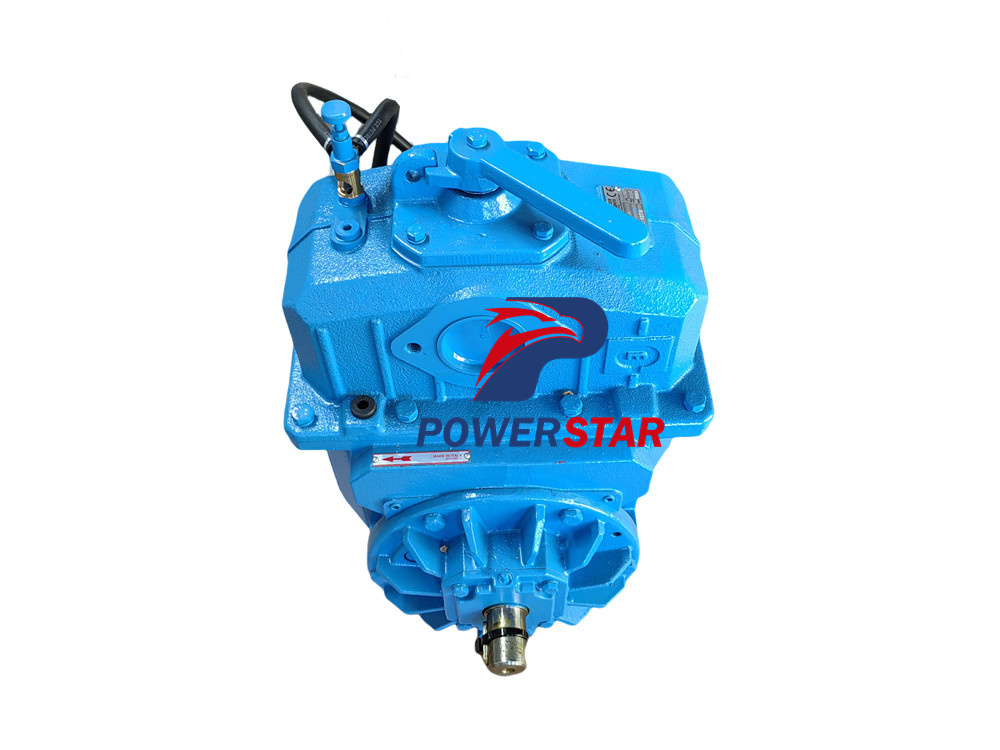

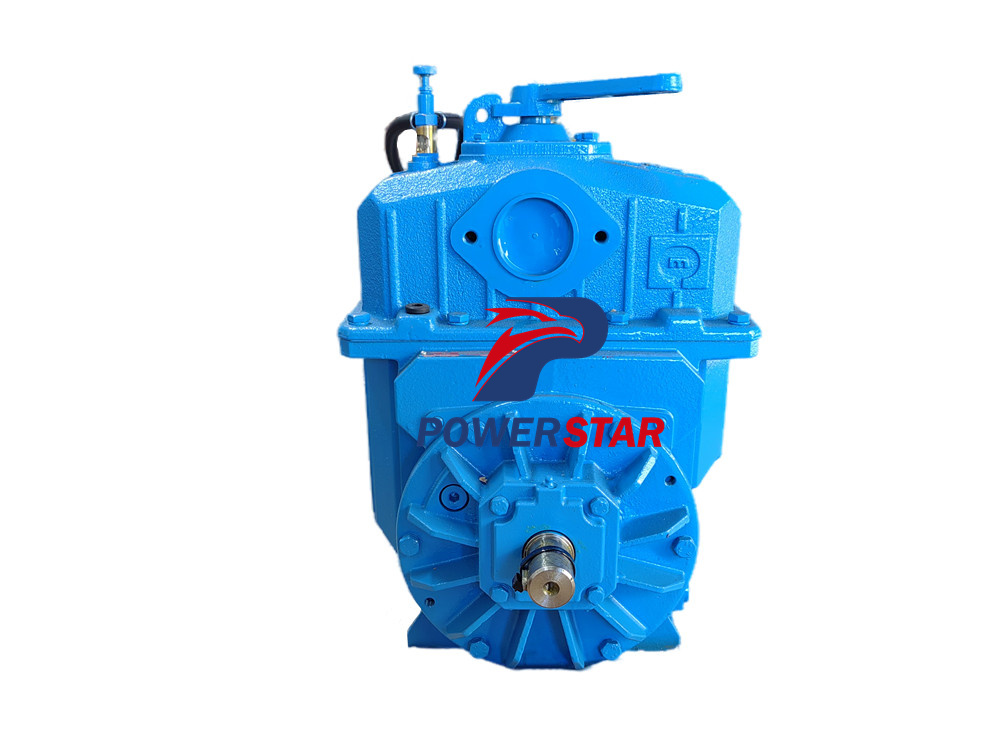

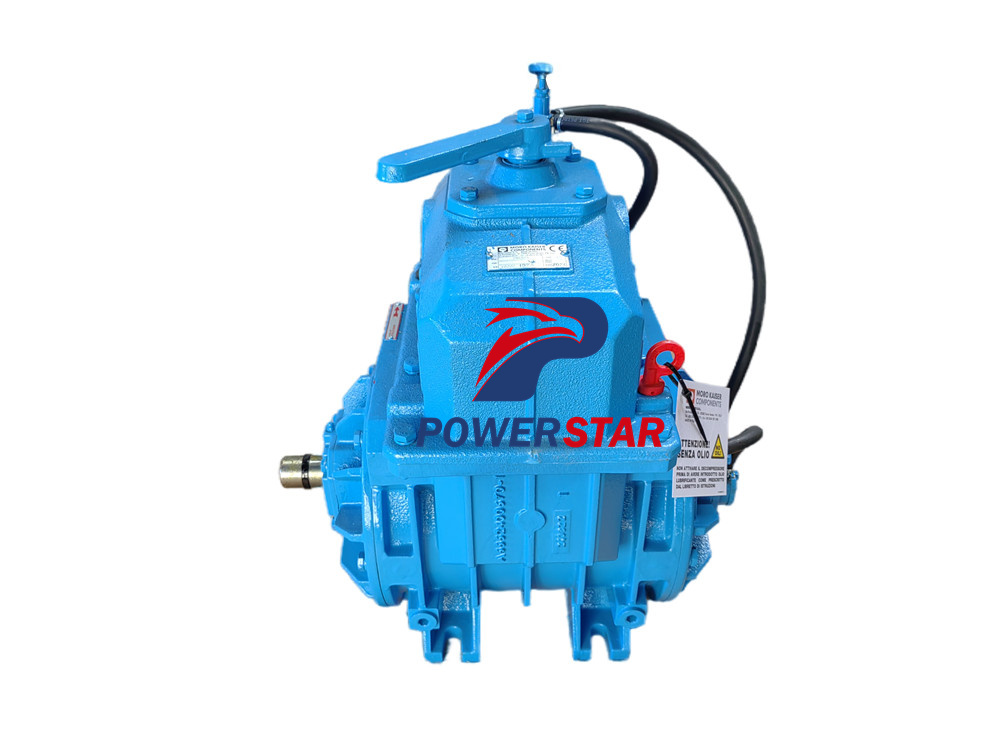

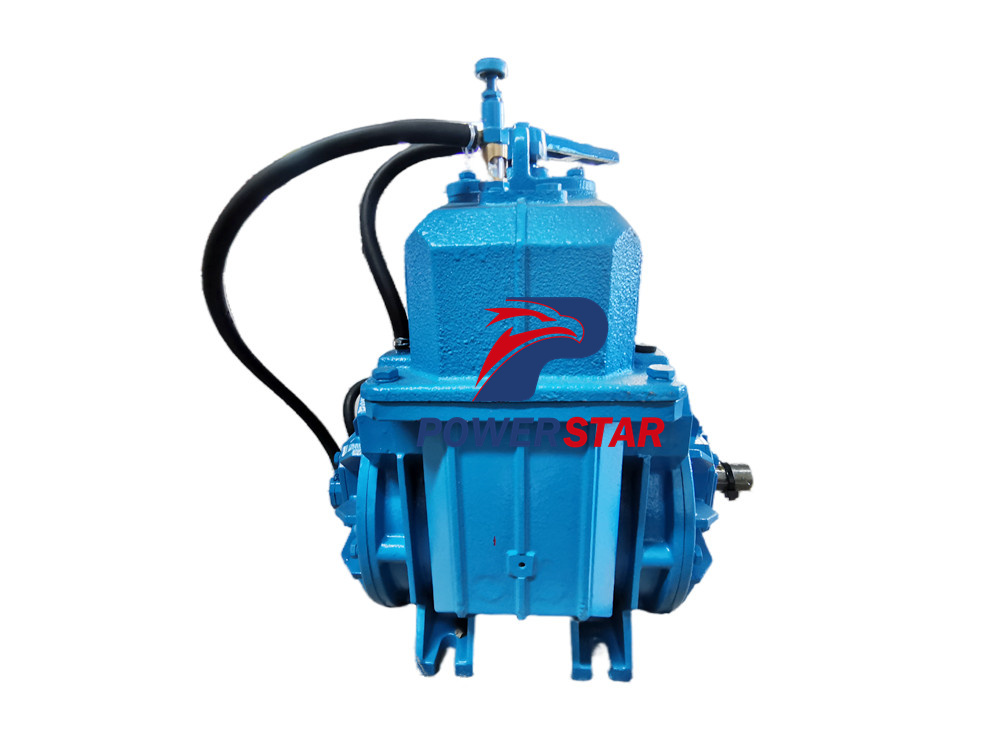

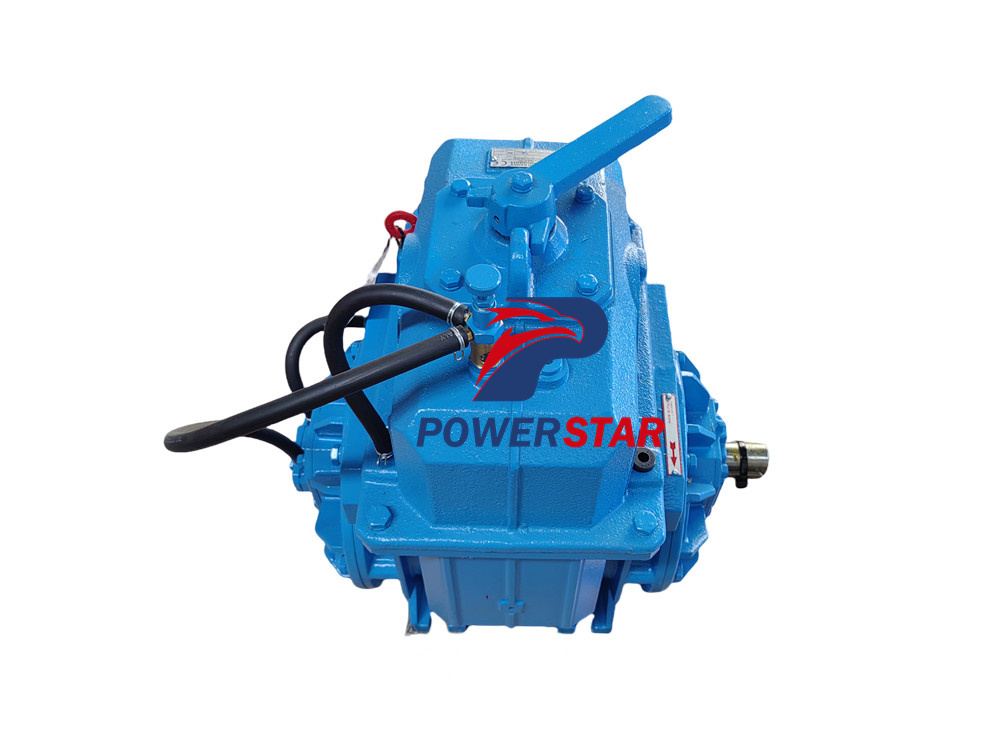

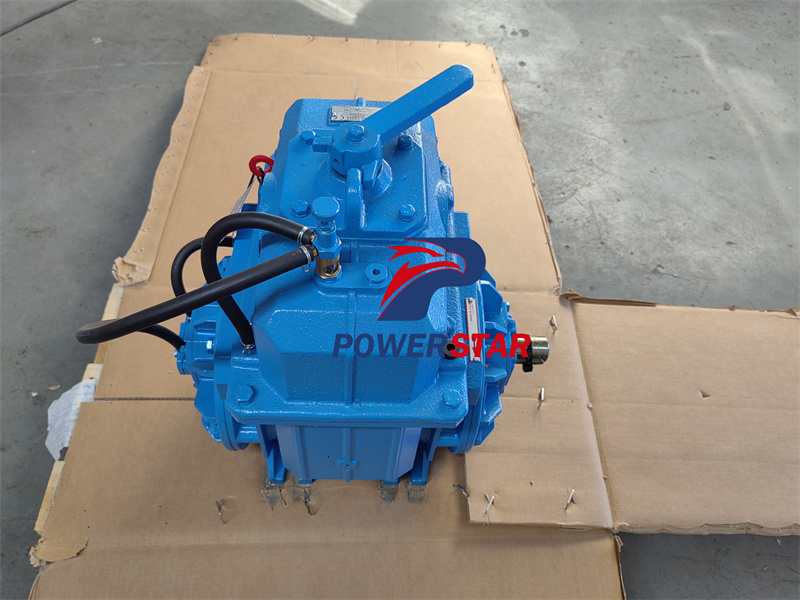

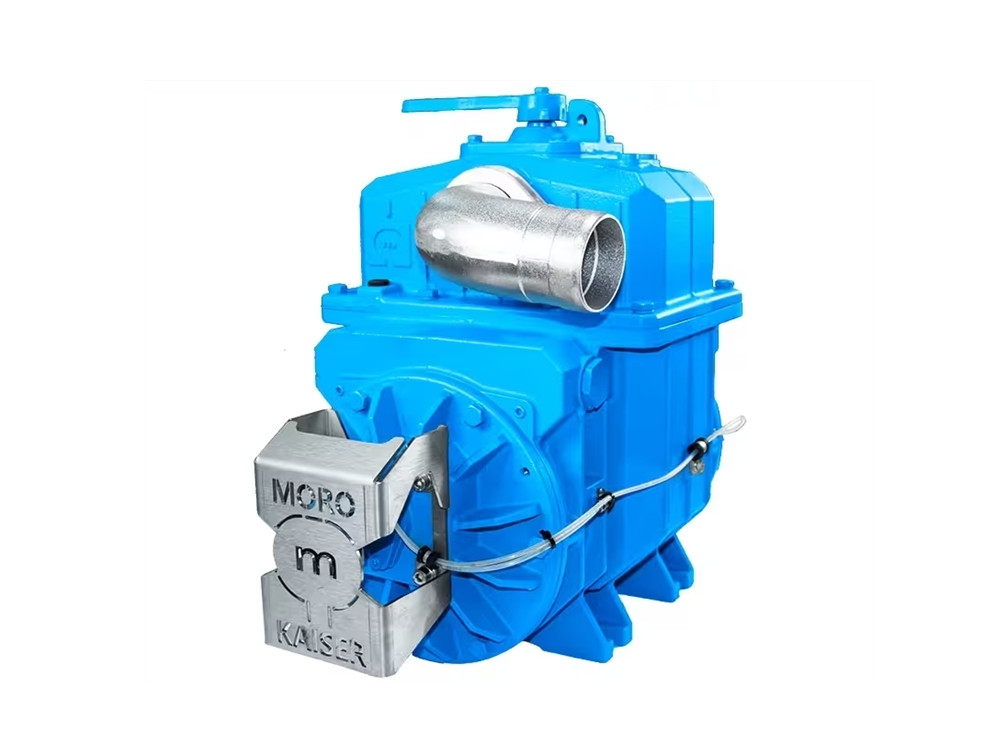

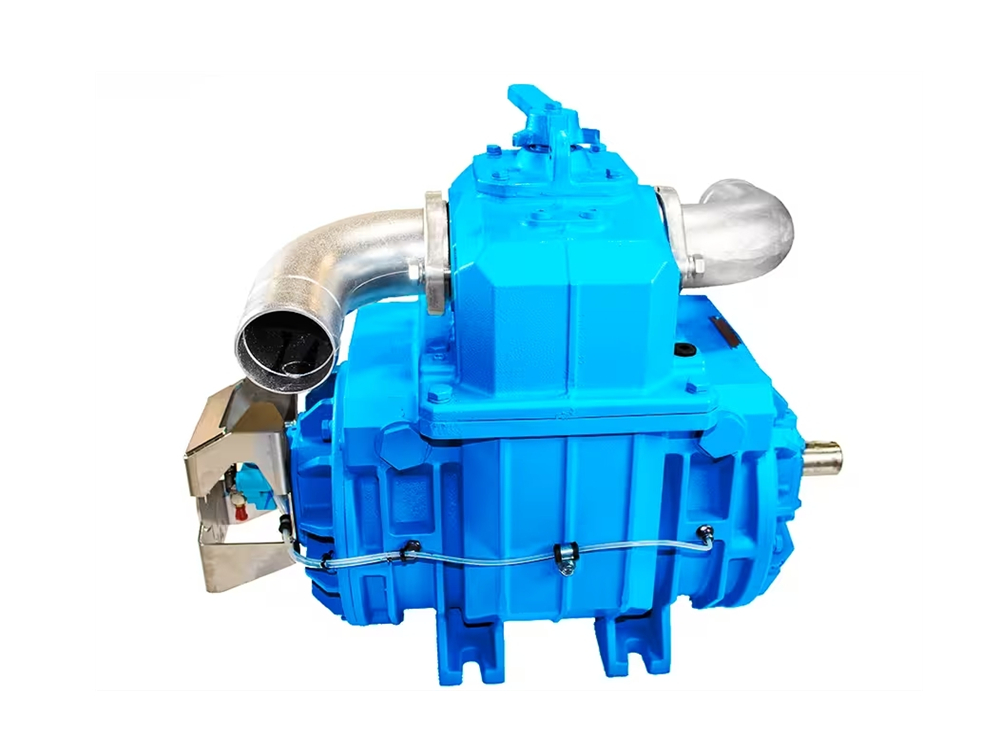

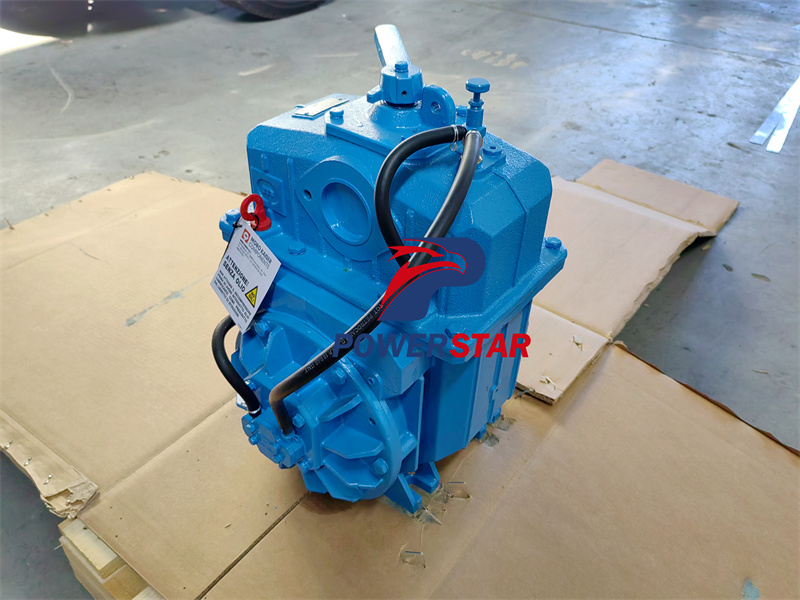

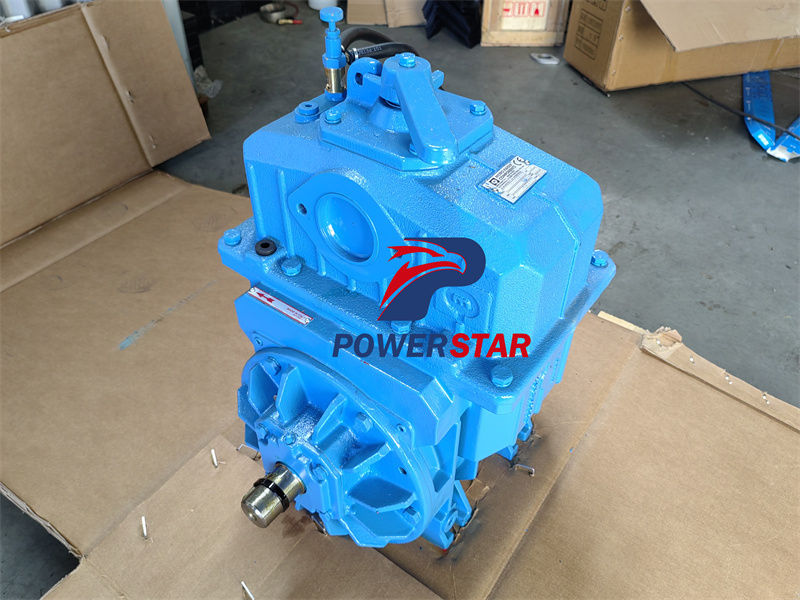

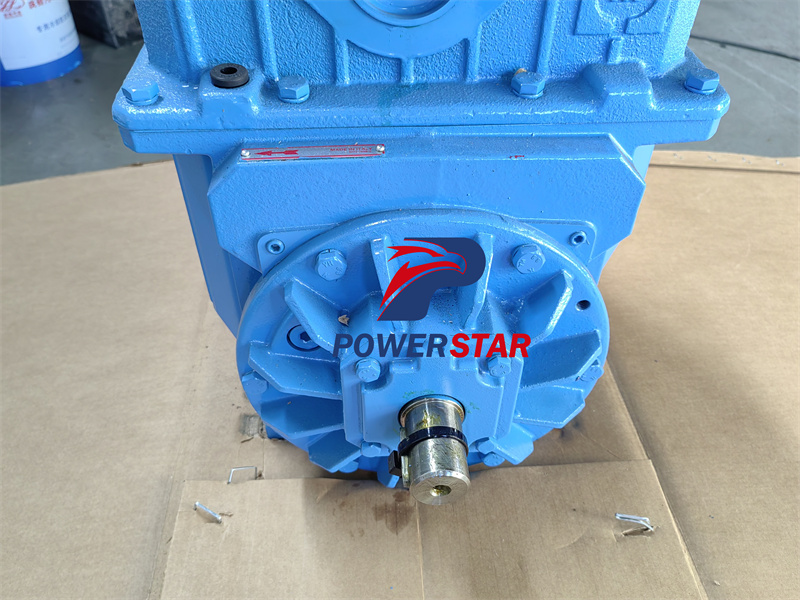

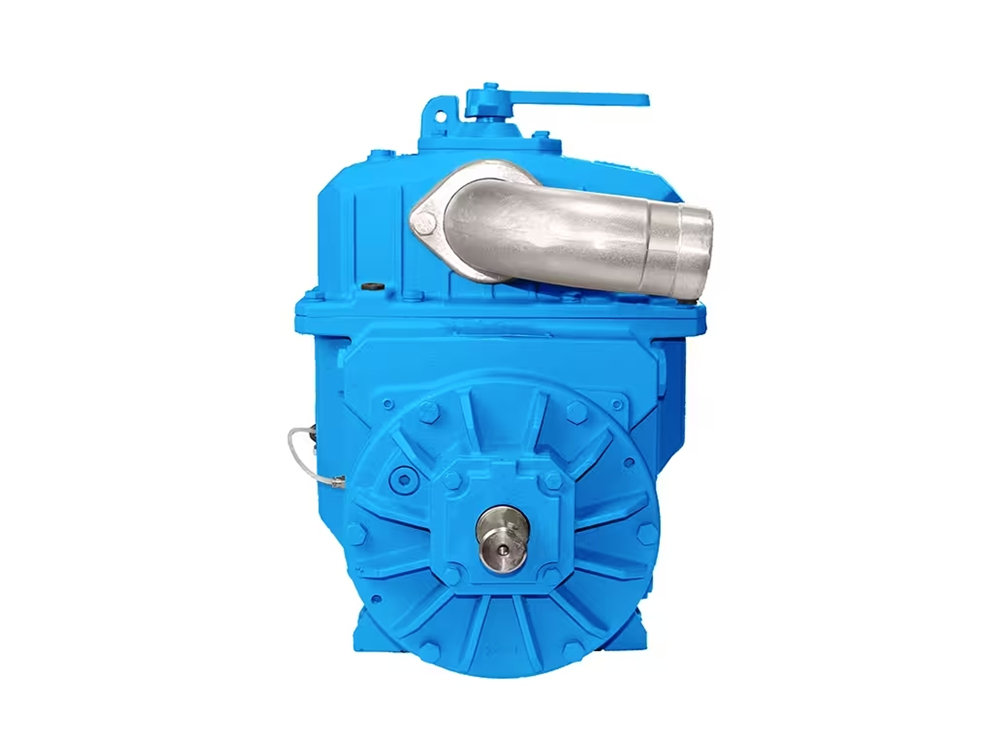

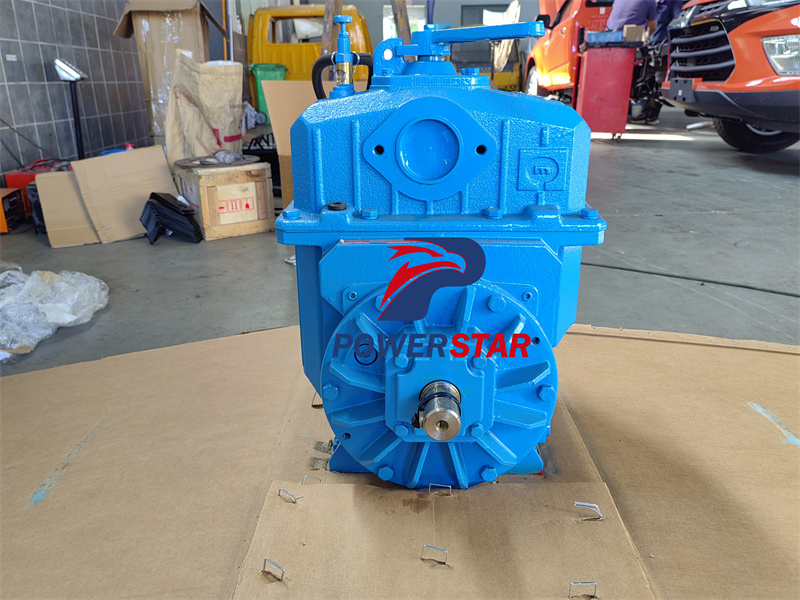

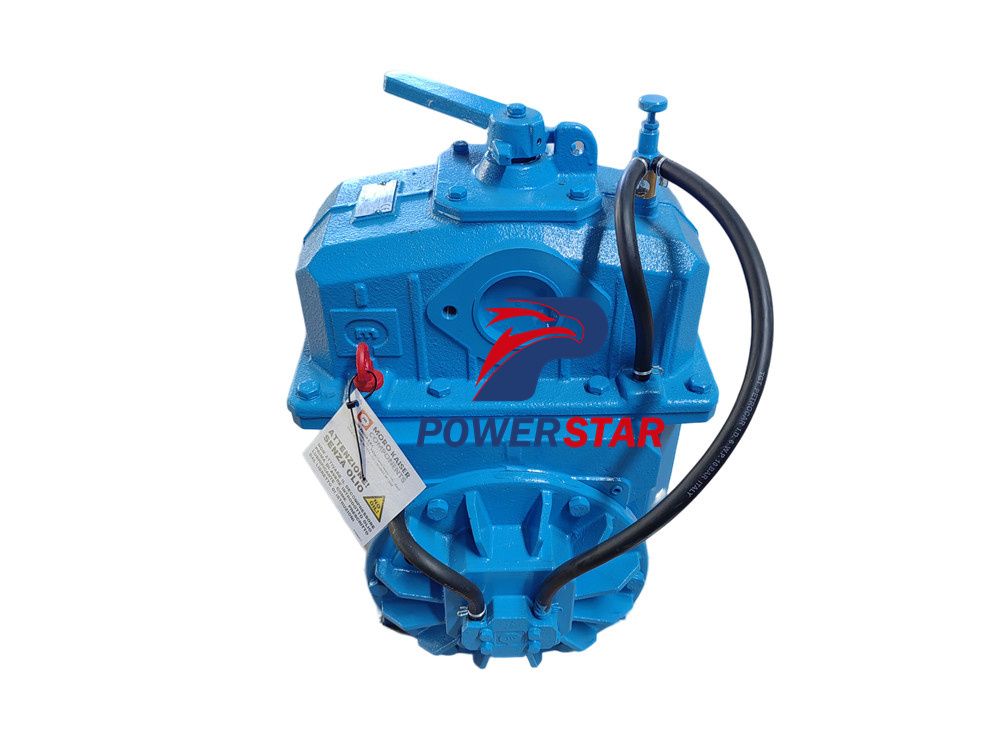

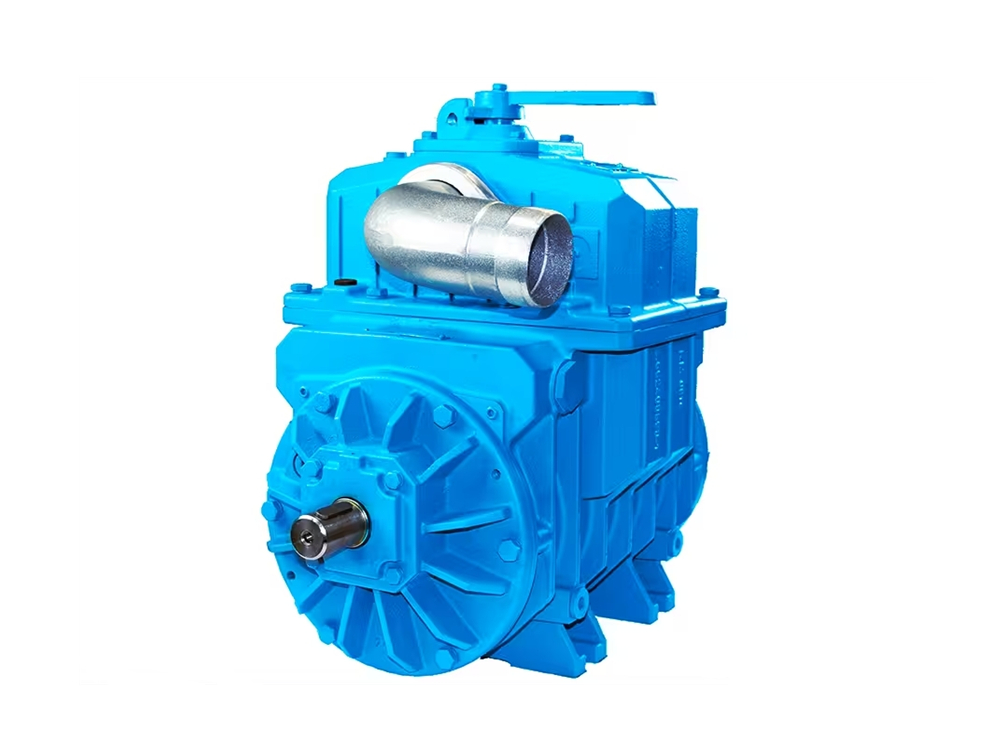

The Moro PM60A air rotary vacuum pump is a powerful and durable industrial pump that stands out for its efficient performance, compact design and versatility. It is suitable for a variety of applications such as sewage treatment, chemical cleaning and hazardous waste disposal. Its innovative air rotary technology, corrosion-resistant construction, high suction capacity and stability make it the industry's first choice, providing users with efficient and reliable pumping solutions.
Work capacity:
7200 Lt/minTruck model:
MORO PM60ARemarks:
Moro PM60A 254 CFM air cooled pump
The Moro PM60A air rotation vacuum pump also called MORO PM60A rotary vacuum pump, Moro air cooling vacuum pump PM60A,Moro PM60A sewage vacuum pump,Moro PM60A 254 CFM air cooled pump,is a powerhouse of engineering designed for robust industrial applications. With a slew of advanced features and a reputation for reliability, this Moro PM60A air rotation vacuum pump stands out as a top choice for various industries, including septic pumping, chemical cleaning, and hazardous waste removal.
The MORO PM60A air-cooled vacuum pump is capable of pumping nonvolatile liquids and sludge long distances. It includes industrial-duty bearings, Viton seals, integrated check valve, changeover valve and automatic oiling system. It has a maximum flow rate of 254 cfm and is capable of 29 psi (15 psi continuous) and 28 inches Hg (18 inches Hg continuous). It is available in a preassembled pump package. Right-angle packages come complete with the pump, stand, gearbox and couplers. It can be equipped with secondary, oil catch mufflers, relief valves and gauges. Hydraulic, pulley or engine-driven packages are available.
Feature:
● Large open ported manifold design reduces noise and air friction
● High performance Kevlar vanes with visual inspection ports in casing
● High quality Viton oil seals - longer life than traditional oil seals
● Low rotating speed leads to longer pump life
● Remote oil tank
● Sealed bearings - low oil consumption
● Quiet operation
● 3" Ports
|
Moro PM60A air rotation vacuum pump |
||
|
Specification |
Unit |
Value |
|
Free air Flow |
cfm |
254 |
|
Maximum Air Flow @ 18 inHg (inches of Mercury) |
cfm |
220 |
|
Free air flow |
Lt/min |
7200 |
|
Max. Vacuum |
Hg (in.) |
28 |
|
Continuous Duty Vacuum |
Hg (in.) |
18 |
|
Max. Pressure |
Psi |
29 |
|
Power required at max vacuum |
HP/Kw |
12.2/9 |
|
Power required at max pressure |
HP/Kw |
24.5/18 |
|
Rotation speed |
Rpm |
1100 |
|
Max Speed |
Rpm |
1400 |
|
Working Speed |
Rpm |
1000-1100 |
|
Oil tank capacity |
Qts |
4 |
|
Oil consumption |
Gr/h |
180 |
|
Suggested Tank Size |
Gallons |
500-2500 |
|
Noise Level: |
dB-A |
75 |
|
Hose |
in |
3" |
|
Weight |
lbs |
265 |

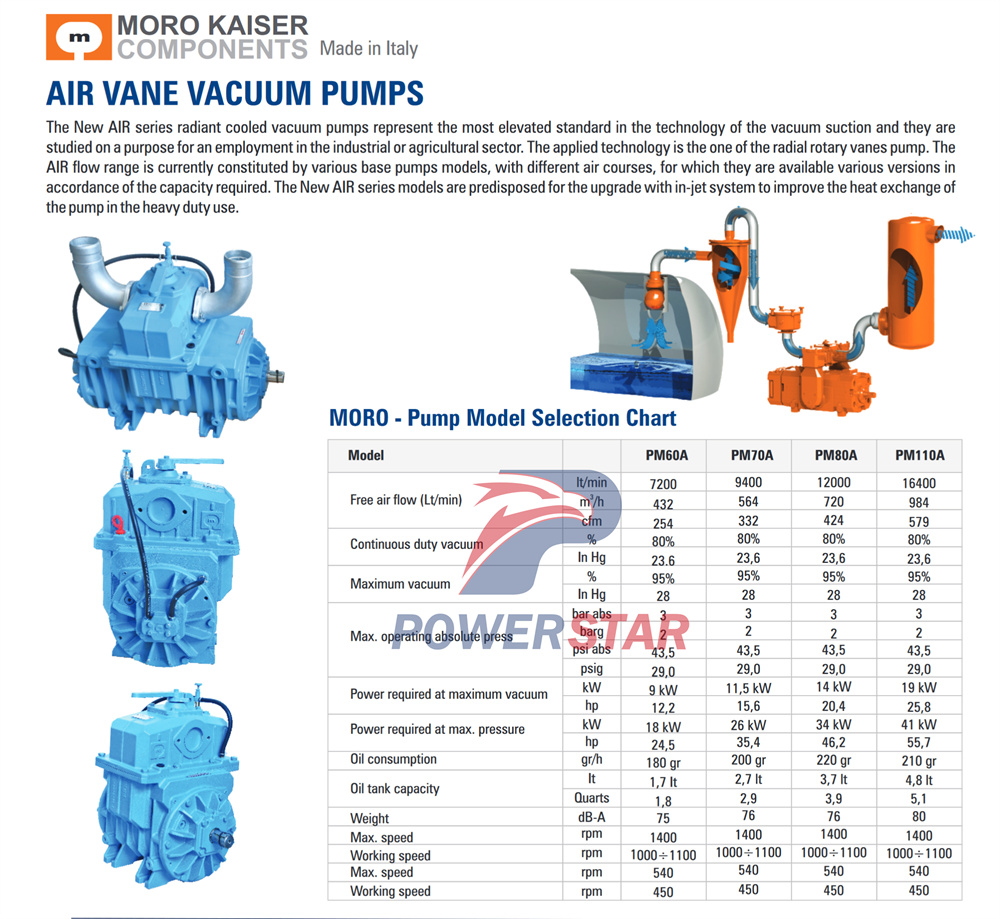

The Moro AIR Series radiant cooled vacuum pumps embody the most elevated standards in the field of vacuum suction pumps. These pumps are designed to be used in industrial applications that have varying capability requirements. Moro offers three separate AIR Series pumps to meet these differing application needs.
The AIR Series vacuum pumps are crafted with a cast iron body to guarantee maximum reliability. Cast iron is the most efficient material for releasing heat from the pump. The air intake and discharge are designed to reduce noise and heat production. This series is equipped with a special inspection port in the pump body allowing the operator to visually check the pump’s operation. The non-return and the four-way valves are integrated into the pump. The hose connection elbows consist of flange couplings and can be moved in a desired direction in accordance with the requirements of the vacuum pump usage.
The AIR Series was designed to improve the heat exchange of the pump in heavy-duty usage. This series can be easily mounted onto a truck frame and connected directly to the truck’s drive system, making this vacuum pump essential for any pump-related duties.
The Air-Cooled MORO PM60A Vacuum Pump produces free air flow of 254.
The PM60A utilizes air rotation technology, which typically refers to a mechanical or aerodynamic design that rotates air or gas within the pump chamber to create a vacuum. This technology is efficient in handling large volumes of air or gas and can achieve high vacuum levels.
Equipped with an air rotation principle, the Moro PM60A is known for its high suction power and efficiency. This pump can handle various waste materials, from liquids to sludge, with ease. Its impressive vacuum capacity allows for quick and thorough suction, making it a reliable choice for demanding tasks. The PM60A's performance is further enhanced by its ability to handle continuous operation without compromising efficiency.
Applications
The Moro PM60A finds extensive use in various industries, including:
Septic Pumping: The pump's high vacuum capacity and efficiency make it well-suited for septic tank emptying and maintenance tasks.
Chemical Cleaning: Industries requiring the handling of hazardous chemicals benefit from the PM60A's reliability and safety features.
Waste Removal: From construction sites to industrial plants, the pump's robust performance makes it an essential tool for efficient waste removal.
Moro air cooling vacuum pump PM60A
Moro PM60A sewage vacuum pump
Moro PM60A 254 CFM air cooled pump
Moro PM60A air rotation vacuum pump
MORO PM60A rotary vacuum pump
Power Supply Truck for generating electricity/repairing equipment/field operation, Telescopic Hydraulic Cylinder Lifting System, Dump Truck Lifting system for sale
Learn More
Genuine ISUZU spare parts, original universal joint for ISUZU 700P trucks, ISUZU universal joint #8980207890 for sale.
Learn More

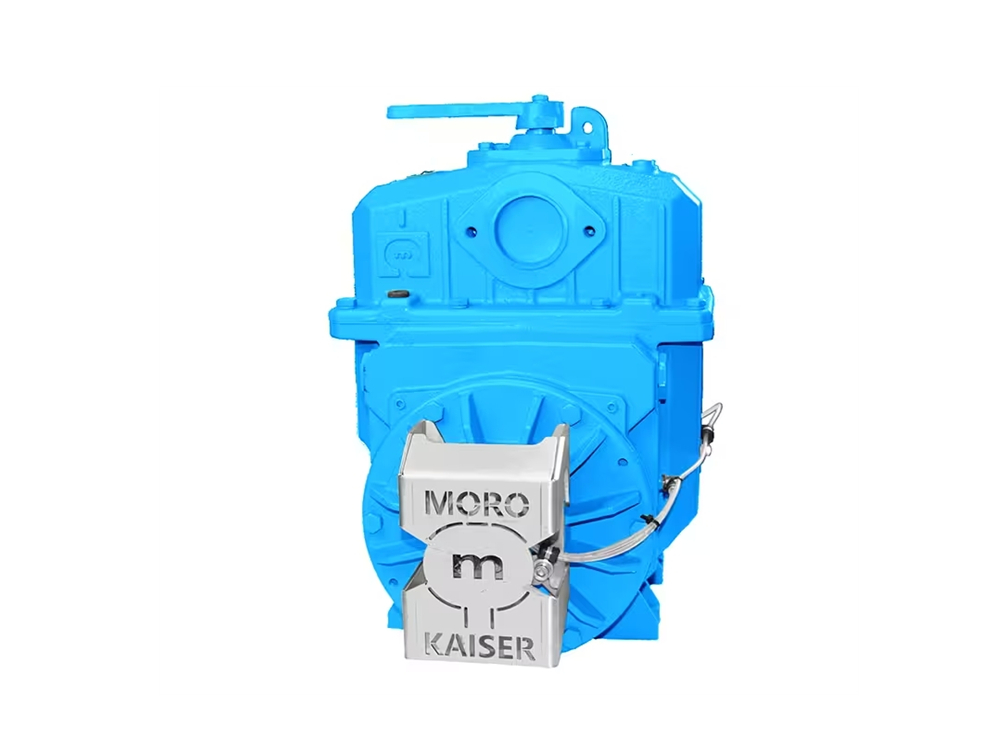

Moro air cooled vacuum pumps are designed and built for low maintenance, long life and trouble-free service. Air cooled vacuum pumps are used in a variety of industries and field applications to pump any noncombustible liquid.Air cooled MORO PM80A vacuum pump produces free air flow of 424 CFM.
Learn More
Moro water cooled PM110W vacuum pumps are designed and built for low maintenance, long life and trouble-free service for tough industrial applications. Liquid cooled vacuum pumps are used in a variety of industries and field applications to pump any noncombustible liquid.The application of MORO PM110W vacuum pump in vacuum sewage suction truck greatly improves the sewage suction efficiency.
Learn More
Isuzu flatbed wrecker truck is a newly designed truck specilly for road towing and recovery. ISUZU NKR KV100 model wrecker truck with crane based on original Japan ISUZU 4x2 truck, mounted with 4.2m flatbed for road recovery, also matched with 1.3m folding model rear ladder, controlled by hydraulic valves, in front of the platform mounted with SQS100 model 4tons telescopic boom crane, with work radius 7.5m and lifting height 9.5m, The Isuzu wrecker truck with crane is very suitable for 40HQ shipping container delivery.
Learn More

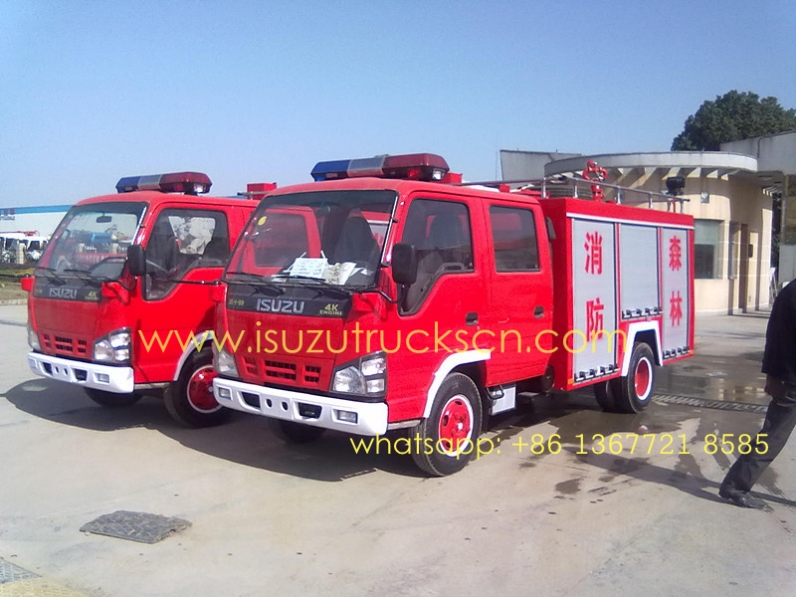

Brand new best sale ISUZU NKR water fire trucks, Supplier of 2000L Fire truck with water ISUZU, all our Isuzu trucks are brand new also with high performance. Philippines Isuzu NKR fire engines for sale, 4KH1CN diesel engine with 120HP, MSB 5-shift manual gearbox, 3360mm wheelbase, 7.00R16 radius tires with 6+1 units, mounted with 2000L water tanker, SS304 material tank, CB10/30 fire pump and PS30 fire monitor for easy operation
Learn More

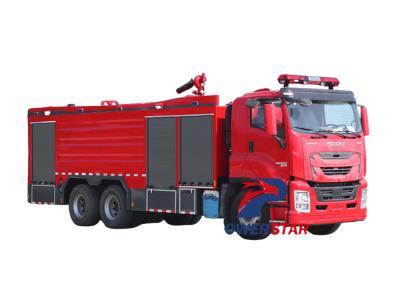

Isuzu GIGA airport rescue fire truck is a foam water fire truck, a special vehicle designed for airport emergency rescue. It is modified on the basis of Isuzu GIGA 6x4 heavy truck chassis and equipped with Isuzu 6UZ1-TCG61 380HP engine, which has strong power and is matched with FAST 12-speed transmission, making gear shifting smoother. The body has 8 cubic water tanks, 2 cubic foam boxes, as well as a pump room and tool box, providing strong support for fire fighting.
