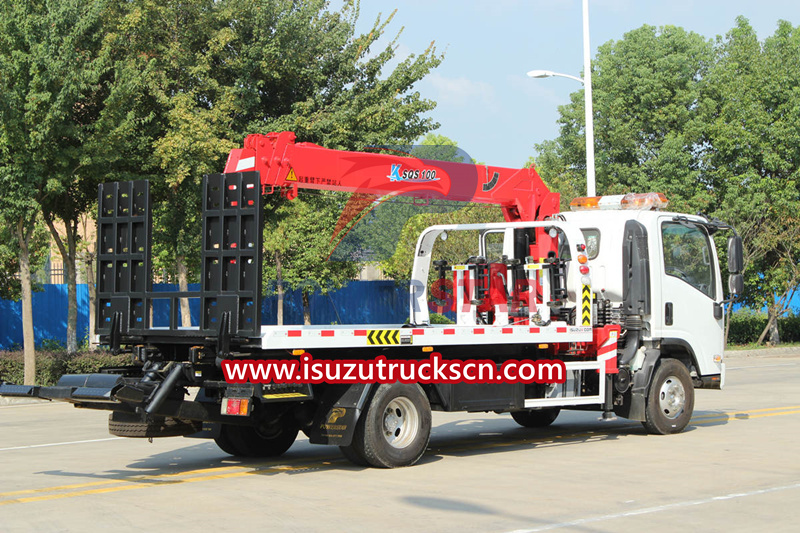

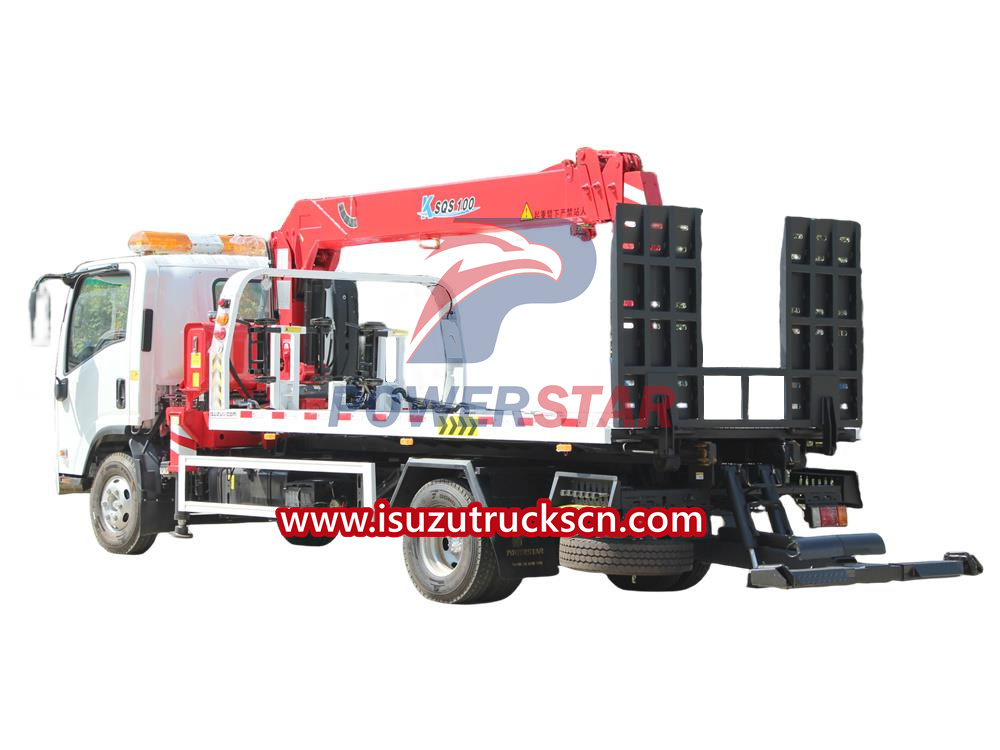

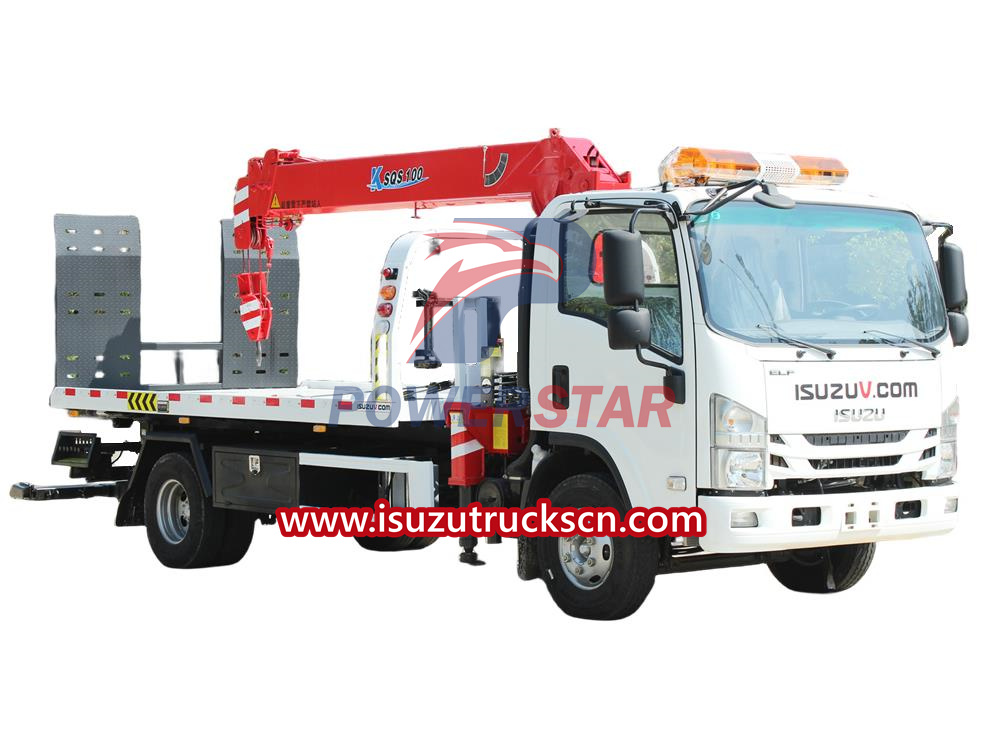

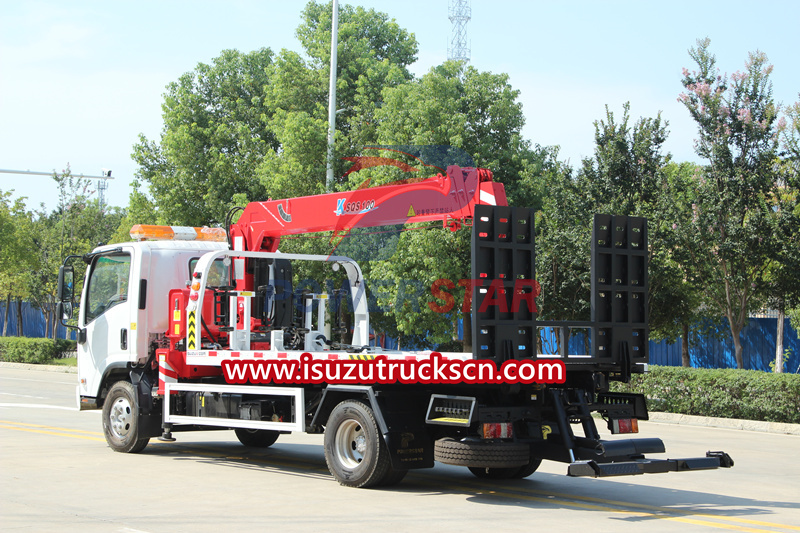

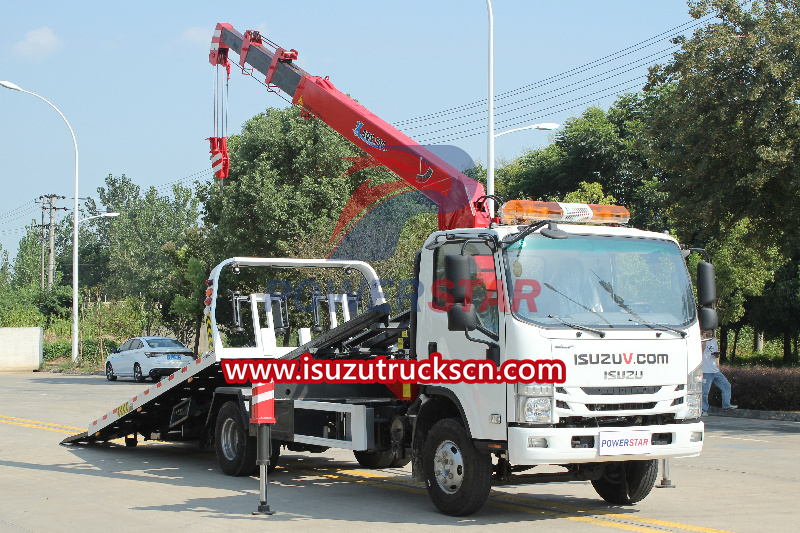

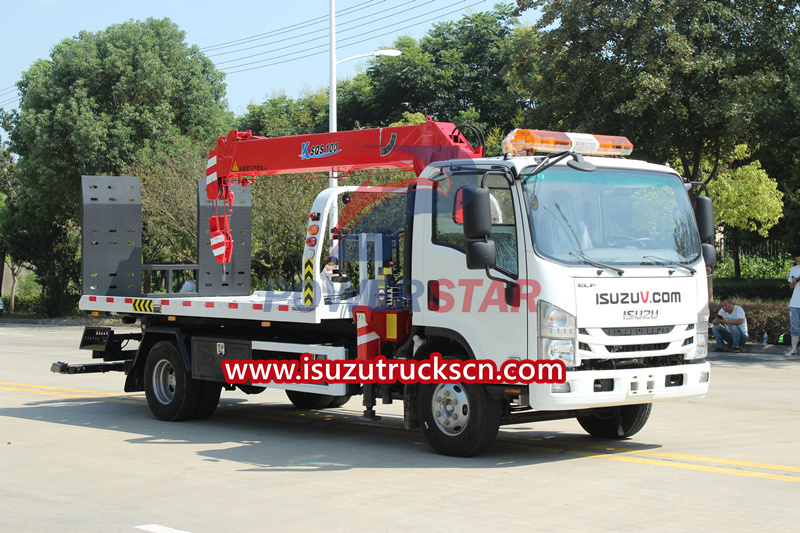

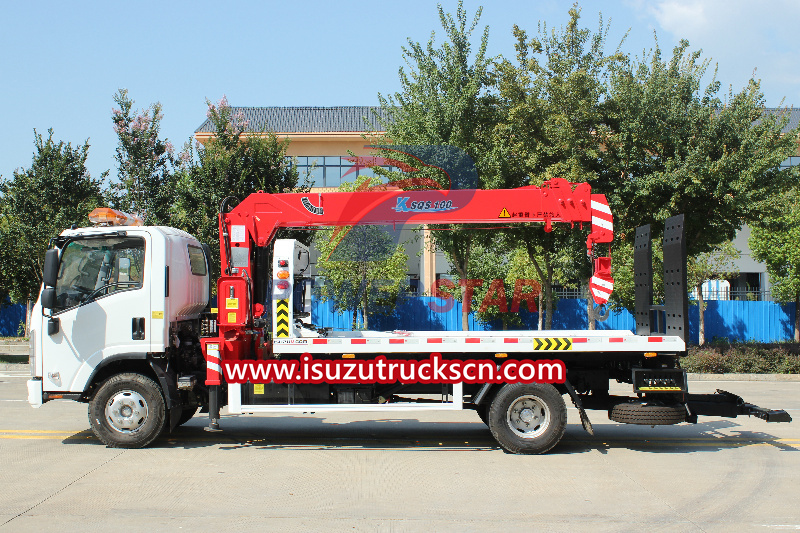

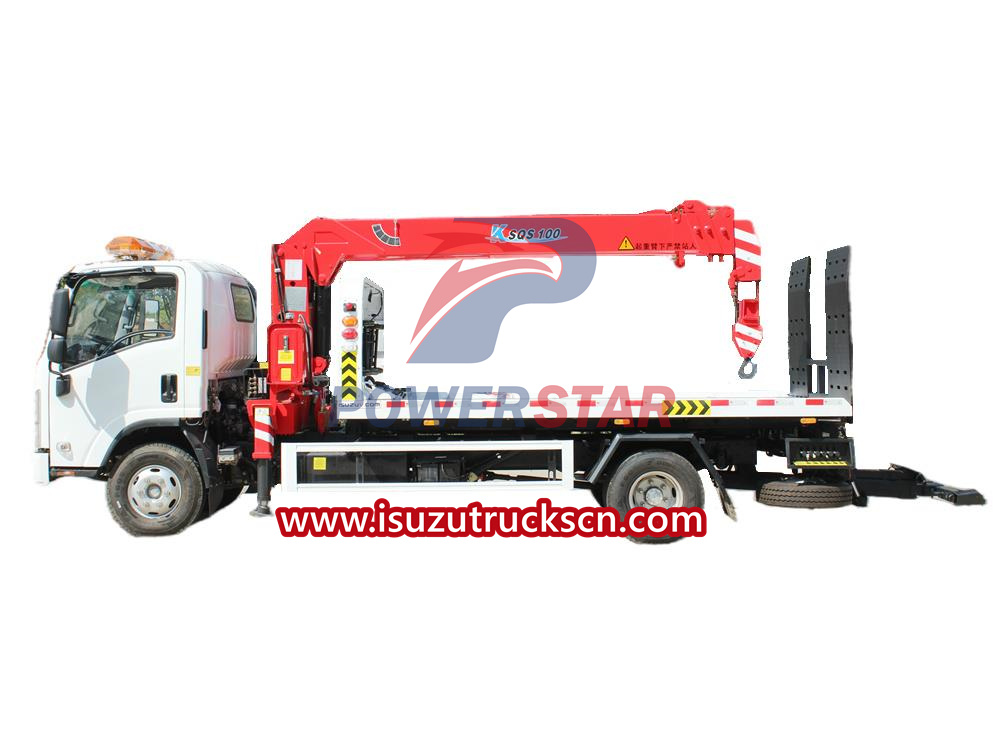

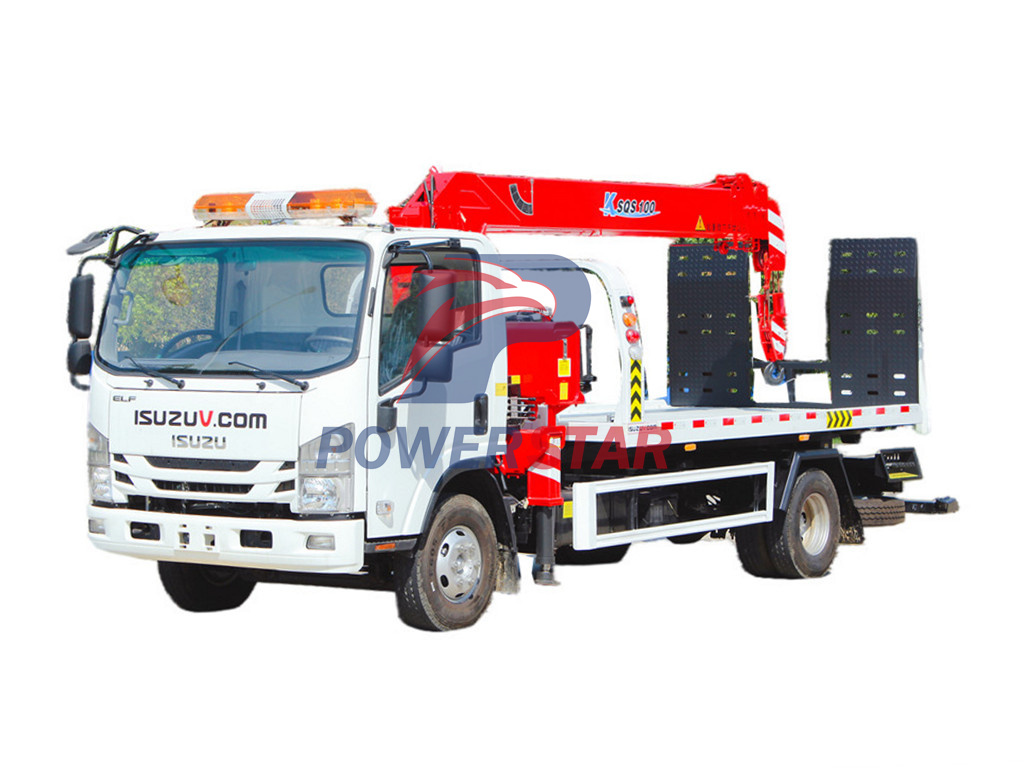

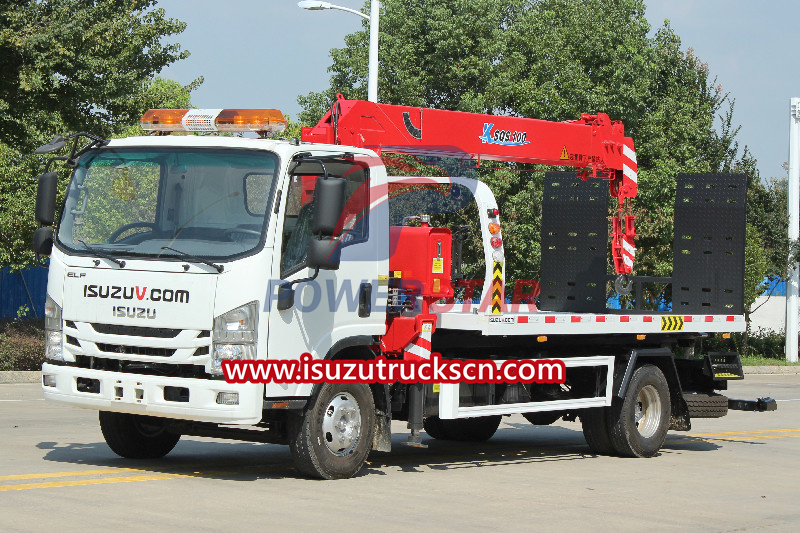

Isuzu flatbed wrecker truck is a newly designed truck specilly for road towing and recovery. ISUZU NKR KV100 model wrecker truck with crane based on original Japan ISUZU 4x2 truck, mounted with 4.2m flatbed for road recovery, also matched with 1.3m folding model rear ladder, controlled by hydraulic valves, in front of the platform mounted with SQS100 model 4tons telescopic boom crane, with work radius 7.5m and lifting height 9.5m, The Isuzu wrecker truck with crane is very suitable for 40HQ shipping container delivery.
Work capacity:
4 tonTruck model:
PT5080TQZ04KEngine power:
120 HPEngine type:
4KH1CNAxle drive:
4×2Gear box:
MSB 5-speed manualRemarks:
4.2m+1.3m recovery platform and SQS100 POWERSTAR straight boom crane with 4tons capacity
Isuzu NKR flatbed wrecker truck mounted crane is a vehicle specially designed for road towing and recovery. Isuzu wrecker truck with crane has a flatbed structure and SQS100 model telescopic boom crane with 4 tons capacity. Also special professional equipment 4tons towing winch with 25m steel rope included. Isuzu recovery truck with crane is part of the Isuzu Wrecker Truck series, which includes various models such as the Isuzu NPR flatbed wrecker truck crane, Isuzu 100P/600P/700P Towing wrecker Truck with crane, Isuzu FTR/FVR rescue towing wrecker truck mounted crane, and Isuzu Giga breakdown towing Trucks crane. Additionally, the Isuzu wrecker truck with crane NKR is also referred to as a rollback tow truck or a recovery truck. These trucks with crane are equipped with dragging, lifting, and other devices on a special chassis to remove obstacles and transport vehicles. If you are interested in purchasing an Isuzu wrecker truck with crane, you can kindly call us or send inquiry today!
The Isuzu wrecker truck with crane is a specialized truck mounted with boom crane and designed for road towing and recovery. Some of its key features include:
Product Parameters for ISUZU wrecker truck with crane:
| General Technical Specification for Isuzu wrecker truck with crane |
|||||
| Overall Dimension | 7250x2350x2850(mm) | ||||
| Gross Vehicle Weight | 8400 (Kg) | ||||
| Curb Weight | 4900 (Kg) | ||||
| Chassis Specification | |||||
| Chassis Brand | ISUZU | ||||
| Drive model | 4*2 | ||||
| Cabin | Single, Left Hand Drive | ||||
| Engine | Model | 4-stroke direct injection, 4-cylinder in-line with water cooling, turbo-charging and inter-cooling | |||
| Power | 88KW/120HP | ||||
| Emission standard | EURO 6 |
||||
| Displacement | 2999 (ml) | ||||
| Fuel type | Diesel | ||||
| Gearbox | ISUZU MSB 5 Forwards & 1 Reverse, Power steering, hydraulic steering with power assistance | ||||
| Brake System | Air break | ||||
| Wheel Base | 3360(mm) | ||||
| Front/Rear Axle Loading | 2500/4800(Kg) | ||||
| Approach/Departure Angle | 24/12(°) | ||||
| Tire | 7.00R16, 6pcs + 1 spare tire | ||||
| Max Driving Speed | 95(km/h) | ||||
| Superstructure Specification | |||||

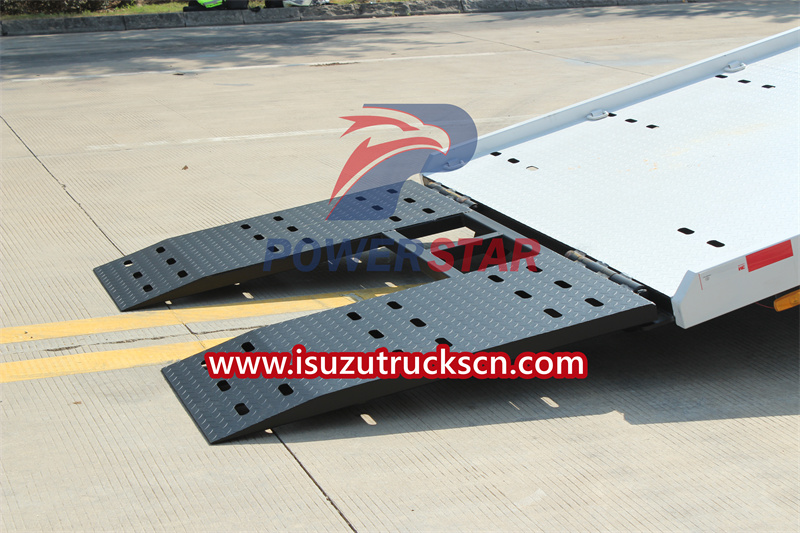

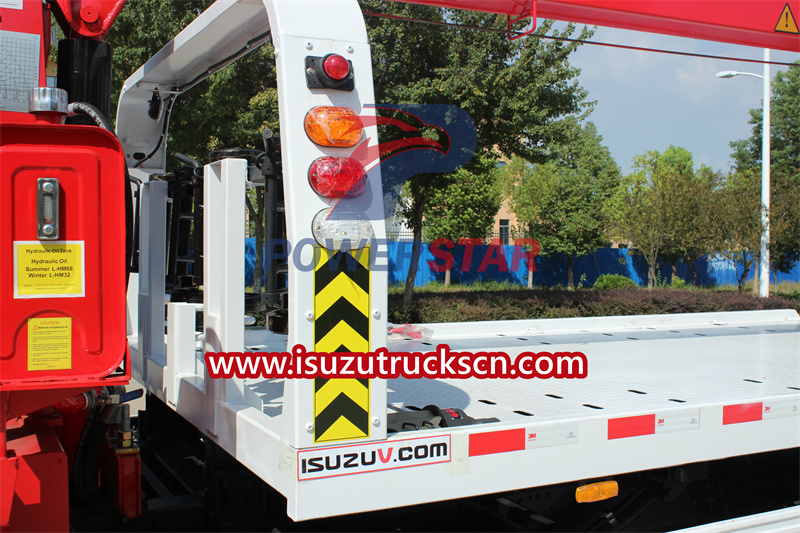

| Wrecker Platform Organ | Dimension | 4200*2350(mm) with 1.3m folding platform |
|||
| Material | Q235 carbon steel | ||||
| Max Loading capacity | 5000(kg) | ||||
| Winch | Quantity | 1 | |||
| Winch rating towing capacity | 4000(kg) | ||||
| Length of steel rope | 25(m) | ||||
| Speed of winch | 3.23~8 (m/min) | ||||

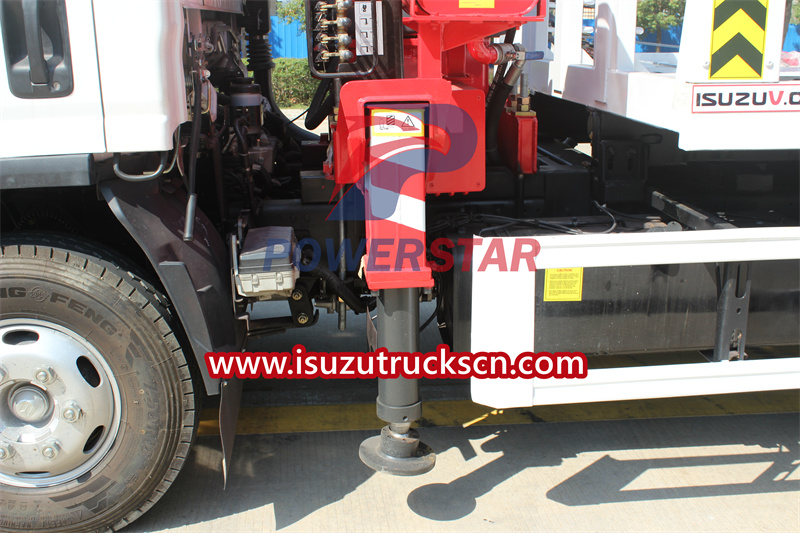

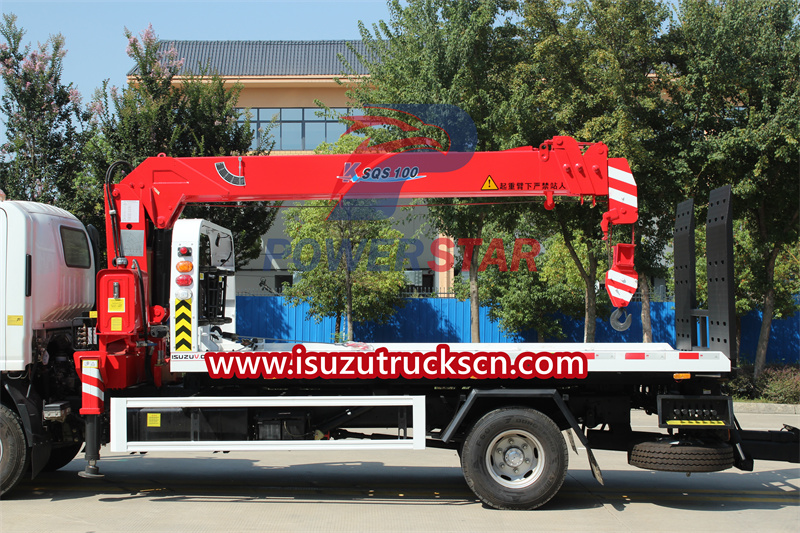

| Crane | Max lifting capacity | SQS100 model with loading capacity 4000(kg) | |||
| Other parts | Auxiliary wheels, alarm light, hooks, 4 bundling belt, automatic sliding plate, etc. | ||||
| Options | Caution light, air condition,inlet valve. | ||||
1. According to the payload, POWERSTAR can offer light duty tow truck, middle duty tow truck and heavy duty tow truck to suit for different types of motor vehicle.
2. The heavy duty tow truck could rescue the construction trucks, city bus and other types of heavy duty vehicles.
3. The heavy duty tow truck has a rotate crane or boom, lifting capacity reaches 30tons.
4. The wheel lift organ on the heavy duty tow truck could be more than 20 tons and the total towing capacity is more than 40 tons.
5. Isuzu wrecker truck with crane can have the flatbed platform size 4200mm, 5600mm, 6800mm, 7200mm, 8600mm, 9200mm.
6. Mounted boom cranes can be UNIC, PALFINGER, XCMG, POWERSTAR, etc.
7. The tow truck chassis are Foton, SINOTRUK HOWO, Dongfeng, FAW, ISUZU, JAC etc.

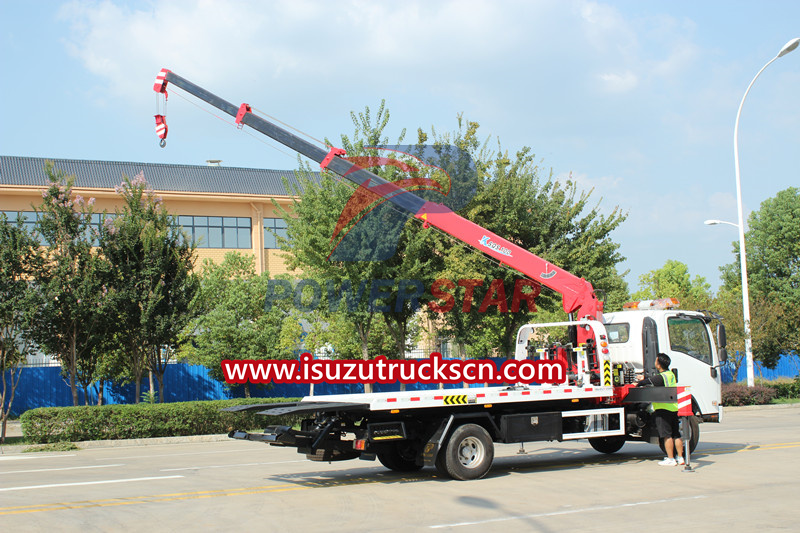

Operating ISUZU Wrecker truck with crane Step 1: Lifting up the boom crane to reserve enough space for towing car

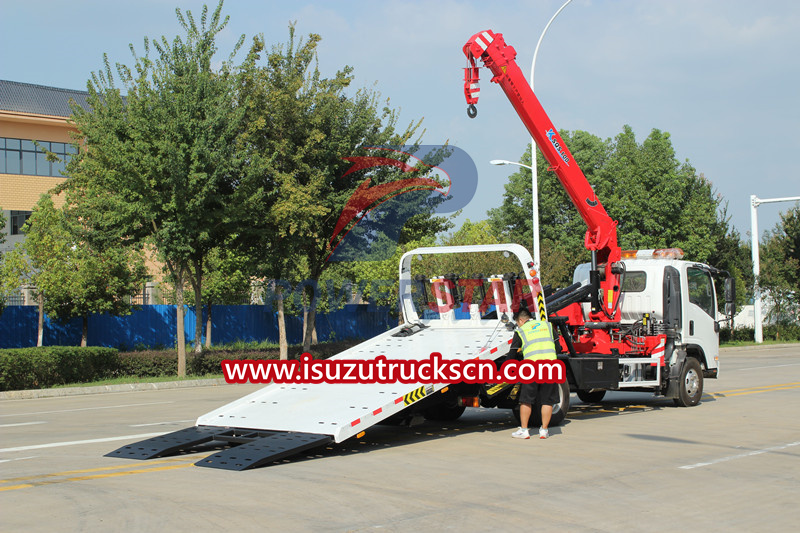

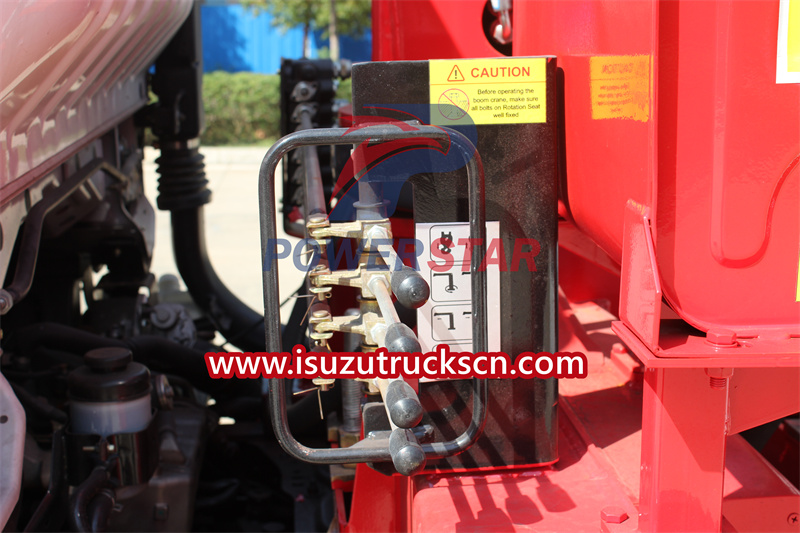

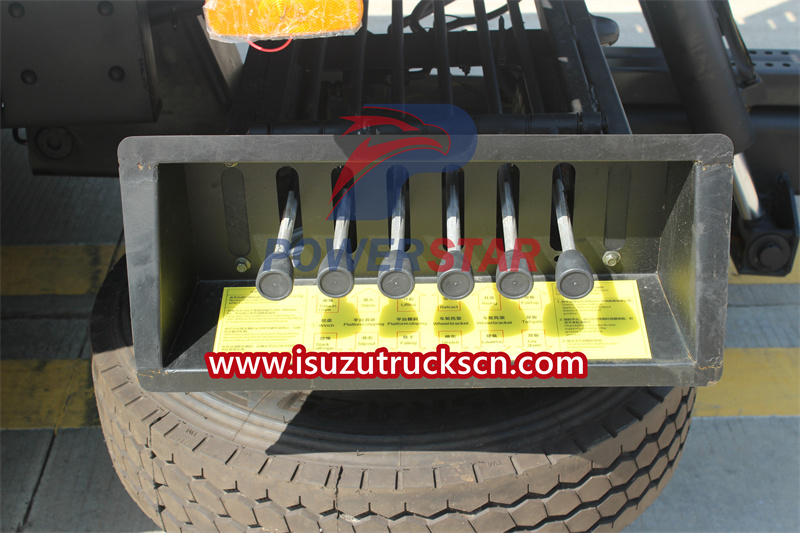

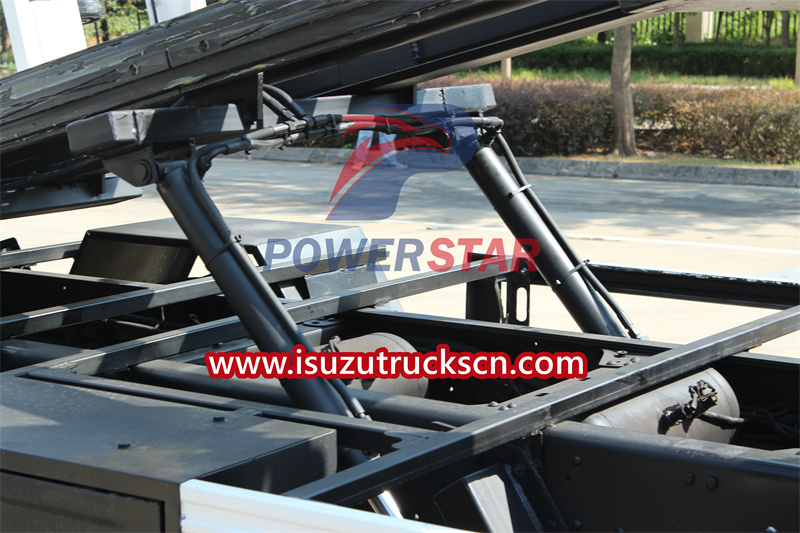

Operating ISUZU wrecker truck with crane Step 2: Operating hydraulic valves to make the wrecker platform falling onto the ground

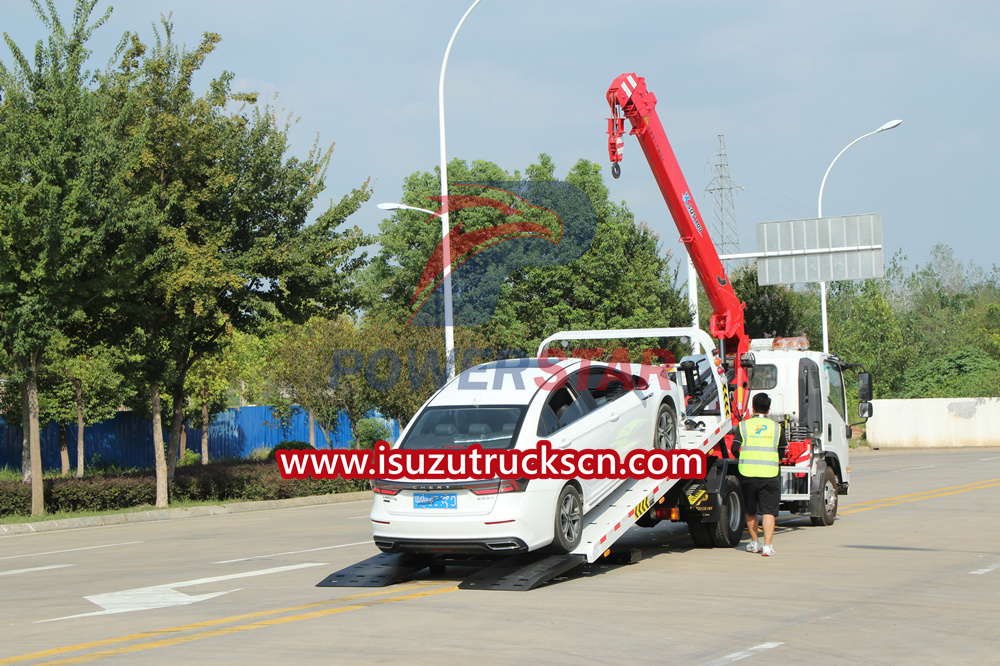

Operating ISUZU wrecker truck with crane Step 3: Drive the car to the platform at same time use winch to towing
Operating ISUZU wrecker truck with crane Step 4: Also can lifting the boom crane and use the rear towing device for car carry

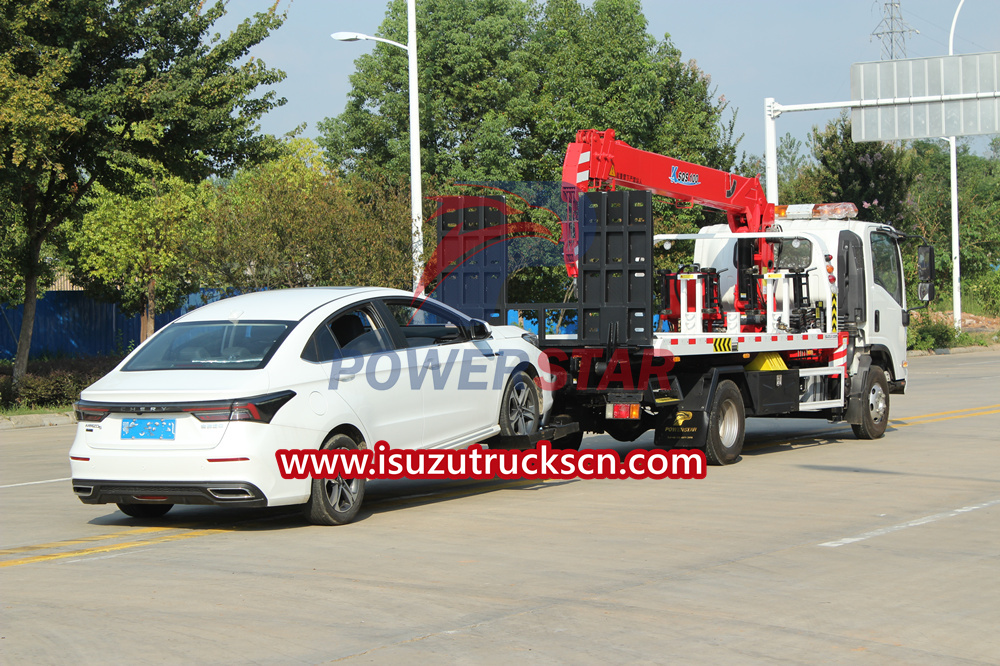

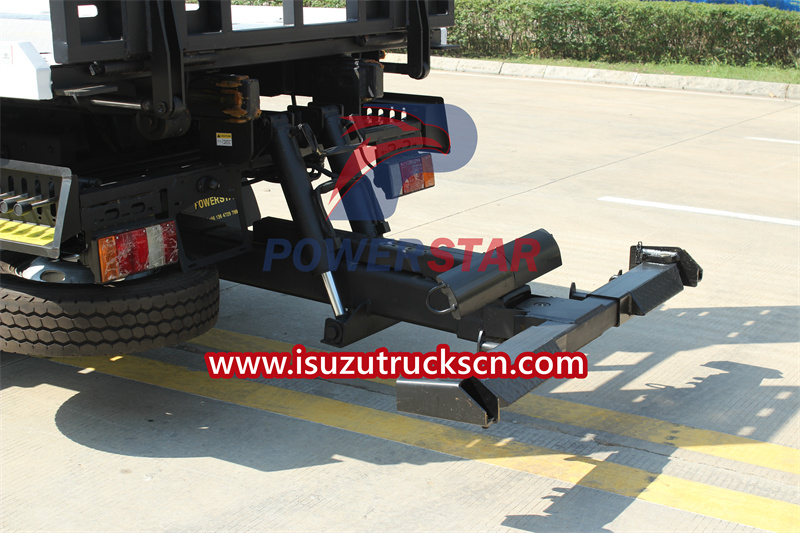

Operating ISUZU wrecker truck with crane Step 5: use the rear lifting device to towing the car
