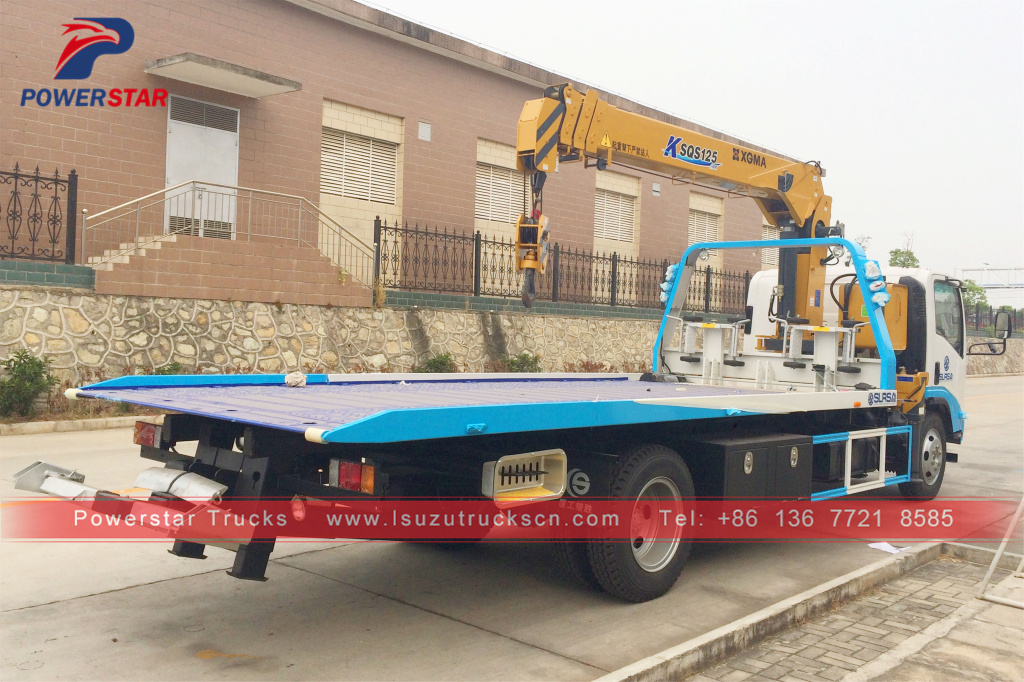

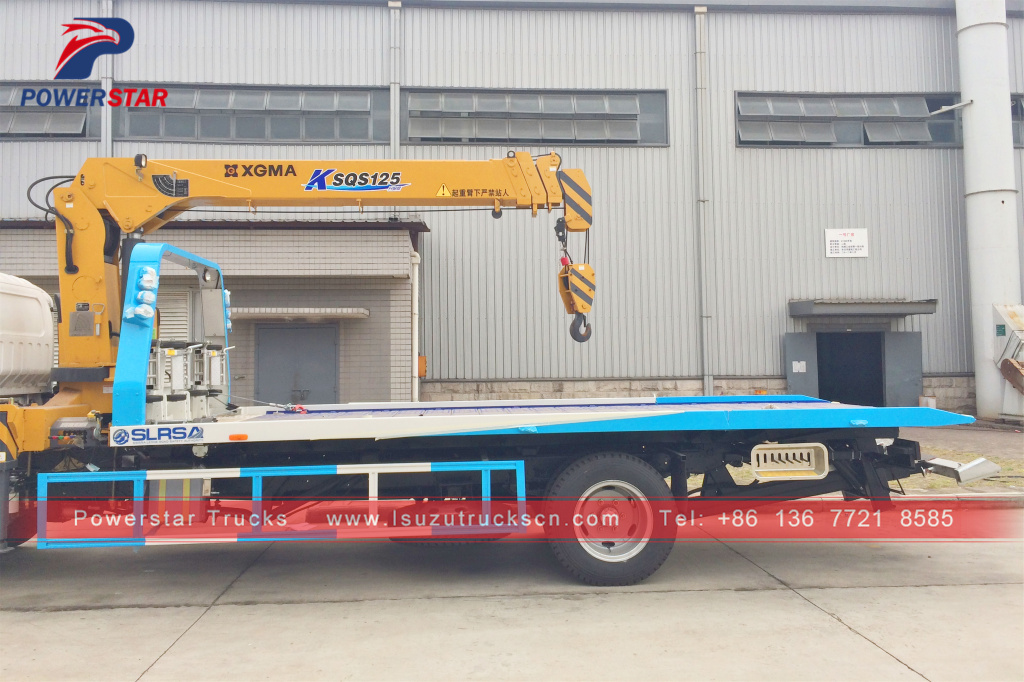

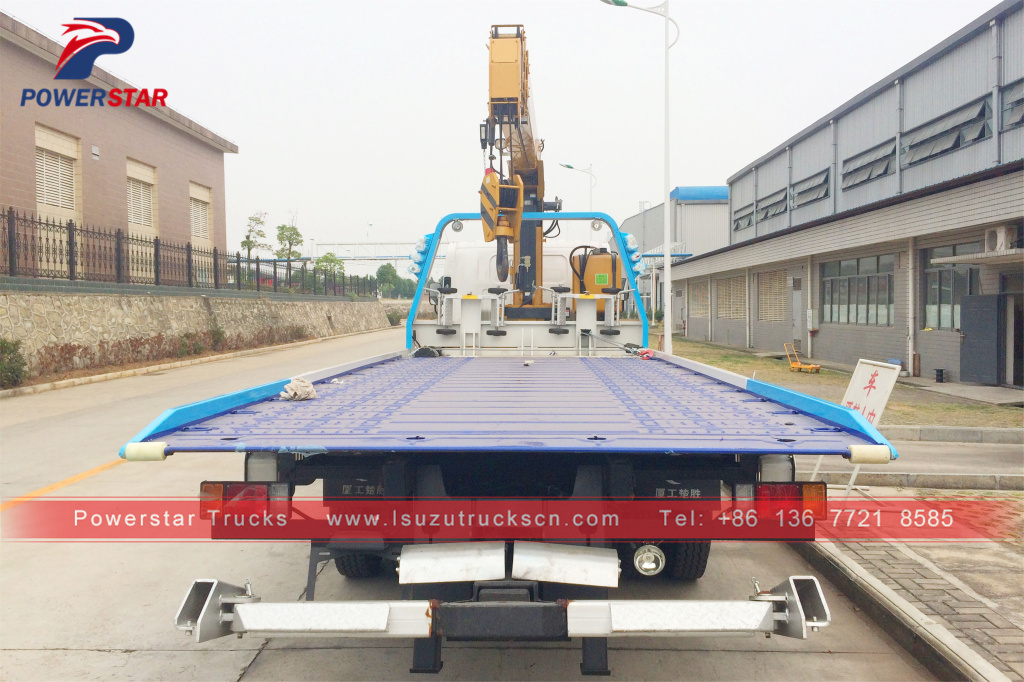

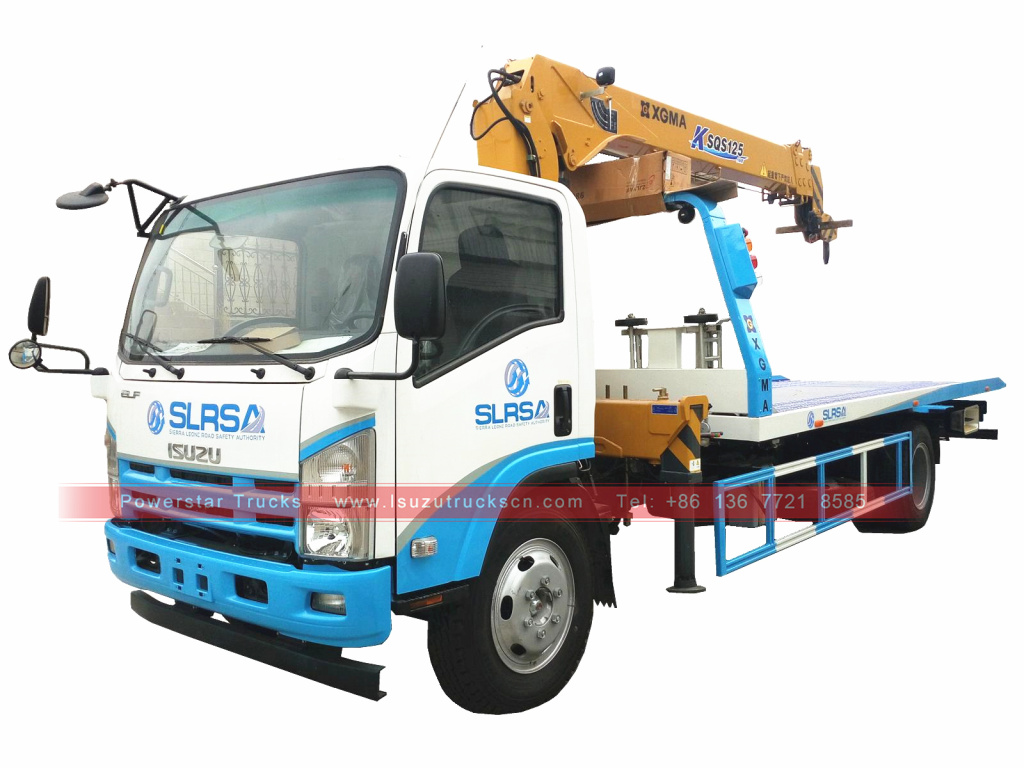

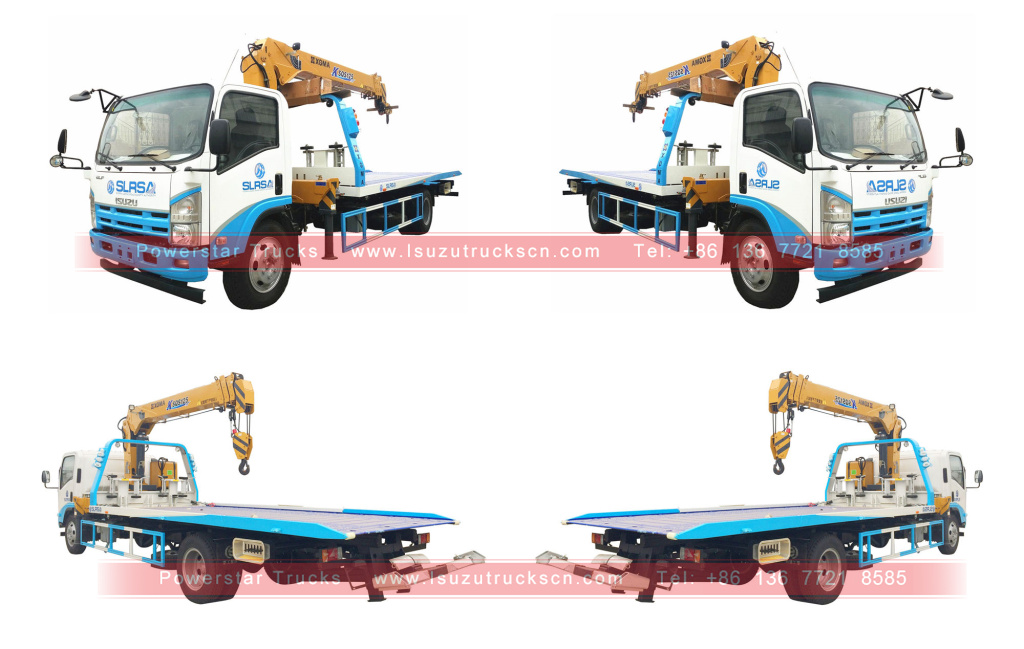

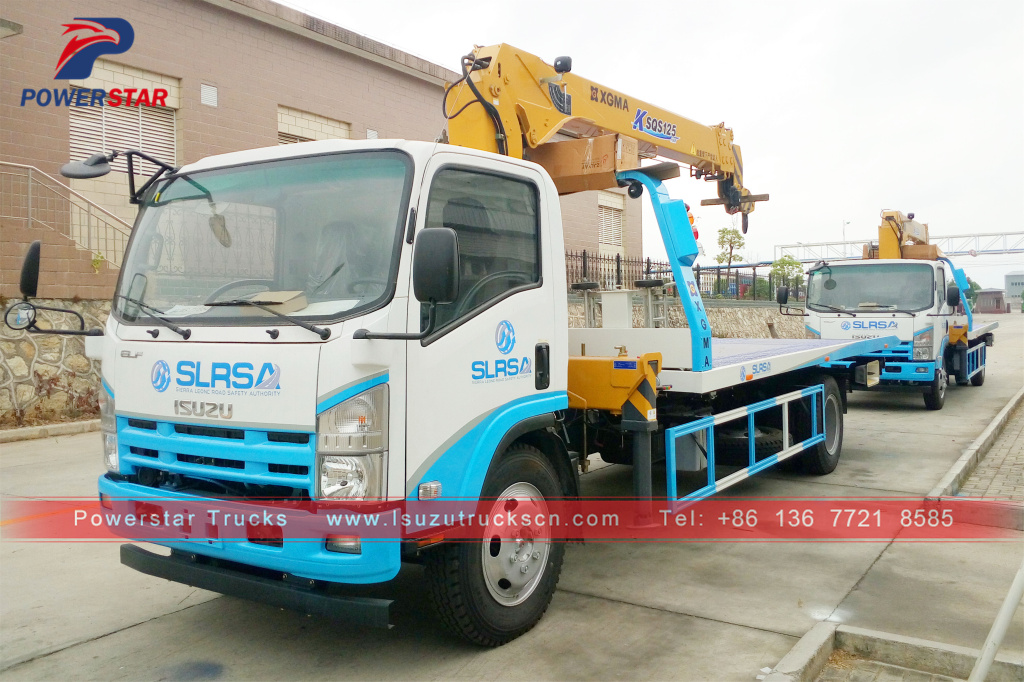

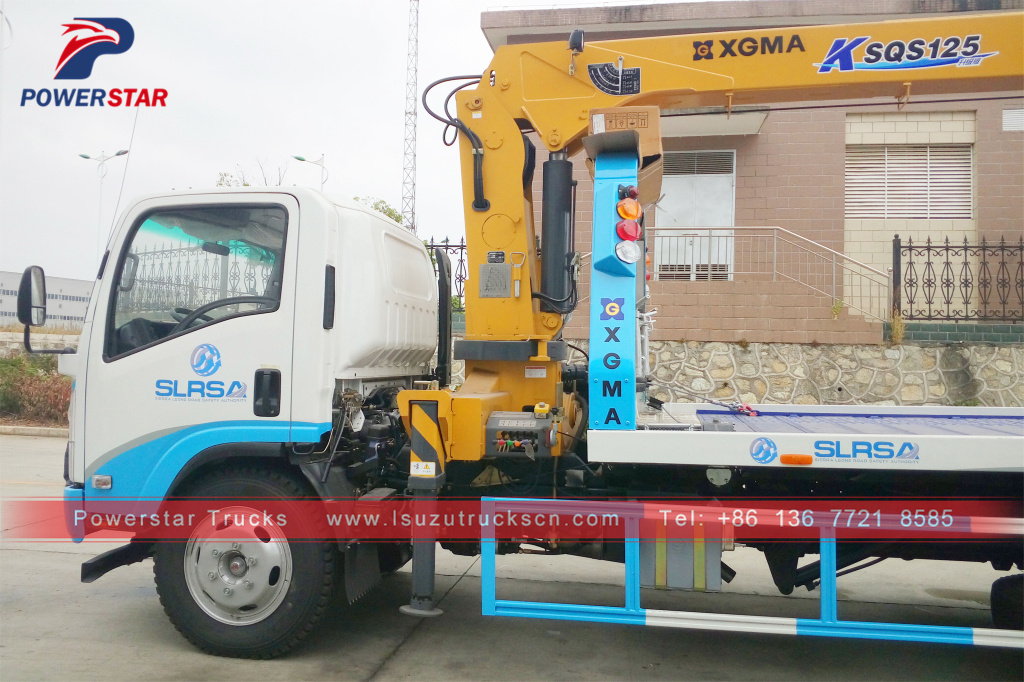

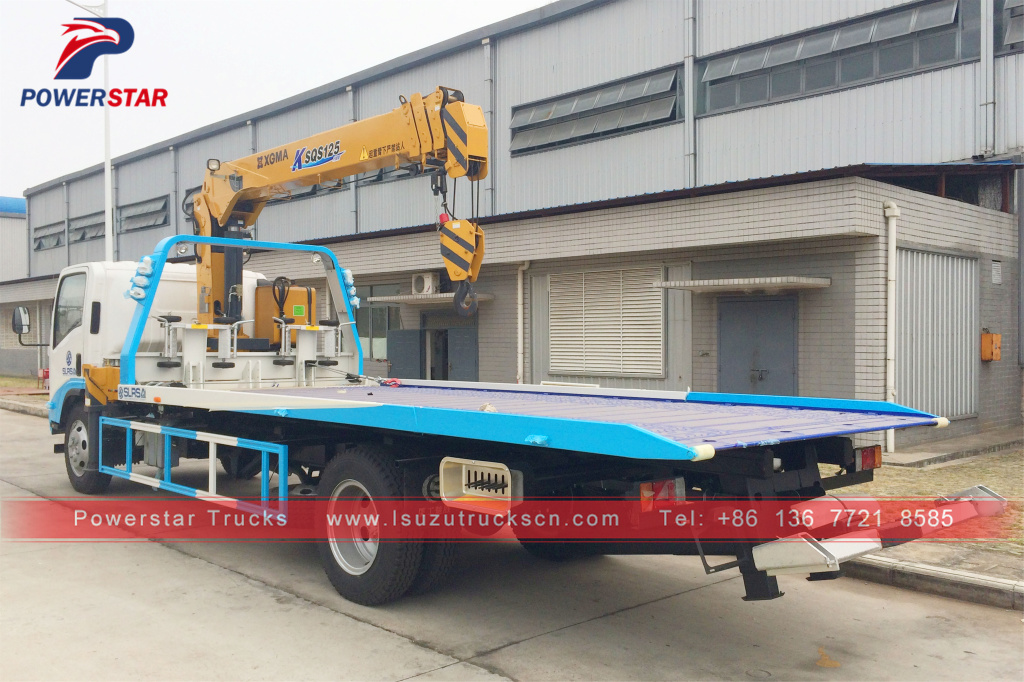

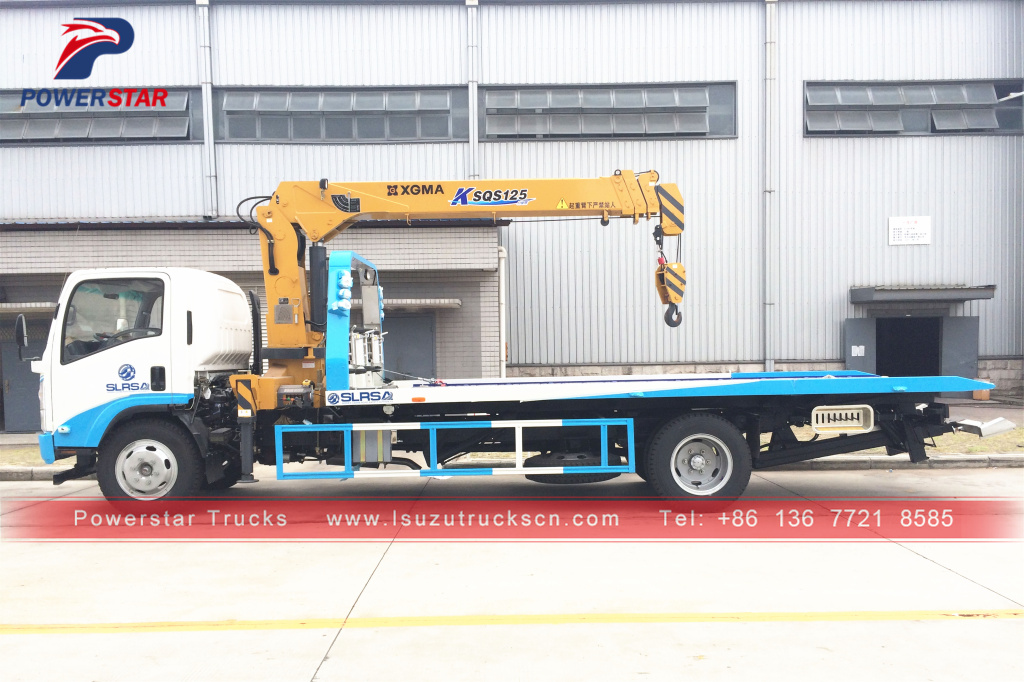

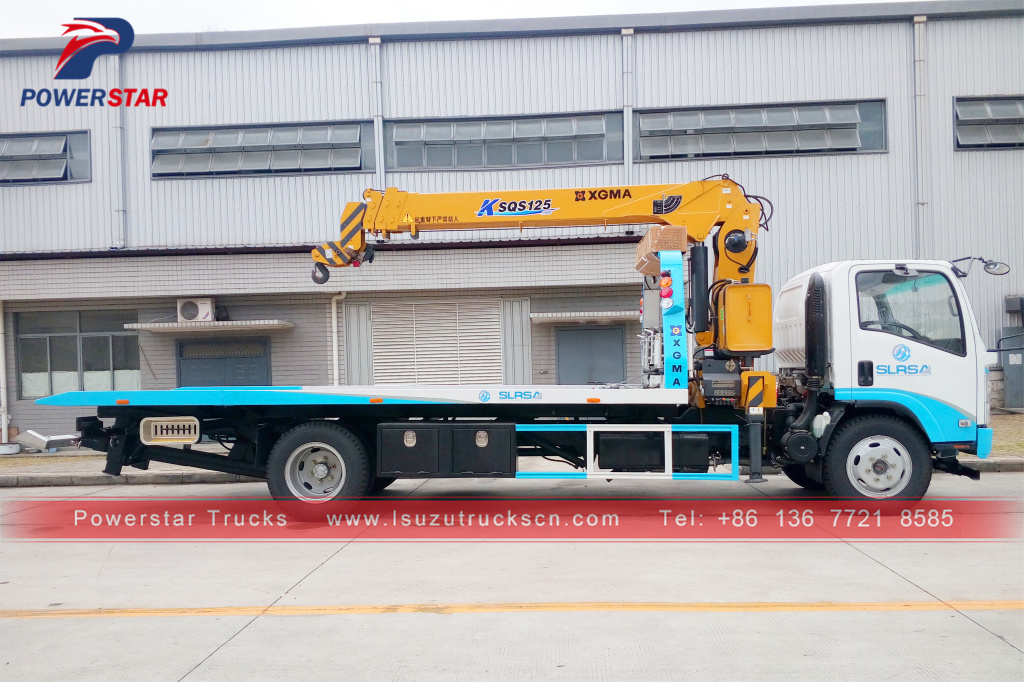

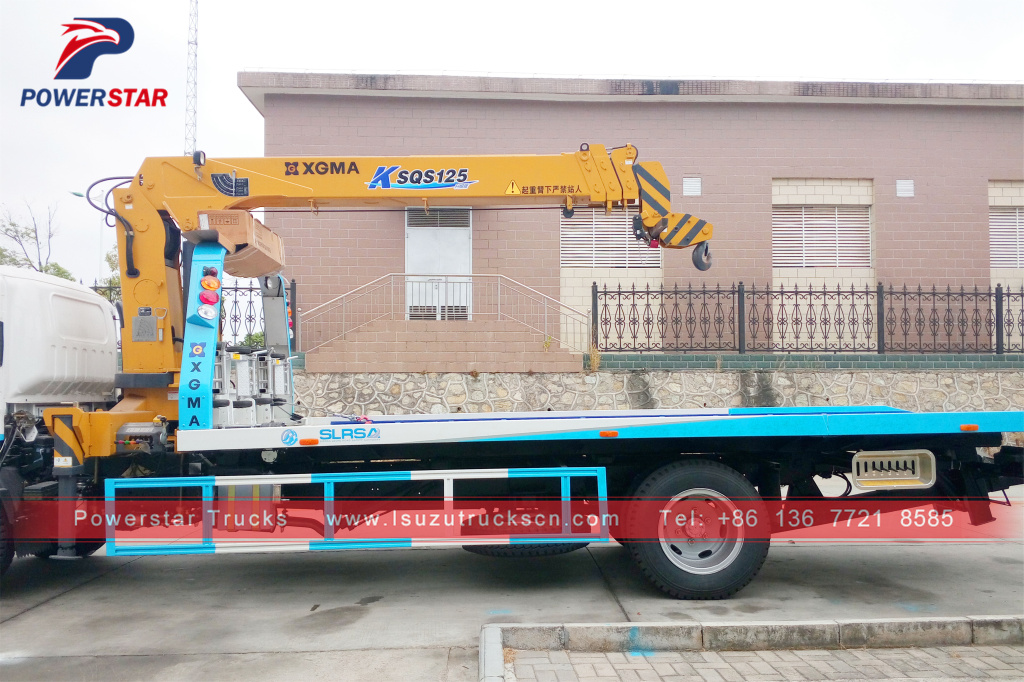

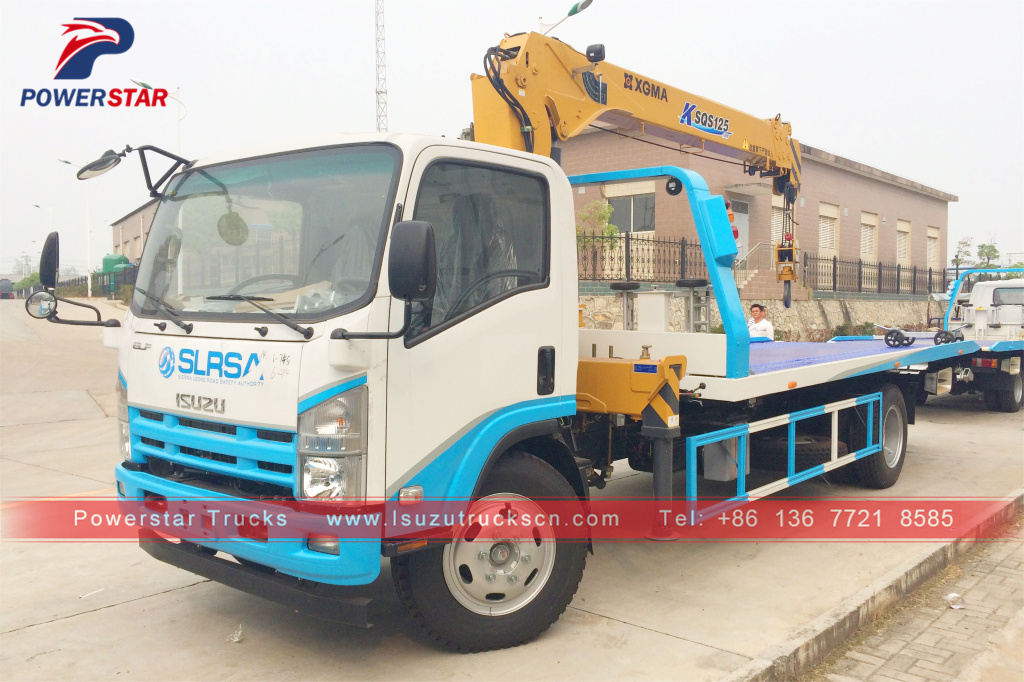

1Japan ISUZU NPR Flat bed rollback car carrier truck with Crane
Flatebed rollback Car Carrier ISUZU (also called Wrecker tow truck with crane, Flat bed recovery vehicle, Rescue towing truck, Bearkdown car carrier, Underlift truck etc.) is ideal choice for road management department,traffice police,air port and automobile repair plant to proceeed to the road repair and resuce.
POWERSTAR Trucks supply recovery truck towing capacity from 2 tons to 80 tons.
Flatbed wrecker truck including car carrier, 0 degree carrier, Platform Tow Truck with crane.
Integrate recovery truck including light duty wrecker, middle duty and heavy duty wrecker truck.
360 degree rotator heavy duty wrecker truck.
---- ISUZU chassis ensures perfect driving performance;
---- ISUZU engine, super powerful; reliable performance, no overhaul within 100,000 km;
---- Hand control panel on both side, easy to operation.
---- Huge auxiliary equipment can be optional;
---- High-performance hydraulic multi-valve and cylinder employeed;
Main specifications:
|
PT5100TQZ |
|
||
|
Driving
Type |
4x2 (Left
hand drive) |
|
|
|
Wheelbase |
4175 mm |
|
|
|
Cab |
Forward control over engine,
all-steel-welded construction |
|
|
|

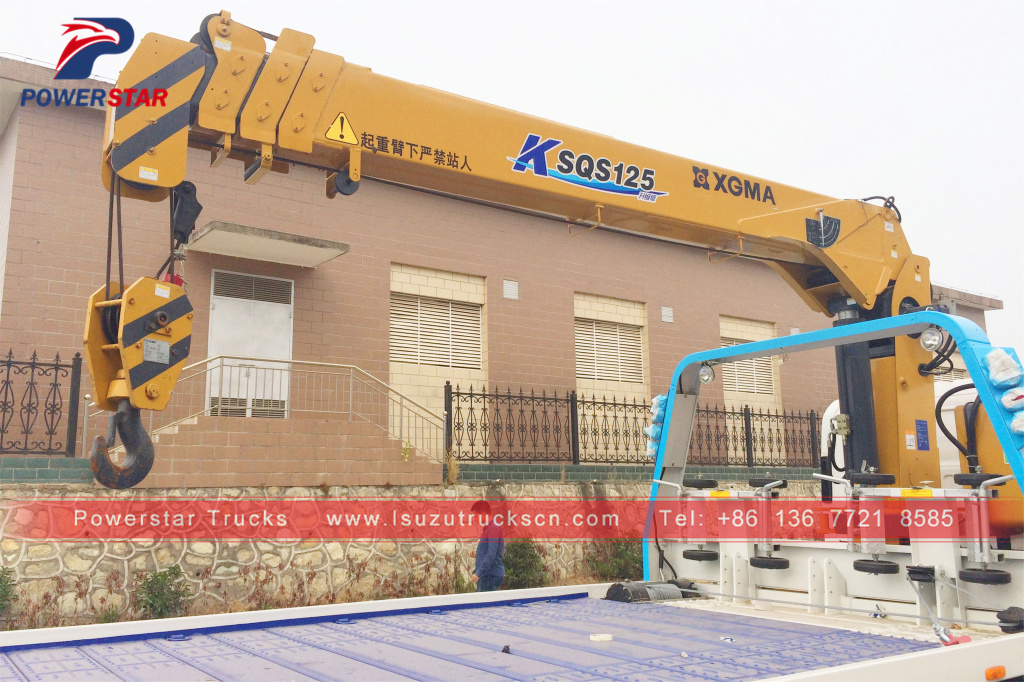

Boom
Structure |
Rated towing
weight |
1000kg |
|
|
Max. Lifting
weight |
4000kg |
|
|
|
Max. Lifting weight
of full extending boom |
2500kg |
|
|
|
Effective length
of boom |
1600mm |
|
|
|
Extension
traveling of boom |
1200mm |
|
|
|
Elevation of
boom (upper/ lower) |
9~-10° |
|
|
|
Platform
Structure |
Min. Elevation
of full extending platform |
8° |
|
|
Max. Loading of
platform |
5000kg |
||
|
External
dimension of platform (L×W×H) |
5800×2140×57mm |
||
|
Ground clearance
of cage floor |
1014mm |
||
|
Max. Pulling
power of winch |
6000kg |
||
|
Dia. Of steel
cable |
10mm |
||
|
Length of steel
cable |
25m |
||
|
Min. Speed of
steel cable |
4.5m/min |
||
|
Engine |
Model |
4HK1-TCG40 |
|
|
Type |
Diesel, turbo
charged inter-cooled, 4 cylinder |
||
|
Max. Power |
190 KW (139 HP) |
||
|
Gearbox |
MLD 6-shift,
mechanical type, 5 forward and 1 reverse with |
|
|
|
Tire |
8.25-20 |
|
|
|
Color |
Yellow (Any color & logos up to wish) |
|
|
|
Max
Speed |
100 km/h |
|
|
---- SGS, BV, CONTECNA, CE Qualified.
---- Local engineer training support.
---- 12 months FREE parts.
---- Factory genuine parts supply.
---- 7 days to worldwide by DHL.
| Operation Manual | Chassis parts | Maintenance Tools |
---- 15 years experiences Design & Export.
---- 100% customer made trucks.
---- Fast delivery assurance.
---- Service more than 60 countries.
---- Professional guidance on your importing documents.
---- CO, FORM E, FORM P, Pre-shipping Inspection...
---- Maximize save your sea freight.
---- Professional guidance on your importing documents.
---- Safety, Quickly, Timely
---- Quickly ship to worldwide.
---- Color and LOGO can be wished.
